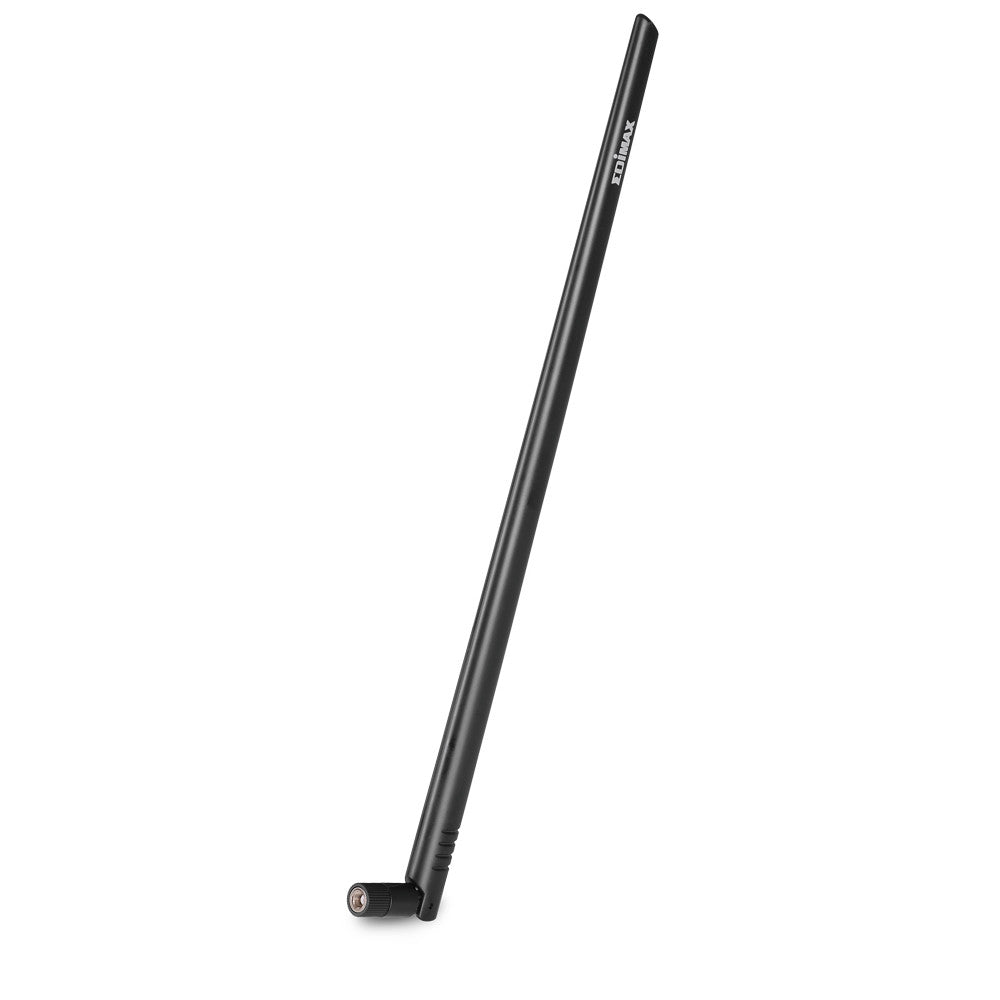

The Edimax EA-IO9D is a high performance 9dBi omni-directional antenna, designed to improve the wireless network signal and coverage in your home and office.
Wireless signal and distance improvement
When connected to a wireless access point or router, the EA-IO9D increases the wireless coverage area. The antenna also improves the transmission range when the antenna is connected to a wireless adaptor.
9dBi high gain performance antenna
The antenna is capable of rotating 360º.

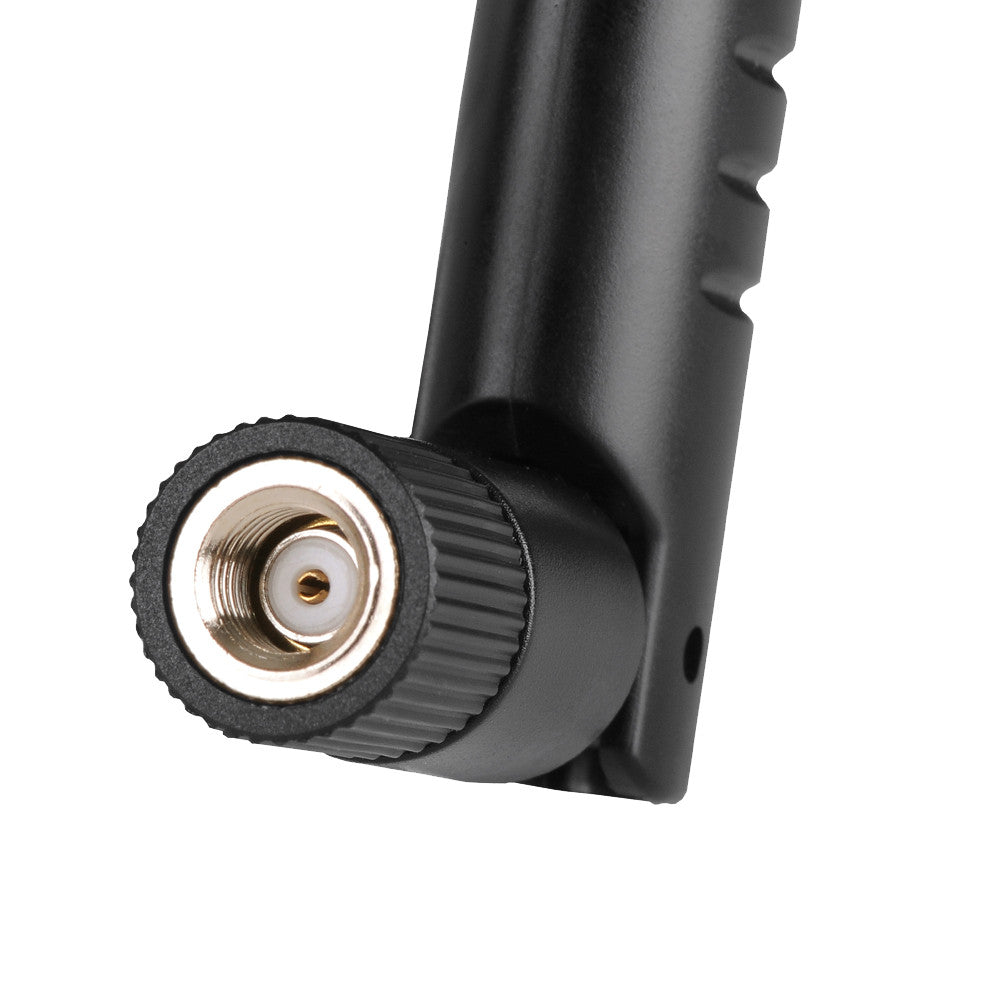

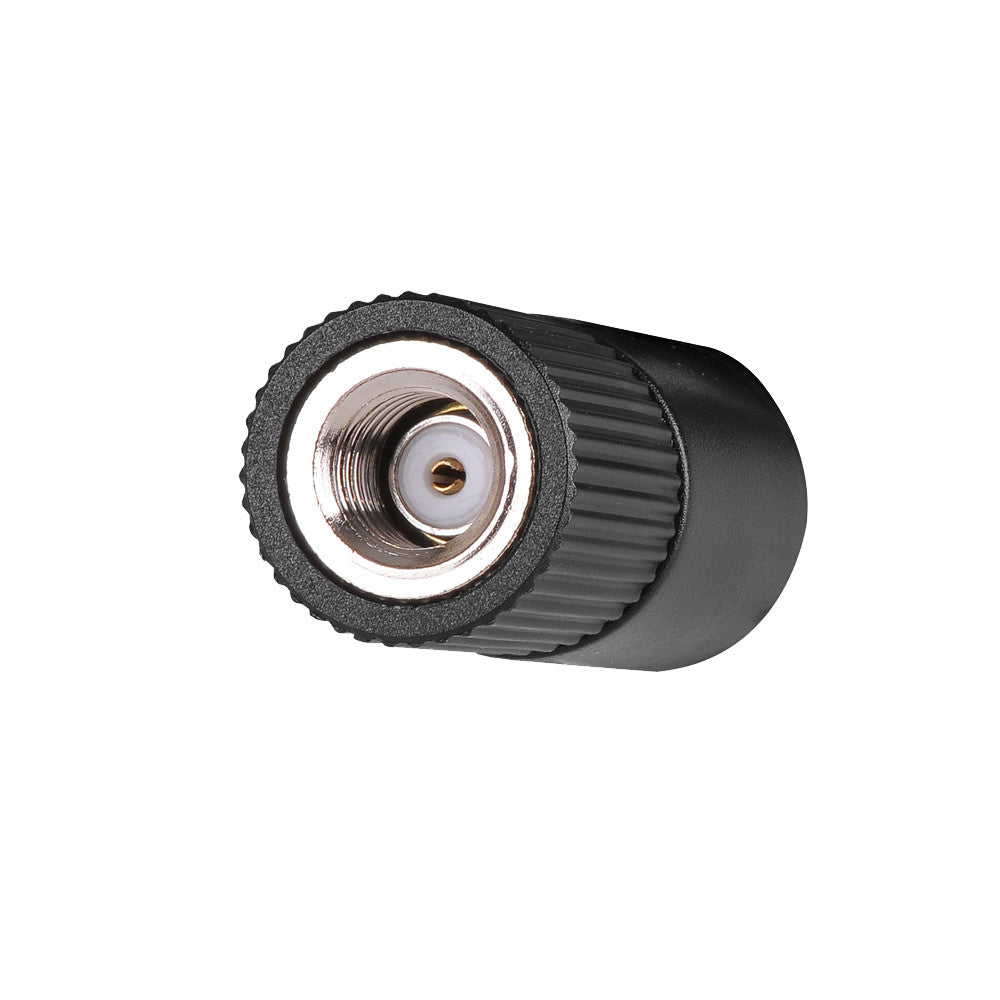

Universal RP-SMA connector for flexible connections
The antenna is not only compatible with Edimax devices, but also with most wireless devices equipped with a RP-SMA interface.
Signal transmission in all directions
The antenna is omni-directional so it transmits and receives signals from all directions. It is the best solution for radial coverage.
No software or driver needed
All you have to do is to unscrew the original antenna from your device and replace it with the EA-IO9D. The antenna starts to work as soon as it is put into position.
- •9dBi RP-SMA detachable antenna
- •RP-SMA connector
- •HPBW/ horizontal: 360 degrees
- •HPBW/ vertical: 15 to 20 degrees
Standard & Frequency Band
- VSWR (Voltage Standing Wave Radio) : 2.0 : 1 Max
- Impedance: 50 Ohms
- •Power handling 2 W (c w)
- Antenna : OD 13 x 375mm
NETWORK SETUP DIAGRAM AND RELATED PRODUCTS
- Connect to a wireless 802.11b/g /n device (access point , router or adapter…) with RP-SMA connector
- Adjust the antenna angle to pick up strongest signal
