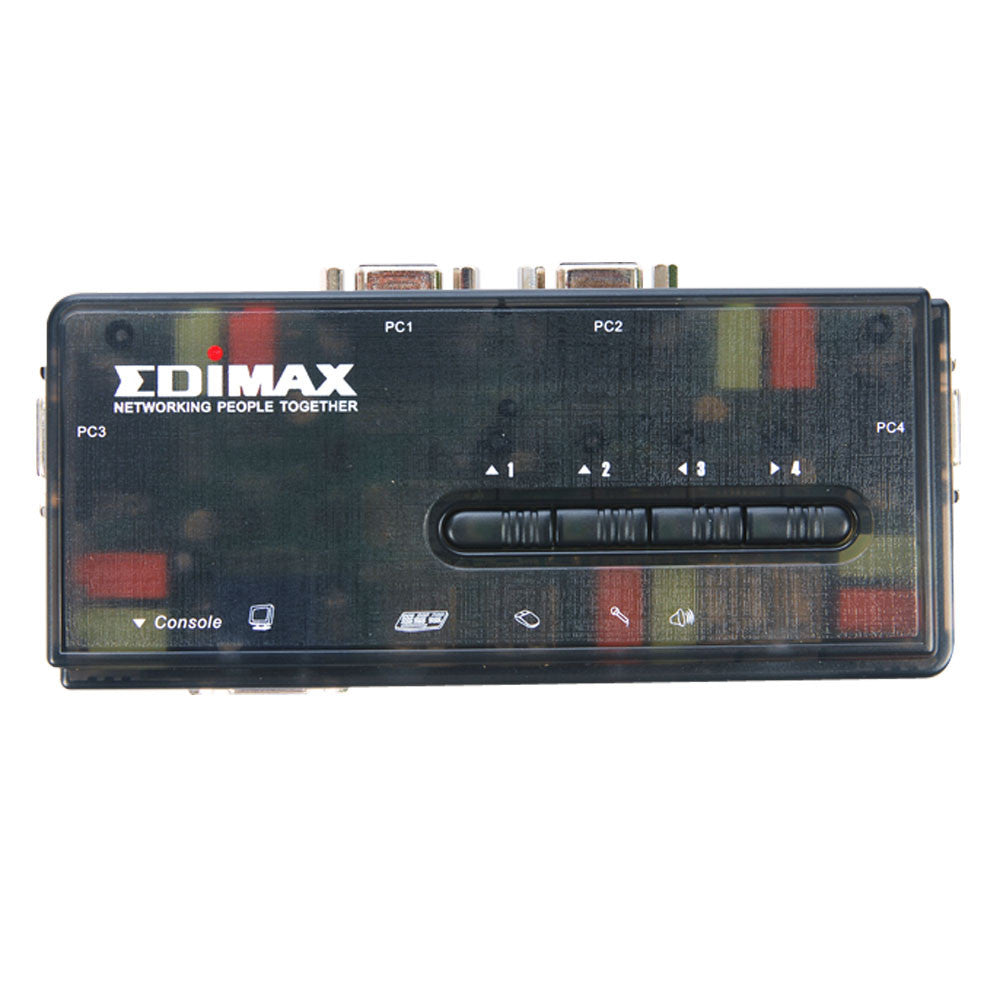

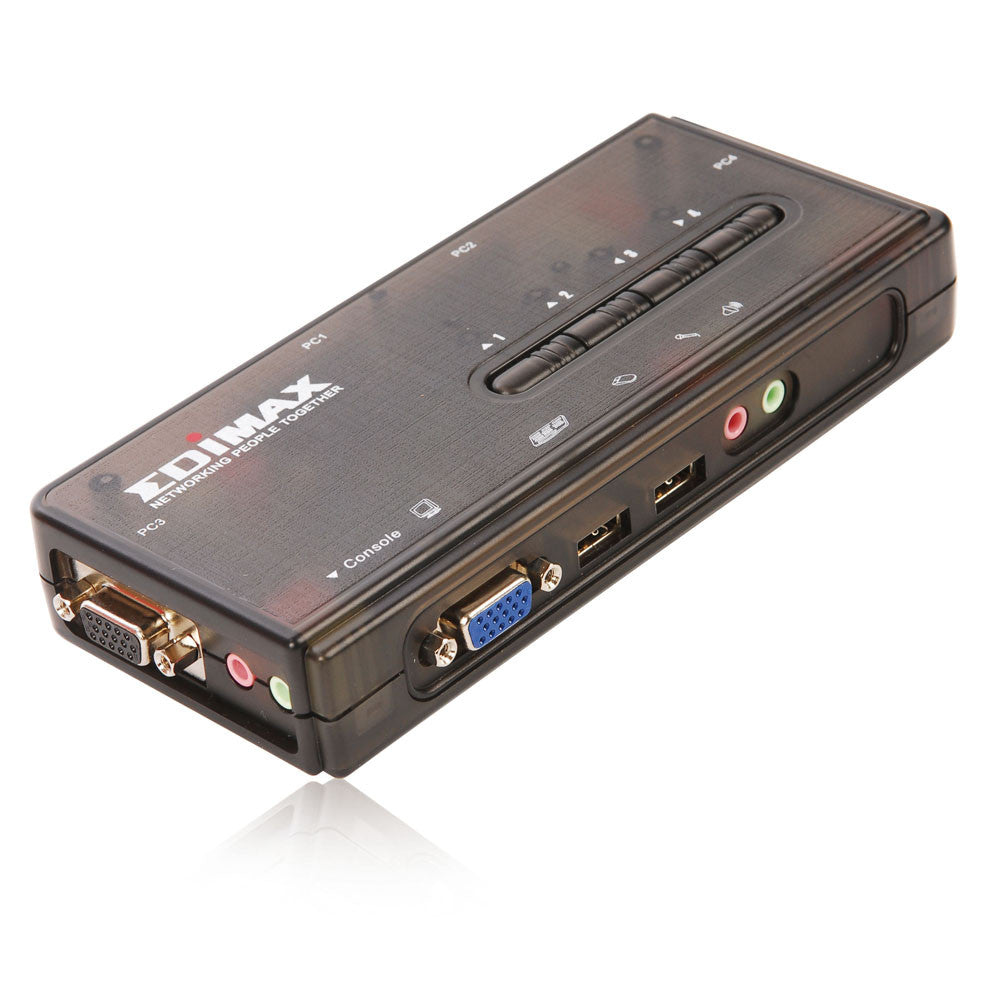

EK-UAK4 Slim Desktop KVM Switch is a very slim and compact KVM Switch that is specifically designed for individual and SOHO use. You can use it to control four computers using only one USB keyboard,video and USB mouse.
EK-UAK4 supports hotkeys, push button and auto scan. Its completed keyboard and mouse emulation for simultaneous PCs boot-up process. The Hot Plug feature let you connect/disconnect PCs without powering down PCs.
EK-UAK4 provides Audio and Microphone switching function for SOHO and office desktop multimedia application. It allows you to access, control, boot and reboot four USB enabled multimedia computers using only one keyboard, video, mouse and optional speaker set and microphone.
The audio and microphone switching function of EK-UAK4 allows you to leverage the multimedia systems on each of your four computers. You can monitor the audio/mic input/output of each computer without plugging on and off the audio/mic cables. Furthermore, it offers you user-programmable simultaneous /independent PC and Audio/mic switching function for flexible multimedia and KVM Switching operation. In this way, you can listen to music from one computer while performing other tasks with the other computers.
With its integrated connectors for USB keyboard, video and USB mouse, EK-UAK4 requires special 3-in-1 KVM combo cables (included in the package) for connection with PCs. There will be no more cabling clutters on your desktop.
EK-UAK4 can save your money, space and devices when you need to control 4 PCs. No power supply and software needed, just plug and play.
• Supports Microsoft Intellimouse, Microsoft Optical Mouse, Microsoft Intellimouse explorer, Logitech Net Mouse…etc..
• Supports Win98SE/XP/2000,Vista, Linux and Mac10.4 or higher
• Hot Plug - Connect/Disconnect from PCs without powering down PCs.
• PC selection via Push Buttons, Hotkeys (user definable) and Switching software
• Restores Keyboard status when switching PCs
• LED Display for easy status monitoring
• Buzz sound for switching confirmation
• No Power Adapter And Software Required
Max PC Connections

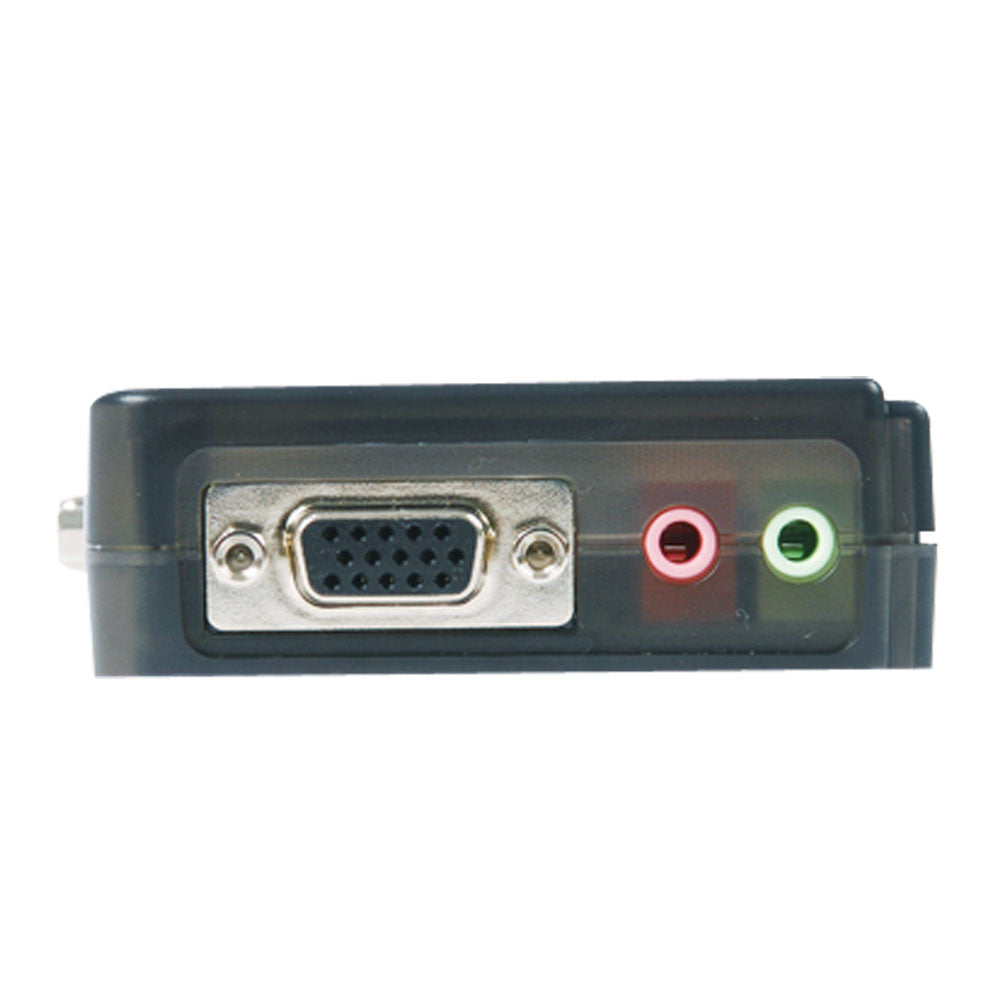

PC Side Connection
- 4 x HDB 15-pin female (integrated with USB)
- 4 x 3.5mm audio jack
- 4 x 3.5mm mic jack

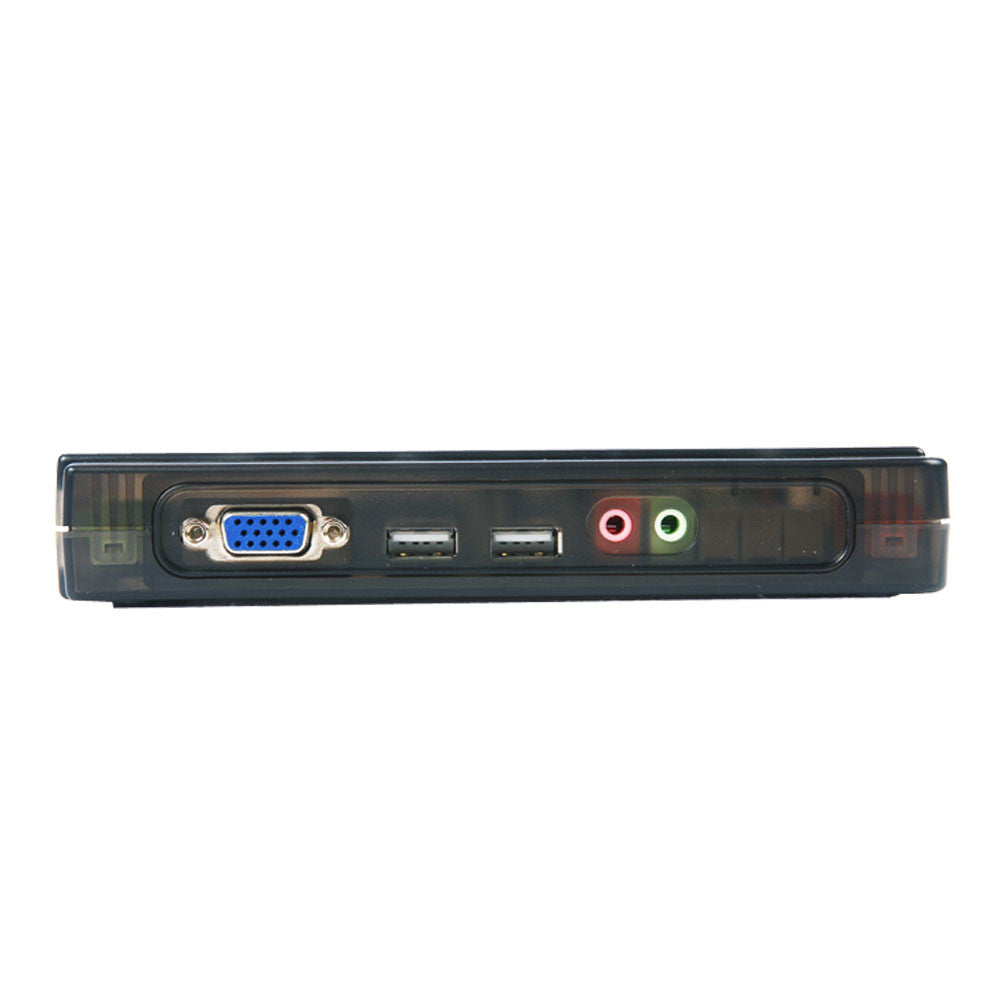

Console Side Connection
- 2 x USB Type A (Keyboard & Mouse)
- Hot Keys / Push Buttons / Switching Software
PC Ports LED
- 4 x detachable slim USB KVM Combo Cable
- 10~60" (with an increment of 5”)
