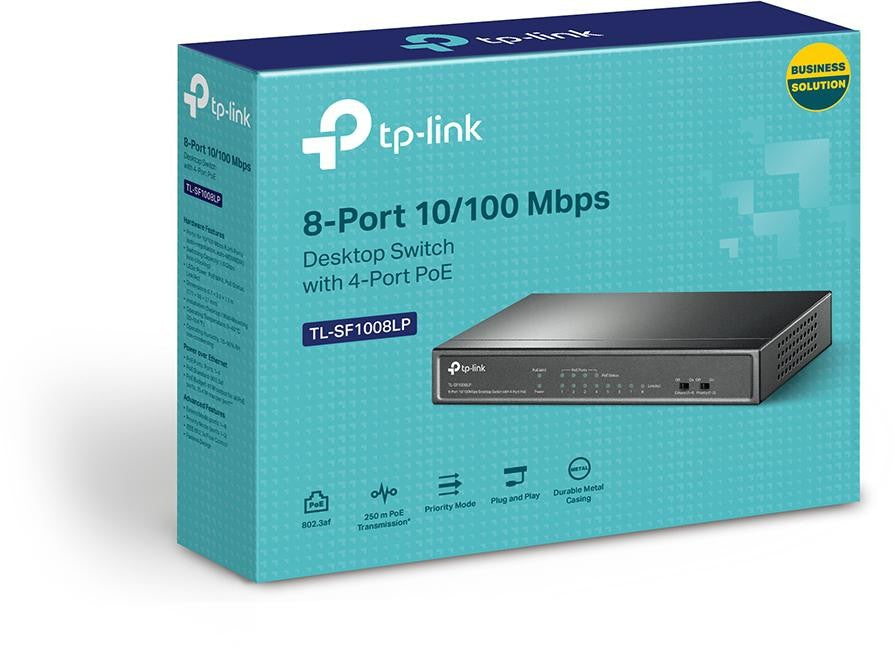

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE/Up To 41W For all PoE Ports

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE 8 10/100 Mbps RJ45 ports 4 PoE ports transfer data and power on individual cables Works with IEEE 802.3af compliant PDs Up to 250m data and power transmitting range under Extend Mode** Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application Supports PoE Power up to 41 W for all PoE ports* Plug and play with no configuration required

HARDWARE FEATURES Interface 8 10/100 Mbps RJ45 Ports (Ports 14 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) Fan QuantityFanless Physical Security LockYes External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Ports 14 Power Supply: 41 W Backbound Bandwidth1.6 Gbps Mac Address Table2K Dimensions ( W x D x H )6.7 3.9 1.1 in (171 98 27 mm) Max Power Consumption 2.2 W (220 V/ 50 Hz. no PD connected) 47.1 W (220 V/ 50 Hz. with 41 W PD connected) Max Heat Dissipation 7.5 BTU/h(no PD connected) 160.61 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission MethodStore-And-Forward Advanced Functions Compatible With IEEE 802.3af Compliant PDs Extend Mode Button (Ports 14) Priority Mode Button (Ports 12) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS CertificationFCC; CE; RoHS Package Contents TL-SF1008LP Power Adapter Installation Guide Environment Operating Temperature: 040 ? (32104 ?) Storage Temperature: -4070 ? (-40158 ?) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing
