RFI CDQ-7199-B Bullbar Mounted Q-Fit Broomstick 3G+4G+4GX Antenna 2080mm Black/White
The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

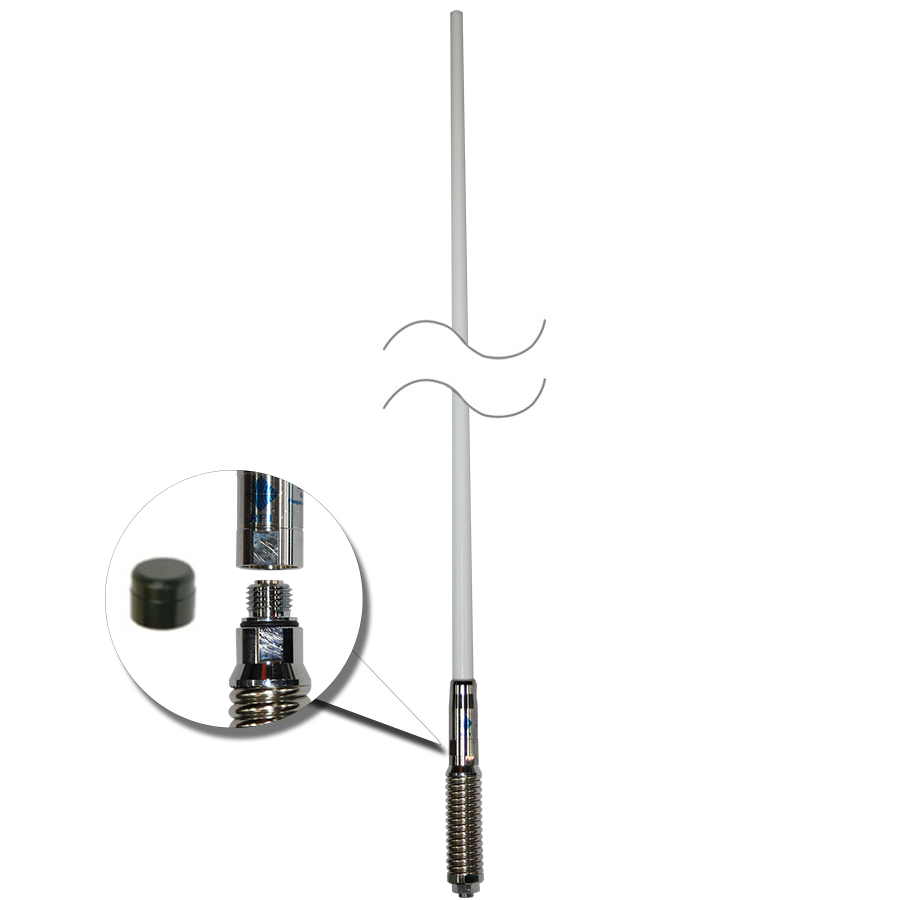

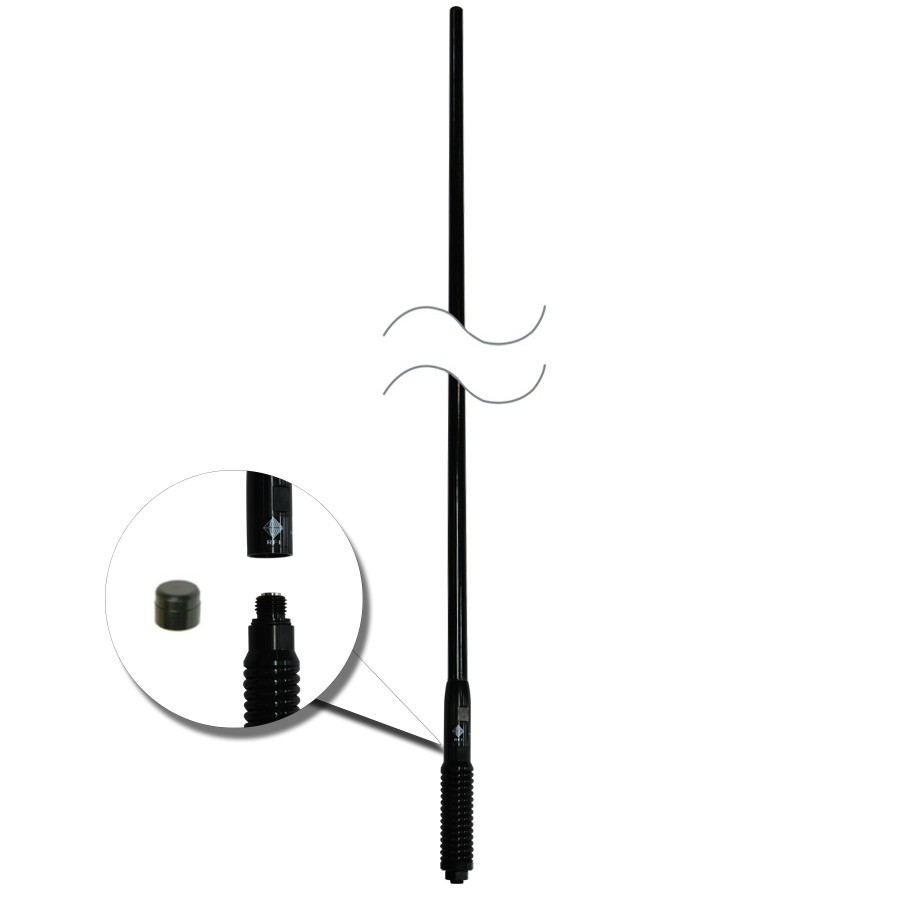

in addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security
|Frequency:||698-960 / 1710-2170 / 2300-2700 MHz|
|Nominal Gain dBi||8.5 / 4.5 / 5.5|
|Radiator Material:||Flexible PCB|
|Cable and Connector||5m of 9006 low loss cable terminated with FME female connector|
|Radome Diameter mm||22.5 - 15.6 Tapered|
|Packaging||Retail Hang Sell|
|Termination||FME female connector|
|Mounting||16mm mounting hole
