Provides a 3dBi gain for 698-2700 MHz

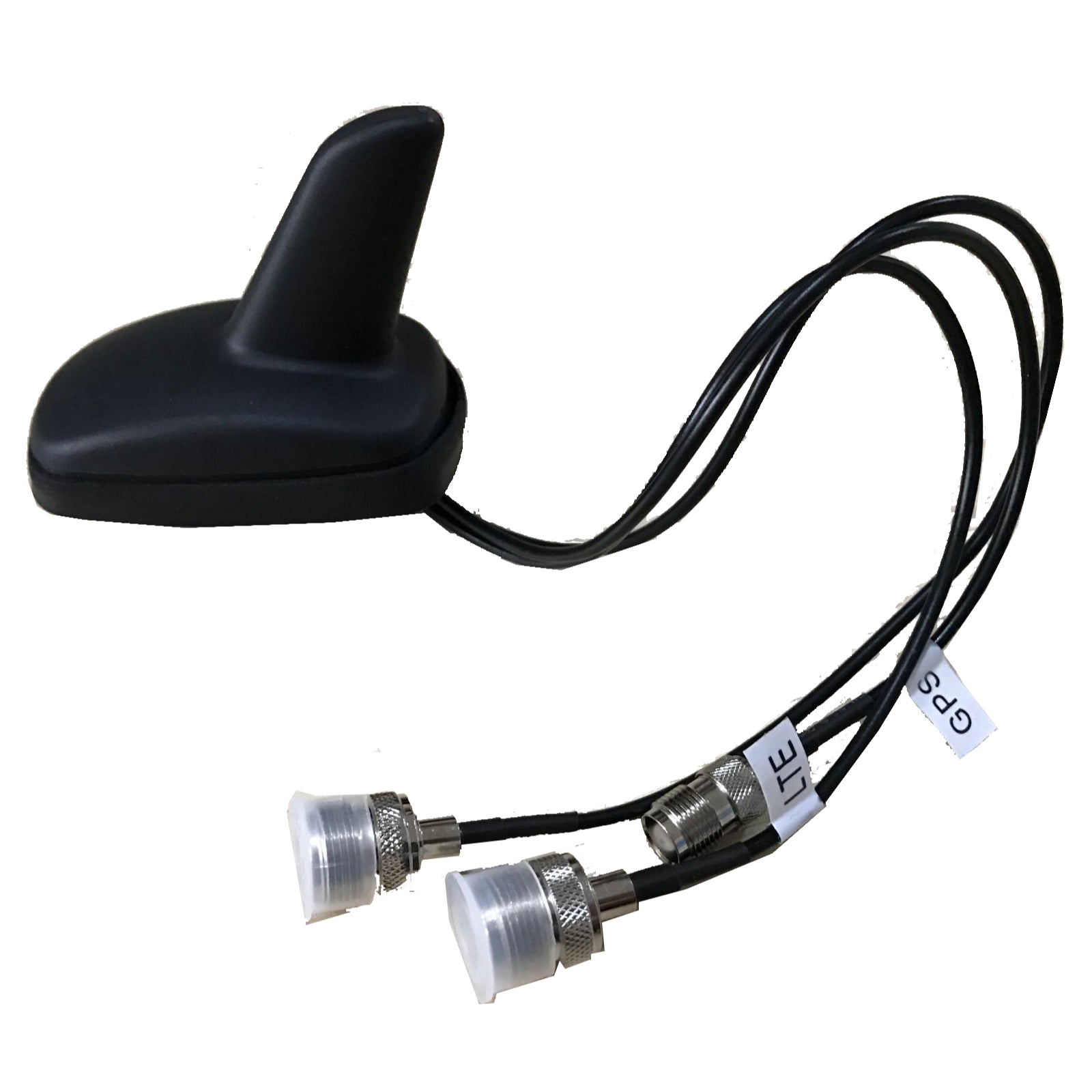

The ANT-BH-SF-100 screw mount Shark Fin Transit Antenna covers GPS/4G/WiFi requirements and is designed for maximum performance and versatility for telematics applications, emergency service vehicles fleet monitoring and asset tracking.

Features:
• Supports 698 – 2700 MHz suitable for all mobile carriers
• IP67 rated
• RoHS Compliant
• Mounting includes thread bolt mount and permanent adhesive
• Antenna has dimensions 83x54x83mm

ELECTRICAL SPECIFICATIONS

Frequency Range: GPS - 1575.42 MHz ±3 MHz / WiFi - 2400-2438 / 5700-5800 MHz / LTE - 698-960 MHz / 1710-2700 MHz
Impedance: 50 Ω
VSWR: LTE - 2.0: 1 / GPS - 2.0:1
Gain: GPS - 5 dBi / LTE - 3 dBi / WiFi - 3 dBi
Polarisation WiFi: GPS - RHCP / LTE - Linear / WiFi - Linear
Max Input Power: 50W

MECHANICAL SPECIFICATIONS

Dimensions: 85 x 54 x 83 mm
Weight: 180g
Operating Temperature: -40°C to +85°C
Connector: GPS: TNC-Female / LTE: N-Female / WiFi: N-Female
Cable: GPS: RG174 250mm / 3G/4G: RG174 300mm / WiFi: RG174 350mm
Material: ABS
Antenna Colour: Black
RoHS Compliant: Yes
Waterproof: IP67
