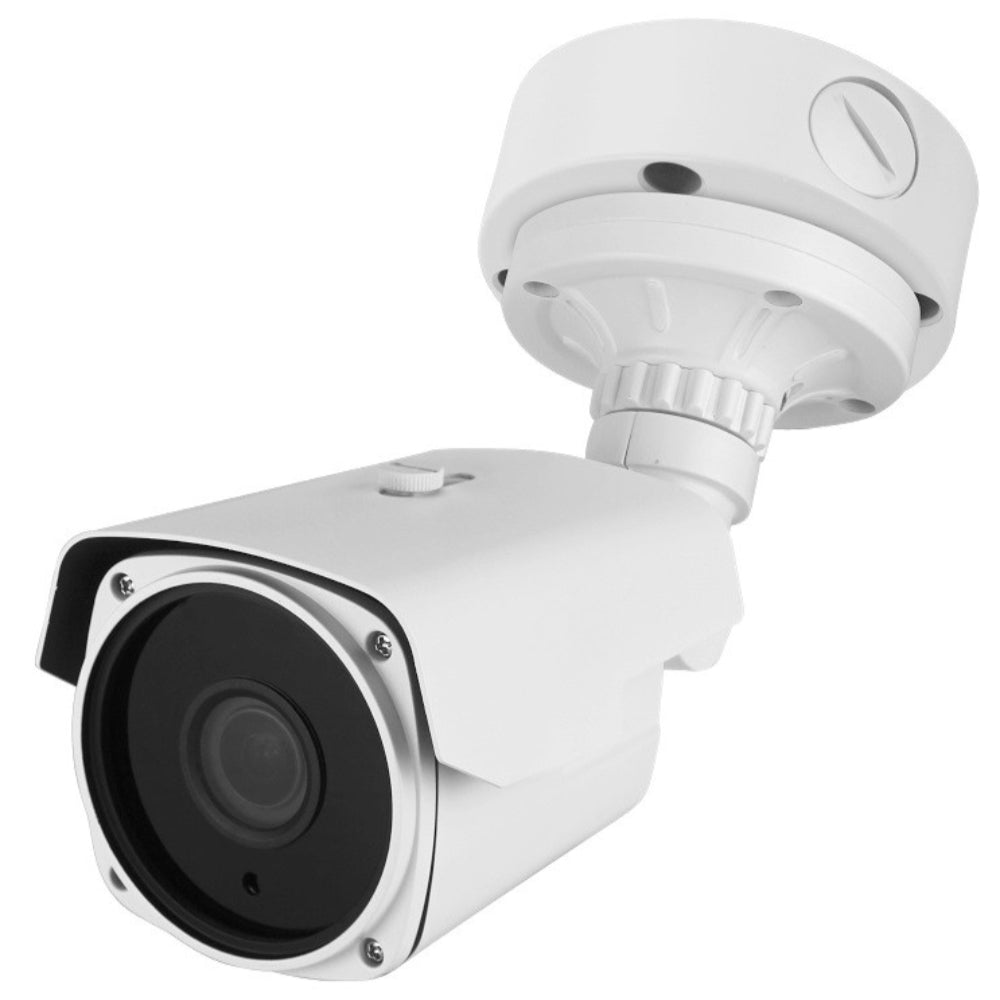

DigiGuard TVI 5MP TVI Vari-Focal Lens 4x Matrix IR IP67 Weather Proof Bullet Camera with junction box



This product is currently sold out

  • 5MP HD-TVI Video (5MP TVI & AHD, 4MP CVI, CVBS)
  • 4 in 1 Technology (TVI, CVI, AHD, Analog signals)
  • 4x Matrix Smart IR for distance up to 60M
  • Vari-focal 2.8~12mm lens, IP-66 rated
  • Voltage: DC12V Only, Junction box included
  • Warranty- 24 months




Imaging Device

1/2.9" SONY 6MP CMOS sensor

Effective Pixels

5MP (2592 x 1944)

Scanning System Progressive Scan
Synchronization Internal, Negative Sync
Horizontal Resolution TVi 5M / AHD 5M / CVI 4M / CVBS
S/N Ratio More than 50dB (AGC off)
Min. illumination 0.001 Lux (Colour) / F1.2
IRIS Adjustment Auto
LENS 2.8 ~ 12 Manual Zoom Lens
Electronic Shutter Auto /FLK  1/25s ~ 1/50,000s, 1/30s ~ 1/60,000s
MANUAL (X2~X512)
Gama Characteristic 0.45
IR Distance 30 Meters
IR Status

Under 10 Lux by CDS

Auto Gain Control Auto
Day & Night Auto
Privacy Masking On/Off (Programmable)
DNR LEVEL (0~100) Adjustment
Digital Zoom 1.0x - 8.0x
SENS-UP OFF / x2 - x8
Digital Effect OFF / V-FLIP / MIRROR / ROTATE
Dimension (mm) 218(W) x 90(H) x 90(D)mm
Weight (g) 1400
Input Voltage DC 12V
Power Consumption IR OFF: 210mA / IR ON: 1000mA
Operating Temp / Hum. -10ºC~ +50ºC / 30% ~ 80% RH
Stoprage Temp / Hum. -20ºC ~ +60ºC / 20% ~ 90% RH



* Sensor (CMOS) 1/2.9" SONY 6MP CMOS sensor * Auto Gain Control (AGC) Built-in auto gain control (AGC) circuit. The colour camera can get high definition picture in low Lux condition. * Scanning Mode NTSC or PAL mode

* Auto Electronic Shutter (AES) Built-in auto electronic shutter function. The colour camera’s AES speed can reach 1/100,000s.

*Gama Characteristic Camera Gama characteristic is 0.45.

*Switch the output signal by OSD button

Press “left” key after 5 seconds then release : CVBS

Press “right” key after 5 seconds then release : TVI

Press “up” key after 5 seconds then release : AHD

Press “down” key after 5 seconds then release : CVI
