The DHS Z-Wave Advanced Remote (manufactured by Remotec) is capable of creating and controlling a Z-Wave network as well as acting as a secondary controller to an IP Gateway (like Vera 3/Lite).
- Control devices individually or in groups using preset scenes(up to 12 scenes)
- 1 year battery life
- Compatible with most Z-Wave enabled devices
- Supports multi-channel devices
Product Details
The DHS Z-Wave Advanced Remote is a smart Z-Wave controller designed to operate as either a primary controller, capable of creating and managing its own Z-Wave network, or a secondary controller to an IP Gateway (like Vera 3/Lite).
The DHS Z-Wave Advanced Remote works with almost all Z-Wave enabled devices including; binary switches, dimmers, thermostats, door locks, binary or multi-level sensors. Users can control their Z-Wave enabled devices individually or through “Scene” control. A scene is a collection of Z-Wave devices configured to user-preferred settings, levels, modes or operating conditions which can all be activated with a single command.

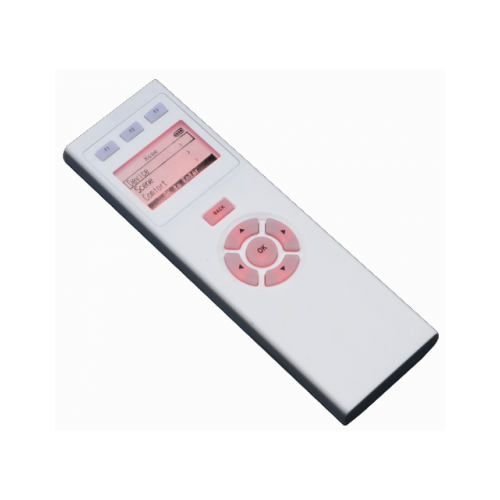

The DHS Z-Wave Advanced Remote is also equipped with a backlit LCD screen and an intelligent Self Navigated Button (SNB) system. Users can setup and operate their Z-Wave devices using this remote, and enjoy a networked, wireless home automation system anywhere at home.
Works with Z-Wave enabled devices such as:
- Thermostats (DHS Z-Wave Thermostat ZTS-110)
- Door Locks (VISION Z-Wave Deadbolt)
- Window Drapes/Blinds/Shades (DHS Z-Wave Tubular Motor Controller)
- Dimmers (FIBARO Z-Wave In-Wall Dimmer and DHS Z-Wave In-Wall Dimmer)
- Switches (DHS Z-Wave In-Wall Single Switch, AEOTEC Z-Wave In-Line Switch and Fibaro Z-Wave In-Wall Single Switch)
- Most split type air controllers (via REMOTEC Z-Wave A/C Controller)
This product integrates with Australian certified (921.42MHz) Z-Wave controllers:
- Vera 3/Lite
Please note: This device is not compatible with Aeon labs dimmers.
Product Support
Manuals:
⇒ REMOTEC ZRC-100 Advanced Remote User Manual (Size: 582KB)
⇒ REMOTEC ZRC-100 Advanced Remote Quick Setup Guide (Size: 192KB)
Technical Specifications
RF Protocol
|
Z‐Wave
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
Z‐Wave device type
|
Z-Wave Controller
|
Power
|
4 AAA batteries
|
Operation Range
|
Up to 30m indoors with no obstacles
|
Application
|
Indoor use only
|
Operation temperature
|
-10 ~ 40 °C
|
Storage temperature
|
‐10 ~ 70 °C, humidity 5 ~ 95%RH(max)
|
Weight
|
150g
|
Housing
|
ABS
|
Compliance
|
C-Tick
|
