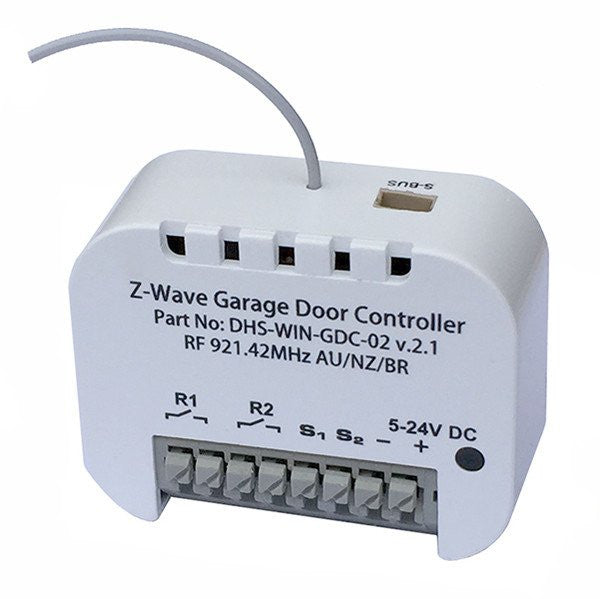

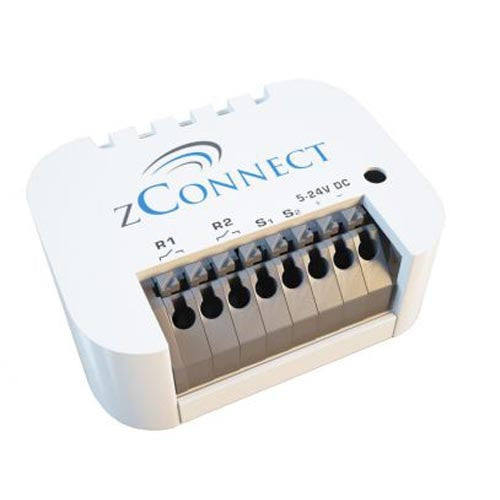

The zConnect garage door opener is designed for residential and light commercial usage, primarily for integration with Z-Wave home automation systems such as VeraEdge/VeraPlus/VeraSecure, Fibaro HC2/Lite or similar.
The zConnect garage door opener pairs with your existing automatic garage door opener via wired garage motor wall opener momentary switch to provide wireless remote opening and closing control from your Z-Wave network and controller. When installed, you can open and close your garage door from anywhere. The zConnect garage door opener has a lot of build in extra functionality.
Please note: This device will work only with garage door motor which has dry contacts for the optional wall switch. Refer to your garage door motor manual.
The controller also includes inputs for binary and multi-level sensors allowing you to fully control your garage environment:
- Attach optional external devices to get audible and visual warnings to alert those nearby of the door's impending movement.
- Connect an optional IR beam sensor to ensure that your garage door only closes when it is safe to do so.
- Connect an optional limit switch which will relay the status of your garage door (i.e open or closed) to your Z-Wave gateway.
Specification
RF Protocol
|
Z-Wave , SDK version: 6.51.03
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
Application
|
Indoor use only, for outdoor use watertight plastic box
|
Power
|
4-24 VDC
|
Operation Range
|
Up to 45m indoors with no obstacles, 75
|
Enclosure
|
Plastic
|
Comliance
|
EN 60669-2-1
|
Operating Temp. | -10C ~ +40C |
Dimensions
|
18mm x 48mm x 37mm
|
