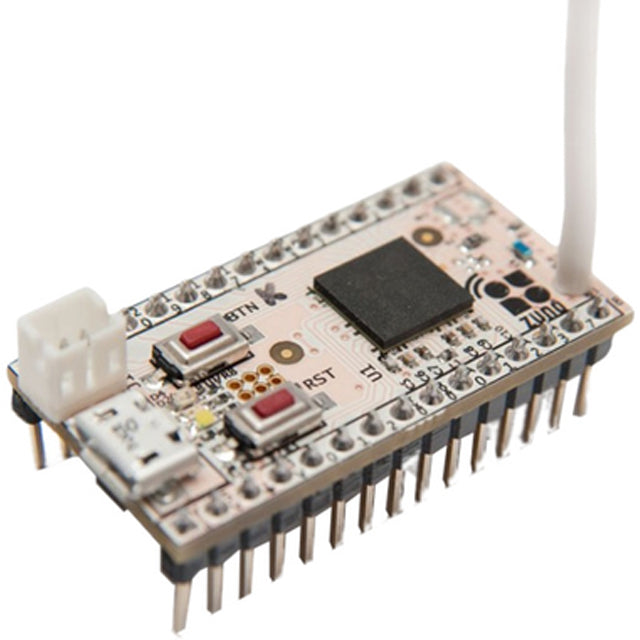

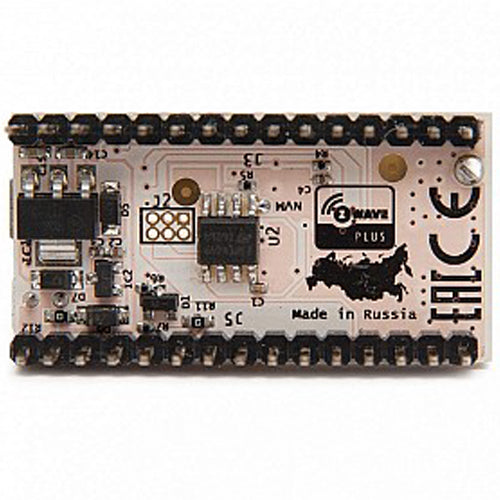

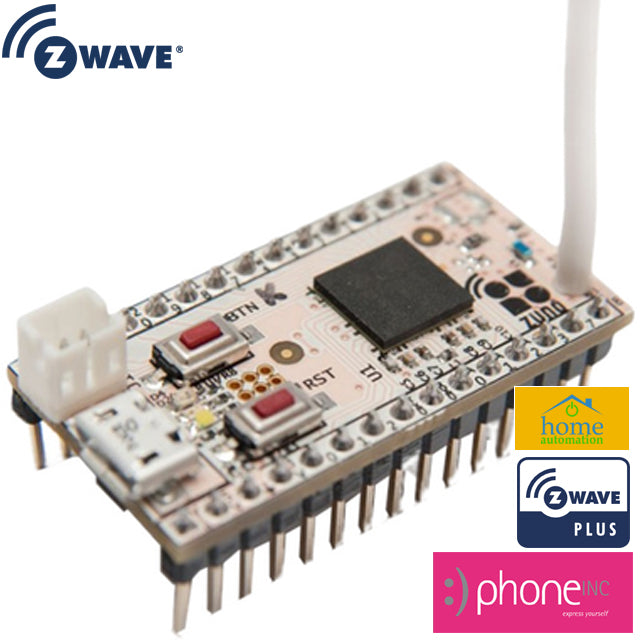

The Z-WAVE.ME Z-Uno is the first (and only) easy to use developer board that allows you to create your own Z-Wave device!

• Compatible with many Arduino peripherals
• Z-Wave plus certified
• Programmable with simplified C language
• Supports 1-Wire and I2C (Software)

Product Details

The Z-WAVE.ME Z-Uno is the perfect solution for DIY home automation systems. It is made for those who are limited by the existing choice of Z-Wave products and want to extend their smart homes with more sensors and actuators; connect LEDs, buttons, switches, motors or any low voltage sensor (including most compatible Arduino sensors) and write your own code (or sketch)  in simplified C language to create your personalized Z-Wave device.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

• Vera Edge - most popular sensors scales, switches, and dimmers are supported
• Fibaro Home Center 2/Lite - full support from 4.070 (some scales might not be supported)
• Z-Way / RaZberry - full support

SPECS

RF Protocol

• Z‐Wave Plus (500 series chip)

RF Frequency

• 921.42Mhz ‐ AU/NZ  approved RF for Z‐wave

Z-Wave Device Type

• Binary/Multilevel switch,
• Binary/Multilevel sensor, meter

Power

• USB 5V, external 3V, external 7-18V or battery

Hardware

• 28kB Flash memory for sketches
• 2 kB RAM
• 26 GPIO
• 1 USB (serial port)
• 64 kB EEPROM

Operation Range

• Up to 30m indoors (with no obstacles)

Z-Wave Channel Types

• Binary/Multilevel switch,
• Binary/Multilevel sensor, meter

Operation Temperature

• 10 ~ 40 °C

Storage Temperature

• ‐10 ~ 60 °C

Weight

• 10g

Board Dimensions

• 39mm x 20mm x 16mm

Antenna Length

• 86mm

Unveil your imagination to create

• battery powered in-wall remote switch
• rotary dimmer control
• temperature/soil humidity/luminosity/voltage/distance or any other sensors as well as dry contact sensor or tick counter
• low voltage switch
• IR blaster
• LED driver
• motor driver
• battery powered keypad
• converter from any protocol to Z-Wave (using SPI/UART/I2C/1-wire bus)

Make your own Z-Wave Device

• control any Arduino compatible peripherals
• define your own logic by modifying your sketch
• use Arduino IDE and language to write and upload sketches
• easy to use
• requires no knowledge of Z-Wave protocol
• complete DIY solution

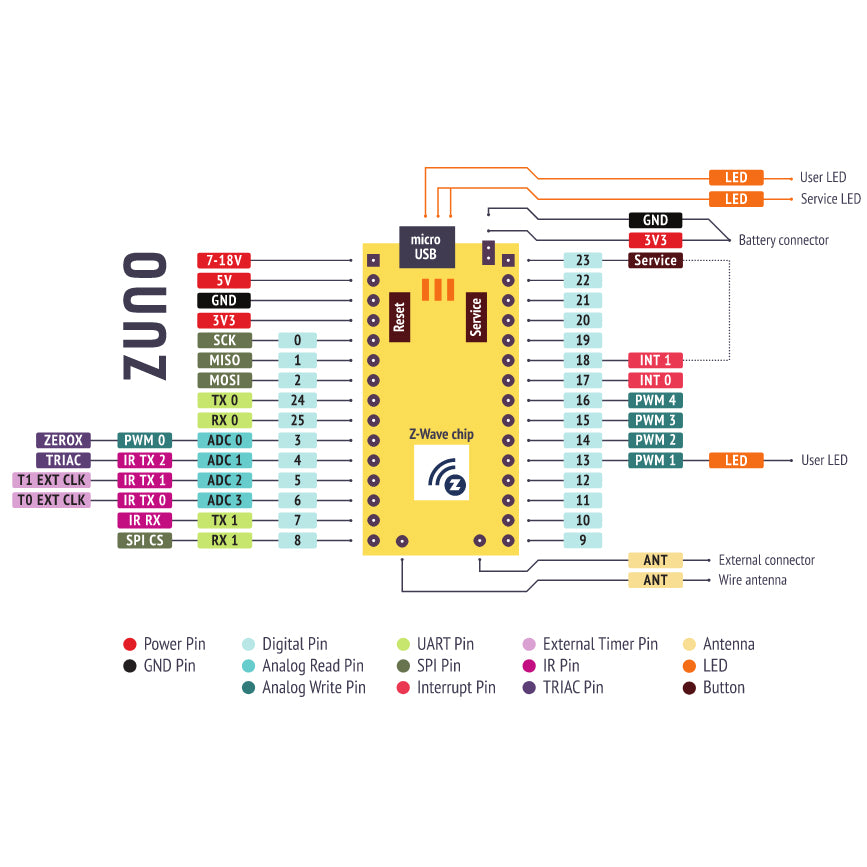

Hardware SPECS

• 28 kB Flash memory for your sketches
• 2 kB RAM available
• Z-Wave RF transmitter at 9.6/40/100 kbps
• 26 GPIO (overlaps with special hardware controllers)
• 4 ADC
• 5 PWM
• 2 UART
• 1 USB (srial port)
• 16 kB EEPROM
• 1 SPI (master or salve)
• 4 IR Controllers, 1 IR learn capability
• 1 TRIAC/ZEROX to control dimer
• 3 Interrupts
• 1 Timer 4 MHz
• I2C (Software)
• 1-Wire (Software)
• 8x6 keypad Scanner (Software)
• 2 service LED, 1 service button
• 1 user test LED

Power Modes

• USB 5 V, external 5 or 3 V, external 7-18 V or battery (via MU-2F connector, included)
• always on, sleeping or FLiRS (Frequently Listening)

Z-Wave Supported features

• Z-Wave Plus compliant
• all Z-Wave frequencies (check availability)
• out of the box support of AES 128 bit Security
• upgrade via USB or radio (Z-Wave OTA)
• Multichannel (10 channels)
• 5 Association groups
• controls switches, dimmers, door locks and scenes
• orks with gateways and/or directly with other Z-Wave devices

Channel Types

• Binary Switch
• Multilevel Switch
• Color Switch
• Binary Sensor
• Multilevel Sensor
• Meter

Antenna

• Antenna type: wire antenna 86 mm for 865-870 MhZ
• Alternative antenna: optional u.fl connector can be soldered (to RF2 pads)

Electrical characteristics

• Digital pin in logical 1: > 2.1 V, leakage current 10 μA
• Digital pin in logical 0: < 0.9 V, leakage current 10 μA or 40–120 μA (with internal pull-up enabled)
• Internal pullup resistor: 15–20 kΩ (at +25°C)
• Digital pin out logical 1: > 2.4 V, max current sourcing 8 mA (16 mA for digital pins 3-6)
• Digital pin out logical 0: < 0.4 V, max current sinking 8 mA (16 mA for digital pins 3-6)
• Total max current sourcing from GPIO pins: 120 mA
• Power consumption on 3.3 V:

  • in always listening mode 50 mA
  • in sleep mode 1 mA (about 7 μA if DC-DC is turned off by unsoldering R12)
  • in FLiRS mode 1 mA (about 70 μA if DC-DC is turned off by unsoldering R12)
• Power consumption on 5 V: in always listening mode ∼ 30 mA (can be lowered by using external switching DC-DC)
• Power consumption on 7–18 V: in always listening mode ∼ 35 mA (can be lowered by using external switching DC-DC)
• DC-DC installed:

  • 7–18 V → 5 V: NCP1117ST50T3G, max current sourcing from 5V pin 900 mA
  • 5 V → 3 V: MCP1700, max current sourcing from 3V pin 200 mA

Z-Uno power supply

Z-Uno can be powered from 3V (pin 3V3), 5V (pin 5V or USB) or external 7-18V (pin Vin).

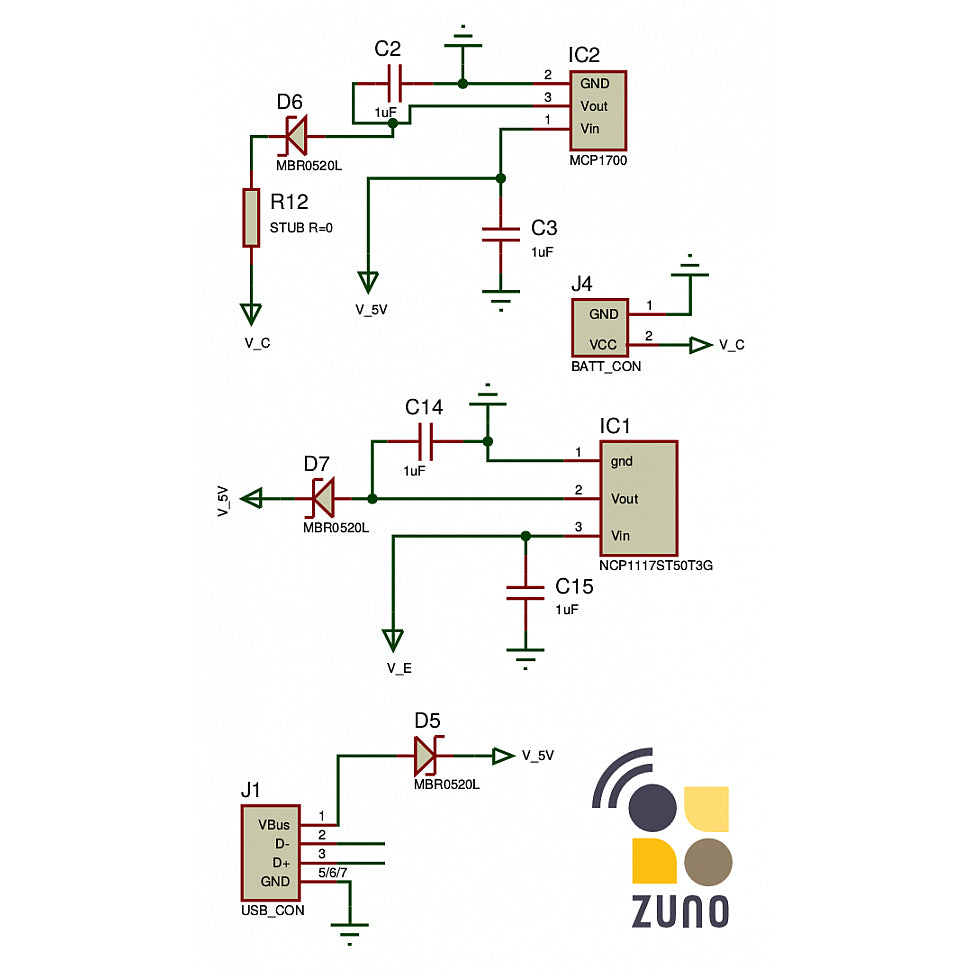

Below is the schematics of Z-Uno power supply:
