Description:
* package of 10 cards
* Contactless data transmission and supplied power(no battery needed)
* Working distance: no more than 100mm (depends on the antenna dimension)
* Working frequency: 13.56 MHz
* High data transmission speed:106 k bit/s
* Data integrity protection: 16 bit CRC
* Anti-conflict
* Data transmission and processing time: < 100 ms
Description:
* Mega Pixel Color Camera
* TCP/IP Potocol
* Built-in IC card induction reader
* Flush-Mount Door Statuion
* Supports 4 Indoor Stations
* Multi-monitors connection
* Multi-door stations connection
* IP65, DC12V/DC24V, Max. 12W
* Aluminum Alloy, 100(W) x 182(H) x 33(D)mm
Description:
* Mega Pixel Color Camera
* TCP/IP Potocol
* Built-in IC card induction reader
* Flush-Mount Door Statuion
* 3.5" Color TFT LCD Monitor 480(H)x 320(V)
* Multi-monitors connection
* Wiegand 26, Wiegand 34, or RS-485 IC Reader
* IP65, DC12V, Max. 15W
* Plastic, 145(W) x 418(H) x 61(D)mm
Description:
* Sainless steel panel, metal button, metal bottom case
* Output Contact: NO/NC/COM Contact
* Current Rating: 3A@36VDC Max
* Suitable Doors: All doorframes
* Dimension(LxWxH): 86 x 50 x 44 mm
Description:
* Aluminum alloy panel, metal button
* Output Contact: NO/NC/COM Contact
* Current Rating: 3A@36VDC Max
* Suitable Doors: Hollow doorframe and Embedded-electric box
* Dimension(LxWxH): 86x86x28.9mm
Description:
* Double-door Access Controller, Storage with 100,000 cards and 300,000 access control events.
* Uplink Communication: TCP/IP and RS-485;
* Accessible Card Reader: 4 Wiegand readers or 4 RS485 readers;
* Input interface: 4 alarm inputs, 2 Door Sensors, 2 Door Switches, 4 Case Inputs, 1 Fire Alarm Linkage, 1 Tamper-proof;
* Output interface: 2 Door Switch Relays, 2 Alarm Relays.
* For more information: https://www.hikvision.com/mtsc/uploads/product/accessory/UD06312B_Spec_of_DS-K2600_Network_Access_Controller_V2.0_20170622(1).pdf
Description:
* Embedded Linux Operating System
* 5" LCD Touch Screen; Resolution: 480px800p
* 2MP; WDR; Wide-Angle Lens
* Face Recognition Duration: <=1s/Person
* Face Recognition Accuracy Rate: >=99%
* Access Control Events: >=99%
* Face Recognition Distance: 0.3m to 1m
* Face Picture Capacity: 3000 JPG and JPEG Format
* Capacity: Fingerprint 5000; Card 5000; Event 100,000
* 10/100 Mbps Self-Adaptive Network Interface; Wi-Fi
* RS-485 x 1, Wiegand x 1, USB x 1, Lock x 1, Exit Button x 1, Tamper x 1, Alarm Input x 2, Alarm Output x 1. Door Lock x 1
* IP65, DC12V/2A, 113(W) x 281.5(H) x 45(D)mm
Description:
* Reads Mifare IC-S50 card, with keypad, Supports RS485 and Wiegand (W26/W34) protocol;
* Tamper-proof alarm, Dust-proof, IP 64, Applied for 86 & 120 Gang Box.

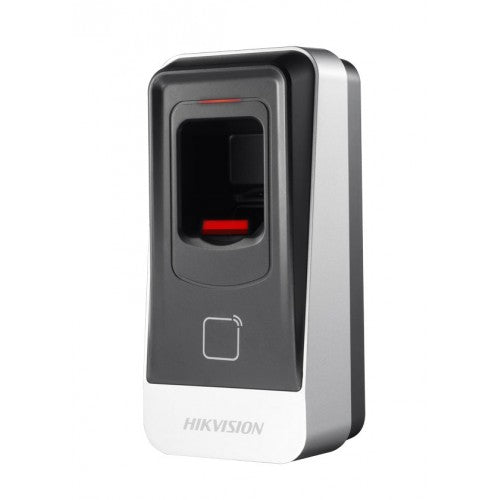

Hikvision DS-K1201MF Biometric Fingerprint Reader with Inbuilt Card Reader.
The Hikvision DS-K1201MF Fingerprint and card reader, designed with a 32 bit high-speed processor, contains the optical fingerprint recognition module. It communicates with Hikvision access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect the card reader from malicious damage. The protective level is IP65, which is suited for outdoor installation.
- A group of encrypted code data for the security of fingerprint storage. (Stores an encrypted template, not a fingerprint Image)
- Supports RS485 communication with 19200bps-N-8-1 transmission rate.
- Supports Mifare card reading (DS-K1201MF)
- Card reading range ≤50mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1≤1s, 1:1000≤1s; FRR≤0.01%, FAR≤0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Build-in buzzer for status indication
| System Parameters | ||
|---|---|---|
| Comparison Mode: | 1:1/1:N | |
| Comparison Time: | 1:1≤1s; 1:3000≤1.5s | |
| Fingerprint Module: | Optical, Red Backlight | |
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | Mifare Card:≤50 mm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Reading Mode: | Mifare Reading Module | |
| Fingerprint Capacity: | 5,000 | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | RS-485 | |
| Transmission Rate: | 19200bps-N-8-1 | |
|
General |
||
|---|---|---|
| Mounting Method: | Surface Mounting | |
| Alarm: | Tamper Alarm × 1 | |
| Power Supply: | 12VDC | |
| Prompt: | Buzzer | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 65 | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
| Dimensions (L×W×H): | 62mm × 132mm × 44mm (2.44" × 5.20" × 1.73") | |
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function.
