Products

@36/34

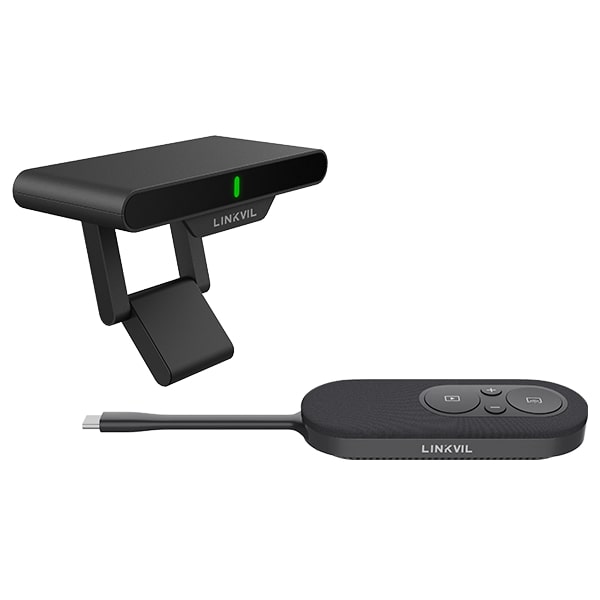

Linkvil CA200 is a wireless conference kit designed to streamline deployment and boost meeting efficiency. With an integrated transmitter and receiver; one CA200 hub can connect up to four CP20 screen-sharing pods simultaneously—no system integration required. Just plug and play for instant setup. It supports 4K wireless casting and allows seamless switching to freeze mode; enabling smooth presentations and flexible collaboration in various scenarios. Compact and portable; CA200 is compatible with multiple devices; helping to eliminate cable clutter and create a cleaner; more productive meeting environment.

@42/37

@15/19

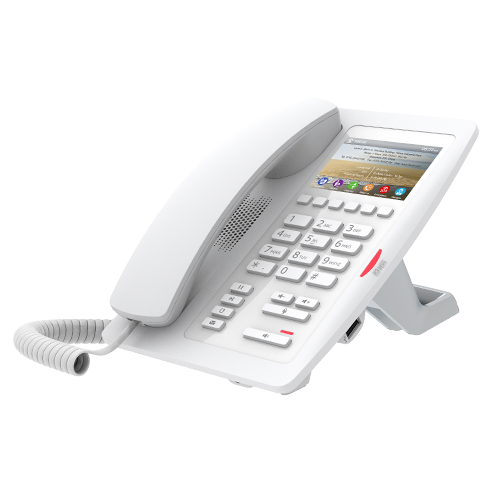

Fanvil H5 Hotel / Office Enterprise IP Phone

@20/25

@9/16

@12/18

3CX Manual Setup Required if using this Device on 3CX Platform - Does Not Support Auto Provision

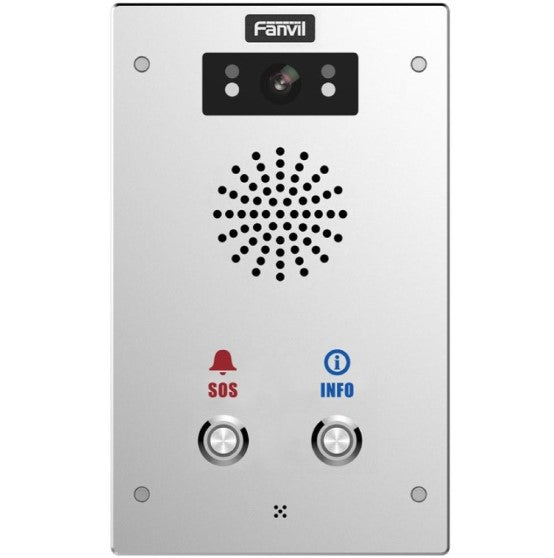

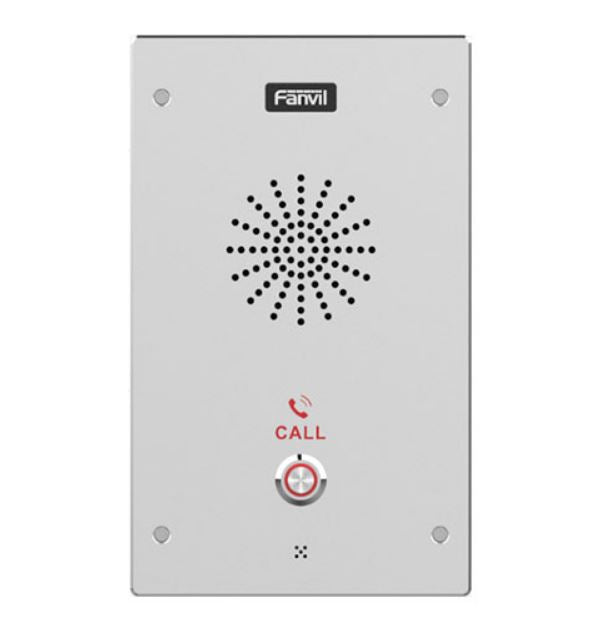

Fanvil i16S Outdoor Audio Intercom

Highlights □√ Built-in HD camera with infrared night vision; adopt H.264 codec (only i16SV) □√ IP65 waterproof and dustproof. □√ IK10 anti-collision with robust die-cast aluminum frame □√ Anti-tamper- alarming as long as the cover is apart from the housing; and reporting to the control center at the same time □√ HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller □√ Audio line out port; expandable external active speaker. □√ Built-in 2 short-in detect port and 2 short-out control port □√ Support built-in TF card slot for data storage or audio offline broadcasting. □√ Compatible with major platforms: Asterisk; Broadsoft; 3CX; Metaswitch; Elastix; Avaya etc.

⚫ 2 SIP lines ⚫ Speed dial ⚫ Linkage with IP camera to realize video intercom ⚫ Oral announcement of the IP address(in English) ⚫ MP3 broadcasting ⚫ Support programmable DSS key ⚫ Support mono active speaker ⚫ Talkback recording output ⚫ Switch signal input and output ⚫ Support TF card ⚫ PoE enabled

Device Functions ⚫ Auto-answering ⚫ Programmable DSS keys ⚫ Through button or web page volume adjustment ⚫ Network time synchronization ⚫ Time Plan (task management) ⚫ Incoming call multicast ⚫ Dynamic multicast function ⚫ HTTP API ⚫ Action URL / Active URI

@42/37

Click here for Fanvil Datasheet

@12/18

Click here for Fanvil Datasheet

@20/25

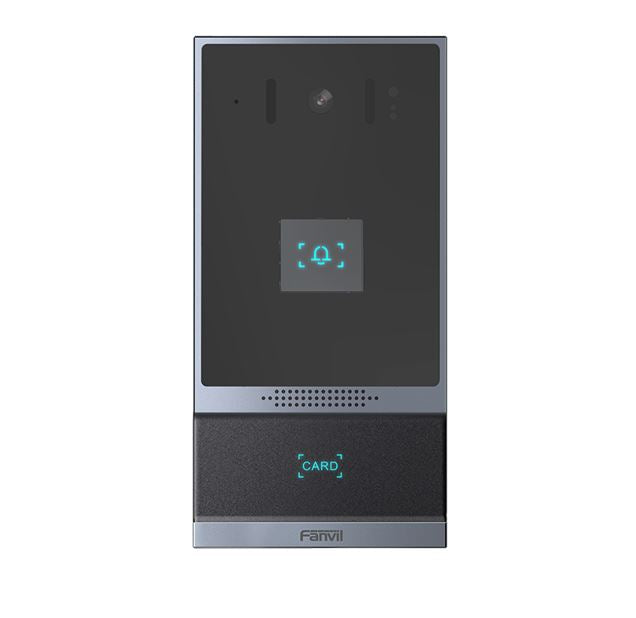

Fanvil i62 Video Door Phone; Waterproof; Dustproof; IP66; IK07; Timed Open Door; RFID/IC Cards; NFC; Remote DTMF

Features &

Specification:: 4 inch 800×480 pixel colour screen High protection level of IP66 and IK07 Wide temperatire range from -40℃ to 70℃ Door Entry with face recognition; RFID card; password and remote door opening Built-in 2 Mega-pixel wide angle camera Built-in 3 short circuit input ports and 2 short circuit output ports Compatible with ONVIF protocol Screen: 4-inch 480 x 800 Color LCD Operating System: Linux Panel: Aluminum Alloy Camera: 2 Mega-pixel Key: Numeric keypad with blue backlight RF Card Reader: 125KHz & 13.56MHz Light Sensor: Yes Speaker: Dual Speaker 4Ω/ 3W Power Supply: 12V-1.5A/PoE Storage- Card Capacity: 10000 Short Circuit Input: 3 Short Circuit Output: 2 Wiegand Port: Yes Protection Level: IP66 & IK07 Working Temperature: -40℃~ 70℃ Working Humidity: 10~90%

@80/45

📱 Key Features

•Power Supply: Self‑powered (no battery required) thanks to micro‑energy harvesting technology. •Design: Rebound‑type button; extremely compact and lightweight. •Durability: ABS material; waterproof and dustproof (IP65). •Compatibility: Works with Fanvil Y501/Y501‑Y series; X305 Big Button IP Phone; and i506W/i507W indoor stations. •Wireless Specs: -Frequency: 433MHz -Modulation: FSK -Protocol: Ebelong 1.1

•Operating Life: ≥100;000 presses. •Range: Outdoors: up to 80 m Indoors: up to 25 m

•Temperature Range: –20°C to +55°C.

@5/15

📱 Key Features

•Emergency Functionality Large button with extended drawstring (2m) for easy activation in case of falls. Provides instant emergency alerts when pressed or pulled.

•Wireless Technology Operates on 433MHz frequency with FSK modulation. Communication protocol: Ebelong 1.1 (ensures stable signal).

•Durability IP65 waterproof and dustproof; suitable for bathrooms and humid environments. ABS material for strength and longevity.

•Range Indoor: 12–30 meters (depending on environment). Outdoor: 70–80 meters.

•Battery & Lifespan Powered by 23A 12V battery. Supports ≥100;000 presses before replacement. Low power consumption for long-term use.

•Compatibility Works with Fanvil Y501/Y501-Y Series; X305; i506W; i507W devices.

@5/15

Designed for small and medium meeting rooms up to 32m²; the CA400 system consists of a unique speakerphone MS10; that supports wireless screen sharing; a receiver RC10; and a USB camera CM70.

The CA400 achieves far-field voice pickup; delivering HD crystal-clear sound. Participants can also wirelessly cast at 4K and access FHD video streaming.

Wireless Screen Sharing:

MS10 screen-sharing speakerphone features a built-in Type-C connection for flexible plug-and-play with your computer. It seamlessly transmits signals to the RC10 reciever hub through Wi-Fi without the need for any additional wiring or software downloads. Enjoy a clear desktop and the high-efficiency screen sharing with a single press.

@72/42
