RFI SWITCH MODE VOLTAGE CONVERTER - 24 TO 12V 8AMP
The SDC range of DC-DC converters (SDC-8) are ideal for use in trucks buses or any 24 volt vehicle application where you need to step down the voltage to drive radios mobile phone car kits or auxiliary devices at 12 volts.
In communications sites were the many services are now powered by 24 volts these DC-DC converters can be used to power other devices that require 12 Volts.
These ultra-compact converters are available in various current ratings and combined with easy wiring connections this product can fit in a vast number of mounting locations within vehicles. Built in protection circuitry will give you peace of mind and provide long lasting performance.
Available in current capacities of 5 8 12 20 and 30 Amps these DC-DC converters offer industry leading low noise and output stability and efficiencies of up to 92% making these DC-DC converters cool to run. With its wide voltage input window the SDC range will always give you that steady constant output required for all kinds of sensitive equipment.
SDC-08 Features:
- High Efficiency with over voltage over temperature and short circuit protection
- Provides protection against voltage spikes for sensitive equipment.
- Compact and light weight
- Suited to negative ground installations
| Input Voltage Range V | 20-35 |
| Output Voltage V | 13.8 |
| Max. Output Current A | 8 |
| Cooling | Convection |
| Output Ripple and Noise | Less than 50mV RMS |
| Input Current no Load mA | <5mA |
| Operating Ambient Temperature | -20°C to + 30°C (derate linearly to zero at 70°C) |
| Dimensions | H=49 x W=88 x D=98mm |
| Protection | Overload: By current limiting Over Heating: Drop in output voltage Reverse Polarity: Fuse Protection Over Voltage: Varistor (also protects against load dump |
| Input side Fuse (Internal) A | 8 |
| Output voltage stability % | 3% |
| Efficiency % | Up to 92% |
| Weight (kg) | 0.25 |
| Connections | 6.3mm push-on flat blade connectors |
| Casework | Anodised aluminium and ABS plastic endcaps |
Also Available...
Documentation
RFI SDC DC/DC Converter Technical Data Sheet - click here
Related Products
Availability
RFI SWITCH MODE VOLTAGE CONVERTER - 24 TO 12V 12AMP
The SDC range of DC-DC converters (SDC-12) are ideal for use in trucks buses or any 24 volt vehicle application where you need to step down the voltage to drive radios mobile phone car kits or auxiliary devices at 12 volts.
In communications sites were the many services are now powered by 24 volts these DC-DC converters can be used to power other devices that require 12 Volts.
These ultra-compact converters are available in various current ratings and combined with easy wiring connections this product can fit in a vast number of mounting locations within vehicles. Built in protection circuitry will give you peace of mind and provide long lasting performance.
Available in current capacities of 5 8 12 20 and 30 Amps these DC-DC converters offer industry leading low noise and output stability and efficiencies of up to 92% making these DC-DC converters cool to run. With its wide voltage input window the SDC range will always give you that steady constant output required for all kinds of sensitive equipment.
SDC-12 Features:
- High Efficiency with over voltage over temperature and short circuit protection
- Provides protection against voltage spikes for sensitive equipment.
- Compact and light weight
- Suited to negative ground installations
| Input Voltage Range V | 20-35 |
| Output Voltage V | 13.6 |
| Max. Output Current A | 12 |
| Cooling | Convection |
| Output Ripple and Noise | Less than 50mV RMS |
| Input Current no Load mA | <5mA |
| Operating Ambient Temperature | -20°C to + 30°C (derate linearly to zero at 70°C) |
| Dimensions | H=49 x W=88 x D=98mm |
| Protection | Overload: By current limiting Over Heating: Drop in output voltage Reverse Polarity: Fuse Protection Over Voltage: Varistor (also protects against load dump) |
| Input side Fuse (Internal) A | 12 |
| Output voltage stability % | 3% |
| Efficiency % | Up to 92% |
| Weight (kg) | 0.26 |
| Connections | 6.3mm push-on flat blade connectors |
| Casework | Anodised aluminium and ABS plastic endcaps |
Also Available...
Documentation
RFI SDC DC/DC Converter Technical Data Sheet - click here
Related Products
Availability
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR 4G LTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.
Key Features:•
- Wideband frequency range; 617 to 5925MHz
- Adhesive mount
- Ground Plane Independent
-
Compact size: 116 x 22 x 6.7 mm
Specifications:
| Cable And Connector | 3m LL100 FME female |
| Tuning | Supplied pre-tuned |
| Band | 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME Female |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR 4G LTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibilities. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs
Key Features: •
- Wideband frequency range; 617 to 5925 MHz
- Adhesive mount
- Ground Plane Independent
- Compact size: 116 x 22 x 6.7 mm
Specification:
| Cable And Connector | 3m LL100 FME female |
| Tuning | Supplied pre-tuned |
| Band | 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME Female |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
Documentation
RFI T7-3M-F LTE Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME female connector
$39.95
Unit price perRFI T7-3M-F LTE Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME female connector
$39.95
Unit price perLTE T7-3M-F Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME Female connector
This antenna is suited to applications where a disguised or compact solution is required and are suitable for car mobile phone kits monitoring and M2M/telematics.
Features:
• Covers all LTE cellular bands including the new 700MHz (4GX/4G+) band
• Adhesive mount
• Ground plane independent
• 3Mt - RG174 cable terminated with FME female connector
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
| Band | 698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 3.0 / 2.2 / 4.0 |
| Radiator Material: | PCB |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 3m RG174 FME female |
| Suggested Installation | On Glass |
| VSWR | <2.5:1 |
| Height mm | 6.7 |
| Width mm | 22 |
| Length mm | 116 |
| Mounting | Adhesive |
RFI TLA4100 Multiband Transit Antenna 698-2700 MHz and 5.8 GHz
The TLA4100/4200 Antenna is designed specifically for rail light rail and bus applications and other similarly demanding transit or stationary applications.
With a VSWR less than 2:1 covering 800-5800 MHz (off a ground plane) and 2.5:1 (full band on a ground plane) the TLA4100/4200 operates in all cellular bands globally plus the 2.4 & 5.8 GHz ISM bands. In addition the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications.
Designed utilising a high impact UV stabilised low Flame Smoke and Toxicity (FST) radome the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water.
Designed to meet the following European Traction Industry Standards:
• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane*
* Nominated gain achieved using a 1m2 ground plane
Features TLA4100:
• Wide band coverage from 698MHz to 890MHz
• All welded construction for reliability
• Excellent front-to-back ratio
• Alodined conductive plating for performance reliability
• Designed to minimize the generation of PIM
Specifications TLA4100:
| Band | 698-960MHz / 1710-2700MHz / 2400-2700MHz & 5700-5800MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 @ 698 - 960MHz / 6 @ 1710 - 2700MHz / 3 @ 2400-2700MHz / 7 @ 5700-5800MHz |
| Power W | 50 |
| VSWR | <2:1 |
| Height mm | 90 including gasket |
| Termination | Antenna Port: Fixed N-female |
Antenna Connection: TLA4100
This antenna has an N female connector integrated into the underside of the antenna body.
****There is no cable supplied with this antenna.
N Female Connector (pictured)
Also available is a 10.0Mtr cable extension N Plug to SMA Plug - 9207N-10
Related Products
10Mtr Cable - N Plug to SMA Plug - 9207N-10
Availability
RFI TLM-1S Fender Mount Bracket - Heavy Duty 'L' Shape - 75mm long
Heavy duty fender mount bracket. 'L' shape with cable slot.
TLM-1S Features:
This heavy duty 1.6mm stainless steel 'L' shape fender mount bracket includes 6mm cable slot for easy antenna installation plus 3 x self drilling screws. Bracket is 75mm long with 16mm hole.
Documentation
RFI Mobile Antenna Mounting Accessories - click here
RFI Installation Sheet - click here
RFI TLM-2-BT50 Fender Mount Bracket - Mazda BT-50
Stainless steel fender mount bracket. 'Z' shape with compensating angle for Mazda BT-50.
TLM-2-BT50 Features:
This 1.5mm stainless steel 'Z' shape fender mount bracket is designed with a compensating angle for Mazda BT-50 for mounting on the front left hand fender. fender. Bracket powder coated black and is 60mm long with 16mm hole.
Documentation
RFI Mobile Antenna Mounting Accessories - click here
Availability
RFI TLM-3 "L" Shape Wall Bracket
This 1.5mm stainless steel 'L' shape wall bracket.
Features:
- Stainless Steel "L" bracket
- Bracket is 50mm long with 16mm hole
- Includes 2 x self drilling screws
Documentation
RFI Mobile Antenna Mounting Accessories - click here

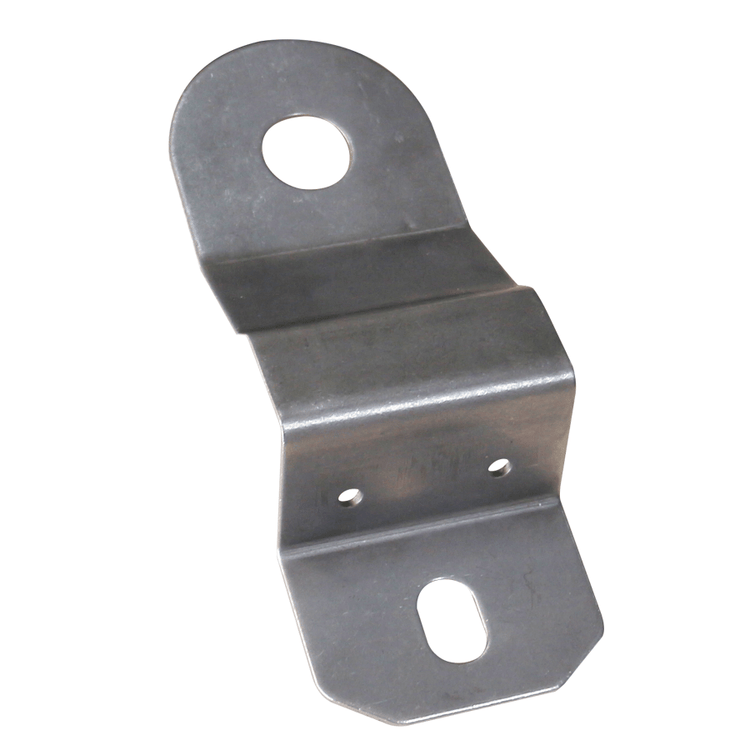

RFI TLM-FR Fender Mount Bracket - Ford Ranger T6 Series
Stainless steel fender mount bracket. Unique design to allow fitment on the front guard of Ford Ranger T6 series
TLM-FR Features:
This 1.6mm stainless steel fender mount bracket is designed to fit Ford Ranger T6. The bracket is 130mm long 50mm wide with 16mm hole. Designed to be fitted to the middle bolt along the either drivers or passengers side. Slight custom bending of the bracket is recommended to suit the antenna being installed.
| Width mm | 50mm |
| Length mm | 130mm |
Documentation
RFI Mobile Antenna Mounting Accessories - click here
Availability

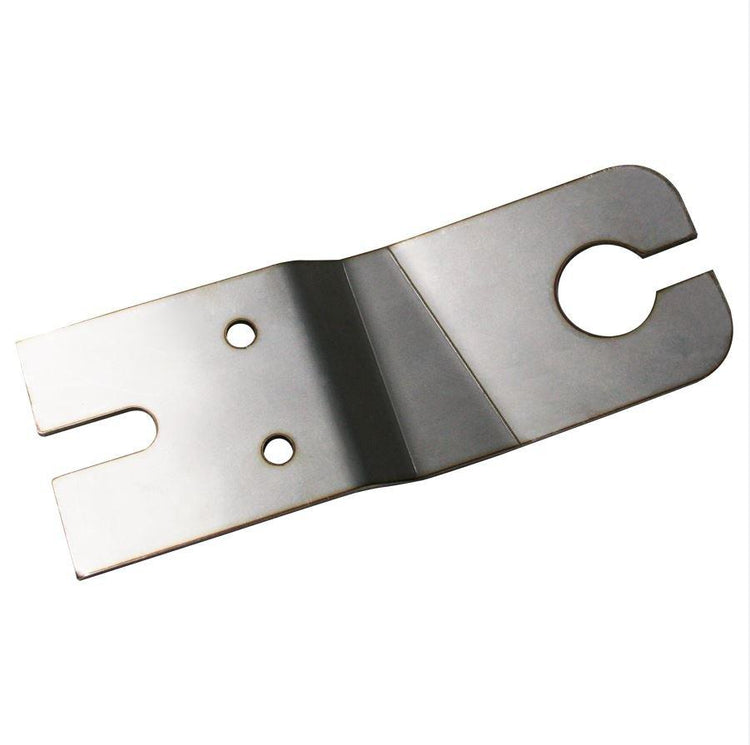

RFI TLM-HL-L FENDER MOUNT BRACKET - 2016 TOYOTA HILUX
Stainless steel fender mount bracket. Unique design to allow fitment on the left front guard of new 2016 Toyota Hilux.
Specs:
| Width mm | 40mm |
| Length mm | 112mm approx. |
Documentation
RFI Mobile Antenna Mounting Accessories - click here
Availability
RFI XG884 - X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz
The XG884 utilises a slot radiator in the coupling box with a patch element housed in the mounting foot. The patch element is x-shaped to allow the coupling of multiple bands very effectively. The whip element is fully moulded with dual phasing coils the result being an antenna that provides abundant gain in all bands.
Featuring a new-look mounting foot and coupling box XG884 is supplied complete with a 5Mtr pre-terminated lead of low loss fully shielded coaxial cable.
Features:
• True multi band performance at 3G-850 GSM-900/GSM-1800 and 3G-2100
• Fully shielded low loss FME pre-terminated 5Mtr cable with A-87 (FME-MPL) adapter supplied
• Available with additional adapters on request
• XG884 supplied with 3dB gain whip & Unity gain stubby whip
Specifications:
| Band | 824-960MHz / 1710-2170MHz |
| Tunable Bandwidth | Entire specified band <2.5:1MHz |
| Nominal Gain dBi | 0 or 3 depending on whip used |
| Tuning | Supplied pre-tuned |
| Power W | 50 |
| Cable and Connector | Pre-terminated lead with 5m flexible foam dielectric low loss fully shielded cable pre-terminated with FME nipple connector for transceiver connector and SMA male to suit coupling box. A-87 FME-MPL adaptor supplied. |
| Whip Material | One piece black chrome plated stainless steel with plastic over moulding |
| Whip Length mm | 155 (0dB) / 352 (3dB) |
| VSWR | <2.5:1 |
Documentation
View the XG884 Technical Data Sheet
Availability
FEATURES
- 15 dBi gain on Telstra Next-G and Telstra 4GX
- High quality Australian made antenna
- Ruggedised construction for Australian conditions
- Fully welded alodined aluminium design
- Galvanised UNV2 mounting clamp included
- Short tail with pre-fitted N Female connector.
Operating on both Telstra Next-G (850 MHz) and 700 MHz 4GX frequencies, this uniquely designed yagi antenna is the ideal companion to Cel-Fi repeater systems in rural and remote areas.
The RFI YW15-6989 is a game changer. Traditionally yagi antennas have been limited to one specific frequency, however with the introduction of the Telstra 4GX network RFI's engineers have produced a brilliant design where the antenna has been intentionally detuned to cover down to the 700 MHz band.
So why the big fuss over 4GX? The answer is speed and range - the low 700 MHz frequency travels incredibly far, through trees, and deep inside buildings, meaning high speed internet service (often faster than the NBN) is now available practically anywhere your phone can pick up signal.
The antenna is an ideal pairing to the Cel-Fi GO or PRO unit when used for voice and text over the Telstra Next-G, and high speed internet over the 4GX network. As a lengthy antenna measuring 1.55 m long, the antenna is supplied with a heavy duty galvanised UNV bracket at no extra cost.
ELECTRICAL SPECIFICATIONS
| Frequency Range | 698 - 890 MHz |
| Input Impedance | 50 Ω |
| Peak Gain | 15.1 dBi |
| VSWR | ≤1.8:1 |
| Polarisation | Vertical, linear |
| Horizontal Beamwidth | 38° |
| Vertical Beamwidth | 35° |
| Front-to-Back Ratio | >20 dB |
| Maximum Input Power | 100 W |
MECHANICAL SPECIFICATIONS
| Input Connector | N Female |
| Cable | 50 cm RG142 cable tail |
| Lightning Protection | DC Ground |
| Radiator Material | Fully welded aluminium, alodine finish |
| Mounting | Galvanised UNV clamp, pole mount 30-50 mm |
| Dimensions | 1552 mm (length) |
| Weight | 1.0 kg |
| Rated Wind Velocity | 184 km/h |
| Operating Temperature | -20 to +70°C |

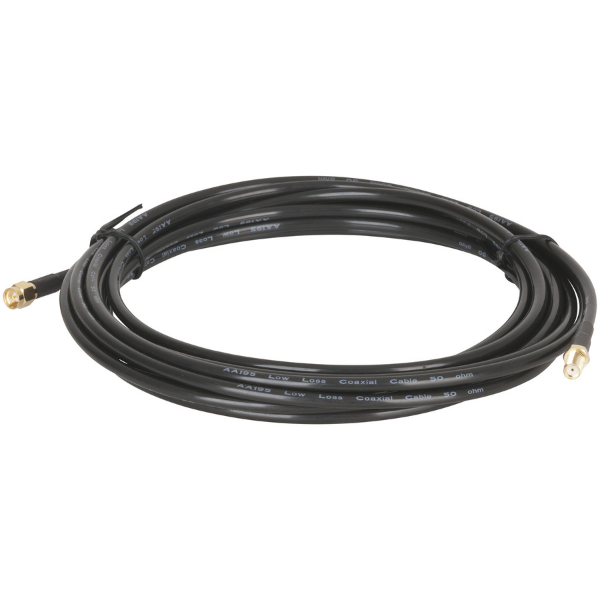

RFI RFI-3M-SMA 5Mtr RG58 Cable Extension - SMA Male to SMA Female
This RFI-5M-SMA; 5Mtr extension cable is the simplest way to extend the length of your SMA terminated antenna cable to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
Features:
Cable: RFI RG58 9006 Cellfoil 50 Ohm Coax Cable; Low Loss
Termination: SMA-104 one end SMA-186 other end
The RFXrtx433E USB transceiver enables you to control 433MHz-based devices from your computer or from a Z-Wave controller such as the Vera3 or Vera Lite. It supports a huge number of 433MHz-based products, including the LightwaveRF devices as well as Oregon Scientific, HomeEasy, Somfy...
The RFXrtx433E interfaces with a wide range of home automation software, including Domoticz, Homeseer, Indigo, Xtension, and hardware controllers such as the Vera3 and Vera Lite.
RFXtrx433E - Extended capabilities
This is the RFXtrx433E (Extended version) that replaces the previous RFXtrx433. It includes a hardware extension and additional firmware to enable it to support Somfy wireless blinds (RTS). The extedned functionality is already supported in Domoticzt, Homeseer and the VERA RFX plugin.
SPECS
Wireless Technology
- 433.92MHz
USB Interface
- USB 2.0
Power
- via USB
Dimensions
- 160 x 110 x 45 mm
RGKNSE R-SIM RSIM 2018 Nano SIM interposer The best iPhone SIM Unlock Solution
$19.95
Unit price perRGKNSE R-SIM RSIM 2018 Nano SIM interposer The best iPhone SIM Unlock Solution
$19.95
Unit price perColor: As picture show
Conversion: 1 inch = 25.4mm or 1mm = 0.0393 inch
Pictures: Due to the difference between different monitors, picture may not reflect the actual color of the item.
We guarantee the style is the same as shown in the pictures, but not the same performance on different bodies as on the model. Thank you for your purchase
Newest ios11.2 system 4g perfectly cracked. New R-SIM for perfect China Mobile & Unicom 4G unlock card is back!
New ICCID: 8901000000000000001f. Perfect and stable ICCID for iOS 11.1: 89860600502000180722 still works! iOS 11.2 new ICCID default version is now spreading to the market!
Method 1:
Enter Settings-Phone-SIM Applications.Click ICCID and input: 8901000000000000001f. Send. Click ICCID again to unlock. Reboot iPhone to activate.
Method 2:
(1). Dial guide code: *5005*7672*0#, select the last option in the Operator list. Edit ICCID input: 8901000000000000001f, and send.
(2). Dial guide code: *5005*7672*0#, select ICCID unlock in the Operator options, accept.
(3), Reboot or take out & input the card directly. Activate the phone and enter the system for perfect and stable China Mobile and China Unicom 4G.
ring HD video doorbell smart intercom with 2 way audio mobile app and cloud storage
$159.00
Unit price perring HD video doorbell smart intercom with 2 way audio mobile app and cloud storage
$159.00
Unit price perAnswer the Door From Anywhere
Get instant alerts when visitors press your Doorbell or
trigger the built-in motion sensors. Then use the free Ring
app to see, hear and speak to guests from your
smartphone, tablet or PC.
- Motion-activated alerts
- Crystal-clear 720HD video
- Two-way talk with noise cancellation
Never Miss a Visitor
Ring lets you customize your motion sensors, so you’ll
always be the first to know when you have a visitor.
With infrared night vision and a weather-resistant
design, you can monitor your home around the
clock – day or night, rain or shine.
- Custom motion zones
- Infrared night vision
- Lifetime purchase protection
Home Security
at Your Fingertips
Power your Video Doorbell with its built-in rechargeable
battery, or connect it to your existing doorbell wiring for a
non-stop charge. It also comes with everything you need
to install your Doorbell in just a few minutes, with no
professional help required.
- Dual power options
- Simple installation and setup
- iOS, Android, Mac and Windows 10 compatible
Tech Specs
Power
Connectivity
802.11 b/g/n Wi-Fi connection @ 2.4GHz
Audio
Two-way audio with noise cancellation
Video
Dimensions
4.98 in. x 2.43 in. x .87 in.
(12.65cm x 6.17cm x 2.21cm)
Field of View
Warranty
1 year on parts, lifetime purchase protection
Operating Conditions
Ringo Water Bottle (950ml) with Magnetic Phone Mount - Pink 950ml (32oz)
Ringo Water Bottle (950ml) with Magnetic Phone Mount - Pink 950ml (32oz)
Ringo Water Bottle (950ml)
with Magnetic Phone Mount - Pink 950ml (32oz)
- Magnetic Mount
- 950ml (32oz)
- 100% Stainless Steel
- 710ml (24oz)
- 100% Stainless Steel
- Magnetic Mount
Description
THE WORLDÆS FIRST WATER BOTTLE WITH MAGNETIC PHONE MOUNT.
Ringo is a high-quality insulated water bottle that securely holds your phone. ItÆs perfect for filming workouts, following cooking videos, making video calls, GPS navigation, and morre! Practical for Everyday Use. Ringo is a high-quality insulated water bottle with a magnetic mount that securely holds your phone. Enjoy the convenience of its all-in-one design that redefines multitasking. ItÆs perfect for traveling, filming or following workout and cooking videos, making video calls, GPS navigation, and more.
WORKS WITH ANY DEVICE. Magnetic technology is compatible with every iPhone 12 (2020) and above. If you don't have a magnet compatible phone, utilise the Ringo Magnetic Booster Ring to easily attach.
ULTRA HIGH-QUALITY WATER BOTTLE. Premium, double-walled stainless steel keeps liquids hot for 12 hours and cold for 24 hours. BPA-free, dishwasher-safe, and leak-proof to keep your phone dry always.
Specifications
- 950ml (32oz)
- 100% Stainless Steel
- Magnetic Mount
- Gross Weight is 490 gm
- Height is 9 cm
- Width is 9.1 cm
- Depth is 25.7 cm
Device Compatibility
SKU:B2PK32LSC1
