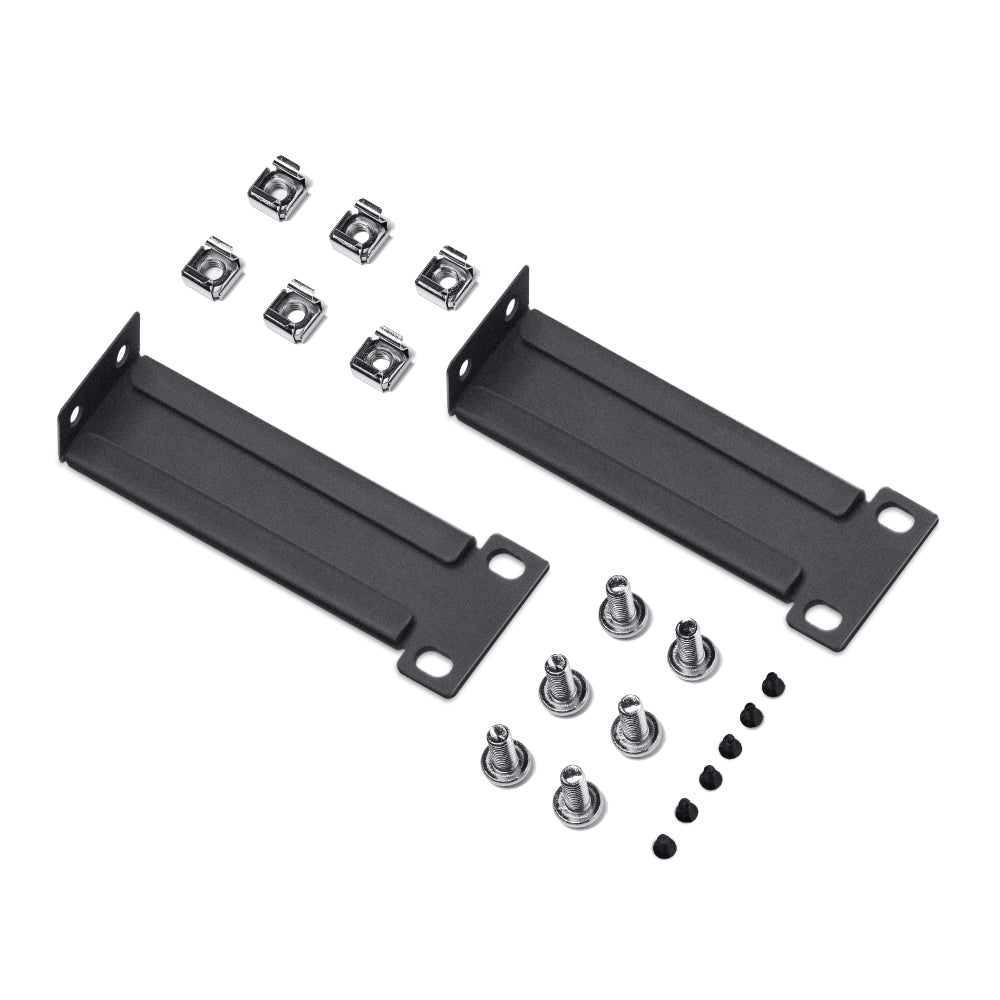

TP-Link RackMount Kit-D226 226mm Desktop Switch Rack Mount Kit • Compatible with TP-Link 226mm desktop switch with rackmount holes and other products. • If not sure about the model of the switch; please measure the size of the mounting ears and the hole spacing of the switch; can be used if they match. • Reliable metal materials are selected; which are sturdy and durable; and the installation is firm and not easy to fall. • There are many compatible models; please pay attention to the size of the machine.

**List of TP-Link products supported by RackMount Kit-D226: ER7212PC ER7206 ER707-M2 ER706W ER706W-4G DR3650v-4G ER706WP-4G ER7410PC-M2 SG2210XMP-M2

@2/21

• Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 750Mbps • Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for more stable wireless experience • Intelligent signal light helps to fi¬nd the best location for optimal Wi-Fi coverage by showing the signal strength • Works with any Wi-Fi router or wireless access point

@5/15

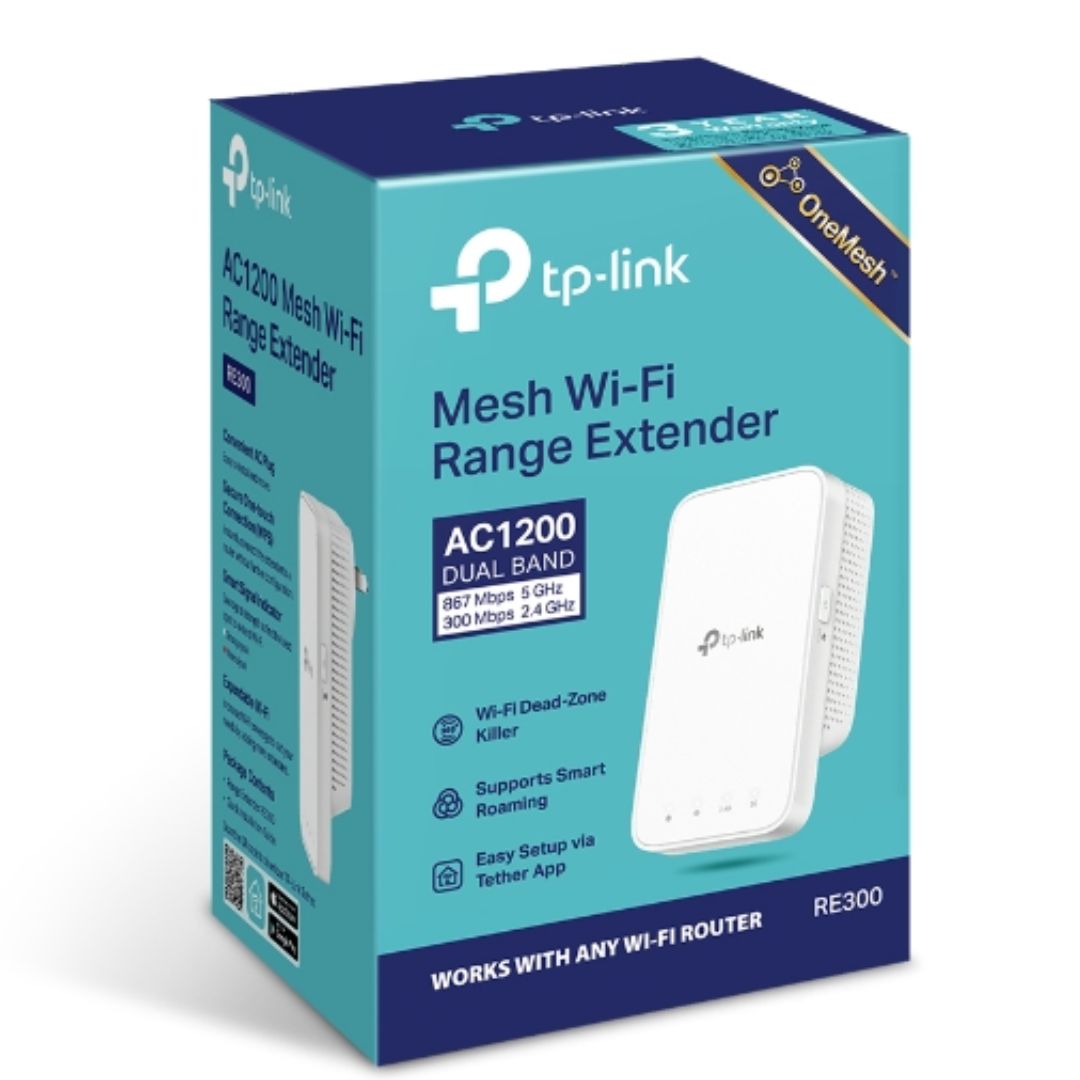

TP-Link RE300 AC1200 Mesh Wi-Fi Range Extender • Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones. • Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage. • Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps)*1for more stable wireless experience. • Smart signal indicator helps to fi¬nd the best location for optimal Wi-Fi coverage by showing the signal strength. • Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI. • Works with any Wi-Fi router or wireless access point.*2

Box Dimensions (W X D X H) 6.2 x 4.0 x 3.5 in. (156.5 x 101.5 x 89 mm)

@6/19

TP-Link RE450 AC1750 1750Mbps Wi-Fi Range Extender 450Mbps@2.4GHz 1300Mbps@5GHz 1Gbps LAN Port 3x External Antennas works with any Router

Expand Wi-Fi Network for Ultimate Performance Expanded 450Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES Plug Type AU Standards and Protocols IEEE802.11ac; IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Interface 1 * 10/100/1000M Ethernet Port (RJ45) Button RE (Range Extender) Button; Reset Button; LED Button; Power Button Power Consumption 9W（max power consumption） Antenna 3* external Dimensions ( W x D x H ) 6.4x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)

Boost Your Wi-Fi Coverage Up to 10;000 sq ft* Tired of Wi-Fi “dead zones"? The TP-LINK AC1750 Wi-Fi Range Extender connects to your router wirelessly; strengthening and expanding its signal into areas it can’t reach on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Super-Fast Speed Next Generation AC Wi-Fi TP-LINK"s RE450 comes with next generation 802.11AC Wi-Fi technology; it"s 3 times faster than the standard 802.11n speeds. The RE450 delivers fast speeds of dual band Wi-Fi up to 1750 Mbps; providing reliable connections for bandwidth-intensive tasks like HD/4K streaming; lag free gaming; large file downloads.

Gigabit Wired Speed A gigabit Ethernet port turns the extender into a wireless bridge; letting you connect a wired device like a Blu-ray player; gaming console; DVR; or smart TV to your Wi-Fi network.

Easy Installation & Quick Position Easy Installation with RE Button

@8/20

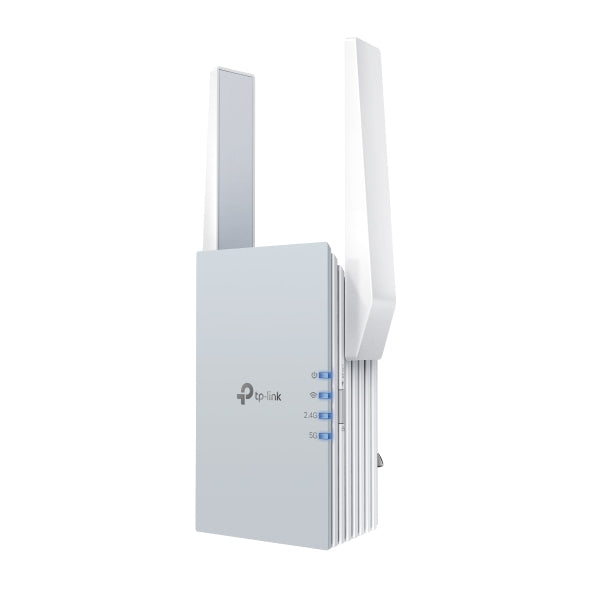

TP-Link RE515X AX1500 Wi-Fi Range Extender • Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1200Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.† • Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§ • EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.◇ • Gigabit Ethernet Port: Provides faster wired connections to smart TVs; computers and gaming consoles. • AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability. • Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App. • Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.*

Warranty Period: 3-Year

@9/22

TP-Link RE605X AX1800 Wi-Fi Range Extender 574Mbps@2.4GHz 1201Mbps@5GHz 1x1GBps WPS 2xAntenna 2x2 MI-MIMO Dual Band Access Point

• RE605X comes equipped with the latest wireless technology; Wi-Fi 6; for faster speeds; greater capacity; and reduced network congestion. • Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage. • Gigabit Ethernet Port – Provide faster-wired connections to smart TVs; computers and gaming consoles • Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement • AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability • TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device • Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES Ports 1 Gigabit Ethernet Port Button WPS Button; Reset Button Power Consumption 10W Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm) Antenna 2 External Antennas

WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac/ax 5GHz; IEEE 802.11b/g/n/ax 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 574 Mbps at 2.4GHz; 1201 Mbps at 5GHz Reception Sensitivity 5 GHz: 11ax HE80 MCS0: -87dBm; 11ax HE80 MCS11: -56dBm 11a 6Mbps: -93dBm; 11a 54Mbps: -75dBm

2.4 GHz: 11ax HE40 MCS0: -93dBm; 11ax HE40 MCS11: -63dBm 11g 54Mbps: -77dBm; 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm Transmit Power CE: 2.4 GHz ≤15dBm; 5 GHz ≤21dBm Wireless Functions Enable/Disable Wireless Radio; Wireless Statistics Wireless Security 64/128-bit WEP; WPA/WPA-PSK2 encryptions OTHERS Package Contents Wi-Fi Range Extender RE605X Quick Installation Guide System Requirements Microsoft Windows 98SE; NT; 2000; XP; Vista™ or Windows 7; 8; 8.1; 10; MAC OS; NetWare; UNIX or Linux

@10/24

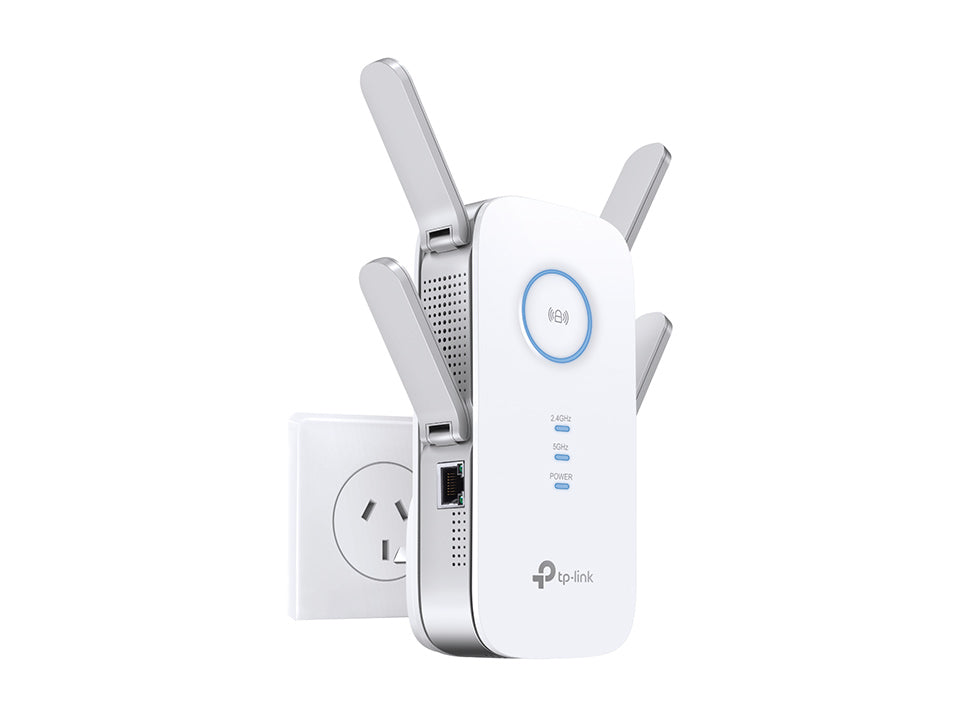

TP-Link RE650 AC2600 2600Mbps Wi-Fi Range Extender 800Mbps@2.4GHz 1733Mbps@5GHz 1x1Gbps LAN 4xAntennas 4×4 MU-MIMO Beamforming Access Point Mode

Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 14;000 sq. ft. 4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections Gigabit Ethernet Port – Provide faster wired connections to smart TVs; computers and gaming consoles Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES Plug Type EU; UK; US Standards and Protocols IEEE802.11ac; IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Interface 1 x 10/100/1000M Ethernet Port (RJ45) Button WPS Button; Reset Button; LED Button; Power Button Power Consumption 12W（max power consumption） Antenna 4 x external Dimensions ( W x D x H ) 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm) WIRELESS FEATURES Frequency 2.4GHz & 5GHz(11ac) Signal Rate 5GHz:Up to 1733Mbps 2.4GHz:Up to 800Mpbs Reception Sensitivity 5GHz： 11a 6Mbps:-96dBm@10% PER 11a 54Mbps: -78dBm@10% PER 11ac HT20 mcs8: -69dBm@10% PER 11ac HT40 mcs9: -66dBm@10% PER 11ac HT80 mcs9: -63dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER Wireless Modes Range Extender/Access Point Wireless Functions Wireless Statistic Concurrent Mode boost both 2.4G/5G WiFi band Access Control LED Control Domain Login Function Wireless

@13/28

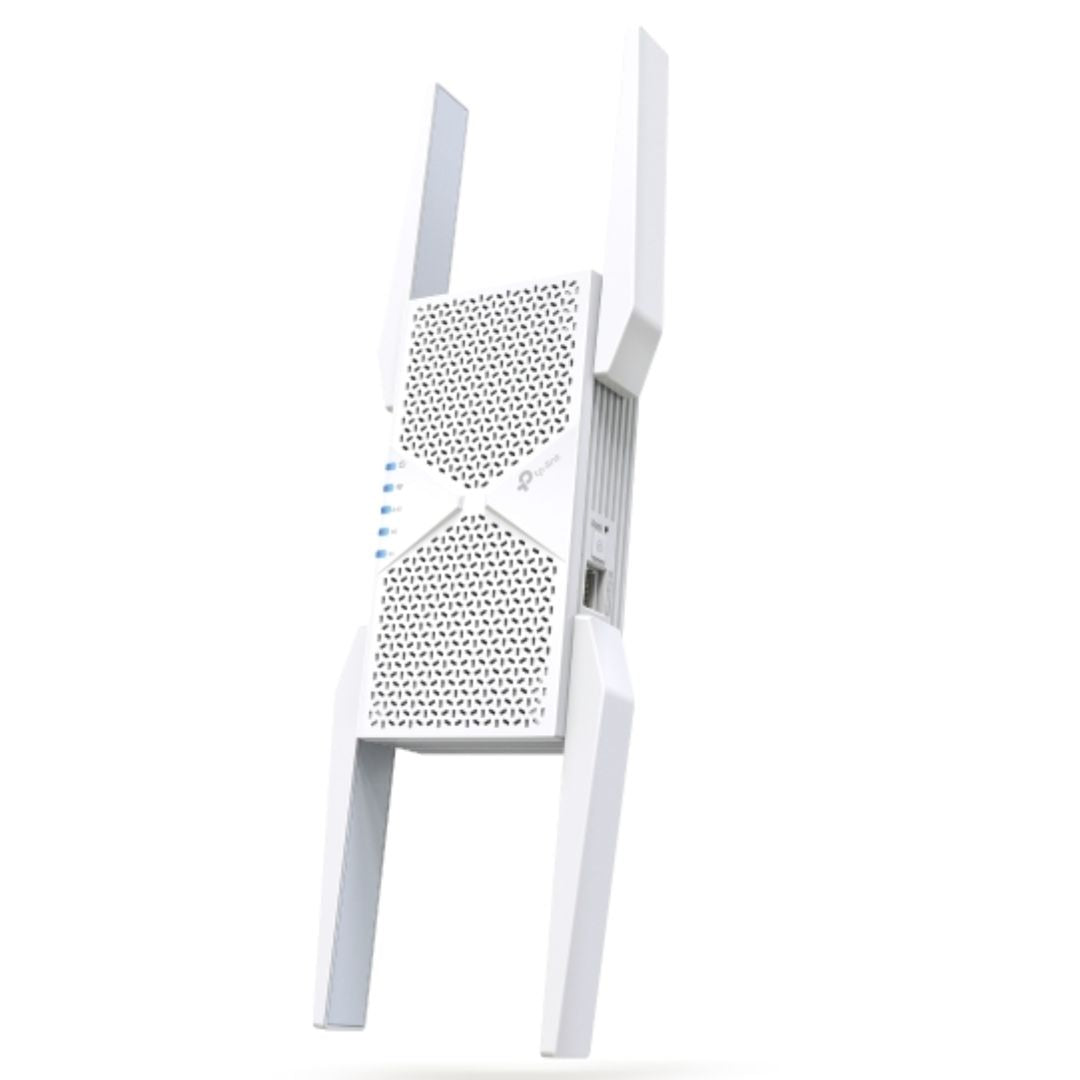

TP-Link RE655BE BE9300 Tri-Band Wi-Fi 7 Range Extender • Next-Gen Wi-Fi 7: Harness the power of the latest Wi-Fi standard—Utilize the 6 GHz band; 320 MHz channels; 4K-QAM; MLO and Multi-RU across 6 streams for optimized signal distribution throughout your entire home. • Unrivaled 9.3 Gbps Wi-Fi Speeds: Tri-band Wi-Fi with dedicated 6 GHz (5764 Mbps); 5 GHz (2882 Mbps); and 2.4 GHz (688 Mbps) bands delivers ultimate speed; reduced congestion; and seamless connectivity for every device.† • 6 GHz Band: The newest 6 GHz band offers more channels and a wider spectrum; minimizing interference and congestion from neighbouring networks and older devices.△ • Multi-Link Operation (MLO): Experience significant gains in data transfer speeds; response times; and network stability for future-proof connectivity.△ • 2.5G Multi-Gigabit Ethernet Port: Smoother streaming; faster downloads; and lower latency for all your connected devices while effortlessly handling bandwidth demands of today"s most demanding applications. • Smart Adaptive Roaming: Walk from room to room while automatically connecting to the most optimal node—Experience strong signals and continuous connections even as you roam.§ • Works with EasyMesh: EasyMesh compatibility offers flexible expansion and unbeatable whole-home coverage by simply connecting the RE655BE to an EasyMesh compatible router or mesh system. • Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App. • Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.***

Warranty Period: 3-Year

@28/54

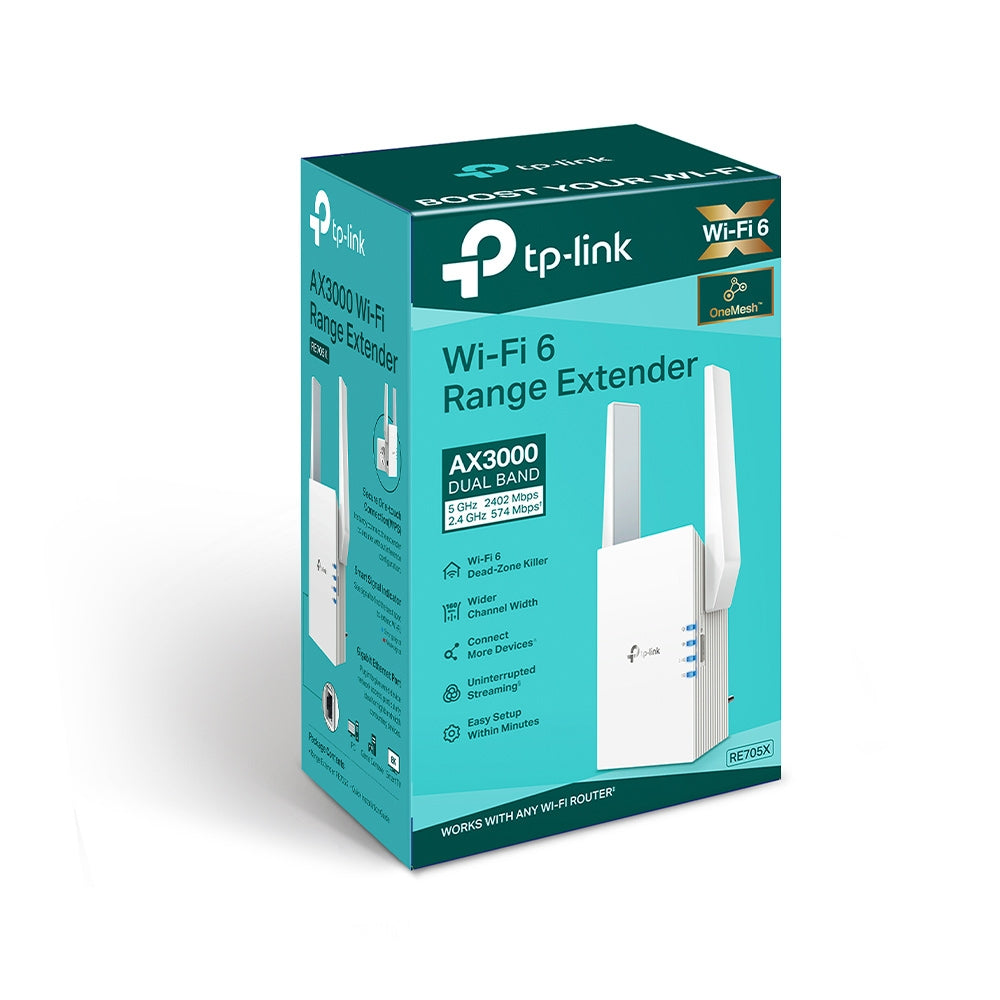

TP-Link RE705X AX3000 Mesh WiFi 6 Extender 574Mbps@2.4GHz 2402Mbps@5GHz 1x1GBps WPS 2xAntenna

• Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology • Uninterrupted Streaming - Easily create a TP-Link OneMesh™ network for seamless whole home WiFi coverage • AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability • Gigabit Ethernet Port - Provides high-speed wired access; ideal for smart TVs; PCs; and game consoles • App Control - Easy Setup and management with your network using the TP-Link Tether app

HARDWARE FEATURES Ports 1 Gigabit Ethernet Port Button WPS Button; Reset Button Power Consumption 12.6W Dimensions ( W x D x H ) 97*46*158 Antenna 2 External Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac/ax 5GHz; IEEE 802.11b/g/n/ax 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 574 Mbps at 2.4GHz; 2402 Mbps at 5GHz Reception Sensitivity 5GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -61dBm 11ax HE160 MCS11: -59dBm

2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm Transmit Power CE: 2.4GHz ≤16dBm; 5GHz ≤21dBm Wireless Modes Range Extender / Access Point Wireless Functions Enable/Disable Wireless Radio; Wireless Statistics Wireless Security WEP; WPA; WPA2; WPA3 OTHERS Certification CE; RoHS Package Contents Wi-Fi Range Extender RE705X Quick Installation Guide System Requirements Microsoft Windows 98SE; NT; 2000; XP; Vista™ or Windows 7; 8; 8.1; 10; MAC OS; NetWare; UNIX or Linux Internet Explorer 11; Firefox 12.0; Chrome 20.0; Safari 4.0; or other Java-enabled browser

@11/26

TP-Link RE815XE AXE5400 Mesh Wi-Fi 6E Range Extender • AXE5400 Tri-Band Wi-Fi – Boosts overall speeds up to an incredible 5400 Mbps. • Dedicated 6 GHz Band – Provides a clearer band to prevent Wi-Fi interference and congestion. • 160 MHz Channel Bandwidth – Expands bandwidth to double the network speed of traditional 80 MHz. • Seamless Roaming – Walk from room to room and stay connected with the fastest possible speeds. • Improved Capacity; Less Lag – Experience flawless streams on more screens throughout your home. • Simple Installation – Just plug in and then set up with the Tether App.

Warranty Period: 3-Year

@17/36

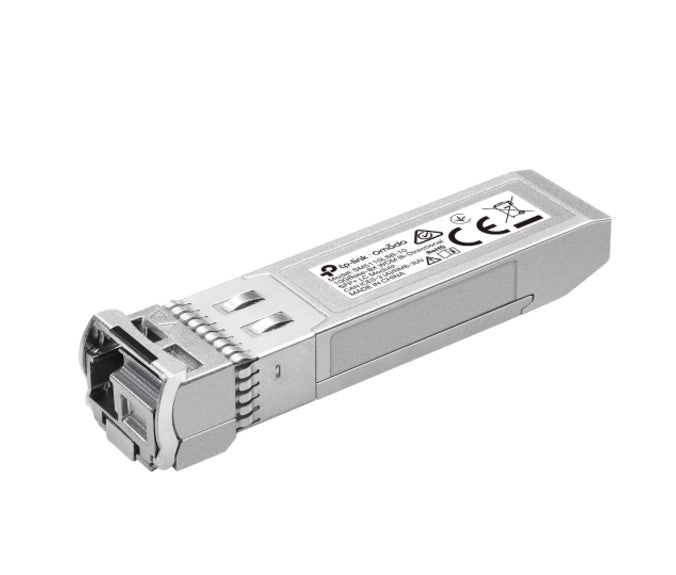

TP-Link SM5110LSB-10 Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module • Supports WDM Bi-Directional technology; using a single strand of fibre; cost saving • Single mode SFP+ LC Transceiver • Hot-Pluggable with maximum flexibility • Supports Digital Diagnostic Monitoring (DDM) • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+) • Compatible with switches with 10G ports like SG3428X and SG3452X

Warranty Period: 3-Year

@7/18

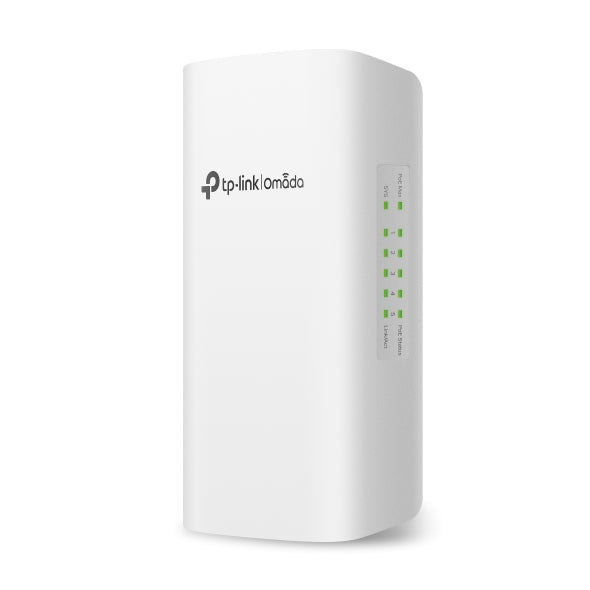

TP-Link SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out • Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds; perfect for long-range surveillance cameras and access points.* • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W); 802.3bt Type 3 (60 W); 802.3at; and 802.3af PoE; respectively.** • Outdoor Weatherproof: IP55 waterproof; dustproof; and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions. • Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs. • Centralised Cloud Management: Integrates into Omada SDN for cloud access; remote management; and multi-site management. • Value-Added Features Foster Touchpoint Experiences: Static Routing; Access Control List (ACL); QoS; and VLAN.

Warranty Period: 5-Year

@13/36

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch

• Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*; Centralized Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Robust Security Strategies: 802.1Q VLAN; ACL; Port Security; Storm Control; and more. • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. • Versatile Management: WEB/CLI managed modes; SNMP; and RMON bring abundant management features.

HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3ad; IEEE 802.3x; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1p; IEEE 802.1x Interface 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply 12 VDC/1 A External Adapter or Obtain Power from PoE Source Power Consumption 6.4 W (220 V/50 Hz) Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) PERFORMANCE Bandwidth/Backplane 16 Gbps Packet Forwarding Rate 11.9 Mpps MAC Address Table 8K Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control

@10/24

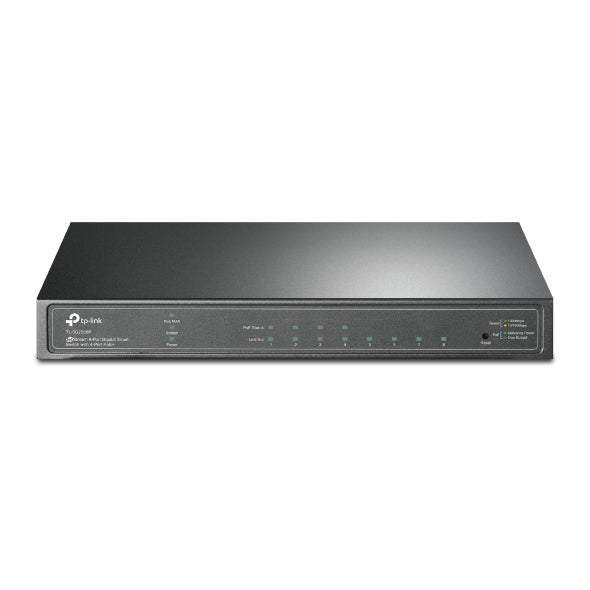

TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ With Omada SDN Supported

• Features 4 PoE+ ports; with a total PoE power budget of 62 W* and useful PoE power management features • Omada SDN platform integration provides 100% centralized cloud management to create a highly scalable network • Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication • L2/L3/L4 QoS and IGMP snooping optimise voice and video applications • Gigabit Ethernet connections on all ports provide full speed of data transferring

HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3ad; IEEE 802.3af; IEEE 802.3at; IEEE 802.3x; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1p; IEEE 802.1x Interface • 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+) • Auto-Negotiation/Auto MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply • External Power Adapter (Output: 53.5 VDC/ 1.31 A) Power Consumption • 7.9 W (220 V/50 Hz) (no PD connected) • 79.2 W (220 V/50 Hz) (with 62 W PD connected) PoE Ports (RJ45) • Standard: 802.3af/at compliant • PoE Ports: 4 Ports • Power Supply: 62 W* Dimensions W x D x H 209 x 126 x 26mm

PERFORMANCE Bandwidth/Backplane 16 Gbps MAC Address Table 8k Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB

MANAGEMENT Omada App Yes

@12/17

TP-Link TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+ • 120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*. • Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning**; Centralized Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Robust Security Strategies: IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X; Radius Authentication; and more. • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Warranty Period: 5-Year

@20/41

TP-Link SG2206MP Omada Access 6-Port Gigabit Switch with 4-Port PoE+ • 5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot • 63W total PoE budget with up to 30W for each PoE+ port* • Centralized cloud management via the web or the Omada app† • Standalone management via web; CLI; SNMP; and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN; ACL; QoS; and IGMP Snooping • Durable metal casing and desktop/wall mounting design

Warranty Period: 5-Year

@12/27

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ With Omada SDN Supported

• Features 8 802.3af/at compliant PoE+ ports; with total PoE power budget of 150 W and useful PoE power management features • Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network • Gigabit Ethernet connections on all ports provide full speed of data transferring • Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication • L2/L3/L4 QoS and IGMP snooping optimise voice and video applications • WEB/CLI managed modes; SNMP; RMON bring abundant management features

HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p Interface • 8× 10/100/1000 Mbps RJ45 Ports; all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots Network Media • 10BASE-T: UTP/STP category 3; 4; 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP/STP category 5; 5e or above cable (maximum 100m) • 100BASE-FX: MMF; SMF • 1000BASE-X: MMF; SMF Fan Quantity 1 Physical Security Lock Yes PoE+ Ports(RJ45) • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 150 W Dimensions ( W x D x H ) (294 x 180 x 44 mm) Mounting Rackmount/Desktop Max Power Consumption • 12.2 W (110 V / 60 Hz with no PD connected) • 173.9 W (110 V / 60 Hz with 150 W PD connected) Max Heat Dissipation • 41.63 BTU/h (with no PD connected) • 539.35 BTU/h (with 150 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.9 Mpps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB

@19/41

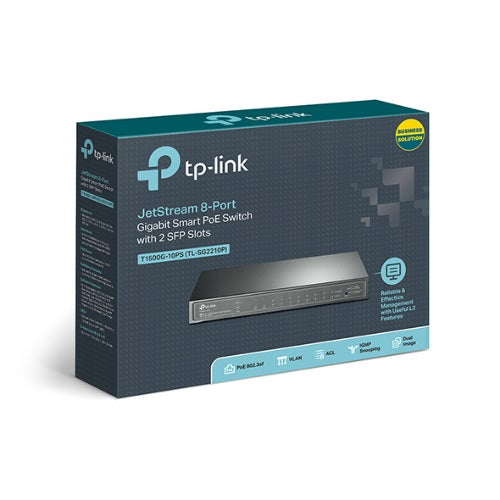

TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

Features 8 PoE ports; with total PoE power budget of 53W and useful PoE power management features Gigabit Ethernet connections on all ports provide full speed of data transferring Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB/CLI managed modes; SNMP; RMON bring abundant management features Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3af; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100~240VAC; 50/60Hz External Power Adapter(Output: 48VDC/1.25A) Power Consumption Maximum (PoE on): 64.9W Maximum (PoE off): 9.9W PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions ( W x D x H ) 209 * 126 * 26mm Max Power Consumption 9.92W (220V/50Hz with no PD connected) 64.89W (110V/60Hz with 53W PD connected) Max Heat Dissipation 33.85 BTU/h (with no PD connected) 221.40 BTU/h (with 53W PD connected)

PERFORMANCE Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8K Jumbo Frame 9KB
