HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.3at Interface Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W Max Power Consumption 4.52 W (220V/50Hz with no PD connected) 75.16 W (220V/50Hz with 65 W PD connected) Max Heat Dissipation 15.41 BTU/h (with no PD connected) 256.30 BTU/h (with 65 W PD connected)
PERFORMANCE Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2 K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB
SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Web-based GUI
@25/32
Warranty Period: 5-Year
@48/35
@18/30

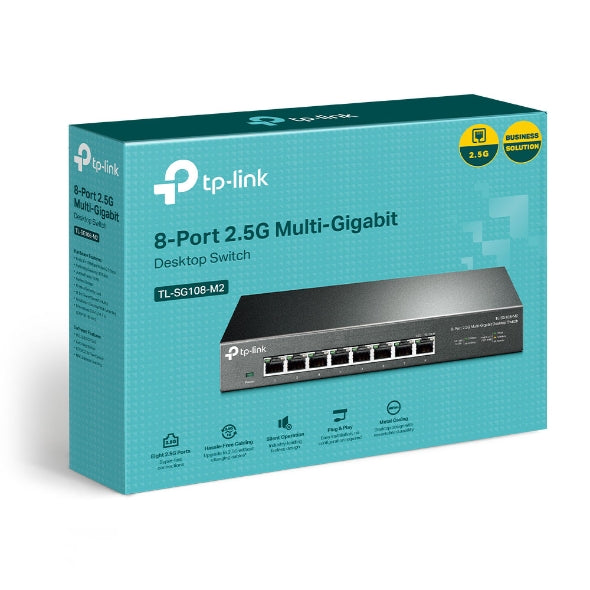

HARDWARE FEATURES Standards and Protocols IEEE 802.3 802.3u 802.3ab 802.3x 802.1p 802.3bz Interface 8× 100Mbps/1Gbps/2.5Gbp Ports Auto-Negotiation Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 1.5 A) LED Indicator * System Power: 1 * Link/Act Indicators: 8 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm) Max Power Consumption 15.65 W Max Heat Dissipation 53.40 BTU/h
PERFORMANCE Switching Capacity 40 Gbps Packet Forwarding Rate 29.8 Mpps MAC Address Table 16 K Packet Buffer Memory 1.5 Mb Jumbo Frame 10 KB
SOFTWARE FEATURES Advanced Features * 802.3X Flow Control * 802.1p/DSCP QoS Transfer Method Store and Forward
OTHERS Certification CE FCC RoHS Package Contents * 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2 * Power Adapter * Installation Guide * Rubber Feet Environment * Operating Temperature: 0–40 °C (32–104 °F) * Storage Temperature: -40–70 °C (-40–158 °F) * Operating Humidity: 10–90% RH non-c
@28/31
8 10/100/1000Mbps RJ45 ports With 4 PoE ports data and power can be transferred on one single cable Provides network monitoring traffic prioritization and VLAN features Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration
What This Product Does The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices such as wireless access points (APs) IP cameras and IP phones. Through its web-based user interface and management utility the TL-SG108PE offers a variety of useful features including network monitoring trafc prioritization and enhanced QoS. Additionally with port-based tag-based and MTU VLAN TL-SG108PE can improve security and meet more network segmentation requirements.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 48VDC / 1.25A) Power Consumption Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) PoE+ Ports(RJ45) Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W
PERFORMANCE Switching Capacity 16Gbps Packet Forwarding Rate 11.9Mpps MAC Address Table 4K Packet Buffer Memory 1.5Mb
@28/31
16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Green Ethernet technology saves power consumption IEEE 802.3x flow control provides reliable data transfer Steel housing desktop or wall-mounting design Support 802.1p/DSCP QoS and IGMP Snooping function Plug and play with no configuration needed
HARDWARE FEATURES Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p Interface 16 10/100/1000Mbps Ports Auto-Negotiation Auto-MDI/MDIX Fan Quantity Fanless Power Consumption Maximum: 10.0W External Power Supply External Power Adapter (Output: 12VDC / 1.0A) LED Indicator System Power Link/Act indicators per port built into each RJ-45 port Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm) PERFORMANCE Packet Forwarding Rate 23.8Mpps MAC Address Table 8K Packet Buffer Memory 4.1Mb Jumbo Frame 10KB SOFTWARE FEATURES Advanced Features Green Technology 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping Transfer Method Store and Forward OTHERS Certification CE FCC RoHS Package Contents 16-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
@28/31
16 10/100/1000Mbps RJ45 ports Plug and play with no configuration required Durable metal casing of superior quality and professional appearance Intelligent management via a web user interface and downloadable utility Green technology reduces power consumption
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 9VDC/0.6A) Power Consumption Maximum: 9.27W (220V/50Hz) Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm) PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.81Mpps MAC Address Table 8K Packet Buffer Memory 4.1Mb Jumbo Frame 9KB
SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward
@30/32
@46/34
* 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 Port * 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W* * Compliance with IEEE 802.3af/at PoE+ the switch supports PoE Power up to 30 W for each PoE port * Up to 250 m data and power transmission range under Extend Mode** * Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications * Isolation Mode allows one-click client traffic separation for higher security and performance * Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery. * Plug and play with no configuration required * Fanless design reduces power consumption and works silently in its location
HARDWARE FEATURES Interface * 9× 10/100/1000 Mbps RJ45 Ports * 1× 1000 Mbps Combo SFP/RJ45 Port * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A) Packet Forwarding Rate 14.88 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–8 * Power Supply: 123 W Mac Address Table 4K Jumbo Frame 16 KB Switching Capacity 20 Gbps Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption * 7.93 W (220V / 50Hz with no PD connected) * 141.40 W (220V / 50Hz with 123 W PD connected) Max Heat Dissipation * 27.04 BTU/h (220V / 50Hz with no PD connected) * 482.17 BTU/h (220V / 50Hz with 123 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4 Up to 250 m PoE power supply and data tra
@41/33
* 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port * Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port the switch can transfer data and power via one single cable * Supports PoE power up to 123 W for all PoE ports* * Provides network monitoring traffic prioritisation VLAN features and PoE Auto Recovery * Simple network set-up on top of plug-and-play connectivity * Web-based user interface and Easy Smart Configuration Utility simplify configuration * Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.3at IEEE 802.3z Interface 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4 K Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Agg
@46/34
HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF SMF Fan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth 20 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W Mac Address Table 4K Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transmission Method Store-And-Forward OTHERS Certification CE FCC RoHS Package Contents TL-SG1210P Power Adapter Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
@32/33
Warranty Period: 5-Year
@48/35
HARDWARE FEATURES Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1q IEEE 802.1p Interface * 16× PoE+ gigabit RJ45 ports * 2× gigabit non-PoE RJ45 ports * 2× combo gigabit SFP slots Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-X MMF SMF Fan Quantity 2 Physical Security Lock Yes Power Supply 100–240 VAC 50/60 Hz PoE+ Ports(RJ45) * Standard: 802.3at/802.3af compliant * PoE Ports: Ports 1–16 * PoE Power Budget: 250 W Dimensions ( W x D x H ) 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption * 21.4 W (220/50 Hz. no PD connected) * 286.64 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation * 72.97 BTU/h (no PD connected) * 977.44 BTU/h (with 250 W PD connected)
PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 26.78 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * 802.1p/DHCP QoS * Mac Address Auto-Learning And Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Jumbo Frame 10 KB
@0/30
HARDWARE FEATURES Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1q IEEE 802.1p Interface 16 PoE+ 10/100/1000Mbps RJ45 Ports 2 Fiber Ports Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC 50/60 Hz Backup Bandwidth 7.2 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W Mac Address Table 8K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) Max Heat Dissipation 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected)
PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 23.8 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB
@0/30
TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
* 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots * PoE power budget is up to 250 W* making it ideal for small to medium business surveillance systems * Priority Mode helps to guarantee the quality of sensitive application like video monitoring * PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices * QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV * Intelligent power management can protect the switch from overload
HARDWARE FEATURES Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1q IEEE 802.1p Interface 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC 50/60 Hz PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) Mounting Rack Mountable Max Power Consumption 27 W (220/50Hz. no PD connected) 304.7 W (220/50Hz. with 250 W PD connected) Max Heat Dissipation 92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE Switching Capacity 56 Gbps Packet Forwarding Rate 41.7 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB
SOFTWARE FEATURES Quality of Service Support Port-based 802.1p/DSCP priority
@0/31
HARDWARE FEATURES Interface * 16× PoE+ 10/100 Mbps RJ45 Ports * 2× 10/100/1000 Mbps RJ45 Ports * 1× Combo Gigabit SFP Slot Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-X MMF SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100–240V AC 50/60 Hz PoE+ Ports(RJ45) * Standard: 802.3at/802.3af compliant * PoE Ports: Ports 1–16 * PoE Power Budget: 150 W Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Max Power Consumption * 12.71 W (220/50Hz. no PD connected) * 172.8 W (220/50Hz. with 150 W PD connected) Max Heat Dissipation * 43.34 BTU/h (no PD connected) * 589.25 BTU/h (with 150 W PD connected)
PERFORMANCE Switching Capacity 7.2 Gbps Packet Forwarding Rate 5.36 Mpps MAC Address Table 8K Jumbo Frame 10 KB
SOFTWARE FEATURES Advanced Features * Compatible With IEEE 802.3at/af Compliant PDs * Extend Mode (Up to 250m PoE power supply and data transmission) * Priority Mode * Isolation Mode * Mac Address Auto-Learning And Auto-Aging * IEEE802.3x Flow Control Transmission Method Store-And-Forward
@0/30
HARDWARE FEATURES Interface 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240 VAC 50/60 Hz Backup Bandwidth 8.8 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W Mac Address Table 8 K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Max Power Consumption 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected)
SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control
@0/30
* 8× 10/100 Mbps RJ45 Ports 2× Gigabit RJ45 Ports 1× Gigabit SFP Port * 8× PoE+ ports transfer data and power on individual cables * Works with IEEE 802.3af/at compliant PDs * Supports PoE Power up to 30 W for each PoE port * Supports PoE Power up to 124 W for 8 PoE ports* * Up to 250 m data and power transmitting range under Extend Mode** * Isolation Mode allows one-click client traffic separation for higher security and performance * PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices * Fanless Design reduces power consumption and works silently in its location * Plug and play with no configuration required
HARDWARE FEATURES Interface * 8× 10/100 Mbps 802.3af/at PoE+ Ports 2× Gigabit RJ45 Ports 1× Gigabit SFP Port * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A) Packet Forwarding Rate 5.6544 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–8 * Power Supply: 124 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 7.6 Gbps Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption * 5.95 W (220/50 Hz. no PD connected) * 140.92 W (220/50 Hz. with 124 W PD connected) Max Heat Dissipation * 20.29 BTU/h (no PD connected) * 480.54 BTU/h (220/50 Hz. with 124 W PD connected)
SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4 and Ports 1–8 Up to 250 m PoE power supply and data transmission) * Isolation Mode
@37/31
