@24/21

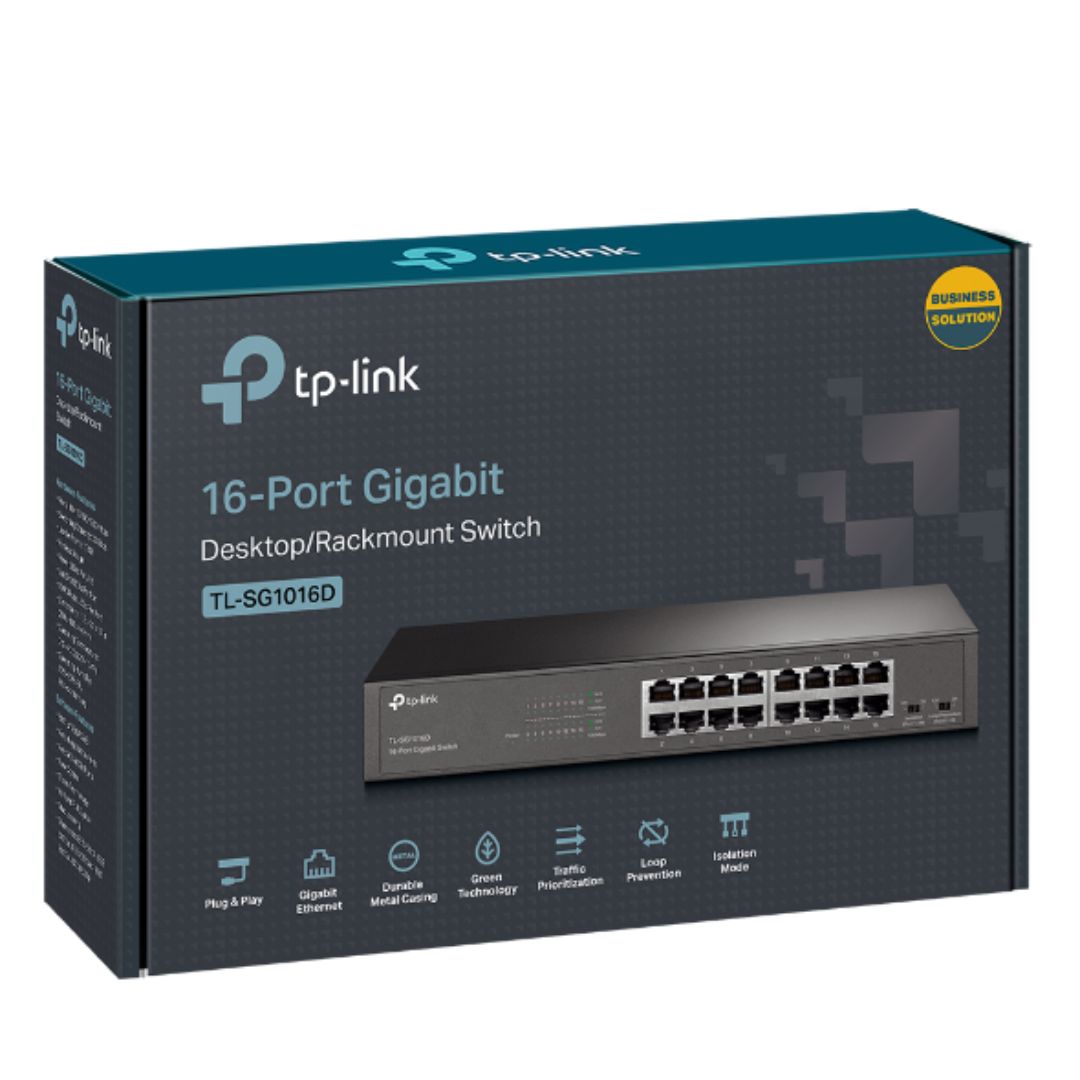

16 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power consumption Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC 50/60Hz Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) Mounting Rack Mountable Max Power Consumption 10.44W Max Heat Dissipation 35.60BTU/h
PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.8Mpps MAC Address Table 8K Jumbo Frame 10KB QoS 802.1p/DSCP QoS*
*Only for V12 and later version Green Technology Yes Transfer Method Store-and-Forward
@31/26
16 10/100/1000Mbps ports Innovative energy-efficient technology saves power up to 15%* Supports MAC address self-learning Auto MDI/MDIX and Auto negotiation Plug & play design
@29/25
@33/28
16 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ supported ports to transfer data and power over a single cable Works with IEEE 802.3af/at compliant devices expanding home and office networks Innovative energy-efficient technology reduces power output by up to 75%* Plug and play design no configuration required *Actual data may vary in different usage environment.
HARDWARE FEATURES Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Power Supply 100-240VAC 50/60Hz Power Consumption Maximum (PoE on): 124.4W (220V/50Hz) Maximum (PoE off): 14.4W (220V/50Hz) PoE+ Ports(RJ45) 8 Ports Backbound Bandwidth 32 Gbps Mac Address Table 8K Buffer Size 1.5 Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) SOFTWARE FEATURES Transfer Method Store-And-Forward Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet Consumption 9.5 watts (max. no PD connected) 140.1 watts (max. with 126w PD connected) Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@48/36

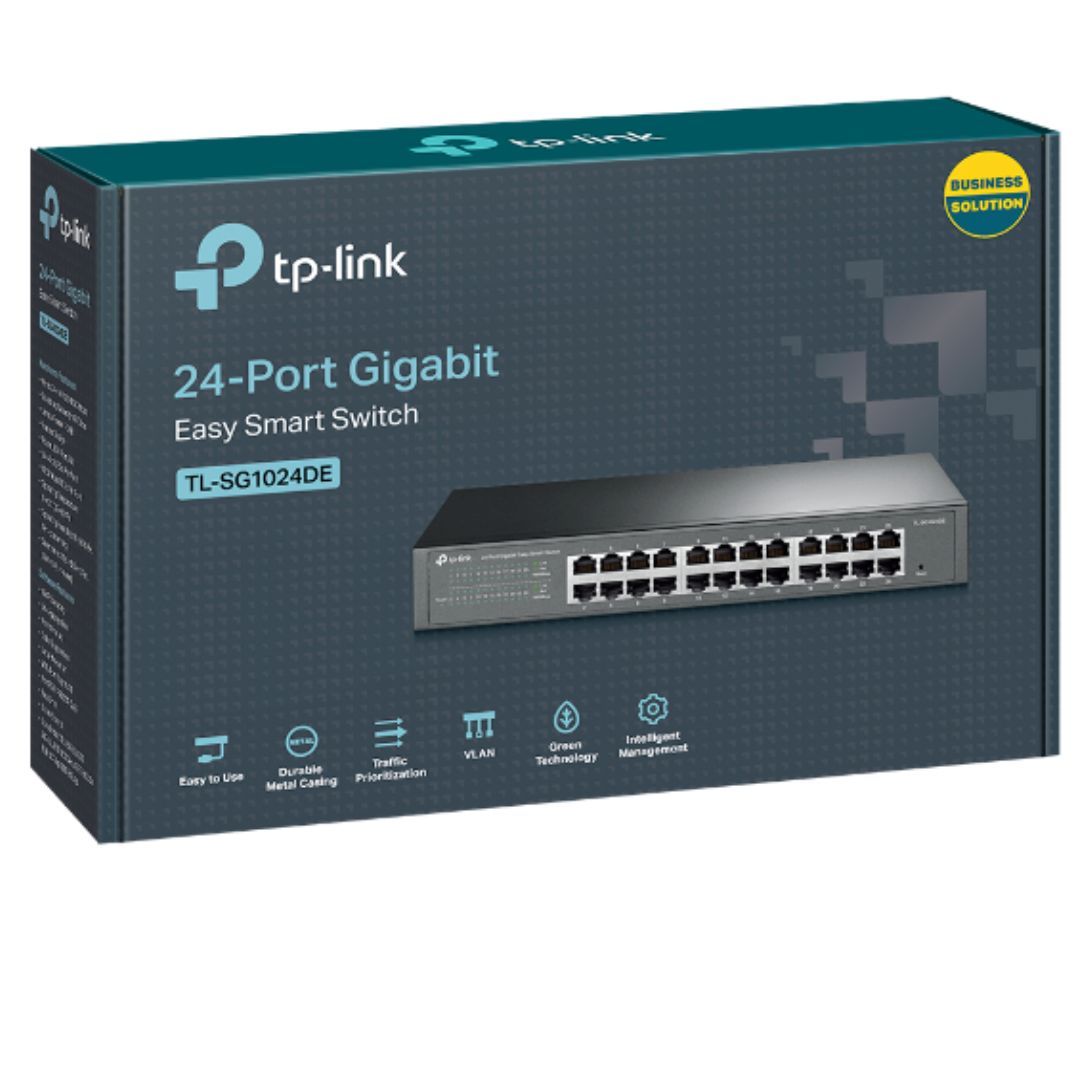

HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC 50/60Hz Power Consumption Maximum: 13.1W (220V/50Hz) Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 13.62W(220V/50Hz) Max Heat Dissipation 46.44BTU/h
PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Jumbo Frame 10KB Green Technology Yes Transfer Method Store-and-Forward
@42/33
@42/33
48 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power up to 18% Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
What This Product Does
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable easy-to-use switch without the complexity of management the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5 5e or above cable (maximum 100m) Fan Quantity 2 Power Supply 100-240VAC 50/60Hz Power Consumption Maximum: 29.8W (220V/50Hz) Dimensions ( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm) PERFORMANCE Switching Capacity 96Gbps Packet Forwarding Rate 71.4Mpps MAC Address Table 8K Buffer Memory 16Mb Jumbo Frame 10KB Transfer Method Store-and-Forward
OTHERS Certification FCC CE RoHS Package Contents 48-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
@0/54

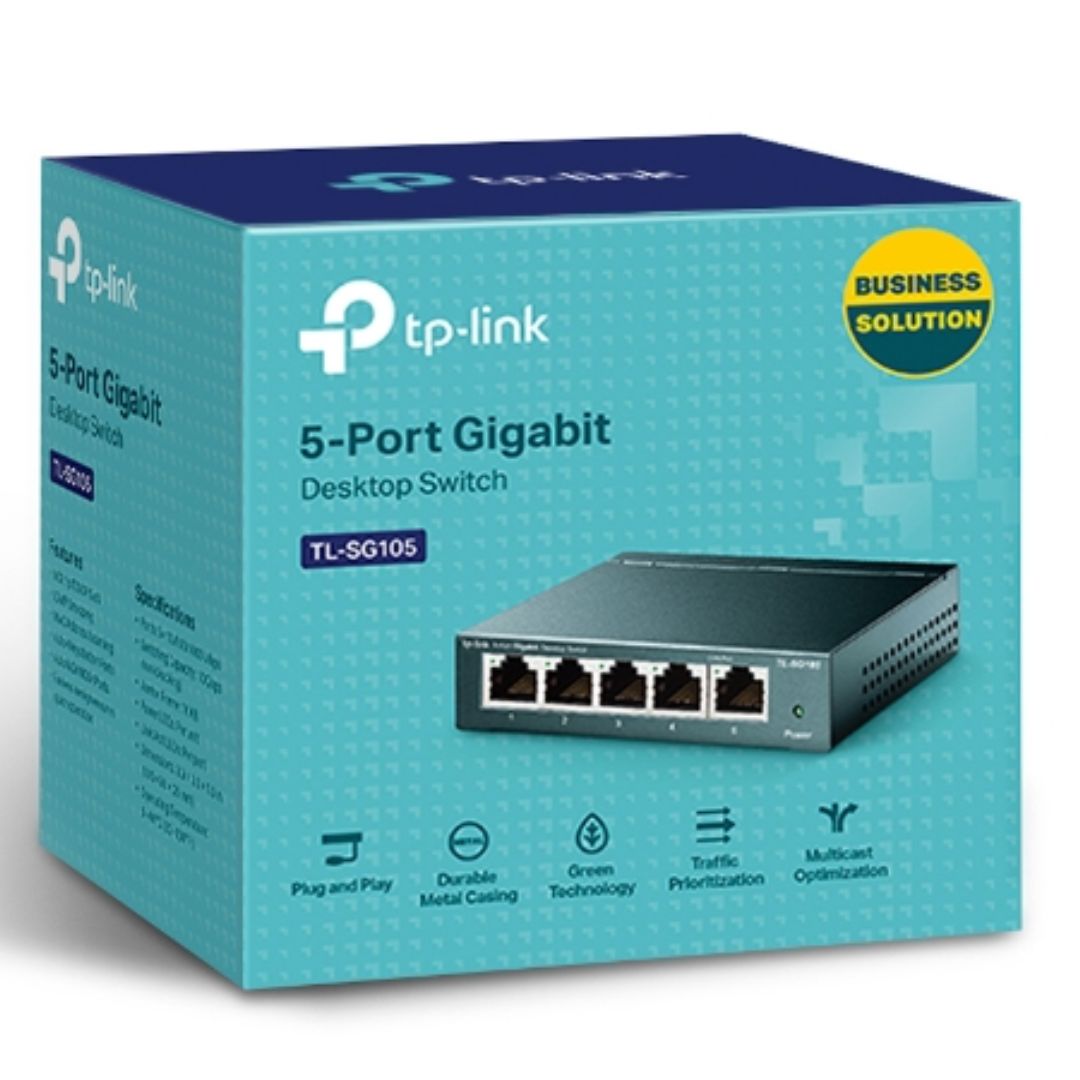

5-Port 10/100/1000Mbps Desktop Switch 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Plug and play no configuration needed Supports 802.1p/DSCP QoS and IGMP Snooping functions Durable metal casing desktop/wall-mounting options and a fanless design IEEE 802.3x flow control provides reliable data transfer Green Ethernet technology reduces power consumption
HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x IEEE 802.1p Interface 5× 10/100/1000 Mbps Auto-Negotiation Auto-MDI/MDIX Ports Fan Quantity Fanless External Power Supply External Power Adapter (Output: 5 V DC / 0.6A) LED Indicator System Power Link/Act indicators per port built into each RJ-45 port Dimensions ( W x D x H ) (100 x 98 x 25 mm) Max Power Consumption 2.3 W (220 V/ 50 Hz) Max Heat Dissipation 7.83 BTU/h
PERFORMANCE Packet Forwarding Rate 7.4 Mpps MAC Address Table 2K Packet Buffer Memory 1 Mb Jumbo Frame 16 KB
SOFTWARE FEATURES Advanced Features Green Technology 802.3X Flow Control 802.1P/DSCP QoS (for V2 and later version) IGMP Snooping Transfer Method Store and Forward
OTHERS Certification CE FCC RoHS Package Contents 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Environment Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
@10/10
* Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity. * Super-Fast Connections. Provides super-fast connections to 2.5G NAS 2.5G Server gaming computer 2.5G WiFi 6 AP 4K video and more. * Ideal for Various Scenarios. Built for LAN parties home entertainment small and home offices and instant transfer for workstations * Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring reducing wiring costs and hassle.** * Silent Operation. Industry-leading fanless design ensures silent operation ideal for any home or business. * Plug and Play. Allows for easy deployment without the need for a technician. * Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
HARDWARE FEATURES Standards and Protocols IEEE 802.3 802.3u 802.3ab 802.3x 802.1p 802.3bz Interface 5× 100Mbps/1Gbps/2.5Gbp Ports Auto-Negotiation Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 1 A) LED Indicator * System Power: 1 * Link/Act Indicators: 5 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm) Max Power Consumption 12.11 W Max Heat Dissipation 41.32 BTU/h
PERFORMANCE Switching Capacity 25 Gbps Packet Forwarding Rate 18.6 Mpps MAC Address Table 16 K Packet Buffer Memory 1.5 Mb Jumbo Frame 10 KB
SOFTWARE FEATURES Advanced Features * 802.3X Flow Control * 802.1p/DSCP QoS Transfer Method Store and Forward
OTHERS Certification CE FCC RoHS Package Contents * 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 * Power Adapter * Installation Guide * Rubber Feet Environment * Operating Temperature: 0–40 °C (32–104 °F) * Storage Temperature: -40–70 °C (-40–158 °F) * Operating Humidity: 10–90% RH non-c
@22/22
@12/11
Warranty Period: 5-Year
@31/26
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.3at Interface Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W Max Power Consumption 4.52 W (220V/50Hz with no PD connected) 75.16 W (220V/50Hz with 65 W PD connected) Max Heat Dissipation 15.41 BTU/h (with no PD connected) 256.30 BTU/h (with 65 W PD connected)
PERFORMANCE Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2 K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB
SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Web-based GUI
@23/22
Warranty Period: 5-Year
@48/36
@15/14
HARDWARE FEATURES Standards and Protocols IEEE 802.3 802.3u 802.3ab 802.3x 802.1p 802.3bz Interface 8× 100Mbps/1Gbps/2.5Gbp Ports Auto-Negotiation Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 1.5 A) LED Indicator * System Power: 1 * Link/Act Indicators: 8 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm) Max Power Consumption 15.65 W Max Heat Dissipation 53.40 BTU/h
PERFORMANCE Switching Capacity 40 Gbps Packet Forwarding Rate 29.8 Mpps MAC Address Table 16 K Packet Buffer Memory 1.5 Mb Jumbo Frame 10 KB
SOFTWARE FEATURES Advanced Features * 802.3X Flow Control * 802.1p/DSCP QoS Transfer Method Store and Forward
OTHERS Certification CE FCC RoHS Package Contents * 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2 * Power Adapter * Installation Guide * Rubber Feet Environment * Operating Temperature: 0–40 °C (32–104 °F) * Storage Temperature: -40–70 °C (-40–158 °F) * Operating Humidity: 10–90% RH non-c
@26/23
@20/19
8 10/100/1000Mbps RJ45 ports With 4 PoE ports data and power can be transferred on one single cable Provides network monitoring traffic prioritization and VLAN features Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration
What This Product Does The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices such as wireless access points (APs) IP cameras and IP phones. Through its web-based user interface and management utility the TL-SG108PE offers a variety of useful features including network monitoring trafc prioritization and enhanced QoS. Additionally with port-based tag-based and MTU VLAN TL-SG108PE can improve security and meet more network segmentation requirements.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 48VDC / 1.25A) Power Consumption Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) PoE+ Ports(RJ45) Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W
PERFORMANCE Switching Capacity 16Gbps Packet Forwarding Rate 11.9Mpps MAC Address Table 4K Packet Buffer Memory 1.5Mb
@26/23
