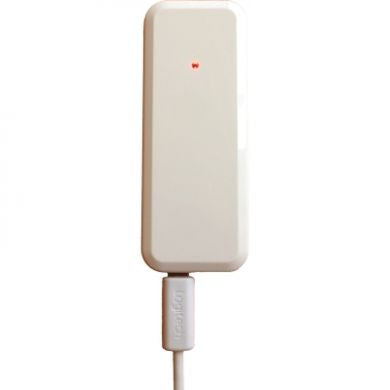

The Vision Z-Wave Range Extender is a smart, discrete Z-Wave device designed to amplify the signals of any Z-Wave devices in your Z-Wave network which helps to eliminate "RF dead spots".
- Amplifies signals to a range of up to 100m
- Power level control
- Wall mountable
- micro USB powered
Product Details
The Vision Z-Wave Range extender is designed to amplify the signals of any Z-Wave device in your Z-Wave network. It is compatible with all Z-Wave enabled devices regardless of their manufacturers. This device takes existing Z-Wave signals emitted from nearby devices and sends them to distant Z-Wave devices in your Z-Wave network which would otherwise be unreachable.
This device also allows you to adjust its power level, by reducing its power level you can reduce its power consumption and operational range.
Please Note: The Vision Z-Wave Range Extender is powered by standard micro USB power supply. Neither the micro USB power supply nor the USB cable are included with this product.
Product Support
Manuals:
⇒ Vision Z-Wave Range Extender Manual (Size: 90KB)
Technical Specifications
|
RF Protocol
|
Z‐Wave
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐Wave Device Type
|
Z-Wave Range Extender
|
|
Z‐Wave Chip Type
|
Z-Wave 500 Series
|
|
Operation Voltage
|
Powered by standard micro USB (5V/DC)
|
|
Operation Current
|
300 mA (±50mA)
|
|
Operation Range
|
Up to 100m indoor with no obstacles
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
-15 ~ 60 °C
|
|
Storage temperature
|
‐20 ~ 65 °C
|
|
Weight
|
30g
|
|
Housing
|
ABS
|
|
Dimensions
|
(LxWxH) 82mm x 32mm x 10mm |
