| Frequency Range | 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 5/06/2007 |
| Dimensions | 165(L) x 155(W) x 50(H) |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA, IP55 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Horizontal Beamwidth | 90 / 80 / 70 |
| Brand | RFI |
| Weight [kg] | 0.33 |
{
requestAnimationFrame(() => {
const submenuEls = $el.getElementsByClassName('toggle-menu');
const visible = Array.from(submenuEls).filter(el => !el.classList.contains('toggle-menu-hidden'));
if (visible.length == 0) {
$store.xHeaderMenu.openHamburgerMenu = false;
}
});
}, 400);
$store.xHeaderMenu.overlay = false;
}"
>
Sort by:
The Cel-Fi GO Telstra Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading up to 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54/Nema 4 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.
- 3G / 4G / 4GX Voice and Data
- Up to 15,000 ft2 (1,500 m2) of Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
Cel-Fi is the only consumer mobile phone repeater that has been widely approved by all mobile carriers in Australia. Currently approved for use on the Telstra mobile networks, Cel-Fi is a new type of mobile enhancement device called a Smart Repeater. There are other non-compliant consumer repeaters that appear to be from Australia, buying non Cel-Fi repeaters may result in large fines and loss of the equipment.
What is a Smart Repeater?
A Smart Repeater is a new type of mobile phone repeater that is designed to complement an existing mobile network and not interfere with its operation. It does this by monitoring the base station levels in real time, only repeating the signal of one particular carrier and having inbuilt protection to ensure it does not overload or interfere with network operation. Cel-Fi is currently the only Smart Repeater in existence.
FEATURES
- Designed for building and site
- 100dB of system gain
- Includes external and internal antennas
- Locked to Telstra's Mobile Network
- ACMA and Carrier approved
- Band Selection Button
SUPPORTED NETWORKS
Telstra, Aldi Mobile, Boost Mobile, Woolworths Connect, plus many more
How to setup the unit?
1. Install the External Donor Antenna
2. Install the Internal Server Antenna
3. Mount the GO unit near power outlet
4. Connect the Donor and Server Antennas the GO unit
5. Apply power to the Cel-Fi Go
How to activate the unit?
1. Download the WAVE App from the Apple or Android store
Run the App next to the Cel-Fi and it will connect via Bluetooth. Power up GO and connect using WAVE App to register
2. Once connected it will pop up with the registration form to complete. Note this form is much shorter than the original web-based form
3. Complete and submit the form
4. The unit will now be active within 30 seconds
IMPORTANT: Internet access is required to run the WAVE app
Specifications
| Available Frequency Bands (MHz) | Telstra Band 3/8/28 |
| Frequency Range | 1800Mhz, 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | AC 240V to + 12V adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Optional Antenna Packages
Repeater only, no antenna Pack includes :
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
LPDA 11dBi LPDA7030 Yagi antenna bundle pack includes :
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna - 10m cable
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

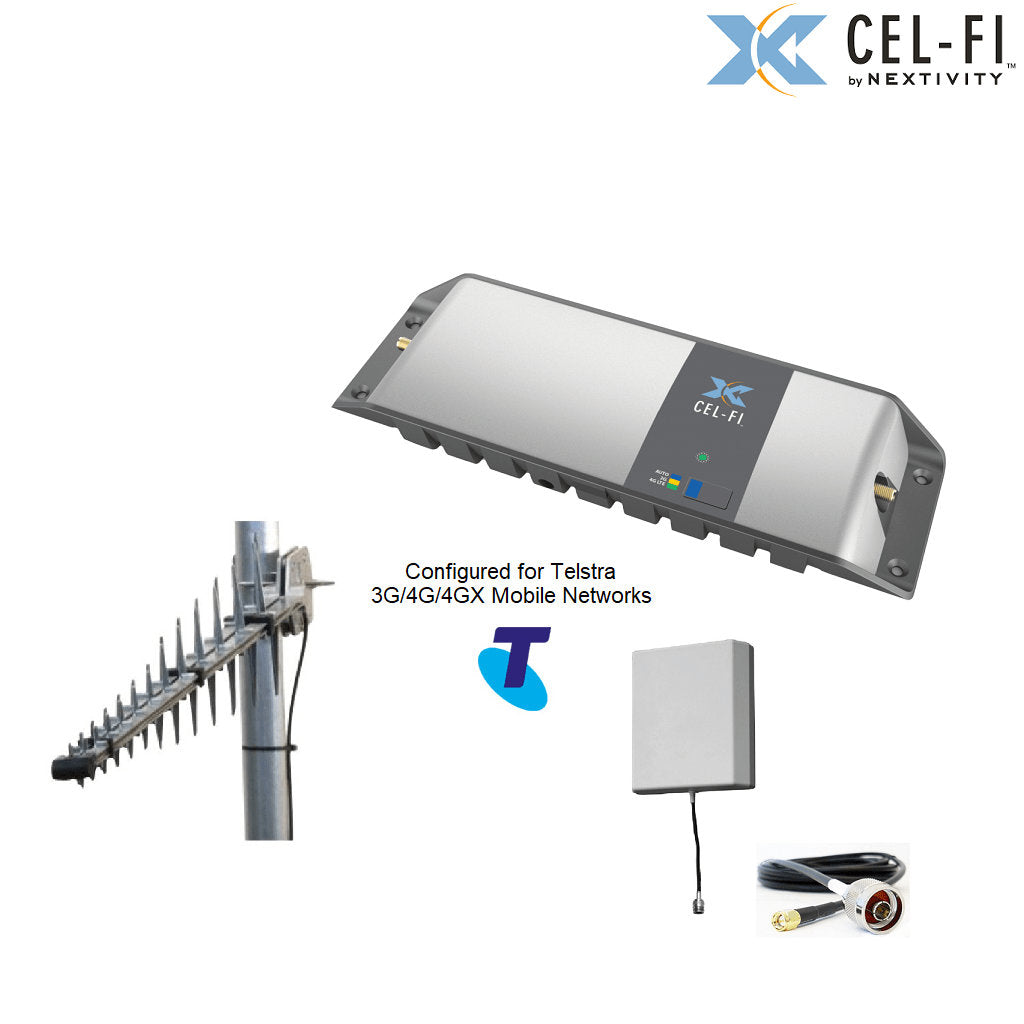

LPDA-CPL 11dBi LPDA7030 + 8dBi CPL6927 antenna bundle pack inclues :
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna - 10m cable
- 1x CPL6927-SMA LTE 8dBi Directional Panel Antenna 698-2700MHz - 10m cable
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers

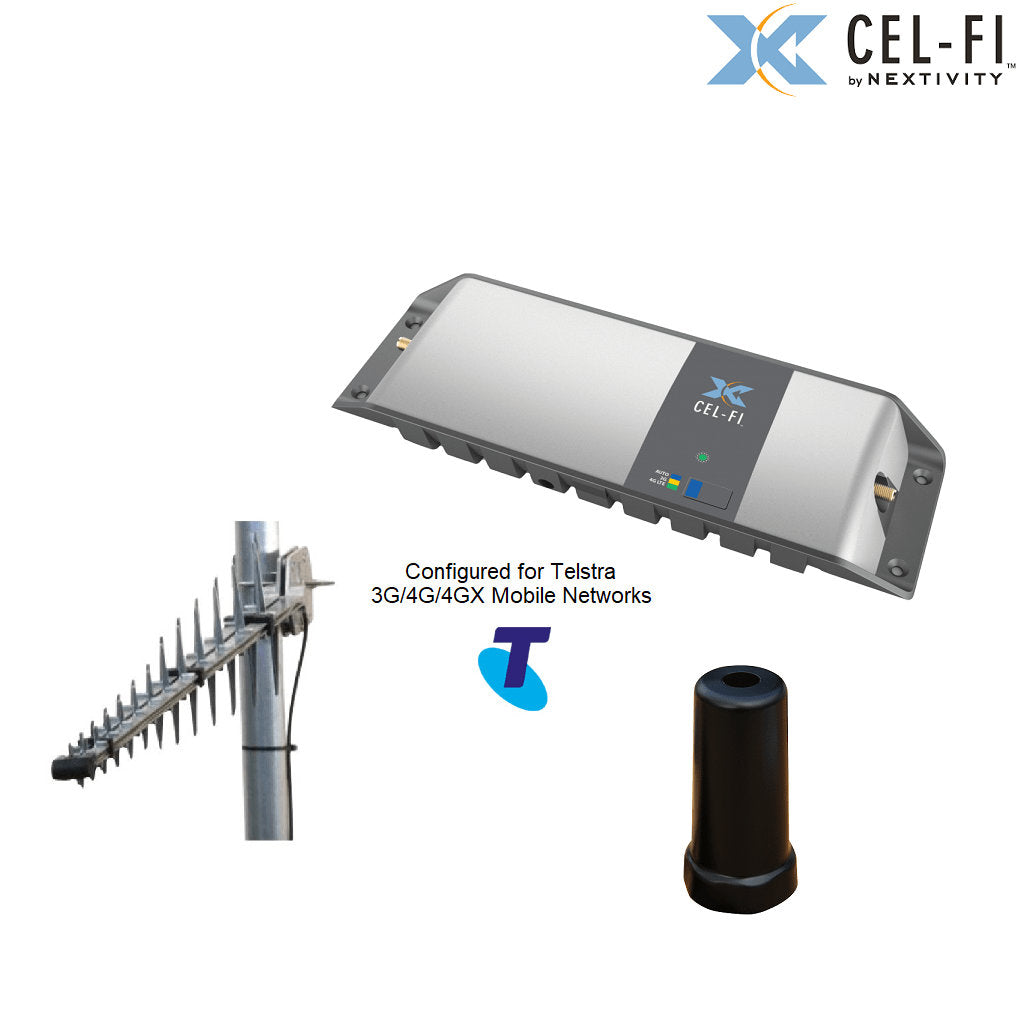

LPDA-CSM 11dBi LPDA7030 + 5dBi CSM700 antenna bundle pack includes :
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna - 10m cable
- 1x RFI CSM700-5M-SMA LTE Cellular stud mount with 5m RG58 cable.
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
LPDA-MAGS 11dBi LPDA7030 + 3dBi LTE-MAGS antenna bundle pack includes:
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna -10m cable
- 1x RFI LTE 3dBi SISO Magnetic base antenna (698-2700MHZ) 3m cable with SMA
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
COL 6.5dBi Collinear Cellular Base antenna bundle pack includes:
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195-B Collinear Cellular Base Antenna - Black - 10m cable
COL-CSM 6.5dBi Collinear + 5dBi CSM700 antenna bundle pack includes:
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195-B Collinear Cellular Base Antenna - Black - 10m cable
- 1x CSM700-5M-SMA LTE Cellular stud mount with 5m RG58 cable
COL-CPL 6.5dBi Collinear + 8dBi CPL6927 antenna bundle pack includes:
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195 Collinear Cellular Base Antenna - Black - 10m cable
- 1x CPL6927-10-SMA LTE Directional Panel Antenna 698-2700MHz - 10m cable
COL-MAGS 6.5dBi Collinear + 3dBi LTE-MAGS antenna bundle pack includes:
- 1x CEL-FI-GO Telstra 3/5/28S Stationary unit only
- 1x 240V DC Power Pack
- 1x RFI COL7195-B Collinear Cellular Base Antenna - Black - 10m cable
- 1X LTE-MAGS-3M-SMA SISO Magnetic base antenna (698-2700MHZ) 3m SMA cable
{
Alpine.store('xUpdateVariantQuanity').updateQuantity('template--19995527250175__product-grid', '/products/cel-fi-go-g31-3-5-28s-lpda-das-stationary-telstra-11dbi-lpda7030-6dbi-das-6938-sdp150-internal-panel-mount-antenna-bundle');
});">
CEL-FI GO STATIONARY TELSTRA G31-3/5/28S-LPDA-DAS, 11DBI LPDA7030 DIRECTIONAL ANTENNA | 6DBI DAS6938 PANEL MOUNT DONOR ANTENNA BUNDLE
Each G31-3/5/28S-LPDA-DAS Cel-Fi GO - Stationary Telstra LPDA/DAS bundle consists of...
- G31-3/5/28S Telstra 3/5/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack
- RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector
- DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz, -150dBc, N type connector, IP55
- 9207N-10 Cable Extension 10Mts - SMA Male to N Female

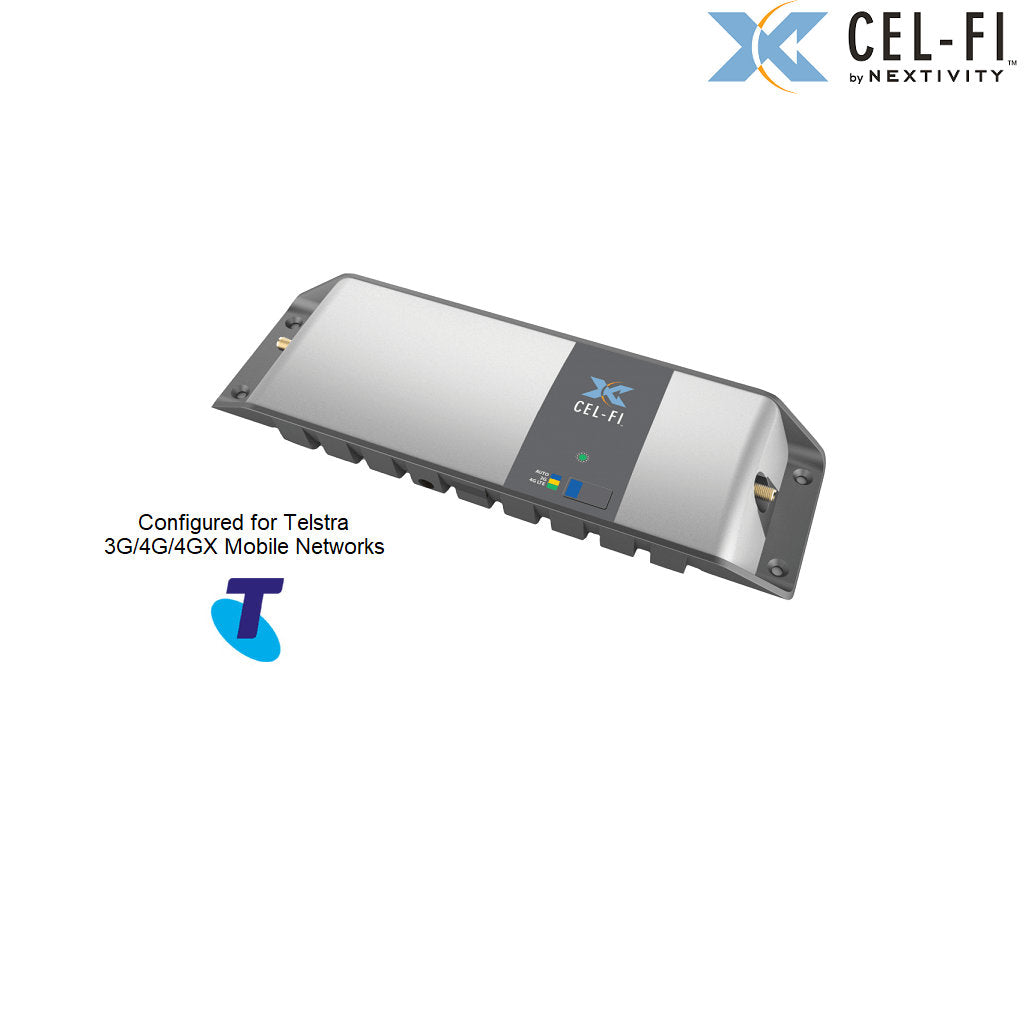

The Cel-Fi GO Stationary Smart Signal Repeater, the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties, government buildings, agricultural settings, small manufacturing operations, rural areas, businesses, and large homes.
Cel-Fi Go Features:
- 3G / 4G / 4GX Voice and Data for the Telstra Network
- Up to 1,500 m2 of Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated.
- Network Safe
- Configure for Mobile or Stationary use via Wave app
3-Band Cel-Fi GO Mobile
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.
SPECIFICATIONS - Cel-Fi Go Stationary
| Available Frequency Bands (MHz) | Band 3/5/28 |
| Frequency Range | 1800Mhz, 850Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | GO unit + AC adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50 Ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Specifications - LPDA7030-11-10SMA
| Nominal Gain dBd | 11dBi / 9dBd |
| Frequency MHz | 700 - 1000 / 1500 - 3000 |
| Tunable Bandwidth | Full band. |
| VSWR | <2.0:1 |
| Polarisation | Linear |
| Vertical Beamwidth | 50 (± 5) |
| Horizontal Beamwidth | 55 (± 5) |
| Front/Back Ratio dB | 20 dB (± 3 bB) |
| Power W | 10 |
| Dimensions mm | 1100 x 180 x 60 |
| Length mm | 1100 |
| Weight (kg) | 1.85 |
| Termination | 10 meters cable terminated with male SMA connector |
Specifications - DAS6938-SDP150-N

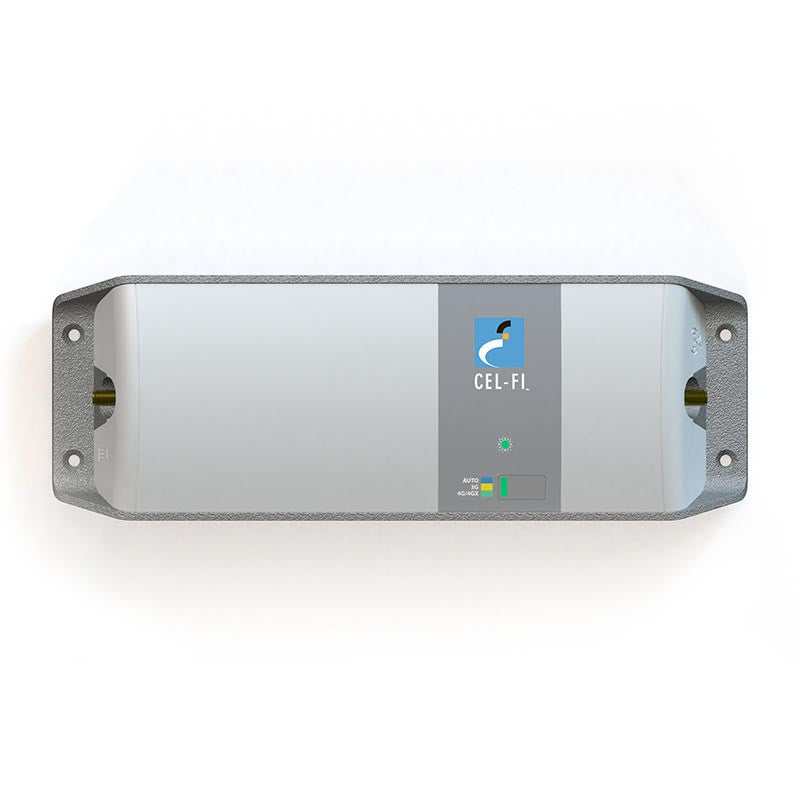

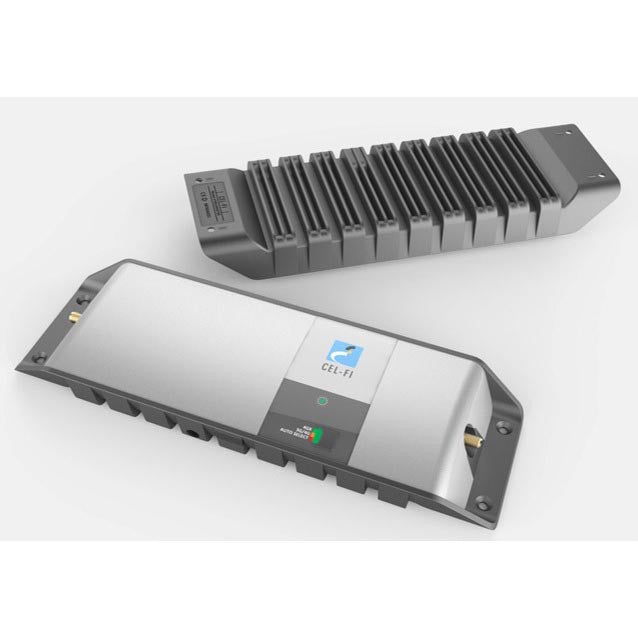

The Cel-Fi GO Telstra Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading up to 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54/Nema 4 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.
- 3G / 4G / 4GX Voice and Data
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
Cel-Fi is the only consumer mobile phone repeater that has been widely approved by all mobile carriers in Australia. Currently approved for use on the Telstra mobile networks, Cel-Fi is a new type of mobile enhancement device called a Smart Repeater. There are other non-compliant consumer repeaters that appear to be from Australia, buying non Cel-Fi repeaters may result in large fines and loss of the equipment.
What is a Smart Repeater?
A Smart Repeater is a new type of mobile phone repeater that is designed to complement an existing mobile network and not interfere with its operation. It does this by monitoring the base station levels in real time, only repeating the signal of one particular carrier and having inbuilt protection to ensure it does not overload or interfere with network operation. Cel-Fi is currently the only Smart Repeater in existence.
FEATURES
- Designed for building and site
- 70dB of system gain
- Includes external and internal antennas
- Locked to Telstra's Mobile Network
- ACMA and Carrier approved
- Band Selection Button
SUPPORTED NETWORKS
Telstra, Aldi Mobile, Boost Mobile, Woolworths Connect
How to setup the unit?
1. Install the External Donor Antenna
2. Install the Internal Server Antenna
3. Mount the GO unit
4. Connect the Donor and Server Antennas to the GO unit
5. Apply power to the Cel-Fi Go
How to activate the unit?
1. Download the WAVE App from the Apple or Android store
Run the App next to the Cel-Fi and it will connect via Bluetooth. Power up GO and connect using WAVE App to register
2. Once connected it will pop up with the registration form to complete. Note this form is much shorter than the original web-based form
3. Complete and submit the form
4. The unit will now be active within 30 seconds
IMPORTANT: Internet access is required to run the WAVE app
Specifications
| Available Frequency Bands (MHz) | Telstra Band 3/8/28 |
| Frequency Range | 1800Mhz, 900Mhz and 700Mhz |
| RF Gain | 70dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Optional Antenna Packages
Repeater only no antenna Pack includes :
- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
T5-4M-SMA internal server antenna
Pack includes :
- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
CSM700 Low Profile BLACK DONOR antenna 800mm +T5-4M-SMA internal server antenna
Pack includes :
- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
- 1x RFI CSM700-5M-SMA Low Profile Black Donor Antenna with 5M cable SMA(M) only 80mm high
CDR8195-B (6.5dBi) BLACK DONOR antenna 930mm +T5-4M-SMA internal server antenna
Pack includes :
- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
- 1x CDR-7195-B Black Donor Antenna with 5m cable FME female
- 1x A-88 FME male to SMA male adaptor
CDQ8195-B (6.5dBi) BLACK DONOR antenna 970mm +T5-4M-SMA internal server antenna
Pack includes :
- 1x CEL-FI-GO Telstra 3/5/28M Mobile unit only
- 1x 12V DC CLA power lead
- 1x T5-4M-SMA Internal Server Antenna with 4m cable SMA male
- 1x CDQ8195-B Black Donor Antenna with 5M cable SMA male 970mm long

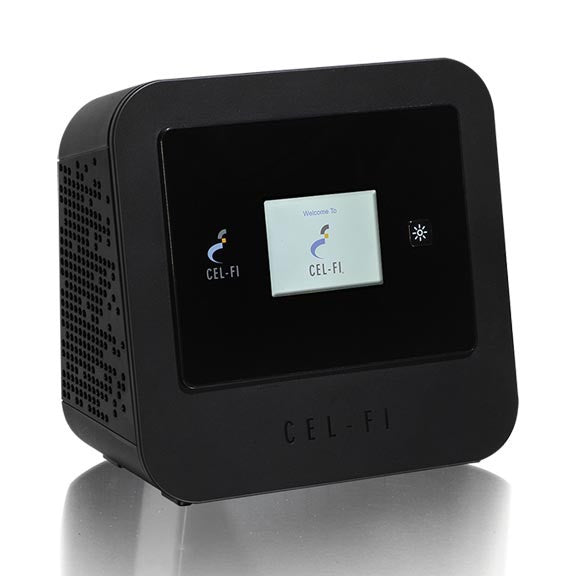

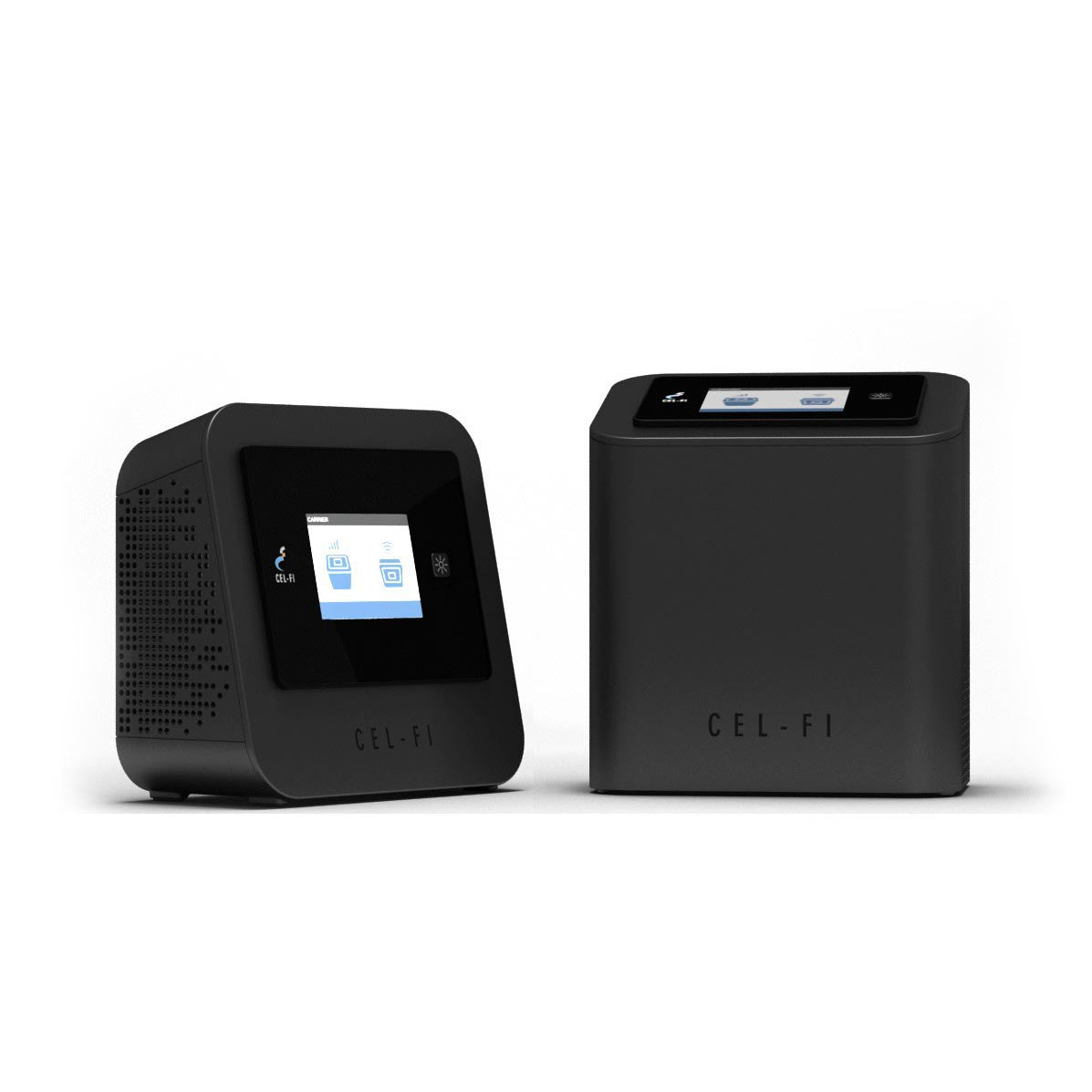

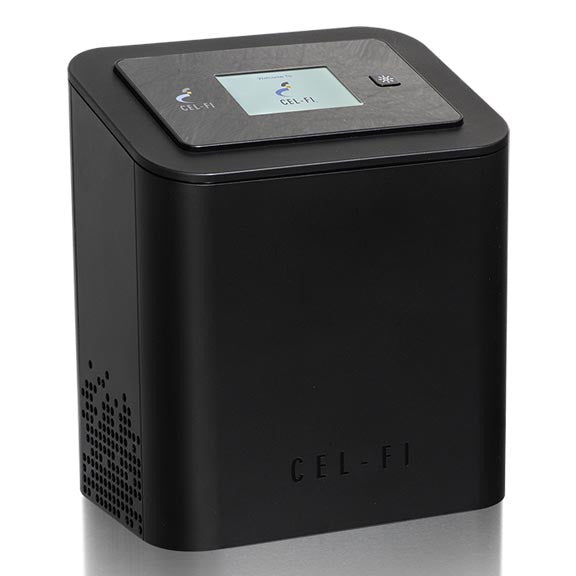

New Zealand Cel-Fi PRO mobile phone signal Repeater booster for 2degree 3G/4G Network
From $1,729.00
Unit price perNew Zealand Cel-Fi PRO mobile phone signal Repeater booster for 2degree 3G/4G Network
From $1,729.00
Unit price perThe Cel-Fi PRO for 2Degrees Smart Repeater acts as a signal booster, making it an ideal product to boost and distribute a 3G/4G mobile signal within your home or office. With this mobile smart repeater supporting voice and mobile internet, dropped calls and slow internet are a thing of the past.
Cel-Fi PRO improves 3G, 4G, and LTE cellular service by eliminating dead zones and dropped calls. With 100 dB of gain, Cel-Fi PRO will not only improve cellular service across four (4) concurrent bands, it will also reduce your cell phone’s power requirements and extend its battery life. Cel-Fi PRO covers up to 13,000 ft2 (1,200 m2) of indoor space per system. Cel-Fi PRO systems feature an LCD color interface, are fully self-contained and self-configuring, and require no external antennas or wiring. Simply plug it in to boost indoor cellular coverage.
Provides Indoor Mobile Coverage
All you need is somewhere in your home or office that gets at least 1 bar of 3G to enable the Cel-Fi to provide indoor coverage. Simply place the Cel-Fi boxes inside your home and enjoy having great 3G mobile reception. The indoor coverage is determined by several factors including the mobile signal strength at the Window Unit and the amount of walls in your home. No longer will you need to go outside or be in a particular room of your house to make a phone call.
Increases Mobile Data Speeds
Slow internet speeds on your mobile device are often caused by low signal. If you suffer from low signal in your home you will be able to relate to the frustration of trying to access email or the internet. The Cel-Fi will amplify the 3G mobile signal and increase your data speeds dramatically. Email, internet, video and social networking speeds will be like you never left the office. Instead of purchasing fixed home broadband services, you can now use your mobile broadband as your primary internet source and save on internet costs.
Extends Mobile Phone battery life
Mobile phones use a lot more energy when in poor signal areas. The phone adjusts its internal power to compensate in an attempt to boost the poor signal. As a result the phone will consume a lot more battery power. Using the Cel-Fi system your indoor mobile signal should be high and the battery will last noticeably longer for you to talk. check Facebook and browse the internet.
Eliminate Dropped or Missed Calls
Never miss or lose an important call because of coverage issues again. The Cel-Fi will provide continuous coverage throughout your home or office, so you can be contacted when required. No longer do you have to put up with calls dropping out or terminating during conversation.
Improves Voice Quality
The quality of a voice call is usually determined by the phones signal strength and nearby interference. With full signal strength inside your home and no interference, the Cel-Fi will provide crystal clear 3G voice quality for your mobiles.
Installation Video
FEATURES
- Easy Five Minute Setup
- Provides up to 900 sqm of indoor mobile coverage
- Supports 3G 900/2100, 4G 1800/2600 MHz (however only one 4G band at a time)
- Locked to the 2degrees 3G and 4G Networks
- Wireless Link Between Window Unit and Coverage Unit
- No internet connection needed
- External Antenna Port
SUPPORTED NETWORKS
2degrees (will not roam on Vodafone)
The Cel-fi PRO differs greatly from the standard indoor repeater due to its ability to not interfere with the mobile network or other users. Often referred to as a Mobile Phone Booster or Smart Repeater, the Cel-Fi has the ability to provide maximum coverage, be network friendly and can be easily installed by the end user.
SPECS
Cellular bands
- 3G 900 / 2100 MHz, 4G 1800 / 2600 MHz
System Gain
- Up to 100dB
Network Unit
- 179MM H
- 155MM W
- 110MM D
Coverage Unit
- 160MM H
- 164MM W
- 79MM D
3GPP Compliance
- 3GPP TS 25.143 Rel.8
Safety
- EN60950-1:2005+A1:2010
- EN62311:2008 1999/519/EC EMF
- UL/CS 60950-1 2005 2ND ED
Power
- 12 VDC via external supply (2 included)
- External Supply: 100 to 240 VAC
- 47-63Hz
- Power consumption less than 25 W per unit
Manufacturer
- Nextivity
Model
- P34 1/3/7/8 Optus
Frequency
- 3G 900 / 2100 MHz, 4G 1800 / 2600 MHz
Gain
- 100dB
Output Power
- No
Antenna Port
- SMA Female
Optional External Antenna
- No Antenna
- Blackhawk LPDA antenna with 10m of cable
- WIDEBAND Omni antenna with 6m of cable
- WIDEBAND Yagi antenna with 10m of cable
- Pro-X Cable Adaptor to link between Network and Coverage units with cable. This is required if the two units are installed extensively apart or the wireless link is blocked by concrete walls.
{
Alpine.store('xUpdateVariantQuanity').updateQuantity('template--19995527250175__product-grid', '/products/cel-fi-go-g31-om-cd7-b-optus-4wd-trucker-vehicle-pack-incl-114cm-rfi-cd8197-b-7-5dbi-antenna-optus-g31-om-cd7-b');
});">
CEL-FI GO MOBILE OPTUS + RFI CD8197-B (7.5DBI) BLACK DONOR ANTENNA 1140MM + T5-4M-SMA INTERNAL SERVER ANTENNA (G31-OM-CD7-B)
The Cel-Fi GO Optus Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.
What's included in the bundle...
OPTUS-G31-OM-CD7-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable - SMA male - 1140mm long
CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain, while unconditionally protecting the operator's network.
FEATURES:
- 3G / 4G / 4GX Voice and Data
- Multi-User Mobile Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
3-BAND CEL-FI GO MOBILE
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.
Get setup in 5 easy steps
SUPPORTED NETWORKS
Optus Network
IMPORTANT NOTE
Cel-Fi GO will boost a single band at a time (either 3G 900mhz or 4G 700mhz or 4G 1800mhz). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.
SPECIFICATIONS
| Available Frequency Bands (MHz) | Optus Band 3/8/28 |
| Frequency Range | 1800Mhz, 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
What's in the Box
OPTUS-G31-3/5/28MK-CD7-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable - SMA connection
