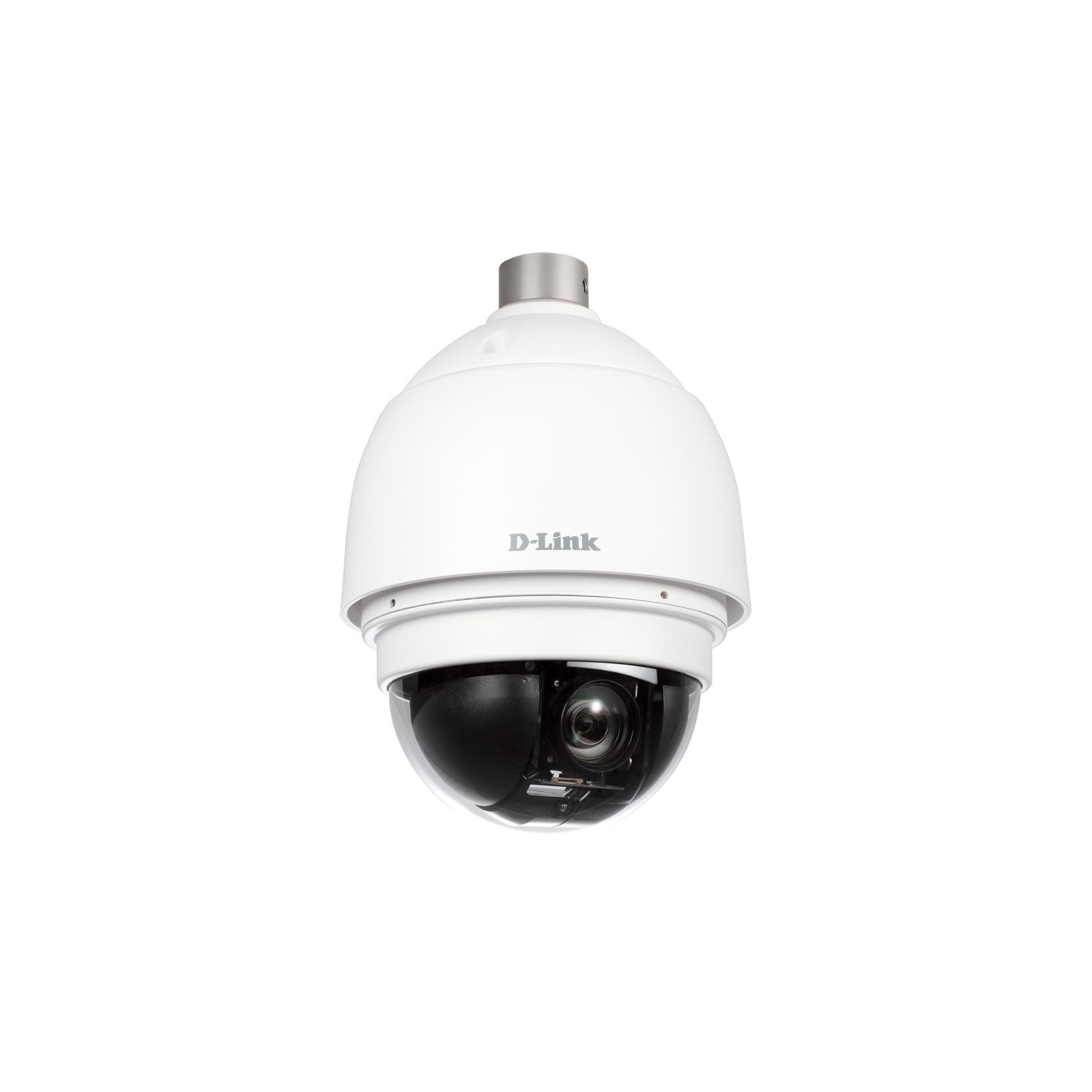

The DCS-6915 Outdoor 20X Full HD WDR Speed Dome Network Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The DCS-6915 features a 3 megapixel sensor capable of Full HD 1080p resolution, allowing for very clear surveillance footage to be taken. The powerful 20X optical zoom and 10X digital zoom ensure that you can see even the smallest details with ease.

Proportional Pan, Tilt, and Zoom Speeds

Proportional pan and tilt make it easy to precisely adjust the camera’s view. When the camera zooms in, the panning speed is automatically slowed to improve camera tracking and control. PTZ presets allow the camera to monitor specified areas along predefined paths. The broad tilt range from -10° to 190° allows the camera to see beyond the true horizon, meaning you can see more even when zoomed in.

Built for Tough Environments

Specially designed for use in challenging environments the DCS-6915 has a toughened metal, industry-certified IK-10 (vandal-proof) and IP66 (weather-proof) housing. This means that it is able to withstand sudden high impacts, as well as adverse weather conditions. With its built-in heater and fan, the camera can operate in extreme environments at temperatures ranging from -40 to 50 °C (-49  to 122 °F).

High-Quality Video

To maximise bandwidth efficiency and improve image quality, the DCS-6915 provides real-time video compression using the H.264 and MJPEG codecs. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to an internal MicroSD card¹.

Wide Dynamic Range (WDR)

IP surveillance cameras are often installed in areas with consistent lighting, like offices, banks or stores. This makes it easy to set exposure levels for optimal image quality. At other times, surveillance personnel are not so lucky. Doorways, glass walls or other areas that are exposed to direct or varying sunlight can create backlit or high contrast scenes. In such conditions, detail is lost in bright areas because of over-exposure and in dark areas because of low light. Wide Dynamic Range (WDR) technology overcomes these conditions by merging two images, one with a short exposure time to capture detail in the brighter parts of the image, and one with a longer exposure time to reveal detail in the darker areas. The resulting WDR image provides natural, balanced detail – a must in critical surveillance applications with tricky lighting conditions.

Removable IR Cut Filter for Continuous Monitoring

The IR Cut Filter can be manually applied, or set to automatically adjust based on lighting conditions. This feature enables the camera to capture crisp colour images during the daytime, and grayscale images in low-light.

Robust Management Software

The included D-ViewCam™ camera management software allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

SPECS
Camera Hardware Profile

• Sony Exmor 1/2.8" 3 Megapixel CMOS Sensor
• Variable Speed 20x Optical Zoom
• Day & Night with Mechanical IR Filter
• 0.1 Lux (Color); 0.01 Lux (B/W)
• Electronic shutter speed 1/1 - 1/10,100 second
• Wide Dynamic Range (WDR)
• Focal Length: 4.7 to 96 mm
• Horizontal Field of View: 52° to 4°

PTZ Hardware Profile

• Pan travel: 360° endless
• Tilt Travel: -10° to 190°
• Presets: 256 points
• Preset Accuracy: ± 0.225°
• Preset Speed: 5° to 400° per second
• Sequence Paths: 8
• Auto Pan Paths: 4
• Cruise Paths: 8
• Pan and tilt speed proportional to zoom ratio
• Resume after power loss
• Home Function: Preset, Sequence, Auto pan, Cruise
• Auto Flip: Mechanical/Digital/Off
• Digital Slow Shutter
• Image Freeze
• Image Inverse

Image Features

• Adjustable image size, quality, frame rate and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• 16 configurable privacy masks
• Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression

• Simultaneous H.264/MJPEG format compression
• H.264 multicast streaming
• JPEG for still images

Video Resolution

• 1920 x 1080 (1080P)
• 1280 x 720 (720P)
• 800 x 600 (SVGA)
• 640 x 480 (VGA)
• 1280 x 1024 (SXGA)
• 1024 x 768 (XGA)
• 640 x 480 (VGA)
• 320 x 240 (CIF)

Audio Compression

• G.726
• G.711

External Device Interfaces

• 4 alarm inputs
• 2 alarm outputs
• Audio input/output
• microSD card slot¹

Network Protocol

• IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP, PPPoE, UPnP Forwarding, RTP/RTSP/RTCP, IP filtering, IGMP, IEEE802.1x, QoS, SNMP, ONVIF Compliant

Security

• Administrator and user group protection
• Password authentication

System Requirements for Web Interface

• Microsoft Windows 8/7/Vista/XP/2000
• Internet Explorer, Chrome, or Firefox

Event Management

• Motion detection
• Tamper detection
• Event notification and upload snapshots/video clips via SMTP or FTP
• Multiple event notification
• Multiple recording methods for easy backup
• Supports multiple HTTP, SMTP and FTP servers

Remote Management

• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive

D-ViewCam System Requirements

• Operating System: Microsoft Windows 7/Vista/XP
• Web Browser: Internet Explorer 7 or higher

D-ViewCam Software Functions

• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions provided in web interface
• Scheduled motion triggered, or manual recording options

Power Input

• AC 24V, 3A
• 802.3at PoE+²

Max. Power Consumption

• Max 65W (with heater)

Temperature

• Operating: -40° to 122° F (-40° to 50° C)
• Storage: -4° to 158° F (-20° to 70° C)

Humidity

• 20% to 80% non-condensing

Housing Ratings

• IP66 Weatherproof
• IK10 Vandalproof

Certifications

• FCC (Class A)
• CE (Class A)
• CE LVD (EN60965-1)
• ICES-003
• C-Tick
