D-Link

About D-Link 10-Port Gigabit Industrial PoE+ Switch with 8 PoE ports & 2 SFP ports

10-Port Gigabit Industrial PoE Switch with 8 1000BASE-T Long Reach PoE+ ports and 2 SFP ports. PoE budget 240W.

Specifications:

• PoE Budget: 240 Watts
• Switching Capacity: 20 Gbps
• DIN Rail Mountable: Yes
• Fans: Fanless
• Metal Housing: Yes
• MAC Address Table Size: 8K
• Management Options: Unmanaged
• PoE Type Required: PoE+
• PoE Ports: 8
• PoE+ (802.3at) Supported: Yes
• Power Input: 48 to 56V DC terminal block dual input
• SFP Ports: 2
• Operating Temperature: From -40° to 75°C
• 1000BASE-T Ports: 8
• Switch Series: DIS Industrial Series
• Surge Protection: 6 kV Surge Protection

Features:

• 8 1000BASE-T PoE+ ports and 2 SFP ports
• PoE budget is 240 Watts
• Robust and High-Redundancy Design
• DIN Rail mountable
• Fanless passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Dual power input for redundant power supplies

About D-Link 10-Port Gigabit Industrial Smart Managed PoE+ Switch with 8 PoE ports & 2 SFP ports

10-Port Gigabit Industrial Smart Managed PoE Switch with 8 1000BASE-T Long Reach PoE+ ports and 2 SFP ports. PoE budget 240W.

Specifications:

• PoE Budget: 240 Watts
• Switching Capacity: 20 Gbps
• DIN Rail Mountable: Yes
• Fans: Fanless
• Metal Housing: Yes
• MAC Address Table Size: 8K
• Management Options: Smart Managed
• PoE Type Required: PoE+
• PoE Ports: 8
• PoE+ (802.3at) Supported: Yes
• Power Input: 48 to 56V DC terminal block dual input
• SFP Ports: 2
• Operating Temperature: From -40° to 75°C
• 1000BASE-T Ports: 8
• Switch Series: DIS Industrial Series
• Surge Protection: 6 kV Surge Protection

Features:

• 8 1000BASE-T PoE+ ports and 2 SFP ports
• PoE budget is 240 Watts
• Robust and High-Redundancy Design
• DIN Rail mountable
• Fanless passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Dual power input for redundant power supplies
• Advanced networking features
• RUN-Ring Technology with <10ms self-healing

About D-Link 10-Port Gigabit PoE Switch with 8 Long Reach PoE Ports and 2 Uplink Ports

The D-Link DGS-F1010P-E 10 Port 10/100/1000 Switch with 8 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs) IPcameras and IP phones to the network.

Specifications:

• Design: Metal | Fanless
• PoE Type Required: PoE | 250m Long Reach PoE
• Number of Ports: 5 - 8
• Port Type: Gigabit
• Compact Design for Home and Office Use: Yes
• Dimensions (Size): 184 x 75 x 27 mm
• Fanless Design for Silent Operation: Yes
• LAN Ports: 10
• PoE ports: 8 Ports
• Power Supply: External
• Quick Simple Plug-and-Play Installation: Yes
• Warranty: 3-Year Limited Warranty
• Ethernet Speed: Gigabit
• Housing: Metal

Features:

• 8 x Gigabit PoE+ Ports
• 2 x Gigabit Uplink Ports
• PoE+ support - up to 30W per port
• Long Reach PoE support - up to 250m
• Smart Features: Extend VLAN QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 96 Watts
• Plug & Play Installation

About D-Link 10-Port Gigabit Smart Managed PoE+ Switch with 8 Long Reach PoE Ports + 2 SFP Ports

D-Link DGS-F1210-10PS-E Switch 10-Port Gigabit WebSmart PoE+ Switch with 8 PoE+ ports (Long Reach PoE) and 2 SFP Ports. PoE budget 142W.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper | Gigabit Fibre
• Number of Ports: 5 - 16
• PoE Type Required: PoE|PoE+ | Extended PoE Budget | 250m Long Reach PoE
• High Speed Stacking: No
• Design: Desktop | Rackmountable
• 1000Base-T ports: 10 Ports
• SFP ports: 2 Ports
• PoE ports: 8 Ports
• PoE Budget: 142 Watts
• Switching Capacity: 20 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 4K Groups
• Voice VLAN: Yes
• IGMP Snooping: Yes
• 802.1X Access Control: Yes
• DHCP Server Screening: Yes
• SNMP: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant
• 19 Inch Rack Mountable: Yes
• Fans: 1
• Built-in PSU: Yes
• Dimensions (Size): 285 × 180 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: Yes
• Types of ports: SFP Ports | Gigabit Ports
• Static Routing: No
• Switch Series: DGS-F1210 Series
• Product Series: Long Reach PoE Switches

Features:

• 10 Gigabit ports: 8 RJ45 and 2 SFP
• 8 PoE ports with 142 Watts power budget
• 20 Gbps Switching capacity
• Long Reach PoE Solution (Up to 250m)
• 6kV Surge Protection
• Shortcut Buttons for VLAN | QoS | PoE Watchdog
• Mission-Critical Resiliency
• Robust Security
• Reliable even under pressure
• User Friendly Web Interface

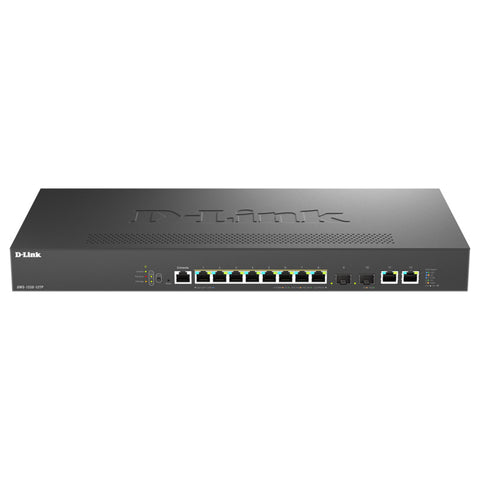

About D-LINK 10-Port Multi-Gigabit Smart Managed PoE+ Switch with 8 2.5G PoE+ ports and 2 10G SFP+ ports

D-LINK 10-Port Multi-Gigabit Smart Managed PoE+ Switch with 8 2.5G PoE+ ports and 2 10G SFP+ ports. PoE budget 240W.

The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.

Features:

• Eight 2.5Gbps Multi-Gigabit PoE+ ports
• Two SFP+ ports
• PoE budget 240 Watts
• Supports Fast and Perpetual PoE
• Auto Voice and Surveillance VLANs
• Advanced Layer2/2+ Features
• Enhanced security features
• 5-speed Smart Fans with Quiet Mode
• 6kV surge protection

Specifications:

• Switch Type : Layer2+ IP Routing
• Type of Port Required : Gigabit Copper|2.5 Gigabit Copper
• Number of Ports : 5 - 16
• PoE Type Required : PoE+
• High Speed Stacking : No
• Design : Desktop|Rackmountable
• 1000Base-T ports : 8 Ports
• SFP ports : 2 Ports
• PoE ports : 8 Ports
• PoE Budget : 240 Watts
• Switching Capacity : 80 Gbps
• QoS : Yes
• Spanning Tree Protocol : Yes
• Link Aggregation : Yes
• VLAN : 4K Groups
• Surveillance VLAN : Yes
• Jumbo Frame : 12K bytes
• Voice VLAN : Yes
• IGMP Snooping : Yes
• 802.1X Access Control : Yes
• DHCP Server Screening : Yes
• SNMP : Yes
• Cable Diagnostics : Yes
• Energy Saving Technology : EEE Compliant|D-Link Green|RoHS 6 Compliant
• 19'' Rack Mountable : Yes
• Fans : 2
• Built-in PSU : Yes
• Dimensions (Size) : 330 x 200 x 44 mm
• Web-based GUI : Yes
• Command Line Interface : Yes
• Types of ports : 10Gb SFP+ Ports|2.5Gb Ports
• 10Gb SFP+ ports : 2 ports
• Static Routing : Yes
• Switch Series : DGS-1250 Series

About D-Link 10-Port PoE Switch with 8 Long Reach 250m PoE Ports

Enhanced with 6KV surge protection VLAN enhanced QoS this Switch is a robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras CCTV VoIP Wi-Fi Access Points etc.

Specifications:

• Port Type: Fast Ethernet
• Number of Ports: 5 - 8
• PoE Type Required: PoE | 250m Long Reach PoE
• Design: Metal | Fanless
• Ethernet Speed: 10/100
• LAN Ports: 10
• PoE ports: 8 Ports
• Housing: Metal
• Power Supply: External
• Fanless Design for Silent Operation: Yes
• Compact Design for Home and Office Use: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 184 x 75 x 27 mm
• Warranty: 3-Year Limited Warranty

Features:

• 8 x 10/100 Mbps Fast Ethernet PoE+ Ports
• 2 x 10/100 Mbps Uplink Ports
• PoE+ support - up to 30W per port
• Long Reach PoE support - up to 250m
• Smart Features: Extend VLAN QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 96 Watts
• Plug & Play Installation

About D-Link 10-Port Smart Managed Switch with 8 PoE and 2 SFP ports (130W)

D-Link 10-Port Gigabit Smart Managed PoE++ Switch with 8 PoE and 2 SFP ports. PoE budget 242W.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper
• Number of Ports: 5 - 16
• PoE Type Required: PoE|PoE+|Extended PoE Budget
• High Speed Stacking: No
• Design: Desktop|Rackmountable
• 1000Base-T ports: 8 Ports
• SFP ports: 2 Ports
• PoE ports: 8 Ports
• PoE Budget: 130 Watts
• Switching Capacity: 20 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 128 Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 9216 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• DHCP Server Screening: Yes
• SNMP: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant|D-Link Green
• 19'' Rack Mountable: Yes
• Fans: 1
• Built-in PSU: Yes
• Dimensions (Size): 358 x 329 x 102 mm
• Web-based GUI: Yes
• Command Line Interface: No
• Types of ports: Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1100 Series

Features:

• Gigabit switch with extended PoE budget 130W
• Surge protection on all PoE ports
• Setup Wizard for easy deployment
• Automatic IP Camera detection
• Surveillance traffic optimisation

About D-Link 10/100/1000Base-T to 1000Base-LX SC Single-Mode Media Converter (20 km)

D-LINK DMC-F810SC 10/100/1000Base-T to 1000Base-LX Media Converter with SC fibre Connector (Single Mode 1310nm) - 20km

Features:

• Standalone Media Conveter
• RJ-45 port supports 10/100/1000BASE-T
• SC Fibre port supports 1000BASE-LX
• Single Mode fibre 1310nm up to 20km

Specifications:

• Accessory Type: Media Converters
• Warranty: Limited Lifetime

About D-Link 10/100/1000Base-T to 1000Base-SX SC Multi-Mode Media Converter (550 m)

D-LINK DMC-F700SC 10/100/1000Base-T to 1000Base-SX Media Converter with SC Fibre Connector (Multimode 850nm) - 550m

Features:

• Standalone Media Conveter
• RJ-45 port supports 10/100/1000BASE-T
• SC Fibre port supports 1000BASE-SX
• Multi-mode fibre 850nm up to 550m

Specifications:

• Accessory Type. Media Converters
• Warranty. Limited Lifetime

About D-Link 10/100/1000Base-T to SFP Media Converter

D-LINK DMC-F805G 10/100/1000Base-T to SFP Media Converter

Features:

• Standalone Media Conveter
• RJ-45 port supports 10/100/1000BASE-T
• SFP port for a fibre transceiver of your choice

Specifications:

• Accessory Type: Media Converters
• Warranty. Limited Lifetime

About D-Link 1000Base-LX Industrial SFP Transceiver (Single Mode 1310nm) - 10km

1000Base-LX SFP Transceiver for Industrial Application up to 85?C (Single Mode 1310nm) - 10km

Specifications:

• Metal Housing: Yes
• SFP Ports: 1
• Operating Temperature: From -40 Degrees to 85 Degrees

Features:

• Supports Gigabit Ethernet (1000Base-LX)
• Single Mode 1310nm (up to 10km)
• Hot pluggable SFP
• Compliant with MSA (Multiple Source Agreement)

About D-Link 1000Base-LX SFP SingleMode Transceiver (10km)

The DEM-310GT is a high performance 1310nm Singlemode SFP (mini-GBIC) transceiver.

Specifications:

• Transceiver Type: SFP
• Fiber Media Support: Single-Mode
• Speed: 1.25 Gbps
• Distance: 10 km
• Compliant Standard: IEEE802.3z 1000BASE-LX
• Connector: Duplex LC connector
• Single/Bi Direction: Single-direction
• Wavelength: 1310 nm
• Cable Type: Single-mode 9/125 um fibre
• Power Supply: 3.3 V
• Hot Pluggable: Yes
• Compliant: MSA RoHS

Features:

• Small Form-factor Pluggable (SFP)
• Multi-Source Agreement (MSA) specification
• compliant
• IEEE 802.3z standard
• Supports cable distances of up to
• 100 m / 550 m / 2 km / 10 km / 40 km / 50 km/ 80 km
• Hot pluggable
• FDA CDRH TUV Laser Eye safety certified
• TTL signal detect indicator
• Metal enclosure reduces EMI

About D-Link 1000Base-SX SFP Multimode Transceiver (550m)

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver.

Specifications:

• Transceiver Type: SFP
• Fiber Media Support: Multi-Mode
• Speed: 1 Gbps
• Distance: 550 m
• Compliant Standard: IEEE802.3z 1000BASE-LX
• Connector: Duplex LC connector
• Single/Bi Direction: Single-direction
• Wavelength: 850 nm
• Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre
• Power Supply: 3.3 V
• Hot Pluggable: Yes
• Compliant: MSA RoHS

Features:

• Small Form-factor Pluggable (SFP)
• Multi-Source Agreement (MSA) specification
• compliant
• IEEE 802.3z standard
• Supports cable distances of up to 550 m
• Hot pluggable
• FDA CDRH TUV Laser Eye safety certified
• TTL signal detect indicator
• Metal enclosure reduces EMI

About D-Link 100G QSFP28 to QSFP28 Direct Attach Cable (1 Metre)

100G QSFP28 to QSFP28 Direct Attach Cable 1 Metre

Features:

• Offers high data rate transmission of up to 100 Gbps
• Compliant with the following standards: SFF-8436 | SFF-8636 | SFF-8665 | EIA-364
• Limited Lifetime Warranty

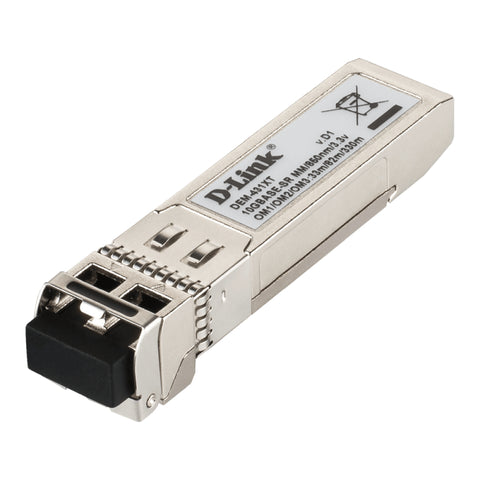

About D-Link 10GBase-SR SFP+ Multimode Transceiver (300m)

D-Link's 10G SFP+ Module series are hot-swappable 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres enterprise wiring closets and service provider transport applications.

Specifications:

• Standard Compliance: IEEE-802.3ae 10GBASE-SR
• Form Factor Type: SFP+
• Fibre Channel FC-PI: Standard 1200-Mx-SN-I
• Fiber Media Support: Multi-Mode
• Distance Capacity: 62.5 ?m 160 MHz-km: 26 m 62.5 ?m OM1 200 MHz-km: 33 m 50 ?m 400 MHz-km: 66 m 50 ?m OM2 500 MHz-km: 82 m 50 ?m OM3 2000 MHz-km: 300 m
• Hot Pluggable: Yes
• Compliant: MSA RoHS
• Speed: 10 Gbps
• Connector: Duplex LC Connector
• Wavelength: 850 nm
• Output Optical Power (TX Optical Power): Max.: -1 dBm Min.: -6.5 dBm
• Input Optical Power (RX Optical Power): Max.: -1 dBm Min.: -11.1 dBm
• Sensitivity: -11.1 dBm
• Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre
• Power: 3.3 V
• Heat Generated: 3.6 kJ/h
• MTBF (Hours): 3 960 000
• Operating Temperature: 0 to 70 C
• Storage Temperature: -40 to 85 C
• Operating Humidity: 5 to 85%
• Storage Humidity: 5 to 95%
• Dimensions: 14.8 x 56.5 x 11.85 mm
• Weight: 18 g
• Bail Latch Color: Beige
• EMI: CE FCC VCCI
• Safety: UL TUV CDRH

Features:

• Enhanced Small Form-Pluggable (SFP+) form factor
• Hot pluggable
• Support 10G Ethernet
• Feature Digital Diagnostics Monitoring (DDM)1
• RoHS Compliant
• Compliant with MSA (Multiple Source Agreement)
• Compliant with IEEE802.3ae and 802.3aq standards

About D-Link 10GBASE-T RJ45 Copper SFP+ Transceiver (Cat6A 30m)

10GBASE-T RJ45 Copper SFP+ Transceiver Cat.6A - 30m

Features:

• Supports 10G Ethernet (10GBase-T)
• 10GBASE-T up to 30m with Cat 6A
• 1000BASE-T up to 100m with Cat 5E
• Hot pluggable SFP+
• RoHS Compliant
• Compliant with MSA (Multiple Source Agreement)

About D-Link 12-Port 10 Gigabit Smart Managed Switch with 2 10GBase-T (Combo) ports

12-Port 10 Gigabit Smart Managed Switch with 12 SFP+ Ports and 2 10GBASE-T (Combo) ports

Specifications:

• 802.1X Access Control: Yes
• 10Gb SFP+ ports: 12 ports
• 10GBase-T ports: 2 ports
• Static Routing: Yes
• Types of ports: 10Gb SFP+ Ports
• Built-in PSU: Yes
• Switch Series: DGS-1210 Series
• Number of Ports: 5 - 16
• PoE Type Required: None
• Type of Port Required: Gigabit Fibre | 10 Gigabit Fibre
• Design: Desktop | Rackmountable
• High Speed Stacking: No
• Switch Type: Layer2+ IP Routing
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size): 440 x 210 x 44 mm
• Energy Saving Technology: D-Link Green
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame: 9216 bytes
• Link Aggregation: Yes
• QoS: Yes
• SNMP: Yes
• Spanning Tree Protocol: Yes
• Surveillance VLAN: Yes
• Switching Capacity: 240 Gbps
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes

Features:

• High performance switch with twelve 10GbE ports
• Twelve SFP+ ports with two 10GBase-T Combo ports
• Easy to configure with rich set of SMB features
• Automatic Voice and Surveillance VLANs
• Inter-VLAN and static routing support (IPv6 ready)
• Advanced security features
• Latest D-Link Green energy saving features

About D-LINK 12-Port Multi-Gigabit Smart Managed PoE+ Switch

D-LINK 12-Port Multi-Gigabit Smart Managed PoE+ Switch with 8 2.5G PoE+ ports 2 10GBASE-T and 2 10G SFP+ ports. PoE budget 240W.

The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.

Features:

• Eight 2.5Gbps Multi-Gigabit PoE+ ports
• Two Multi-Gigabit 100/1000/2.5G/5G/10GBASE-T ports
• Two SFP+ ports
• PoE budget 240 Watts
• Supports Fast and Perpetual PoE
• Auto Voice and Surveillance VLANs
• Advanced Layer2/2+ Features
• Enhanced security features
• 5-speed Smart Fans with Quiet Mode
• 6kV surge protection

Specifications:

• Switch Type : Layer2+ IP Routing
• Type of Port Required : Gigabit Copper|2.5 Gigabit Copper
• Number of Ports : 5 - 16
• PoE Type Required : PoE+
• High Speed Stacking : No
• Design : Desktop|Rackmountable
• 1000Base-T ports : 10 Ports
• SFP ports : 2 Ports
• PoE ports : 8 Ports
• PoE Budget : 240 Watts
• Switching Capacity : 120 Gbps
• QoS : Yes
• Spanning Tree Protocol : Yes
• Link Aggregation : Yes
• VLAN : 4K Groups
• Surveillance VLAN : Yes
• Jumbo Frame : 12K bytes
• Voice VLAN : Yes
• IGMP Snooping : Yes
• 802.1X Access Control : Yes
• DHCP Server Screening : Yes
• SNMP : Yes
• Cable Diagnostics : Yes
• Energy Saving Technology : EEE Compliant|D-Link Green|RoHS 6 Compliant
• 19'' Rack Mountable : Yes
• Fans : 2
• Built-in PSU : Yes
• Dimensions (Size) : 440 x 210 x 44 mm
• Web-based GUI : Yes
• Command Line Interface : Yes
• Types of ports : 10Gb SFP+ Ports|10Gb Copper Ports|2.5Gb Ports
• 10Gb SFP+ ports : 2 ports
• Static Routing : Yes
• 10GBase-T ports : 2 ports
• Switch Series : DGS-1250 Series
