Camera Overview

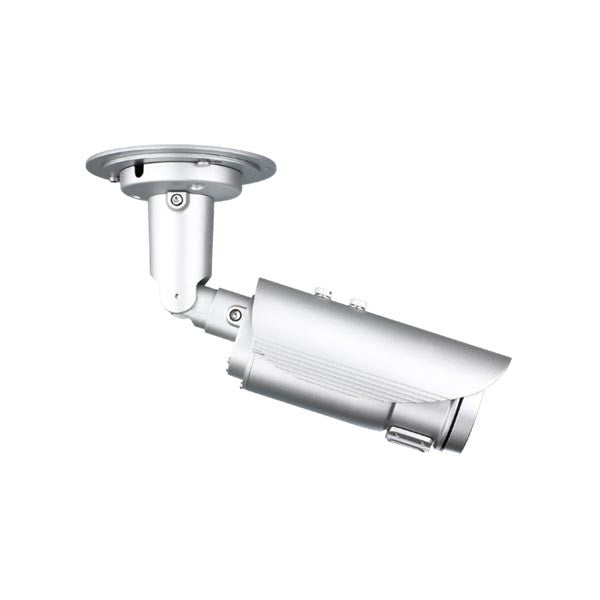

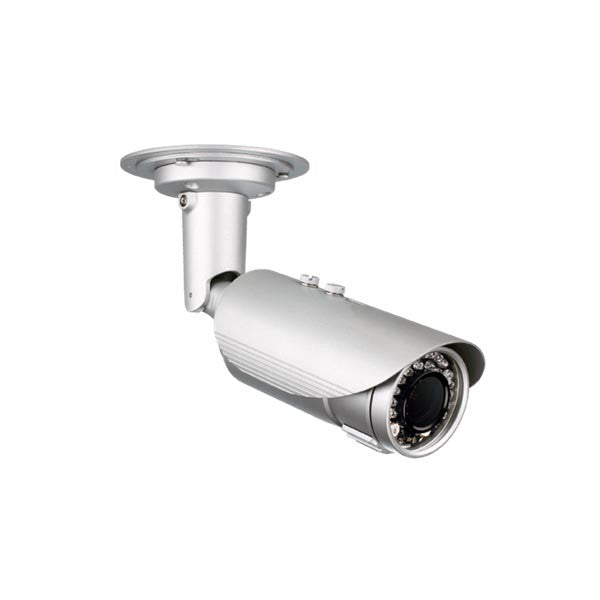

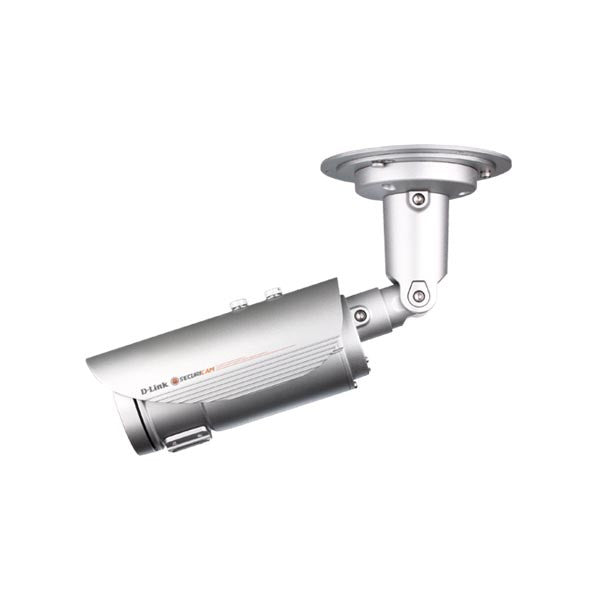

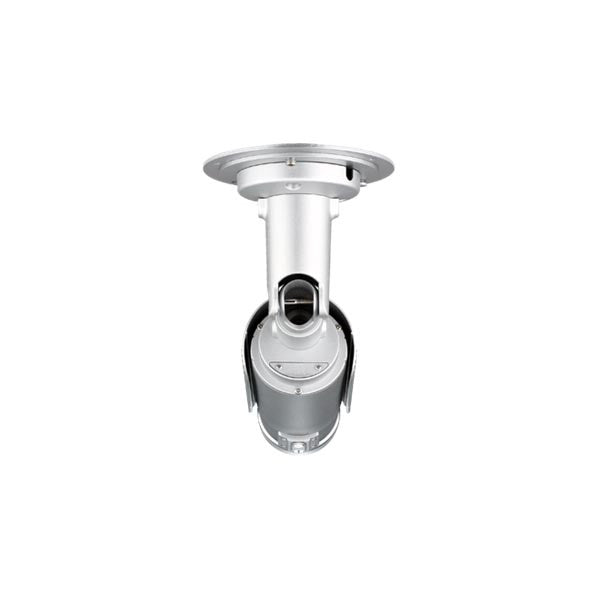

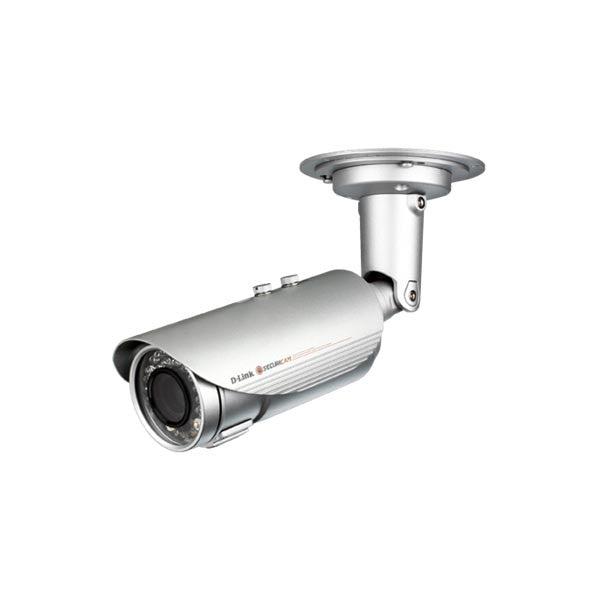

The D-Link DCS-7517 5 Megapixel Day & Night Outdoor Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high resolution 1/3” 5 megapixel sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. With 2560 x 1920 resolution, the DCS-7517 captures more detail in areas such as license plates, faces and currency. The rugged design makes this camera ideal for deployment in a wide variety of surveillance applications.

High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-7517 provides real-time video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

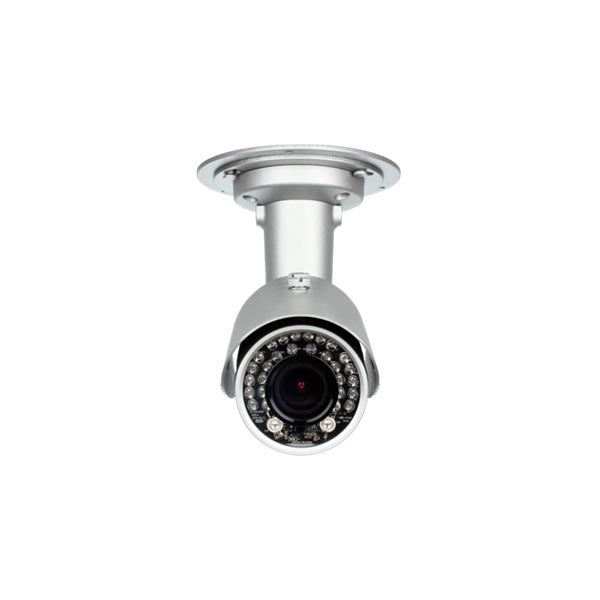

The DCS-7517’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-7517 also has built-in IR LED illuminators with a 90 foot range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Flexible Connectivity
The DCS-7517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Video Management Software

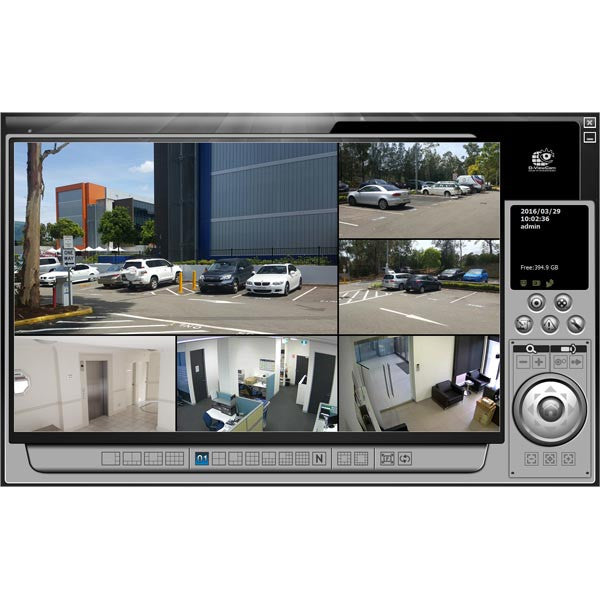

The DCS-7517 5 Megapixel Day & Night Outdoor Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Event Management
  • Motion detection by weekly schedule
  • Event notification and upload snapshots/video
  • Clips via HTTP, SMTP or FTP
  • Multiple HTTP, SMTP or FTP server configurations
  • Multiple event notifications
  • Multiple recording methods for easy backup

D-ViewCam™ Features
  • Manage up to 32 cameras at once
  • Adjustable image size and quality
  • Custom recording schedules
  • Event notifications
  • Upload a customised floor plan

SPECS

Max Resolution

• Full HD +

Camera Type

• Bullet

Design

• Outdoor|Night Vision|PoE

Housing Type

• Bullet

Indoor / Outdoor

• Outdoor

Megapixels

• 5 MP

Max. Video Resolution

• 2560x1920 @ 15fps

Night Vision

• Yes

Night Vision Range

• 30m

Motorised Pan / Tilt

• No

Optical Zoom

• 4x

Motion Detection

• Yes

Email Notification

• Yes

Video Compression

• MPEG-4|MJPEG|H.264

Lens Type

• Varifocal

Horizontal Field of View

• 25 - 85 degrees

Lens Focal Length

• 2.8 - 12mm

ONVIF Compliant

• Yes

Image Enhancement

• WDR|BLC|AES|AGC|AWB

Vandal-proof

• No

Power

• PoE, Power Supply

Memory Card Slot

• Micro SD

Dimensions (Size)

• 245 x 395 x 163 mm
