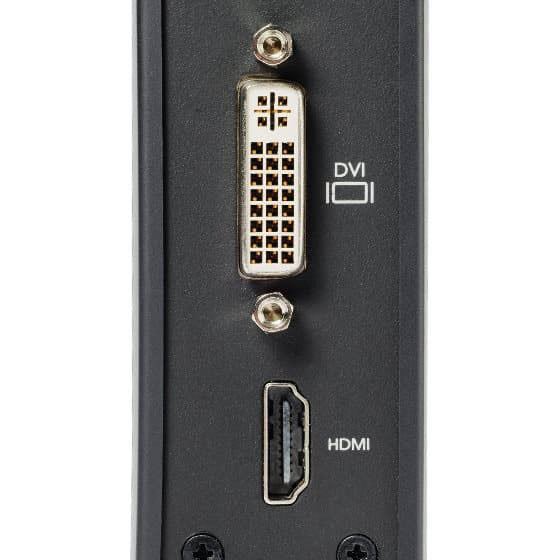

Connect two additional screens with 1 DVI Out & 1 HDMI Out

Expand your workspace by adding additional monitors. Connect your DVI monitor to the DVI port or use the included DVI>VGA adapter to connect your VGA monitor. If you've got an HDMI monitor, you can connect directly into the HDMI out port. You can also connect a second HDMI monitor to the DVI port using the included DVI>HDMI adapter. You can run both the DVI and HDMI ports simultaneously.

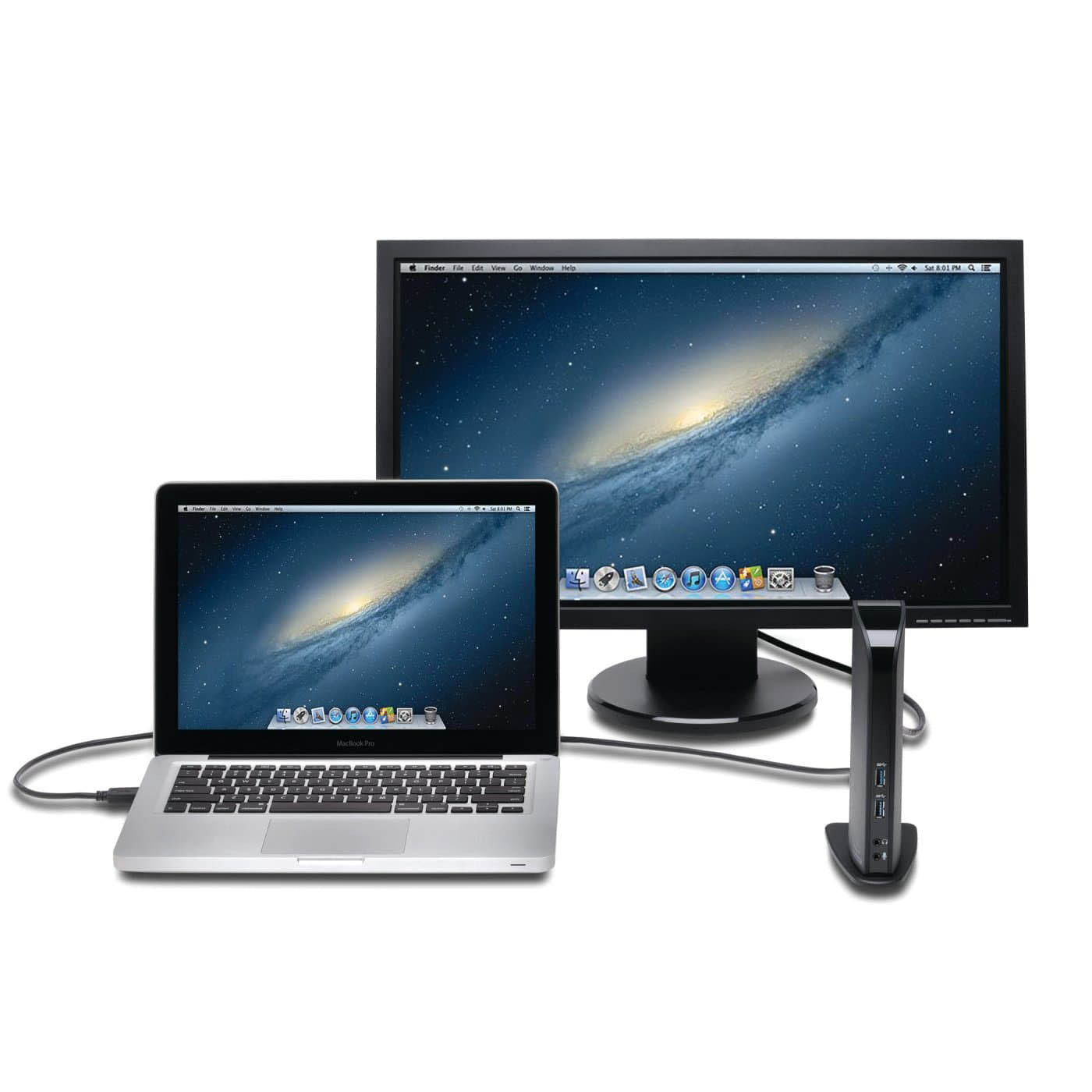

Extend Mode

Extend your workspace by making it bigger. Extend mode allows you to share your whole desktop across multiple screens. Ideal for improved productivity by working with, and viewing, multiple applications at the same time.

Clone Mode

Allows you to replicate the same content on your second display as you do on your master display.

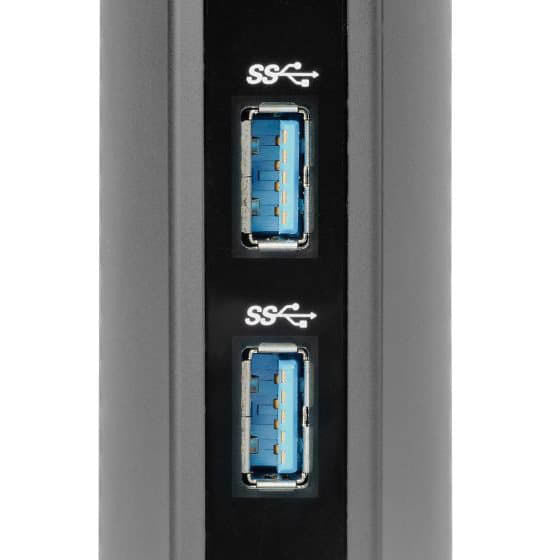

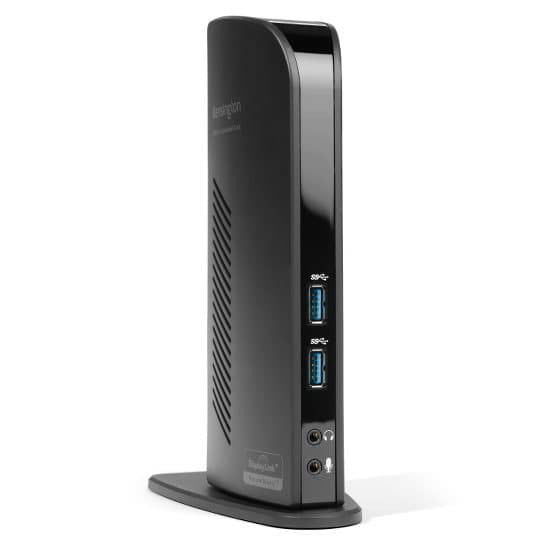

2 Front USB 3.0 Ports

Two fast and powerful USB 3.0 ports are positioned on the front of the dock for when you want to charge a phone or tablet, or transfer data from another device. Headphone and microphone input ports are also conveniently within reach when they’re needed.

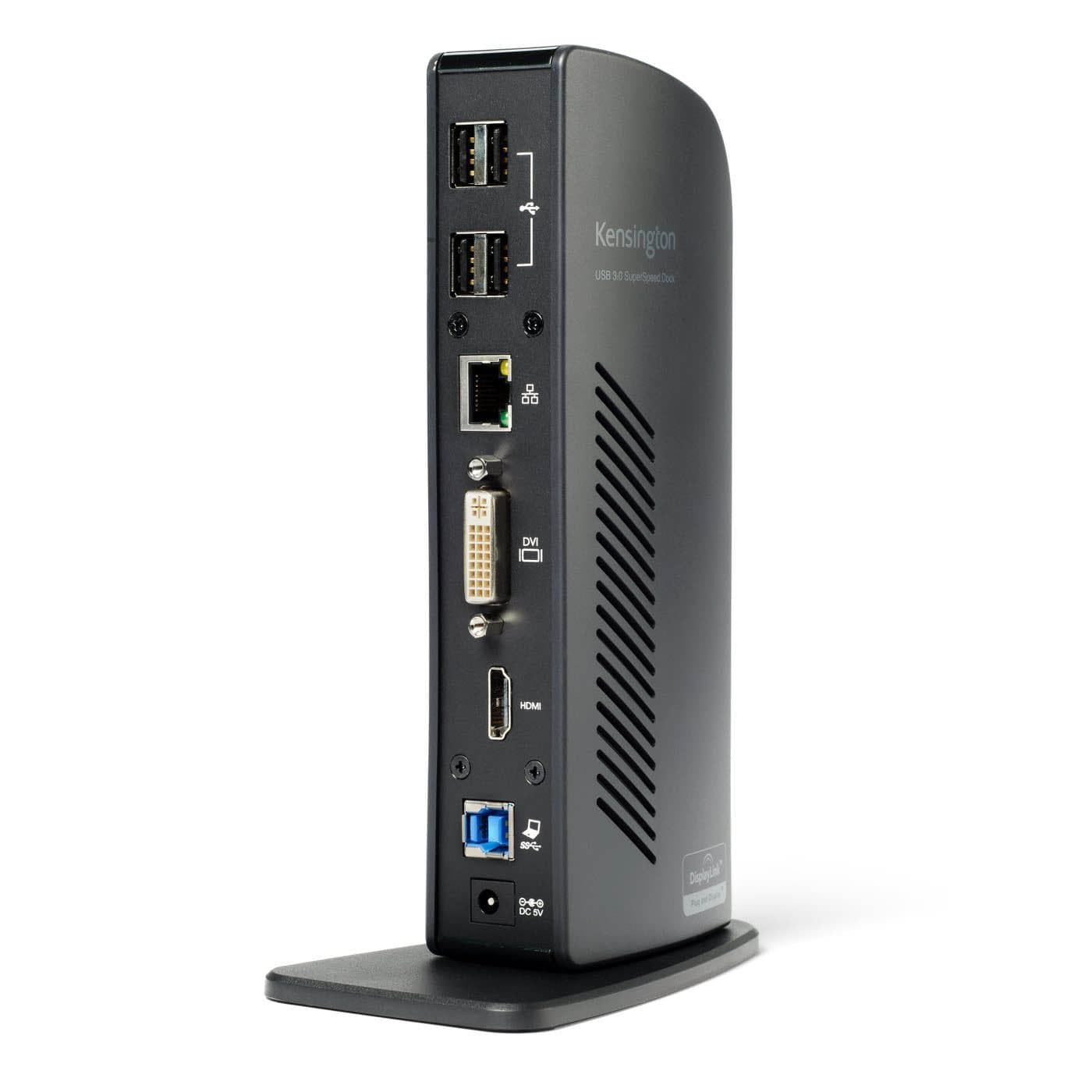

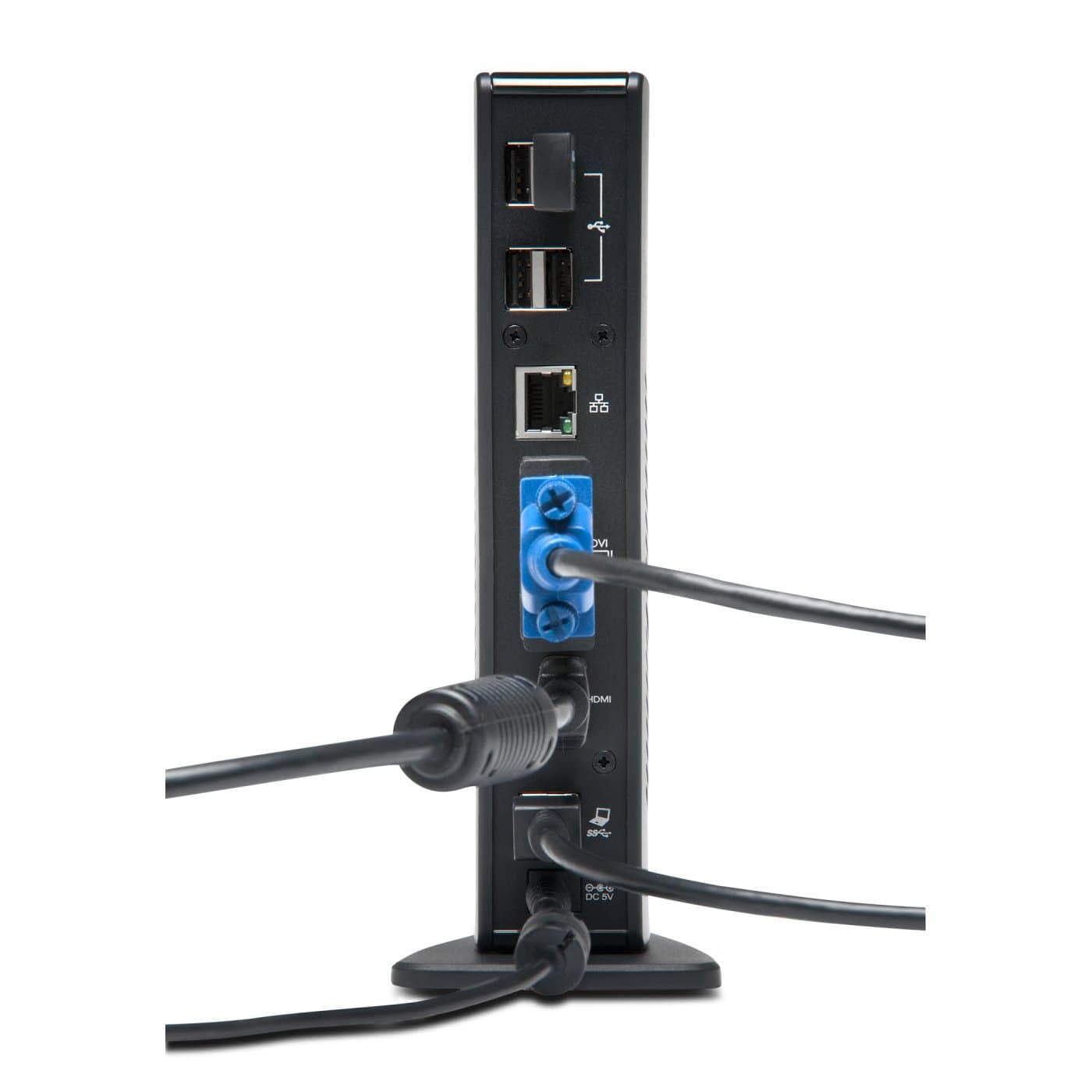

4 Rear USB 2.0 Ports

Connect all your peripherals with 4 USB ports. These ports are strategically located on the back of the docking station to help keep your printer, keyboard and mice cables or wireless dongles hidden from view.

Display Settings Software

Our intuitive display management console sits on your applications bar and allows you to easily switch between display modes, change the master monitor or adjust alignment and position of your screens. Our corporate install support provides for mass installation via the Microsoft® server.

Add more screens

You can hook up even more monitors using a multi-display adapter, which is available separately. These connect into one of the six USB ports and can be used with DVI or VGA monitors.

SPECS

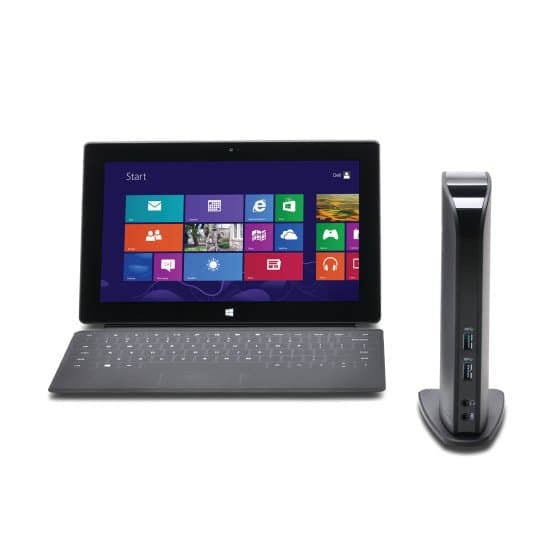

Best for

• Convertible and 2-in-1 Laptops,
• Laptops,
• Ultrabooks,
• Windows Tablets

Compatibility

• Mac OS 10.6,
• Mac OS 10.7
• Mac OS 10.8,
• Vista,
• Windows 10,
• Windows 7,
• Windows 8,
• Windows 8.1,
• XP

Connections

• 1 x RJ-45 Ethernet (LAN) Female,
• DVI-I to HDMI Adapter
• DVI-I to VGA Adapter,

Host upstream link

• USB (B Type) Female

HUB downstream link

• USB (A Type) Female

Connectivity

• Wired

Features

• Extended Display,
• Kensington Security Slot,
• Mirrored Display,
• Power Indicator (Blue),
• USB Hub Link Indicator (Green)
