Networking

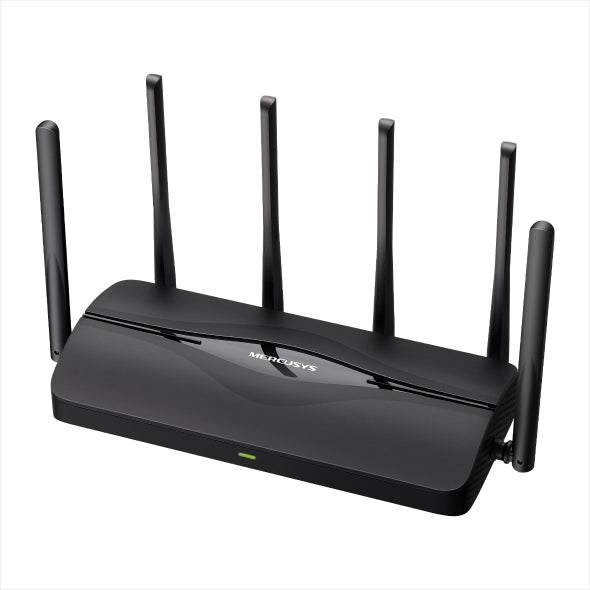

* Fast 3.6 Gbps Mbps Dual Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming immersive AR/VR gaming and blazing-fast downloads.† * Newest WiFi 7: Armed with the 160 MHz channels 4K-QAM MLO and other features that WiFi 7 offers your network will arrive with a jaw-dropping performance.‡ * Multi-Link Operation (MLO): Increases throughput reduces latency and improves reliability for emerging applications.‡ * 2.5G Ports: 1× 2.5 Gbps WAN port 1× 2.5 Gbps LAN port and 2× 1 Gbps LAN ports break through the 1G bottleneck driving your devices to peak performance.§ * Maximized Coverage: 4× Omni directional antennas proprietary Wi-Fi optimization and Beamforming technology deliver broader coverage more capacity stronger and more reliable connections and less interference. * EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi preventing drops and lag when moving between signals.* * Easy Setup and Use: Network management has never been easier with the MERCUSYS app. Warranty Period: 2-Year

@49/41

@64

Warranty Period: 2-Year

@81

@30/24

Warranty Period: 2-Year

@35/28

Five 10/100/1 000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported Easily wired network expansion Compact design for flexible arrangement Plug and play setup no configuration required Green Ethernet technology saves power by up to 82%

Cool Ultra-Compact Design A sleek square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone MS105G sits anywhere in your home.

MS105G is flexible and fully compatible with 4K Ultra HD TVs computers printers IP cameras game consoles and more. This makes it perfect for use in home small office and even dormitory environments. Reliable Performance With Half/Full Duplex and MAC Address Learning Technology MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable uninterrupted connections for years to come. Go Green with Your Ethernet You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power.

5 10/100/1000Mbps Ports Auto-Negotiation Auto-MDI/MDIX

LED Ethernet Ports (1 2 3 4 5) Power

External Power Supply 5V/0.6A

Dimensions (W X D X H) 105×70×24.9 mm

Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3x CSMA/CD

Data Rates 10/100/1000 Mbps at Half Duplex 20/200/2000 Mbps at Full Duplex

Buffer Capacity 512 Kbit

Jumbo Frame 9 KB

Transfer Method Store and Forward

Package Contents 1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G) 2. Power Adapter 3. Quick Installation Guide

@11/25

@16/12

Warranty Period: 5-Year

@13/26

Warranty Period: 5-Year

@20/15

@20/15

* Eight 10/100/1 000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported * Easily wired network expansion * Compact design for flexible arrangement * Plug and play setup no configuration required * Green Ethernet technology saves power by up to 82%

Expand Ethernet Network with Gigabit Ports Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs computers printers IP cameras game consoles and more. This makes it perfect for use in home small office and even dormitory environments.

Cool Ultra-Compact Design A sleek square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone MS108G sits anywhere in your home without taking up too much space.

Plug and Play Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Go Green with Your Ethernet You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Interfaces 8 10/100/1000Mbps Ports Auto-Negotiation Auto-MDI/MDIX LED Ethernet (1 2 3 4 5 6 7 8) Power External Power Supply 9V/0.6A Dimensions (W X D X H) 127 x 60.3 x 22 mm Standards and Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3x CSMA/CD Data Rates 10/100/1000Mbps at Half Duplex 20/200/2000Mbps at Full Duplex Buffer Capacity 64KB Jumbo Frame 9KB Transfer Method Store and Forward

@14/26

@21/17

Warranty Period: 5-Year

@12/8

Warranty Period: 5-Year

@26/19

@26/19

@37/30

@19/14

Warranty Period: 5-Year

@40/32
