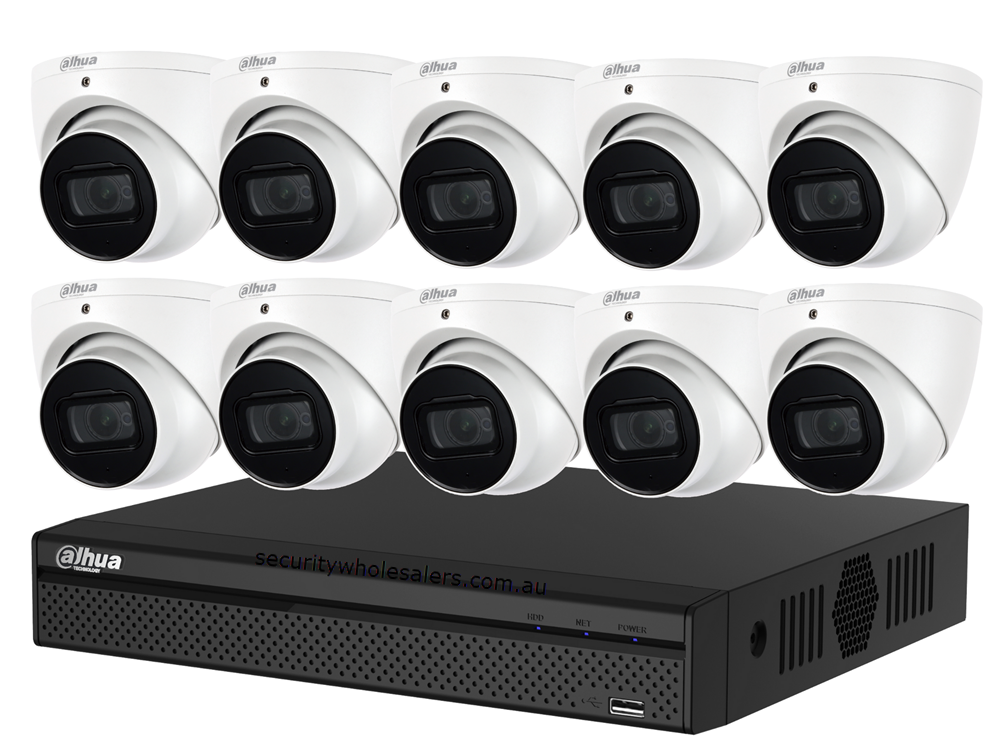

Dahua 10 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR Wizsense
$1,895.00
Unit price perDahua 10 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR Wizsense
$1,895.00
Unit price perOverview:
10 x 6MP cameras | Built-in Mic | 16CH NVR + No HDD Installed| Smart Motion Detection
Dahua 16ch 6MP Turret Kit includes: 1 x DHI-NVR4216-16P-4KS2; 10 x DH-IPC-HDW3641EM-AS; NO HDD Installed
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – this allows you to draw a digital perimeter on the NVR to define a safe boundary perimeter before triggering a push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
(Optional: Junction box PFA130; Wall Mount: PFB204W)
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.
Technical Camera Features:
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
Outputs max.6MP (3072 × 2048) @25/30 fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
Dahua 10 x 8MP DH-IPC-HDW2831EMP-AS-0280B-S2 Turret Kit with 16CH PRO Series NVR
$2,312.00
Unit price perDahua 10 x 8MP DH-IPC-HDW2831EMP-AS-0280B-S2 Turret Kit with 16CH PRO Series NVR
$2,312.00
Unit price perOverview:
Dahua 10 cam / 16ch 8MP Eyeball Kit includes: 1 x NVR5216-16P-4KS2E (Pro NVR); 10 x DH-IPC-HDW2831EMP-AS-0280B-S2; NO HDD installed> Please add one below if required
Specification:
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial embedded micro-processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation Interface |
Web; local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
16/20 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search for pictures by channel, time and event type |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
14 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Attributes |
6 attributes: Gender; age; glasses; expression; mouth mask; beard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search for pictures by channel, time and face attributes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
16/32 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search by target classification (human, vehicle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Metadata by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
16 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Human Body |
Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Vehicle |
Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Non-motor Vehicle |
Type; color; number of passengers; helmet |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Supports searching for target video by metadata |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ANPR by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stereo Analysis by Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
16 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AI Search |
Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Access Channel |
16/32 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Bandwidth |
320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Decoding Capability |
16-channel@1080P (30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
16-channel: 1/4/8/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
PCM; G.711A; G.711U; G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone Access |
Android; iOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (profile T/S/G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
Chrome; IE9 or later; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-channel Playback |
1/4/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Method |
Local HDD and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup |
USB device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Disk Group |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Alarm |
Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anomaly Alarm |
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligent Alarm |
Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution; heat map |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
External Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 channel, RCA connector |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1 channel, RCA connector, which supports voice intercom output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDD |
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-232 |
1 channel, used to debug and pass through serial data |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 channel, used to control PTZ, and it supports multiple protocols |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
1 front USB 2.0 port, 1 rear USB 3.0 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
16 ports (IEEE802.3af/at) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
Single, 100V–240V AC, 50 Hz–60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
NVR: < 15.2W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
2.7 kg (6.0 lb) (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
4 kg (8.8 lb) (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
375.0 mm × 327.4 mm × 53.0mm (14.8" × 12.9" × 2.1") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package Dimensions |
429 mm × 137 mm × 360 mm (16.9" × 14.2" × 5.4") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0°C to +40°C (+32°F to +104°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–93% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–85% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
3,000 m (9,843 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: EN55032; EN55024; EN50130-4; EN60950-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
3840 (H) ×2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.009 Lux@F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
> 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
30 m (98.43 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F2.0 F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: Pan 105° × Tilt 56° × Diagonal 125° 3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 1.0 m (3.3 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
74.7 m |
29.9 m |
14.9 m |
7.5 m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
106.7 m |
42.7 m |
21.3 m |
10.7 m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart event |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Tripwire; intrusion |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stream Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711A; G.711Mu; G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; Micro SD card (support max. 256 G); NAS; SFTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 V DC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
< 7.2 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Conditions |
–40 °C to +55 °C (–40 °F to +131 °F)/less than ≤ 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.48 kg (1.1 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.65 kg (1.4 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contents:
Overview:
8MP cameras + 16CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Dahua 16ch 8MP Eyeball Kit includes: 1 x DHI-NVR5216-16P-4KS2E; 10 x DH-IPC-HDW3841TMP-AS-0280B
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 30 metres distance.
Smart Motion Detection – ie. Human / Vehicle filtering
Resilient “Weather-Proof” Ingress Protection Rating (IP67)
Dahua 16ch 8MP Eyeball Kit includes: 1 x DHI-NVR5216-16P-4KS2; 10 x DH-IPC-HDW3841EMP-AS-0280B;
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) ×2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100; 000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.009 Lux@F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F2.0
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire; intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream:
3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas; rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A; G.711Mu; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE
Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15; Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | < 7.2W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40°C to +55°C (–40°F to +131°F)/less than ? 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 99.1mm × ?121.9 mm (3.9″ × ?4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.48 kg (1.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.65 kg (1.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overview:

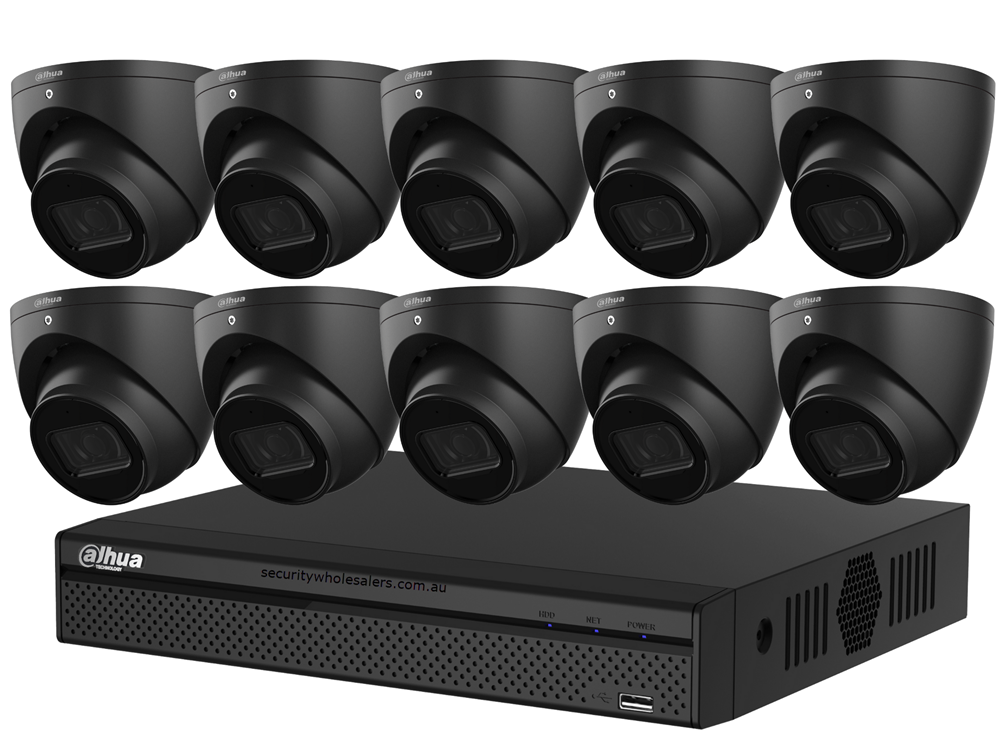

10 x 6MP [Black] cameras | Built-in Mic | 16CH NVR + NO HDD | Smart Motion Detection
Dahua 16ch 6MP Turret Kit includes: 1 x DHI-NVR4216-16P-4KS2; 10 x BLACK DH-IPC-HDW3641EM-AS; No HDD Installed. Add one below if you need one
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings -Outputs max.6MP (3072 × 2048) @25/30 fps | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
(Optional: Junction box PFA130; Wall Mount: PFB204W)
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
Outputs max.6MP (3072 × 2048) @25/30 fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |

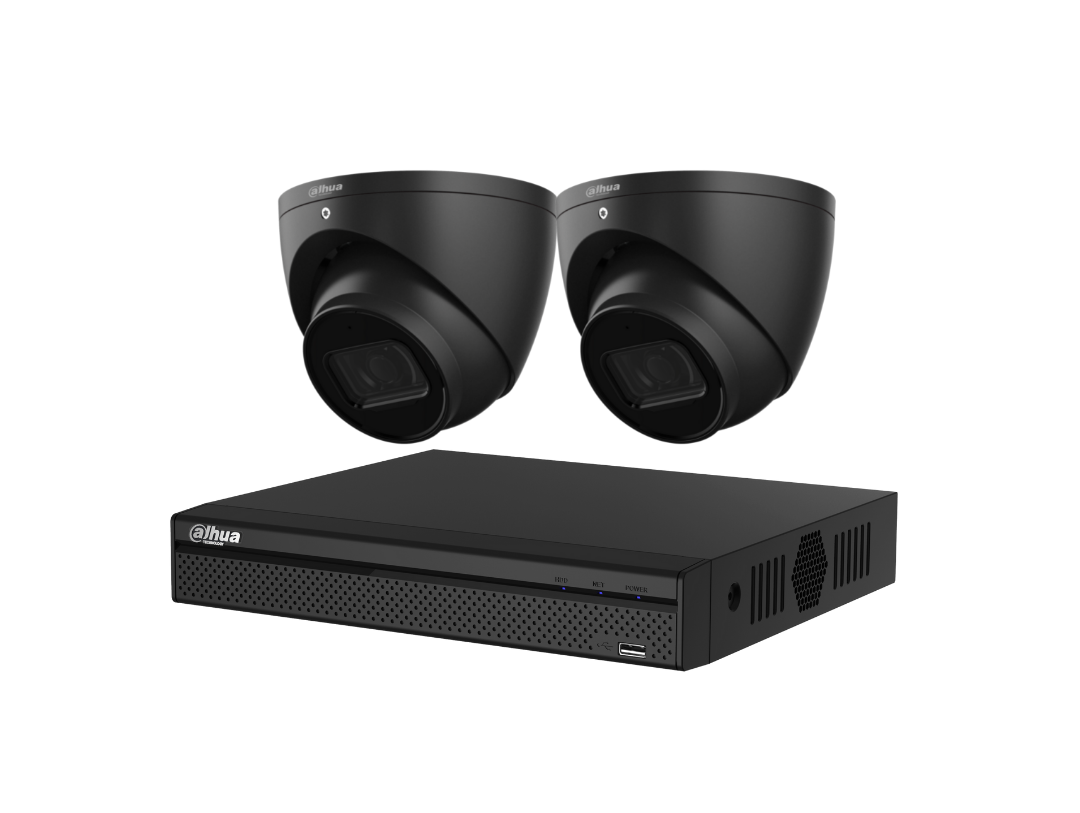

Dahua 2 x 6MP BLACK DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm +4CH NVR Wizsense AI
$409.00
Unit price perDahua 2 x 6MP BLACK DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm +4CH NVR Wizsense AI
$409.00
Unit price perOverview:
2 x 6MP cameras | Built-in Mic | 4CH NVR | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L; 4 x DH-IPC-HDW3641EM-AS; To add a HDD; click below
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
Model Codes: BLACK DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps;and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Overview:
3 x 6MP cameras | Built-in Mic | 4CH NVR | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L; 4 x DH-IPC-HDW3641EM-AS; Want to add a Hard Drive? See below
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps;and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |

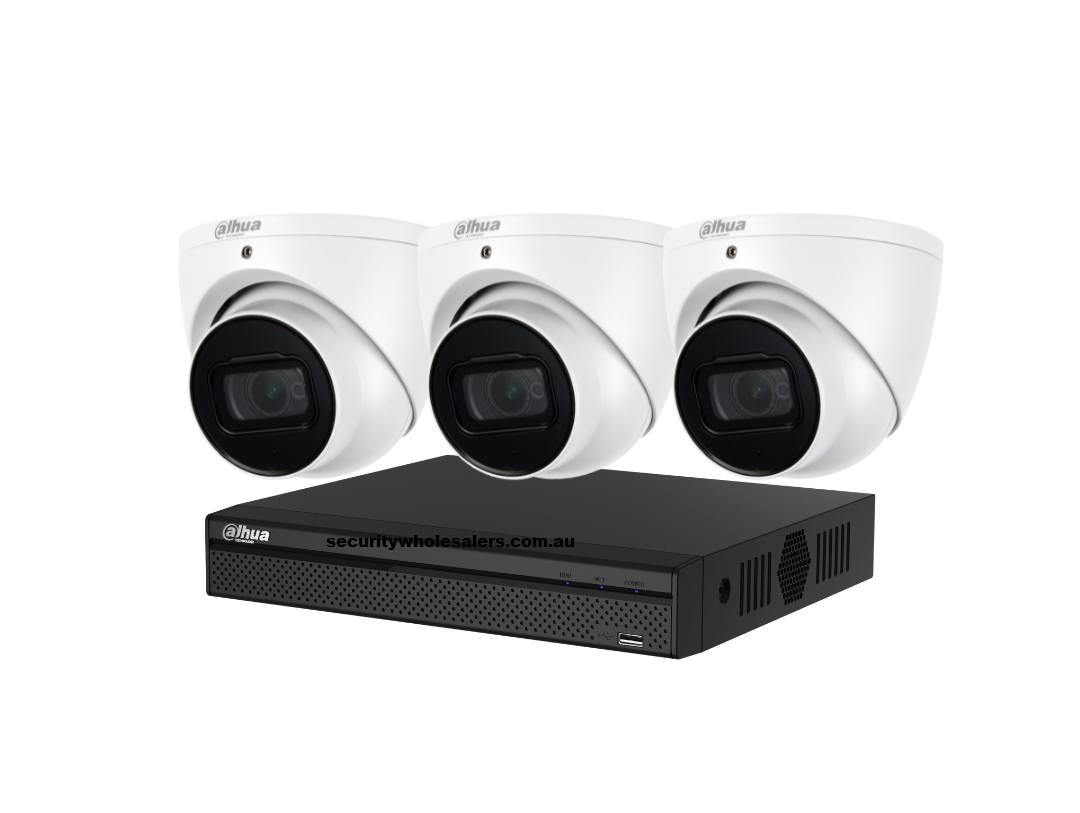

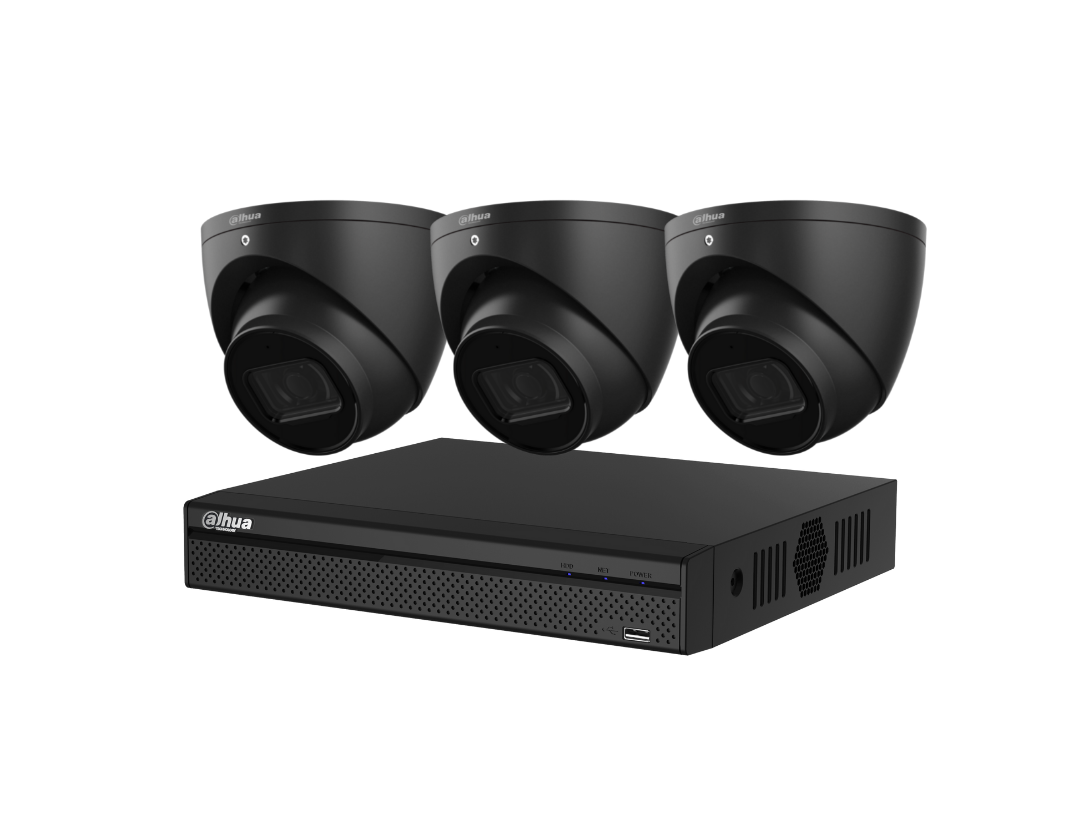

Dahua 3 x 6MP DH-IPC-HDW3641EM Turret Kit 50m IR 2.8mm with SMD + 4CH NVR Wizsense
$649.99
Unit price perDahua 3 x 6MP DH-IPC-HDW3641EM Turret Kit 50m IR 2.8mm with SMD + 4CH NVR Wizsense
$649.99
Unit price perOverview:
3 x 6MP cameras | Built-in Mic | 4CH NVR | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L; 3 x DH-IPC-HDW3641EM-AS; NO HDD; Add a HDD Below:
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps;and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
Dahua 4 x 5MP DH-IPC-HDW3549HP-AS-PV-0280B TIOC with Wizsense Turret Kit with 4CH NVR + 2TB HDD
$1,654.00
Unit price perDahua 4 x 5MP DH-IPC-HDW3549HP-AS-PV-0280B TIOC with Wizsense Turret Kit with 4CH NVR + 2TB HDD
$1,654.00
Unit price perOverview:

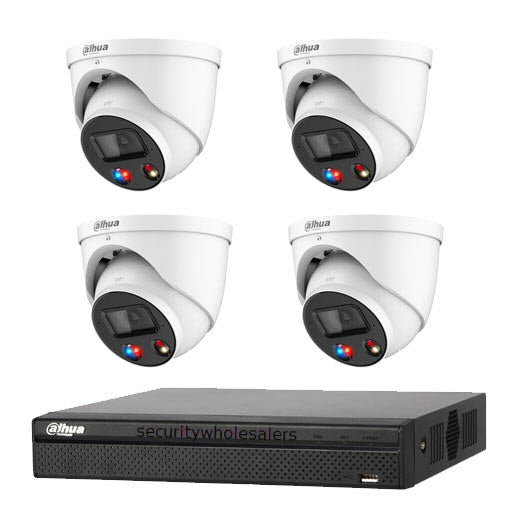

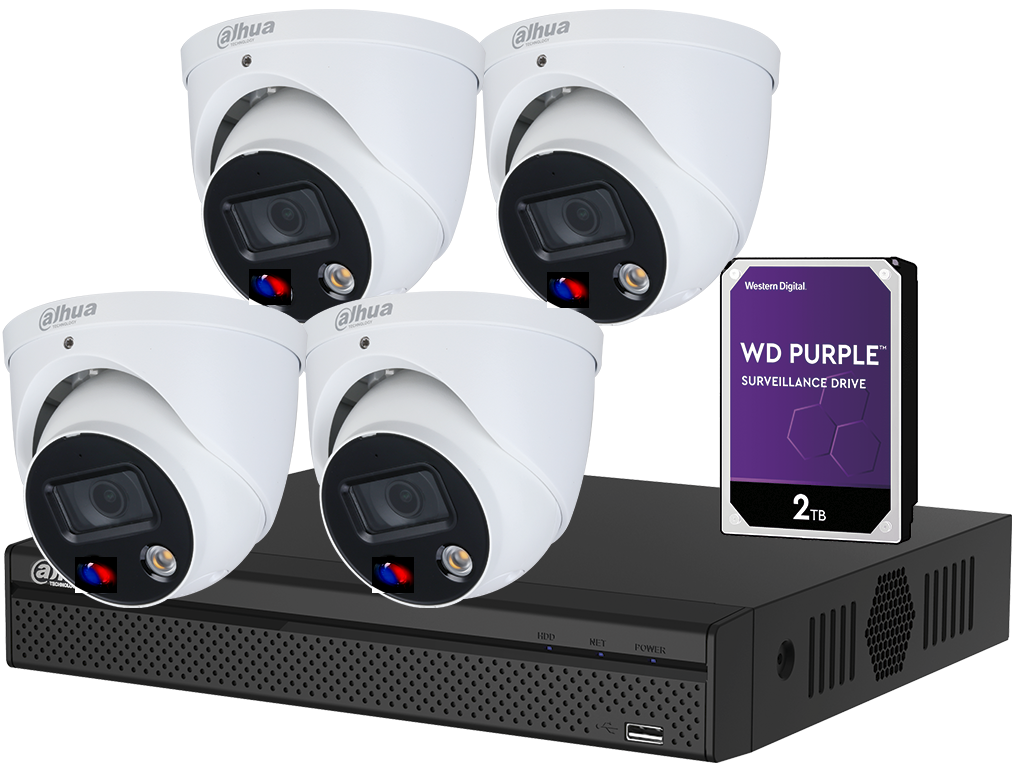

Dahua 4ch 5MP Turret Kit | TiOC 1.0 | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection Plus
Dahua 4ch 5MP Turret Kit includes: 1 x DHI-NVR4104HS-4P-4KS2; 4 x DH-IPC-HDW3549HP-AS-PV ; 1 x Security HD-2TB installed
4 of Dahua TIOC DH-IPC-HDW3549HP-AS-PV Dahua 5MP AI Active Deterrence Full color Starlight IP Turret Fixed 2.8mm; Built-in Mic & Speaker;IP67;POE
Product Features:
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7”5Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 2592 (H) × 1944 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100;000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.003 Lux @ F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | > 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.4 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122° 3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.2 m (3.9 ft) 3.6 mm: 2.1 m (6.9 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 67.4 m
(221.1 ft) |
27 m
(88.6 ft) |
13.5 m
(44.3 ft) |
6.7 m
(22.0 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 80.0 m
(262.5 ft) |
32.0 m
(105.0 ft) |
16.0 m
(52.5 ft) |
8.0 m
(26.2 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional; intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search; event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+/Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 2592 × 1944 @1-20 fps 2688 × 1520 @1-25/30 fps Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps Third stream: 1920 × 1080 @1-25/30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 80 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 G);NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8 and later Chrome Firefox Safari: Safari 12 and later |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15; Subpart B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5mA 3V–5V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300mA 12V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic power consumption: 2.5W (12V DC); 3.0W (PoE) Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3W (12V DC); 8.0W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | Φ122.0 mm × 110.9 mm (Φ4.8″ × 4.4″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 754 g (1.7 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (2.0 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overview:

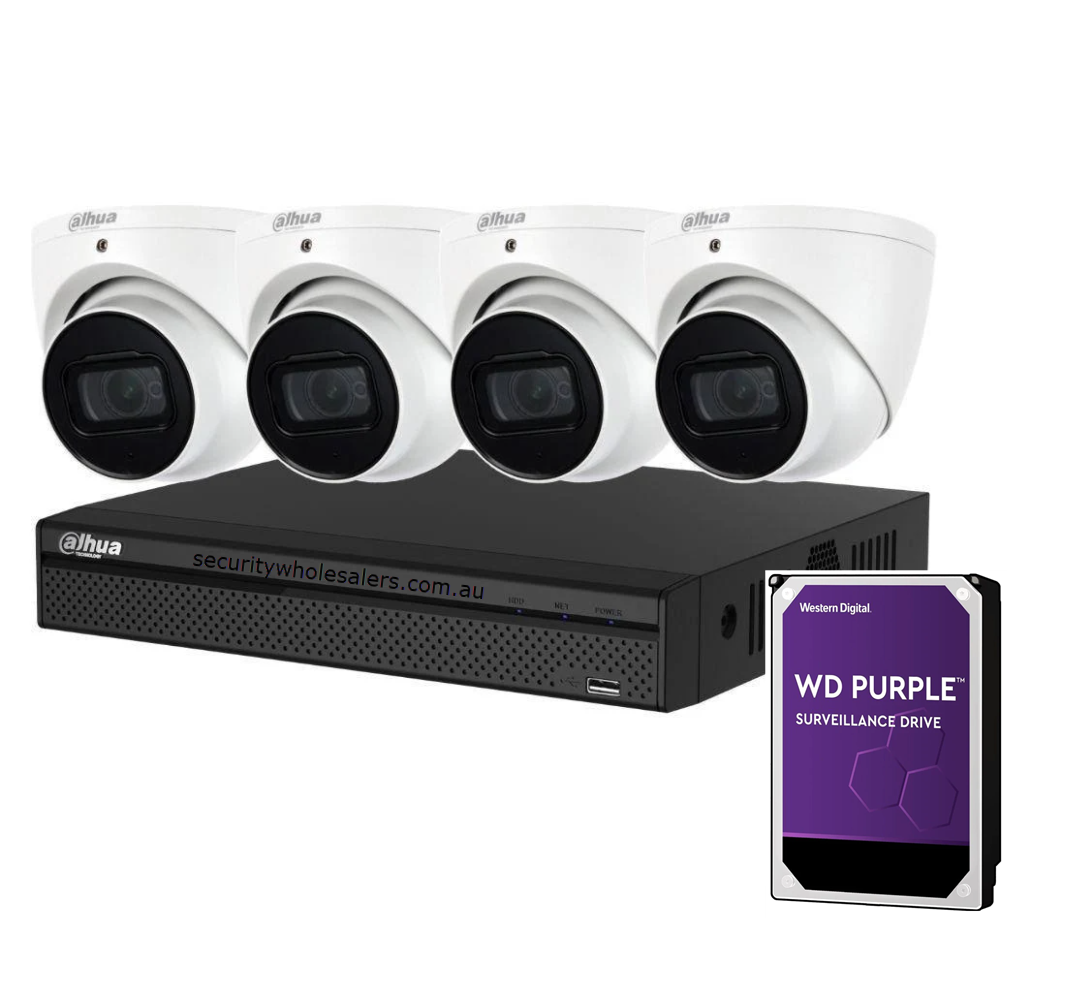

4 x 6MP cameras | Built-in Mic | 4CH NVR + NO HDD INCLUDED | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L; 4 x DH-IPC-HDW3641EM-AS; Need a Hard Drive? Add one below
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps;and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Overview:
4 x 6MP cameras | Built-in Mic | 4CH NVR + 2TB | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L; 4 x DH-IPC-HDW3641EM-AS; 1 x Security HD-2TB installed
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps;and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
Overview:
Dahua 8ch 4 x 8MP Turret Kit | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 3.0
Dahua 8ch 8MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2 ; 4 x TIOC 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3
4 of Dahua TIOC Advanced 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3 Dahua 8MP AI Active Deterrence Full color Starlight IP Turret Camera
(note this NVR doesn’t allow arming / disarming as you please; only via schedule. If you wish to arm / disarm via app; please select upgrade to PRO)
DH-IPC-HDW3849H-AS-PV-S3_datasheet
• Smart Illumination Mode (Default): Switch between IR Mode and white light when target is detected.• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary white light is not required; significantly reducing light pollution.
• White Light Mode (Optional): Only the white light is ON. It is suitable for scenes that require color video footage
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100;000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color; 30 IRE) 0.0004 lux@F1.0 (B/W; 30 IRE) 0 lux (illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED) 1 (warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125° 3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft) 3.6 mm: 2.8 m (6.23 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 91.0 m (298.56 ft) | 36.4 m
( 119.42 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 107.6 m (353.02 ft) | 43.0 m
( 141.08 ft) |
21.5 m
(70.54 ft) |
10.8 m
(35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional; intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD 3.0 | Less false alarm; longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search; event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams; the values will be subjected to the total encoding capacity. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8/9/11 Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15; Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 745 g (163.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (200.6 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua 4 x 8MP DH-IPC-HDW2831EMP-AS-0280B-S2 Turret Kit with 8CH PRO NVR HDD 2.8mm fixed lens
$1,379.00
Unit price perDahua 4 x 8MP DH-IPC-HDW2831EMP-AS-0280B-S2 Turret Kit with 8CH PRO NVR HDD 2.8mm fixed lens
$1,379.00
Unit price perOverview:
8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 30 metres distance.
Resilient “Weather-Proof” Ingress Protection Rating (IP67)
Dahua 4ch 8MP Eyeball Kit includes:
1 x Dahua PRO NVR DHI-NVR5208-8P-4KS2
4 x DH-IPC-HDW2831EMP-AS-0280B-S2
No HDD included
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) ×2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100; 000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.009 Lux@F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F2.0
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire; intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream:
3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas; rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A; G.711Mu; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE
Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15; Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | < 7.2W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40°C to +55°C (–40°F to +131°F)/less than ? 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 99.1mm × ?121.9 mm (3.9″ × ?4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.48 kg (1.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.65 kg (1.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overview:
Dahua 4ch 8MP Dome Kit includes: 1 x Dahua PRO NVR DHI-NVR5208-8P-4KS2; 4 x DH-IPC-HDBW2831E-S-S2; 1 x Security HD-2TB installed
Dahua 8MP DH-IPC-HDBW2831E-S-S2 WDR IR Starlight Dome Network Camera
Contents:
Description
Dahua 4K Movable Smart Android TouchScreen Display DHI-LM32-U400P
-
UHD Large Screen Ultimate Visual Experience
The Explorer is a 31.5-inch 4K UHD large screen that can be easily moved around. It has a sleek silver design and a simple business style making it suitable for home work and office use. -
Rich Interactive Mode
The Explorer has an 8-megapixel camera with a magnetic design for landscape and portrait use. It includes dual built-in 10W high-power speakers that bring stunning high-quality sound. The 4-array DSP noise-cancelling microphones ensure clear voice recordings from a distance of up to 5 meters. Whether live on YouTube or holding a remote video conference the Explorer brings a visually enjoyable experience. -
Explore Freely with Worry-free Battery Life
Four universal silent wheels allow you to take the Explorer anywhere. The built-in 144Wh large battery allows you to enjoy 4 hours of wireless audiovisual usage. You can easily enjoy two football games or movies during an outdoor picnic. -
Multimode Interconnection
Users can easily connect different devices at various locations using the mini HDMI + type C connector. It supports Windows Android and IOS wireless screen projection and supports on-screen control.
@175/379
Features
- 4MP, 1/3” CMOS image sensor,low illuminance, high image definition
- Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
- H.265 coding, high compression ration, low bit rate
- Built-in IR LED, max IR distance: 40 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tempering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
- Max. 256 GB SD card · 12V DC/POE power support · IP67 protection
System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function , complying to the standards of IP67.
Functions
Smart(H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
DHI-NVR4104
-
Smart H.265+/H.265/Smart H.264+/H.264
-
Max 80Mbps Incoming Bandwidth
-
Up to 8MP Resolution for Preview and Playback
-
Up to 2ch@4K/8ch@1080P decoding
-
HDMI/VGA simultaneous video output
-
Support IPC UPnP, 4PoE ports
System Overview
Dahua NVR4104-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.
4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Intelligent Video System
Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.
ANR (Automatic Network Replenishment Technology)
Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!
Features
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
- H.265 coding, high compression ration, low bit rate
- Built-in IR LED, Max IR distance: 40 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
- Max. 256 GB SD card · 12V DC/POE power support · IP67 protection
System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colourful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying to the standards of IP67.
Functions
Smart(H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with a strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colourful video. Even in the environment of min. illumination, the technology can guarantee a good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It is dust-proof, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to an outdoor environment with unstable voltage.
DHI-NVR4108
-
Smart H.265+/H.265/Smart H.264+/H.264
-
Max 80Mbps Incoming Bandwidth
-
Up to 8MP Resolution for Preview and Playback
-
Up to 2ch@4K/8ch@1080P decoding
-
HDMI/VGA simultaneous video output
-
Support IPC UPnP, 4PoE ports
System Overview
Dahua NVR4108-4KS2 is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.
4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Intelligent Video System
Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.
ANR (Automatic Network Replenishment Technology)
Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!
Package content:
1 x 8ch PoE NVR-4108HS-8P-4KS2 NVR
1x Surveillance HD-4TB installed
8x HDW2431TP-ZS-S2 4MP Motorised Turret Cameras
Dahua 5 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm + 8CH NVR Wizsense
$1,299.00
Unit price perDahua 5 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm + 8CH NVR Wizsense
$1,299.00
Unit price perOverview:
5 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection
Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2/L; 5 x DH-IPC-HDW3641TMP-AS; No HDD Included – to add a Hard Drive; add below.
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps
| PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
(Optional: Junction box PFA130; Wall Mount: PFB204W)
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
Outputs max.6MP (3072 × 2048) @25/30 fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
Dahua 5 x [Black] 6MP DH-IPC-HDW3641EM Eyeball / Turret Kit 50m IR 2.8mm 8CH NVR + 2TB HDD Wizsense
$1,194.00
Unit price perDahua 5 x [Black] 6MP DH-IPC-HDW3641EM Eyeball / Turret Kit 50m IR 2.8mm 8CH NVR + 2TB HDD Wizsense
$1,194.00
Unit price perOverview:
5 x 6MP [Black] cameras | Built-in Mic | 8CH NVR + 2TB | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2/L; 6 x DH-IPC-HDW3641EM-AS in BLACK; 1 x Security HD-2TB installed
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED; up to 50 metres distance.
(Optional: Junction box PFA130; Wall Mount: PFB204W)
Model Codes: DH-IPC-HDW3641EM-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs: DH-IPC-HDW3641EM-AS Spec sheet
Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps;and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual; 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas; rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%); PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
