Description

FIBARO Z-Wave Dimmer 2

The Fibaro Z-Wave Dimmer 2 (FGD-212) is the newest version of a popular wireless controller designed to operate behind a wall switch.

The Fibaro Z-Wave Dimmer 2 is designed to operate with or without a neutral wire. It may be used as a switch in systems without a neutral wire.

In case of a 2-wire connection (no neutral) the Fibaro Z-Wave Dimmer 2  may require a minimum load of 50W depending on the specifics of the connected load.

When used with a Fibaro Dimmer Bypass 2 it may operate with any compatible (see below) load from 5W. Before committing to buy Fibaro Dimmer Bypass 2 please check if your load can be properly controlled by Fibaro Dimmer 2 without a bypass device.

Do not connect this device to a power supply without a load. Only lighting devices may be connected to this device.

As a dimmer it operates with the following loads:

• 230V operated conventional incandescent (from 50W to 250W)
• 230V operated halogen (from 50W to 200W)
• 12 V operated ELV halogen lamps and dimmable LED lamps (with electronic transformers: Trailing and Leading edge type) (from 50W to 200W)
• 12V operated MLV halogen lamps (with ferromagnetic transformers) (from 50W to 225W)
• Dimmable CFL tube lamps with electronic ballast only (from 50W to 200W)

As a switch it operates with the following loads:

• Compact fluorescent lamps with electronic ballast
• LED bulbs (power factor >0.7)
• Fluorescent tube lamps with electronic ballast.

Please note: For loads other than resistive do not exceed a 1.5A current.

This product integrates with all Australian-certified (921.42 MHz) Z-Wave and Z-Wave Plus controllers including:

• Vera Plus/ Edge
• Fibaro Home Center 2  / Lite

Please note: Do not mix the load type (e.g. LED and CFL or different types of transformers) as it will impede the proper operation of the dimmer. Doing so will void the dimmer’s warranty.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters that you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

This product must be installed by a qualified electrician.
Before engaging an electrician check that they provide a warranty and electrical compliance certificate.
For warranty claim you have to provide an installation compliance certificate from your electrician.

PLEASE NOTE FOR THE INSTALLATIONS IN THE AREAS WHERE ELECTRICITY SUPPLIERS USING OFF-PEAK RIPPLE CONTROL SIGNALS:

Electricity suppliers in particular areas of Australia such as NSW QLD and some others places are injecting an off-peak ripple control signal using Zellweger equipment or similar onto their distribution networks in order to remotely control devices such as off-peak hot water systems and street lighting although other areas within Australia also use this technology. Not all properties are affected by ripple control so just because you might live in one of these areas does not mean that you will have these problems.

Ripple injection control systems work by superimposing coded control signals commonly 750Hz or 1050Hz on the 50 Hz mains supply.

Some electrical appliances such as fans dimmers toasters and LED lighting can be sensitive to this ripple control signal. The results could be audible buzzing noises from fans or flickering lights whenever the ripple control signals are present.

Electricity suppliers are advising users to install appropriate ripple signal filters in such areas.

The ripple signal filter is a tuned passive inline filter that completely eliminates the superimposed ripple injection control signal from the normal mains supply to produce a noise-free filtered mains supply which can then be connected to the electrical appliances or light control systems. The ripple signal filter is specifically tuned to eliminate the ripple control signal frequency of 750Hz or 1050Hz.

However we can’t guarantee the ripple signal filter always will help you if you experiencing such issues. Please contact your local energy provider to get more information and proposed solutions for your electrical installation.

If you are getting similar problems with your dimmers and fans and it’s not Ripple Control Signal and you are hearing the tones at random times of the day your electrical supply may be affected by harmonics; a power fluctuation that is not part of the normal electricity supply or ripple control signal output.

Harmonics are caused by interference created by other equipment on the network such as inverter-type air conditioners and switch-mode power supplies for computers.

The offending appliances may be in your home or other premises on the local power grid. If you are being affected by network harmonics it may be of benefit to transfer the electricity supply to your premises to a different phase in the street. This is something you will need to discuss with your electrical company.

We are strongly recommending for the areas we have mentioned above to run tests with only a few dimmers before committing to high volumes. If results are not fully OK you may use relays only instead of dimmers.

Please note that our warranty for the faulty devices does not cover above mentioned conditions with your local electric grids.

Please see affected with Ripple Signalling areas here:

QUEENSLAND

• Only Southern Queensland (Energex) has Ripple Signalling.
• The Frequency is 1050Hz.
• The rest of Queensland (Ergon) does not have Ripple Signalling.

NSW

• Energy Australia Full Supply Area
• Energy Australia Sydney &Hunter Supply Area

@10/30

 The Fibaro Z-Wave In-Wall Dimmer 2 (FGD-212) is the newest version of a popular wireless controller designed to operate behind a wall switch.

The Fibaro Z-Wave In-Wall Dimmer 2 is designed to operate with or without a neutral wire. It may be used as a switch in systems without a neutral wire.

In case of 2-wire connection (no neutral), the Fibaro Z-Wave In-Wall Dimmer 2 may require a minimum load of 50W depending on specifics of the connected load.

When used with a Fibaro Dimmer Bypass 2 it may operate with any compatible (see below) load from 5W. Before committing to buy Fibaro Dimmer Bypass 2 please check if your load can be properly controlled by Fibaro Dimmer 2 without bypass device.

Do not connect this device to a power supply without a load. Only lighting devices may be connected to this device.

As a dimmer it operates with the following loads:

• 230V operated conventional incandescent (from 50W to 250W)
• 230V operated halogen (from 50W to 200W)
• 12 V operated ELV halogen lamps and dimmable LED lamps (with electronic transformers: Trailing and Leading edge type) (from 50W to 200W)
• 12V operated MLV halogen lamps (with ferromagnetic transformers) (from 50W to 225W)
• Dimmable CFL tube lamps with electronic ballast only (from 50W to 200W)

As a switch it operates with the following loads:

• Compact fluorescent lamps with electronic balast
• LED bulbs (power factor >0.7)
• Fluorescent tube lamps with electronic balast

Please note: For loads other than resistive do not exceed a 1.5A current.

This product integrates with all Australian certified (921.42 MHz) Z-Wave and Z-Wave Plus controllers including:

• Vera 3/ Lite / Edge
• Fibaro Home Center 2  / Lite

 Please note: Do not mix the load type (e.g. LED and CFL or a different type of transformers) as it will impede the proper operation of the dimmer. Doing so will void the dimmer's warranty.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases, your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals.

This product must be installed by a qualified electrician.
Before engaging an electrician, check that they provide a warranty and electrical compliance certificate.
For warranty claim, you have to provide an installation compliance certificate from your electrician.

Description

 The new Fibaro Z-Wave Double Switch 2 (FIBEFGS-223) is a smart Z-Wave wireless module which can control two circuits each with a maximum load of 6.5A per channel and 10A total load per circuit.

The Fibaro Z-Wave Double Switch 2 (FIBEFGS-223) is a smart Z-Wave controller capable of remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.

The device is designed to operate inside your wall socket or other locations where controlling electrical devices is needed and can be easily installed by a qualified electrician. It enables control of connected devices through the Z-Wave+ network or a directly connected switch. Additionally it features active power and energy consumption monitoring.

This Fibaro Fibaro Z-Wave Double Switch 2 requires 3-wire (including neutral) installation and works with an AC (230V) power supply.

The Fibaro Z-Wave Double Switch 2 also features a secondary switch input which allows it to directly control other associated Z-Wave devices. This means that by turning the switch ON/OFF you can also turn other associated devices ON/OFF even if they are not physically connected to the same Fibaro module. It also enables you to control the local load as part of 2-way and multi-way lighting circuits.

This product integrates with Australian certified (921.42 MHz) Z-Wave Controllers – Fibaro Home Center 3 or Fibaro Home Center 3 Lite

Note: It  doesn’t integrate with Vera gateways at this stage.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using the Fibaro’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device.

Please check the maximum load before installing or operating.
This installation must be done by a certified electrician in Australia and New Zealand.
Before engaging an electrician check that they provide an electrical compliance certificate.
For warranty claim you have to provide installation compliance certificate from your electrician.

Manuals:

⇒ Fibaro Z-Wave Double Switch 2 Manual

@10/30

 The new Fibaro Z-Wave Double Switch 2 (FIBEFGS-223) is a smart Z-Wave wireless module which can control two circuits each with a maximum load of 6.5A per channel and 10A total load per circuit.

The Fibaro Z-Wave Double Switch 2 (FIBEFGS-223) is a smart Z-Wave controller capable of remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.

The device is designed to operate inside your wall socket and can be easily installed by a qualified electrician.

This Fibaro Fibaro Z-Wave Double Switch 2 requires 3-wire (including neutral) installation and works with an AC (230V) power supply.

The Fibaro Z-Wave Double Switch 2 also features a secondary switch input which allows it to directly control other associated Z-Wave devices. This means that by turning the switch ON/OFF you can also turn other associated devices ON/OFF even if they are not physically connected to the same Fibaro module. It also enables you to control the local load as part of 2-way and multi-way lighting circuits.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

• Raspberry PI with RaZberry Card
• Fibaro Home Controller 2/Lite
• DHS Z-Wave Universal Remote Controller
• DHS Z-Wave Mini Remote Controller

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases, your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please check the maximum load before installing or operating.
This installation must be done by a certified electrician in Australia and New Zealand.
Before engaging an electrician, check that they provide an electrical compliance certificate.
For warranty claim, you have to provide installation compliance certificate from your electrician.

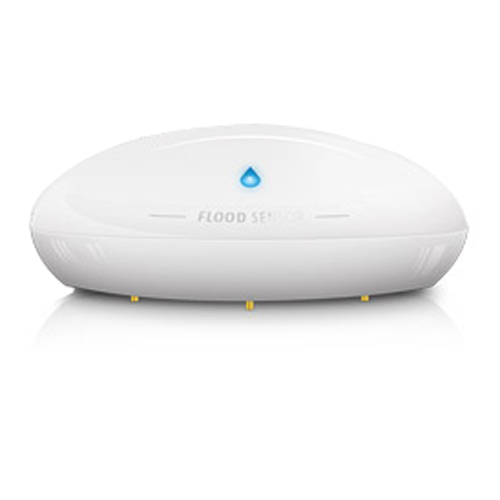

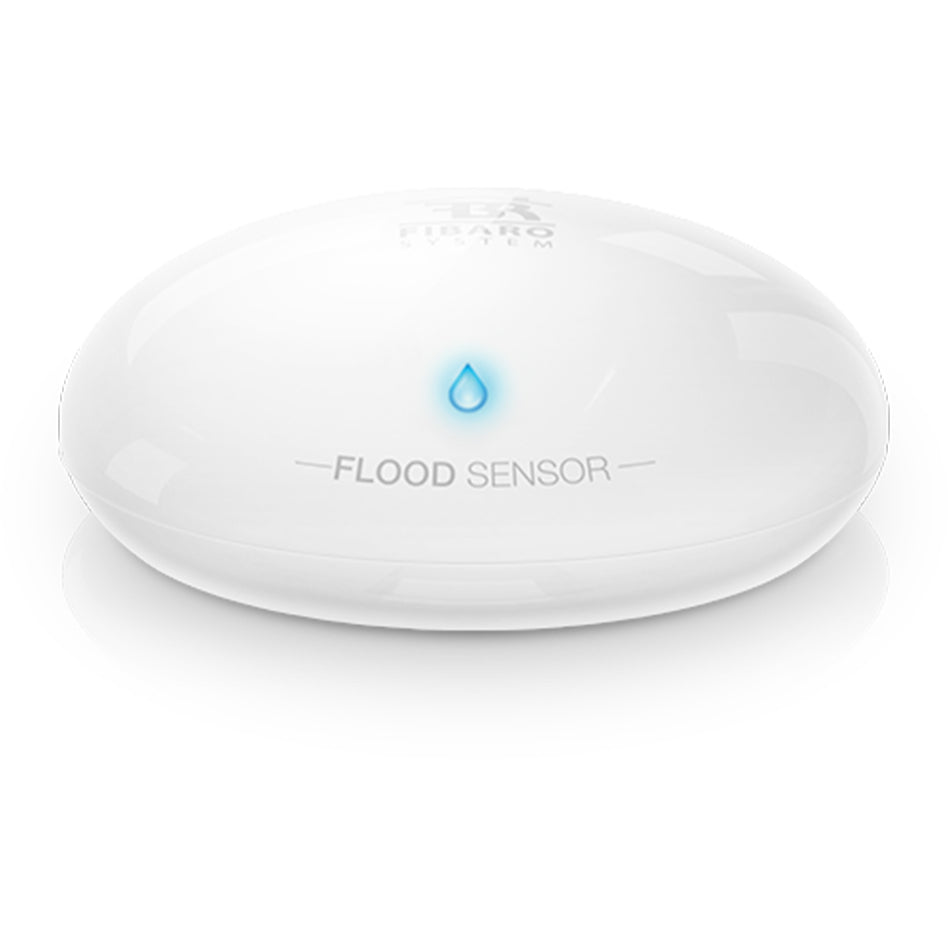

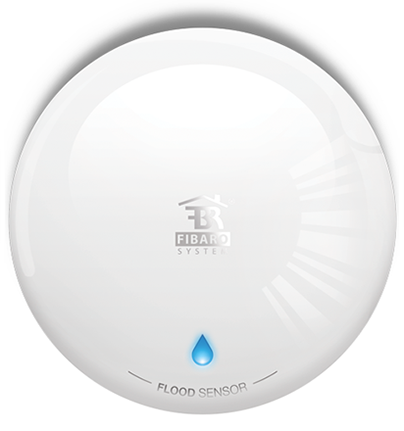

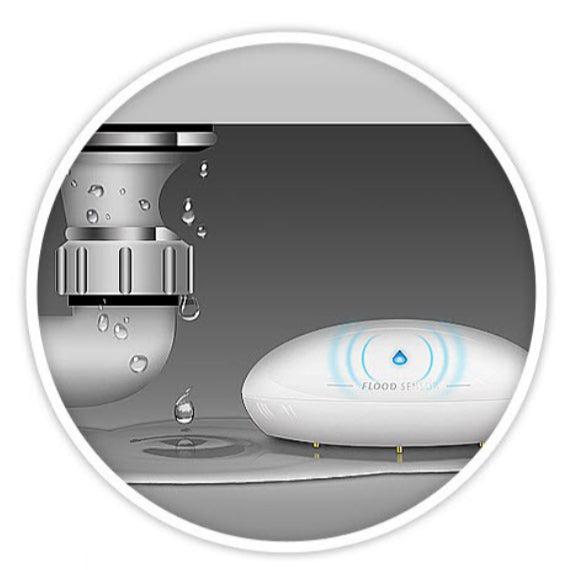

Fibaro Flood Sensor is a universal, Z-Wave compatible, flood and temperature sensor. Device can be battery (ca. 2 years battery life) or VDC powered (12 or 24
VDC). Flood alarm is sent to the Z-Wave network devices or additionally to any alarm system controller, through opening a NC contact.
The device has built in temperature sensor, monitoring temperature of e.g. floor. Fibaro Flood Sensor is designed to be placed on the floor or on a wall with a flood
sensor probe extended by connected wire. The device has built in LED indicator and acoustic alarm. In addition, the sensor is equipped with a tilt sensor reporting
tilt or movement to the main controller e.g. when someone has taken the Sensor from its original location. LED diode signals flood, operating mode or the Z-Wave
network communication range. Fibaro Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of
substantial inundation of water.

Product Details

Description

Quick Overview

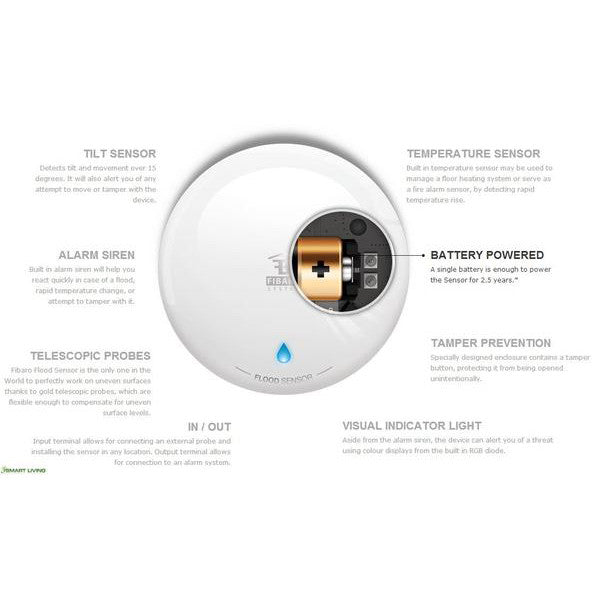

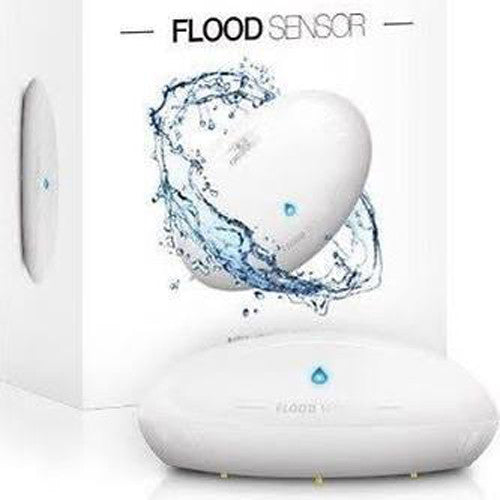

Fibaro Flood Sensor is a universal Z-Wave compatible flood and temperature sensor. The device can be battery (ca. 2 years battery life) or VDC powered (12 or 24 VDC). The flood alarm is sent to the Z-Wave network devices or to any alarm system controller through opening a NC contact.

The device has a built-in temperature sensor to monitor the temperature of the floor for example. Fibaro’s Flood Sensor is designed to be placed on the floor or on a wall with a flood sensor probe extended by a connected wire. The device has a built in LED indicator and acoustic alarm. Additionally the sensor is equipped with a tilt sensor reporting tilt or movement to the main controller (e.g. when someone has taken the Sensor from its original location).

The LED diode signals flood operating mode or the Z-Wave
network communication range. What’s more the device is also sink-proof which means it drifts on the water surface and keeps sending alarm signals in case of substantial inundation of water.

Compatible with – Fibaro Home Center 2/Lite controllers as well as Fibaro Home Center 3  Fibaro Home Center 3 Lite and Fibaro Nice Yubii Home Controller

@11/31

Description

Quick Overview

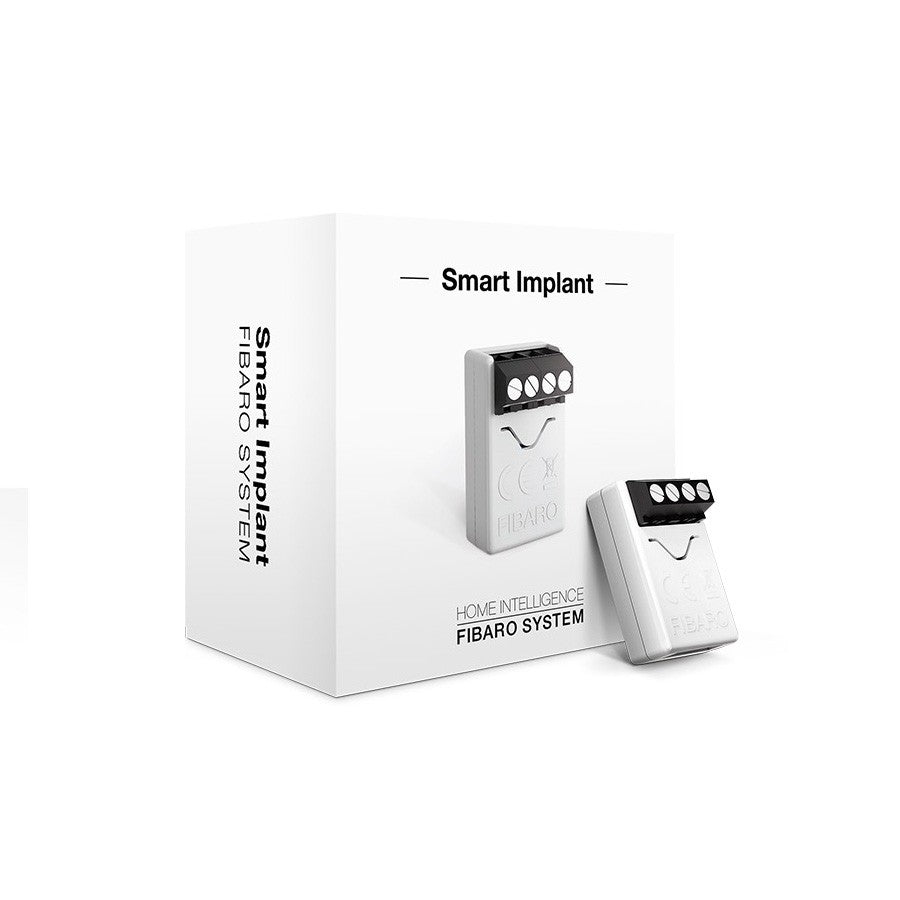

FIBARO Smart Implant allows to enhancement of the functionality of wired sensors and other devices by adding Z-Wave network communication.
You can connect binary sensors analog sensors DS18B20 temperature sensors or DHT22 humidity and temperature sensors to report their readings to the Z-Wave controller.
It can also control devices by opening/closing output contacts independently of the inputs.

Product Details

Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption.

Works as a Z-Wave signal repeater.
Allows for connecting sensors:
6 DS18B20 sensors
1 DHT sensor
2 2-wire analog sensor
2 3-wire analog sensor
2 binary sensors.
Built-in temperature sensor.

This product works with :

• Fibaro Home Controller 3/2/Lite

Please note:

DEVICE IS NOT COMPATIBLE WITH VERA HOME CONTROLLERS

Before installation

Connect only in accordance with one of the diagrams
The device is powered with secure voltage; nevertheless the user should be extra careful or should commission the installation to a qualified person
Do not connect devices that are not compliant with the specifications
Do not connect other sensors than DS18B20 or DHT22 to SP and SD terminals
Do not connect sensors to SP and SD terminals with wires longer than 3 meters
Do not load the device outputs with a current exceeding 150mA
Every connected device should be compliant with the relevant safety standards
Unused lines should be left insulated.

Tips for arranging the antenna:

Locate the antenna as far from metal elements as possible (connecting wires bracket rings etc.) in order to prevent interferences
Metal surfaces in the direct vicinity of the antenna (e.g. flush mounted metal boxes metal door frames) may impair signal reception!
Do not cut or shorten the antenna – its length is perfectly matched to the band in which the system operates.
Make sure no part of the antenna sticks out of the wall switch box.

Product Support

Notes for diagrams:

ANT (black)      – antenna
GND (blue)       – ground conductor
SD (white)        – signal conductor for DS18B20 or DHT22 sensor
SP (brown)       – power supply conductor for DS18B20 or DHT22 sensor (3.3V)
IN2 (green)       – input no. 2
IN1 (yellow)      – input no. 1
GND (blue)       – ground conductor
P (red)              – power supply conductor
OUT1              – output no. 1 assigned to input IN1
OUT2              – output no. 2 assigned to input IN2
B                     – service button (used to add/remove the device)

Manuals:

⇒ Fibaro Z-Wave Implant Manual

Videos / YouTube:

⇒ Fibaro Implant Presentation

Technical Specifications

@10/29

Description

Quick Overview

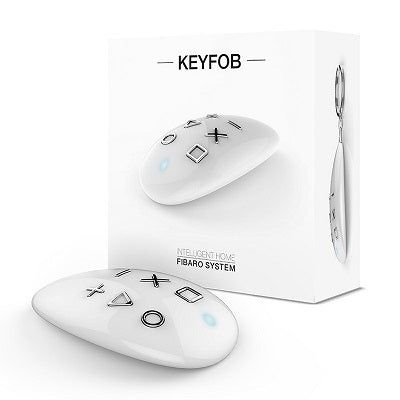

The FIBARO Keyfob is a battery powered compact remote controller that allows you to control devices in your Z-Wave network.

Product Details

The FIBARO Keyfob is a Z-Wave Plus (500 series) compatible battery-powered compact remote controller designed to control devices within your Z-Wave network.

With six buttons which support 30 different actions the FIBARO Keyfob allows you to control Z-Wave devices within your Z-Wave network and run various scenes defined in your Z-Wave gateway.

Configure actions for one two three clicks holding the button and specific button sequences to suit all your home automation needs.

The FIBARO Keyfob also features a built-in configurable pin lock system which automatically locks the device after a short period of inactivity (60 seconds by default) which prevents unauthorized control of your home.

Note: This device is currently only compatible with the FIBARO Home Center 3 and FIBARO Home Center Lite Z-Wave gateways. Please ensure that you are running the latest Fibaro firmware (at least 4.120)

Product Support

Manuals:

⇒ FIBARO Keyfob User Manual

Videos / YouTube:

⇒ Introducing the FIBARO Keyfob

Technical Specifications

@10/29

Quick Overview

The FIBARO Keyfob is a battery powered, compact remote controller that allows you to control devices in your Z-Wave network.

Product Details

The FIBARO Keyfob is a Z-Wave Plus (500 series) compatible, battery-powered, compact remote controller designed to control devices within your Z-Wave network.

With six buttons, which support 30 different actions, the FIBARO Keyfob allows you to control Z-Wave devices within your Z-Wave network and run various scenes defined in your Z-Wave gateway.

Configure actions for one, two, three clicks, holding the button and specific button sequences to suit all your home automation needs.

The FIBARO Keyfob also features a built-in, configurable pin lock system which automatically locks the device after a short period of inactivity (60 seconds by default) which prevents unauthorized control of your home.

Note: This device is currently only compatible with the FIBARO Home Center 2 and FIBARO Home Center Lite Z-Wave gateways. Please ensure that you are running the latest Fibaro firmware (at least 4.120)

Technical Specifications

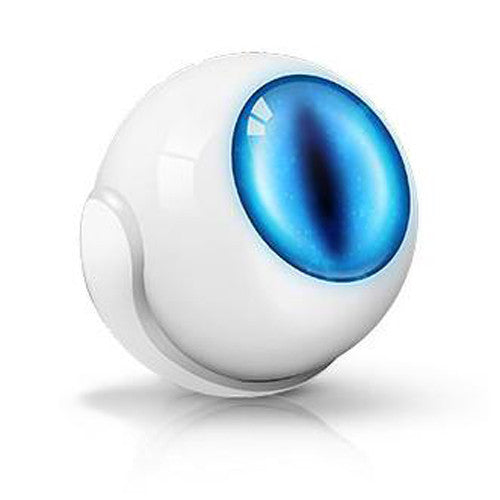

The Fibaro Motion Sensor is a universal Z-Wave multi-sensor. Along with detecting motion the device measures the temperature and light intensity. The sensor has a built-in accelerometer to detect anytampering of the device. The Fibaro Motion Sensor is battery powered device and designed to be installed quckly and easily on any surface. The LED indicator signals motion, temperature level, operating mode and can be used to see if device is within the Z-Wave network. The motion sensor can be used for lighting scenes and security monitoring systems

Product Details

Description

FIBARO Z-Wave Multi Sensor

The Fibaro Motion Sensor is a universal Z-Wave multi-sensor. Along with detecting motion the device measures the temperature and light intensity. The sensor has a built-in accelerometer to detect anytampering of the device. The Fibaro Motion Sensor is battery powered device and designed to be installed quckly and easily on any surface. The LED indicator signals motion temperature level operating mode and can be used to see if device is within the Z-Wave network. The motion sensor can be used for lighting scenes and security monitoring systems

@10/30

Description

FIBARO Z-Wave R/Shutter 3 (Nice Roll Control 2)

Quick Overview

 The Fibaro Roller Shutter Controller (Nice Roll Control 2) is designed to control blind awning garage door and gate motors.

FIBARO Roller Shutter 3 (FGR-223) is a new Z-Wave Plus version of its predecessor model Fibaro Roller Shutter 2.

Product Details

The Fibaro Roller Shutter 3 (FGR-223) is an advanced Z-Wave controller for automated roller blinds awnings venetian blinds garage doors and gates. The module can control devices that are powered by an AC electric motor with “tree wires” interface.

The Roller Shutter module features automatic calibration so that you can precisely position the blind. It also includes a power metering feature to help you measure the power consumption.

The Fibaro Roller Shutter 2 has five modes that enable it to perfectly control any electric garage door gate roller blind awning or venetian blind. This allows for correct configuration and operation of a device through a special interface icon (via the Fibaro HC2).

• Roller blinds with positioning
• Roller blinds without positioning
• Garage doors with positioning
• Garage doors without positioning
• Venetian blind

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

This product must be installed by qualified electrician.
Before engaging an electrician check that they provide a warranty and electrical compliance certificate.
For warranty claim you have to provide an installation compliance certificate from your electrician.

Product Support

Manuals:

⇒ Fibaro Z-Wave Roller Shutter 3

⇒ Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)

⇒ Fibaro System Overview (Size: 14.5 MB)

Videos / YouTube:

⇒ Fibaro Fibaro Home Center 2 Presentation

Technical Specifications

@10/30

Description

FIBARO Z-Wave RGBW Controller2

Quick Overview

The FIBARO Z-Wave RGBW Controller 2 is a wireless controller which enables you to manage your LED strips and halogen lights.

Product Details

The FIBARO Z-Wave RGBW Controller 2 is a one of a kind advanced wireless 4-colour LED strip controller. Apart from the traditional RGB channels it also supports the white light channel which allows you to add pastel colours to your lighting decorations.

The FIBARO Z-Wave RGBW Controller 2 also has four analogue inputs supporting any type of Fibaro sensor (e.g. light sensors wind sensors pressure sensors and potentiometers operating between 0-10V). This smart feature allows you to use your lighting as a warning for certain events. You could for example set your RGB garden lights to turn red and flicker when one of your security sensors is triggered alerting your neighbours to the intruder and allowing them to notify the proper authorities.

This device has four output channels which means that you can connect and independently control up to four light sources. The FIBARO Z-Wave RGBW Controller 2 also allows you to monitor the energy consumed by the LED strips. Each of the four channels can be monitored independently providing you with all the information you need to minimise your energy bills.

The FIBARO Z-Wave RGBW Controller 2 can control:

• 12 / 24V DC-powered RGB strips
• 12 / 24V DC-powered RGBW strips
• 12 / 24V DC powered LED strips bulbs etc
• 12 / 24V DC-powered halogen lights
• 12 / 24V DC powered low output power fans

Note: Power supply is not included.

This product integrates with all Australian-certified (921.42 MHz) Z-Wave controllers including:

• Fibaro Home Center 3/Lite
• Fibaro Yubii Home

The FIBARO Z-Wave RGBW Controller 2 is compatible with the DHS RGB LED Strip which is also available.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please check the maximum load before installing or operating.
This device must be installed by a certified electrician.
For all warranty claims an electrical compliance certificate from your electrician must be provided.

Product Support

Manuals:

⇒ FIBARO Z-Wave RGBW Controller User Manual

⇒ Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)

Videos / YouTube:

⇒ FIBARO RGBW Controller 2

Technical Specifications

@10/29

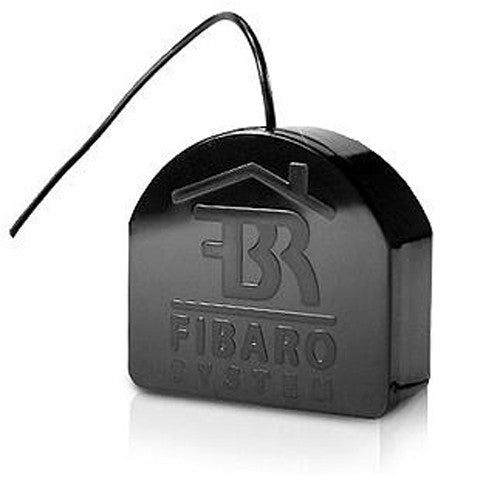

 The Fibaro Z-Wave RGBW Controller is a wireless controller which enables you to manage your lighting decoration.

The radio-controlled Roller Shutter 2 works with motorized roller blinds, Venetian blinds, awnings and gates. The Roller Shutter 2 is powered by a single-phase AC and provides precise positioning of blinds, awnings or gates so they can be set to the position you choose. The module is also equipped with a power metering feature when used with a FIBARO Home Center.

 The Fibaro Z-Wave Single Switch 2 is a wireless Z-Wave module which can control appliances or light up to a maximum load of 2.0kW.

The main differences in the FGS-213 are:

• Z-Wave Plus certification
• Has power monitoring
• 230V powered only (this is the same as the FGS-212)
• No dry contacts - this is important. It means that the new FGS-213 cannot be used to control low voltage systems such as garden lights and irrigation, or where you want a pure volt-free switch such as alarm panels and garage door controls.  If you need device with dry contacts please see zConnect Z-Wave Garage Door Opener or FIBARO Z-Wave Sgl Switch InWall or DHS Z-Wave Sgl Switch InWall

The Fibaro Z-Wave Single Switch 2 is a smart Z-Wave module capable of remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.

The device is designed to operate inside your wall socket and can be easily installed by a qualified electrician.

This Fibaro Z-Wave Single Switch 2 requires 3-wire (including neutral) installation and works with an AC (110-230V) or DC (24-60V) power supply.

The Fibaro Z-Wave Single Switch 2 also features a secondary switch input which allows it to directly control other associated Z-Wave devices. This means that by turning the switch ON/OFF you can also turn other associated devices ON/OFF even if they are not physically connected to the same Fibaro module. It also enables you to control the local load as part of 2-way and multi-way lighting circuits.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

• Raspberry PI with RaZberry Card
• Fibaro Home Controller 2/Lite
• DHS Z-Wave Universal Remote Controller
• DHS Z-Wave Mini Remote Controller

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases, your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please check the maximum load before installing or operating.
This installation must be done by a certified electrician in Australia and New Zealand.
Before engaging an electrician, check that they provide an electrical compliance certificate.
For warranty claim, you have to provide installation compliance certificate from your electrician.

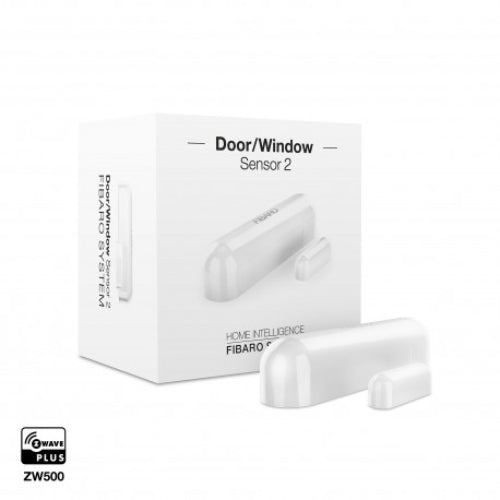

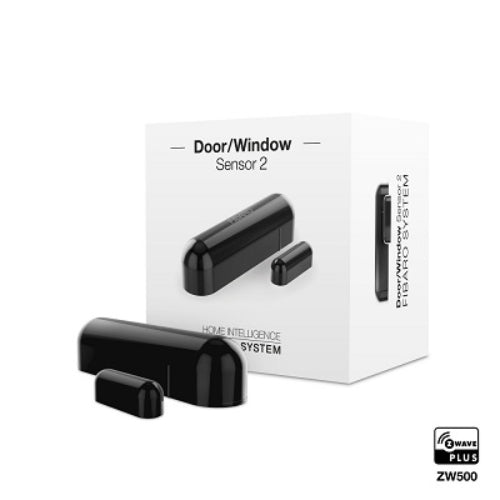

The FIBARO Z-Wave D/W Sensor 2 is a small, battery powered magnetic door and window sensor with a built in temperature sensor.

Product Details

The FIBARO Z-Wave D/W Sensor 2 is a smart magnetic door/window sensor capable of sending binary ON/OFF commands wirelessly using the Z-Wave network (AUS/NZ version 921.42 MHz) when it is triggered.

The detector consists of two magnetic units, one is placed on the moving part of the door or window and the other on the frame. The sensor expands the capabilities of your Z-Wave system by monitoring the opening of doors, windows and garage doors.

The FIBARO Z-Wave D/W Sensor 2 can be used to automatically turn on lights, turn wireless switches ON/OFF and for security applications within the Z-Wave network. It is also useful for climate control systems, monitoring whether any doors or windows are open to ensure that your air-conditioning is not operating when it is not efficient to do so.

This sensor includes a built in temperature sensor which further extends your Z-Wave network's climate control capablities by allowing it to detect the exact temperature in your home.

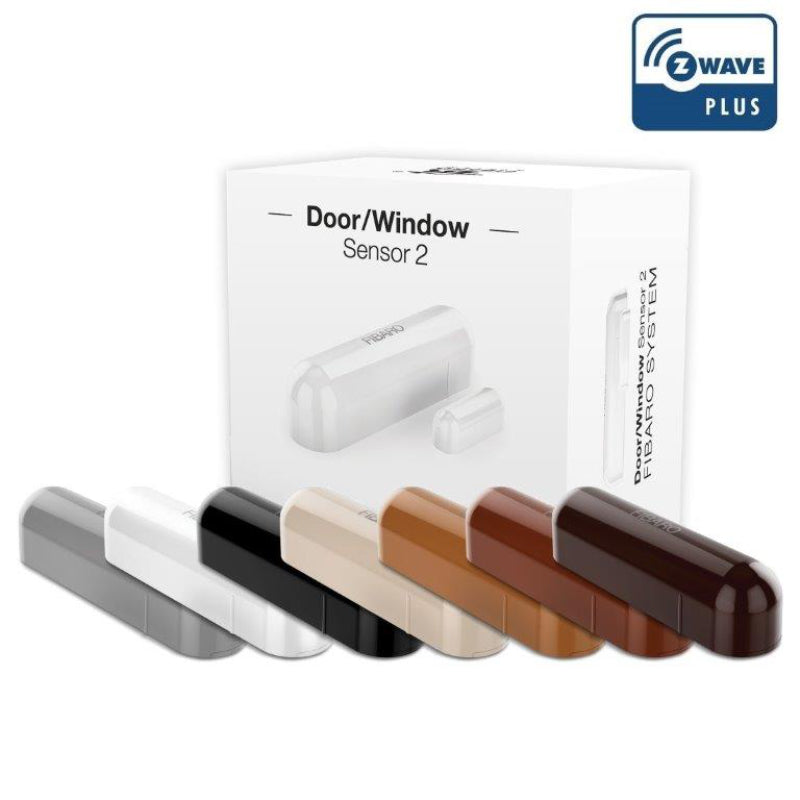

This product comes in multiple different colours.

Note: This device is currently only compatible (out of the box) with Fibaro Home Center 2 and Fibaro Home Center Lite controllers.

To enable this device to work with Vera controllers you need to do the following:
Under the devices Advance>Params you need to change the following details:
device_type - urn:schemas-micasaverde-com:device:DoorSensor:1
device_file - D_DoorSensor1.xml
device_json - D_DoorSensor1.json

After all the details are confirmed by the system you will need to go to New service and press Reload Engine after this you will need to wait for the device to reconfigure before it will appear in your system, but once it has it should appear as a D/W sensor in the  Vera UI.

Technical Specifications

Quick Overview

Fibaro Flood Sensor is a universal, Z-Wave compatible, flood and temperature sensor. Device can be battery (ca. 2 years battery life) or VDC powered (12 or 24
VDC). Flood alarm is sent to the Z-Wave network devices or additionally to any alarm system controller, through opening a NC contact.
The device has built in temperature sensor, monitoring temperature of e.g. floor. Fibaro Flood Sensor is designed to be placed on the floor or on a wall with a flood
sensor probe extended by connected wire. The device has built in LED indicator and acoustic alarm. In addition, the sensor is equipped with a tilt sensor reporting
tilt or movement to the main controller e.g. when someone has taken the Sensor from its original location. LED diode signals flood, operating mode or the Z-Wave
network communication range. Fibaro Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of
substantial inundation of water.

Product Details
