Provides a 3dBi gain for 698-2700 MHz

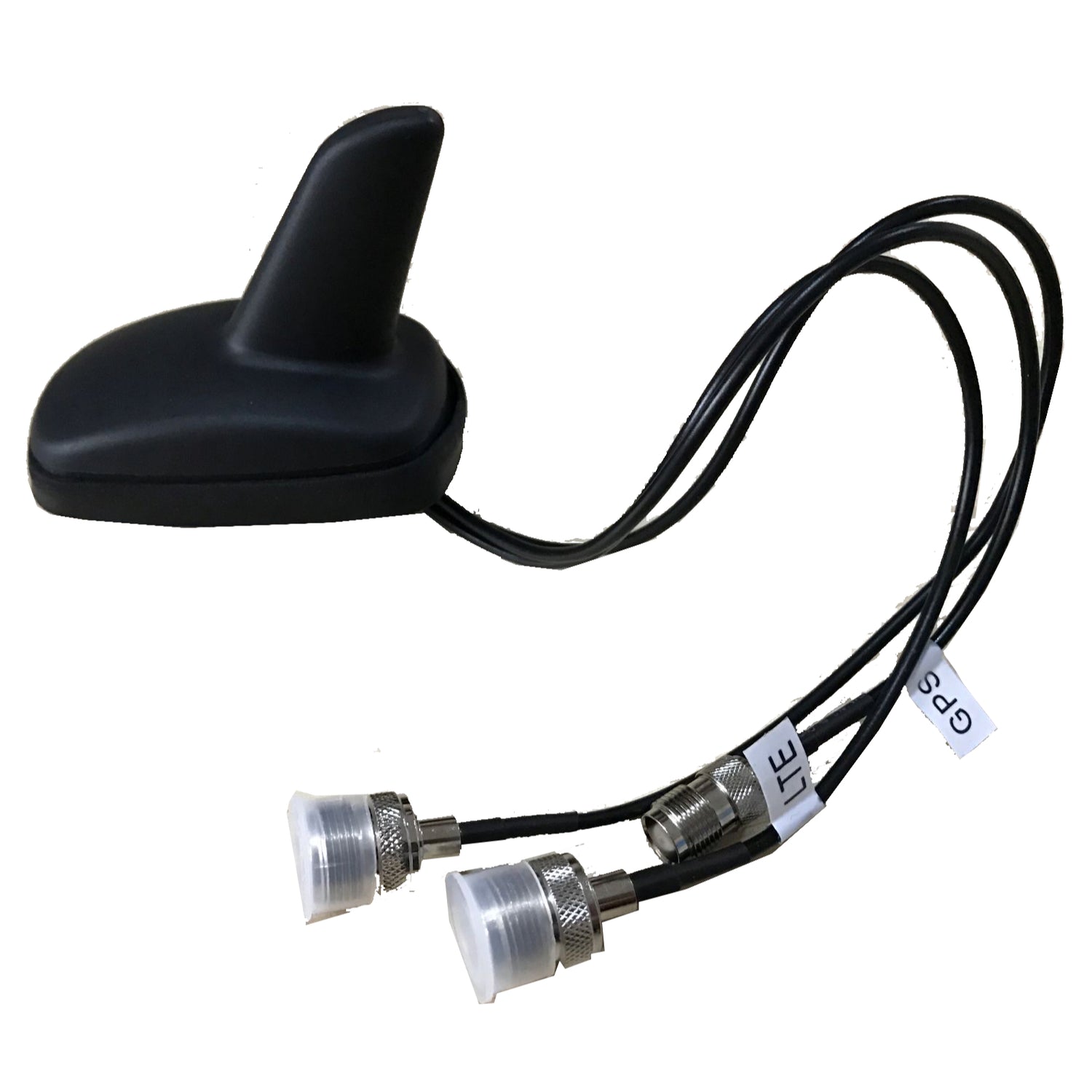

The ANT-BH-SF-100 screw mount Shark Fin Transit Antenna covers GPS/4G/WiFi requirements and is designed for maximum performance and versatility for telematics applications, emergency service vehicles fleet monitoring and asset tracking.

Features:
• Supports 698 – 2700 MHz suitable for all mobile carriers
• IP67 rated
• RoHS Compliant
• Mounting includes thread bolt mount and permanent adhesive
• Antenna has dimensions 83x54x83mm

ELECTRICAL SPECIFICATIONS

Frequency Range: GPS - 1575.42 MHz ±3 MHz / WiFi - 2400-2438 / 5700-5800 MHz / LTE - 698-960 MHz / 1710-2700 MHz
Impedance: 50 Ω
VSWR: LTE - 2.0: 1 / GPS - 2.0:1
Gain: GPS - 5 dBi / LTE - 3 dBi / WiFi - 3 dBi
Polarisation WiFi: GPS - RHCP / LTE - Linear / WiFi - Linear
Max Input Power: 50W

MECHANICAL SPECIFICATIONS

Dimensions: 85 x 54 x 83 mm
Weight: 180g
Operating Temperature: -40°C to +85°C
Connector: GPS: TNC-Female / LTE: N-Female / WiFi: N-Female
Cable: GPS: RG174 250mm / 3G/4G: RG174 300mm / WiFi: RG174 350mm
Material: ABS
Antenna Colour: Black
RoHS Compliant: Yes
Waterproof: IP67

• FEATURES

  • 10 dBi gain across lower bands 698-960 MHz
  • 11 dBi gain across upper bands 1710-2700 MHz
  • Lightweight, compact design
  • Mounting clamp included
  • 30 cm tail with pre-terminated N Female connector
  • Optional: Supplied with 10 m of RG58 cable with SMA Male connectors
  • Great cost effective antenna.

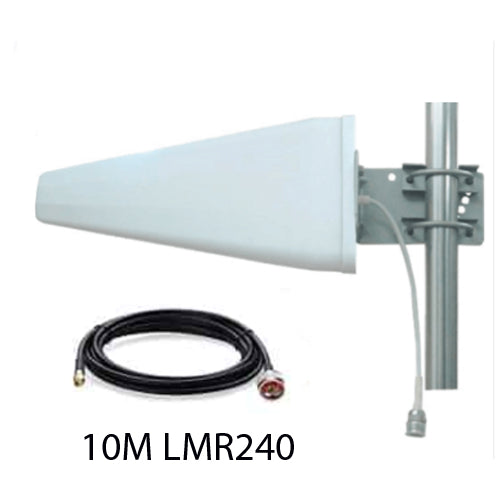

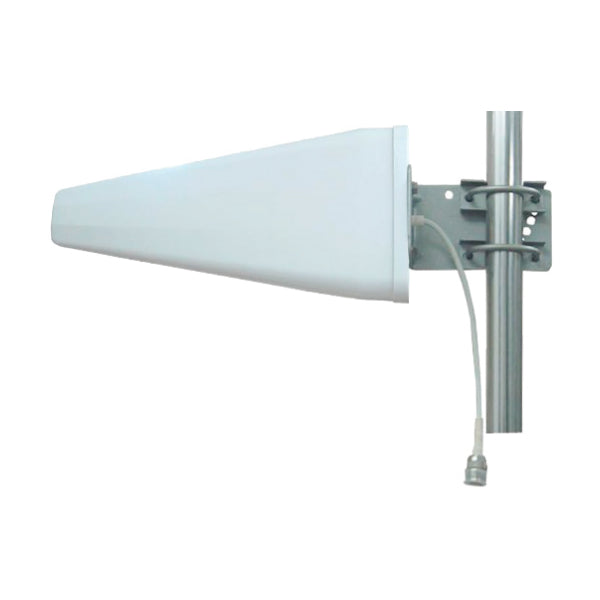

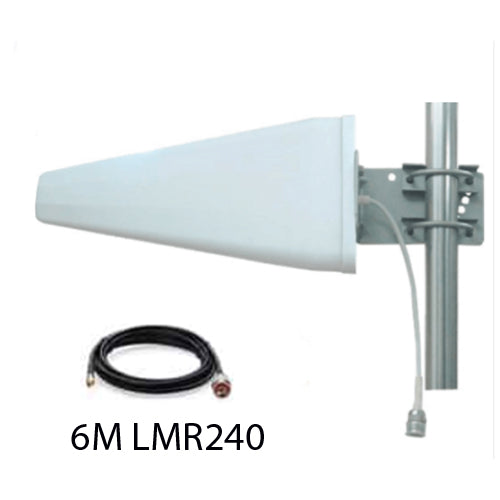

  The Blackhawk wideband antenna is a fantastic little antenna providing good performance with a lightweight, low-cost design. There's plenty of situations where a big, solid metal antenna is necessary, but also plenty where something quick and small can be just as useful. This antenna is great for areas where indoor signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement.




  The antenna is simple and effective, it might not last as long as a fully welded yagi, or our Backhawk LPDA, but it's a great antenna for temporary installations or those travelling who need something compact.




  Mounting is made simple with a mast down-tilt bracket and U-Bolts. This enables you to mount the antenna on a flat surface or a pole.

ELECTRICAL SPECIFICATIONS

MECHANICAL SPECIFICATIONS

Cable Optional: 6m/10m/15m/20m

LSFH-240 CABLE N MALE – SMA MALE

This cable is low smoke halogen, to reduce the amount of toxic and corrosive gas emitted during combustion or fire.

Choose your own cable length: 6m, 10m, 15m, 20m.

• Ideal for connecting Blackhawk antennas to any Cel-Fi units.

FEATURES

• 15 dBi gain on Telstra Next-G and Telstra 4GX
• High quality Australian made antenna
• Ruggedised construction for Australian conditions
• Fully welded alodined aluminium design
• Galvanised UNV2 mounting clamp included
• Short tail with pre-fitted N Female connector.

Operating on both Telstra Next-G (850 MHz) and 700 MHz 4GX frequencies, this uniquely designed yagi antenna is the ideal companion to Cel-Fi repeater systems in rural and remote areas.

The RFI YW15-6989 is a game changer. Traditionally yagi antennas have been limited to one specific frequency, however with the introduction of the Telstra 4GX network RFI's engineers have produced a brilliant design where the antenna has been intentionally detuned to cover down to the 700 MHz band.

So why the big fuss over 4GX? The answer is speed and range - the low 700 MHz frequency travels incredibly far, through trees, and deep inside buildings, meaning high speed internet service (often faster than the NBN) is now available practically anywhere your phone can pick up signal.

The antenna is an ideal pairing to the Cel-Fi GO or PRO unit when used for voice and text over the Telstra Next-G, and high speed internet over the 4GX network. As a lengthy antenna measuring 1.55 m long, the antenna is supplied with a heavy duty galvanised UNV bracket at no extra cost.

ELECTRICAL SPECIFICATIONS

MECHANICAL SPECIFICATIONS
