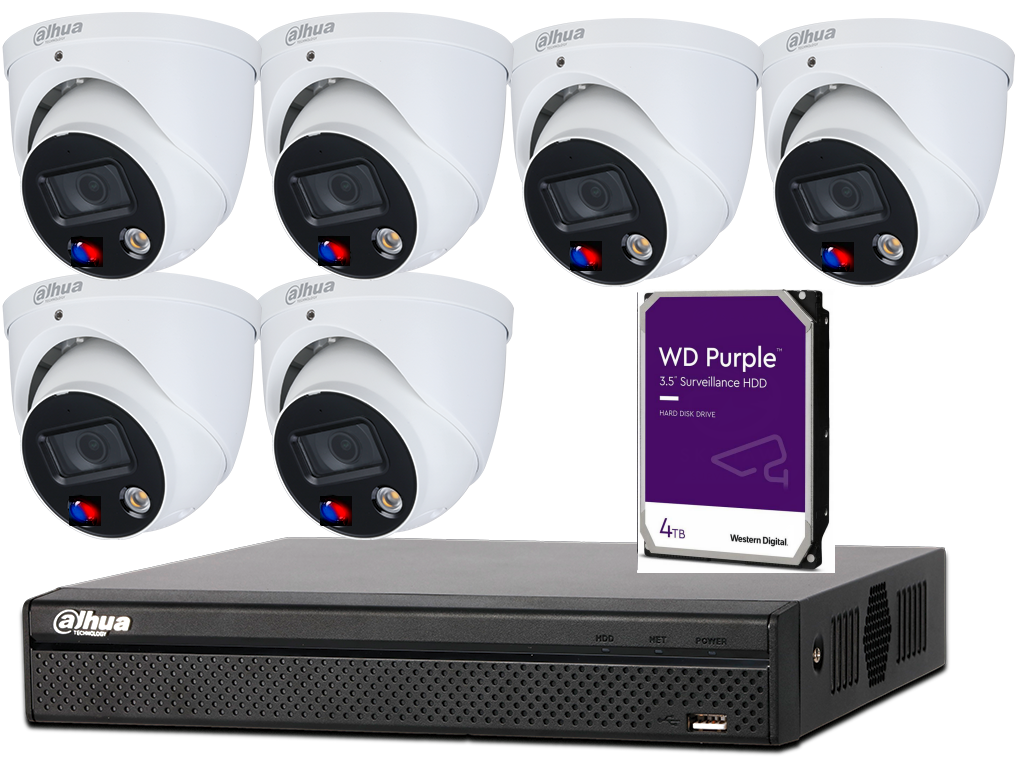

Dahua 6 x 5MP DH-IPC-HDW3549HP-AS-PV-0280B TIOC with Wizsense Turret Kit with 8CH NVR + 4TB HDD Wizsense

$2,468.00

Overview:

Dahua 8ch 5MP Turret Kit | TiOC 1.0 | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection Plus

Dahua 8ch 5MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2; 6 x DH-IPC-HDW3549HP-AS-PV ; 1 x Security HD-4TB installed

6 of Dahua TIOC DH-IPC-HDW3549HP-AS-PV Dahua 5MP AI Active Deterrence Full color Starlight IP Turret Fixed 2.8mm; Built-in Mic & Speaker;IP67;POE

Product Features:

Contents:

Dahua 8ch 5MP Turret Kit | TiOC 1.0 | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection Plus

Including 3 years Warranty and Support

Specifications

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100;000 s

Min. Illumination

0.003 Lux @ F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°
3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.1 m (6.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

67.4 m

(221.1 ft)

27 m

(88.6 ft)

13.5 m

(44.3 ft)

6.7 m

(22.0 ft)

3.6 mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Professional; intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search; event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 @1-20 fps
2688 × 1520 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
Third stream: 1920 × 1080 @1-25/30 fps

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G);NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15; Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 2.5W (12V DC); 3.0W (PoE)
Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3W (12V DC); 8.0W (PoE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F)/Less than 95% RH

Strorage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

Φ122.0 mm × 110.9 mm (Φ4.8″ × 4.4″)

Net Weight

754 g (1.7 lb)

Gross Weight

915 g (2.0 lb)

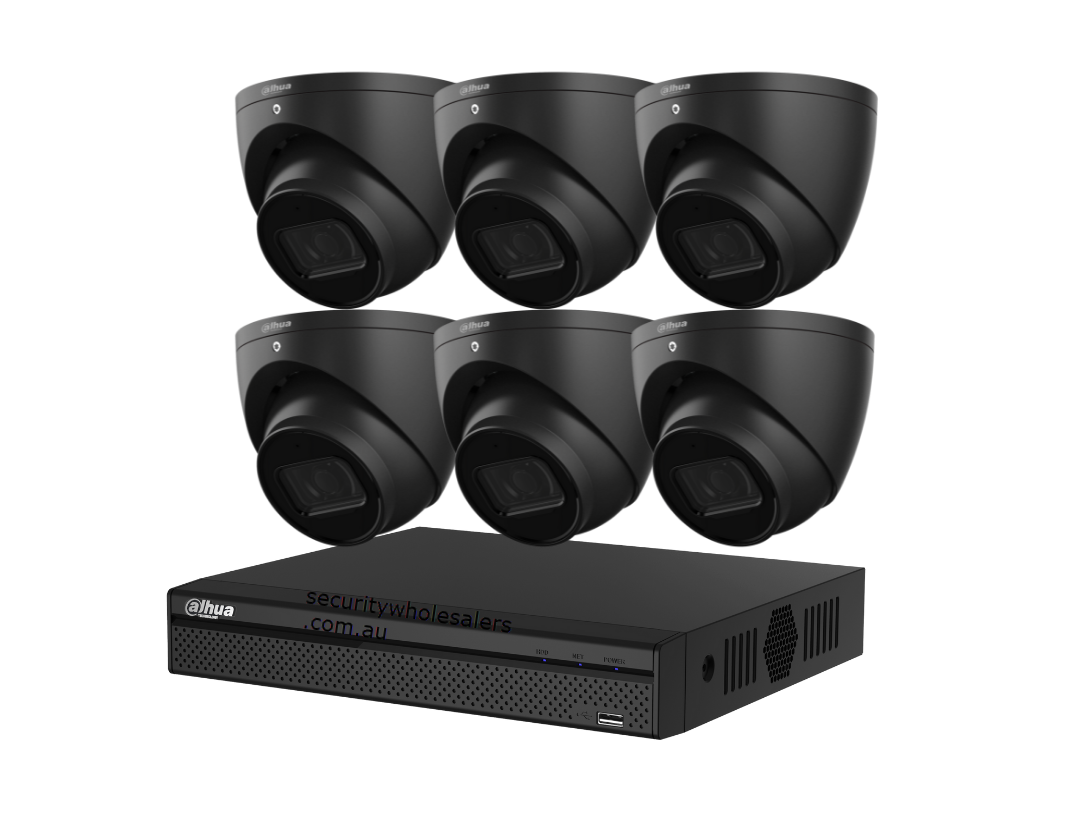

Dahua 6 x 6MP BLACK DH-IPC-HDW3641EM Turret Kit 50m IR 2.8mm with SMD + 8CH NVR

$1,124.00

Overview:

6 x 6MP BLACK cameras | Built-in Mic | 8CH NVR | Smart Motion Detection.

Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2/L; 6 x DH-IPC-HDW3641TMP-AS;

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps
| PoE

Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define a safe boundary perimeter before triggering push notification alert to your phone.

Built-in Infrared LED; up to 50 metres distance.

(Optional: Junction box PFA130; Wall Mount: PFB204W)

Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS

Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithms. It focuses on humans and vehicles with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.

Technical Camera Features:
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
Outputs max.6MP (3072 × 2048) @25/30 fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.

Specifications

Camera
Image Sensor	1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution	3072(H) x 2048(V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3 s–1/100000 s
Min. Illumination	0.005 Lux @F1.6
S/N Ratio	＞56 dB
Illumination Distance	50 m (164.0 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.6
Field of View	2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
Field of View	3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type	Auto
Close Focus Distance	2.8 mm: 0.9 m (3.0 ft)
Close Focus Distance	3.6 mm: 1.6 m (5.3 ft)
Professional and Intelligent
IVS (Perimeter Protection)	Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search	Work together with Smart NVR to perform a refined intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps)
	Substream (704 × 576@1–25 fps/704 × 480@1–30 fps)
	Third stream (1920 × 1080@1–25/30 fps)
Stream Capability	3 streams
Resolution	3072 × 1728
	2592 × 1944
	2688 × 1520
	2560 × 1440
	2304 × 1296
	1080p (1920 × 1080)
	1.3M (1280 × 960)
	720p (1280 × 720)
	D1 (704 × 576/704 × 480)
	VGA (640 × 480)
	CIF (354 × 288/354 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 Kbps–8192 Kbps
Video Bit Rate	H.265: 19 Kbps–8192 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270° (Support with 1080p resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
User/Host	20 Users
Storage	FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser	IE: IE8 and later
	Chrome
	Firefox
Management Software	Smart PSS, DSS, DMSS
Mobile Phone	IOS; Android
Certification
Certification	EN 55032
	EN 61000-3-2
	EN 61000-3-3
	EN 55024
	EN 50130-4
	EN55035
Power
Power Supply	12V DC (±30%), PoE (802.3af)
Power Consumption	<7.2W
Environment
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions	-40° C to +60° C (-40° F to +140° F)
Protection Grade	IP67
Structure
Casing	Metal
Dimensions	Φ106 mm × 93.6 mm (4.17” × 3.69”)
Net Weight	0.55 kg (1.21 lb)
Gross Weight	0.71 kg (1.57 lb)

Contents:

6 x 6MP BLACK cameras | Built-in Mic

8CH NVR | Smart Motion Detection

No Hard Drive

Including 3 years Warranty and Support

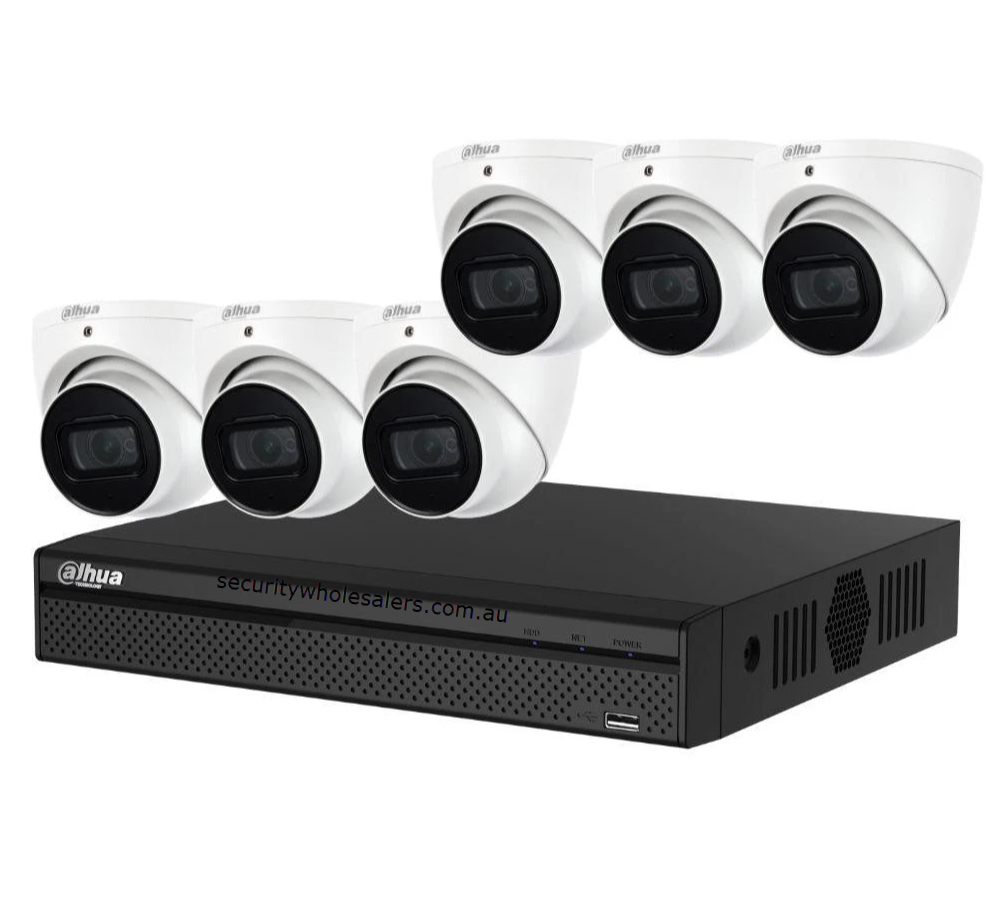

Dahua 6 x 6MP DH-IPC-HDW3641EM Turret Kit 50m IR 2.8mm with SMD + 8CH NVR Wizsense

$1,229.00

Overview:

6 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection

Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2/L; 6 x DH-IPC-HDW3641TMP-AS; Add Hard drive? Scroll Down

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps
| PoE

Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Built-in Infrared LED; up to 50 metres distance.

(Optional: Junction box PFA130; Wall Mount: PFB204W)

Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)

Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2

Launched by Dahua Technology; WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy; enabling users to fast act on defined targets. Based on Dahua’s advanced technologies; WizSense provides intelligent; simple and inclusive products and solutions.Technical Camera Features:
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
Outputs max.6MP (3072 × 2048) @25/30 fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.

Contents:

6 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection

Including 3 years Warranty and Support

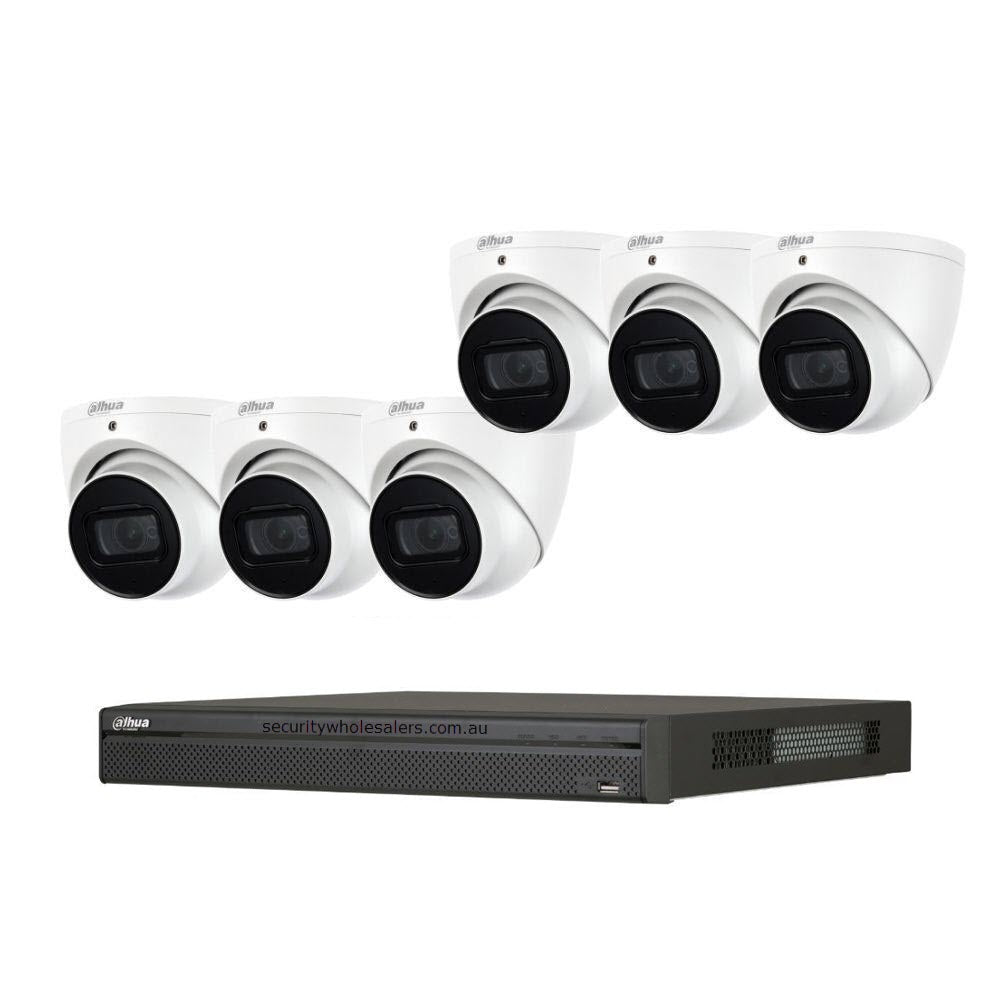

Dahua 6 x 8MP Wizsense Turret Security CCTV Kit with 8CH PRO NVR 2.8mm lens

$2,001.00

Overview:

8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution

Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208-8P-4KS2; 6 x DH-IPC-HDW3841TMP-AS-0280B

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Built-in Infrared LED; up to 30 metres distance.

Smart Motion Detection – ie. Human / Vehicle filtering

Resilient “Weather-Proof” Ingress Protection Rating (IP67)

Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208-8P-4KS2; 6 x DH-IPC-HDW3841EMP-AS-0280B

Contents:

8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution

Including 3 years Warranty and Support

Specifications

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Max. Resolution

3840 (H) ×2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100; 000 s

Min. Illumination

0.009 Lux@F2.0

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°

3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)

Smart event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas; rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15; Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 7.2W

Environment

Operating Conditions

–40°C to +55°C (–40°F to +131°F)/less than ? 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection

IP67

Structure

Casing

Metal

Dimensions

99.1mm × ?121.9 mm (3.9″ × ?4.8″)

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.65 kg (1.4 lb)

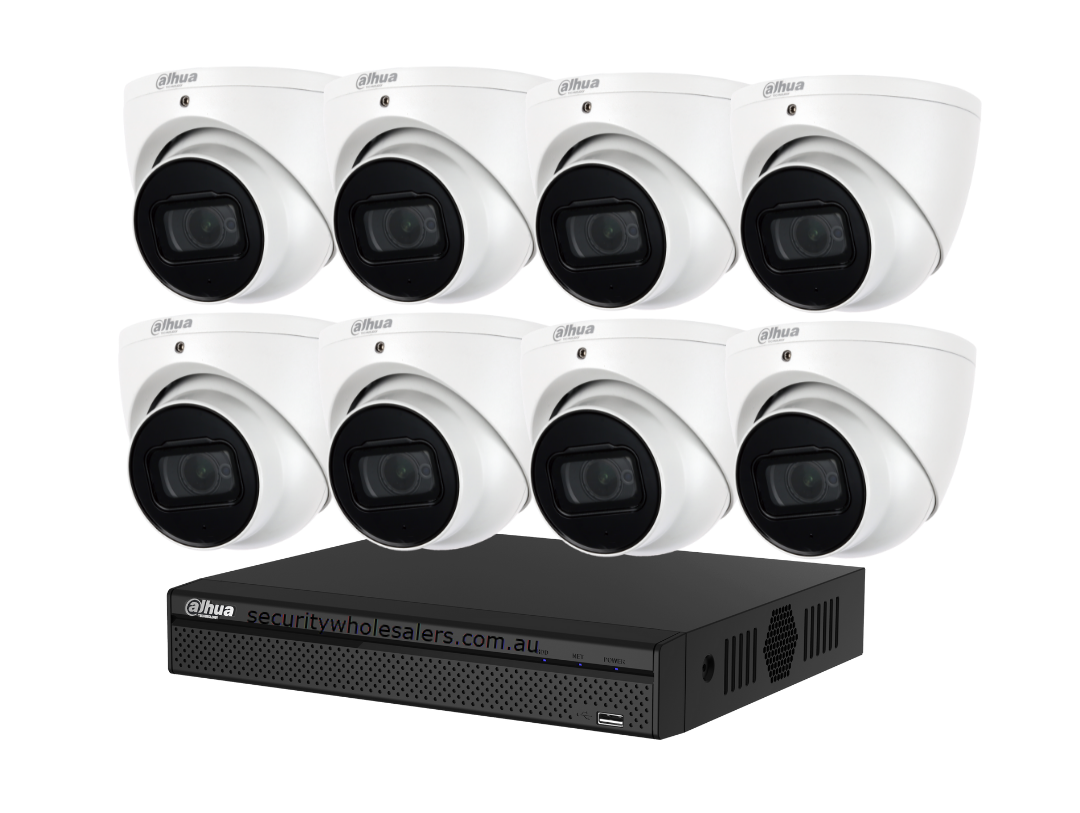

Dahua 8 x 4MP DH-IPC-HDW2431EMP Eyeball / Turret Kit 30m IR 2.8mm+ 8CH NVR + 2TB HDD

$1,412.00

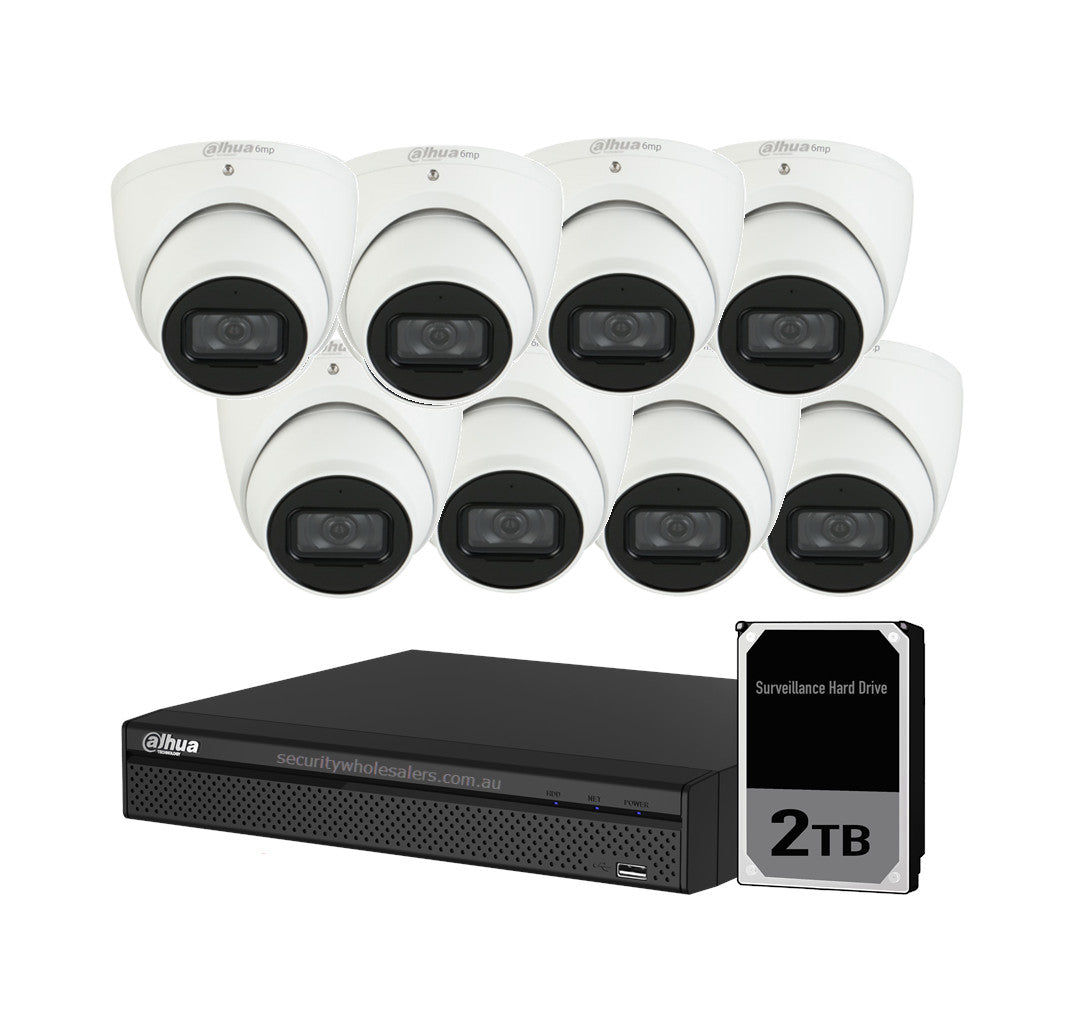

Dahua 8 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 8CH NVR Wizsense

$1,499.99

Overview:

8 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection

Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-4KS2/L; 8 x DH-IPC-HDW3641TMP-AS; Need to add a hard drive? See below

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

High clarity Starlight Technology: Let’s you see clear footage in dark settings -Outputs max.6MP (3072 × 2048) @25/30 fps
| PoE

Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy; reducing false alarms.

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Built-in Infrared LED; up to 50 metres distance.

(Optional: Junction box PFA130; Wall Mount: PFB204W)

Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)

Download Specs: DH-IPC-HDW3641EMP-S-0280B-AUS-S2

Technical Camera Features:
· 6MP; 1/2.7”progressive scan CMOS; low illuminance; high image definition
· Outputs max.6MP (3072 × 2048) @25/30 fps
· H.265 codec (high efficiency encoding); high compression rate; low bit rate
· Built-in IR LED; max. IR distance: 50 m
· ROI; SMART H.264+/H.265+; flexible coding; applicable to various bandwidth and storage environments
· Handles well in varying light conditions: includes rotation mode; Wide Dynamic Range (WDR); 3D DNR; HLC; BLC; digital watermarking; applicable to various monitoring scenes
· Intelligent detection: Tripwire; intrusion – important for perimeter protection.
· Abnormality detection: Motion detection; video tampering; defocus detection; scene changing; audio detection; no SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection
· Supports max. 256 G Micro SD card; built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.Add Hard Drive

Contents:

8 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection

Including 3 years Warranty and Support

Specifications

Camera
Image Sensor	1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution	3072(H) x 1728(V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual; 1/3 s–1/100000 s
Min. Illumination	0.005 Lux @F1.6
S/N Ratio	＞56 dB
Illumination Distance	50 m (164.0 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.6
Field of View	2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
Field of View	3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type	Auto
Close Focus Distance	2.8 mm: 0.9 m (3.0 ft)
Close Focus Distance	3.6 mm: 1.6 m (5.3 ft)
Professional and Intelligent
IVS (Perimeter Protection)	Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search	Work together with Smart NVR to perform a refined intelligent search; event extraction and merging to event videos.
Video
Video Compression	H.265;H.264;H.264B;H.264H; MJPEG (only supported by sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps)
	Substream (704 × 576@1–25 fps/704 × 480@1–30 fps)
	Third stream (1920 × 1080@1–25/30 fps)
Stream Capability	3 streams
Resolution	3072 × 1728
	2592 × 1944
	2688 × 1520
	2560 × 1440
	2304 × 1296
	1080p (1920 × 1080)
	1.3M (1280 × 960)
	720p (1280 × 720)
	D1 (704 × 576/704 × 480)
	VGA (640 × 480)
	CIF (354 × 288/354 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 Kbps–8192 Kbps
Video Bit Rate	H.265: 19 Kbps–8192 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas; rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270° (Support with 1080p resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host	20 Users
Storage	FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser	IE: IE8 and later
	Chrome
	Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	EN 55032
	EN 61000-3-2
	EN 61000-3-3
	EN 55024
	EN 50130-4
	EN55035
Power
Power Supply	12V DC (±30%); PoE (802.3af)
Power Consumption	<7.2W
Environment
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions	-40° C to +60° C (-40° F to +140° F)
Protection Grade	IP67
Structure
Casing	Metal
Dimensions	Φ106 mm × 93.6 mm (4.17” × 3.69”)
Net Weight	0.55 kg (1.21 lb)
Gross Weight	0.71 kg (1.57 lb)

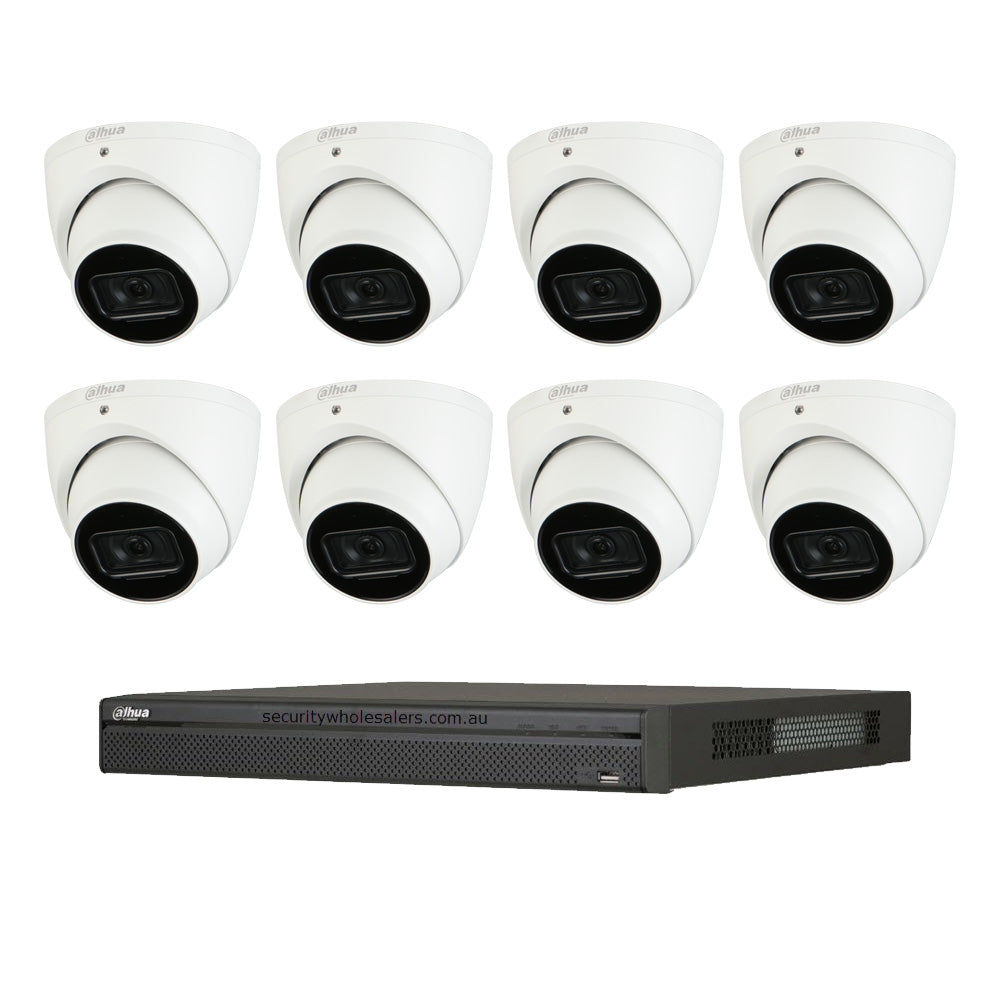

Dahua 8 x 8MP DH-IPC-HDW2831EMP-AS-0280B-S2 Turret CCTV Kit with 8CH PRO Series NVR

$1,918.00

Overview:

Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208HS-8P-4KS2; 8 x DH-IPC-HDW2831EMP-AS-0280B-S2;

Dahua DH-IPC-HDW2831TMP-AS-0280B-S2 8MP Network Camera

Specification overview:

System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

8/16 channels

AI Search

Search for pictures by channel, time and event type

Face Recognition by Camera

Performance

8/14 channels

Face Attributes

6 attributes: Gender; age; glasses; expression; mouth mask; beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

8/16 channels

AI Search

Search by target classification (human, vehicle)

Video Metadata by Camera

Performance

8/16 channels

Human Body

Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella

Vehicle

Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region

Non-motor Vehicle

Type; color; number of passengers; helmet

AI Search

Supports searching for target video by metadata

ANPR by Camera

Performance

4 channels

Stereo Analysis by Camera

Performance

8/16 channels

AI Search

Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)

Video

Access Channel

8/16

Network Bandwidth

320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

16-channel@1080P (30 fps)

Video Output

HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

8-channel: 1/4/8/9
16-channel: 1/4/8/9/16

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264; MJPEG

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

8-channel: 1/4/9

16-channel: 1/4/9/16

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution;

heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which supports voice intercom output

HDD

2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

Alarm Input

4 channels

Alarm Output

2 channels

RS-232

1 channel, used to debug and pass through serial data

RS-485

1 channel, used to control PTZ, and it supports multiple protocols

USB

1 front USB 2.0 port, 1 rear USB 3.0 port

HDMI

1

VGA

1

Network

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

PoE

8 ports support ePoE & EoC

General Parameter

Power Supply

Single, 100V–240V AC, 50 Hz–60 Hz

Power Consumption

NVR: < 15.2W (without HDD)
PoE: Max 25.5W for single port
130W total rated power, 80% control for protection

Net Weight

2.6 kg (5.7 lb) (without HDD)

Gross Weight

4 kg (8.8 lb) (without HDD)

Product Dimensions

375.0 mm × 327.4 mm × 53.0mm (14.8" × 12.9" × 2.1")

Package Dimensions

429 mm × 137 mm × 360 mm (16.9" × 14.2" × 5.4")

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Operating Altitude

3,000 m (9,843 ft)

Certifications

CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) ×2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 Lux@F2.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°

3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft)
3.6 mm: 1.9 m (6.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

74.7 m
(245.1 ft)

29.9 m
(98.1 ft)

14.9 m
(48.9 ft)

7.5 m
(24.6 ft)

3.6 mm

106.7 m
(350.1 ft)

42.7 m
(140.1 ft)

21.3 m
(69.6 ft)

10.7 m
(35.1 ft)

Smart event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

< 7.2 W

Environment

Operating Conditions

–40 °C to +55 °C (–40 °F to +131 °F)/less than ≤ 95% RH

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Dimensions

99.1 mm × Φ121.9 mm (3.9" × Φ4.8")

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.65 kg (1.4 lb)

Contents:

Dahua 8ch 8MP Eyeball Kit includes:

1 x DHI-NVR5208HS-8P-4KS2;

8 x DH-IPC-HDW2831EMP-AS-0280B-S2;

Including 3 years Warranty and Support

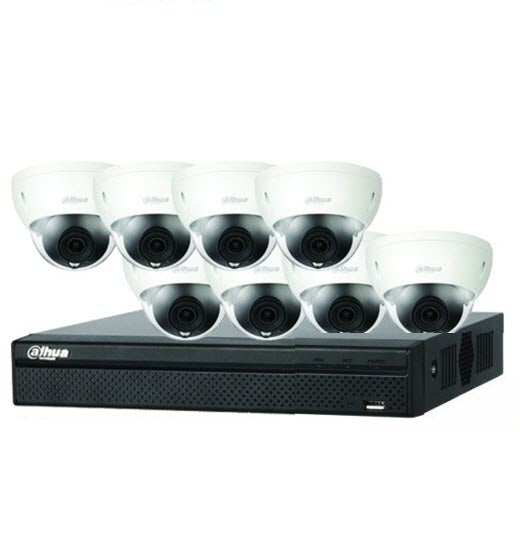

Dahua 8 x 8MP Dome Kit with 8CH Dahua PRO NVR + 2TB HDD

$2,610.00

Dahua 8 x 8MP Wizsense Turret Security Kit with 8CH PRO NVR 2.8mm lens

$2,512.00

Overview:

8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution

Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208-8P-4KS2; 8 x DH-IPC-HDW3841TMP-AS-0280B

Localised camera footage storage capability: up to 256 GB MicroSD Card storage

Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.

Built-in Infrared LED; up to 30 metres distance.

Smart Motion Detection – ie. Human / Vehicle filtering

Resilient “Weather-Proof” Ingress Protection Rating (IP67)

Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR5208-8P-4KS2; 8 x DH-IPC-HDW3841EMP-AS-0280B;

Contents:

8MP cameras + 8CH PRO NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution

Including 3 years Warranty and Support

Specifications

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Max. Resolution

3840 (H) ×2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100; 000 s

Min. Illumination

0.009 Lux@F2.0

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°

3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)

Smart event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

3840 × 2160 (1 fps–15 fps)

2688 × 1520 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas; rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15; Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 7.2W

Environment

Operating Conditions

–40°C to +55°C (–40°F to +131°F)/less than ? 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection

IP67

Structure

Casing

Metal

Dimensions

99.1mm × ?121.9 mm (3.9″ × ?4.8″)

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.65 kg (1.4 lb)

Dahua Security CCTV 4-Port Fast Ethernet PoE Switch PFS3006-4ET-60

$99.00

dahua

Follow us for more flavours
