Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity

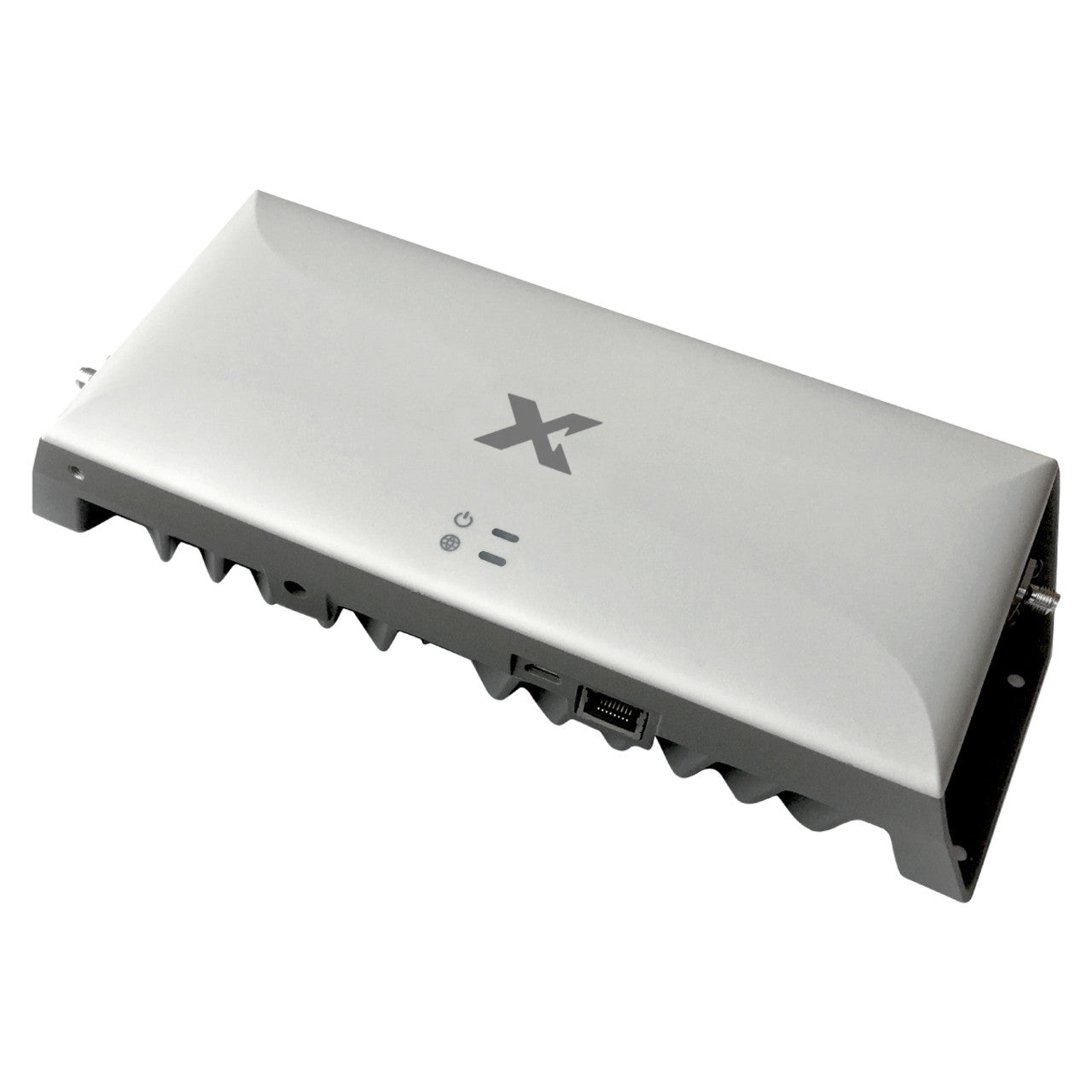

The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring

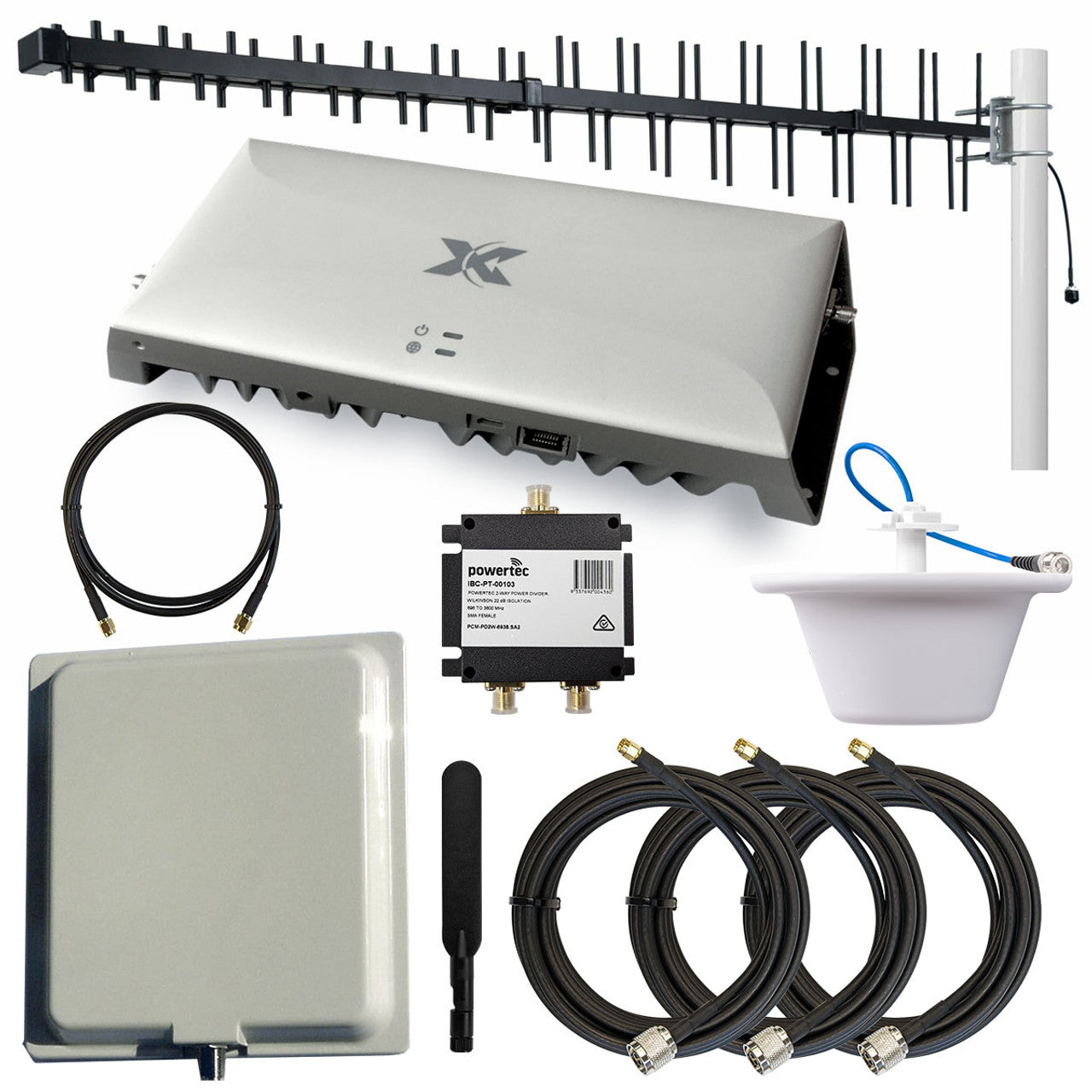

Pack Includes
- Nextivity Cel-Fi GO G41-JE Stationary Repeater
- PTL 240 Coaxial Cable N Male to SMA Male 15m
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000 MHz N Female
- Powertec 4G-5G Wideband LPDA Antenna 698 to 4000 MHz N Female
- Wall Plate for Cel-Fi Building Packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male PTL-240 Coaxial Cable N Male to SMA Male 10m
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@147/130
Description::

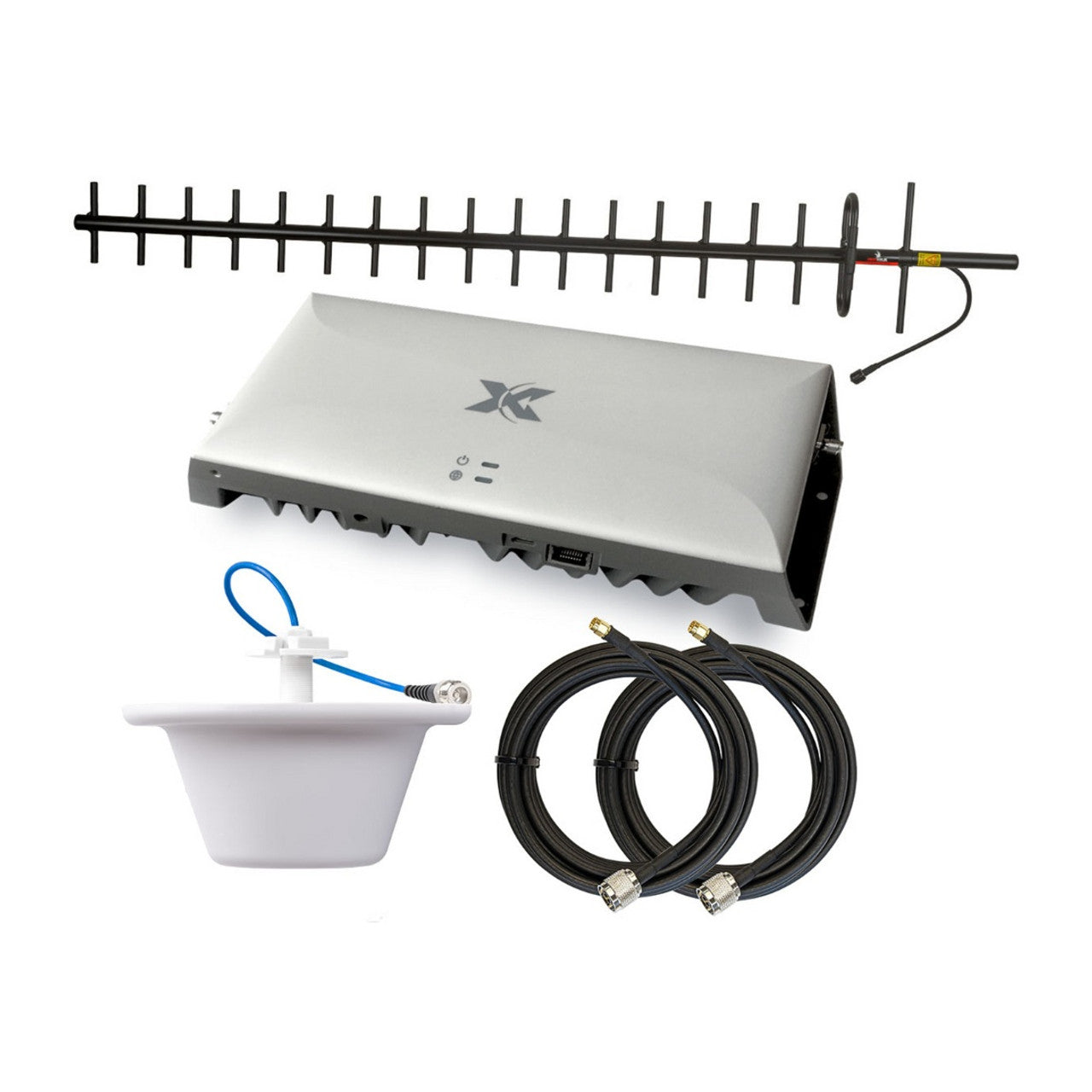

The Nextivity CEL-FI GO G41 Building Yagi Pack including a ceiling dome antenna is the perfect solution for enhancing indoor cellular coverage for Telstra Optus and Vodafone networks. Designed to improve connectivity in homes offices and commercial buildings this pack features higher output power allowing multiple service antennas to be run from a single repeater. By popular demand the GO G41 also includes an RJ45 Ethernet port for easy remote management and monitoring.
Key Features:
- 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
- 3G 4G VoLTE NB-IoT (G41 has 5G capabilities but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra Optus or Vodafone - one carrier at a time
- Up to 3000 m2 coverage area
- Two bands simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
- Powertec exclusive offer - 1-Year extra FREE WARRANTY (for a total of 3 years)
Say Goodbye to Dropped Calls and Slow Data Speeds
Experience seamless communication and faster data transfers with the CEL-FI GO G41. This advanced repeater boosts signal strength minimising dropped calls and improving internet speeds making it ideal for locations with weak cellular signals. Whether you're in a residential or commercial setting the CEL-FI GO G41 ensures you stay connected like never before.
Future-Ready 3G/4G/5G Voice and Data Performance
The CEL-FI GO G41 delivers class-leading 3G 4G and 5G voice and data performance supporting 5GNR operation for future network migration and consistent connectivity. With carrier switching capabilities via the WAVE App you can easily switch between Telstra Optus and Vodafone networks (one carrier at a time) ensuring optimal signal strength regardless of your service provider.
Extensive Coverage with Remote Management Capabilities
Offering up to 3000 m² of coverage the CEL-FI GO G41 supports two bands of simultaneous relay and up to 40 MHz of total system relay bandwidth. It also provides remote monitoring control and alert capabilities via the WAVE Portal for approved installers ensuring easy management of your cellular coverage solution. This pack includes everything you need for enhanced connectivity including a high-performance Yagi antenna ceiling dome antenna coaxial cables and power supply.
Pack Includes:
- Nextivity CEL-FI GO G41-JE - Switchable between Telstra Optus and Vodafone-TPG (one carrier at a time)
- Ceiling Dome 698-4000MHz Antenna -150dBc PIM
- Yagi 698-960MHz
- PTL-240 10m + 6m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
Specification:
| Category | Specification | Details |
|---|---|---|
| Product | Model | Nextivity CEL-FI GO G41-JE Building Pack RPR-CF-00926 |
| Connectivity | Supported Bands | 700L/850/900/1800/2100/2600 MHz (700 bands not supported on Vodafone) |
| Technology | Network Compatibility | 3G 4G VoLTE NB-IoT (5G capabilities not enabled or approved) |
| Coverage | Coverage Area | Up to 3000 m² |
| Performance | Relay Bands | Two bands simultaneous relay |
| Total System Relay Bandwidth | Up to 40 MHz | |
| Management | Remote Monitoring | Control and alert capabilities via WAVE Portal (for approved installers) |
| Carrier Switching | Using WAVE App between Telstra Optus or Vodafone – one carrier at a time | |
| Interface | Ethernet Port | RJ45 for connection to internet source for live monitoring |
| Hardware | Included Antennas | Blackhawk Ceiling Dome 698-4000 MHz Blackhawk Yagi 698-960 MHz |
| Included Cables | PTL-240 10m + 6m Coaxial Cable N male to SMA Male 1m Ethernet cable | |
| Power Supply | 240v Power Supply | |
| Package | Contents | Nextivity CEL-FI GO G41-JE Antennas Cables Power Supply User Guide |
@153/135
Description::
The Nextivity CEL-FI G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model G41 has a higher output power (+20 dBm) providing the largest coverage area of all GO models.
Operates on more frequency bands and can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) should you change service provider. CEL-FI G41 is ideal for inbuilding cellular coverage applications for Telstra Optus and Vodafone.
The higher output power means more service antennas can be run from the one repeater and by popular request the unit now has an RJ45 Ethernet network interface for remote management. Expanding on G32’s dual-band functionality G41 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
- 3G 4G VoLTE NB-IoT (G41 has 5G capabilities but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra Optus or Vodafone - one carrier at a time
- Up to 3000 m2 coverage area
- Two bands simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
- Powertec exclusive offer - 1-Year extra FREE WARRANTY (for a total of 3 years)
PACK INCLUDES:
- Nextivity CEL-FI GO G41-JE - Switchable between Telstra Optus and Vodafone-TPG (one carrier at a time)
- Wall Mount 698-4000MHz Panel Antenna -150dBc PIM
- Yagi 698-960MHz
- PTL-240 10m + 6m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
Specification:
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
@153/135

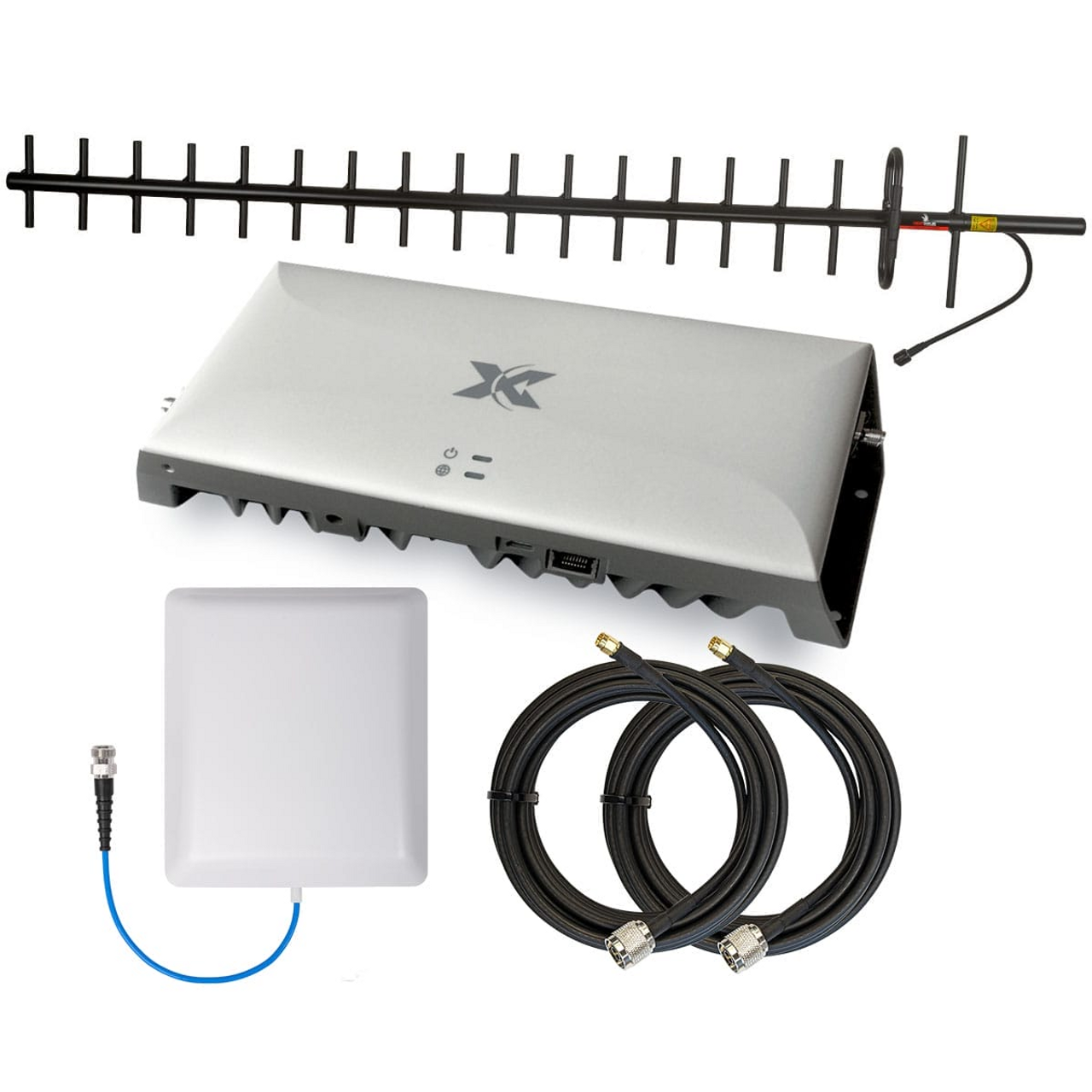

Nextivity CEL-FI GO G41 Building Yagi Pack inc. Wall Mount 10+15m
Nextivity CEL-FI GO G41 Building Yagi Pack inc. Wall Mount 10+15m
Description::
CEL-FI GO G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model G41 has a higher output power (+20 dBm) providing the largest coverage area of all GO models.
The G41 operates on more frequency bands and can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
CEL-FI G41 is ideal for inbuilding cellular coverage applications for Telstra Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater and by popular request the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on G32's dual-band functionality G41 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone)
- 3G 4G VoLTE NB-IoT (GO4 has 5G capabilities but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra Optus or Vodafone - one carrier at a time
- Up to 3000 m2 coverage area
- Two bands simultaneous relay
- Total System Relay Bandwidth - Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
PACK INCLUDES:
- Nextivity CEL-FI GO G41-JE - Switchable between Telstra Optus and Vodafone-TPG (one carrier at a time)
- Wall Mount 698-4000MHz Panel Antenna -150dBc PIM
- Yagi 698-960MHz
- PTL-240 10m + 15m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
Specification:
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
@155/137

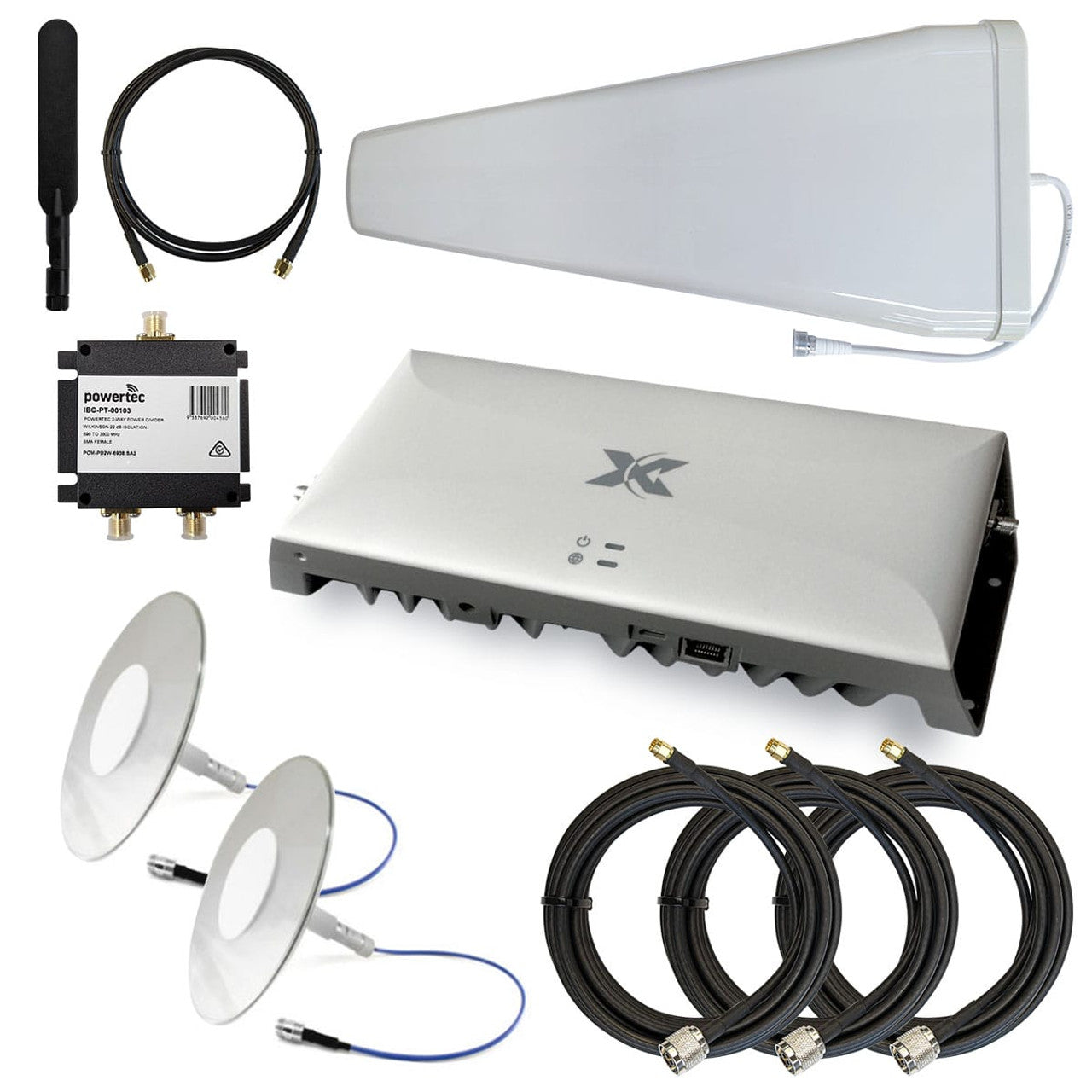

Nextivity CEL-FI GO G41 Dome Pack inc. LPDA - including 2 internal antennas
Nextivity CEL-FI GO G41 Dome Pack inc. LPDA - including 2 internal antennas
@156/138

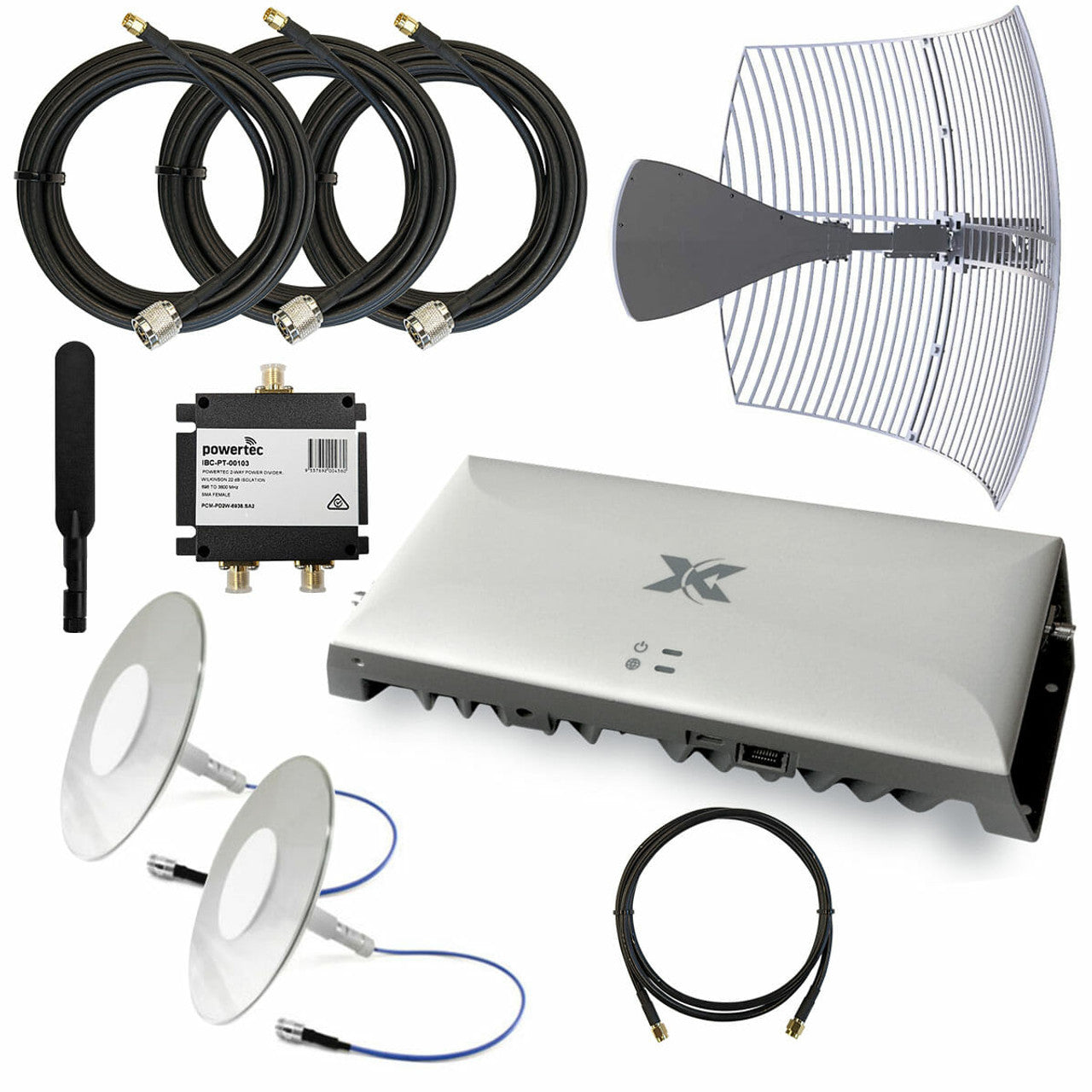

Nextivity CEL-FI GO G41 Dome Pack inc. Wideband Grid - including 2 internal antennas
Nextivity CEL-FI GO G41 Dome Pack inc. Wideband Grid - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
- Pack Includes
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Wideband Grid Antenna 698 to 4000Mhz
- 2x Powertec 4G-5G Ceiling Dome Antenna 698 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 3x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@175/135

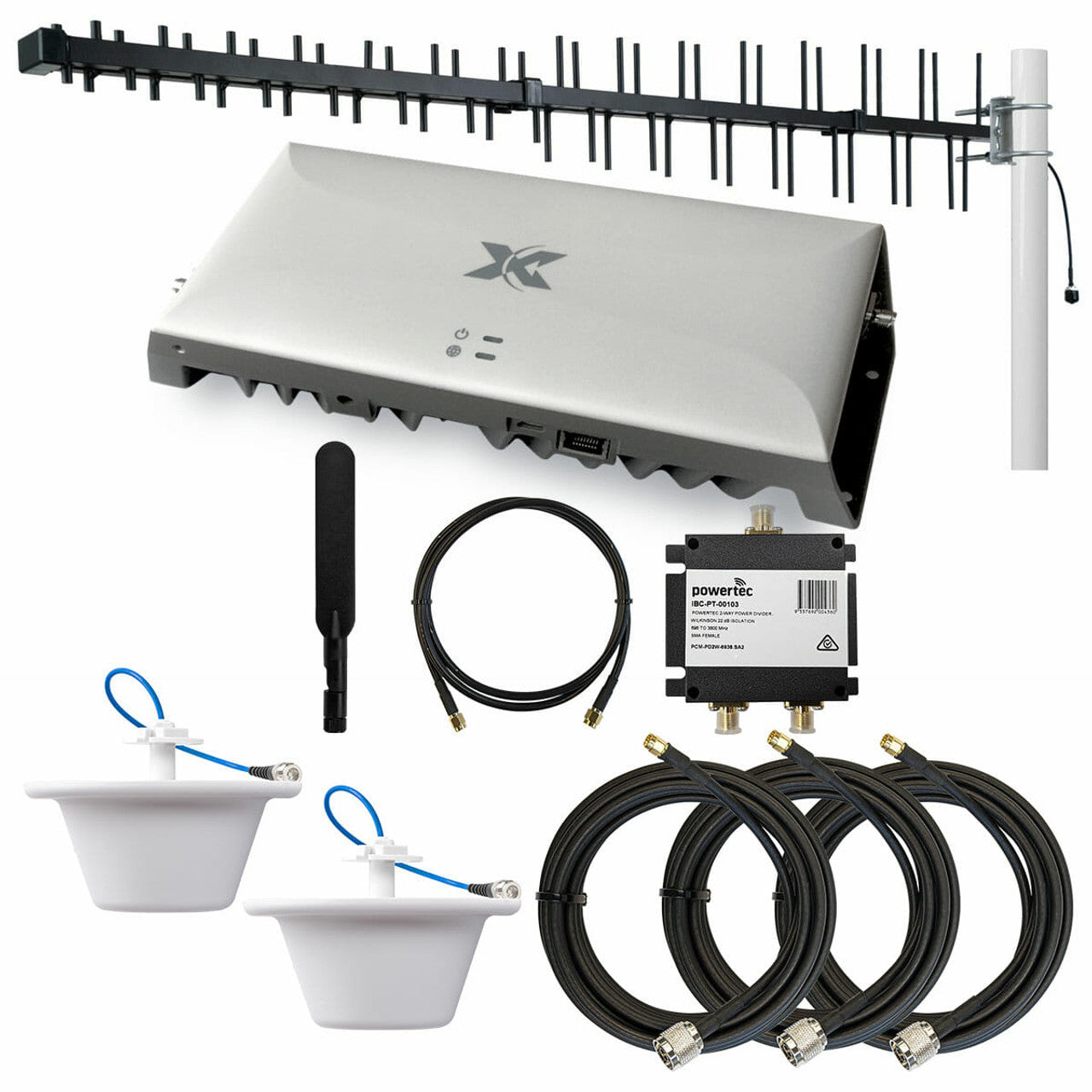

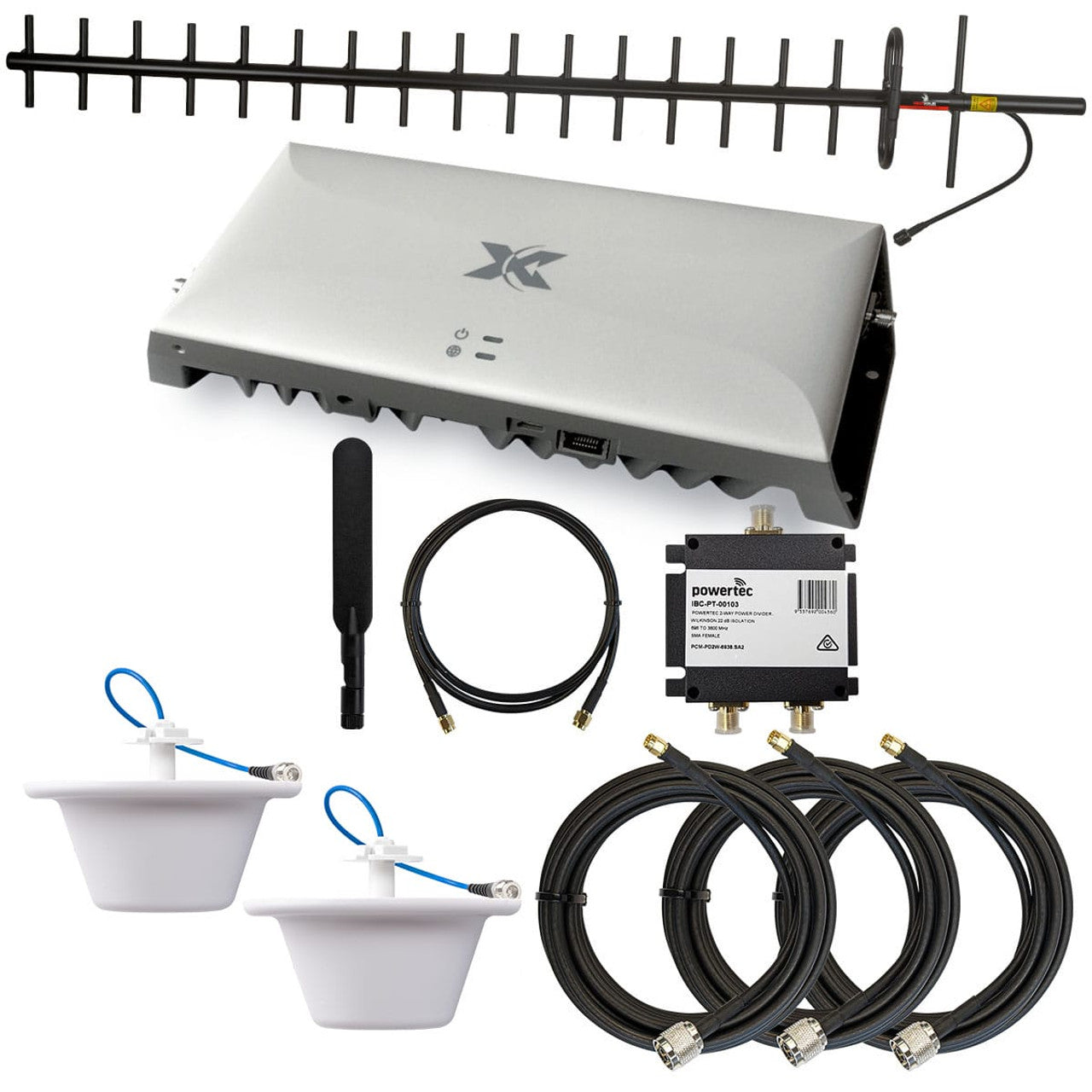

Nextivity CEL-FI GO G41 Dome Pack inc. Yagi - including 2 internal antennas
Nextivity CEL-FI GO G41 Dome Pack inc. Yagi - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G Low Band Yagi Antenna 698 to 960Mhz N Female +10m Cable N Male to SMA Male
- 2x Powertec 4G-5G Ceiling Dome Antenna 698 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@161/125
Nextivity CEL-FI GO G41 LPDA Building Indoor & Outdoor Pack inc. Ceiling Dome
Nextivity CEL-FI GO G41 LPDA Building Indoor & Outdoor Pack inc. Ceiling Dome
Description::
CEL-FI GO G41 represents the latest in 4G cellular repeater technology. Building on the success of the G32 model GO4 has a higher output power (+20 dBm) providing the largest coverage area of all GO models.
G41 operates on more frequency bands and can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) should you change service providers. Expanding on G32’s dual-band functionality G41 supports carrier aggregation with 40 MHz of relay bandwidth.
This pack is ideal where you have reception problems at a site and you want to increase mobile signal both indoors and outdoors using one CEL-FI GO unit. The external antenna is affixed on the rooftop collecting the mobile signal from outside and transferring it to CEL-FI GO. The indoor panel antenna boosts it internally (within the house) whilst the MARS Antenna is cabled to the outdoor area and boosts a targeted signal external to the building. This set-up has been used successfully in cattle-yard farming and residential applications.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 bands not supported on Vodafone)
- 3G 4G VoLTE NB-IoT (GO4 has 5G capabilities but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra Optus or Vodafone – one carrier at a time
- Up to 3000 m2 coverage area
- Two band simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
PACK INCLUDES:
- Nextivity CEL-FI GO G41-JE 1/3/5/7/8/28L/40 Stationary Repeater (Switchable between Telstra Optus and Vodafone-TPG) - one carrier at a time
- Ceiling Dome 698-4000 2/5dBi Antenna -150dBc PIM
- LPDA 698-4000MHz 12/14dBi
- 2 x 10m PT240 LSHF cable
- 1 x 6m PT240 LSHF cable
- MARS Panel Antenna 698-2700 5dBi plus mount
- INSTOCK Wireless 700-2700Mhz 2 Way DAS Splitter/Combiner SMA/F RoHS High Isolation
Can I have multiple indoor antennas connected to the GO4?
Yes you can. There may be rare occasions where a single service antenna (one that provides your phone with signal) is not adequate enough to cover an area. This could be due to the building size structure or the fact you want signal inside and outside. Chat to our team if you would like to know more.
Powertec offers a free consultation to anyone who needs help picking an appropriate antenna.
Email us at sales@powertec.com.au or call our head office on (07) 55 770 500 to discuss today!
Specification:
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
@179/138
Nextivity CEL-FI GO G41 LPDA Building Indoor & Outdoor Pack inc. Wall Mount
Nextivity CEL-FI GO G41 LPDA Building Indoor & Outdoor Pack inc. Wall Mount
Description::
CEL-FI GO G41 represents the latest in 4G cellular repeater technology. Building on the success of the G32 model GO4 has a higher output power (+20 dBm) providing the largest coverage area of all GO models.
G41 operates on more frequency bands and can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) should you change service providers. Expanding on G32’s dual-band functionality G41 supports carrier aggregation with 40 MHz of relay bandwidth.
This pack is ideal where you have reception problems at a site and you want to increase mobile signal both indoors and outdoors using one CEL-FI unit. The external antenna is affixed on the rooftop collecting the mobile signal from outside and transferring it to CEL-FI. The indoor panel antenna boosts it internally (within the house) whilst the MARS Antenna is cabled to the outdoor area and boosts a targeted signal external to the building. This set-up has been used successfully in cattle-yard farming and residential applications.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 bands not supported on Vodafone)
- 3G 4G VoLTE NB-IoT (GO4 has 5G capabilities but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra Optus or Vodafone – one carrier at a time
- Up to 3000 m2 coverage area
- Two band simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
PACK INCLUDES:
- Nextivity CEL-FI GO G41-JE 1/3/5/7/8/28L/40 Stationary Repeater (Switchable between Telstra Optus and Vodafone-TPG) - one carrier at a time
- Wall Mount 698-4000MHz 5/7dBi Panel Antenna -150dBc PIM
- LPDA 698-4000MHz 12/14dBi
- 2 x 10m PT240 LSHF cable
- 1 x 6m PT240 LSHF cable
- MARS Panel Antenna 698-2700 5dBi plus mount
- INSTOCK Wireless 700-2700Mhz 2 Way DAS Splitter/Combiner SMA/F RoHS High Isolation
Can I have multiple indoor antennas connected to the G41?
Yes you can. There may be rare occasions where a single service antenna (one that provides your phone with signal) is not adequate enough to cover an area. This could be due to the building size structure or the fact you want signal inside and outside. Chat to our team if you would like to know more.
Powertec offers a free consultation to anyone who needs help picking an appropriate antenna.
Email us at sales@powertec.com.au or call our head office on (07) 55 770 500 to discuss today!
Specification:
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
@179/138
Nextivity CEL-FI GO G41 Pulse Ultrathin Clear Pack inc. Wideband Grid - including 2 antennas
Nextivity CEL-FI GO G41 Pulse Ultrathin Clear Pack inc. Wideband Grid - including 2 antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Wideband Grid Antenna 698 to 4000Mhz N Female
- 2x Pulse Larsen 4G Ultra Thin Clear DAS Antenna 608 to 2700Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 3x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@191/147
Nextivity CEL-FI GO G41 Pulse Ultrathin Clear Pack inc. Wideband LPDA - including 2 antennas
Nextivity CEL-FI GO G41 Pulse Ultrathin Clear Pack inc. Wideband LPDA - including 2 antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Wideband LPDA Antenna 698 to 4000Mhz N Female PTL-240 Coaxial Cable N male to SMA Male 10m
- 2x Pulse Larsen 4G Ultra Thin Clear DAS Antenna 608 to 2700Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@170/131

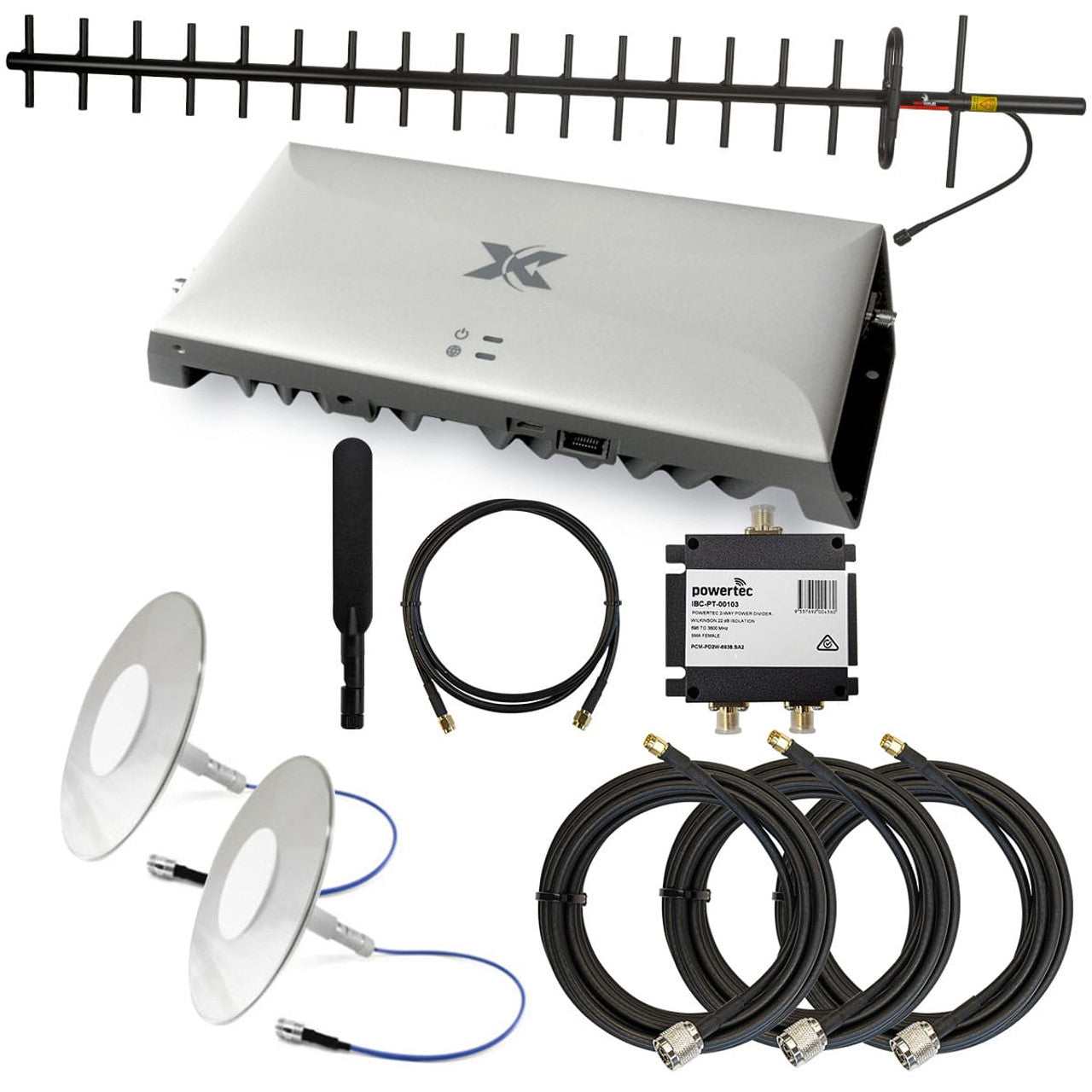

Nextivity CEL-FI GO G41 Pulse Ultrathin Clear Pack inc. Yagi - including 2 antennas
Nextivity CEL-FI GO G41 Pulse Ultrathin Clear Pack inc. Yagi - including 2 antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G Low Band Yagi Antenna 698 to 960Mhz +10m Cable N Male to SMA Male
- 2x Pulse Larsen 4G Ultra Thin Clear DAS Antenna 608 to 2700Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@178/137
Nextivity CEL-FI GO G41 Slim Series Pack inc. Omni High Gain - including 2 internal antennas
Nextivity CEL-FI GO G41 Slim Series Pack inc. Omni High Gain - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G Omni High Gain Antenna 698 to 2700Mhz N Female PTL-240 Coaxial Cable N Male to SMA Male 10m
- 2x Powertec 4G-5G Slim Series Ceiling Dome Antenna 700 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@156/137
Nextivity CEL-FI GO G41 Slim Series Pack inc. Yagi - including 2 internal antennas
Nextivity CEL-FI GO G41 Slim Series Pack inc. Yagi - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring

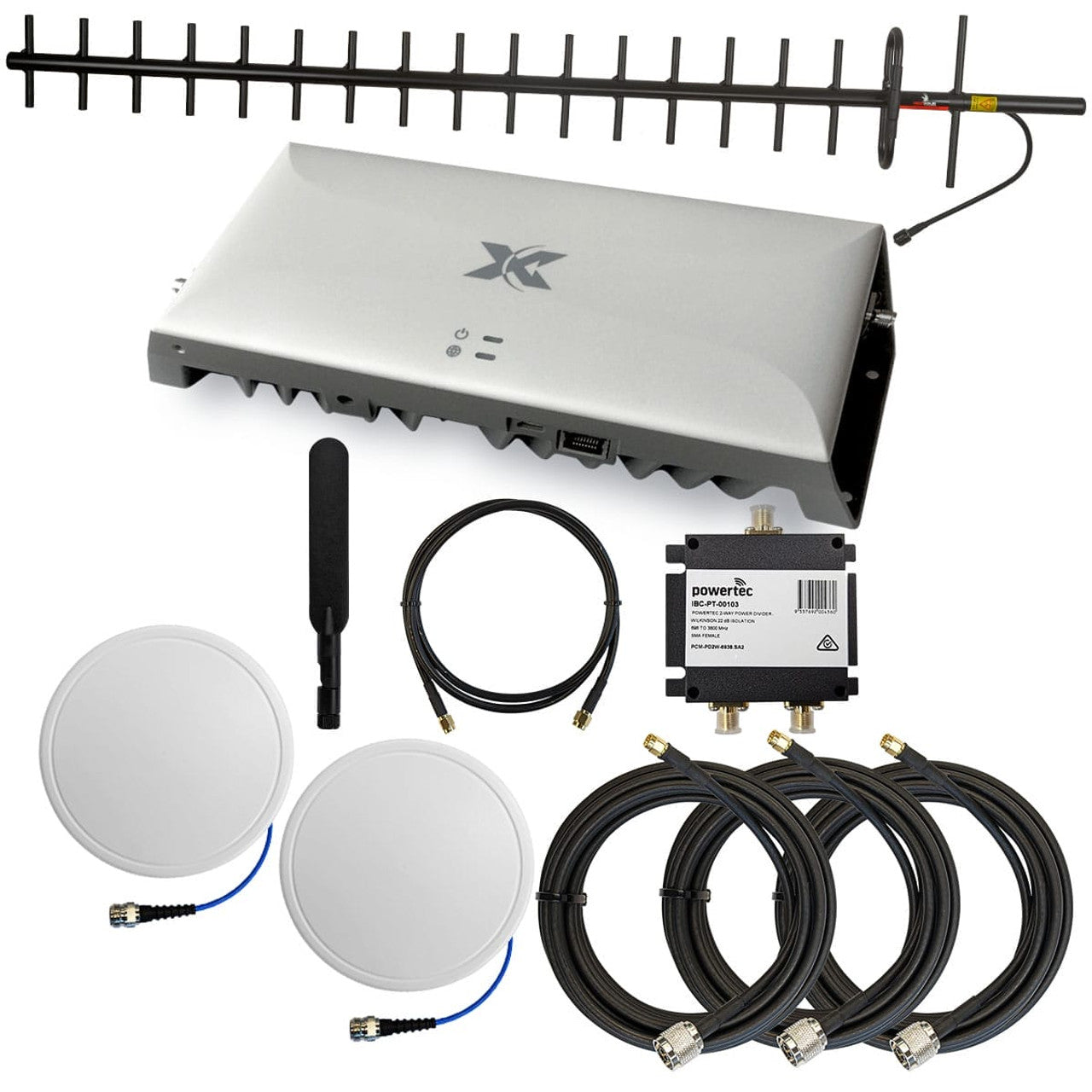

Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G Low band Yagi Antenna 698 to 960Mhz N Female + 10m cable N Male to SMA Male
- 2x Powertec 4G-5G Slim Series Ceiling Dome Antenna 700 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs]
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@163/126
Nextivity CEL-FI GO G41 Slim Series/ Wall Panel Pack inc. LPDA - including 2 internal antennas
Nextivity CEL-FI GO G41 Slim Series/ Wall Panel Pack inc. LPDA - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Slim Series Ceiling Dome Antenna 700 to 4000Mhz N Female
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000Mhz N Female
- Instock Wireless 700-2700Mhz 2-way Splitter/Combiner N/F High Isolation
- L-195 Patch Cable N Male to SMA Male 75cm
- Powertec 4G-5G Yagi Antenna 698 to 4000Mhz N Female + 10m Cable N Male to SMA Male
- 2xPTL-400 Coaxial Cable N Male to N Male 10m
- Wall Plate for Cel-Fi Building packs
- Powertec Wideband Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@166/128
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Slim Series Ceiling Dome Antenna 700 to 4000Mhz N Female
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000Mhz N Female
- Instock Wireless 700-2700Mhz 2-way Splitter/Combiner N/F High Isolation
- L-195 Patch Cable N Male to SMA Male 75cm
- Powertec 4G Omni High Gain Antenna 698 to 2700Mhz N Female + 10m Cable N Male to SMA Male 10m
- PTL-400 Coaxial Cable N Male to N Male 10m
- Wall Plate for Cel-Fi Building packs
- Powertec Wideband Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@164/127
Nextivity CEL-FI GO G41 Slim Series/ Wall Panel Pack inc. Yagi - including 2 internal antennas
Nextivity CEL-FI GO G41 Slim Series/ Wall Panel Pack inc. Yagi - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Slim Series Ceiling Dome Antenna 700 to 4000Mhz N Female
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000Mhz N Female
- Instock Wireless 700-2700Mhz 2-way Splitter/Combiner N/F High Isolation
- L-195 Patch Cable N Male to SMA Male 75cm
- Powertec 4G Low Band Yagi Antenna 698 to 960Mhz N Female + 10m Cable N Male to SMA Male
- 2x PTL-400 Coaxial Cable N Male to N Male 10m
- Wall Plate for Cel-Fi Building packs
- Powertec Wideband Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@172/133

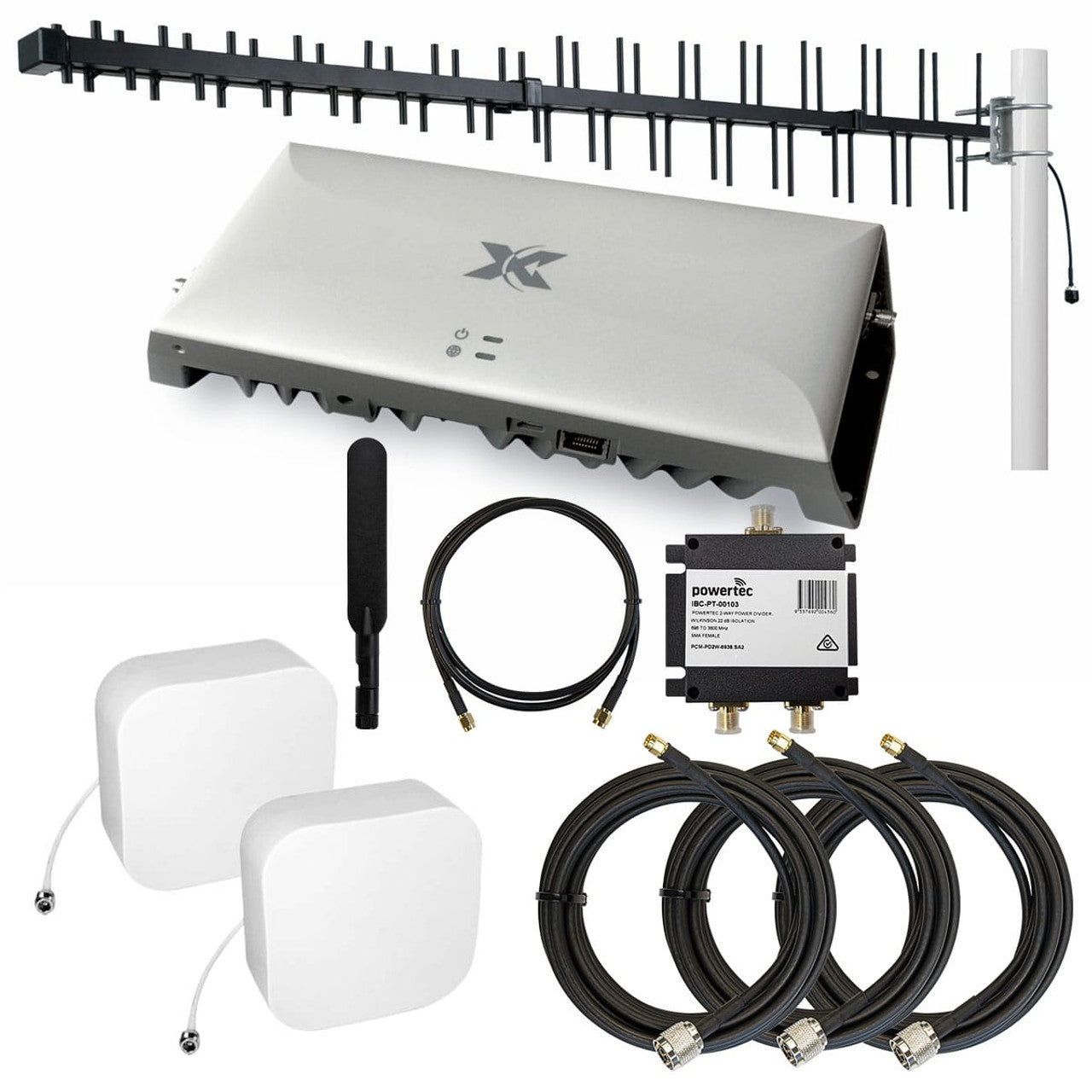

Nextivity CEL-FI GO G41 Universal Ceiling-Wall Pack inc. LPDA - including 2 internal antennas
Nextivity CEL-FI GO G41 Universal Ceiling-Wall Pack inc. LPDA - including 2 internal antennas
Description::
Upgrade your cellular coverage with the CEL-FI GO G41-JE the latest in 4G repeater technology. Boasting higher output power for an expansive coverage area it supports Telstra Optus and Vodafone-TPG. With added features like carrier switching and remote management it's ideal for in-building applications.
CEL-FI GO G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model G41 has a higher output power (+20 dBm) providing the largest coverage area of all GO models.
The G41 operates on more frequency bands and can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) should you change service providers.
CEL-FI G41 is ideal for inbuilding cellular coverage applications for Telstra Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater and by popular request the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on G32’s dual-band functionality G41 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES:
- 700L/850/900/1800/2100/2600 MHz (700 bands not supported on Vodafone)
- 3G 4G VoLTE NB-IoT (GO4 has 5G capabilities but is currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra Optus or Vodafone - one carrier at a time
- Up to 3000 m2 coverage area
- Two bands simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
- Powertec exclusive offer - 1-Year extra FREE WARRANTY (for a total of 3 years)
PACK INCLUDES:
- 2 x Universal Ceiling-Wall Antenna 698-4000MHz
- LPDA 698-4000MHz
- 3 x PTL-240 10m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
Supports 5G DSS on Telstra Optus and Vodafone
This is a type of 5G that layers both 4G and 5G on top of each other sharing the same frequency.
The WAVE App will not display 5G is being boosted but your handset will have boosted 5G signal and a 5G icon.
May not be available in all areas on all bands.
Specification:
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
@157/138
