FAKRO

Description

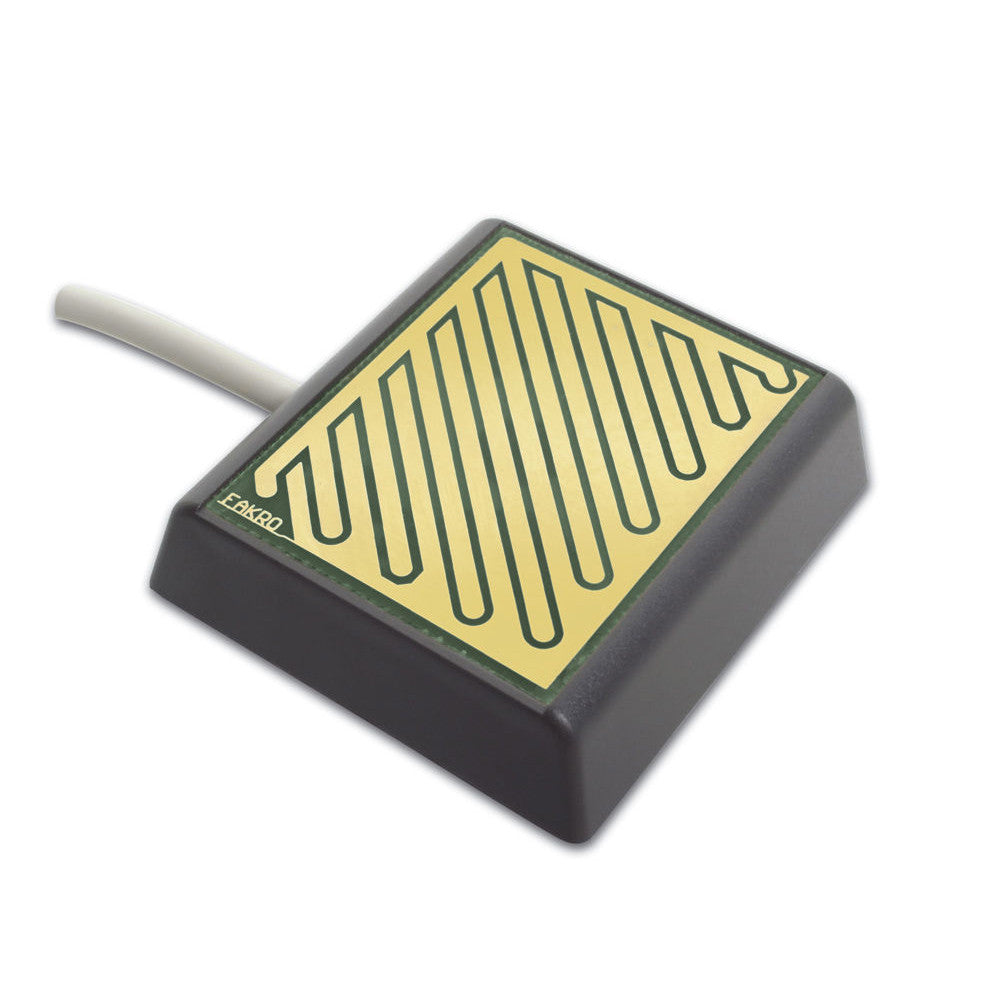

Installed in conjunction with the FAKRO ZWMP Weather Module the FAKRO ZRD Rain Sensor can automatically close any window installation upon detecting rainfall.

When you’re away from home the FAKRO ZRD Rain Sensor is the perfect solution for dealing with unpredictable weather changes. When the ZRD Rain Sensor detects rainfall it will automatically close any motorized windows situated around the home. The ZRD Rain Sensor can work in conjunction with many window installation types including skylights awnings and much more. By having every aspect of the home regularly monitored the system can immediately react to changes in weather.

When you install the ZRD Rain Sensor in conjunction with the FAKRO ZWMP Weather Module all that’s required is linking up each window installation with the Weather Module in order for the devices to interact with one another.

Manuals:

⇒ FAKRO ZRD Rain Sensor User Manual (Size: 651 KB)

Videos / Youtube:

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 1

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 2

@9/28

Description

FAKRO Wind Sensor

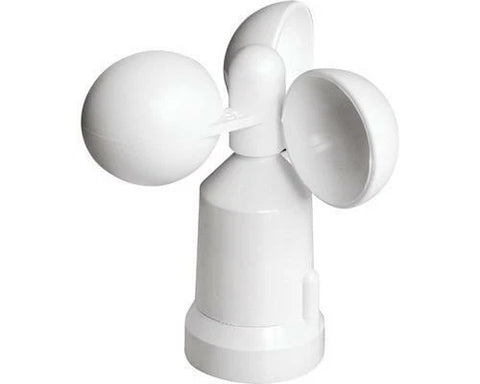

When unpredictable weather changes occur the FAKRO ZWD Wind Sensor system can automatically close windows to protect your home. When installed with the FAKRO Z-Wave ZWMP Weather Module the Wind Sensor can be used to detect wind speeds and communicate with any Z-Wave compliant window installations when the wind threshold of 40kmph has been reached. Upon detecting high levels of wind (above 40 kmph) the Wind Sensor will communicate via radio frequency and close any associated motorized windows around the home. Through smart inclusion with your home’s existing Z-Wave Network the Wind Sensor can easily be installed alongside other automated devices to work together.

Simply mount the FAKRO ZWD Wind Sensor on a suitable rooftop area and connect it (wired) to the FAKRO ZWMP Weather Module which will allow all allocated windows to directly communicate with the Weather Module and Wind Sensor.

Manuals:

⇒ FAKRO ZWD Wind Sensor User Manual (Size: 757 KB)

Videos / Youtube:

⇒ FAKRO ZRD Rain Sensor and ZWD Wind Sensor integration with Fibaro HC2

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 1

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 2

@14/35

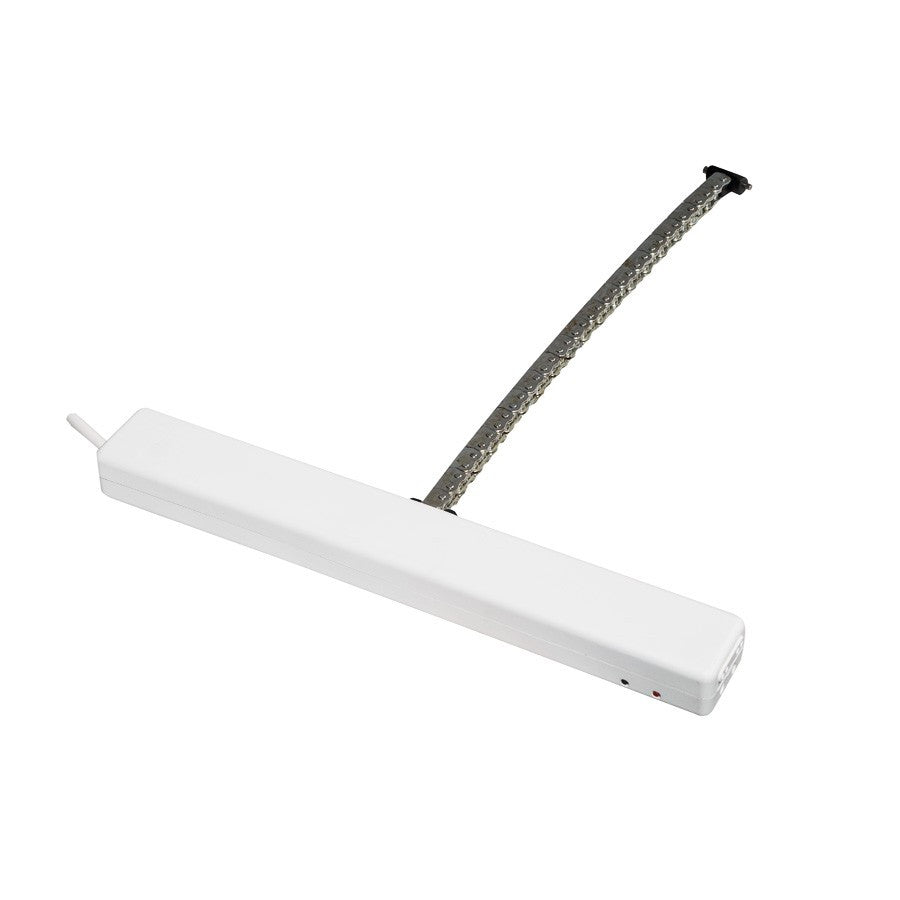

For the most convenient use of your motorized window system, the FAKRO Z-Wave Chain Winder allows for remote accessibility anywhere around the home. Featuring an intuitive button prompt command process, this Z-Wave Chain Winder can easily be included into any existing Z-Wave system.

From skylights, awnings, tilted fixtures to bottom-hung/top-hung windows, the Chain Winder can be installed into many common window fittings. For the best results and consideration for your safety, always rely on a qualified electrician to install the Z-Wave Chain Winder device for you. The Chain Winder interacts with other Z-Wave products through a two-way radio communication system, which allows for uninterrupted operation on a consistent basis. The catch holder comfortably connects to the actuator chain for a strong and durable fitting, while the programming and manual operation buttons allow for easy inclusion with other Z-Wave devices.

The FAKRO Z-Wave W/Chain Winder 12V is highly recommended for rooms with hard to reach windows. An automated system that controls ventilation openings can contribute significantly to maintaining a healthy and comfortable indoor climate. The European engineered, manufactured and certified FAKRO Z-Wave Chain Winder is the perfect solution to inaccessible windows and centralised managed buildings with automated natural ventilation.

• Program in conjunction with the FAKRO ZWMP Weather Module, for automated window closing upon detecting rain and windfall
• Remote control functionality for ease of use
• Overload protection
• Easily programmable to communicate with compatible Z-Wave gateways
• Automatic switch off once fully extended

• Automatically transmits rain detected to a FAKRO Weather Module
• Fitted heating elements to prevent interference from fog, mist and other weather conditions
• Suitable for installation in an unsheltered area

When you’re away from home, the FAKRO ZRD Rain Sensor is the perfect solution for dealing with unpredictable weather changes. When the ZRD Rain Sensor detects rainfall, it will automatically allow closing of any motorized window situated around the home. The ZRD Rain Sensor can work in conjunction with many window installation types, including skylights, awnings and much more. By having every aspect of the home regularly monitored, the system can immediately react to changes in weather.

When you install the ZRD Rain Sensor in conjunction with the FAKRO ZWMP Weather Module, all that’s required is linking up each window installation with the Weather Module in order for the devices to interact with one another.
Youtube video

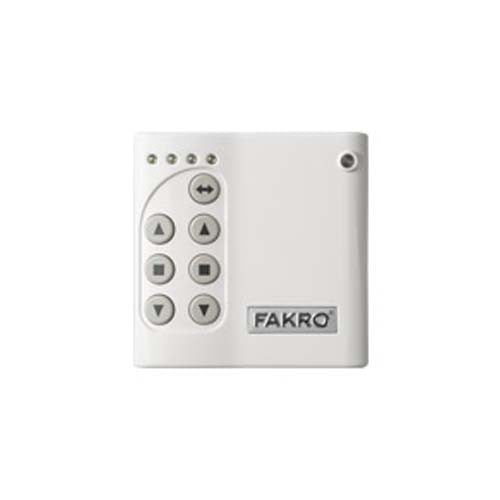

The FAKRO Z-Wave ZWK10 Wall Controller is a smart device that enables you to manage several aspects of your home. Through radio communication processing, the FAKRO Z-Wave ZWK10 Wall Controller can interact with 10 devices at once, split into 5 different communication channels (2 devices for 1 channel). You can also categorize devices into 10 independent groups, based on their location and functionality around the home.

The FAKRO Z-Wave ZWK10 Wall Controller can also be customized to operate as a PRIMARY controller for a single radio network, or as a SECONDARY controller for a pre-existing network.

Configuring the controller to operate with each device is a simple process. Each device around the home is given a unique number (known as ‘NodeID’) and calibrated to operate on a single Z-Wave™ radio network (called ‘HomeID’).

Featuring a magnetic wall holder, the FAKRO Z-Wave ZWK10 Wall Controller can be mounted onto any location around the home for quick and easy access. This convenient, all-in-one-solution can operate multiple FAKRO and Z-Wave related products.

 This product is compatible with:

Description

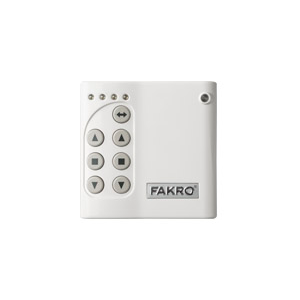

The FAKRO Z-Wave™ ZWK10 Wall Controller is a wall-mounted multi-purpose remote that’s capable of operating up to 10 different FAKRO and Z-Wave™ devices. For the simplest solution to managing your range of Z-Wave™ and FAKRO devices the FAKRO Z-Wave ZWK10 Wall Controller has everything you need.

The FAKRO Z-Wave ZWK10 Wall Controller is a smart device that enables you to manage several aspects of your home. Through radio communication processing the FAKRO Z-Wave ZWK10 Wall Controller can interact with 10 devices at once split into 5 different communication channels (2 devices for 1 channel). You can also categorize devices into 10 independent groups based on their location and functionality around the home.

The FAKRO Z-Wave ZWK10 Wall Controller can also be customized to operate as a PRIMARY controller for a single radio network or as a SECONDARY controller for a pre-existing network.

Configuring the controller to operate with each device is a simple process. Each device around the home is given a unique number (known as ‘NodeID’) and calibrated to operate on a single Z-Wave™ radio network (called ‘HomeID’).

Featuring a magnetic wall holder the FAKRO Z-Wave ZWK10 Wall Controller can be mounted onto any location around the home for quick and easy access. This convenient all-in-one solution can operate multiple FAKRO and Z-Wave-related products.

 This product is compatible with:

Manuals:

⇒ FAKRO Z-Wave ZWK10 Wall Controller Manual (Size: 2.75MB)

Videos / YouTube:

⇒ FAKRO Z-Wave ZWK10 Wall Controller – Setting up with FAKRO window automation

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 1

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 2

@19/43

Description

The FAKRO Z-Wave™ ZWMP Weather Module is the primary component for monitoring outside weather conditions along with offering compatibility with a variety of Z-Wave™ home automation gateways. When installed in conjunction with the FAKRO ZRD Rain Sensor and FAKRO ZWD Wind Sensor they can automatically close windows upon detecting wind or rainfall.

• Easy to install and include in your existing Z-Wave™ network setup
• Compatible with the FAKRO ZRD Rain Sensor FAKRO ZWD Wind Sensor Thermostat and other external devices
• Automatically sends closure requests to electronic shutters windows and skylights upon detecting rain or wind
• Can work as a Primary or Secondary controller
• Easily programmable to communicate with compatible Z-Wave gateways

Providing a central unit for monitoring changing weather conditions the FAKRO Z-Wave ZWMP Weather Module takes full advantage of the Z-Wave™ system to allow for seamless inclusion into the home environment.

Including the ZWMP Weather Module into the Z-Wave system is simply using your Z-Wave Controller for the device to be recognized. From there each shutter/window or skylight installation can be programmed to interact with the ZWMP Weather Module which will allow it to respond to changing weather conditions. The ZWMP Weather Module contains three digital inputs which allow various external devices to be plugged in (ie. Rain and wind sensors time switch thermostat etc). With a working range of up to 40 meters the ZWMP Weather Module can seamlessly interact with other Z-Wave devices around the household.

 This product is compatible with:

Manuals:

⇒ FAKRO Z-Wave ZWMP Weather Module Manual (Size: 444 KB)

Videos / YouTube:

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 1

⇒ FAKRO Z-Wave ZWMP Weather Module – Setting up FAKRO window automation  Part 2

@20/43
