The absolute best selling GOAP Z-Wave Dimmer 0-10V is a unique. This Z-Wave product which was developed to provide for the needs of Smart Home users looking for a Z-Wave solution that controls devices such as lights, fans and similar products with 0-10V signal. The GOAP Flush Dimmer 0-10V is ideal for remotely dimming LED lights with low voltage ballast.

GOAP modules are “install-and-forget” products. GOAP are made to last, so we only select and use top-quality electronic components. These modules are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.
GOAP Ltd.  is a European company with 26-years experience in the automation field. With their expertise and passion for innovation in automation they have developed a unique, ready to sell, certified and reliable portfolio of 14 Z-Wave wireless Smart Home products under difirent  brands and OEM around the world.

All GOAP modules are manufactured in Italy.

• The GOAP Z-Wave Dimmer 0-10V occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box
• Standard 0-10V output
• Multi-function input in connection with: push button / switch / potentiometer / input 0-10V (any sensor with 0-10V output)
• Perfect for dimming lights with balast 0-10V
• Controlling fan speed (for motors or frequency inverters with 0-10V speed control input)
• Controlling heating / cooling valves (with 0-10V input)
• Unlimited controlling capability through gateway
• Z-Wave Plus compliant
• 23 additional parameters for expert users

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please note: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of your Z-Wave gateway before installing this device.

The GOAP Flush Dimmer uses a unique MOSFET 'trailing edge' dimmer to enable it to work with a huge range of bulb types:

Halogen and Incandescent (230V)
Dimmable LEDs (230V)
Dimmable CFL and Fluorescent (230V)
Low Voltage Halogen (24V)
Low Voltage LED (24V)

The GOAP Z-Wave Dimmer can be used in the 230V mains lighting system where it uses a 'Trailing Edge' style dimmer to control the lights. It can also be used in a 24V low-voltage system where it it uses PWM style control of the bulbs.

Please note:These devices require a 3-wire system (including neutral), please check your installation before purchasing.

The GOAP Flush Dimmer is the first MOSFET- switching lights/fan Z-Wave dimmer module that also supports control of low-voltage halogen lamps with electronic transformer, dimmable compact fluorescent lights and dimmable LED bulbs. It also measures the power consumption of electricat devices and supports the connection of a digital temperature sensor.  GOAP modules are “install-and-forget” products. Our products are made to last, so we only select and use top-quality electronic components. These modules are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.

Product Details All GOAP modules are manufactured in Europe.

• The GOAP Z-Wave Dimmer module occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box.
• The GOAP Z-Wave Dimmer can measure the power consumption of the connected electrical device and itself has an extremely low power consumption of just 0.7 W.
• The GOAP Z-Wave Dimmer can operate across a wide temperature range, from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor, which is also useful for creating complex scenarios. Every module also acts as a repeater in order to improve the range and stability of the Z-Wave network.
• Unlimited controlling capability through gateway
• Setting mono-stable (push button) or bi-stable switch type
• Z-Wave Plus compliant
• 23 additional parameters for expert users

Product Support Please note:

If you are installing the entire Z-Wave system for the first time, please refer to the installation guide of your Z-Wave gateway before installing this device. The GOAP Flush Dimmer uses a unique MOSFET 'trailing edge' dimmer to enable it to work with a huge range of bulb types: Halogen and Incandescent (230V) Dimmable LEDs (230V) Dimmable CFL and Fluorescent (230V) Low Voltage Halogen (24V) Low Voltage LED (24V) The GOAP Dimmer can be used in the 230V mains lighting system where it uses a 'Trailing Edge' style dimmer to control the lights. It can also be used in a 24V low-voltage system where it it uses PWM style control of the bulbs. Please note: These units require a 3-wire system (including neutral), please check your installation before purchasing. If you have 2-wire system (without neutural) see DHS Z-Wave Dimmer InWall or FIBARO Z-Wave Dimmer 2

Manuals:

•  Installation Manual (Size: 529KB)

Videos / YouTube:

• The smallest Z-Wave module
• GOAP Dimmer dimming a 24V DC LED Strip Lights

Technical Specifications RF Protocol

• Z-Wave Plus , SDK version: 6.51.03

RF Frequency

• 921.42Mhz ‐ AU/NZ approved RF for Z‐wave

Application

• Indoor use only

Power

• 0.6 A / 230 VAC 0.85 A / 30 VDC

Operation Range

• Up to 30m indoors with no obstacles Enclosure Plastic

Comliance

• EN 60669-2-1

Operating Temp.

• -10C ~ +40C

Dimensions

• 79mm x 52mm x 22mm

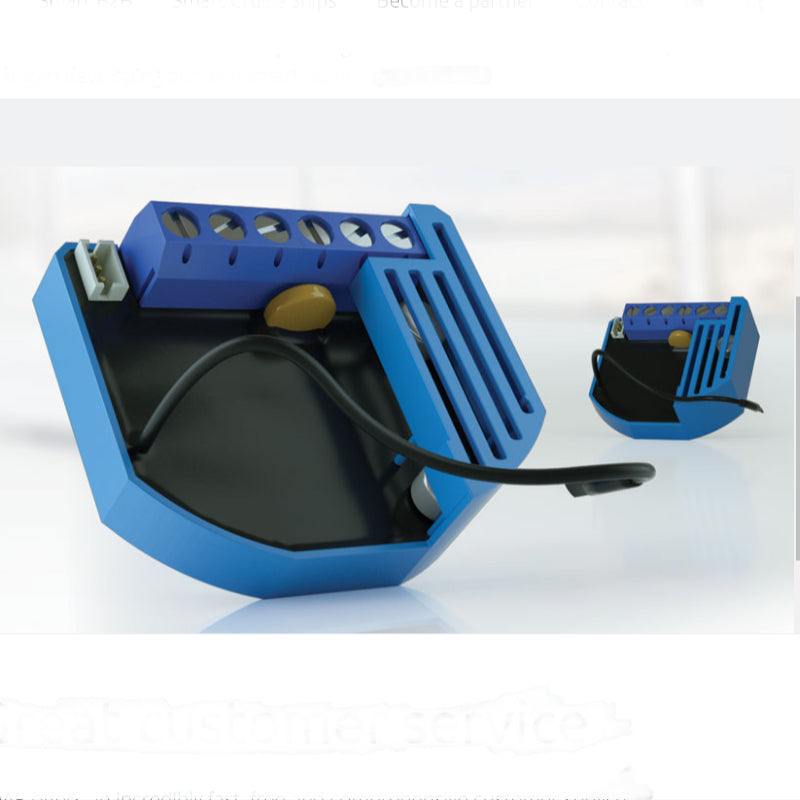

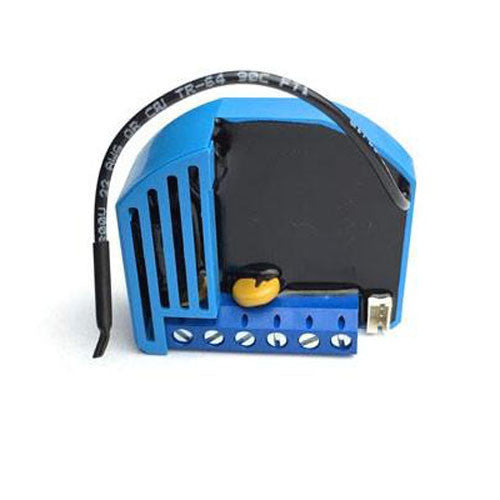

The GOAP Double Switch is Z-Wave module for switching on or off the electrical device (e.g. light, fan, etc ...). The module can be controlled either through Z-wave network or through the wall switch manually.

This module is designed to be mounted behind a traditional wall switch. The module measures power consumption of load and supports connection of digital temperature sensor. It is designed to act as a repeater in order to improve range and stability of Z-Wave network.

Supported switches

The module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases, your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Strengthens Z-Wave Connectivity

The smart relay module has been designed to work as a Z-Wave repeater, thereby providing you the flexibility to extend the range of your Z-Wave network.

The GOAP double switch is Z-Wave Plus Certified. Z-Wave Plus (5th Generation Z-Wave) offers a lot of new features including increased range, extended battery life and Over The Air upgrading (OTA).

Note!

Do not connect the module to loads exceeding recommended values. Connect the module only in accordance with the manual. Use only qualified electrician!

The GOAP Single Switch is Z-Wave module for switching on or off the electrical device (e.g. light, fan, etc ...). The module can be controlled either through Z-wave network or through the wall switch manually.

This module is designed to be mounted behind a traditional wall switch. The module measures power consumption of load and supports connection of digital temperature sensor. It is designed to act as a repeater in order to improve range and stability of Z-Wave network.

Supported switches

The module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases, your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Note!

Do not connect the module to loads exceeding recommended values. Connect the module only in accordance with the manual. Use only qualified electrician!

The GOAP Z-Wave Tubular Motor Controller is the world's smallest Z-Wave module able to control 12-24V DC motors of blinds, rollers, shades and Venetian blinds.

Product Details

The GOAP Z-Wave Tubular Motor Controller is a Z-Wave Plus (500 series) controller for blind, roller and shade motors. It is designed to fit into an existing switch and enables you to wirelessly control blind motors using a Z-Wave enabled (921.42 MHz in AUS/NZ) controller and reports the motors actual power (Watts) and total power consumption (kWh). This device also supports precise positioning for motors equipped with mechanical or electronic switches.

The GOAP Z-Wave Tubular Motor Controller allows the connection of a temperature sensor which can report the local temperature to your Z-Wave gateway allowing it to better meet your heating/cooling needs.

 This product integrates with all Australian certified (921.42 MHz) Z-Wave Controllers including;

• Vera Edge/3/Lite
• Fibaro Home Center 2/Lite

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Technical Specifications

The GOAP Z-Wave Tubular Motor Controller is the world's smallest Z-Wave module able to control the motors of blinds, rollers, shades and Venetian blinds.

Product Details

The GOAP Z-Wave Tubular Motor Controller is a Z-Wave Plus (500 series) controller for blind, roller and shade motors. It is designed to fit into an existing switch and enables you to wirelessly control blind motors using a Z-Wave enabled (921.42 MHz in AUS/NZ) controller and reports the motors actual power (Watts) and total power consumption (kWh). This device also supports precise positioning for motors equipped with mechanical or electronic switches.

The GOAP Z-Wave Tubular Motor Controller allows the connection of a temperature sensor which can report the local temperature to your Z-Wave gateway allowing it to better meet your heating/cooling needs.

 This product integrates with all Australian certified (921.42 MHz) Z-Wave Controllers including;

• Vera Edge/3/Lite
• Fibaro Home Center 2/Lite

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Technical Specifications
