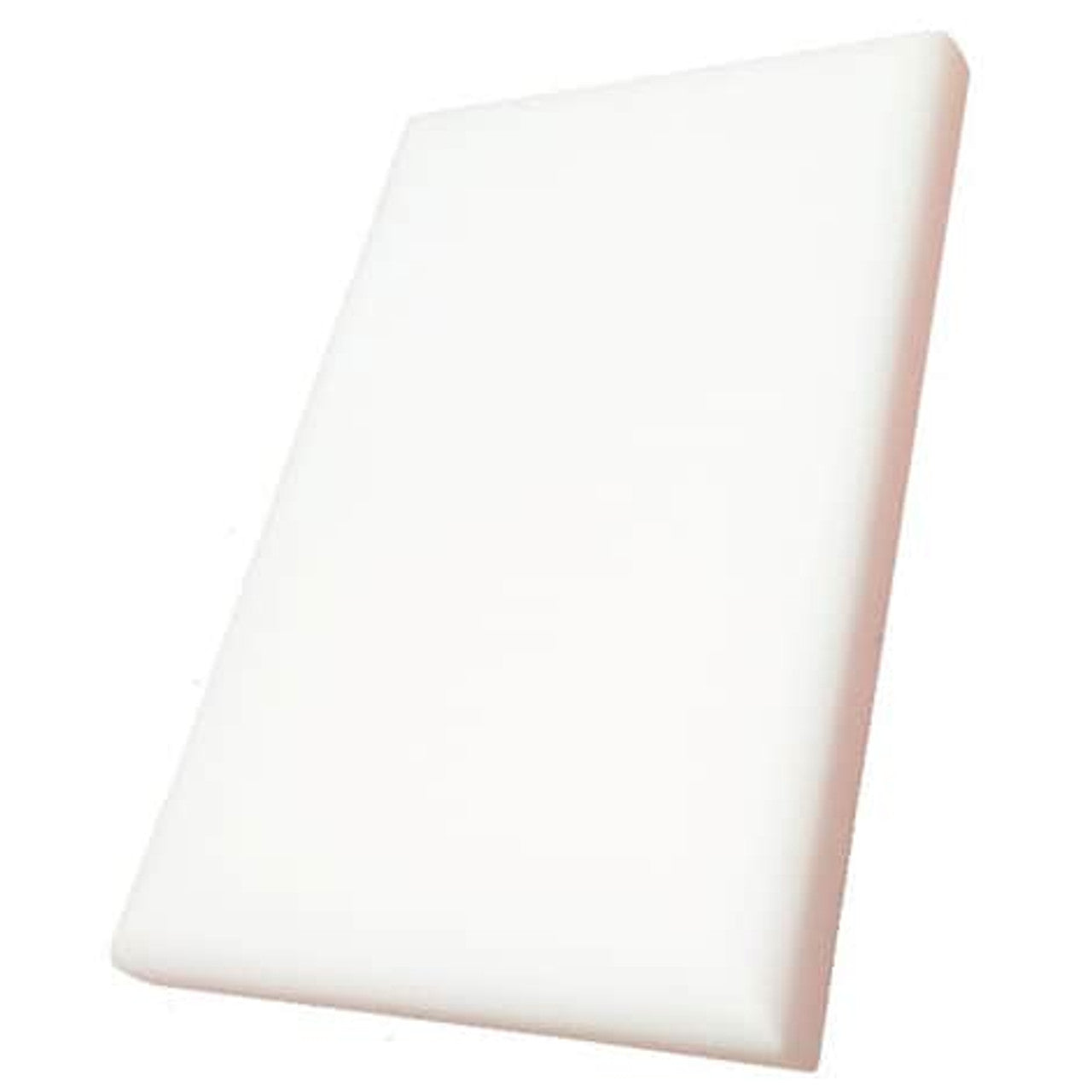

Description::MARS new DUAL BAND and DUAL POL antenna specially designed for arenas and stadiums that have to supply high capacity and reliable wireless data. MARS MA-WA82220-DBDP14 provides solutions for services such as LTE Cellular (2G 2.5G and 3G) Wi-Fi and WiMAX applications. The antenna is PIM certified thus making it suitable for all multi-carrier systems.
FEATURES:
- Provides a 12dBi gain for 698-960MHz
- Provides a 13dBi gain for 1700-2700MHz
- Efficient and stable performance with 12-13 dBi of gain.
- UV protected radome suitable for harsh environment installations
- Durable construction
- Easy mounting allowing Az/El adjustment
- Aesthetic design
- Weatherized and durable
- Wind survival rating of 200 km/h
@211/124
Description::

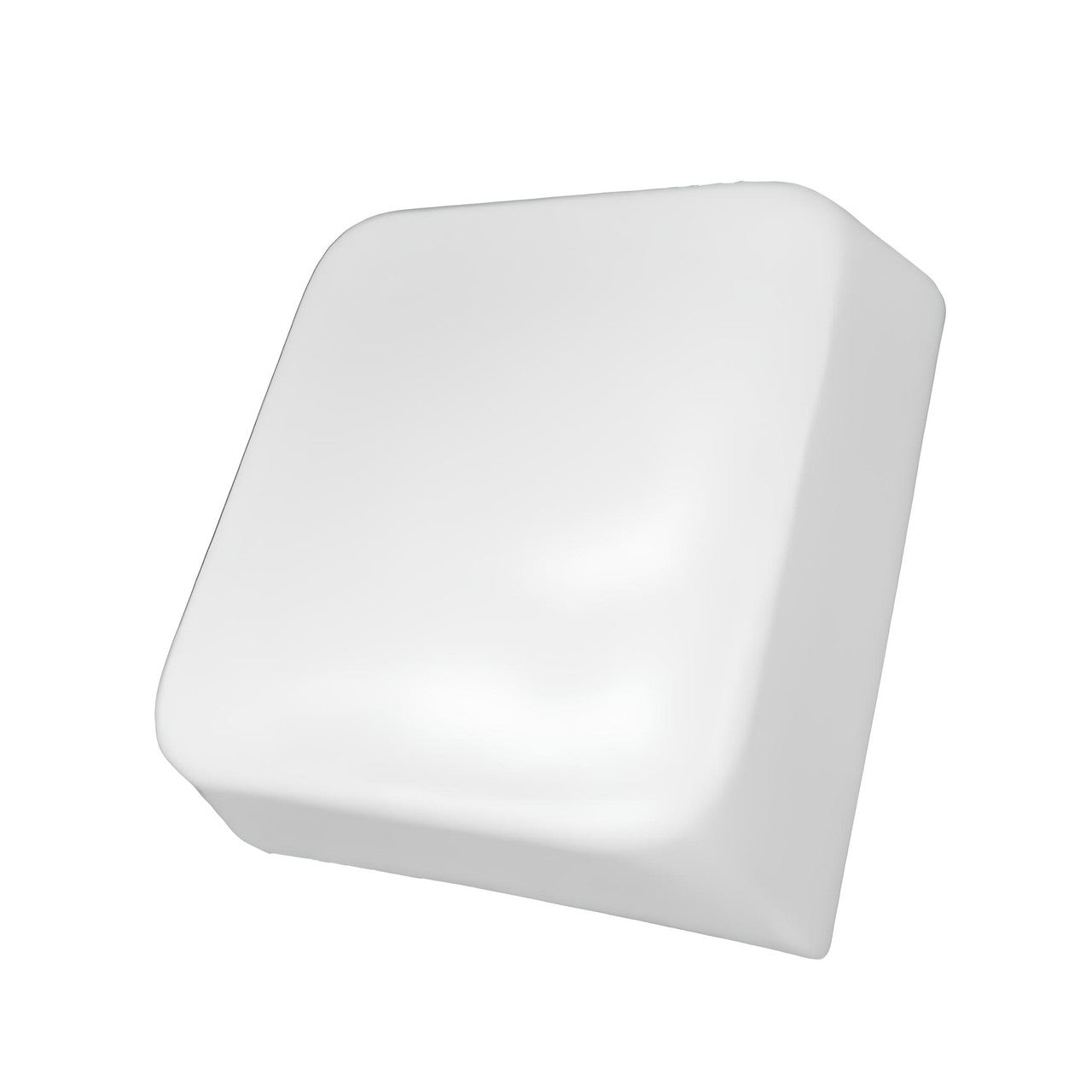

Dual-Polarized Outdoor Antenna for Enhanced Cellular Connectivity
This outdoor antenna features dual-polarization enabling effective signal reception and transmission across multiple orientations. With a gain of 8dBi it delivers enhanced signal strength and reliable connectivity. Covering a wide frequency range from 698 to 2700MHz it supports various cellular bands making it suitable for multiple communication systems. Its durable construction ensures performance in harsh weather conditions providing a dependable solution for challenging environments.
Key Features
- Dual Polarization: Improves connectivity by supporting signal transmission and reception in multiple orientations.
- High Gain: Delivers an 8dBi gain for stronger signal reception.
- Broad Frequency Range: Supports 698–2700MHz covering a wide range of cellular bands.
- Weather-Resistant Design: Rugged construction ensures durability in outdoor conditions.
A reliable solution for enhancing signal strength and connectivity across diverse communication applications.
@49/51
Description::

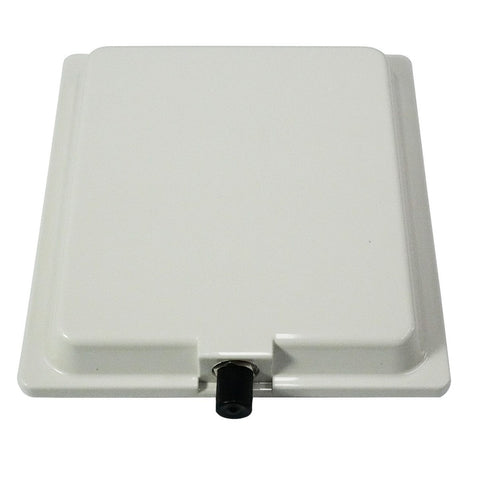

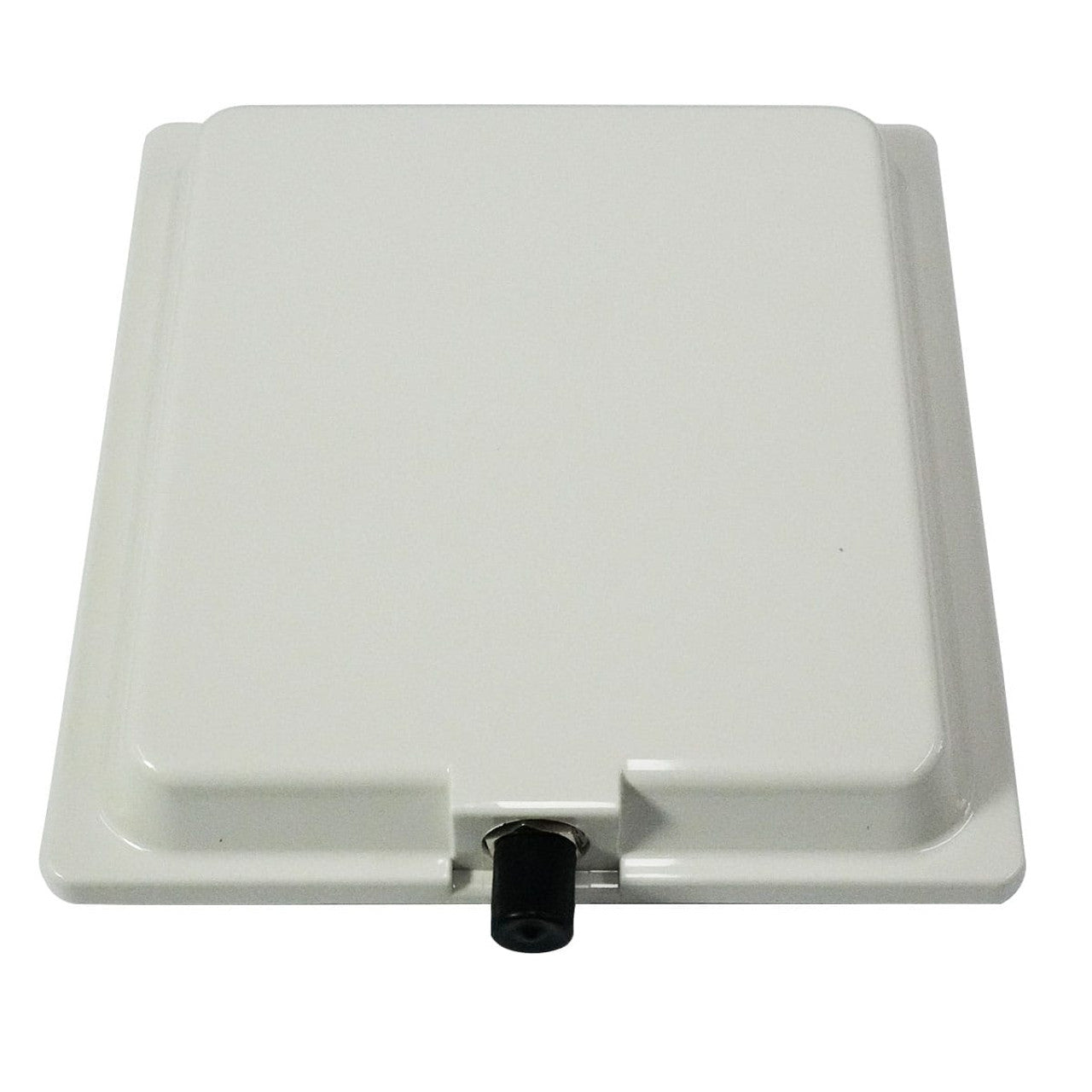

The MARS 4G Panel Antenna 5dBi 698 to 2700 MHz N Female delivers seamless connectivity across a broad spectrum of bands. With a frequency range of 698 MHz to 2700 MHz it supports modern communication standards such as WLAN Bluetooth and cellular bands ensuring a versatile performance in various applications.
Key Features:
- Covers 698-806 MHz 806-960 MHz 1710-2170 MHz and 2200-2700 MHz
- 5 dBi to 6.5 dBi Gain
- Linear Vertical Polarisation
- 1.7:1 to 2:1 VSWR
- 10W max. Input Power
- UV-protected polycarbonate radome
- IP65 rated
- Wall mountable
Optimised for High Gain
This antenna offers a typical gain of up to 6.5 dBi depending on the frequency range making it ideal for boosting signal strength and enhancing network coverage. Its low VSWR and wide beam width provide efficient performance for both voice and data applications.
Compact and Aesthetic Design
With a sleek unobtrusive design the MARS 4G Panel Antenna is crafted to blend seamlessly into both indoor and outdoor environments. Its small profile combined with a UV-protected polycarbonate radome makes it suitable for installations where aesthetics and durability are key.
Durable Construction for Tough Environments
The antenna is built to withstand harsh weather conditions including extreme temperatures ranging from -40 °C to +65 °C. It is designed to resist wind speeds up to 200 km/h and is waterproof to IP-65 standards ensuring reliable performance in outdoor installations.
Flexible Mounting Options
Designed for versatility the MARS 4G Panel Antenna can be mounted on walls or other surfaces using a range of mounting solutions including the adjustable MNT-22 mount for optimal positioning. This flexibility allows for tailored installations based on specific needs.
Reliable Electrical Specifications
With an input impedance of 50 Ohms and maximum input power of 10 watts the antenna provides a stable high-quality connection. Its linear vertical polarisation ensures consistent signal transmission across various environments.
Built for Long-Term Performance
The MARS 4G Panel Antenna is equipped with durable materials such as a metal-reinforced plastic back plane and a UV-protected radome. Additionally it meets international standards for vibration salt fog resistance and flammability making it a reliable choice for long-term installations.
Specification:
| Category | Specification | Details |
|---|---|---|
| Model Number | MA-CLTE-14 | Multi Band Panel Antenna |
| Frequency Range | 698 to 2700 MHz | Supports LTE 700 MHz GSM UMTS Bluetooth ISM and WLAN |
| Gain | 5 ± 1 dBi | Typical gain for 698-806 MHz and 2.2-2.7 GHz bands |
| Polarisation | Linear Vertical | For improved signal performance |
| Input Impedance | 50 Ohm | Standard impedance for optimal matching |
| VSWR | 1.7 : 1–2 : 1 | Varies across different frequency bands |
| Input Power | 10 Watts (max) | Maximum input power capacity |
| Connector | N-Type Female | Located at the bottom can be installed upside down |
| Dimensions | 231 × 215 × 37.5 mm | |
| Weight | 500 g | |
| Radome | UV Protected Polycarbonate | Durable weather-resistant |
| Operating Temperature | -40 °C to +65 °C | Suitable for extreme environmental conditions |
| Environmental Rating | IP65 | Waterproof and dustproof |
| Mounting Options | Wall Mountable Az/El Adjustable | Indoor/Outdoor |
| Wind Load | 200 km/h | Designed to survive high wind speeds |
