Panorama

Description::

Compact low-profile wall-mount antenna designed for reliable 3G and 4G LTE connectivity in Space-constrained Industrial and Commercial Applications

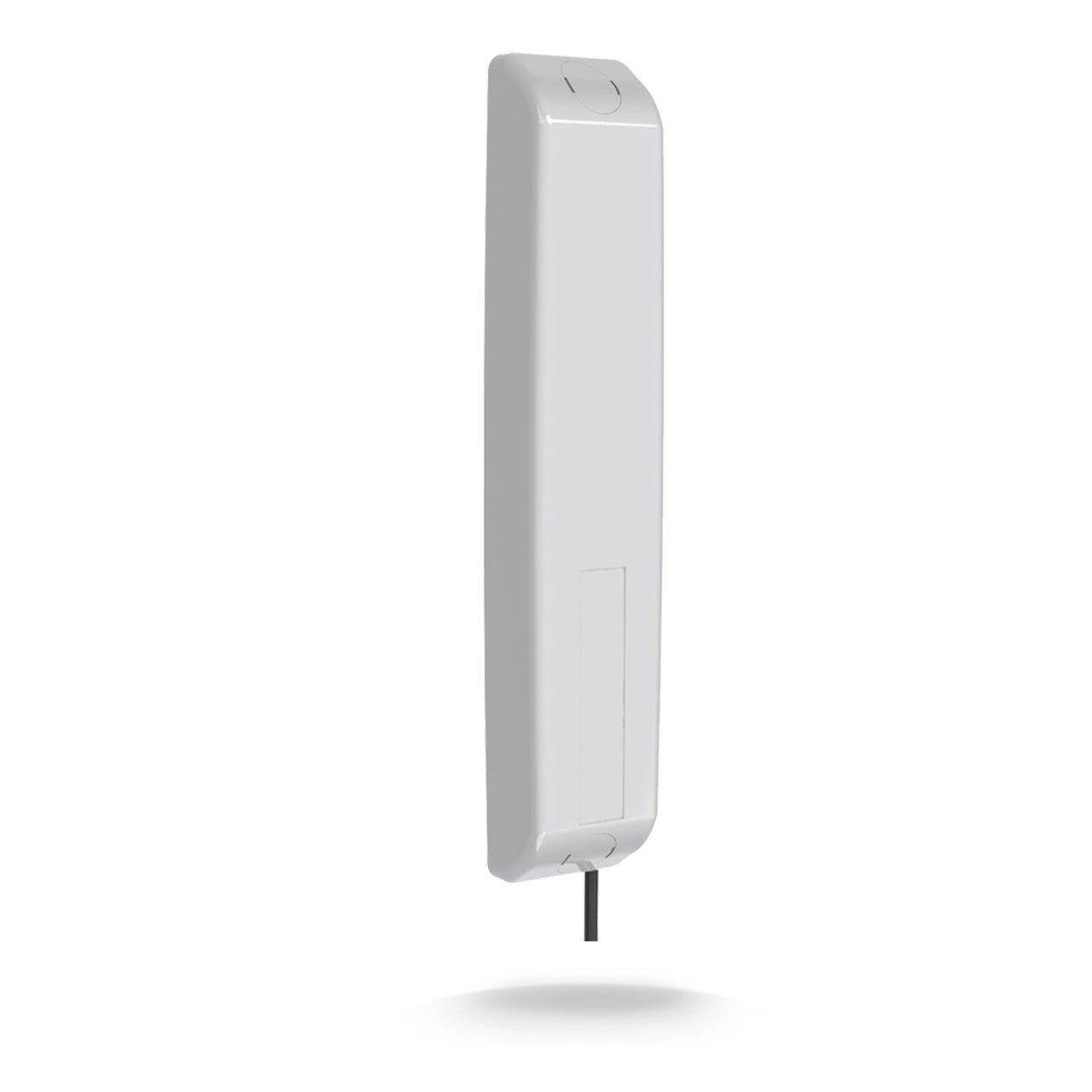

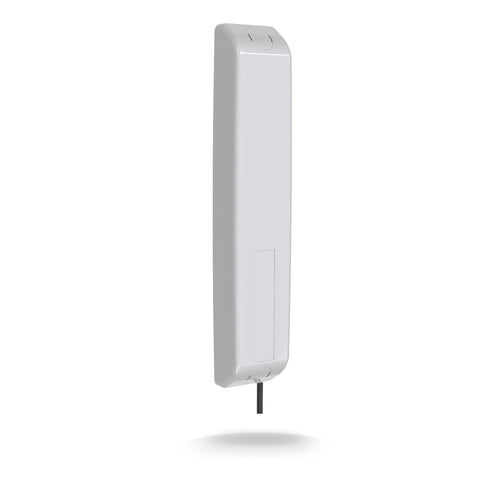

The Panorama 3G-4G Low Profile Wall Mount LTE Antenna is a sleek low-profile wall mount antenna designed to deliver reliable 3G and 4G LTE connectivity in environments where space is limited. With its compact design it provides strong performance across a broad range of frequencies making it an ideal solution for industrial commercial and M2M applications that require consistent and high-quality mobile connectivity. The antenna's wall-mountable design ensures easy installation and a secure fit while its rugged build ensures reliable performance even in harsh conditions.

Key Features

• Broadband Support: Covers 3G and 4G LTE networks for seamless connectivity across a wide range of applications.
• Compact Low-Profile Design: Designed to fit in tight spaces without compromising on performance or durability.
• Wall-Mountable: Easy to install with a secure wall-mount option for both indoor and outdoor use.
• Rugged Build: Durable and weather-resistant making it suitable for use in challenging environments.
• Omnidirectional Radiation Pattern: Ensures optimal signal coverage in all directions.
• High Efficiency: Provides strong reliable signals for uninterrupted connectivity.

The Panorama 3G-4G Low Profile Wall Mount LTE Antenna is the perfect choice for installations that require a space-saving reliable antenna solution with exceptional 2G 3G and 4G LTE performance.

Specification:

@6/16

@43/46

Description::

Versatile 4G/5G MIMO Antenna with GPS/GNSS and Optional WiFi Connectivity

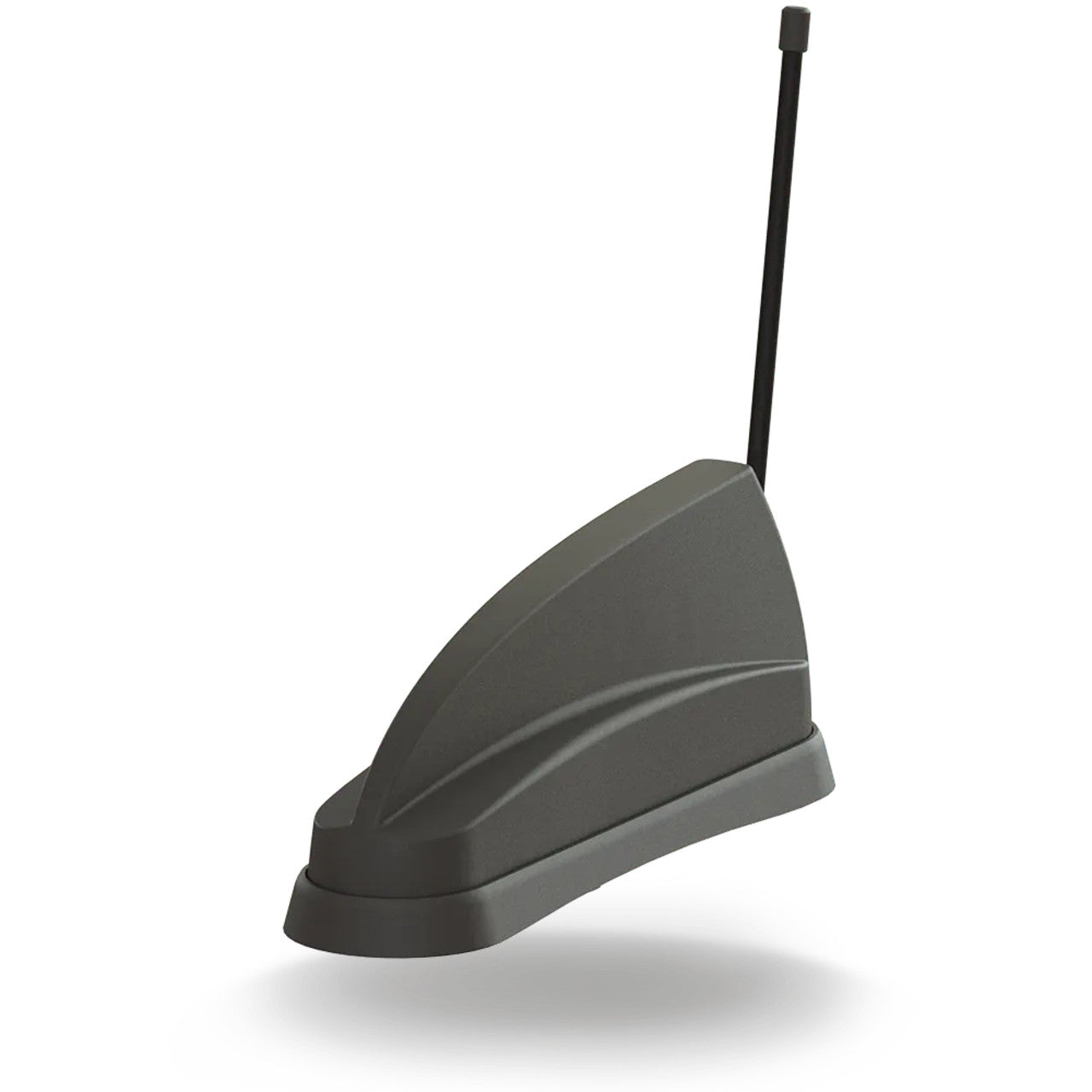

The Panorama GPSD-6-60 Sharkfin antenna is an all-in-one solution designed to meet the demands of modern communication systems. Combining cutting-edge technology and sleek design it delivers exceptional performance across multiple connectivity requirements including 4G/5G MIMO GPS/GNSS and optional MIMO WiFi.

Key Features

• 4G/5G MIMO Cellular: Supports frequencies from 617 to 6000 MHz ensuring reliable and high-speed mobile network connectivity.
• High-Performance GPS/GNSS: Provides accurate positioning and navigation with a built-in active antenna for GPS GLONASS Galileo and BeiDou systems.
• Optional MIMO WiFi: Enhance your wireless networking with dual-band WiFi (2.4/5GHz) capabilities for versatile applications.
• Durable and Discreet Design: The low-profile Sharkfin design blends seamlessly with vehicles and infrastructure while maintaining exceptional performance.
• Flexible Mounting Options: Includes whip mounting compatibility for added functionality and ease of installation.

Ideal for use in transportation fleet management emergency services and mobile communications the GPSD-6-60 Sharkfin antenna ensures robust and reliable connectivity in the most demanding environments.

Equip your system with the Panorama GPSD-6-60 and experience the future of integrated communication.

Specification:

@32/58

Description::

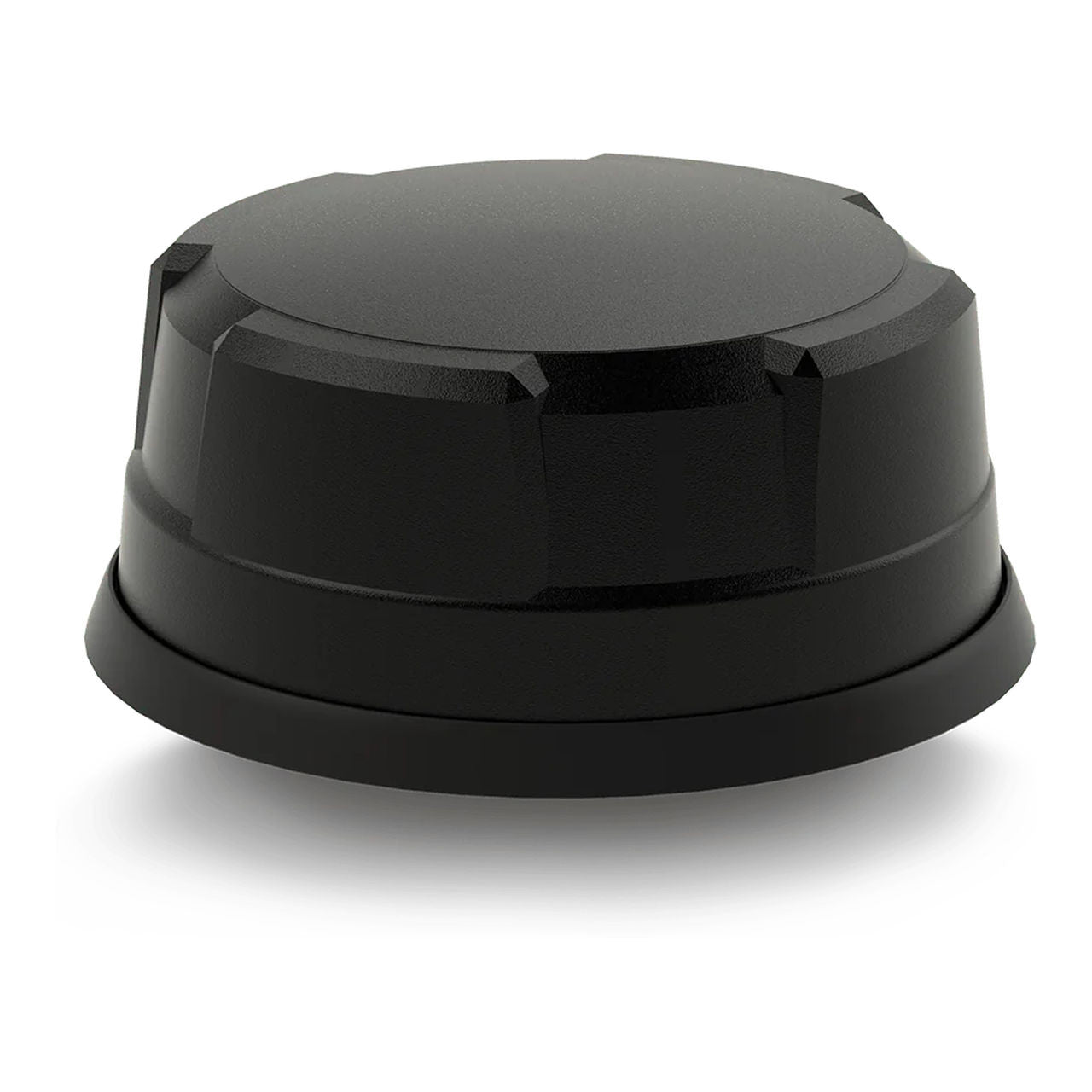

The MAKO® 5G Dome is a series of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2×2 3×3 4×4 or 6×6 MiMo/Diversity at 2.4/5.0/7.2GHz.

The varient LPMM4-6-60 MAKO® 5G Dome features four isolated high-performance antenna elements for MiMo/Diversity at cellular/LTE frequencies (617-960/1710-6000MHz) It does not have GPS or Wi-Fi antennas. These antennas maintain high performance even on non-metallic surfaces and do not require a metallic ground plane.

While the LTE elements are designed for 4×4 MiMo operation they can be configured as two pairs of 2×2 MiMo for routers with two SIMs (radio) in a failover setup (i.e. only one SIM active at a time). In this configuration network coverage should be verified to ensure suitability since only 2 of the 4 antennas are used for a single SIM.

Installation instructions provide guidance on the correct connection of the LTE antennas. Note: This antenna is not intended for use with routers that have two SIMs providing concurrent or aggregated data operation as there is insufficient isolation between the MiMo pairs.

FEATURES

• Designed for latest generation LTE Cat 18/20 routers and devices
• Low profile antenna with up to 11 functions in 1
• 4×4 MiMo 4G/5G LTE cellular Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
• Kits with extension cables available for a range of LTE routers
• Flame retardant cables compliant to UNECE R118
• Pre-terminated antenna connectors fitted as standard
• Cable flags attached for easy cable identification and installation
• Extension cable available upon request

@36/65

Description::

4G-5G Case-Mount Antenna with MIMO and GNSS Support

This compact case antenna offers reliable multi-network connectivity in mobile and portable deployments. Designed with 4x4 MIMO support for 4G and 5G networks it also includes a high-accuracy GPS/GLONASS module. With right-angle SMA connectors and 0.75 metre cables it integrates cleanly into ruggedised communication enclosures or transportable systems.

Key Features

• 4x4 MIMO cellular support: Enhances signal strength and data speed across 4G and 5G networks.
• Wideband frequency coverage: Operates across 617–6000 MHz for maximum carrier compatibility.
• Integrated GPS/GNSS module: Enables accurate tracking using GPS GLONASS and other navigation systems.
• Case-mount design: Engineered for embedded deployment in portable enclosures or equipment cases.
• Weather-resistant housing: Durable and rated for demanding indoor and semi-outdoor environments.
• Right-angle SMA 0.75m cable: Includes four cellular and one GNSS cable with angled SMA connectors for neat internal routing.

Perfect for emergency defence and mobile network deployments that demand compact multi-function connectivity.

Specification:

@31/56

Description::

Low-Profile Multi-Network Antenna for Mobile and Field Deployments

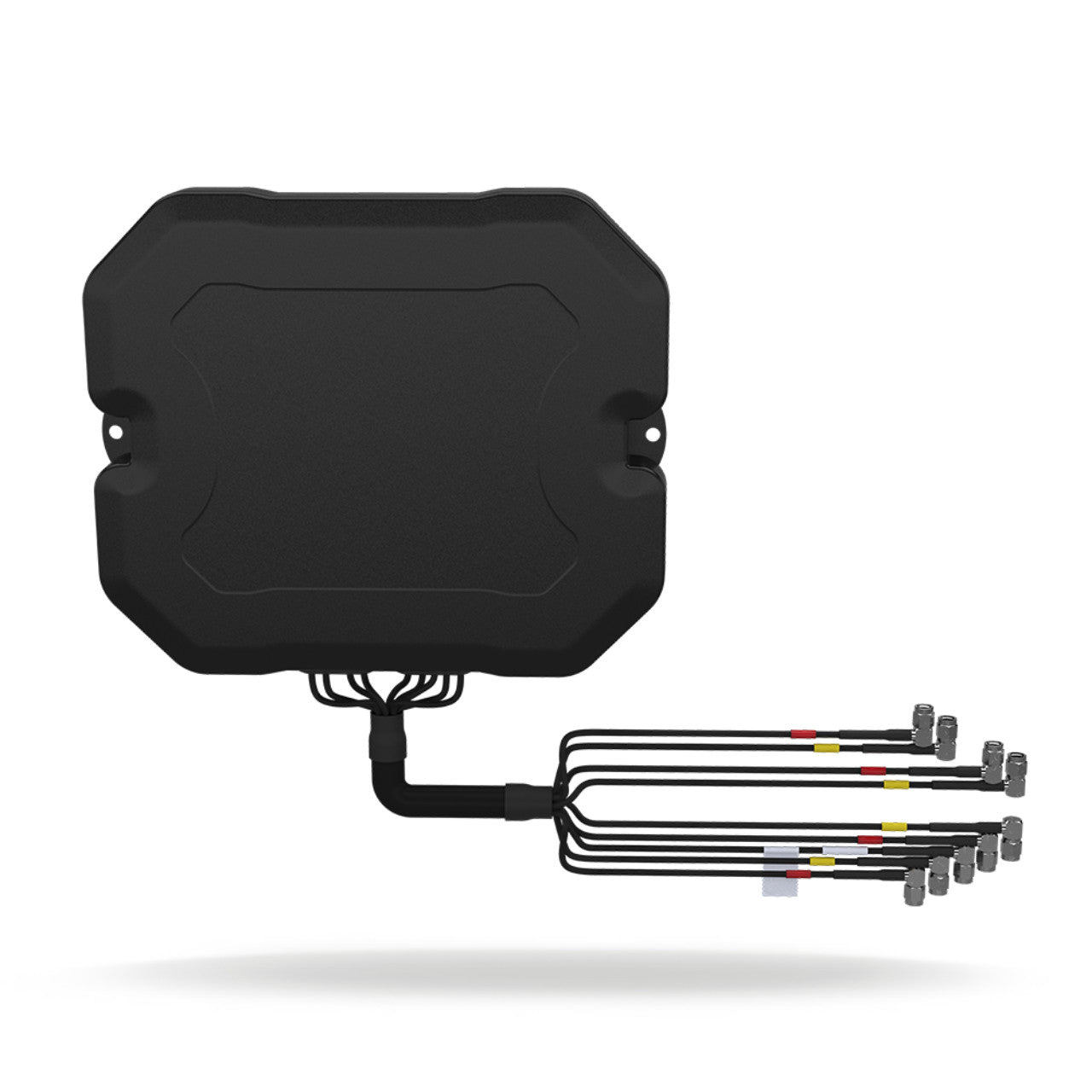

This 7-in-1 case-mount antenna is engineered for high-reliability mobile communications in rugged environments. It combines 4x4 MIMO for 4G/5G 2x2 MIMO for Wi-Fi 6E and GPS/GNSS in one compact adhesive-mounted unit. Designed specifically for integration into deployable cases and portable systems it delivers seamless performance in emergency response transportation and field-based networks.

Key Features

• 4x4 MIMO cellular support: Provides LTE and 5G connectivity across 617–960 MHz and 1427–6000 MHz bands.
• Dual-band Wi-Fi 6E: Enables fast stable wireless communication across 2.4 GHz to 7.2 GHz.
• Active GPS/GNSS: Ensures accurate geolocation using GPS GLONASS and other GNSS systems.
• Compact rugged housing: IP55-rated ASA enclosure offers durability for mobile and outdoor use.
• Easy case integration: Adhesive mounting with loomed right-angled cables allows clean internal installation.
• Reliable multiband design: Combines cellular Wi-Fi and GNSS in a single low-profile footprint.
• Right-angle SMA 0.75m cable: Pre-terminated with right-angled SMA connectors and 0.75 metre cable for efficient internal routing.

This antenna is ideal for deployable communication kits needing robust multi-network performance.

Specification:

@33/60

@11/24

Description::

High-Performance Bracket Mount Antenna for 4G and 5G Networks Offering Reliable Connectivity

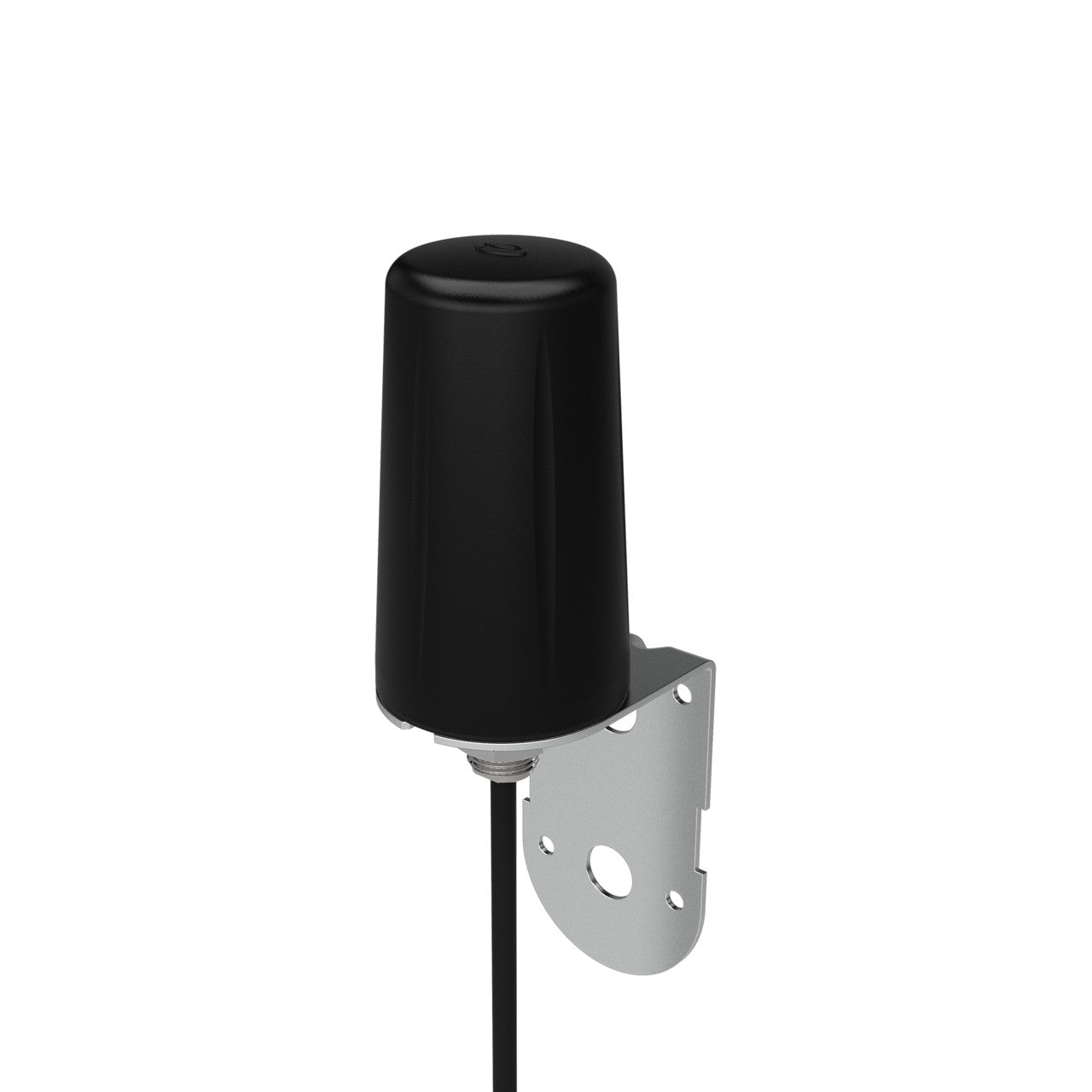

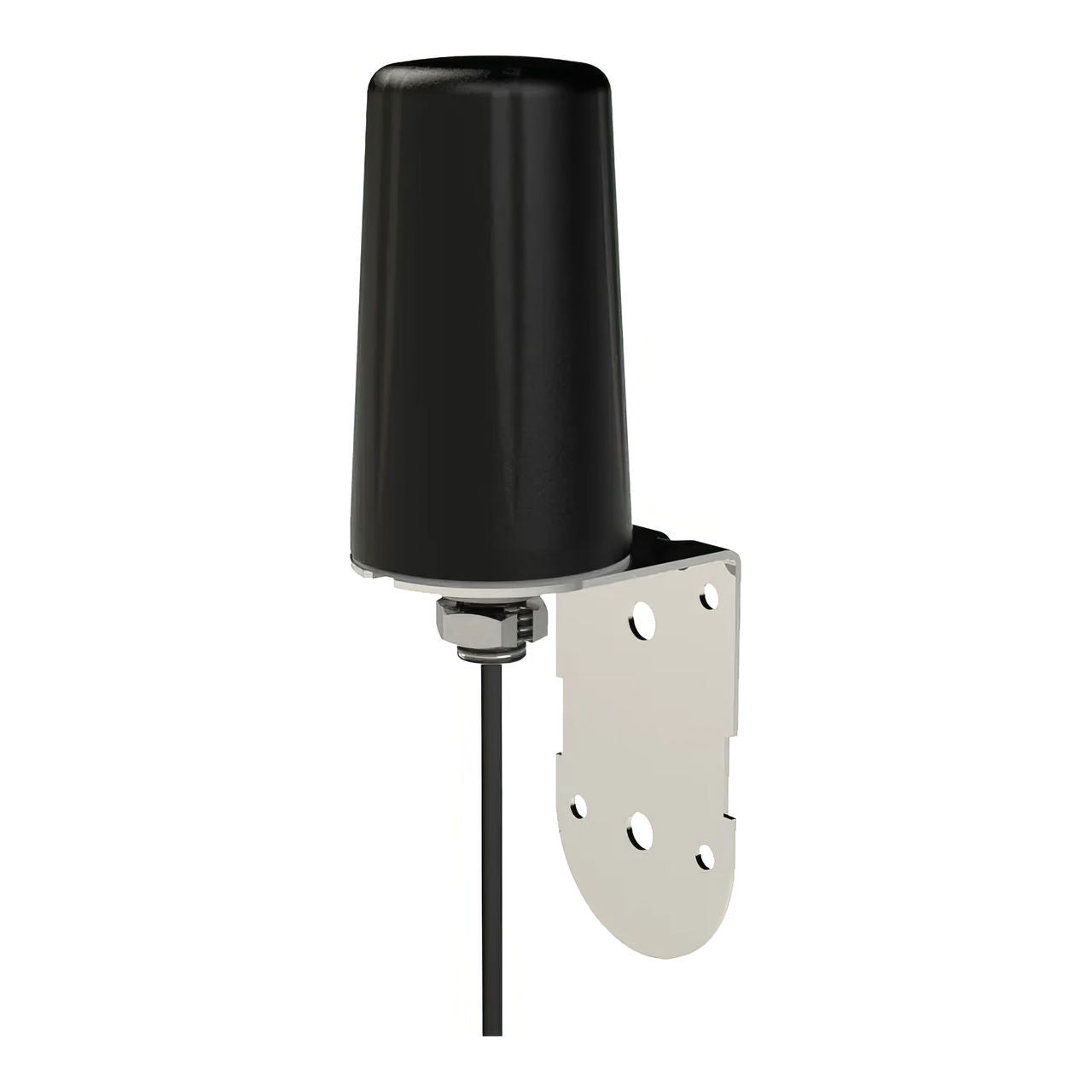

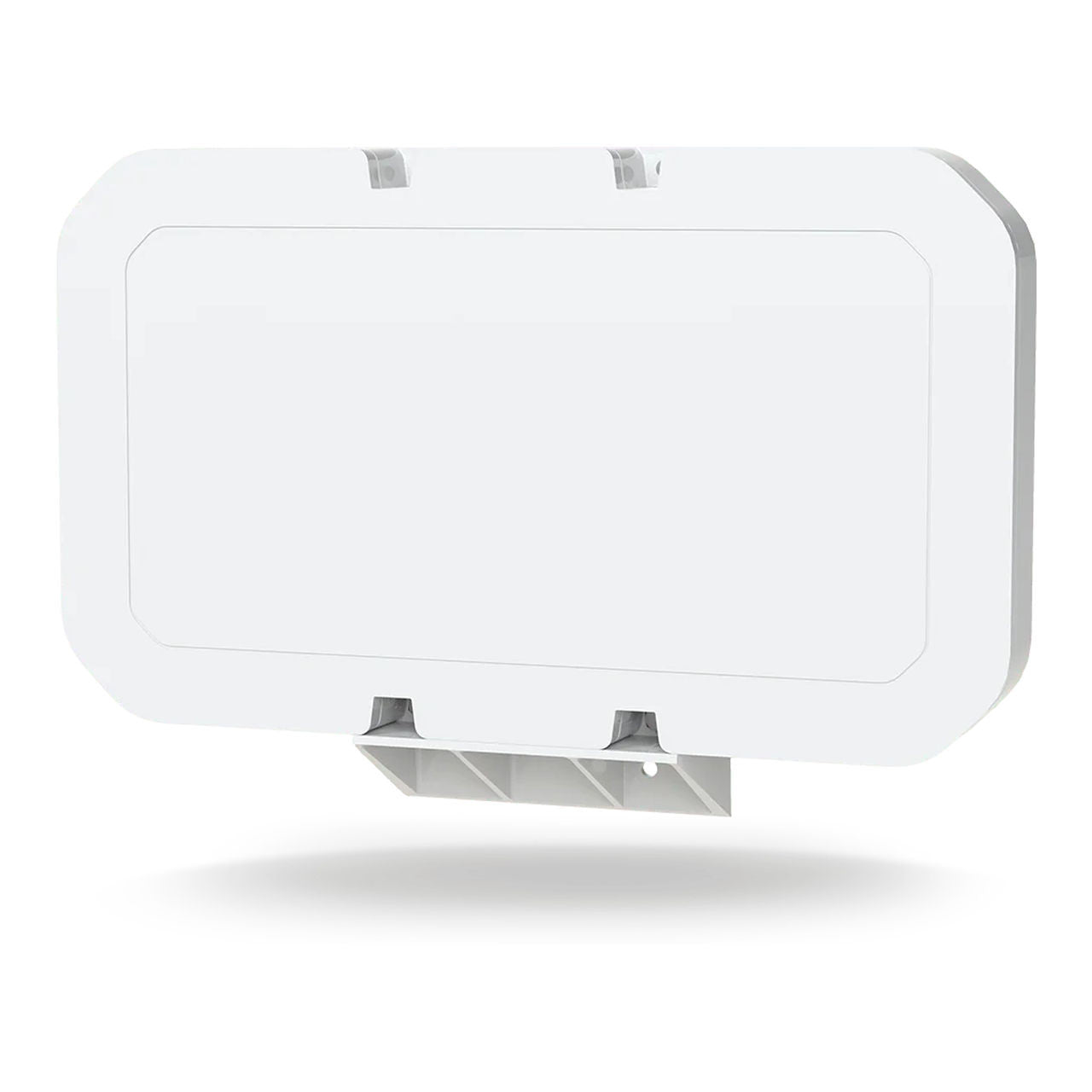

The Panorama 4G-5G Bracket Mount Antenna is designed for reliable and high-performance 4G and 5G connectivity in a variety of outdoor environments. Featuring a bracket mount for versatile installations this antenna ensures excellent signal strength making it suitable for fixed or mobile deployments. With support for multiple frequency bands it offers broad network compatibility for both 4G LTE and 5G NR networks. The robust construction ensures durability even in harsh weather conditions providing long-lasting performance.

Key Features

• Multi-Band Support: Covers 4G LTE and 5G NR frequencies for a wide range of network compatibility.
• Bracket Mount Design: Provides flexible and secure installation options for various applications.
• Durable and Weather-Resistant: Built to withstand outdoor conditions with a robust weatherproof enclosure.
• High Performance: Ensures strong stable signal reception for reliable connectivity.
• Compact and Efficient: Optimised for both space-saving and high-efficiency performance in outdoor environments.

Specification:

@8/20

Description::

Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz

FEATURES

• 2x2 MIMO Wideband Cellular LTE Antenna
• Medium dB Gain
• Can be Wall or Mast mounted
• A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.
• UV Stable IP65 Rated Housing
• Ideal Product for fringe network areas
• Integrates your wireless services into a single antenna

Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz  provides an innovative and Future Proof solution for 3G/4G and 3.4-3.8GHz 5G networks.

Incorporating two separately fed ultra-wideband elements in a single housing it provides a client-side 2x2 MiMo antenna system for the networks of today and tomorrow. With between 2-5dBi gain in the range 698-3800MHz the WMMG gives a great performance whilst maintaining a wide beam pattern which is ideal for metro and urban areas.

The rugged weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.

The antenna is supplied with an integral “twinned” CS29 coaxial cable. WMMG-7-38-5SP version has a 5m length fitted with sma plug connectors for a simple ‘plug & play' installation. WMMG-7-38-03NJ version has a 30cm length fitted with N socket connectors which enables the use of lower loss cable types for longer runs.

The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers improving satisfaction and retention.

Specification:

@14/29

Description::

Compact High-performance Antenna Ideal for Delivering Fast and Reliable Connectivity in Both Urban and Remote Environments

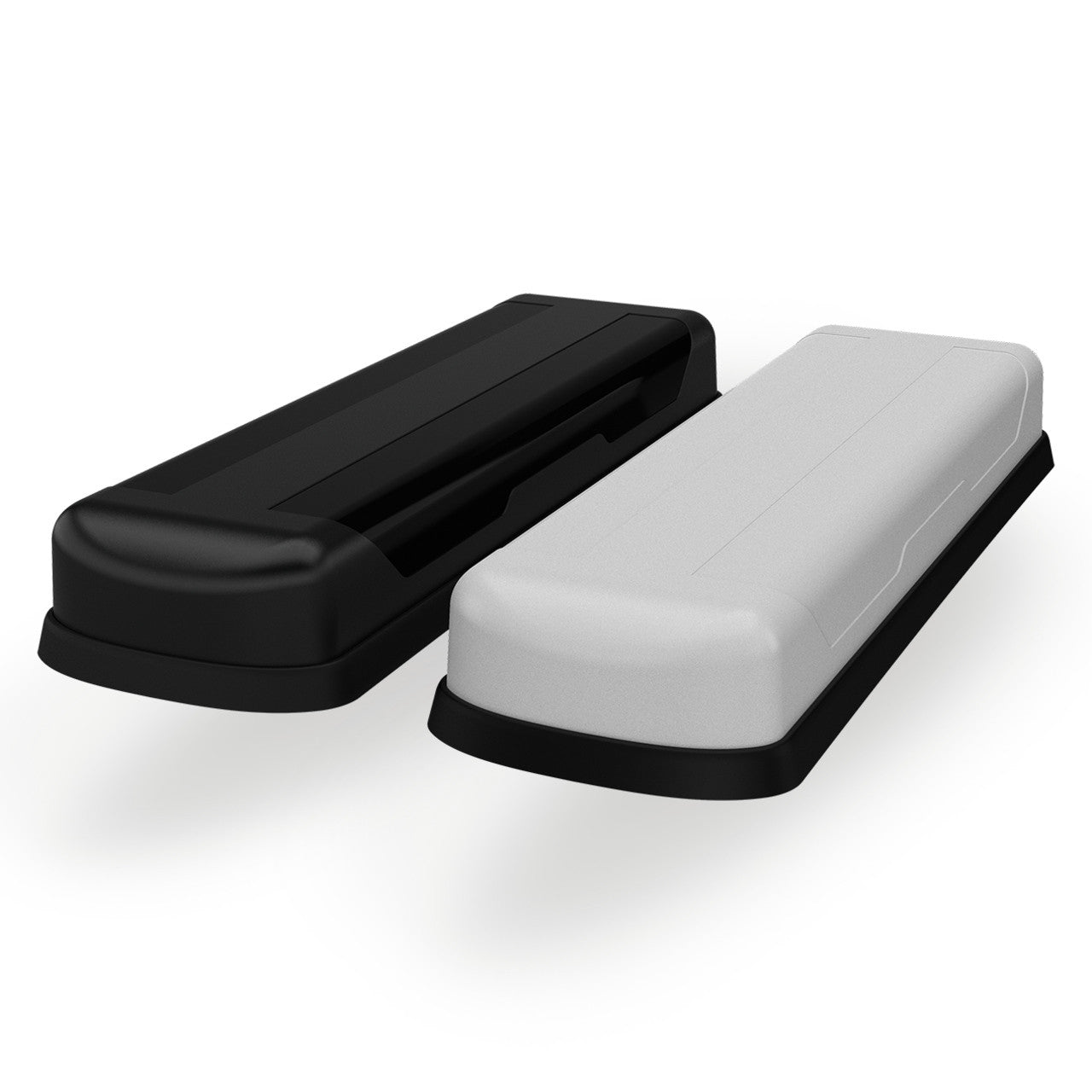

The Megalodon® 8x 4G/5G Low Profile Antenna is designed to deliver industry-leading performance with a robust low-profile design. Offering 2x 4x4 MiMo 4G/5G antenna systems this antenna covers a wide frequency range from 617-960 MHz and 1427-6000 MHz ensuring global cellular compatibility and future-proof functionality. Ideal for 4G Cat 18/20 and 5G modems the antenna is built to meet the needs of modern high-speed wireless networks.

Key features

• 8x 4G/5G Elements: Supports enhanced signal reception and transmission for faster data speeds.
• Dual Band WiFi 6e/7 Support: Provides up to 8x8 MiMo for superior WiFi performance.
• GPS/GNSS L1/L5 Bands: Enables precise location tracking with up to two GPS/GNSS bands.
• Robust Protection: Meets IK10 and IP69K standards for durability and weather resistance.
• Low Profile Design: Compact and sleek for minimal visual impact while ensuring maximum performance.

Specification:

@48/50

Description::

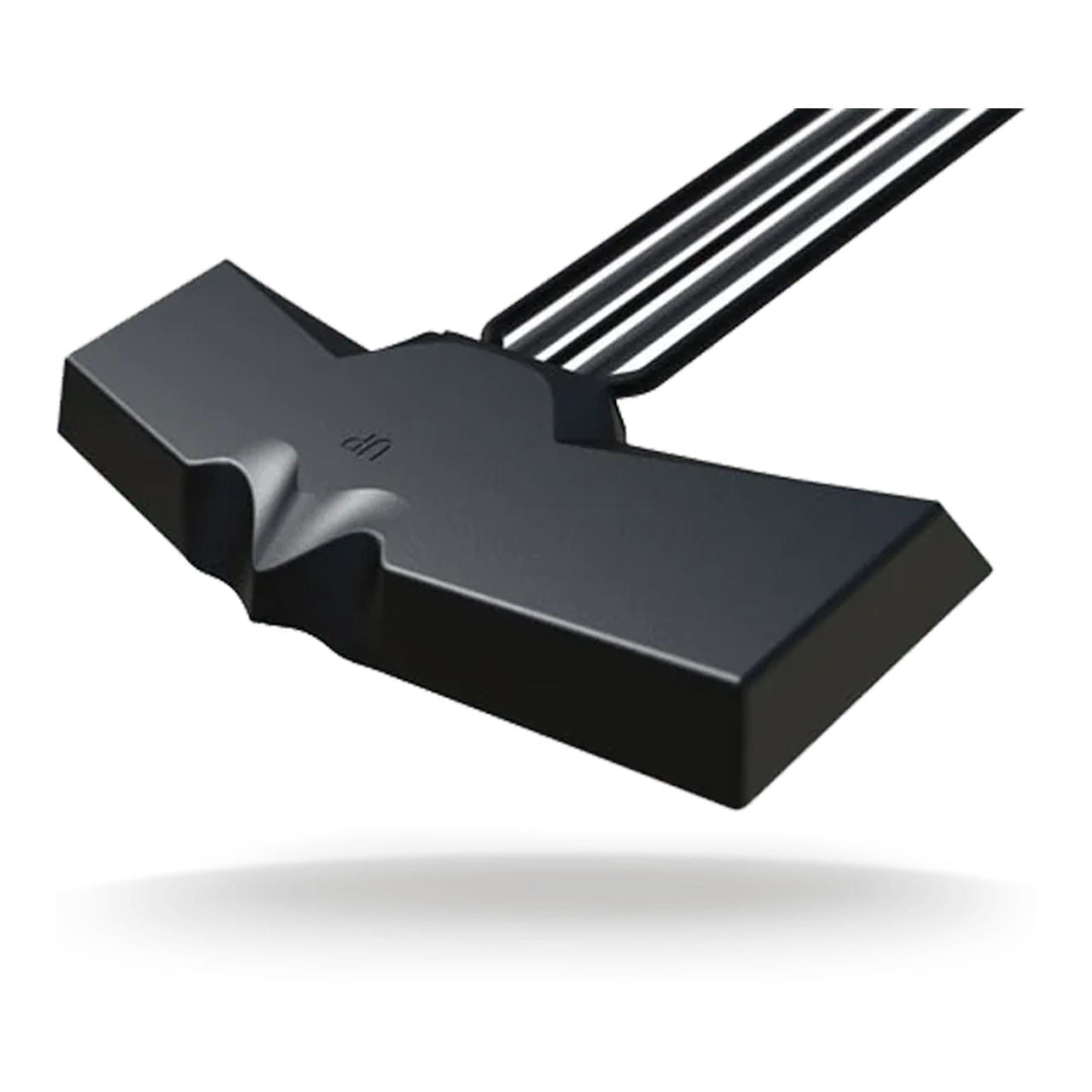

The Panorama BAT series features a range of internal discreet/covert 'all-in-one' antennas with 2×2 MiMo 4G/5G (including Band 71) optional GPS/GNSS and dual-band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz including WiFi 6e.

This BATM-7-60 model supports 2x2 MiMO4G/5G covering 617-960/1427-6000MHz providing isolation and low correlation coefficient values for effective MiMo functionality. Its does not include WiFi or GPS.

Designed for mounting on or under a vehicle dashboard the antenna can also be installed on any non-conductive surface. The BAT series comes with low-loss cables that are flame retardant and comply with UN ECE 118 and EN45545-2 standards.

FEATURES

• MiMo LTE product with distinctive BAT design
• 4G/5G LTE MiMo covering 617-6000MHz
• Covert/Discrete internal antenna
• Up to 5-in-1 solution when you add WiFi or GPS options

@12/25

@8/19

@8/20

Description::

Compact portable and High-Performance MIMO Antenna Offering Reliable 4G 5G and Wi-Fi Connectivity

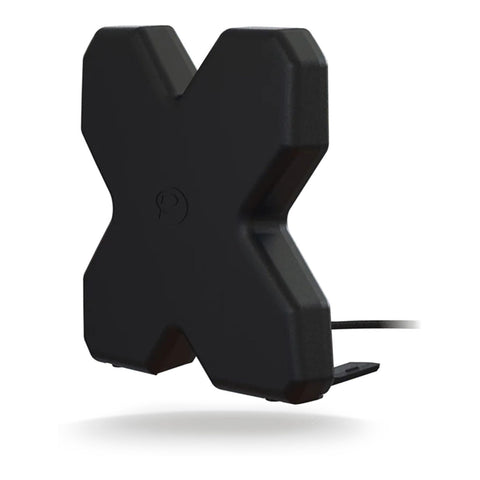

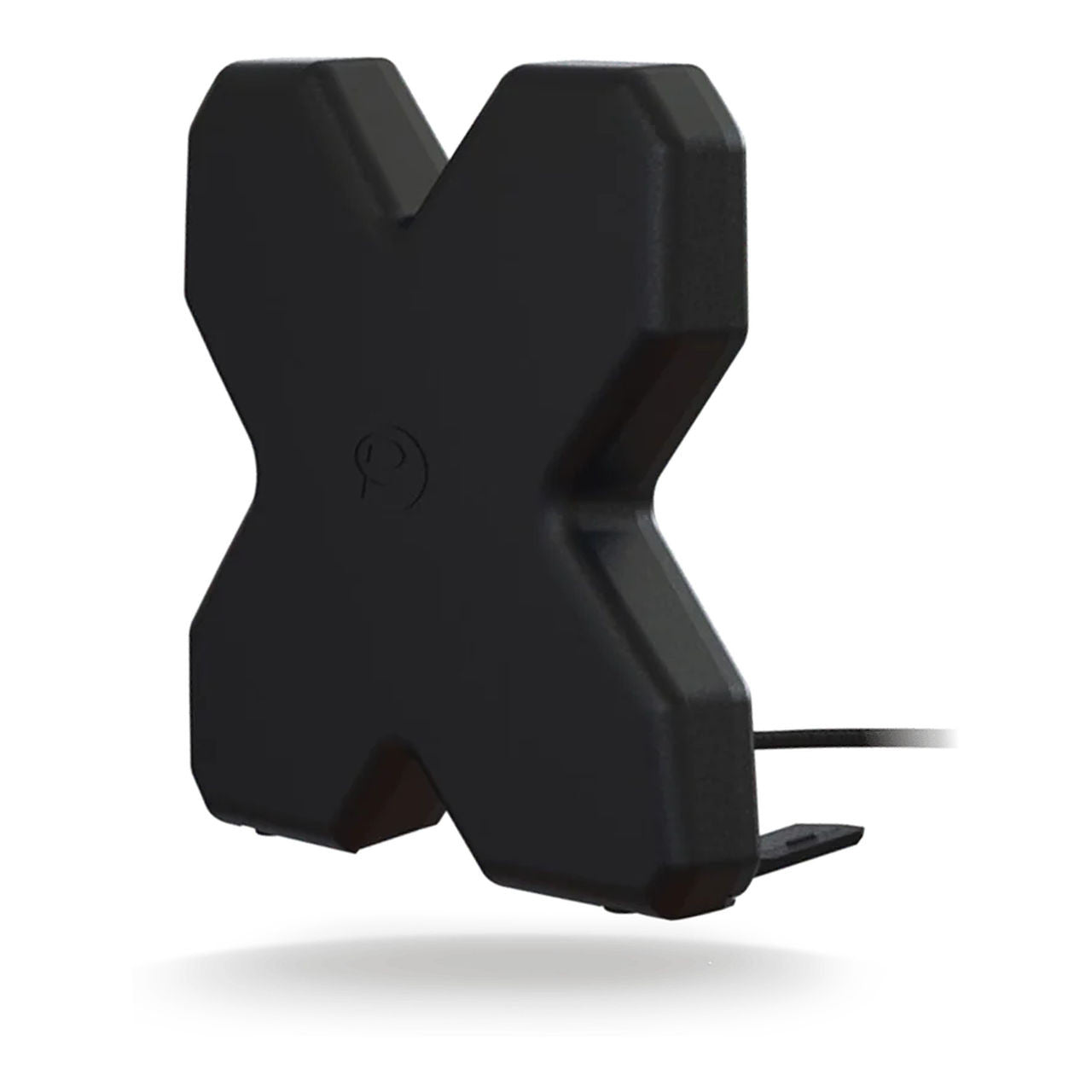

The Panorama 4G-5G Multi-Band MIMO Antenna is a high-performance antenna designed to provide reliable 4G 5G and Wi-Fi connectivity in both office and portable environments. Featuring MIMO technology it enhances data throughput and signal stability for optimal performance. The antenna also includes a TS9 connector offering easy integration with a wide range of devices including routers and mobile hotspots. Its compact desk-mountable design makes it ideal for dynamic workspaces while its robust construction ensures long-lasting use.

Key Features

• Multi-Band Support: Covers 4G 5G and Wi-Fi frequencies for versatile connectivity.
• MIMO Technology: Enhances throughput and connection reliability for faster data transfer.
• TS9 Connector: Easily connects to devices such as routers and mobile hotspots with a TS9 connector for simple setup.
• Portable Design: Compact and lightweight with a desk-mountable setup perfect for office or mobile use.
• Durability: Built to withstand continuous use providing long-term reliable performance.

Specification:

@9/21

@41/74

Description::

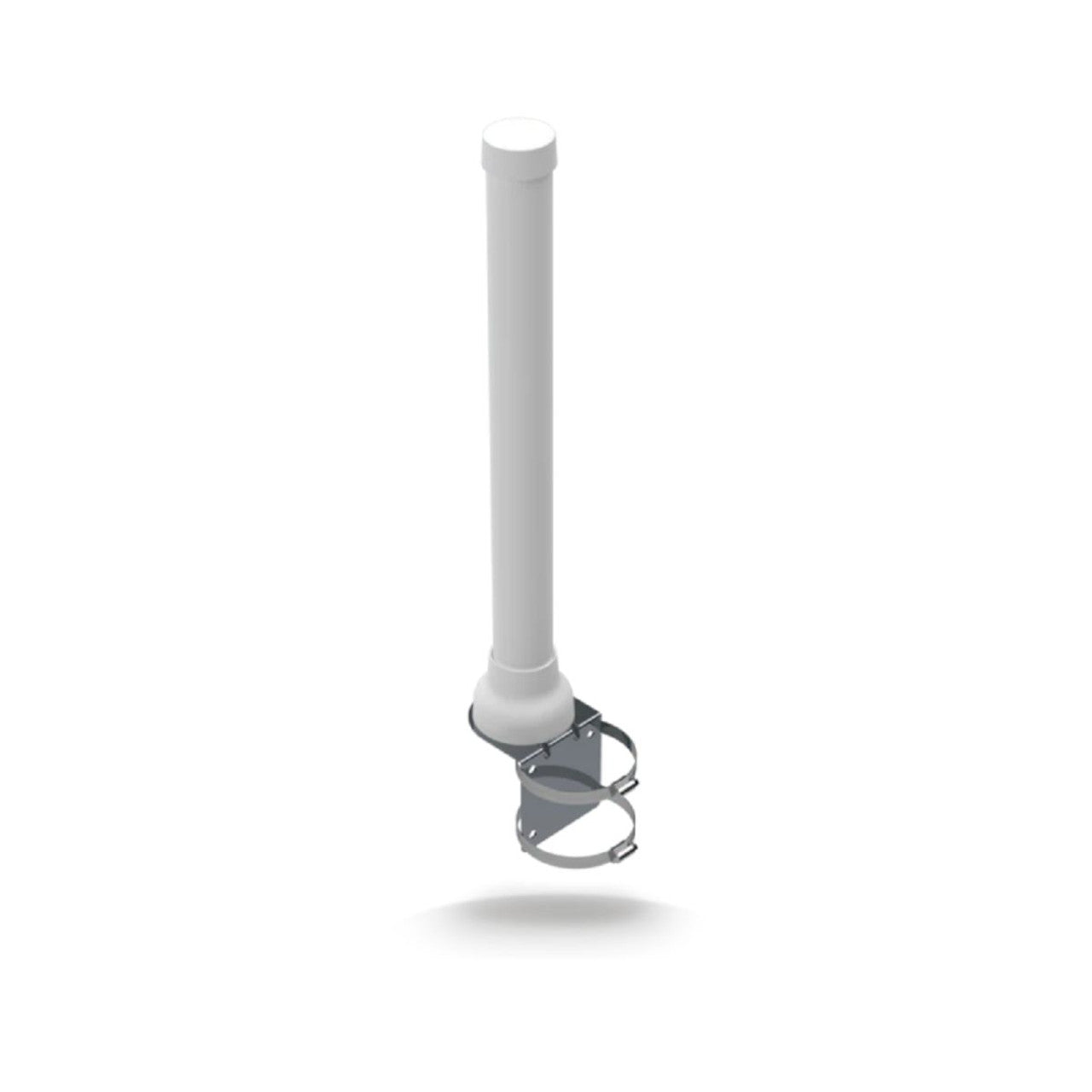

The Panorama 4G/5G MIMO Omni Antenna 617 to 6000MHz is a broadband antenna that covers 617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.

The Omnidirectional radiation pattern allows easy placement of the antenna in an elevated position without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.

This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications.

Panorama 4G/5G MIMO Omni Antenna 617 to 6000MHz

FEATURES:

• Available with SMA Male or N Male connections
• 2x2 MIMO 4G/5G antenna solution
• Wall rail or mast mount
• Optional GPS/GNSS - 26dB LNA
• Integrated coaxial cables

Specification:

@26/48

Description::

Compact Low-Profile MIMO Antenna for 2G 3G and 4G Connectivity

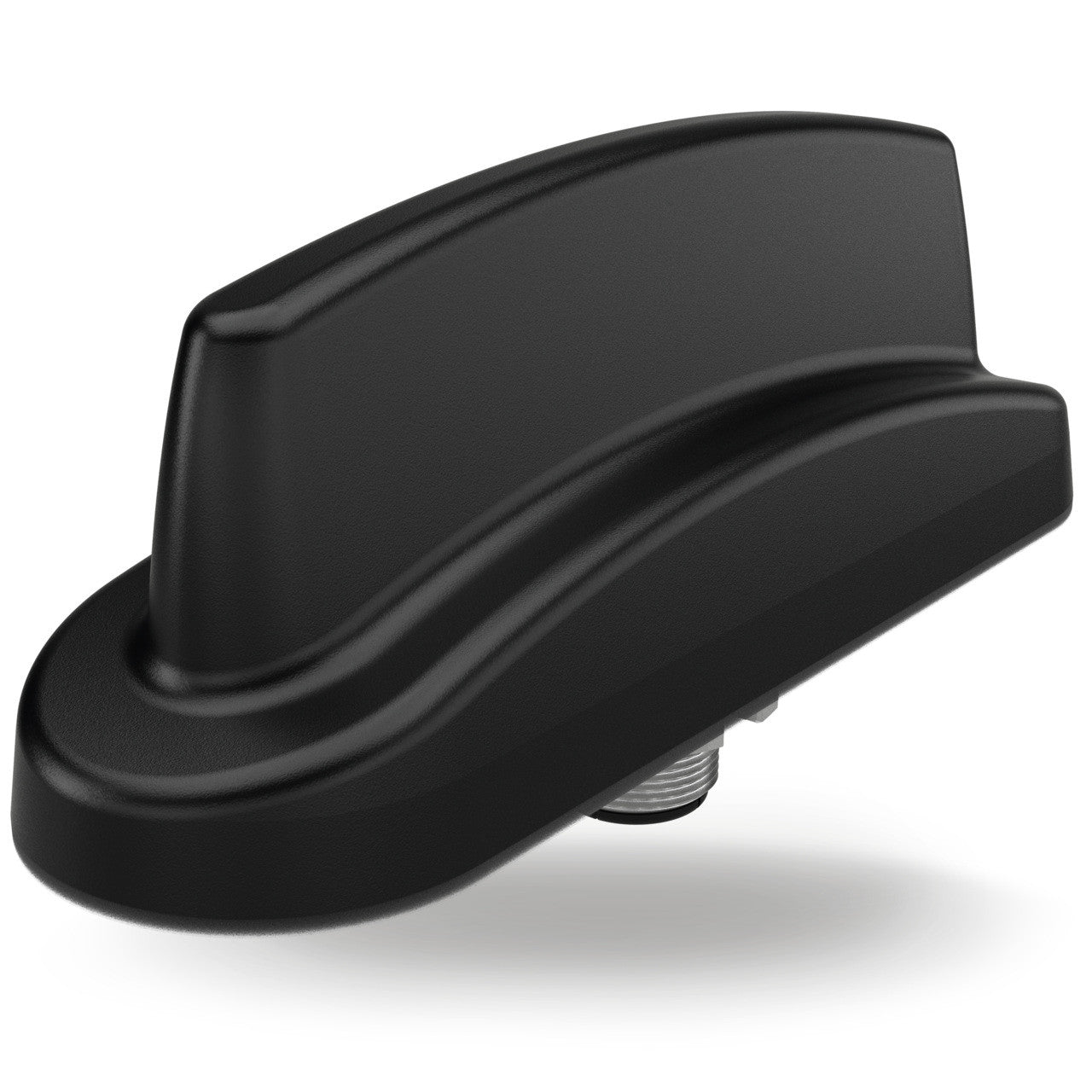

The Panorama Low Profile 2G-4G MIMO Antenna is a versatile low-profile MIMO antenna designed to provide exceptional performance across 2G 3G and 4G cellular networks. With its compact design it offers reliable signal reception and transmission in space-constrained installations making it ideal for use in industrial automotive and IoT applications. This antenna features multi-band support ensuring seamless connectivity and consistent performance even in remote or challenging environments.

Key Features

• Broadband Support: Operates across 2G 3G and 4G frequencies ensuring broad network compatibility.
• MIMO Technology: Maximizes throughput and signal quality by supporting multiple input and output streams.
• Compact Low-Profile Design: Perfect for installations where space is limited offering minimal visual impact while maintaining performance.
• Weather-Resistant: Suitable for outdoor and harsh environments designed to withstand various weather conditions.
• Easy Installation: Flexible mounting options and low-profile design make it easy to install in a variety of setups.
• High Efficiency: Ensures stable connections and high-speed data transfer with minimal interference.

Enhance your network performance with the Panorama Low Profile 2G-4G MIMO Antenna low-profile MIMO antenna providing reliable high-speed cellular connectivity in space-constrained and demanding environments.

Specification:

@8/19

Description::

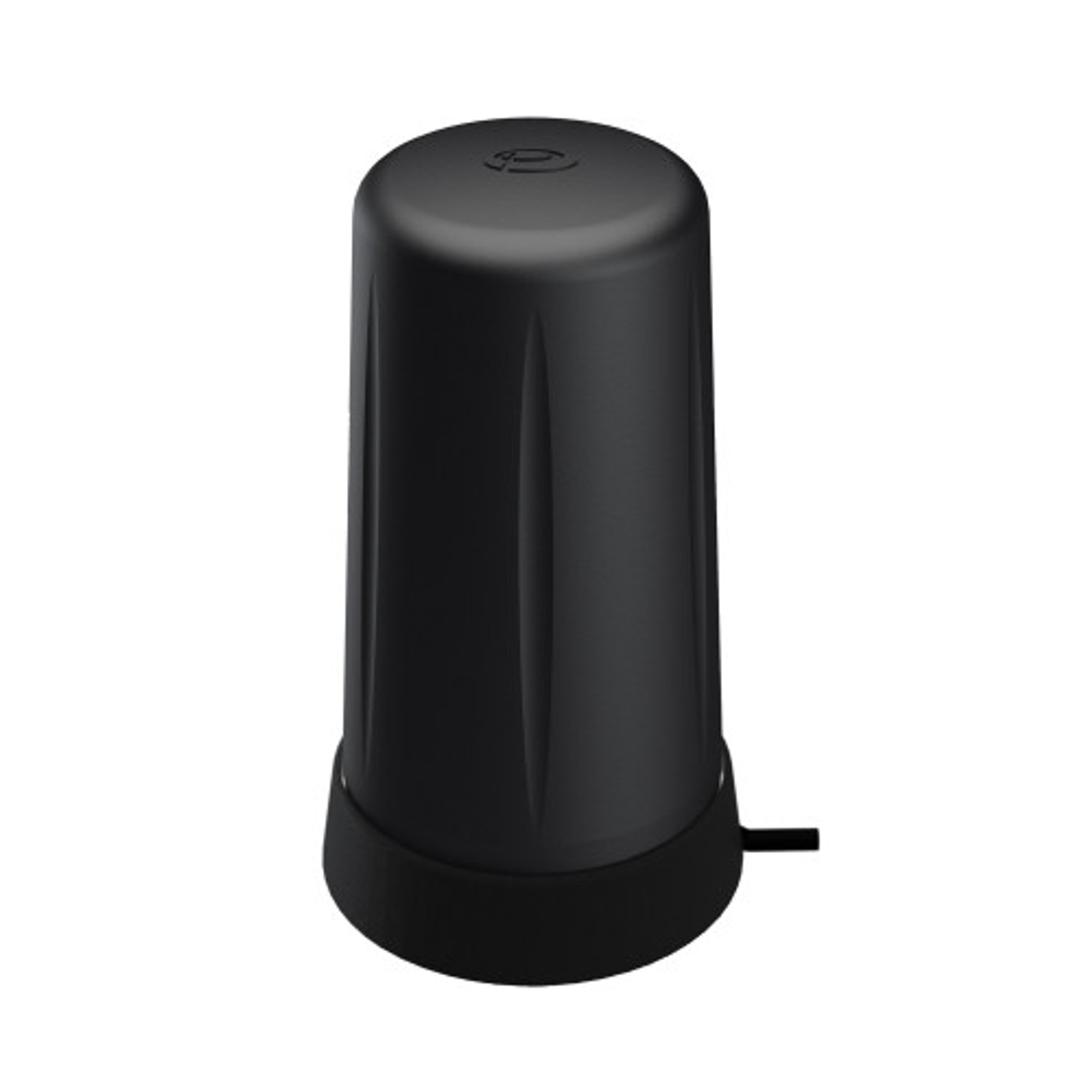

The LPBEM-6-60 is a high-performance SiSo LTE antenna covering 617-960/1710-6000MHz.

FEATURES:

• Low profile wideband antenna
• Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
• Magnetic mount solution
• Allows for SiSo LTE connectivity in a small antenna profile and footprint
• Suitable for use across multiple applications and industries

@9/21
