REMOTEC

• Control your air-conditioner remotely using a Z-Wave Home Controller
• Works with all types of AC IR interface
• Built in temperature sensor informs you of current room temperature
• USB powered, 5V DC Jack or 1 year battery life on 3 x AAA batteries

Product Details

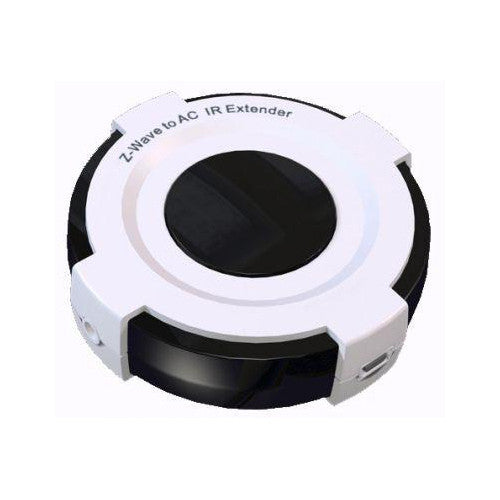

The Z-Wave A/C Controller is a smart Z-Wave controller which allows you to remotely control your air-conditioner using a compatible Z-Wave controller. It works with any Z-Wave compliant gateway or controller by translating Z-Wave Thermostat Commands to AC IR control code. User can select the IR code from the built‐in code library by using Z-Wave Configuration Commands according to the parameter table,  or use the learning function through the gateway. The Z-Wave A/C Controller also has a built‐in temperature sensor which allows your gateway or controller to get the current room temperature.

Product Details

The Z-Wave A/C Controller is a smart Z-Wave controller which allows you to remotely control your air-conditioner using a compatible Z-Wave controller. It works with any Z-Wave compliant gateway or controller by translating Z-Wave Thermostat Commands to AC IR control code. User can select the IR code from the built‐in code library by using Z-Wave Configuration Commands according to the parameter table,  or use the learning function through the gateway. The Z-Wave A/C Controller also has a built‐in temperature sensor which allows your gateway or controller to get the current room temperature.

The Z-Wave A/C Controller can be configured as either a “Frequently Listening Routing Slaves” (FLiRS) or an “Always Listening” node before including it to your Vera gateway. The FLiRS node type is for battery operated applications and it will enter sleep mode frequently in order to conserve battery power. The Always Listening node type is for areas where a fast response is required. It works with a 5V DC power source. Always Listening node can act as a repeater, which will re‐transmit the RF signal from the other Z-Wave devices in your network to ensure that the signal reaches its intended destination by routing the signal around obstacles and radio dead spots.

The Z-Wave A/C Controller also supports Network Wide Inclusion (NWI) and Explore Frames. It is compatible with Z‐Wave networks that contain multiple gateways and controllers. Like every Z‐Wave accessory, the user will need to include the Z-Wave A/C Controller into their Z‐Wave network using their primary controller. Then, the user can use either the primary or secondary controller to configure and setup the Z-Wave A/C Controller using Z‐Wave’s configuration command class. Once the configuration and setup is complete, the user can use the Z‐Wave “Thermostat commands class” to control their IR‐controlled air‐conditioner through the Z-Wave A/C Controller.

This product integrates with the follwoing Australian certified (921.42MHz) Z-Wave controllers including:

• Vera 3/Lite in UI5 and UI7
• REMOTEC Z-Wave Universal Remote Controller

Product Support

Manuals:

⇒ REMOTEC Z-Wave AC IR Controller Full Manual (Size: 1.15 MB)

⇒ REMOTEC Z-Wave AC IR Controller IR Built-In Code Library (Size: 10 KB)

⇒ REMOTEC Z-Wave AC IR Controller Vera Integration Manual (Size: 280 KB)

Technical Specifications

• Support 2 stage heat, 2 stage cool, 2 stage fan
• 24Vac single & two stage conventional heating systems (gas/oil/electric)
• Heat pump systems with up to two stages of heating (electric/gas)
• Zoned forced air and zoned hot water (2 or 3 wire)
• Millivolt systems (12-24Vac or DC source)
• Can be controlled by android smartphones and iPhones (via home controller)
• One or two stage cooling systems
• Hybrid systems
• Z-Wave Dual mode (FLiRS, Always Listening)

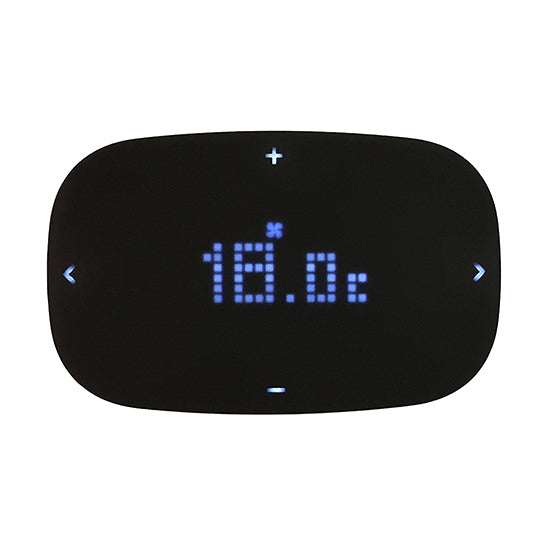

The REMOTEC Z-Wave Thermostat ZTS-500 is an intelligent, programmable thermostat controller with a blue  display which is easy to read even in dimly lit areas.

This thermostat delivers permanent day and time settings that are even maintained during power outages. It offers the option to remotely control / check your room temperature via a smart phone or PC which is associated with yourZ-Wave Home controller.

For added convenience, the thermostat unit can be run using battery power or using power from your heating/cooling system, giving you the option of permanently eliminating battery changes.

This thermostat is compatible with a broad range of 24-volt heating and cooling systems, including both single-stage (cooling) and single and two-stage heating systems (non-heat pump), single-stage heat pumps, and heating-only or cooling-only systems. Uses standard thermostat connections:

To check compatibility with your heater or HVAC system please see what terminals are in use at your current heater or HVAC systems.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:

• Vera Plus/Edge/3/Lite
• Fibaro HC2/Lite

 Please Note:

• This device is not compatible with electric baseboard heaters (120 to 240 volts).  It is also not compatible with some multifunction 2-wired Japanese brand heaters and HVAC systems.
• If you are not feeling confident with installing this thermostat get a heater/ac installer to do this job for you.
• This thermostat is backed by a one year limited warranty.
