cel-fi

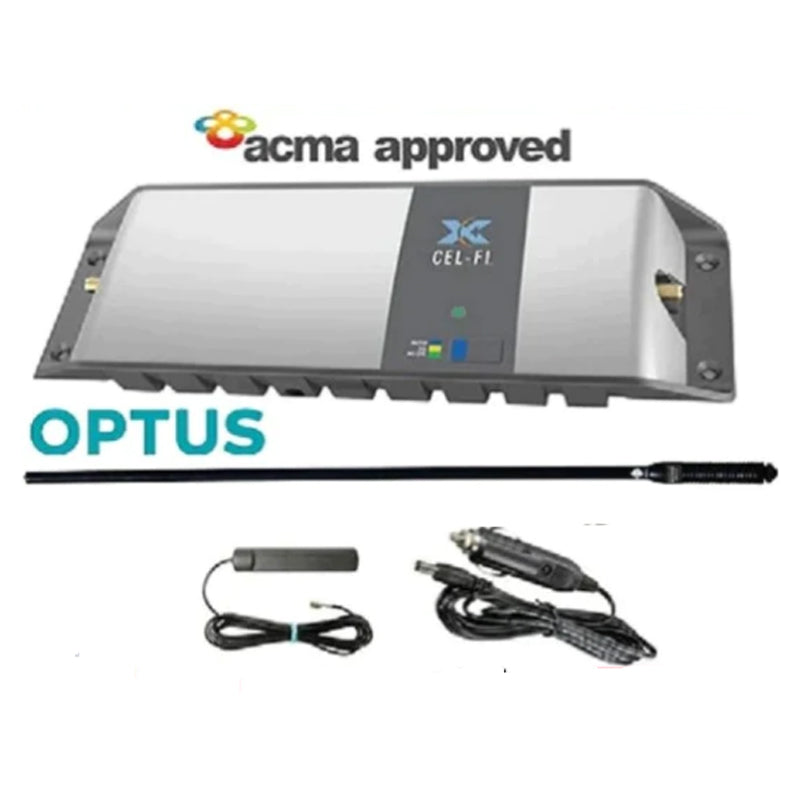

Cel-Fi GO G31-OM-CD7-B Optus 4WD/Trucker Vehicle Pack incl 114cm RFI CD8197-B (7.5dBi) Antenna OPTUS-G31-OM-CD7-B

$1,439.00

CEL-FI GO MOBILE OPTUS + RFI CD8197-B (7.5DBI) BLACK DONOR ANTENNA 1140MM + T5-4M-SMA INTERNAL SERVER ANTENNA (G31-OM-CD7-B)

The Cel-Fi GO Optus Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.

What's included in the bundle...

OPTUS-G31-OM-CD7-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable - SMA male - 1140mm long

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain, while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
Network Safe
Configuration for Mobile or Stationary version via Wave app

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.

Get setup in 5 easy steps

SUPPORTED NETWORKS

Optus Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 900mhz or 4G 700mhz or 4G 1800mhz). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Optus Band 3/8/28
Frequency Range	1800Mhz, 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

What's in the Box

OPTUS-G31-3/5/28MK-CD7-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable - SMA connection

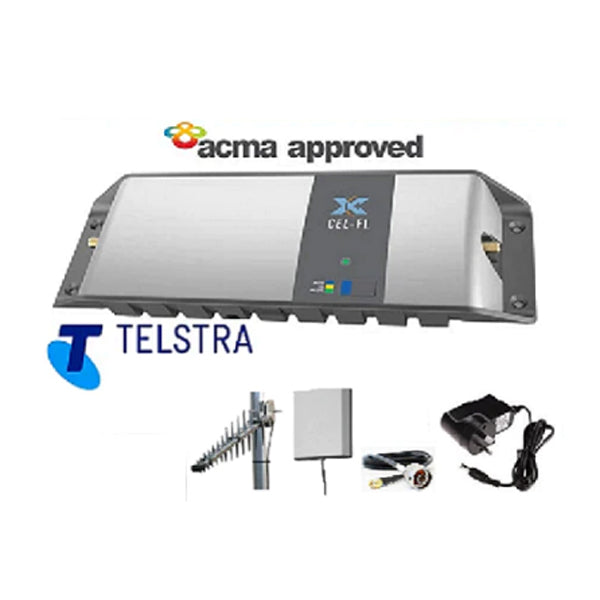

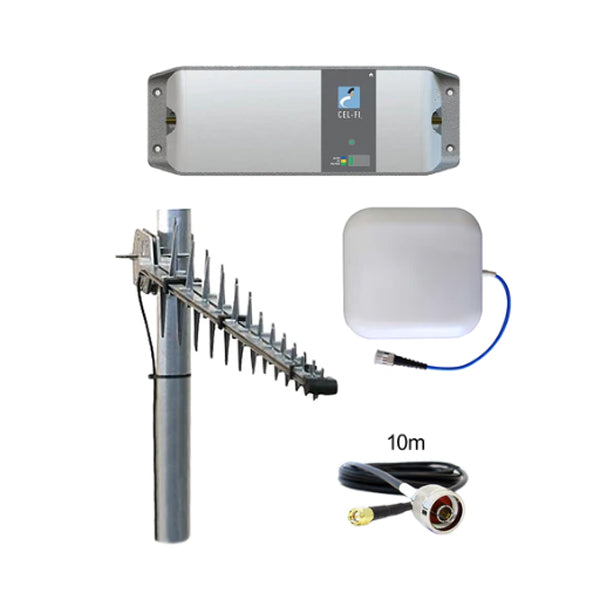

Cel-Fi GO Stationary TELSTRA - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle

Cel-Fi GO Stationary TELSTRA - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle

$1,449.00

CEL-FI GO STATIONARY TELSTRA G31-3/5/28S-LPDA-DAS, 11DBI LPDA7030 DIRECTIONAL ANTENNA | 6DBI DAS6938 PANEL MOUNT DONOR ANTENNA BUNDLE

Each G31-3/5/28S-LPDA-DAS Cel-Fi GO - Stationary Telstra LPDA/DAS bundle consists of...

G31-3/5/28S Telstra 3/5/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack
RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector
DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz, -150dBc, N type connector, IP55
9207N-10 Cable Extension 10Mts - SMA Male to N Female

The Cel-Fi GO Stationary Smart Signal Repeater, the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties, government buildings, agricultural settings, small manufacturing operations, rural areas, businesses, and large homes.

Cel-Fi Go Features:

3G / 4G / 4GX Voice and Data for the Telstra Network
Up to 1,500 m2 of Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated.
Network Safe
Configure for Mobile or Stationary use via Wave app

3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

SPECIFICATIONS - Cel-Fi Go Stationary

Available Frequency Bands (MHz)	Band 3/5/28
Frequency Range	1800Mhz, 850Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	GO unit + AC adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50 Ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

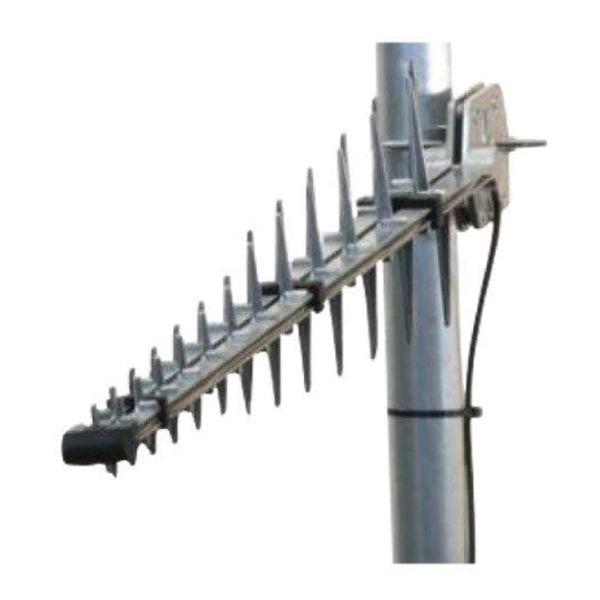

Specifications - LPDA7030-11-10SMA

Nominal Gain dBd	11dBi / 9dBd
Frequency MHz	700 - 1000 / 1500 - 3000
Tunable Bandwidth	Full band.
VSWR	<2.0:1
Polarisation	Linear
Vertical Beamwidth	50 (± 5)
Horizontal Beamwidth	55 (± 5)
Front/Back Ratio dB	20 dB (± 3 bB)
Power W	10
Dimensions mm	1100 x 180 x 60
Length mm	1100
Weight (kg)	1.85
Termination	10 meters cable terminated with male SMA connector

Specifications - DAS6938-SDP150-N

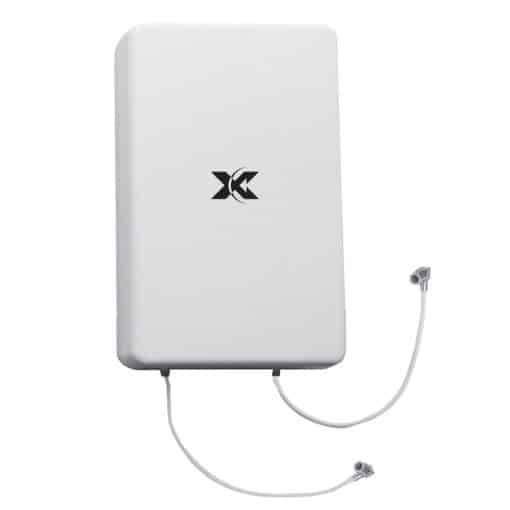

Cel-Fi Quatra Wideband Panel MIMO Antenna

~~$182.95~~ $180.96

Frequency Range	1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Base Gain	0 to 3 dBd
Nominal impedance	50
Power w	50
Nominal Gain Dbi	5/06/2007
Dimensions	165(L) x 155(W) x 50(H)
VSWR	<1.8:1 / <1.5:1 / <1.8:1
Termination	Single 300mm tail with N (F) connector
Construction	UV resistant White ASA, IP55
Passive IM 3rd Order (2x20W) dBc	-150
Horizontal Beamwidth	90 / 80 / 70
Brand	RFI
Weight [kg]	0.33

Frequency Range	698-960 MHz and 1710-2700 MHz
Input Impedance	50 Ω
Gain	6.5 dBi “ 9.0 dBi
VSWR	≤2.0 / ≤1.8
Polarisation	±45°
Isolation	23dB
Horizontal Beamwidth	60° “ 78°
Vertical Beamwidth	55/65° / 75/55°
Maximum Input Power	50W “ 100 W
Lightning Protection	DC Ground

Connector	2 x QMA Right Angle Male with 2m Coax Cable
Dimensions	315x195x68 mm
Shipping Dimensions	385x235x95 mm
Weight	0.95 kg
Reflector Material	Brass and PCB
Radome Material	ABS (UV Stabilized)
Operating Temperature	-40°C to +65°C
Pole Diameter	Ø38-Ø52 mm
