Sort by:

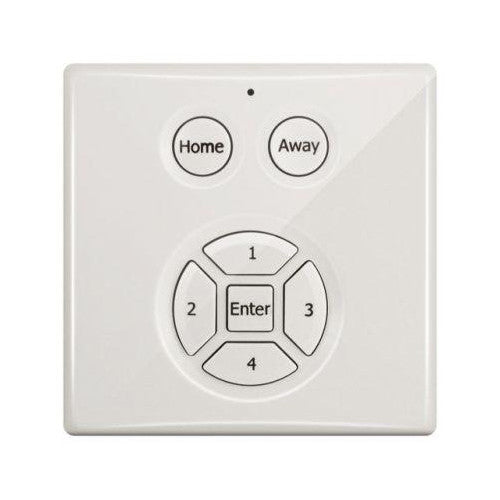

Control your Z-Wave Gateway with the wall-mount Mini Keypad RFiD. The keypad's "Home" and "Away" buttons allow you to quickly arm/disarm your security system and/or run automation scenarios. Four numbered buttons also provide scene controls. In addition to using pushbutton controls, you can wave the included keychain RFiD Key Tag in front of the keypad to arm/disarm the system.
Supported Z-Wave Gateways:
- Vera Lite (UI7)
- Vera 3 (UI7)
Product Details
- Communicates via Z-Wave to arm/disarm a security system.
- Reads RFiD key tags (one included).
- Buzzer indicates arming/disarming.
- Accepts manually entered codes.
- Has indicator light.
Product Support
Manuals:
⇒ DHS RFID Wall Security Keypad Product Manual (Size: 432KB)
⇒ DHS RFID Wall Security Keypad Integration with Vera Manual (Size: 338KB)
⇒ DHS RFID Wall Security Keypad Technical Specification (Size: 170KB)
Technical Specifications
|
Product Name
|
RFID Wall Security Keypad
|
|
Powered by
|
2 x AA 1.5V batteries (from 2.3V to 4V DC)
|
|
Operation Range
|
Up to 30m when no obstacles
|
|
Z-Wave Device type
|
BASIC_TYPE_ROUTING_SLAVE GENERIC_TYPE_ENTRY_CONTROL |
|
Radio frequency
|
921.42 MHz (AUS/NZ Z-Wave)
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
0oC to 40oC
|
| Supported RF Protocols | Z-Wave, ISO15693, ISO18000-3, Tag-it™, RFiD |
|
Sound level
|
60dBa at 10 cm distance
|
|
Housing
|
ABS
|
|
Dimensions (W x H x D)
|
60,8 x 60,8 x 30,4mm
|

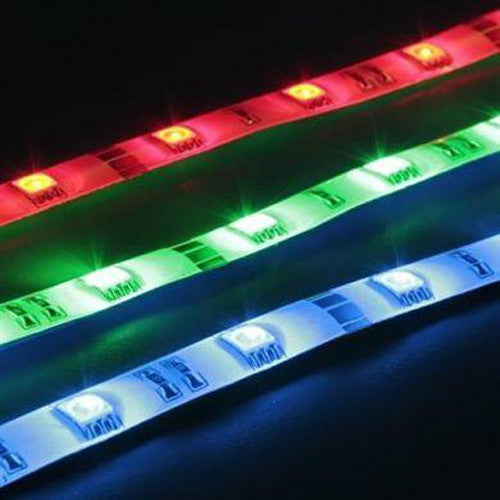

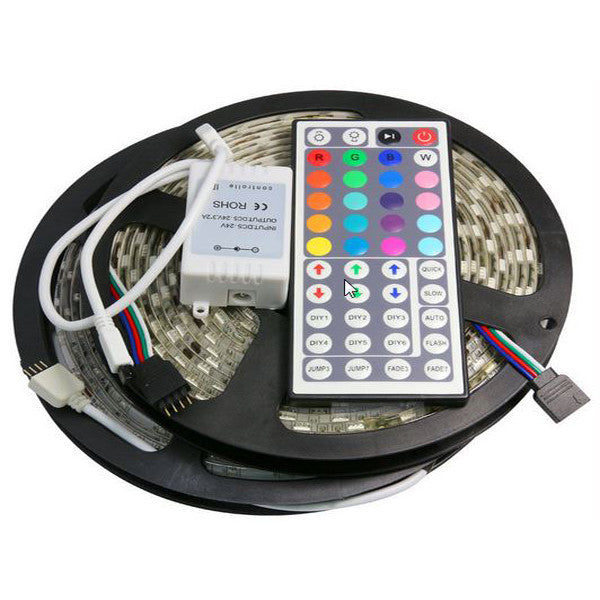

The DHS RGB LED Strip gives you the power to create stunning visual effects in your home allowing you to choose the atmosphere of your home with the use of light.
Unleash your fantasy decorating a living-room or bathroom. Create illumination effect to match weather conditions, your mood or a special occasion. 3 million colours on hand, waiting for your ideas!
This flexible strip light is perfect for any kind of illumination. Silicon gel type waterproof. It can be used for home ceiling, bathroom and kitchen lights, furniture, shelves and cupboards etc.
Product Details
All LED strip lights come standard with 3M adhesive backing which means they can be stuck pretty much anywhere giving you endless creative possibilities. You can use it as it is or together with the Fibaro Z-Wave RGBW Controller to create truly unique effects.
Fibaro Z-Wave RGBW Controller is a one of a kind, advanced wireless 4-colour LED strips controller. Apart from traditional RGB channels it also supports the additional white light channel which allows you to add pastel colours to your lighting decorations. The device may control up to four analogue sensors.
Product Support
Manuals:
Wiring diagram included with product.
Videos / YouTube:
Technical Specifications
|
Type |
RGB LED |
|
Power |
12V |
|
Size |
5 m |
|
Application |
Indoor |
|
Operation temperature |
0 ~ 55 °C |
|
Power consumption |
17W |
|
Storage temperature |
‐10 ~ 80 °C |
|
Weight |
350g |
|
Housing |
Silicon gel |
|
Compliance |
C-Tick |

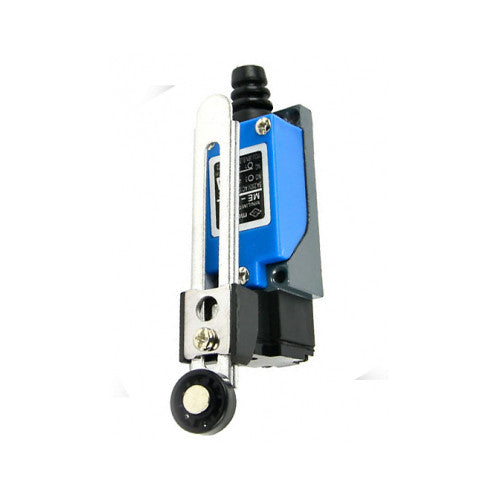

The Garage door limit switch is industrial quality switch operated by the motion of a garage door, gates ect. This switch can be connected with any binary Z-Wave sensors or Z-Wave door/window sensors to report status of garage door.
Please note: z-wave sensor is not included.
Product Details
|
Product Name
|
Limit switch
|
|
Type
|
Mechanical switch
|
|
Humidity
|
95% RH max
|
|
Power
|
Not required
|
|
Wave Length
|
NA
|
|
Operating frequency
|
120 operations/min
|
|
Operation temperature
|
-20°C to 70°C
|
| Service life | Mechanically: 10,000,000 operations min |
|
Net Weight
|
93g
|
|
Housing
|
ABS, alluminium
|
|
Size
|
10.5 x 2.8 x 3cm
|

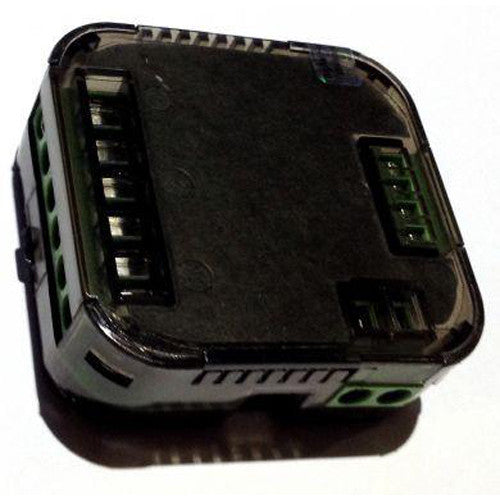

The Z-Wave In-Wall Double Switch Controller is a wireless controller which can be a part of many whole-home automation solutions.
- Control the ON-OFF function of two independent circuits remotely or using a momentary / bell type switch
- Compatible with all Z-Wave networks
- Acts as a repeater expanding your Z-Wave network
- Wide range of compatibility with existing light fittings and does NOT require expensive cabling
Product Details
The Z-Wave In-Wall Double Switch Controller is an advanced Z-Wave controller perfect for remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.
The Z-Wave In-Wall Double Switch Controller is designed to operate inside your wall socket and can be easily installed by a qualified electrician.
The controller is also compatible with many popular BELL PRESS type light fittings including Clipsal IMPRESS and SATURN wall switches.
Example of wiring with Clipsal Saturn range 2 gang wall plate and two 30/60PBBPL Bell Press buttons. Clipsal Saturn range 2 gang wall plate and two 30/60PBBPL Bell Press buttons are sold seperately.
This product integrates with all Australian certified (921.42MHz) Z-Wave controllers including:
- Vera 3/Lite
- Raspberry PI with RaZberry Card
- Fibaro Home Controller 2/Lite
- REMOTEC Z-Wave Advanced Remote Controller
Please Note:
Please check the maximum load before installing or operating.
This installation must be done by a certified electrician in Australia and New Zealand.
Before engaging an electrician, check that they provide an electrical compliance certificate.
For warranty claim you have to provide installation compliance certificate from your electrician.
Product Support
Manuals:
⇒ Z-Wave In-Wall Double Switch Manual (Size: 151 KB)
Technical Specifications
|
RF Protocol
|
Z‐Wave, MultiChannel Command Class
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐wave device type
|
Z-Wave Binary Switch, Routing Slave
|
|
Manual Switch Compatibility
|
BELL PRESS type only
|
| Power |
AC 240V / 50Hz
|
|
Operation Range
|
Up to 20m indoors with no obstacles
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
0 ~ 55 °C
|
| Max Loading |
6A / 1440W each circuit |
|
Storage temperature
|
‐10 ~ 70 °C
|
|
Weight
|
50g
|
|
Housing
|
ABS
|
|
Compliance
|
AS/NZS 4268:2008, AS/NZS CISPR 14.1, IEC60669-2-1
|
|
Regulatory Compliance Mark
|
N5496
|
|
Dimensions
|
(LxWxH) 48mm x 45mm x 18mm
|
Description
Quick Overview
The DHS Z-Wave Multi-Sensor is a small battery-powered sensor which detects movement as well as changes in temperature and luminosity.
- Easy to use and install
- Completely wireless
- Long lasting batteries
- Low battery alarm notification
Product Details
The DHS Z-Wave Multi-Sensor is a smart battery-powered Motion/Temperature/Luminosity sensor. This device is capable of sending Z-Wave commands to any associated Z-Wave devices within its Z-Wave network when someone moves inside a room or the Temperature/Luminosity changes.
This sensor is perfect for controlling the lights in any household. You can set them to switch ON when someone enters the room at night-time but not daytime. The Luminosity sensor can also adjust the amount of lighting – both the number of lights turned on as well as their intensity – based on the degree of natural light in the room.
The sensor reports its battery level as a percentage to the Z-Wave Gateway and has a red LED light which indicates when motion is detected.
This unit can be used to trigger security / warning applications within a Z-Wave network activate lighting scenes and turn wireless switches ON/OFF.
Integrates with all Australian certified(921.42MHz) Z-Wave controllers including:
- Vera 3
- Vera Lite
- DomotiGa
- DHS Z-Wave Universal Remote Controller
Product Support
Manuals:
⇒ DHS Z-Wave Multi-Sensor User Manual and Integration Manual (Size: 594 KB)
Videos / YouTube:
Technical Specifications
RF Protocol |
Z‐Wave (Mulitlevel Command Class) |
RF Frequency |
921.42Mhz ‐ AU/NZ approved RF for Z‐wave |
Programmability |
Programmable delay time sensitivity lux |
Z‐wave device type |
Z-Wave multiple level dimmer routing slave |
Operating Voltage |
3V (2 AA – 1.5V Alkaline Batteries) |
Status Indicator |
LED Light |
Sensitivity Distance |
4-7metres in a 120° angle from front of sensor |
Operation Range |
Up to 30m without obstacles |
Application |
Indoor use only |
Operation temperature |
-5 ~ 55 °C |
Storage temperature |
‐10 ~ 80 °C |
Weight |
42g |
Housing |
ABS 62x62x44 mm |
Compliance |
C-Tick N27640 EMC(Battery operated) EN 55015 EN 61547 |
@10/30
The DHS Z-Wave Plug-In Switch is a smart switch with power measuring function which can be plugged into an Australian certified wall socket and used to turn home appliances ON and OFF.
- Easy to use and DIY install
- Completely wireless
- Control ON/OFF function remotely by Z-Wave™ certified controllers / apps
- Can be operated manually by the button on the device
- Measure and report the power that is consumed through the socket (connected load)
- Australian SAA certification
- Configuration via Z-Wave parameters: Auto switch-off, Power reporting precision, Last knows status, and more
| Product Details |
The DHS Z-Wave Plug-In Switch is a switch which can be plugged into any standard Australian type socket. This smart device can be used to turn your home appliances ON/OFF either manually or remotely using a certified Z-Wave™ controller. DHS Z-Wave Plug-In Switch (Plug-In Appliance Module) is for remote on/off switching of appliances, motor loads up to 1/2HP, or free-standing lights, including incandescent, magnetic low voltage, fluorescent and compact fluorescent loads.
Typical applications include switching of fluorescent lamps, portable fans, kitchen appliances, indoor fountains and more.
This device is fully configurable via Z-Wave™ parameters. E.g. you can set the max load limit at which the switch will automatically turn OFF, or you can specify the power measuring precision, or set how the switch should behave after power off - last remembered status or just OFF. More on configuration via Z-Wave™ parameters in the product manual (attached below).
Integrates with all Australian certified(921.42MHz) Z-Wave controllers including:
- Vera Edge
- Vera 3/Lite
- Fibaro Home Center 2
- Fibaro Home Center Lite
- DHS Z-Wave Universal Remote Controller
Installation:
First, ensure that the target wall socket is switched off. The Z-wave Plug-In should be plugged directly into the wall socket and then the lamp or lighting circuit to be controlled should be plugged into the socket on the Z-Wave Plug-In. Apply power to the Z-Wave Plug-In by switching the wall socket on.
| Technical Specifications |
|
RF Protocol
|
Z‐Wave™
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐Wave™
|
|
Z‐wave device type
|
Power Switch Binary, Routing Slave
|
|
Connections Type
|
Australian type AC socket
|
|
Operating Voltage
|
AC 230V / 50Hz
|
|
Max Loading
|
2200W / 10A
|
|
Status Indicator
|
Red LED light
|
|
Operation Range
|
Up to 30m without obstacles
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
0 ~ 50 °C
|
|
Storage temperature
|
‐5 ~ 65 °C
|
|
Weight
|
150g
|
|
Housing
|
ABS
|
|
Compliance
|
RCM, SAA Approvals SAA-152104-EA
|
| Quick Overview |
The DHS Smoke Sensor is a battery operated Z-Wave ionisation smoke detector. Smoke detection is signaled through siren and LED diode. Additionally, the smoke sensor signal can be sent via Z-Wave gateway to authorised user's smartphones or tablets. The DHS Smoke Sensor is designed to be placed on a ceiling. LED indicator signals fire, operating mode and used to see if device is within the Z-Wave network. The smoke sensor is designed to operate in confined spaces, under normal conditions (lacking smoke, dust, condensed water vapor). Beeping signal warns when the battery needs replacing.
Please note that this smoke sensor can be used only as an auxiliary detector. To fulfil Australian regulation you have to have installed in your dwelling other fully certified in Australia smoke sensors, as a primary smoke detectors. Our Z-Wave smoke sensor can be used only as an additional detector linked to your home automation system. Its Australian certification is pending.
| Product Details |
- Compatible with certified Z-Wave controllers in Australian version (921.42MHz) including: Vera 3 / Lite UI7 and Fibaro HC2 / Lite.
- Extremely easy installation - simply install it in location prone to fire.
- Powered with one 9V battery (not included).
- Alarm is signaled by loud 85db sound and LED diode.
- Hinged cover for easy battery replacement.
- Manual test functionality.
- NWI automated inclusion functionality.
| Product Support |
Manuals:
⇒ DHS Z-Wave Smoke Sensor Manual (Size: 174KB)
| Technical Specifications |
|
RF protocol
|
Z-Wave (binary sensor)
|
|
Battery Type
|
One battery 9V
|
|
Operation Range
|
up to 30m without obstacles
|
|
Radio frequency
|
921.42 MHz (AU/NZ Z-Wave)
|
|
Operation temperature
|
0 - 50C
|
| Application | Indoor use only |
|
Weight
|
90g
|
|
Housing
|
ABS
|
|
Size (Diameter)
|
65 x 28 mm
|

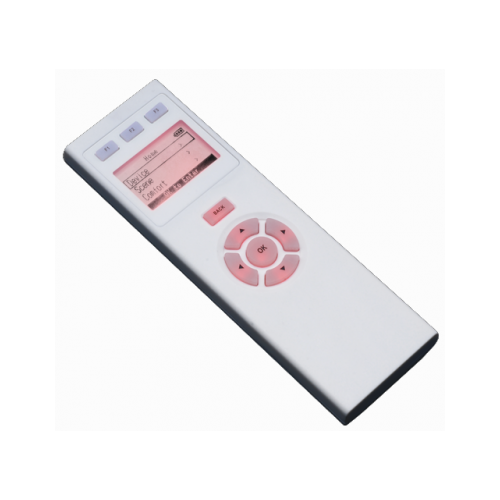

The DHS Z-Wave Advanced Remote (manufactured by Remotec) is capable of creating and controlling a Z-Wave network as well as acting as a secondary controller to an IP Gateway (like Vera 3/Lite).
- Control devices individually or in groups using preset scenes(up to 12 scenes)
- 1 year battery life
- Compatible with most Z-Wave enabled devices
- Supports multi-channel devices
Product Details
The DHS Z-Wave Advanced Remote is a smart Z-Wave controller designed to operate as either a primary controller, capable of creating and managing its own Z-Wave network, or a secondary controller to an IP Gateway (like Vera 3/Lite).
The DHS Z-Wave Advanced Remote works with almost all Z-Wave enabled devices including; binary switches, dimmers, thermostats, door locks, binary or multi-level sensors. Users can control their Z-Wave enabled devices individually or through “Scene” control. A scene is a collection of Z-Wave devices configured to user-preferred settings, levels, modes or operating conditions which can all be activated with a single command.
The DHS Z-Wave Advanced Remote is also equipped with a backlit LCD screen and an intelligent Self Navigated Button (SNB) system. Users can setup and operate their Z-Wave devices using this remote, and enjoy a networked, wireless home automation system anywhere at home.
Works with Z-Wave enabled devices such as:
- Thermostats (DHS Z-Wave Thermostat ZTS-110)
- Door Locks (VISION Z-Wave Deadbolt)
- Window Drapes/Blinds/Shades (DHS Z-Wave Tubular Motor Controller)
- Dimmers (FIBARO Z-Wave In-Wall Dimmer and DHS Z-Wave In-Wall Dimmer)
- Switches (DHS Z-Wave In-Wall Single Switch, AEOTEC Z-Wave In-Line Switch and Fibaro Z-Wave In-Wall Single Switch)
- Most split type air controllers (via REMOTEC Z-Wave A/C Controller)
This product integrates with Australian certified (921.42MHz) Z-Wave controllers:
- Vera 3/Lite
Please note: This device is not compatible with Aeon labs dimmers.
Product Support
Manuals:
⇒ REMOTEC ZRC-100 Advanced Remote User Manual (Size: 582KB)
⇒ REMOTEC ZRC-100 Advanced Remote Quick Setup Guide (Size: 192KB)
Technical Specifications
|
RF Protocol
|
Z‐Wave
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐Wave device type
|
Z-Wave Controller
|
|
Power
|
4 AAA batteries
|
|
Operation Range
|
Up to 30m indoors with no obstacles
|
|
Application
|
Indoor use only
|
|
Operation temperature
|
-10 ~ 40 °C
|
|
Storage temperature
|
‐10 ~ 70 °C, humidity 5 ~ 95%RH(max)
|
|
Weight
|
150g
|
|
Housing
|
ABS
|
|
Compliance
|
C-Tick
|

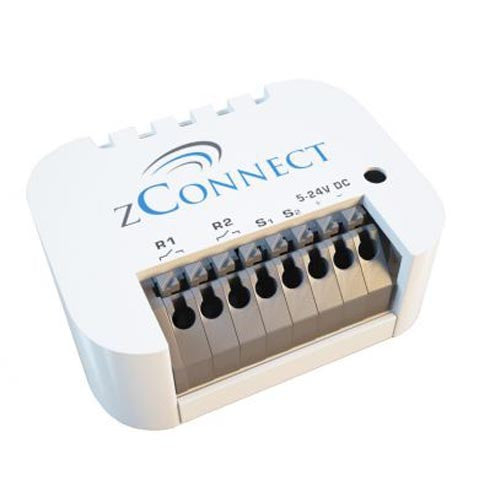

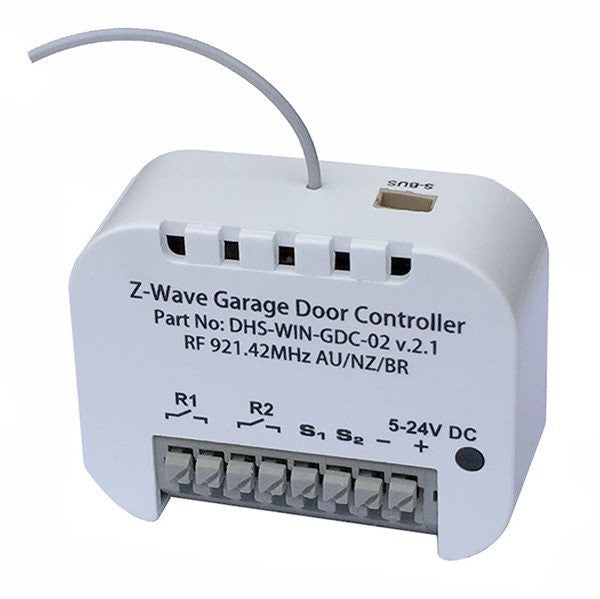

The zConnect garage door opener is designed for residential and light commercial usage, primarily for integration with Z-Wave home automation systems such as VeraEdge/VeraPlus/VeraSecure, Fibaro HC2/Lite or similar.
The zConnect garage door opener pairs with your existing automatic garage door opener via wired garage motor wall opener momentary switch to provide wireless remote opening and closing control from your Z-Wave network and controller. When installed, you can open and close your garage door from anywhere. The zConnect garage door opener has a lot of build in extra functionality.
Please note: This device will work only with garage door motor which has dry contacts for the optional wall switch. Refer to your garage door motor manual.
The controller also includes inputs for binary and multi-level sensors allowing you to fully control your garage environment:
- Attach optional external devices to get audible and visual warnings to alert those nearby of the door's impending movement.
- Connect an optional IR beam sensor to ensure that your garage door only closes when it is safe to do so.
- Connect an optional limit switch which will relay the status of your garage door (i.e open or closed) to your Z-Wave gateway.
Specification
|
RF Protocol
|
Z-Wave , SDK version: 6.51.03
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Application
|
Indoor use only, for outdoor use watertight plastic box
|
|
Power
|
4-24 VDC
|
|
Operation Range
|
Up to 45m indoors with no obstacles, 75
|
|
Enclosure
|
Plastic
|
|
Comliance
|
EN 60669-2-1
|
| Operating Temp. | -10C ~ +40C |
|
Dimensions
|
18mm x 48mm x 37mm
|
