smanos

Description:

The DS2300 works well with any door window or opening. When triggered (separated) an alarm signal will be sent to the system for appropriate response. it also comes with tamper protection to ensure system integrity and can work with other wired detectors.

Specifications:

Power Supply: DC 3V (CR2032 button cell battery x 2) Static Current: ≤ 1 uA Alarm Current: ≤ 10.5 mA Transmitting Distance: ≤ 80 m (open area/no interference) Radio Frequency: 915 MHz (�75KHz) Housing Material: ABS plastic Operation Condition: Temperature 0�C ~ +55�C Relative Humidity ≤80% (Non-condensing) Transmitter Dimensions (LxWxH): 72 x 28 x 10 mm Magnet Dimensions (LxWxH): 58 x 14 x 9.5 mm|

Description:

Easy to carry around on a keychain or in your pocket or purse the RE2300 helps you quickly arm or disarm your alarm system and comes with an SOS panic button.

Specifications:

Power Supply: DC 3V (CR2032 button cell battery x 1) Transmit Current: ≤ 9.5 mA Transmitting Distance: ≤ 80 m (open area/no interference) Radio Frequency: 915 MHz (�75KHz) Housing Material: PC plastic Operation Condition: Temperature: 0�C ~ +55�C Relative Humidity: ≤80% (Non-condensing) Dimensions (L�W�H): 71 x 38 x 12 mm|

Smart Video Doorbell  & Chime Kit
DB-30

The smanos Smart Video Doorbell  & Chime Kit is an exciting new addition to the smanos smart home portfolio. The completely wire-free Video Doorbell  is easy to install, for outdoor use. With just 3 AA batteries and normal usage, it is estimated to last for approximately 10 to 12 months before a change of batteries. When someone presses on the bell button, the Wireless Chime will ring, and you and your family get an instant notification on your smartphones, enabling you to see and speak with your visitor no matter where you are in the house or in the world.

*Battery life is measured by an average of 2 presses on the bell button per day with recommended Alkaline batteries.





100% Wire-Free Design

With ultra-low power consumption technology, this Video Doorbell works under normal usage for about 12 months in standby mode with 3 AA batteries. No wiring or cable is required. Just apply the provided bracket and screws to affix the doorbell to your door frame, and then connect the doorbell to your home WiFi network by following the step-by-step instructions in our free app, and you are good to go. The Wireless Chime included works exclusively with this doorbell and is a plug-&-play device, which can be plugged into any standard power outlet inside your home.

Answer Your Door Anywhere, Anytime

When someone presses on your doorbell, you will get an app push notification right away. A preview image enables you to see who is outside first and decide whether or not to pick up the call. After you pick up, you are able to see, hear and speak with your visitor in 720p HD video and two-way audio from anywhere in the world where your smartphone has a data or WiFi connection.



Free Cloud Storage

You no longer need to worry about local storage or any visit that you might have missed. For each press of the doorbell, a 15-second video clip will be securely encrypted and saved to our cloud server (housed on AWS®). Right now, a ONE-YEAR Basic Plan* is offered to each smanos video device for optimal user experience. After the first year is up, you can easily downgrade to Free, or subscribe to Basic or Premium plan directly in the app, at your fingertips. Sheck more information on the smanos cloud.

*Basic Plan stores event-based video clips from the past 7 days.



Sharing Devices with Family or Friends

Everyone in the family can have their own account for free. The person who sets up the doorbell is the Main Administrator, who can then share device access with up to 10 family and friend accounts with two levels of access rights - Admin or User. Admin will have full access rights, except for re-sharing the devices, while User will only receive alerts and edit their own account information.



Specifications
Doorbell

• Power supply
  AA 1.5V Alkaline batteries x3 pcs
• Image sensor
  1/4-inch,1-megapixel CMOS sensor
• Video quality
  1280x720
• Field of view
  80 degrees
• Night vision & motion detection
  No
• Wi-Fi
  802.11 b/g/n (2.4G)
• Security
  128-bit AES with TLS/SSL
• Operation temperature
  Temperature: -10 ℃ to 50 ℃, humidity:<90% RH (non-condensing)
• Dimensions
  147 x 40 x 35 mm (L x W x H)

The complete Smanos smart home system lineup speaks minimalistic elegance, letting you self-install and self-monitor. The IP6 is an all-new addition to the Smanos wireless smart home portfolio. Download the app by searching IP6 camera" from the app store or Google Play, or just scan the QR code on the back of the box. Via the app, you get to see and hear what's happening on your property anywhere, anytime. The built-in Hi-Fi microphone and speaker ensure high-quality, 2-way audio communication and the industrial-grade SONY image sensor renders sharp video footage around the clock.

• 1-touch Wi-Fi setup for quick connection
• 720p HD video anywhere, anytime
• 2-way communication
• Super wide angle at 5 MP
• Supports on-board storage up to 32GB
• 1-touch to share unforgettable moments
• Image sensor: 1/4 in. progressive scan CMOS
• Lens: 2.4 mm F2.0
• Angle of view: 95°
• Day and night: IR cut filter with auto switch
• Video compression: H.264
• Storage: built-in micro SD card slot, up to 32GB
• Power supply: DC 12V ± 10%
• Remote Monitoring - of Your Home, Office, Family, Pets - Made Easy

SPECS
Camera connection

• Wireless Cameras

Camera resolution (TVL)

• 720

Camera Technology

• Digital

Camera Type

• CMOS

Camera Use

• Indor only Cameras

Features

• 3-Axis Adjustable Camera,HDMI Port,Night Vision,Remote Internet Viewing,USB Connection,Video Style,WiFi Enabled

Field of View

• 90 Degrees

Hardwired or Plug-in

• Plug-in

Night vision distance

• 40

Number of cameras included

• 1

Operating Range (ft.)

• 40

Shape

• Rectange

Surveillance Camera Type

• Standard

The award winning Smanos K1 wireless smart home security system is Smanos's latest wireless, integrated smart home and security gateway, combining butler and guard-like functions into aesthetically designed round discs. The Smanos K1 is compatible with Google Home, Amazon Echo and Phillips Hue, offers intuitive on-site as well as remote smartphone operation of up to 50 connected wireless, DIY friendly, battery-powered devices. This includes sensors for doors & windows, motions sensors for hallways, bedrooms and living areas. The K1 is a proud winner of Red Dot Product Design and Computex D&I Gold Awards.

Features list:

• 100% wireless
• Plug and play for quick and easy installation
• Monitor and control via free Apple & Android APP
• Compatible with Amazon Echo and Alexa
• Grant full access or restrict user permissions
• Away/Stay/Home arming options
• Schedule auto Arm/Disarm times
• Grant temporary access with time limits
• Exit and entry delay options
• Zone name and location customisation
• Two-way communication between sensors and K1 hub
• Operation and event log history
• Alarm, low battery and status alerts via APP push and email
• View UFO IP cameras from one Smanos APP
• 24hour SOS emergency triggering via APP

Package includes:

Smart Hub
Award-winning design for any home decor Plug and play
Sends push notifications and email messages when sensors are triggered
Operation and event log
Two-way communication between sensors and K1 hub
Views the doorbell and cameras from one smanos app
Accommodates customizable rules for connected devices
Grants temporary access with time limits

Door/Window Sensor
Detects openings and closings on doors or windows
Easy to install with 3M double-sided adhesive tape
Battery life up to 5 years
Tampering alarm

Security Keypad
Arms, Disarms and Home Arms the K1 system from 250 ft (80m) away (open area)
Feeds back system status
before Arming or Disarming
Unique non-numeric passcode
Battery life up to 2 years
Tampering alarm

Pet-Friendly Motion Sensor
Detects motion within 25 ft (8m)
Detection range: 90 degrees
Pet-immunity up to 55 lbs (25kgs)
Battery life up to 2 years
Mounting brackets for wall and corner
Tampering alarm

Indoor Siren
90dB loud deterrent
Battery-powered, no wires
Battery life up to 2 years
Tampering alarm



Specs
Model	Smanos K1
Application	Home / Office / Unit
K1 Hub Communication Method	Push Notification and email via WiFi Internet Connection
WiFi Modes	802.11b/g/n with WEP/WPA/WPA2 encryption 2.4GHz
Self-Monitored or Local Alarm	Self-Monitored with Cloud Storage
Internal Siren Volume	85-95dB
PIR Detection Range	8 metres outwards, 110 degree angle
Low Battery Notification	Yes
Wireless Working Frequency	915MHz Approved for AU & NZ
Wireless Transmission Range	Approx. 40 metres through two walls
Optional Accessories	Up to 50 wireless devices
Back-up Battery	Yes (Approx. 24 hours standby power)
Power Supply	12volt DC 500mA
Warranty	2 years

The award winning Smanos K1 wireless smart home security system is Smanos's latest wireless, integrated smart home and security gateway, combining butler and guard-like functions into aesthetically designed round discs. The Smanos K1 is compatible with Google Home, Amazon Echo and Phillips Hue, offers intuitive on-site as well as remote smartphone operation of up to 50 connected wireless, DIY friendly, battery-powered devices. This includes sensors for doors & windows, motions sensors for hallways, bedrooms and living areas. The K1 is a proud winner of Red Dot Product Design and Computex D&I Gold Awards.

MD-20 Pet-Friendly Motion Sensor

Detects for motion while allowing your pet (under 25 kgs / 55 lbs) to move about in the house with complete freedom with an industry-first round lens

• Works with the K1/K2
• Detects motion within 8 m (26 ft)
• Detection range: 90 degrees
• Pet-immunity up to 25 kgs (55 lbs)
• Battery life up to 2 years
• Mounting brackets for wall and corner
• Tamper switch & alerts

Specifications

• Model: MD-20
• Power: 3V CR123A Lithium battery x 2 pcs
• Frequency: 868MHz or 915MHz (N. America)
• Wireless range: 80 m / 262.5 ft (in open area)
• Operating conditions: temperature 0-50°C (32-122°F),
  humidity < 90% RH (non-condensing)
• Dimensions (L x W x H): 85 x 85 x 36mm

Description:

Leveraging proprietary infrared technology fuzzy logic and sophisticated algorithm the sensor accurately detects human body movements within an approximate range of 8 meters and effectively cuts down on interference and false alarms with automatic temperature compensation and anti-draft technology. The unit works well in the corner of a lobby hall or corridor.

Specifications:

Power Supply:DC 3V (1.5V AA battery x 2) Static Current:≤ 50 uA Alarm Current:≤ 11 mA Detection Scope: 8m/110� Transmitting Distance:≤ 80 m (open area/no interference) Radio Frequency:868 MHz (�75KHz) Housing Material:ABS plastic Operation Condition:Temperature: -10�C ~ +55�C Relative Humidity: ≤80% (Non-condensing) Detector Dimensions (LxWxH): 101.5 x 59 x 37.5 mm Bracket Dimensions (LxWxH): 60 x 29 x 27 mm|

Description:

In case of an emergency simply press the PB1000 and your alarm system will be triggered for appropriate action. It must be used with a Smanos alarm control panel or smart home hub.

Specifications:

Power Supply: DC 3V (CR2032 lithium battery x 1) Alarm Current: ≤ 7 mA Transmitting Distance: ≤ 80 m (in open air) Radio Frequency: 868 MHz Housing Material: ABS plastic Operation Condition:Temperature: -10�C ~ +55�C Relative Humidity: ≤80% (Non-condensing) Dimensions (L�W�H): 52 x 54.5 x 10 mm|

Knock Knock, Who's There?

smanos Smart Video Doorbell is an all-new addition to the smanos smart home portfolio, powered by smanos’s signature form and function as well as ease of use. When someone presses on the bell button or the built-in motion sensor detects movements, you and your family get an instant notification on your smartphones, enabling you to see and speak with your visitor no matter where you are in the house or in the world, anytime of the day. You can also proactively wake up the smanos doorbell on demand and see what might be happening on your porch or driveway as you wish.

Remote Monitoring

With the free iOS orAndroid app that comes with smanos Smart Video Doorbell, you can be anywhere in the house or in the world, and see and talk to your visitor when the doorbell is running, as if you were on the other side of the door. You can also pull up the app and 170-degree fisheye video anytime you wish, to make sure no one is loitering on your driveway on front porch.



Cloud-based Video Recording

Optional cloud recording lets you replay, download and share video clips of visitors or motion-triggered events.



Powered by Existing Door Chime and backup Battery

The smanons doorbell perates on AC 8-24V(power regulator module included), which can be powered by your existing door chime to doorbell wires. A built-in backup battery ensures 2 hours of standby time, and sends you a notification in case of power outage.



Specifications

• Model No:
  DB-20
• Power supply:
  AC 8-24V
• Camera:
  Full HD 1080p
• Angle of view:
  Horizontal 170°, Vertical 90°
• Video compression:
  H.264
• Night vision:
  Automatic IR-cut filter
• WiFi:
  802.11b/g/n/ac with WEP/WPA/WPA2 encryption 2.4GHz + 5GHz
• ERP (dBm) MAX:
  18
• Tampering protection:
  Yes
• Operating conditions:
  Temperature: -20~+50℃ (4~122℉), Humidity < 95% RH (non-condensing)
• Dimensions(LxWxH):
  131.7 x 62.2 x 36.2mm"

Description:

This photoelectric detector is designed to give early warnings of a developing fire by sounding its built-in siren. It is recommended for corridors basements penthouses or other confined spaces.

Specifications:

Power Supply: DC 9V 6F22 battery x 1 Standby Current: ≤ 5uA Alarm Current: ≤ 15mA LED Frequency in Working State: Once every 32 sec. LED Frequency in Alarming State: Once every 0.62 sec. Low Battery State: Beep once with a LED flash per 60s (last for 30 days) Operation Condition: Temperature: -10�C ~ +55�C Relative humidity: ≤95% (non-condensing) Monitoring Area: 20m� Alarm Sound: 85dB/3m Radio Frequency: 868 MHz Transmitting Distance: ≤ 80m (in open air) Housing Material: ABS plastic Dimensions (L x W x H): 102 x 102 x 31 mm|

Description:

The SS1005 is a compact siren with wall plug-in design and can work with any Smanos alarm system or control panel as an additional indoor siren. It draws attention away from the main control with a loud siren and rapid flashes in the unfortunate event of a triggered alarm.

Specifications:

Color Options: Blue Orange Power Input: AC 100-240V 50/60Hz Static Current: ≤ 13 mA Alarm Current: ≤100 mA Internal Siren Volume :90 dB Supported Accessories: 40pcs Battery: 3.7V 600mAh lithium battery Radio Frequency: 868 MHz or 915 MHz Housing Material: PC+ABS plastic Operation Condition:Temperature: -10�C ~ +55�C Relative Humidity: ≤80% (Non-condensing) Dimensions (L�W�H): 90 x 90 x 42.2mm (Not include the plug part)|

Description:

The SS2603 is a stylish outdoor solar-power siren completely free of wires. The unit can also work with other accessories such as remote controls door/window contact sensors and PIR detectors independently without a Smanos control panel. In the event of insufficient sunlight it supports up to 50 days of standby time.

Specifications:

Backup Power: 18650 3.7V 1800mAh rechargeable battery x 1 9V 6F22 battery x 1 Solar Panel Output Current: 2000 LUX Illumination ≥4 mA (fully charged) Maximum Alarm Current: 500mA Static Current: ≤ 1mA Standby Time: ≤ 50 days (fully charged) Transmitting Current: ≤ 10mA Receiving Distance: ≤ 80 m (in open air) Maximum Siren Volume: 110dB Radio Frequency: 868 MHz Housing Material: PC+ABS+ANTI-UV Operation Condition:Temperature: -10�C ~+55�C Relative Humidity: ≤80% (Non-condensing) IP Rating: IP 65 Dimensions (L�W�H): 309 x 230 x 79.7 mm|

Armed with an HD fisheye lens, superior night vision and accurate motion detection mechanisms, smanos UFO Panoramic WiFi camera brings clarity, immersive vision and ease of use to home monitoring.

Design That Fits Your Home Decor

Extra thin, light, and trendy. The UFO-shaped camera is constructed with high-quality, ceramic-like ABS plastic to ensure its lasting beauty for many years to come.

An All-Seeing Eye

The smanos camera works independently or with smanos K1 system, delivers six types of HD view (Birds Eye, Panorama, Hemisphere, Triple View, Two Halves, and Quad View).

Guard Your Home Around the Clock

The smanos UFO keeps an eye on your loved ones and home, day or night, and automatically records everything onto a microSD(TM) card (to be purchased separately) which can be accessed from your smartphone in the "smanos home"

The UFO is always recording in a loop onto your microSD™ card, and you only get notifications when motion is detected (user adjustable). You can access recorded footage or motion triggers remotely from anywhere in the world, anytime.

Security, Beauty, Comfort, All in Your Hand

The UFO's 180-degree (desk or wall mount) or 360-degree (ceiling mount) field of view means that you get to keep an eye on your loved ones or property – with no blind spot, day or night – on your iPhone or Android phone anywhere, anytime without monthly fees.

Features:

• 24/7 on-site recording - The microSD™ card slot supports Cards up to 32GB for continuous local video recording.
• In the Know, On the Go - You and your family members get alerted Whenever the UFO detects motion.
• Stay Connected - Engage in a two-way conversation as long as your UFO is connected to your home WiFi network.
• Elegance at Home: Less is More - The UFO camera can be ceiling-, wall- or desk-mounted.



Specifications

• Model:
  PT-180H
• Power:
  DC 5V 1A
• Camera:
  full HD 1080p
• Field of view:
  horizontal 180°, vertical 180°
• Video compression:
  H.264/MJPEG
• Video resolution:
  1080p 1920x1080 / 720p 1280x720 / VGA 640x480
• Night vision:
  yes, auto IR-cut filter
• WiFi:
  802.11b/g/n/ac with WEP/WPA/WPA2 encryption 2.4GHz+5GHz
• On-site storage:

  microSD™ card up to 32GB (not included)

• Operating conditions:
  0-50℃, humidity < 95% RH (non-condensing)
• Dimensions (L x W x H):
  106 X 106 X 36mm

Security Simplified:The W020 is ready to go as soon as you connect it to your WiFi router. Add wireless sensors and accessories to the system directly on your smartphone app anytime as you wish as your security or smart home needs evolve. Smanos W020 is ideal for residences SOHOs and small shops.Smanos W020 comes with futuristic curved design and simplistic elegance so it blends in well with almost any type of residential d�cor. Discreet security that simply works is priceless.|Intuitive Operation:Smanos W020 stays true to plug-and-play. Simply plug in the power download the free iOS or Android app setup WiFi with Smart Link add and pair wireless sensors or accessories and you go out to play with complete peace of mind! System maneuvers such as siren volume and time exit and entry delays sensor additions or deletions and many more intuitive settings can all be done with a few swipes and taps on your smartphone.|As Easy As 123:Who knew security could be this sexy" With no wires and no fuss Smanos W020 is a smart system that will grow on you and grow with you. From door/window contacts and PIR motion sensors to flood gas and smoke detectors everything is wireless and will go wherever you want them to with 3M tapes turning your security reinforcement into a fun DIY project.|Security Redefined:Security resilience is built in the system with 1 million radio frequency codes combinations.|Reliable Tech:With world-class proprietary 868/915 MHz wireless protocol Smanos W020 ensures long-distance interference-free communication within the system. It makes sure you get the call (in the form of push notifications).|On Guard 24/7:Smanos W020 works around the clock and stays vigilant at all times without dozing off (like security guards do). Its backup battery ensures 60 hours of extra vigilance in the event of power outage or sabotage.

Specifications:

Model No.: W020 Power Supply: DC12V 500mA Battery: AA 1.5V LR6 x 4pcs Standby Current: ＜30uA Alarm Current: ＜200mA Internal Siren: 105dB (High Volume) Expandable Accessories: 10 remote controls 30 sensors Radio Frequency: 915MHz Housing Material: ABS plastic Operation Condition: Temperature: 0�C~+55�C Relative Humidity: ＜80% (non-condensing) Dimensions (L x W x H): 117 x 118.5 x 40.5mm|

Plug & Play:The W100 is a dual-network WiFi / Phone Line friendly alarm system with very simple wireless setup and no mechanical keys to wear out. Simply plug in a Phone Line follow easy setup steps via WiFi and voila your house is protected. You can then control the entire system via smartphone app commands and when an alarm is triggered pre-programmed numbers will get a notification call or a push message.|Beauty & Techie:The W100 is a sleek-looking security appliance that works in disguise and blends in effortlessly with any residential d�cor. The LED screen and touch panel are intuitive to operate on and age well with time.|Double The Security:The Phone Line connection is the primary line of defense. If an alarm is triggered the system dials out to pre-programmed numbers for appropriate response; authorized numbers can also dial in for necessary setup changes. The WiFi connection is IEEE802.11b/g/n compatible and works as backup. If an alarm is triggered and the landline is compromised the system can still send out alerts and accept smartphone app commands. Dual networks double the security.|Relentlessly Reliable:Up to six phone numbers can be pre-programmed for emergency notifications. The W100 alarm controller communicates with its detectors and sensors on proprietary 915MHz making all signal transmissions stable and interference-free.|Remote Wonders:The smartphone app is iOS7-compatible and always stays connected to the system controller via WiFi; its interface is aesthetic to look at and intuitive to operate on like its hardware counterpart.

Specifications:

Model No: W100 Power Input: DC 12V 500mA Static Current: ≤65mA Alarm Current: ≤230mA Backup Battery: 3.7V 1800 mAh 18650 lithium battery Internal Siren Volume: 110 dB Supported Accessories: 10 Remote controls 30 Sensors Radio Frequency: 915MHz (�75KHz) Housing Material: ABS Plastic Operation Condition: Temperature 0�C ~ +55�C - Relative Humidity ≤80% (Non-condensing) Dimensions (L�W�H): 138.8 x 125 x 125.5 mm|In The Box:WiFi/Phone Line Alarm System �1 MD2300 Wireless PIR Motion Detector �1 DS2300 Wireless Door/Window Contact �1 RE2300 Wireless Remote Control �2|

Monitor the open / close status of virtually any door or window. When triggered (opened), a wireless signal will be sent to the K1 alarm system for appropriate response. As well as normal Away mode, you can arm your K1 Hub in Home mode so that doors and windows are monitored at night, but you can still move around your home freely. It also includes anti-tamper protection to ensure system integrity.

Description

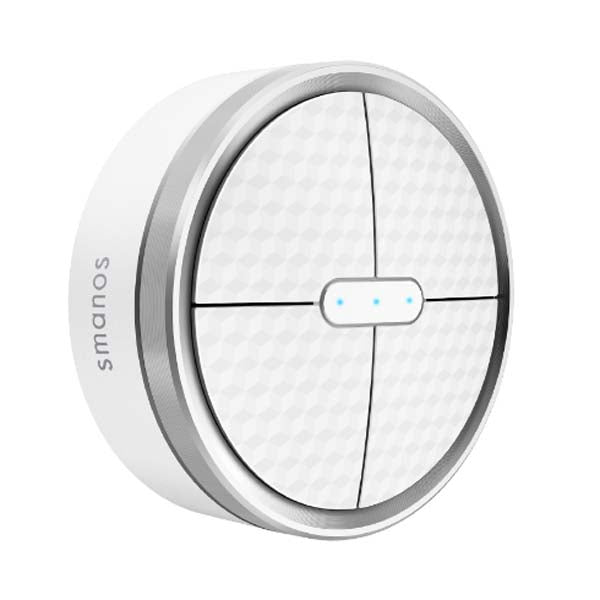

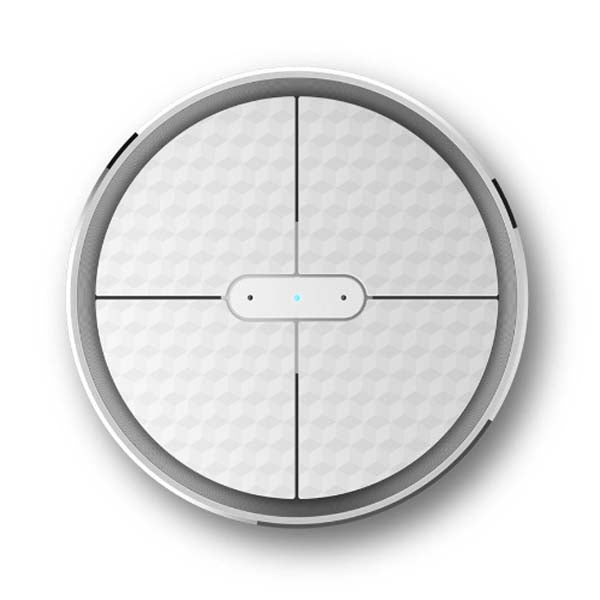

Smanos Wireless Keypad

Easily arm (home or away) and disarm your Smanos K1 Alarm using this unique, non-numeric passcode keypad. With a 2 year battery life and completely wireless, you can place it anywhere you would like convenient control of your Smanos K1.

Description

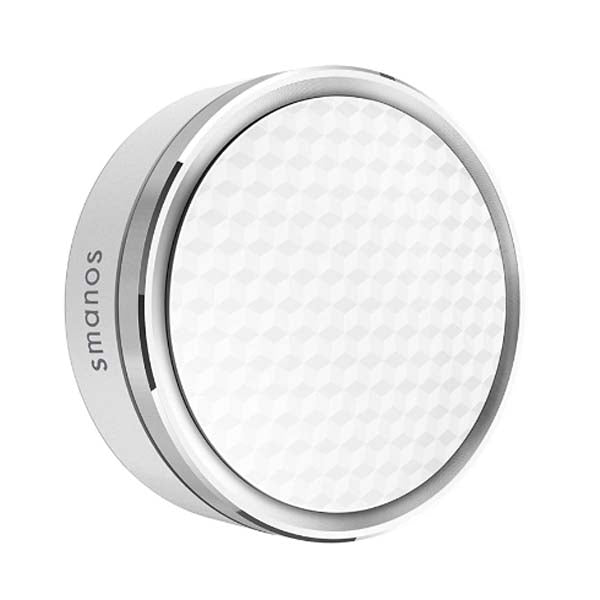

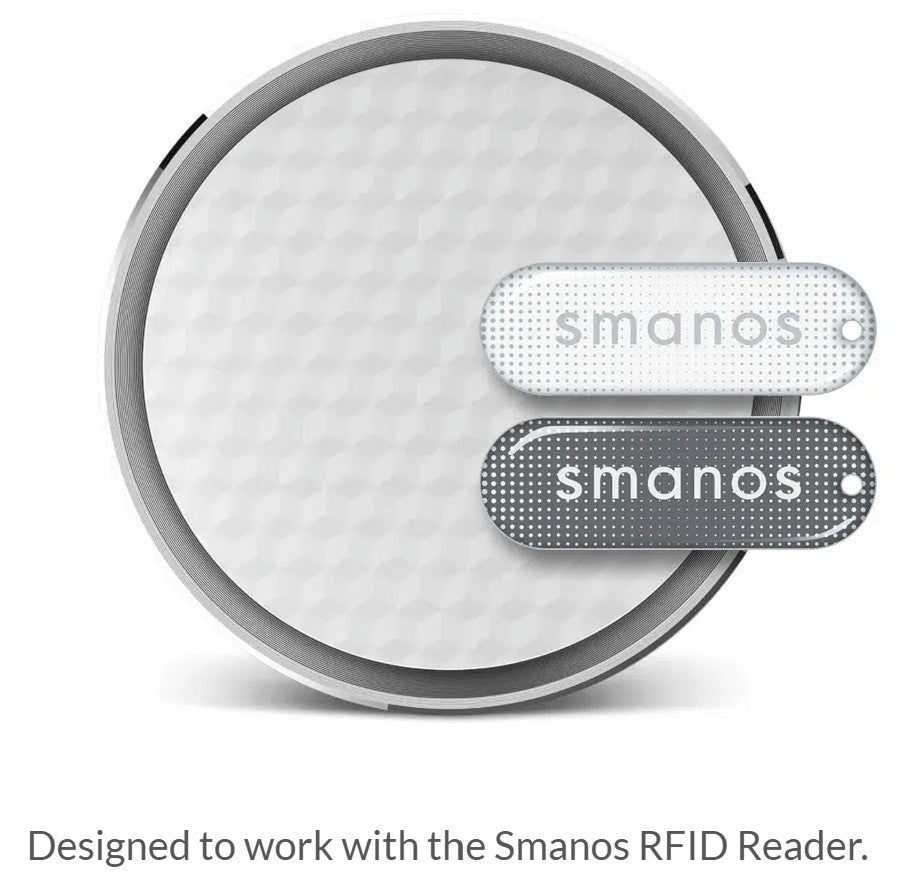

Smanos Wireless RFID Reader

Arm (home or away) and disarm your K1 Alarm System with a simple rotation of the ring and simple swipe with one of the included RFID tags. With a 2 year battery life and completely wireless, you can place it anywhere you would like to convenient control of your Smanos K1.

Description
