Epson Moverio BT-35E HDMI & USB-C augmented reality AR Smart Glasses with video recording

$1,389.00

Estimated delivery between September 05 and September 07.

Minimum of 1 / increment of 1

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!


BT-35E Moverio Smart Glasses / Augmented Reality Glasses

Key Features

  • Si-OLED display – For more natural colour and brighter images
  • Durable and flexible design – Designed to be worn easily by a wide range of users, utilizing adjustable arms to maximise comfort
  • HDMI and USB-C connectivity – Deliver a low-latency experience utilizing USB 2.0, USB C and HDMI inputs
  • Amazing image quality – HD display (720p) & high brightness ensure a crisp image and vivid colours with a 16:9 aspect ratio
  • Ideal for commercial applications – Such as healthcare, engineering, commercial drone piloting and more
  • Crisp Sound Quality – Using 3.5mm sound output to maxise immersion when in use
  • Capture the moment – 5 Megapixel camera to ensure high quality imagery on the go
  • State of the art sensory technology – Allowing for an accurate physical and visual experience, containing features such as Compass, Gyroscpe, Accelerometer and more

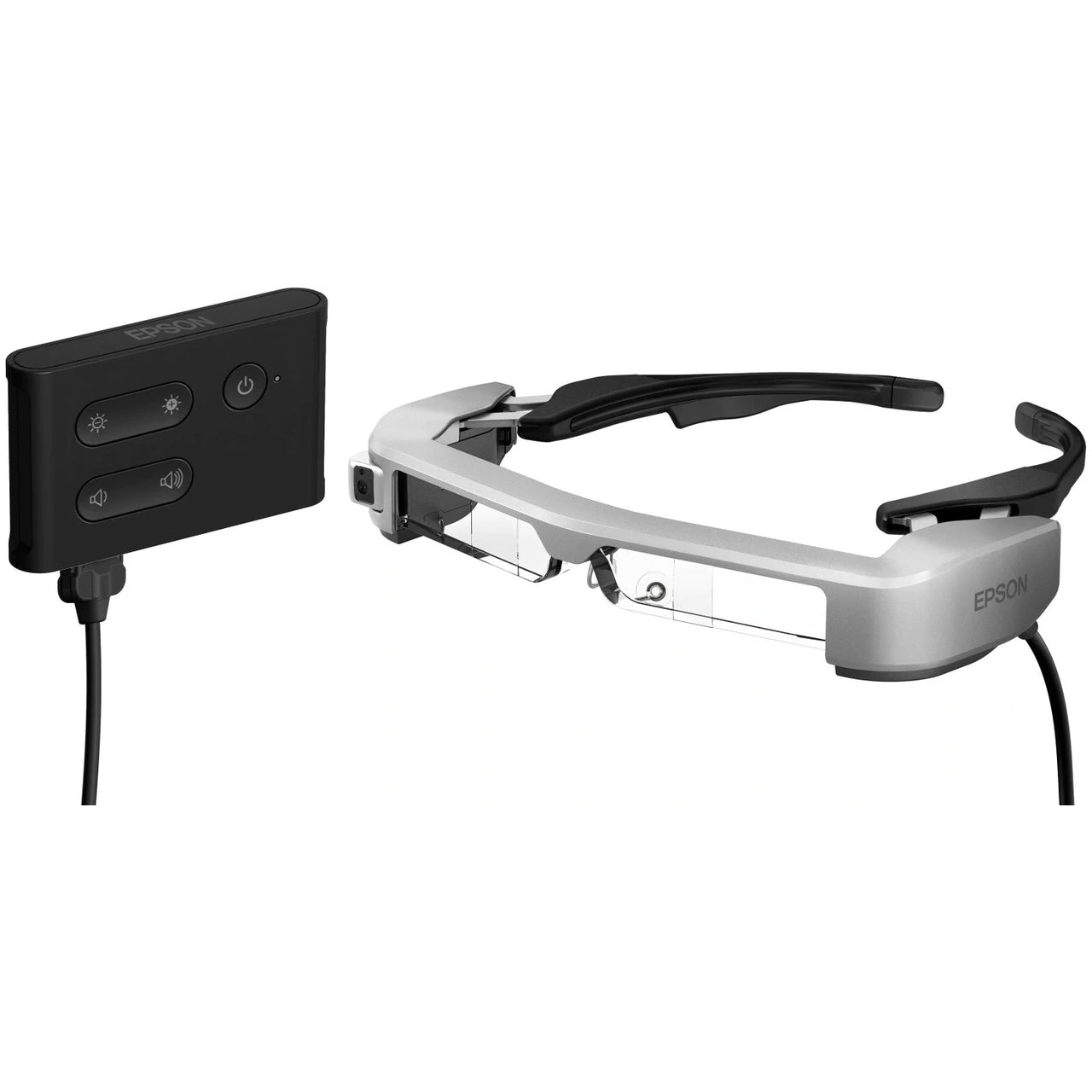

Epson Moverio BT-35E HDMI & USB-C Smart Glasses



Moverio - Smart Eyewear

The Epson Moverio journey began almost 30 years ago, in 1989, with the production of our first Epson 3LCD projector. Since then, Epson has released three self-contained, binocular augmented reality (AR) systems – from the BT-100 in 2011 to the BT-200 in 2014 to the BT-2000 in 2015 to the BT-300 in 2017.

With the BT-35E, users can focus on the task at hand with these hands-free Si-OLED-powered binocular see-through smart glasses that can deliver a range of content at low latency from a range of devices using HDMI or USB-C connectivity.

The design and wearability is key, and the BT-35E is designed with commercial applications in mind. Its durable build and features designed for comfort mean it can be repeatedly worn by lots of users, fitting comfortably for long periods of time, no matter their head shape and size, or if they wear glasses.

Work. Play. Visualize. Experience MOVERIO today.



Specifications

OPTICAL
Display Size 0.43 inch wide panel (16:9)
Pixel Number 921,600 pixels (1280 RGB x 720)
Refresh Rate 30 Hz
Field of View 23 degrees (diagonal)
Screen Size (Projected Distance) 40 inch at 2.5 m - 320 inch at 20 m
Colour Reproduction 24 bit-colour (16.77 million colours)
SENSORS
Compass Yes
Gyroscope Yes
Ambient Light Sensor Yes
Accelerometer Yes
Data Transfer Method USB Protocol - USB 2.0
Device Class for Sensor - HID Sensor
CONNECTIVITY
Data Transfer USB Protocol - USB 2.0
Data Type Sensor Data, Camera Data, Headset API control, Firmware Update
Video Input HDMI TypeA, USB Type-C
CAMERA
Pixel Number 5 Mega Pixels
Resolution and Flame Rate 2592x1944 (5M) @15Hz, 1920x1080@30Hz/15Hz, 1280x720@60Hz/30Hz/15Hz, 640x480@60Hz
Focus Type Pan focus
Focus Length 60cm to ∞
Field of View Horizontal - 67.7 degree
Vertical - 53.2 degree
Diagonal - 79.3 degree
Function Automatic adjustment for exposure, white balance
Data Transfer Method USB Protocol - USB 2.0
Device Class for Audio - UAC
Device Class for Video - UVC 1.1
Supported File Format Motion-jpeg
USER INTERFACE
Display ON/OFF (Standby mode) Standby Button
Display ON/OFF (AV Mute) Standby Button
Brightness control Brightness Key (+ / -)
Volume control Volume Key (+ / -)
Auto brightness control Brightness Key(+)and Volume Key(+) at the same time
2D/3D Brightness Key(-)and Volume Key(-) at the same time
Mode setting Power Button and Brightness Key(+) at the same time;
Mode 1 - Normal mode(Power save mode ON)
Mode 2 - Power save mode OFF/Standby button (enabled)
Mode 3 - Power save mode OFF/ Standby button (disabled)
SOUND INPUT/OUTPUT
Audio Jack 3.5 φ 4 pole mini jack (Earphone with microphone CTIA standard compatible)
Supported Earphone Play Frequency Band - 20Hz - 20k Hz (recommended)
Impedance - Over 16Ω
Output (maximum voltage) - Under 27mV
3.0mW
Supported Mic Impedance - 2.2kΩ@1kHz
Directionality - Omnidirectional
OTHER
Supported 3D Format Side by Side format
LED Indicator Orange/Blue/White
OSD Function No Signal, Brightness Setting, Volume Setting, 2D/3Dmode Setting, Auto Brightness Setting, Mode Setting
Firmware Update Supported (Require to conect with PC by USB type-C)
Supported the OS for host device (USB Type Connection) Windows10/Mac (* Depends on supported status of USB Type-C on connected device)
Supported the OS for host device (USB Type Connection) Android 7.0 or later ( USB Type-C connection and custom SDK are required)
GENERAL
Operating Temperature [5] °C - [35] °C, [20]% to [80] % Humidity
Storage Temperature [-10] °C - [60] °C, [10]% to [90]% Humidity
Power Supply Voltage I/F Box USB Micro-B - 5.0V, 1.5A (DC Input)
USB Type-C - USB Type-C Currnet@1.5A
Power Supply Voltage AC Adapter Input - 100 - 240 V AC +/- 10%, 50 / 60 Hz with micro USB cable Output - 5.0V, 2A
Power Consumption Max 6.5W(Standby 0.3W)
Water Proof IPx2 (Headset only)
Dimensions: Headset 193.5 mm x 176 mm x 30 mm (without shade)
Dimensions: IF Box 85 mm x 52 mm x 15 mm
Weight: Headset approx.119g (without shade, harness)
Weight: IF Box approx.45g (without Belt clip and Cable retainer)

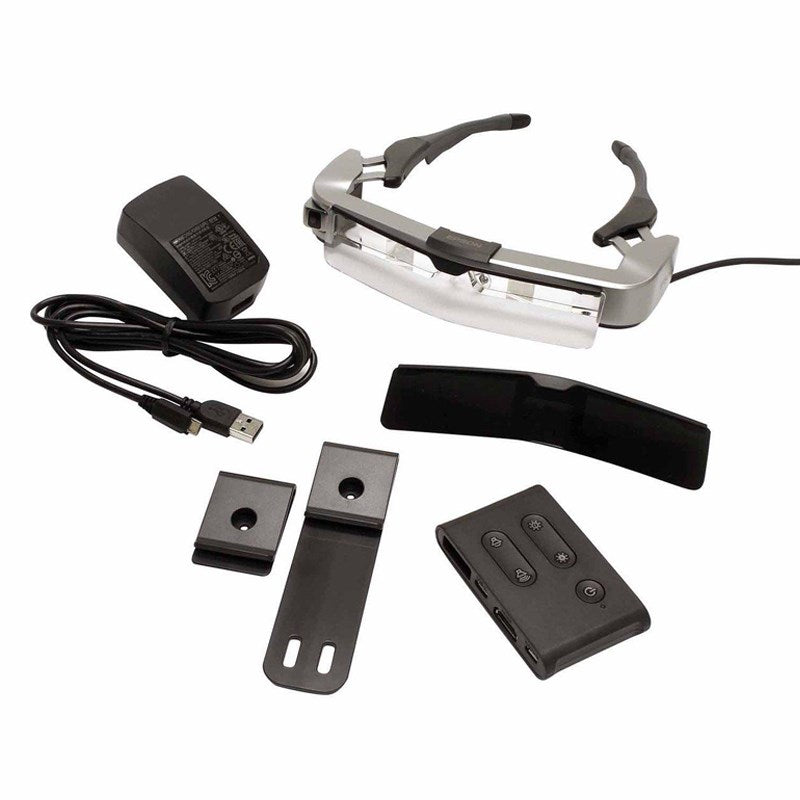

What's In The Box

  • Headset
  • IF BOX
  • Shade (2% dark shade, Flip-up)
  • Belt Clip
  • Cable Retainer
  • Mounting screw
  • AC Adapter
  • USB Cable (For power supply)
  • Carrying case
  • User's Guide/Start Guide
