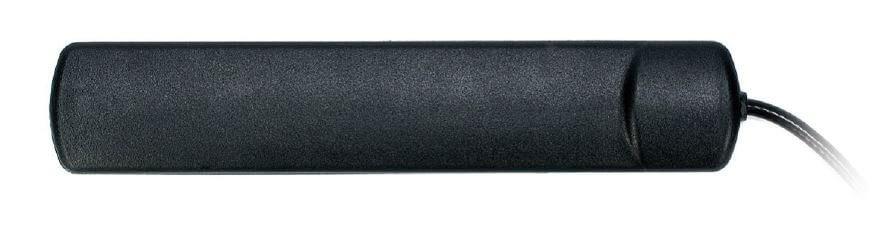

RFI T7-3M-F LTE Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME female connector
$39.95
Unit price perEstimated delivery between December 24 and December 26.
LTE T7-3M-F Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME Female connector
This antenna is suited to applications where a disguised or compact solution is required and are suitable for car mobile phone kits monitoring and M2M/telematics.
Features:
• Covers all LTE cellular bands including the new 700MHz (4GX/4G+) band
• Adhesive mount
• Ground plane independent
• 3Mt - RG174 cable terminated with FME female connector
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
| Band | 698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 3.0 / 2.2 / 4.0 |
| Radiator Material: | PCB |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 3m RG174 FME female |
| Suggested Installation | On Glass |
| VSWR | <2.5:1 |
| Height mm | 6.7 |
| Width mm | 22 |
| Length mm | 116 |
| Mounting | Adhesive |
