Nextivity CEL-FI GO G41 Wall Panel Pack inc. LPDA - including 2 internal antennas
Nextivity CEL-FI GO G41 Wall Panel Pack inc. LPDA - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G LPDA Antenna 698 to 4000Mhz N Female +10m Cable N Male to SMA Male
- 2x Powertec 4G-5G Indoor Wall Mount Panel Antenna 700 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@156/138
Nextivity CEL-FI GO G41 Wall Panel Pack inc. Omni High Gain - including 2 internal antennas
Nextivity CEL-FI GO G41 Wall Panel Pack inc. Omni High Gain - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G Omni High Gain Antenna 698 to 2700Mhz N Female PTL-240 Coaxial Cable N Male to SMA Male 10m
- 2x Powertec 4G-5G Indoor Wall Mount Panel Antenna 700 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@155/136
Nextivity CEL-FI GO G41 Wall Panel Pack inc. Wideband LPDA - including 2 internal antennas
Nextivity CEL-FI GO G41 Wall Panel Pack inc. Wideband LPDA - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4G-5G Wine Band LPDA Antenna 698 to 4000Mhz N Female PTL-240 Coaxial Cable N Male to SMA Male 10m
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 700 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@155/136

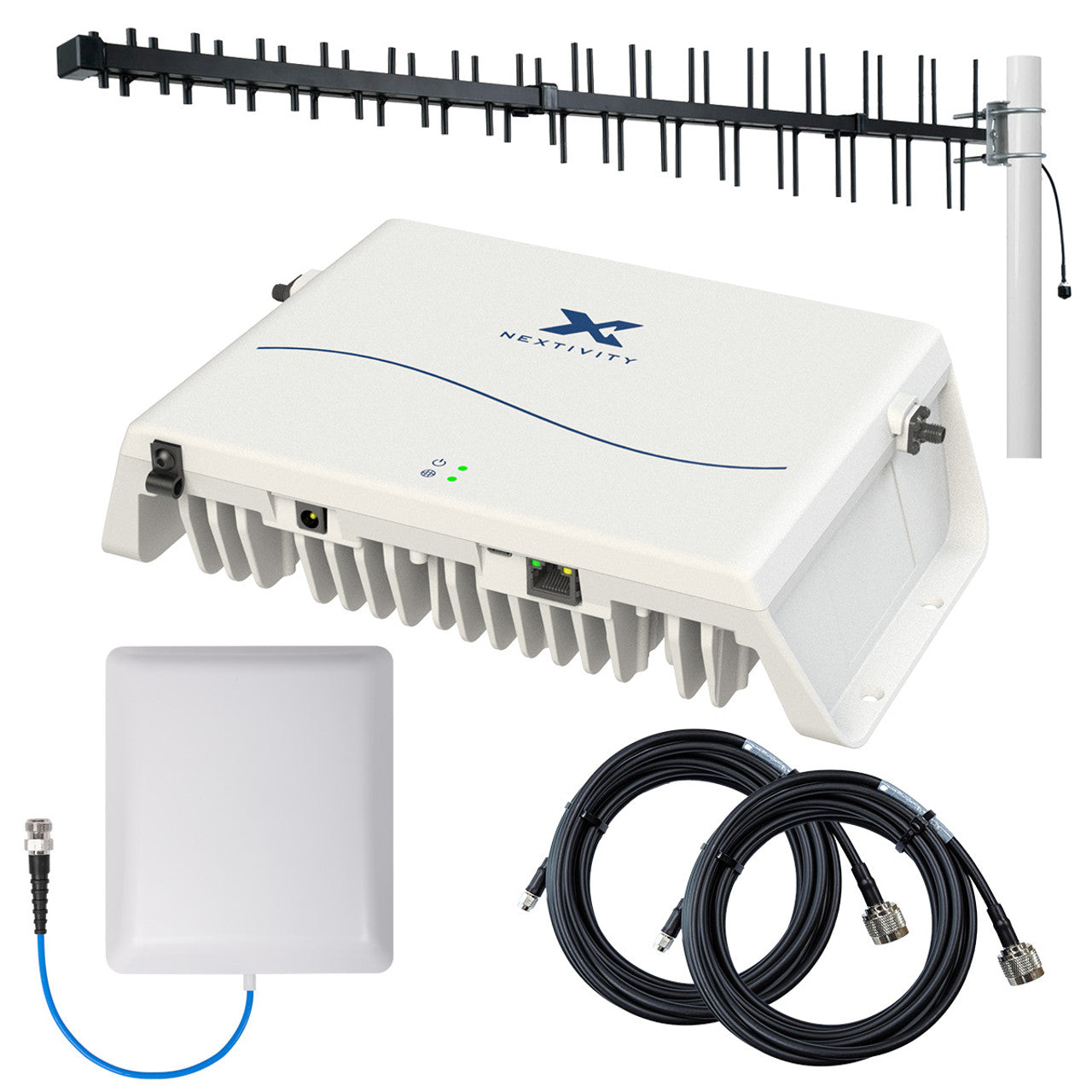

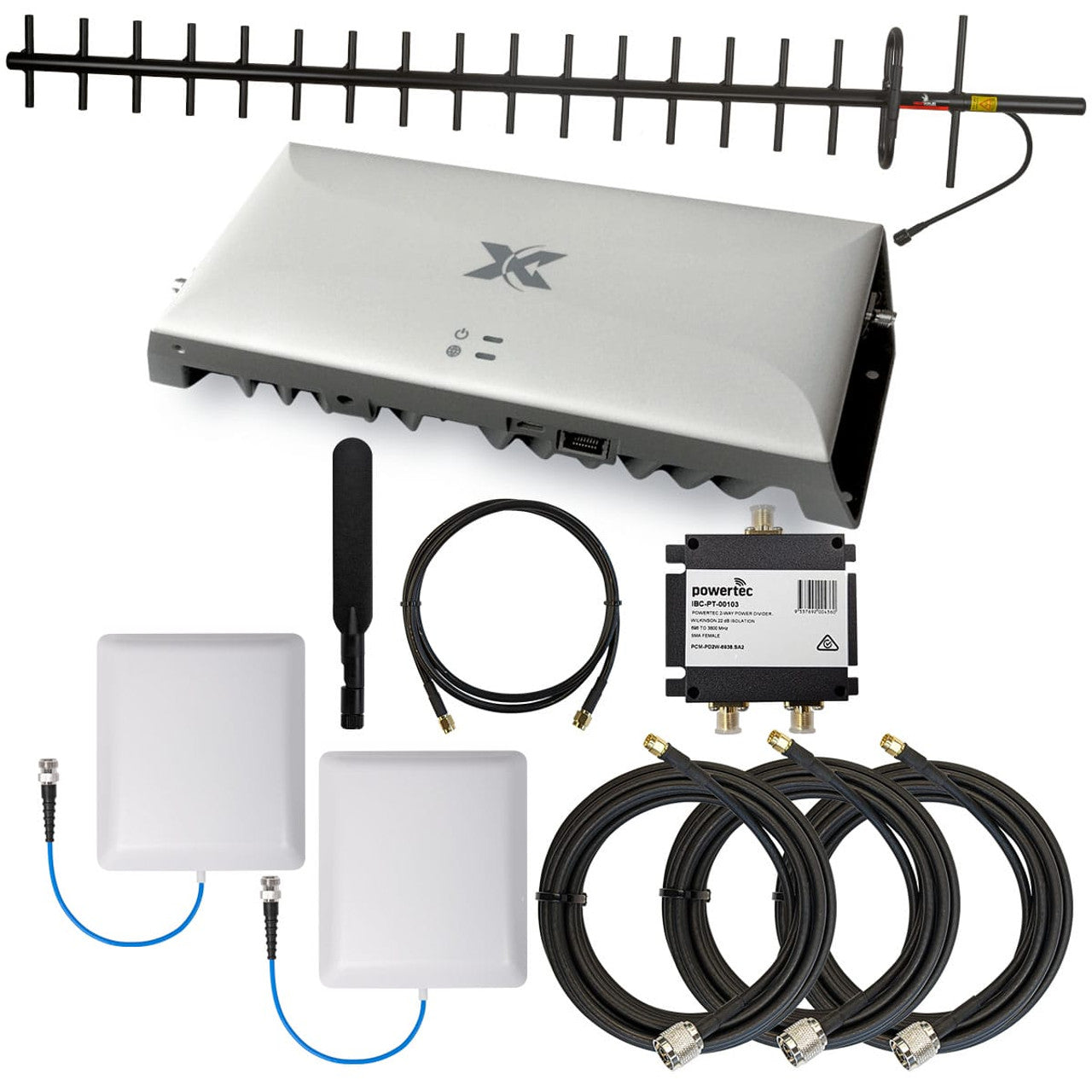

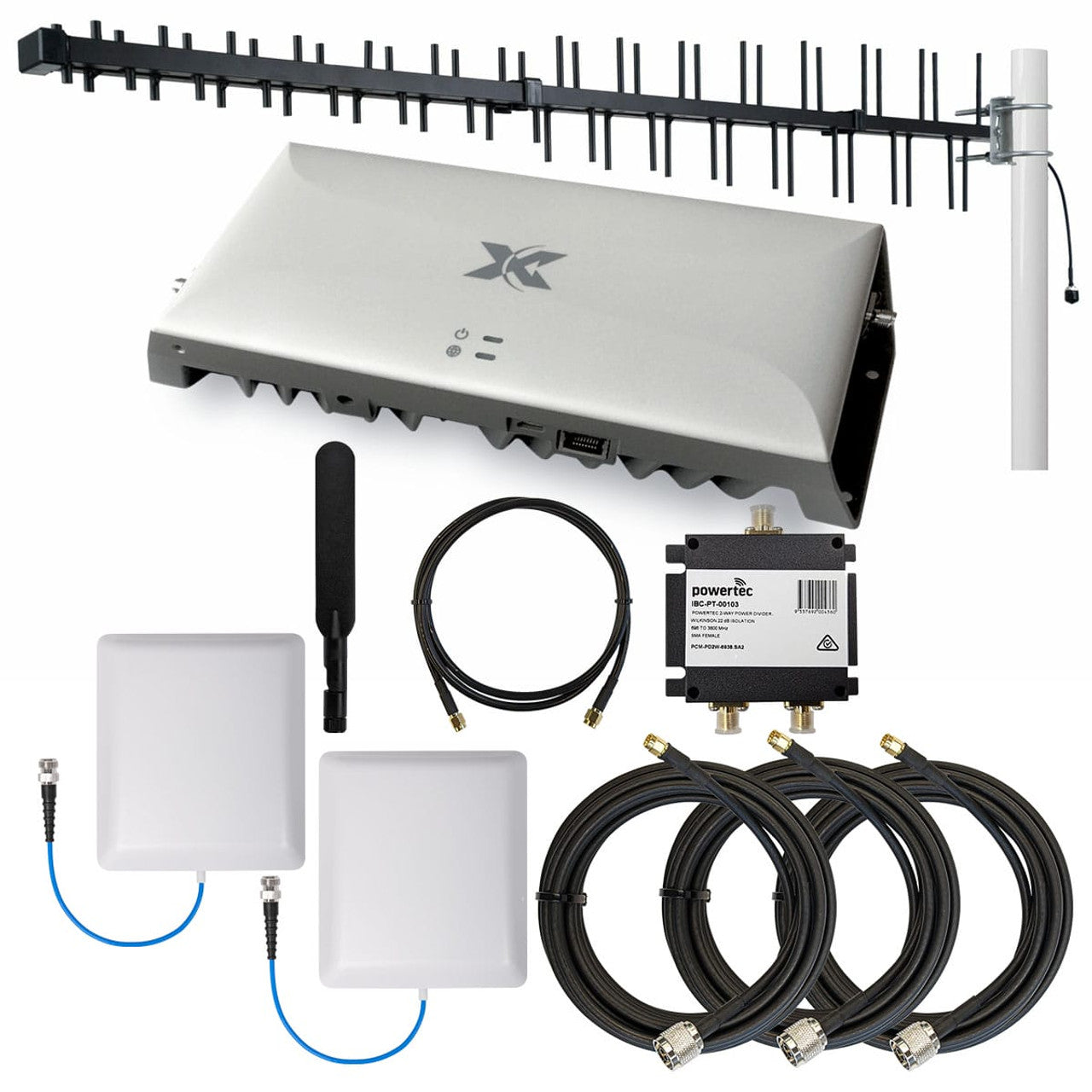

Nextivity CEL-FI GO G41 Wall Panel Pack inc. Yagi - including 2 internal antennas
Nextivity CEL-FI GO G41 Wall Panel Pack inc. Yagi - including 2 internal antennas
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- Powertec 4g Low Band Yagi Antenna 698 to 960Mhz N Female + 10m Cable N Male to SMA Male
- 2x Powertec 4G-5G Indoor Wall Mount Panel Antenna 700 to 4000Mhz N Female
- L-195 Patch Cable N Male to SMA Male 1m
- 2x PTL-240 Coaxial Cable N Male to N Male 10m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@161/125
Nextivity CEL-FI GO G41 Yagi Building Indoor & Outdoor Pack inc. Wall Mount
Nextivity CEL-FI GO G41 Yagi Building Indoor & Outdoor Pack inc. Wall Mount
Description::
Enhance Mobile Coverage with a Powerful Signal Booster Designed to Improve Connectivity
The Cel-Fi G41-JE is an advanced mobile signal booster designed to enhance connectivity in areas with weak signal. Ideal for residential commercial and enterprise environments it ensures superior voice text and data performance. The device uses cutting-edge technology to deliver fast stable and uninterrupted mobile service amplifying signals from nearby towers to improve coverage in both rural and urban locations even in areas with building interference.
Key Feature
- Compatible with 3G 4G VoLTE NB-IoT and 5G NSA
- Carrier switching via the WAVE App between Telstra Optus or Vodafone (one carrier at a time)
- Coverage area: Up to 3 000 m²
- Two bands simultaneous relay
- Total system relay bandwidth: Up to 40 MHz
- Remote monitoring control and alert capabilities via WAVE Portal (for approved installers)
- Ethernet port for internet connection and live monitoring
Pack Includes
- Nextivity Cel-Fi GO G41 JE
- L-195 Patch Cable N Male to SMA Male 1m
- PTL-240 Coaxial Cable N Male to N Male 10m
- MARS 4G Panel Antenna 5dBi 698 to 2700Mhz N Female
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000Mhz N Female
- Powertec 4G Low band Yagi Antenna 698 to 960Mhz N Female + 10m cable N Male to SMA Male
- PTL-240 Coaxial Cable N Male to N Male 6m
- Powertec RF Power divider 2-way 698-3800Mhz SMA Female Wilkinson 20dB isolation
- Wall plate for Cel-Fi building packs
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800Mhz SMA Male
Note: While the Cel-Fi WAVE App does not directly display 5G boosting 5G signal improvements will be visible next to the signal bars.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@185/142

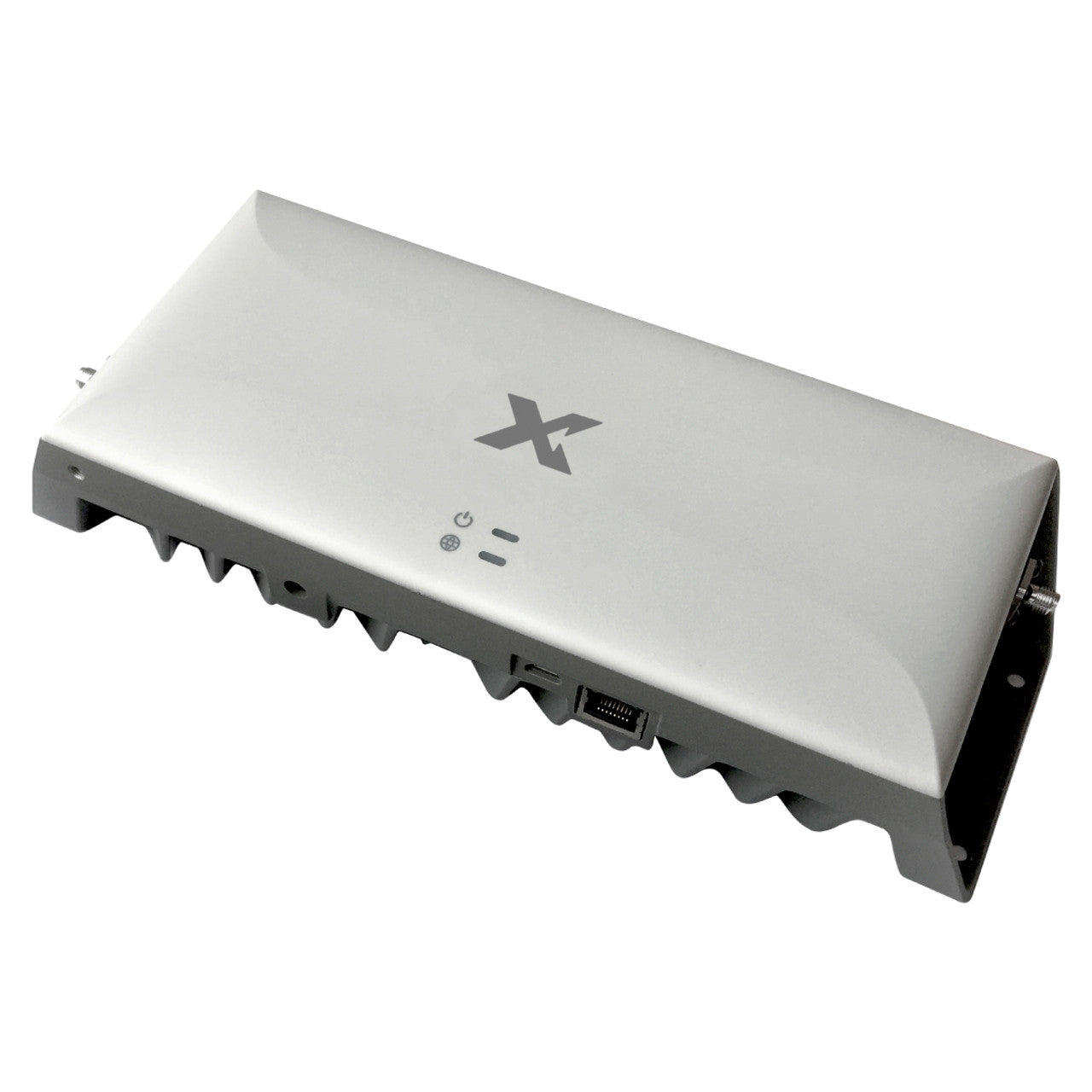

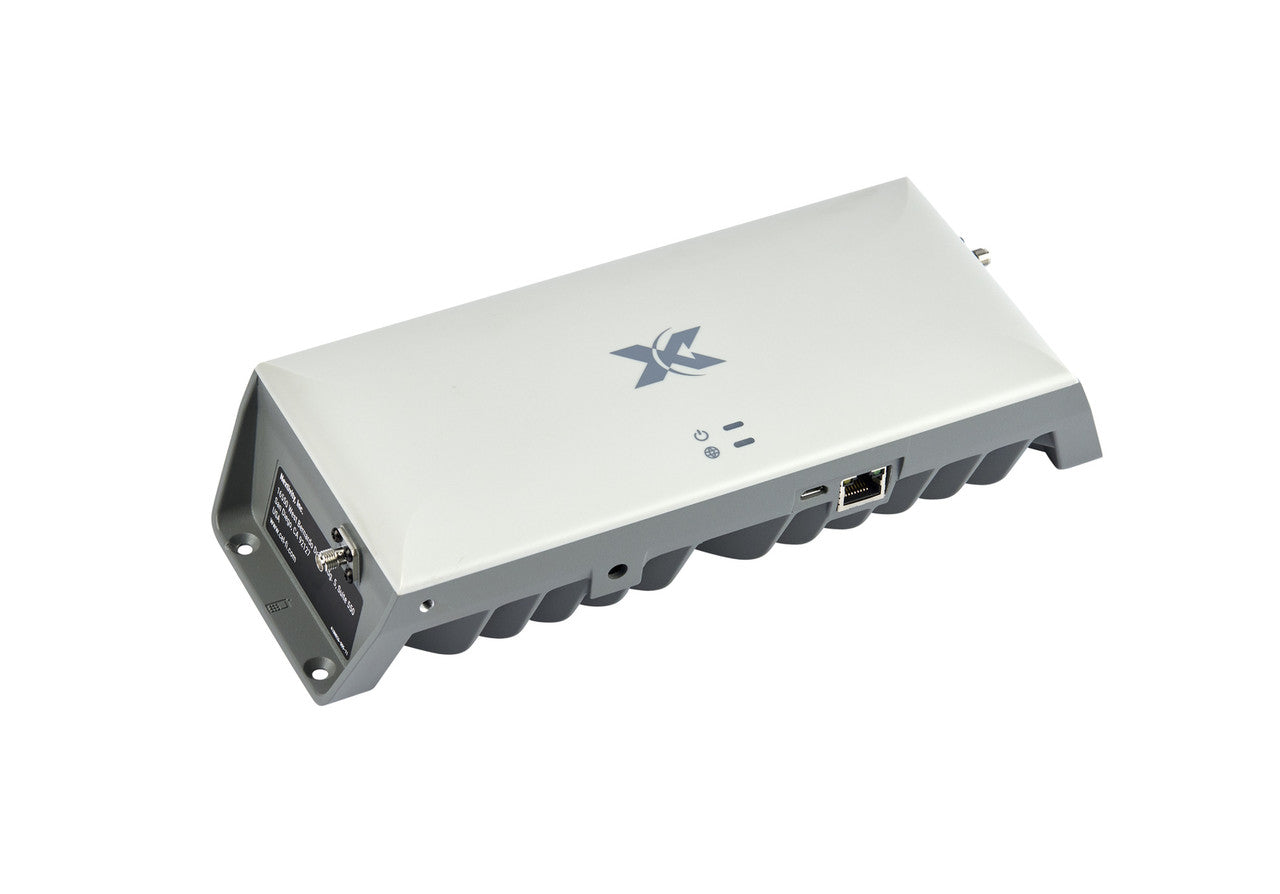

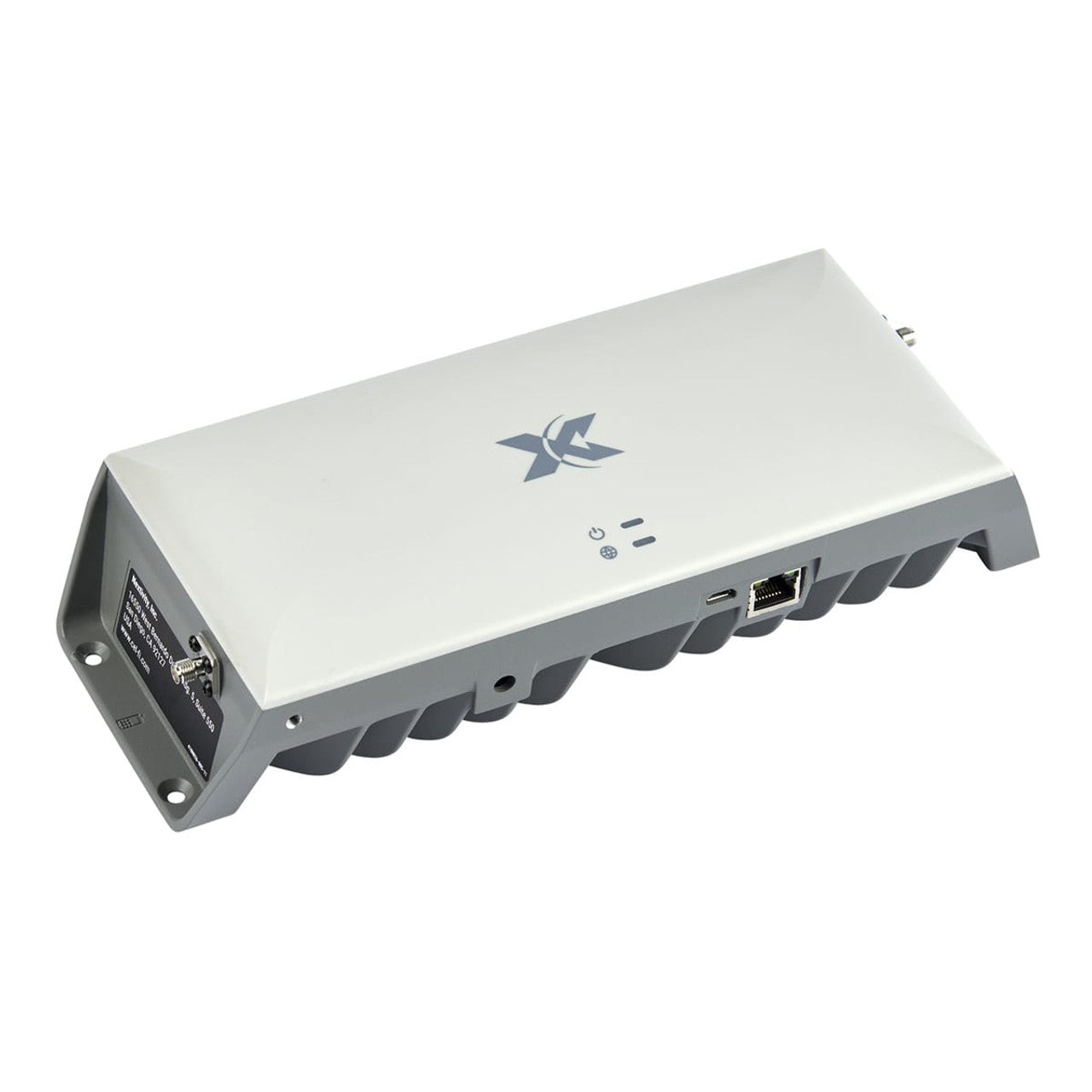

Nextivity CEL-FI GO G41-JE 1/3/5/7/8/28L/40 Stationary Repeater + 1 Year Extra Warranty
Nextivity CEL-FI GO G41-JE 1/3/5/7/8/28L/40 Stationary Repeater + 1 Year Extra Warranty
Description::
Enhance Your In-Building Cellular Coverage with the Nextivity CEL-FI G41-JE – High Output Power and Multi-Carrier Support
The Nextivity CEL-FI G41-JE represents the latest in 4G cellular repeater technology. Building on the success of the G32 model the G41 features higher output power (+20 dBm) providing the largest coverage area of all GO models. It operates on multiple frequency bands and can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) making it ideal for in-building cellular coverage applications.
The increased output power allows for more service antennas to be run from a single repeater and the newly added RJ45 Ethernet network interface enables remote management. Expanding on the G32’s dual-band functionality the G41 supports carrier aggregation with 40 MHz of relay bandwidth for enhanced performance.
Key Features
- Frequency Bands: 700L/850/900/1800/2100/2600 MHz (700 band not supported on Vodafone).
- Network Compatibility: Supports 3G 4G VoLTE NB-IoT with future 5G capabilities (currently not enabled or approved).
- Carrier Switching: Easily switch between Telstra Optus or Vodafone using the WAVE App (one carrier at a time).
- Coverage Area: Provides up to 3000 m² of coverage.
- Simultaneous Relay: Supports two bands with a total system relay bandwidth of up to 40 MHz.
- Remote Monitoring: Includes remote monitoring control and alert capabilities via the WAVE Portal (for approved installers).
- Ethernet Port: Connects to an internet source for live monitoring and remote management.
- Extended Warranty: Powertec exclusive offer – 1-year extra free warranty for a total of 3 years.
Includes:
- CEL-FI G41-JE (Switchable between Telstra Optus and Vodafone-TPG) - one carrier at a time.
- 240v Power Supply
Specification:
| Frequency Bands | 1/3/5/7/8/20/28L/28U/40 |
| Relay Channel Bandwidths (MHz) | 5/10/15/20 |
| Networks | |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App for manual setting) |
| Duplex Modes | FDD & TDD |
| # of Relay Bands (MHz max.) | 2 |
| Relay Bandwidth (MHz max.) | 20 + 20 |
| Output Downlink Power (All Bands) (dBm max.) | 20 |
| Output Uplink Power (Bands 1/3/5/7/40) (dBm max.) | 22 |
| Output Uplink Power (Bands 8/20/28L/28U) (dBm max.) | 20 |
| System Gain (dBm max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom) | 50 |
@123/110

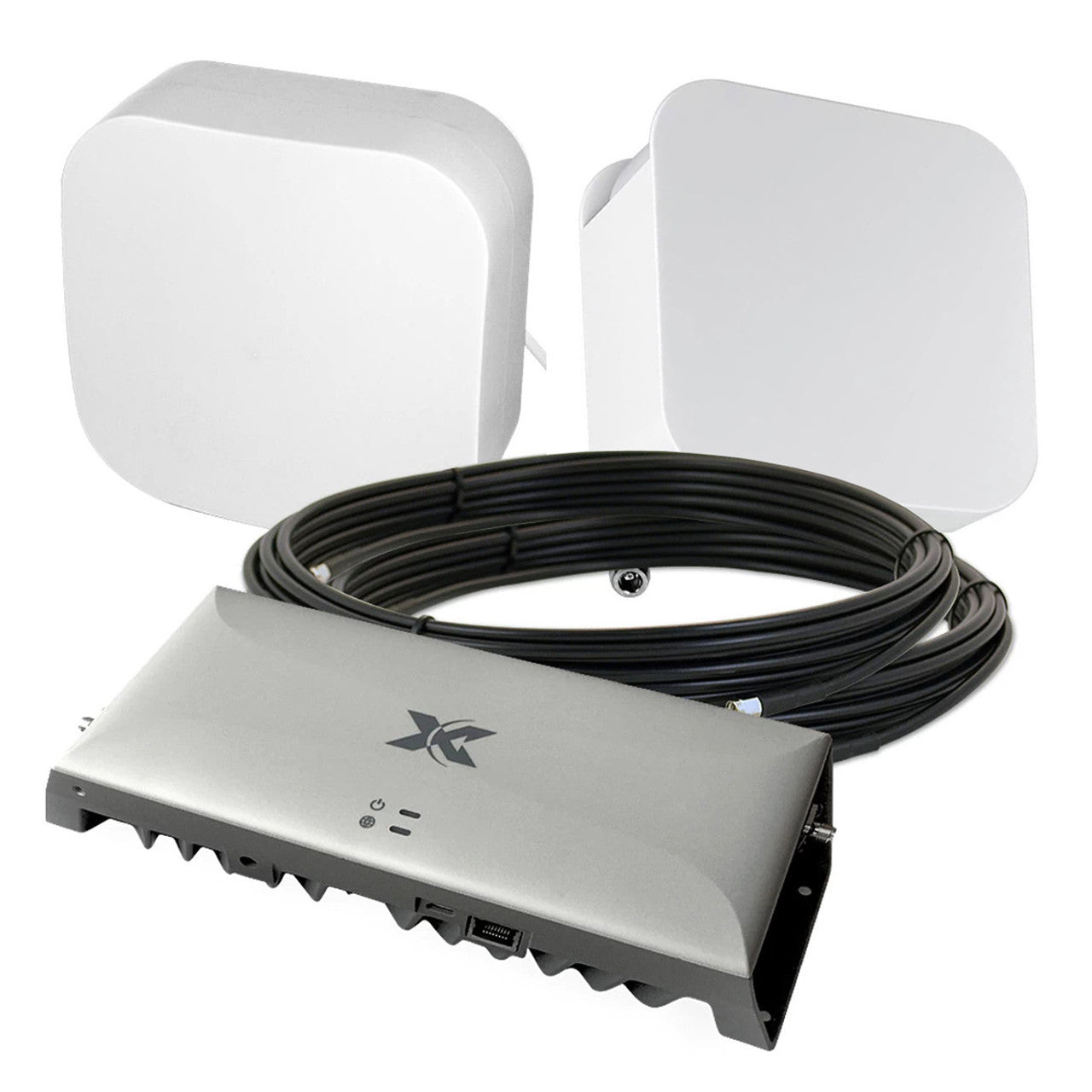

Description::
Ideal for boosting mobile signal in homes apartments retail stores or for temporay coverage applications.
The Nextivity CEL-FI G41-JE 4G cellular repeater offers a high output power (+20 dBm) for maximum coverage supports multiple carriers and features an RJ45 Ethernet port for remote monitoring via the WAVE Portal.
Using the WAVE App the GO G41 can be easily switched between Telstra Optus and Vodafone-TPG (one carrier at a time) should you change service provider.
APPLICATIONS
- Small Homes
- Apartments
- Retail stores
- Renters
- Holiday Rentals
- High Rise Office Buildings
- Historic Buildings
EASY 5 MIN SETUP
1) Find a window in the building offering the best coverage
2) Attach the adhesive antenna holder to the window and insert the donor antenna
3) Connect donor and service antennas to the G41 and power up
4) Move the service antenna at least 4m away from the donor antenna at the window
5) Find the optimal position for the service antenna then put on a shelf mount to a wall or on the ceiling
INCLUDES
1 x GO G41 JE
2 x ANT-PT-00009 - Powertec 4G-5G Universal Ceiling-Wall Antenna 698 to 4000 MHz N Female
1 x ACC-PT-00506 - Window Mount for Universal Ceiling-Wall Antenna with adhesive backing strips
1 x ACC-PT-00115 - L-195 Patch Cable N Male to SMA Male 75 cm
1 x ACC-PT-00171 - PTL-240 Coaxial Cable N Male to SMA Male 6m
@136/120
Nextivity CEL-FI GO G41-NE Vodafone B28 Building LPDA inc. Wall Mount
Nextivity CEL-FI GO G41-NE Vodafone B28 Building LPDA inc. Wall Mount
Description::
Advanced Mobile Signal Booster for Optimal Connectivity
The Nextivity Cel-Fi GO G41 is a high-performance carrier-specific smart signal booster engineered to enhance mobile connectivity in areas with weak or inconsistent signal reception. Supporting 4G LTE and 5G NSA technologies the G41 delivers up to 100 dB of system gain providing superior voice and data performance. Ideal for residential commercial and enterprise environments it offers coverage up to 3 000 square meters ensuring reliable connectivity. The device employs advanced digital signal processing to amplify mobile signals while preventing interference thereby maintaining network compliance. Optimised and locked for Vodafone the G41 delivers a tailored solution for improved signal strength in Vodafone’s coverage areas.
With future-proof capabilities the Cel-Fi GO G41 is designed to support the latest 5G NSA standards while maintaining full compatibility with existing 4G networks. Installation is simplified through a plug-and-play setup and flexible antenna options are available to optimise coverage. The system integrates with the Cel-Fi WAVE application providing users with remote monitoring and management of signal strength through the application’s signal bar display though the 5G boosting will not be visible directly in the app. The Cel-Fi GO G41 is a powerful and reliable solution for enhancing mobile signal in large indoor spaces ensuring your business or home remains connected regardless of external signal conditions.
Key Features
- Unrivalled Signal Gain: Boosts signal strength with up to 100 dB of gain ensuring reliable voice and data performance across large indoor areas.
- Optimised and Locked for Vodafone: Configured specifically for Vodafone networks ensuring optimal performance within their coverage zones.
- 2 Bands Simultaneous Relay: Supports the simultaneous relay of two frequency bands for enhanced efficiency and expanded coverage.
- Future-Ready Design: Fully compatible with 5G NS providing a future-proof solution that supports the latest mobile technology.
- Wide Coverage Range: Capable of covering up to 3 000 square meters making it ideal for large homes offices and commercial spaces.
- Intelligent Management: Monitor and manage the system remotely via the Cel-Fi WAVE platform with real-time signal strength updates shown through the signal bar display.
- Simple Installation: Quick plug-and-play setup with configurable antenna options for both donor and server connections.
Kit includes

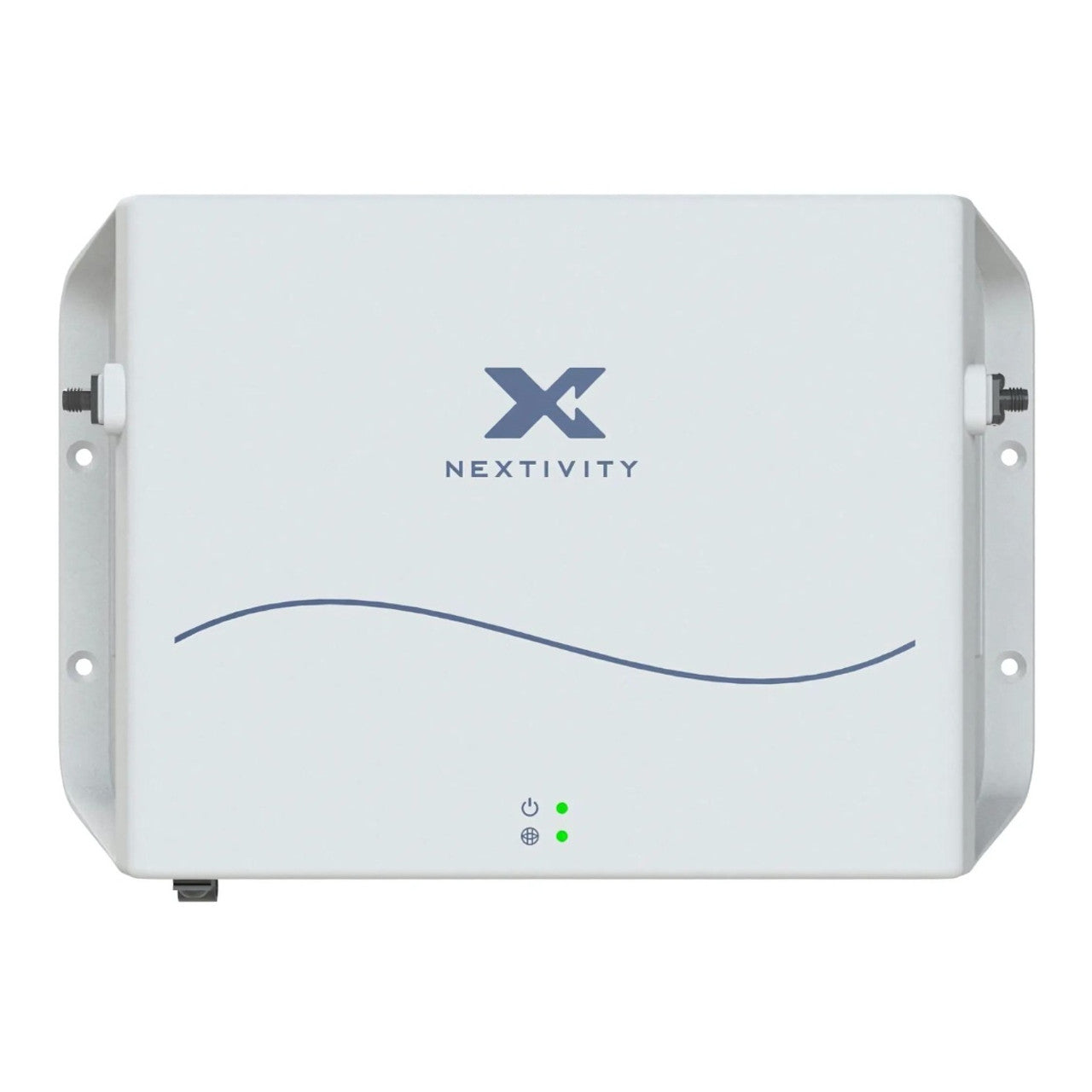

- Nextivity Cel-Fi GO G41-NE Stationary Repeater
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000 MHz N Female
- Wall Plate for Cel-Fi Building Packs
- Powertec 4G-5G LPDA Antenna 698 to 4000 MHz N Female
- PTL240 Coaxial Cable N Male to SMA Male 6m
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male
The Cel-Fi GO G41-NE is ideal for environments with poor indoor mobile signal caused by building materials or location. Whether you're setting up in a rural area far from the nearest cell tower or a modern building with signal-blocking infrastructure the G41 delivers consistent high-quality connectivity.
This innovative solution empowers businesses and individuals to stay connected streamlining communication and boosting productivity. With its sleek design and powerful capabilities the Cel-Fi GO G41 is the ultimate signal booster for modern connectivity demands.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@147/129
Nextivity CEL-FI GO G41-NE Vodafone B28 Building LPDA Pack inc. Ceiling Dome
Nextivity CEL-FI GO G41-NE Vodafone B28 Building LPDA Pack inc. Ceiling Dome
Description::
Advanced Mobile Signal Booster for Optimal Connectivity
The Nextivity Cel-Fi GO G41 is a high-performance carrier-specific smart signal booster engineered to enhance mobile connectivity in areas with weak or inconsistent signal reception. Supporting 4G LTE and 5G NSA technologies the G41 delivers up to 100 dB of system gain providing superior voice and data performance. Ideal for residential commercial and enterprise environments it offers coverage up to 3 000 square meters ensuring reliable connectivity. The device employs advanced digital signal processing to amplify mobile signals while preventing interference thereby maintaining network compliance. Optimised and locked for Vodafone the G41 delivers a tailored solution for improved signal strength in Vodafone’s coverage areas.
With future-proof capabilities the Cel-Fi GO G41 is designed to support the latest 5G NSA standards while maintaining full compatibility with existing 4G networks. Installation is simplified through a plug-and-play setup and flexible antenna options are available to optimise coverage. The system integrates with the Cel-Fi WAVE application providing users with remote monitoring and management of signal strength through the application’s signal bar display though the 5G boosting will not be visible directly in the app. The Cel-Fi GO G41 is a powerful and reliable solution for enhancing mobile signal in large indoor spaces ensuring your business or home remains connected regardless of external signal conditions.
Key Features
- Unrivalled Signal Gain: Boosts signal strength with up to 100 dB of gain ensuring reliable voice and data performance across large indoor areas.
- Optimised and Locked for Vodafone: Configured specifically for Vodafone networks ensuring optimal performance within their coverage zones.
- 2 Bands Simultaneous Relay: Supports the simultaneous relay of two frequency bands for enhanced efficiency and expanded coverage.
- Future-Ready Design: Fully compatible with 5G NSA providing a future-proof solution that supports the latest mobile technology.
- Wide Coverage Range: Capable of covering up to 3 000 square meters making it ideal for large homes offices and commercial spaces.
- Intelligent Management: Monitor and manage the system remotely via the Cel-Fi WAVE platform with real-time signal strength updates shown through the signal bar display.
- Simple Installation: Quick plug-and-play setup with configurable antenna options for both donor and server connections.

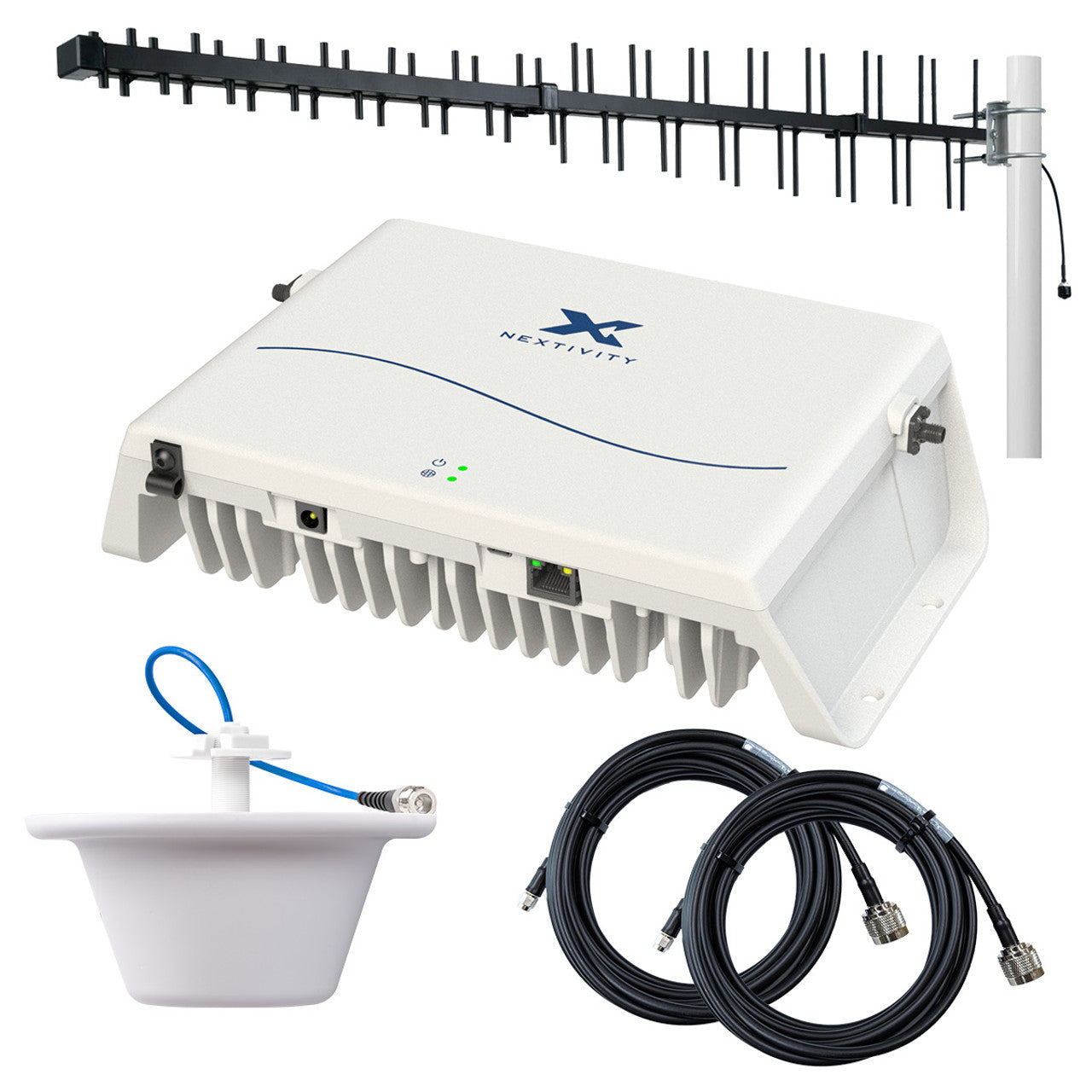

Kit includes
- Nextivity Cel-Fi GO G41-NE Stationary Repeater
- Powertec 4G-5G Wideband LPDA 698 to 4000 MHz N Female PTL240 Coaxial Cable N Male to SMA Male 10m
- Powertec 4G-5G Ceiling Dome Antenna 698 to 4000Mhz N Female
- Wall Plate for Cel-Fi Building Packs
- PTL240 Coaxial Cable N Male to SMA Male 6m
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male
The Cel-Fi GO G41-NE is ideal for environments with poor indoor mobile signal caused by building materials or location. Whether you're setting up in a rural area far from the nearest cell tower or a modern building with signal-blocking infrastructure the G41 delivers consistent high-quality connectivity.
This innovative solution empowers businesses and individuals to stay connected streamlining communication and boosting productivity. With its sleek design and powerful capabilities the Cel-Fi GO G41 is the ultimate signal booster for modern connectivity demands.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@147/129
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Omni Pack inc. Ceiling Dome
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Omni Pack inc. Ceiling Dome
Description::
Advanced Mobile Signal Booster for Optimal Connectivity
The Nextivity Cel-Fi GO G41 is a high-performance carrier-specific smart signal booster engineered to enhance mobile connectivity in areas with weak or inconsistent signal reception. Supporting 4G LTE and 5G NSA technologies the G41 delivers up to 100 dB of system gain providing superior voice and data performance. Ideal for residential commercial and enterprise environments it offers coverage up to 3 000 square meters ensuring reliable connectivity. The device employs advanced digital signal processing to amplify mobile signals while preventing interference thereby maintaining network compliance. Optimised and locked for Vodafone the G41 delivers a tailored solution for improved signal strength in Vodafone’s coverage areas.
With future-proof capabilities the Cel-Fi GO G41 is designed to support the latest 5G NSA standards while maintaining full compatibility with existing 4G networks. Installation is simplified through a plug-and-play setup and flexible antenna options are available to optimise coverage. The system integrates with the Cel-Fi WAVE application providing users with remote monitoring and management of signal strength through the application’s signal bar display though the 5G boosting will not be visible directly in the app. The Cel-Fi GO G41 is a powerful and reliable solution for enhancing mobile signal in large indoor spaces ensuring your business or home remains connected regardless of external signal conditions.
Key Features
- Unrivalled Signal Gain: Boosts signal strength with up to 100 dB of gain ensuring reliable voice and data performance across large indoor areas.
- Optimised and Locked for Vodafone: Configured specifically for Vodafone networks ensuring optimal performance within their coverage zones.
- 2 Bands Simultaneous Relay: Supports the simultaneous relay of two frequency bands for enhanced efficiency and expanded coverage.
- Future-Ready Design: Fully compatible with 5G NSA providing a future-proof solution that supports the latest mobile technology.
- Wide Coverage Range: Capable of covering up to 3 000 square meters making it ideal for large homes offices and commercial spaces.
- Intelligent Management: Monitor and manage the system remotely via the Cel-Fi WAVE platform with real-time signal strength updates shown through the signal bar display.
- Simple Installation: Quick plug-and-play setup with configurable antenna options for both donor and server connections.
Kit includes
- Nextivity Cel-Fi GO G41-NE Stationary Repeater
- Powertec 4G Omni High Gain Antenna 698 to 2700Mhz N Female PTL240 Coaxial Cable N Male to SMA Male 10m
- Wall Plate for Cel-Fi Building Packs
- Powertec 4G-5G Wideband LPDA Antenna 698 to 4000 MHz N Female
- PTL240 Coaxial Cable N Male to SMA Male 6m
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male
The Cel-Fi GO G41-NE is ideal for environments with poor indoor mobile signal caused by building materials or location. Whether you're setting up in a rural area far from the nearest cell tower or a modern building with signal-blocking infrastructure the G41 delivers consistent high-quality connectivity.
This innovative solution empowers businesses and individuals to stay connected streamlining communication and boosting productivity. With its sleek design and powerful capabilities the Cel-Fi GO G41 is the ultimate signal booster for modern connectivity demands.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@145/128
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Omni Pack inc. Wall Mount
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Omni Pack inc. Wall Mount
Description::
Advanced Mobile Signal Booster for Optimal Connectivity
The Nextivity Cel-Fi GO G41 is a high-performance carrier-specific smart signal booster engineered to enhance mobile connectivity in areas with weak or inconsistent signal reception. Supporting 4G LTE and 5G NSA technologies the G41 delivers up to 100 dB of system gain providing superior voice and data performance. Ideal for residential commercial and enterprise environments it offers coverage up to 3 000 square meters ensuring reliable connectivity. The device employs advanced digital signal processing to amplify mobile signals while preventing interference thereby maintaining network compliance. Optimised and locked for Vodafone the G41 delivers a tailored solution for improved signal strength in Vodafone’s coverage areas.
With future-proof capabilities the Cel-Fi GO G41 is designed to support the latest 5G NSA standards while maintaining full compatibility with existing 4G networks. Installation is simplified through a plug-and-play setup and flexible antenna options are available to optimise coverage. The system integrates with the Cel-Fi WAVE application providing users with remote monitoring and management of signal strength through the application’s signal bar display though the 5G boosting will not be visible directly in the app. The Cel-Fi GO G41 is a powerful and reliable solution for enhancing mobile signal in large indoor spaces ensuring your business or home remains connected regardless of external signal conditions.
Key Features
- Unrivalled Signal Gain: Boosts signal strength with up to 100 dB of gain ensuring reliable voice and data performance across large indoor areas.
- Optimised and Locked for Vodafone: Configured specifically for Vodafone networks ensuring optimal performance within their coverage zones.
- 2 Bands Simultaneous Relay: Supports the simultaneous relay of two frequency bands for enhanced efficiency and expanded coverage.
- Future-Ready Design: Fully compatible with 5G NSA providing a future-proof solution that supports the latest mobile technology.
- Wide Coverage Range: Capable of covering up to 3 000 square meters making it ideal for large homes offices and commercial spaces.
- Intelligent Management: Monitor and manage the system remotely via the Cel-Fi WAVE platform with real-time signal strength updates shown through the signal bar display.
- Simple Installation: Quick plug-and-play setup with configurable antenna options for both donor and server connections.
Kit includes
- Nextivity Cel-Fi GO G41-NE Stationary Repeater
- Powertec 4G Omni High Gain Antenna 698 to 2700 MHz N Female PTL240 Coaxial Cable N Male to SMA Male 10m
- Wall Plate for Cel-Fi Building Packs
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000 MHz N Female
- PTL240 Coaxial Cable N Male to SMA Male 6m
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male
The Cel-Fi GO G41-NE is ideal for environments with poor indoor mobile signal caused by building materials or location. Whether you're setting up in a rural area far from the nearest cell tower or a modern building with signal-blocking infrastructure the G41 delivers consistent high-quality connectivity.
This innovative solution empowers businesses and individuals to stay connected streamlining communication and boosting productivity. With its sleek design and powerful capabilities the Cel-Fi GO G41 is the ultimate signal booster for modern connectivity demands.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@145/128
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Wideband LPDA inc. Wall Mount
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Wideband LPDA inc. Wall Mount
Description::
Advanced Mobile Signal Booster for Optimal Connectivity
The Nextivity Cel-Fi GO G41 is a high-performance carrier-specific smart signal booster engineered to enhance mobile connectivity in areas with weak or inconsistent signal reception. Supporting 4G LTE and 5G NSA technologies the G41 delivers up to 100 dB of system gain providing superior voice and data performance. Ideal for residential commercial and enterprise environments it offers coverage up to 3 000 square meters ensuring reliable connectivity. The device employs advanced digital signal processing to amplify mobile signals while preventing interference thereby maintaining network compliance. Optimised and locked for Vodafone the G41 delivers a tailored solution for improved signal strength in Vodafone’s coverage areas.
With future-proof capabilities the Cel-Fi GO G41 is designed to support the latest 5G NSA standards while maintaining full compatibility with existing 4G networks. Installation is simplified through a plug-and-play setup and flexible antenna options are available to optimise coverage. The system integrates with the Cel-Fi WAVE application providing users with remote monitoring and management of signal strength through the application’s signal bar display though the 5G boosting will not be visible directly in the app. The Cel-Fi GO G41 is a powerful and reliable solution for enhancing mobile signal in large indoor spaces ensuring your business or home remains connected regardless of external signal conditions.
Key Features
- Unrivalled Signal Gain: Boosts signal strength with up to 100 dB of gain ensuring reliable voice and data performance across large indoor areas.
- Optimised and Locked for Vodafone: Configured specifically for Vodafone networks ensuring optimal performance within their coverage zones.
- 2 Bands Simultaneous Relay: Supports the simultaneous relay of two frequency bands for enhanced efficiency and expanded coverage.
- Future-Ready Design: Fully compatible with 5G NSA providing a future-proof solution that supports the latest mobile technology.
- Wide Coverage Range: Capable of covering up to 3 000 square meters making it ideal for large homes offices and commercial spaces.
- Intelligent Management: Monitor and manage the system remotely via the Cel-Fi WAVE platform with real-time signal strength updates shown through the signal bar display.
- Simple Installation: Quick plug-and-play setup with configurable antenna options for both donor and server connections.
Kit includes
- Nextivity Cel-Fi GO G41-NE Stationary Repeater
- Powertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000 MHz N Female
- Wall Plate for Cel-Fi Building Packs
- Powertec 4G-5G Wideband LPDA Antenna 698 to 4000 MHz N Female
- PTL240 Coaxial Cable N Male to SMA Male 10m
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male
The Cel-Fi GO G41-NE is ideal for environments with poor indoor mobile signal caused by building materials or location. Whether you're setting up in a rural area far from the nearest cell tower or a modern building with signal-blocking infrastructure the G41 delivers consistent high-quality connectivity.
This innovative solution empowers businesses and individuals to stay connected streamlining communication and boosting productivity. With its sleek design and powerful capabilities the Cel-Fi GO G41 is the ultimate signal booster for modern connectivity demands.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@145/128
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Wideband LPDA Pack inc. Ceiling Dome
Nextivity CEL-FI GO G41-NE Vodafone B28 Building Wideband LPDA Pack inc. Ceiling Dome
Description::
Advanced Mobile Signal Booster for Optimal Connectivity
The Nextivity Cel-Fi GO G41 is a high-performance carrier-specific smart signal booster engineered to enhance mobile connectivity in areas with weak or inconsistent signal reception. Supporting 4G LTE and 5G NSA technologies the G41 delivers up to 100 dB of system gain providing superior voice and data performance. Ideal for residential commercial and enterprise environments it offers coverage up to 3 000 square meters ensuring reliable connectivity. The device employs advanced digital signal processing to amplify mobile signals while preventing interference thereby maintaining network compliance. Optimised and locked for Vodafone the G41 delivers a tailored solution for improved signal strength in Vodafone’s coverage areas.
With future-proof capabilities the Cel-Fi GO G41 is designed to support the latest 5G NSA standards while maintaining full compatibility with existing 4G networks. Installation is simplified through a plug-and-play setup and flexible antenna options are available to optimise coverage. The system integrates with the Cel-Fi WAVE application providing users with remote monitoring and management of signal strength through the application’s signal bar display though the 5G boosting will not be visible directly in the app. The Cel-Fi GO G41 is a powerful and reliable solution for enhancing mobile signal in large indoor spaces ensuring your business or home remains connected regardless of external signal conditions.
Key Features
- Unrivalled Signal Gain: Boosts signal strength with up to 100 dB of gain ensuring reliable voice and data performance across large indoor areas.
- Optimised and Locked for Vodafone: Configured specifically for Vodafone networks ensuring optimal performance within their coverage zones.
- 2 Bands Simultaneous Relay: Supports the simultaneous relay of two frequency bands for enhanced efficiency and expanded coverage.
- Future-Ready Design: Fully compatible with 5G NSA providing a future-proof solution that supports the latest mobile technology.
- Wide Coverage Range: Capable of covering up to 3 000 square meters making it ideal for large homes offices and commercial spaces.
- Intelligent Management: Monitor and manage the system remotely via the Cel-Fi WAVE platform with real-time signal strength updates shown through the signal bar display.
- Simple Installation: Quick plug-and-play setup with configurable antenna options for both donor and server connections.
Kit includes
- Nextivity Cel-Fi GO G41-NE Stationary Repeater
- Powertec 4G-5G Ceiling Dome Antenna 698 to 4000 MHz N Female
- Wall Plate for Cel-Fi Building Packs
- Powertec 4G-5G Wideband LPDA Antenna 698 to 4000 MHz N Female
- PTL240 Coaxial Cable N Male to SMA Male 10m
- Powertec Wideband 4G-5G Hinged Antenna 700 to 3800 MHz SMA Male
The Cel-Fi GO G41-NE is ideal for environments with poor indoor mobile signal caused by building materials or location. Whether you're setting up in a rural area far from the nearest cell tower or a modern building with signal-blocking infrastructure the G41 delivers consistent high-quality connectivity.
This innovative solution empowers businesses and individuals to stay connected streamlining communication and boosting productivity. With its sleek design and powerful capabilities the Cel-Fi GO G41 is the ultimate signal booster for modern connectivity demands.
Specification:
| Technical Specifications | |
|---|---|
| Model | Cel-Fi GO G41-JE |
| Supported Networks | 3G 4G LTE 5G NSA |
| System Gain | Up to 100 dB |
| Frequency Bands | 700L 850 900 1800 2100 2600 MHz (700 band not supported on Vodafone) |
| Coverage Area | Up to 3 000 m² |
| Power Supply | 12V DC 2A |
| Input/Output Ports | Ethernet (RJ45) |
| Dimensions | 255 x 160 x 55 mm |
| Operating Temperature | -5°C to +60°C |
| Weight | 2.3 kg |
| Mounting Type | Ceiling or Wall Mount |
| Remote Management | Cel-Fi WAVE Portal |
| Certifications | CE RoHS |
@145/128
@136/120
Description::
Ideal for boosting mobile signal in homes apartments retail stores or for tempory coverage applications.
The Nextivity CEL-FI G41-NE 4G cellular repeater offers a high output power (+20 dBm) for maximum coverage and features an RJ45 Ethernet port for remote monitoring via the WAVE Portal.
APPLICATIONS
- Small Homes
- Apartments
- Retail stores
- Renters
- Holiday Rentals
- High Rise Office Buildings
- Historic Buildings
EASY 5 MIN SETUP
1) Find a window in the building offering the best coverage
2) Attach the adhesive antenna holder to the window and insert the donor antenna
3) Connect donor and service antennas to the G41 and power up
4) Move the service antenna at least 4m away from the donor antenna at the window
5) Find the optimal position for the service antenna then put on a shelf mount to a wall or on the ceiling
INCLUDES
1 x GO G41 NE
2 x ANT-PT-00009 - Powertec 4G-5G Universal Ceiling-Wall Antenna 698 to 4000 MHz N Female
1 x ACC-PT-00506 - Window Mount for Universal Ceiling-Wall Antenna with adhesive backing strips
1 x ACC-PT-00115 - L-195 Patch Cable N Male to SMA Male 75 cm
1 x ACC-PT-00171 - PTL-240 Coaxial Cable N Male to SMA Male 6m
@136/120
Description::
PRODUCT DETAILS:
Please be advised that this product requires a Donor (External) and Service (Internal) Antenna to operate.
CEL-FI GO G41 represents the latest in 4G cellular repeater technology. Building on the success of the G32 model G41 has a higher output power (+20 dBm) providing the largest coverage area of all GO models.
The G41-NE has been optimized for use on the Vodafone network supporting 700Mhz (high portion of the band). The higher output power means more service antennas can be run from the one repeater and by popular request the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on G32’s dual-band functionality G41 supports carrier aggregation with 40 MHz of relay bandwidth.
FEATURES:
- Optimised and locked to the Vodafone TPG network
- 3G: 2100MHz 4G: 700H/ 850/ 1800/ 2100MHz
- 3G 4G VoLTE NB-IoT (GO4 has 5G capabilities but is currently not enabled or approved)
- Up to 3000 m2 coverage area
- Two bands simultaneously relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring Control and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
@123/110
Description::
This powerful booster delivers industry-leading signal gain of up to 100 dB overcoming mid-band 5G NR coverage challenges. With compact user-friendly design and no manual configuration required G51 is perfect for small to medium-sized buildings. It's Australian operator approved ensuring better voice quality 5G data speeds and fewer dropped calls. The G51 supports various 3G/4G and 5G cellular networks.
Experience unmatched 5G connectivity with Nextivity GO G51 Stationary Repeater! Boost both 4G and 5G signals indoors with up to 100 dB signal gain. Say goodbye to dropped calls and slow data speeds. This compact user-friendly repeater covers up to 3000 m2 and supports carrier switching. Perfect for small- to medium-sized buildings it's Australian operator approved and ensures better voice quality and 5G speeds. No manual configuration required. Invest in reliable 5G coverage today!
Features:
- Relays two channels simultaneously:
- 1st Relay Channel: 5G 3500 (100MHz)
- 2nd Relay Channel: one 3G or 4G band (5/10/15/20MHz)
- Carrier Switching via WAVE App between Telstra or Optus - one carrier at a time (Vodafone approval pending)
- Up to 3000 m2 coverage area
- Voice and Data support on 4G/5G
- Suited for those in a 5G 3500 coverage area (G41 is more suitable for areas outside of a 5G 3500 coverage area as it supports 2 x 4G band relay)
- Powered by the latest 4th generation Nextivity proprietary IntelliBoost chip delivering industry-leading and unconditionally network safe performance
- Establishes network safe uplink power in real-time and automatic uplink muting when no active user equipment is detected
- Ethernet Port for remote monitoring and management with Nextivity WAVE Portal and WAVE App
Ideal for Boosting Mobile Signal in:
- Large Homes
- Single or Multi-Level Commercial Buildings
- Government Buildings
- Medical and Nursing Homes
- Infill 5G coverage for Hotels/Shopping Centres/Hospitals/Conference Centres
- Underground Parking
- Factories and Manufacturing
- Warehouses and Logistics
PACK INCLUDES:
- Nextivity CEL-FI GO G51 Stationary Repeater - Switchable between Telstra Optus and Vodafone (Pending approval) - (one carrier at a time)
- Ceiling Dome 698-4000MHz Antenna -150dBc PIM
- LPDA Antenna 698-4000MHz
- PTL-240 10m + 6m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
Specification:
| Specifications | |
| Frequency Bands | n78 and 1/3/5/7/8/20/28L |
| Relay Channel Bandwidths (MHz) | 100 and 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App and WAVE Portal for manual setting) |
| Network Operator | Configured to authorized operator PLMN-IDs |
| Duplex Modes | FDD and TDD |
| # of Relay Bands (max.) | 2 |
| Relay Bandwidth (MHz max.) | 100 + 20 |
| Output Downlink Power (Bands 1/3/5/7/8/20/28L) (dBm max.) | 20 (16 in U.K.) |
| Output Downlink Power (Band n78) (dBm max.) | 27 |
| Output Uplink Power (Band n78) (dBm max.) | 24 |
| Output Uplink Power (Bands 1/3/7) (dBm max.) | 22 |
| Output Uplink Power (Bands 5/8/20/28L) (dBm max.) | 20 |
| System Gain (dB max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom.) | 50 |
@185/142
Description::
The Nextivity CEL-FI GO G51 is a powerful 4G/5G signal booster designed to improve cellular coverage in large residential and medium-sized commercial spaces. Suited to urban areas where a 5G 3500 signal is available to take advantage of 5G data speeds and increased user capacity.
The G51 also supports 4G LTE data speeds so you can enjoy fast internet connectivity even in areas with weak signals. Plus with its easy-to-install design and compact size the G51 is a convenient solution that won’t take up much space in your home or office.
If you’re tired of dropped calls slow data speeds and unreliable cellular coverage the Nextivity G51 is a great investment. With its advanced signal-boosting technology and broad carrier compatibility it’s sure to improve your cellular experience and keep you connected when you need it most.
FEATURES:
- Relays two channels simultaneously:
1st Relay Channel: 5G 3500 (100MHz)
2nd Relay Channel: one 3G or 4G band (5/10/15/20MHz) - Carrier Switching using WAVE App between Telstra or Optus – one carrier at a time (Vodafone approval pending)
- Up to 3000 m2 coverage area
- Voice and Data support on 4G/5G
- Suited for those in a 5G 3500 coverage area (G41 is more suitable for areas outside of a 5G 3500 coverage area as it supports 2 x 4G band relay)
- Powered by the latest 4th generation Nextivity proprietary IntelliBoost chip delivering industry-leading and unconditionally network safe performance
- Establishes network-safe uplink power in real-time and automatic uplink muting when no active user equipment is detected
- Ethernet Port for remote monitoring and management with Nextivity WAVE Portal and WAVE App
Ideal for Boosting Mobile Signal in:
- Large Homes
- Single or Multi-Level Commercial Buildings
- Government Buildings
- Medical and Nursing Homes
- Infill 5G coverage for Hotels/Shopping Centres/Hospitals/Conference Centres
- Underground Parking
- Factories and Manufacturing
- Warehouses and Logistics
PACK INCLUDES:
- Nextivity CEL-FI GO G51 Stationary Repeater - Switchable between Telstra Optus and Vodafone (Pending approval) - (one carrier at a time)
- Wall Mount 698-4000MHz Panel Antenna -150dBc PIM
- LPDA Antenna 698-4000MHz
- PTL-240 10m + 6m Coaxial Cable N male to SMA Male
- 1m Ethernet cable
- 240v Power Supply
Specification:
| Specifications | |
| Frequency Bands | n78 and 1/3/5/7/8/20/28L |
| Relay Channel Bandwidths (MHz) | 100 and 5/10/15/20 |
| Networks | 2G/3G/4G/5G |
| Network Protocols | GSM/WCDMA/LTE/DSS/NR |
| Network Selection | Automatically best available (WAVE App and WAVE Portal for manual setting) |
| Network Operator | Configured to authorized operator PLMN-IDs |
| Duplex Modes | FDD and TDD |
| # of Relay Bands (max.) | 2 |
| Relay Bandwidth (MHz max.) | 100 + 20 |
| Output Downlink Power (Bands 1/3/5/7/8/20/28L) (dBm max.) | 20 (16 in U.K.) |
| Output Downlink Power (Band n78) (dBm max.) | 27 |
| Output Uplink Power (Band n78) (dBm max.) | 24 |
| Output Uplink Power (Bands 1/3/7) (dBm max.) | 22 |
| Output Uplink Power (Bands 5/8/20/28L) (dBm max.) | 20 |
| System Gain (dB max.) | 100 |
| Enterprise-Grade Echo Cancellation (dB min.) | 30 |
| Return Loss (dB typ.) | -8 |
| Impedance (Ω nom.) | 50 |
@185/142
Description::
Specification:
| Category | Specification | Details |
|---|---|---|
| Model Version | G51–LE–003 | CEL-FI GO G51 Stationary Repeater |
| Frequency Bands | n78 and 1/3/5/7/8/28L | Supports 5G NR and legacy bands |
| Network Compatibility | 2G/3G/4G/5G | GSM/WCDMA/LTE/NR |
| Relay Channel Bandwidths | 100 MHz and 5/10/15/20 MHz | Wide coverage for multiple bands |
| Output Power (Downlink) | 20 dBm (16 in U.K.) | Bands 1/3/5/7/8/28L |
| 27 dBm | Band n78 | |
| Output Power (Uplink) | 22 dBm | Bands 1/3/7 |
| 20 dBm | Bands 5/8/20/28L | |
| System Gain | 100 dB max | Industry-leading signal gain |
| Operating Temperature | 0 to 40 °C | Indoor use only |
| Ingress Protection | IP20 | Indoor only non-waterproof |
| Dimensions | 265.2 x 172.0 x 69.2 mm | Main Unit Dimensions |
| Weight | 2.2 kg | Main Unit Weight |
| Power Supply | 12V DC 60W max | Type I (AUS) |
| Connectivity | SMA (f) ports | For donor and server antennas |
| Management | WAVE App & Portal | Bluetooth LAN system status LEDs |
@161/125
