RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
RFI CD8195-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 918mm
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Specifications:
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Horizontal Beamwidth | Omni-Directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 918mm |
| Operating Temperature Range [°C] | -40 to +85 |
| Brand | RFI |
| Weight [kg] | 0.82 |
Documentation
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS

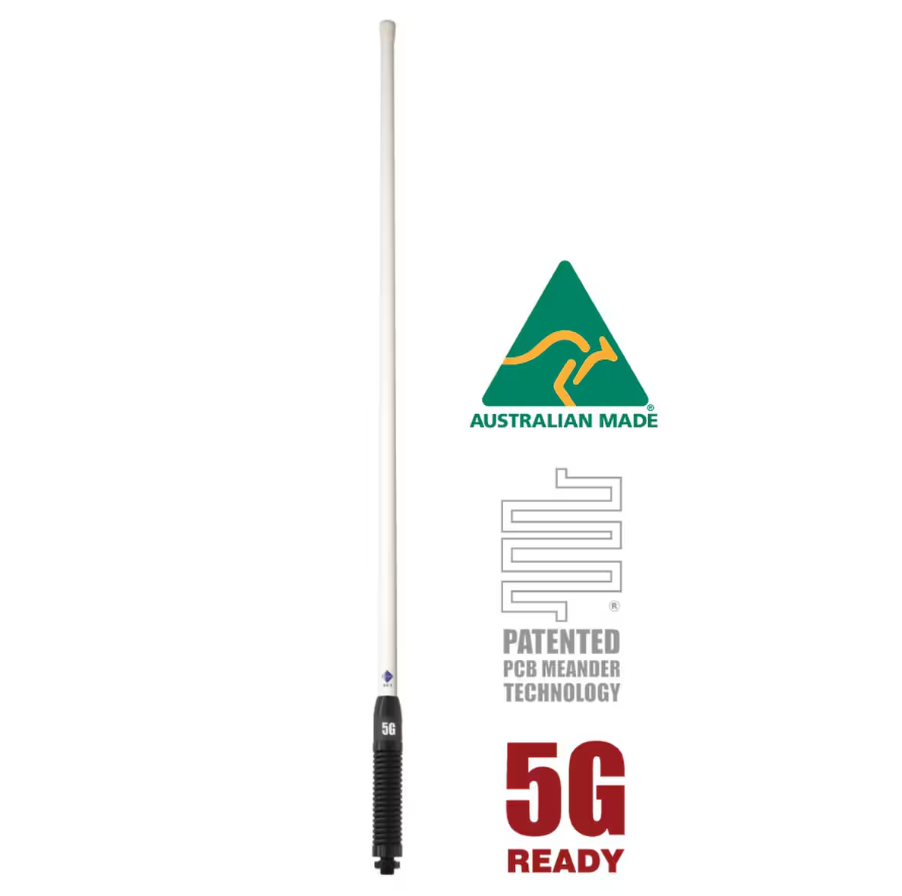

RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 918mm
RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 918mm
RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White Radome Black Spring 918mm
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Specifications:
| Colour | White Radome/Black Spring |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMA male connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Horizontal Beamwidth | Omni-Directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Length [mm] | 918mm |
| Operating Temperature Range [°C] | -40 to +85 |
| Brand | RFI |
| Weight [kg] | 0.82 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available SMA to FME Adapte r
MOUNTING BRACKET OPTIONS

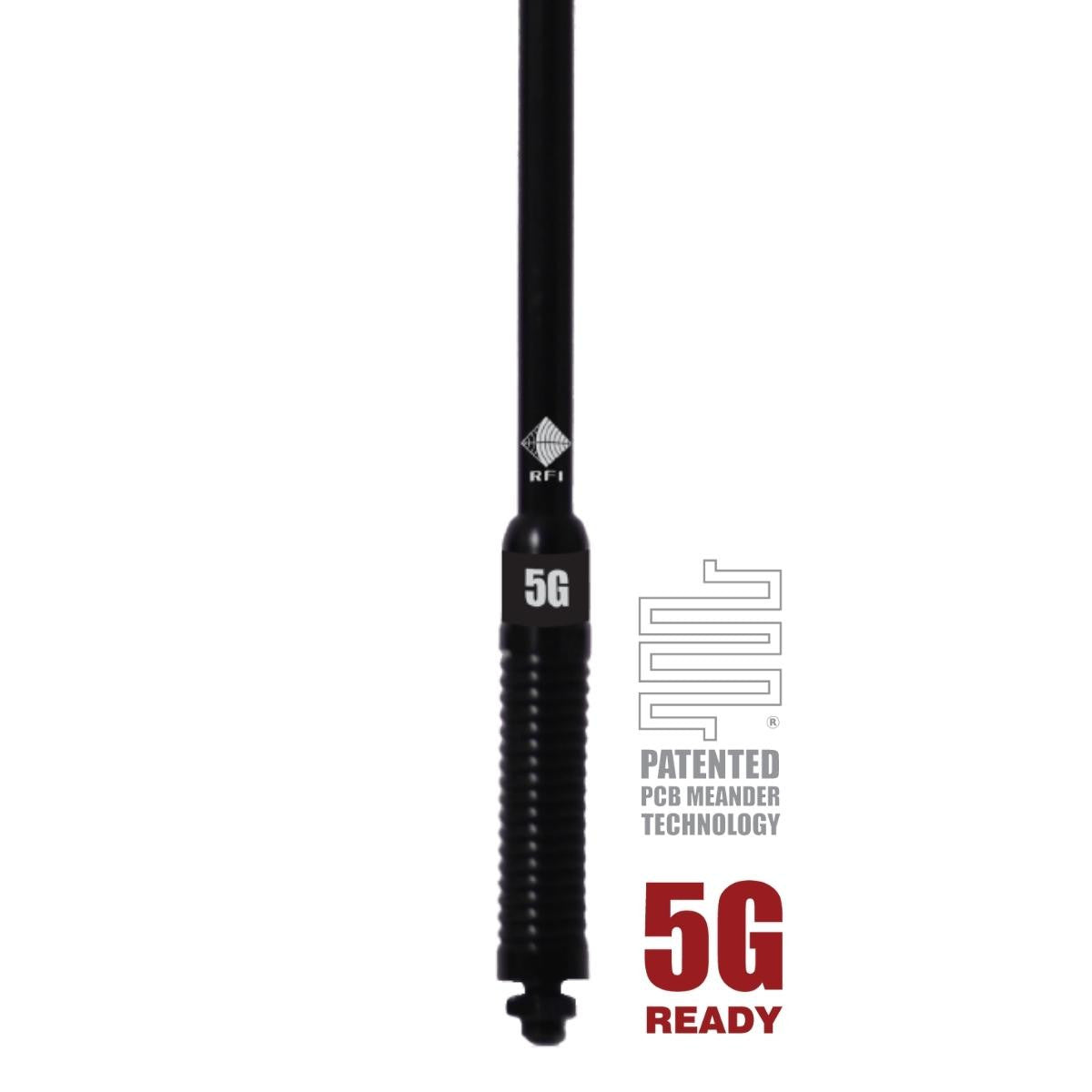

RFI CD8197-B 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1152mm
RFI CD8197-B 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1152mm
RFI CD8197-B 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1152mm
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700 MHz) but now the new 5G LTE band (3400-3800MHz).
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Specifications:
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass (Black) |
| Cable And Connector | 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 7.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Linear |
| VSWR | <2.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 1152mm |
| Brand | RFI |
| Weight [kg] | 0.84 |
| Height [mm] | 1140 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS

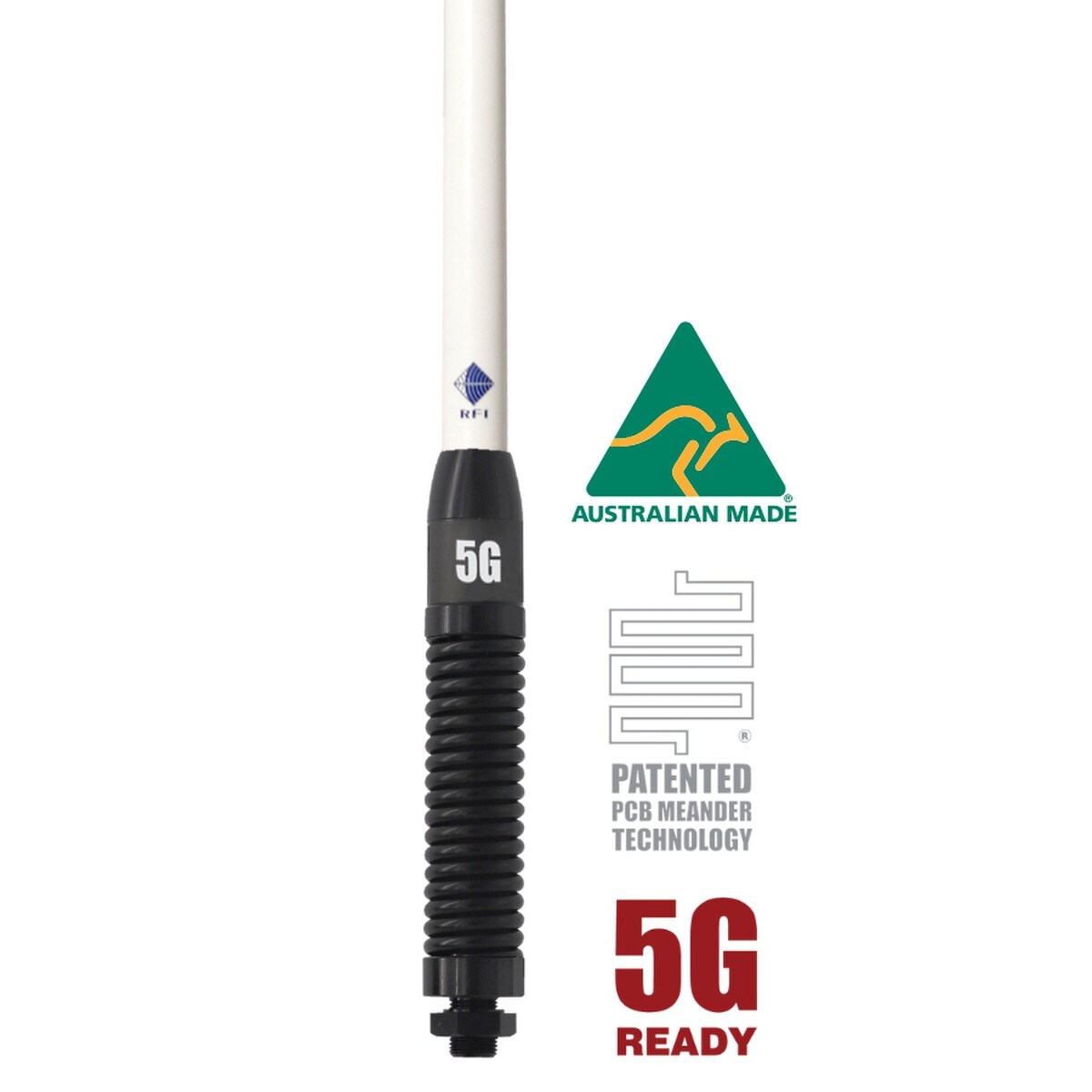

RFI CD8197-WB 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 1152mm
RFI CD8197-WB 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 1152mm
RFI CD8197-W 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White Radome Black 1152mm
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass (White) |
| Cable And Connector | 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 7.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Linear |
| VSWR | <2.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 1152mm |
| Brand | RFI |
| Weight [kg] | 0.84 |
| Height [mm] | 1140 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
MOUNTING BRACKET OPTIONS

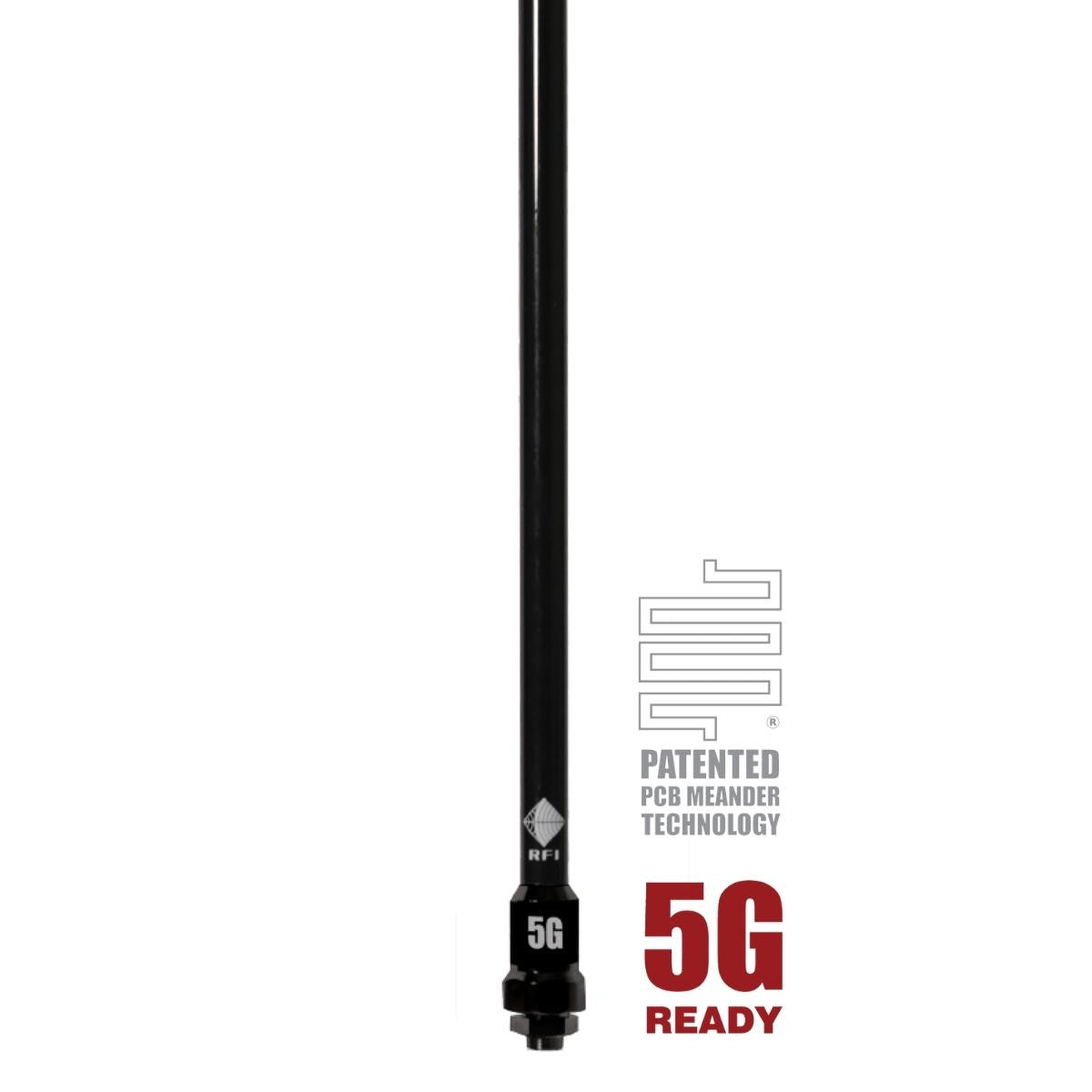

RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 806mm
RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 806mm
RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 806mm
The new CD8200 Series 5G LTE antennas cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) and now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CD8200 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CD8200 Series is designed for fixed mounting using the ½” 26TPI threaded stud & nut.
Key Features:
• Patented PCB based collinear design offering the ultimate in pattern and gain stability.
• Ideal for new 5G LTE networks with true multi-band coverage.
• High gain across all bands making it suiting fringe and rural applications.
Specifications:
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Poly Bag |
| Whip Material | Firbeglass |
| Cable And Connector | 5m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm hole |
| Tuned bandwidth | Full. |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 806 |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View 8100 Series Specifications Matrix

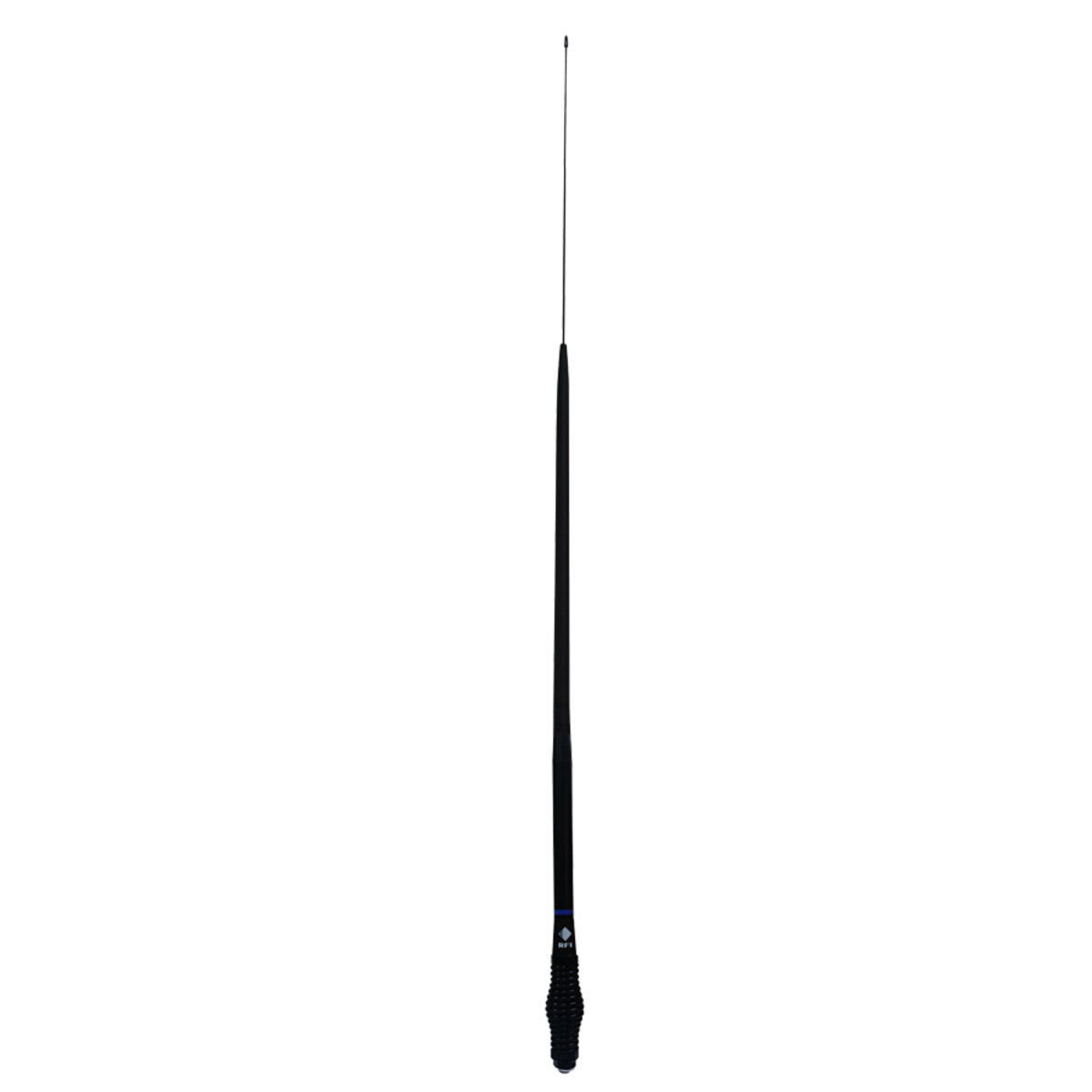

RFI CD961-71-75 UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz ); MSW35 5m FME(F) & UHF(M) Adaptor
RFI CD961-71-75 UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz ); MSW35 5m FME(F) & UHF(M) Adaptor
RFI CD961-71-75 UHF CB 6.5dB E/Feed Mopole Antenna (470-490MHz ); MSW35 5m FME(F) & UHF(M) Adaptor
The CD900 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted high above a vehicle CD900 series antennas deliver a full 6.5dB gain. When the CD961-71-75 gets mounted in other positions such as on a vehicle fender or bull bar the elevated feed design places a large portion of the antenna above the vehicle cabin providing good all round performance regardless of mounting position.
Features:
• Totally ground plane independent
• Elevated feed boosts radiating element above obstructions
• New MSW35 Phasemaster whip section provides unsurpassed performance and strength
• Quality construction - Choke assembly is crafted from solid brass and available in both chrome and black finishes
• Supplied pre-terminated with FME connector and UHF adaptor
• Can be used with a variety of mounts.
Specifications:
| Nominal Gain dBq | 6.5 |
| Packaging | Clear hanging bag |
| Whip Material | Polyurethene over moulded 17-7PH black chrome plated whip section on bright chrome choke |
| Whip Length mm | 850 |
| Cable And Connector | 5m Cellfoam with FME-101 terminated UHF adapter supplied. |
| Tuning | Supplied pre-tuned |
| Band | 470-490MHz |
| Frequency | 470-490 MHz |
| Power w | 100 |
| VSWR | <1.6:1 @ 470-490MHz & <1.25:1 @ 476-478MHz |
| Tuned bandwidth | Full. No tuning required |
| Frequency MHz | 470 - 490 |
| Mounting | Spring Assembly withThreaded Stud & Stepped Nut |
| Brand | RFI |

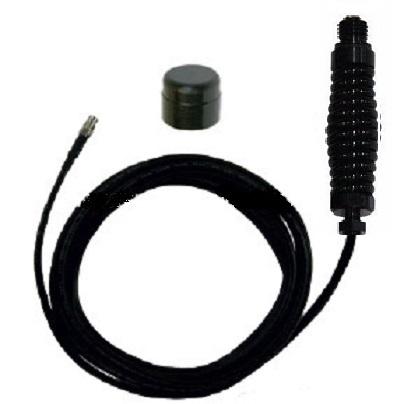

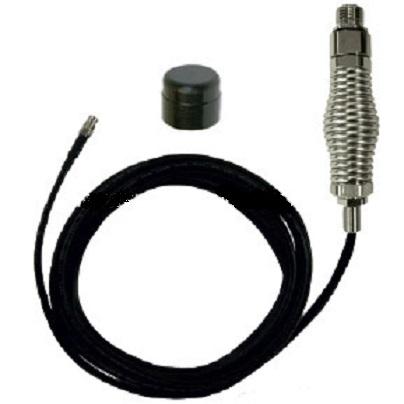

RFI CDQ-SA7-B-SMA Black Replacement Spring for CDQ Series Broomstick Antennas - SMA connection
RFI CDQ-SA7-B-SMA Black Replacement Spring for CDQ Series Broomstick Antennas - SMA connection
RFI CDQ-SA7-B-SMA Black Replacement Spring for CDQ Series Broomstick Antennas
This replacement spring assembly is compatible with the RFI CDQ series whips....CDQ8194 & CDQ7194 CDQ8195 & CDQ7195 CDQ8197 & CDQ7197
This Q-Fit® system is for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Black plated spring
- Supplied with 5m of 9006 low loss cable terminated with SMA connector
- Protective cap included
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Related Product
Also available in Chrome - click here
RFI CDQ-SA7-C-SMA Chrome Replacement Spring for CDQ Series Broomstick Antennas - SMA connection
RFI CDQ-SA7-C-SMA Chrome Replacement Spring for CDQ Series Broomstick Antennas - SMA connection
RFI CDQ-SA7-C-SMA Chrome Replacement Spring for CDQ Series Broomstick Antennas - SMA connection
This replacement spring assembly is compatible with the RFI CDQ series whips....CDQ8194 & CDQ7194 CDQ8195 & CDQ7195 CDQ8197 & CDQ7197
This Q-Fit® system is for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Chrome plated spring
- Supplied with 5m of 9006 low loss cable terminated with SMA connector
- Protective cap included
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Related Product
Also available in Black - click here

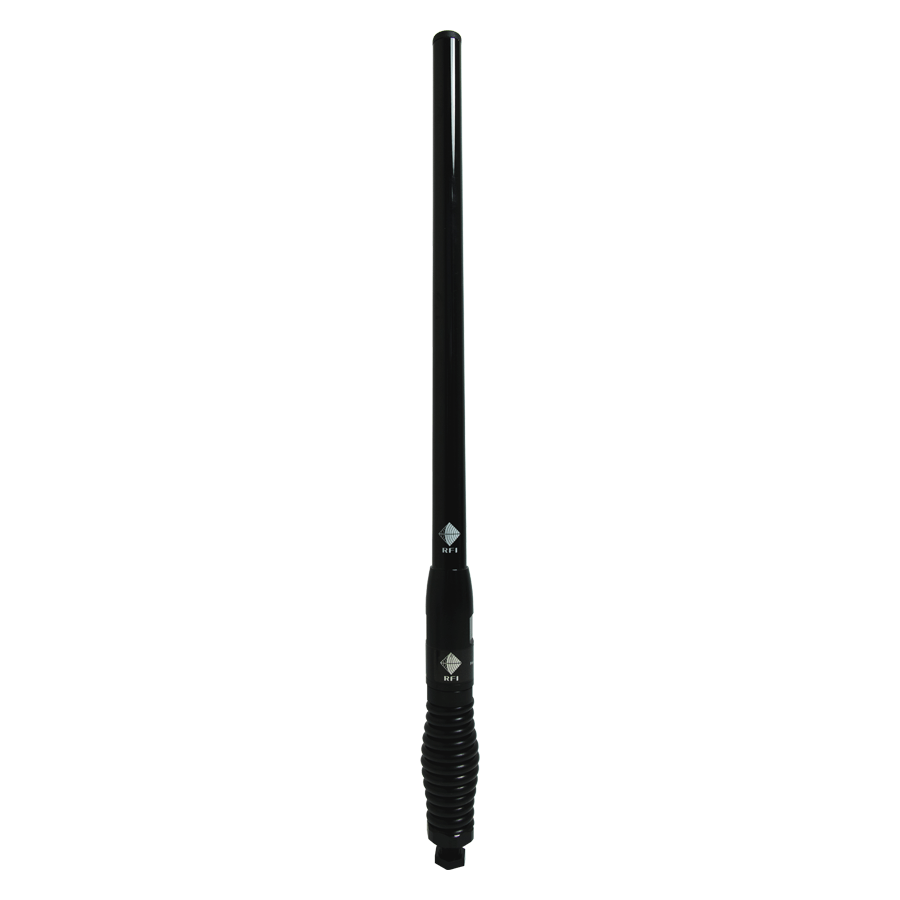

RFI CDQ3000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black /Black Chrome Spring 515mm
RFI CDQ3000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black /Black Chrome Spring 515mm
RFI CDQ3000-B QUICK-FIT UHF 3DBi CB 477mHZ ANTENNA - BLACK 515mm
CDQ3000 antenna is the last product to our Q-Fit UHF CB antenna series. The CDQ3000 is super compact at only 515mm long and is based on our hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.
The new compact CDQ3000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ3000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ3000-B:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 3dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- Whip + Qi-Fit Spring Length = 515mm (Whip-only length = 420mm)
Specifications CDQ3000-B:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 3 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar guard or roof rack |
| Radome Diameter mm | 22.5 – 18.5 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 515mm |
| Mounting | Spring Assembly with threaded stud & nut |
Documentation
RFI CDQ3000-B-WHIP Q-Fit UHF CB 477Mhz Collinear Antenna - Black Whip-Only 420mm
RFI CDQ3000-B-WHIP Q-Fit UHF CB 477Mhz Collinear Antenna - Black Whip-Only 420mm
RFI CDQ3000-B-WHIP Q-Fit UHF CB 477Mhz Collinear Antenna - Black Whip-Only 420mm
The CDQ3000 Whip is super compact at only 420mm long and is based on our hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.
The new compact CDQ3000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes.
Features CDQ3000-B-WHIP:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 3dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- Whip-only length 420mm (Whip + Q-Fit Spring Length = 515mm)
Documentation

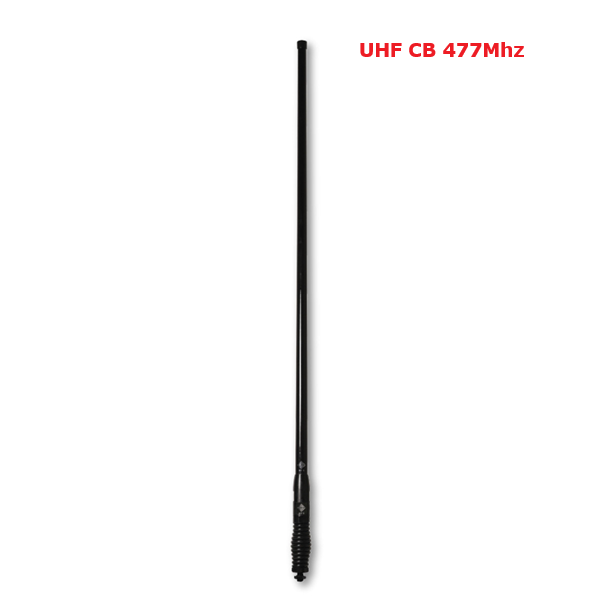

RFI CDQ3000-BL QUICK-FIT UHF 3DBi CB 477mHZ ANTENNA - BLACK 707mm **New Longer Length to match CDQ8194 antenna**
CDQ3000-BL is a longer version of the RFI CDQ3000 and matches in length with RFI CDQ8194-B mobile phone antenna. The longer version of the CDQ3000 is 707mm long and is based on the hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern .
The new CDQ3000-BL employs the Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished black stainless steel spring the CDQ3000-BL can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ3000-BL:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 3dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- Whip + Black Qi-Fit Spring Length = 707mm
Specifications CDQ3000-BL:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 3 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar guard or roof rack |
| Radome Diameter mm | 22.5 – 18.5 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 707mm |
| Mounting | Black Spring Assembly with threaded stud & nut |
Documentation

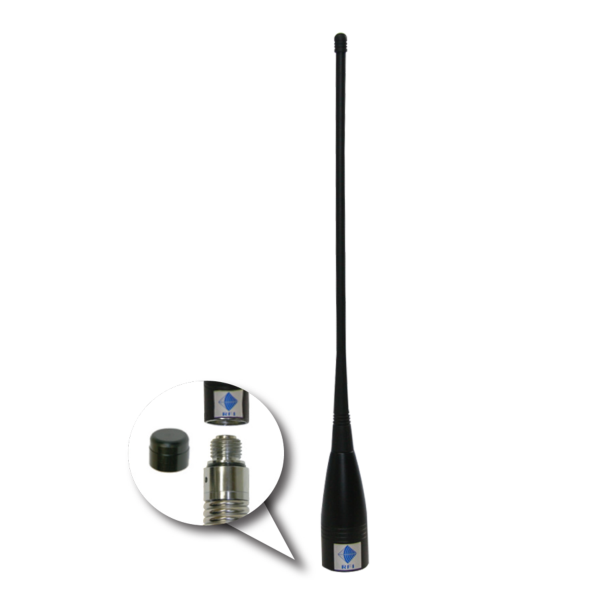

RFI CDQ34-71-00 UHF CB 4dBi Collinear 477MHz Antenna; Whip Only
The CDQ34-71-00 whip is designed to be used as a short low gain whip in place of the CDQ5000 or CDQ8000 Q-Fit® whips.
Being only 325mm long the CDQ34-71-00 whip is ideal for use urban environments when a longer high gain whip in not required or when low heights are an issue.
The CDQ34-71-00 can also be used in extremely rugged situations where overhanging branches could damage longer high gain antennas yet still providing good radio coverage and the convenience to switch back to a high gain whip for longer range communications.
Features:
• Compact stylish design
• Connects directly to Q-Fit® UHF spring assemblies in place of CDQ5000 & CDQ8000 whips
• Flexible whip section
Specifications:
| Brand | RFI |
| Length [mm] | 265 |
| Termination | Integrated N- Type (M) |
| VSWR | 1.5:1 |
| Nominal Gain [dBi] | 4.1 |
| Power [W] | 50 |
| Frequency Range [MHz] | 470 - 490 |
| Band | 476-478 MHz |
| Tuning | Full |
| Whip Material | Black polyurethane moulded stainless steel |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |

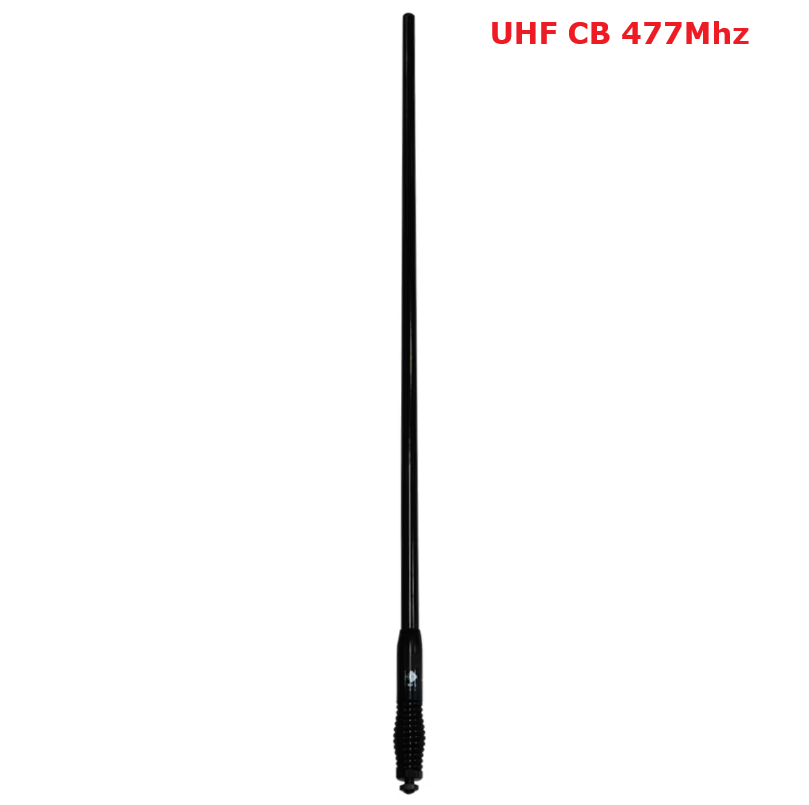

RFI CDQ5000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 976mm
RFI CDQ5000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 976mm
RFI CDQ5000-B Q-Fit UHF CB Collinear Antenna - Black / Black Chrome Spring 976mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ5000-B:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Brand | RFI |
| Mounting | Threaded Stud |
| Length [mm] | 970 |
| Frequency MHz | 477 |
| Tuned Bandwidth | Full. No tuning required |
| Radome Diameter Mm | 22-16 |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 5 |
| Power [W] | 25 |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Packaging | Clear hanging bag |
| Colour | Black |
| Antenna Type | Collinears Ground Independent Meander Removeable Whip/Replacement Whip Spring Mount Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
Documentation
Related Products
Also available CDQ5000 in white
MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm

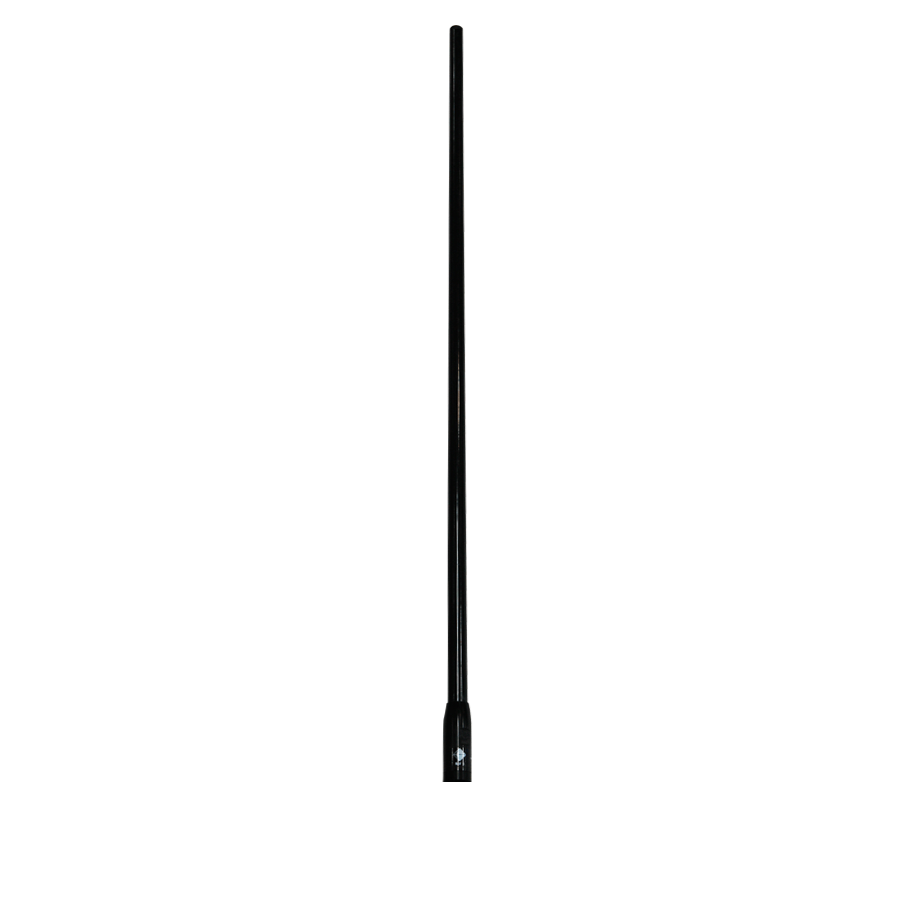

RFI CDQ5000-B-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - Black
RFI CDQ5000-B-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - Black
RFI CDQ5000-B-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - Black
This antenna is extremely robust in design with the patented PCB designed radiating element housed in a black fibreglass radome.
Features:
• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications
• Available with GPS sub-assembly on request.
• Also available in white - CDQ5000-W-WHIP
• Patented PCB based collinear design offering the ultimate in pattern and gain stability
Documentation
RFI CDQ5000-BL Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 1210mm
RFI CDQ5000-BL Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 1210mm
RFI CDQ5000-BL Q-Fit UHF CB Collinear Antenna - Black / Black Chrome Spring 1210mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ5000-BL:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000-BL) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specification:
| Brand | RFI |
| Mounting | Threaded Stud |
| Length [mm] | 1210 |
| Frequency MHz | 477 |
| Tuned Bandwidth | Full. No tuning required |
| Radome Diameter Mm | 22-16 |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 5 |
| Power [W] | 25 |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Packaging | Clear hanging bag |
| Colour | Black |
| Antenna Type | Collinears Ground Independent Meander Removeable Whip/Replacement Whip Spring Mount Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
Documentation
Related Products
MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
RFI CDQ5000-W Q-Fit UHF CB 477Mhz Collinear Antenna - White / Chrome Spring 976mm
RFI CDQ5000-W Q-Fit UHF CB 477Mhz Collinear Antenna - White / Chrome Spring 976mm
RFI CDQ5000-W Q-Fit UHF CB Collinear Antenna - White / Chrome Spring 976mm
IN STOCK
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ5000-W:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Brand | RFI |
| Mounting | Threaded Stud |
| Length [mm] | 1210 |
| Frequency MHz | 477 |
| Tuned Bandwidth | Full. No tuning required |
| Radome Diameter Mm | 22-16 |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 5 |
| Power [W] | 25 |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Packaging | Clear hanging bag |
| Colour | White |
| Antenna Type | Collinears Ground Independent Meander Removeable Whip/Replacement Whip Spring Mount Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
Documentation
Related Products
Also available CDQ5000-B (black )

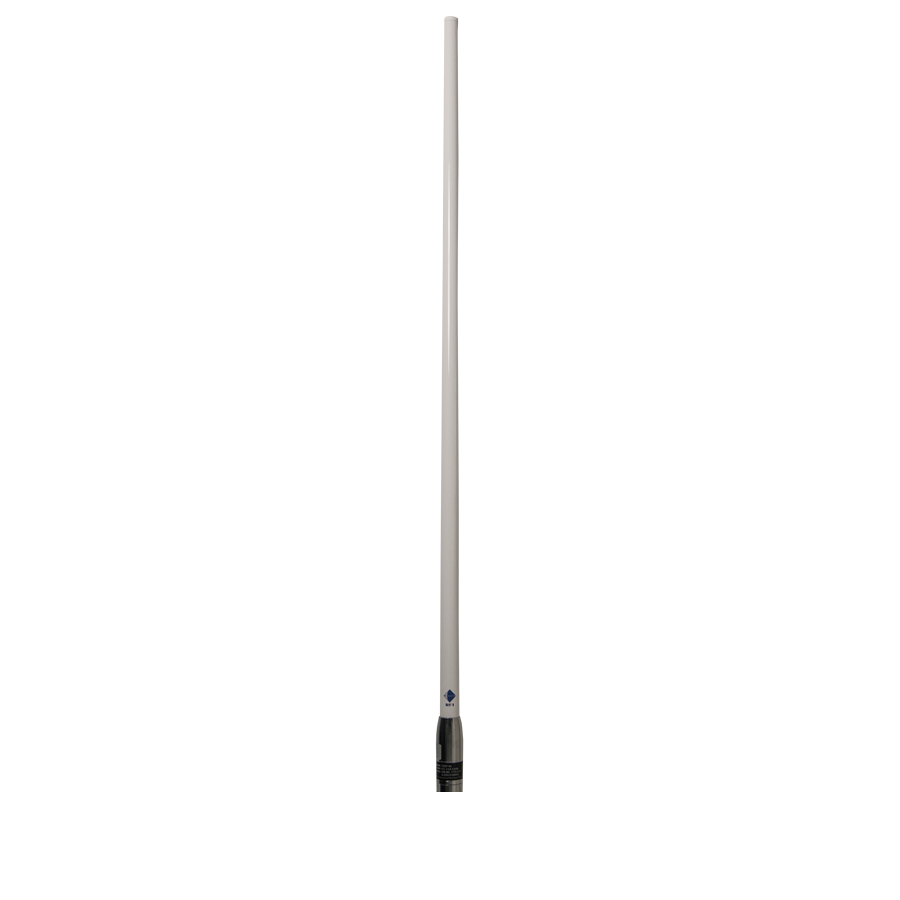

RFI CDQ5000-W-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - White
RFI CDQ5000-W-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - White
RFI CDQ5000-W-WHIP Q-Fit UHF CB 477mHZ Replacement Antenna Whip-Only - White
This antenna is extremely robust in design with the patented PCB designed radiating element housed in a white fibreglass radome.
Features:
• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications
• Available with GPS sub-assembly on request
• Also available in black - CDQ5000-B-WHIP
• Patented PCB based collinear design offering the ultimate in pattern and gain stability

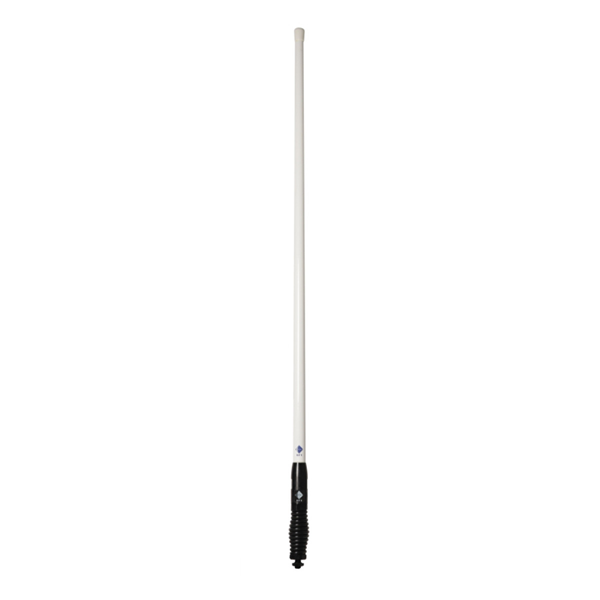

RFI CDQ5000-WB Q-Fit UHF CB 477Mhz Collinear Antenna - White / Black Spring 976mm
RFI CDQ5000-WB Q-Fit UHF CB 477Mhz Collinear Antenna - White / Black Spring 976mm
RFI CDQ5000-WB Q-Fit UHF CB Collinear Antenna - White Radome / Black Spring 976mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles four wheel drives and trucks.
Features CDQ5000-WB:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass -White |
| Suggested Installation | Bullbar |
| Radome Diameter mm | 22.5 - 15.6 |
| Packaging | Clear hanging bag |
| VSWR | 1.5:1 |
| Length mm | 976mm |
| Mounting | Threaded Stud |
Documentation
Related Products
Also available CDQ5000 in black
