RFI RFI CD34-71-00 UHF CB (477Mhz) 4dBi Mopole Ground Independent Antenna Whip Only (330mm)

The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror gutter or roof rack. Mounting in such positions the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

This CD34-71-00 is the (330mm) whip only and screws onto a UHF / MBC Base / SO239 connector.

Features:

• Ground plane independent design allows installation in almost any location
• Robust UV stable base & flexible whip
• 330mm
• Screws onto UHF / MBC Base / SO239 connector
• Rugged antenna suitable for most any application

Specifications:

RFi CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna - MBC Mount 5Mtrs Cable with FME connection (4 dBi)

The RFI CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna offers superior performance with a 4 dBi gain perfect for CB Radio communications. The antenna has an MBC mount and 5.0 Mtr cable with an FME connection for maximum reliability - making it an ideal choice for both indoor and outdoor applications.

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

Features:

The CD34-71-53 comes with an MBC base with removable whip. The MBC base has a 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.

• Ground plane independent design allows installation in almost any location
• Robust UV stable base & flexible whip.
• MBC mount base with 5.0Mtr cable terminated with an FME (female) connection (antenna also includes FME male to UHF male adaptor)

Specifications:

Documentation

CD34-71-53 Technical Data Sheet

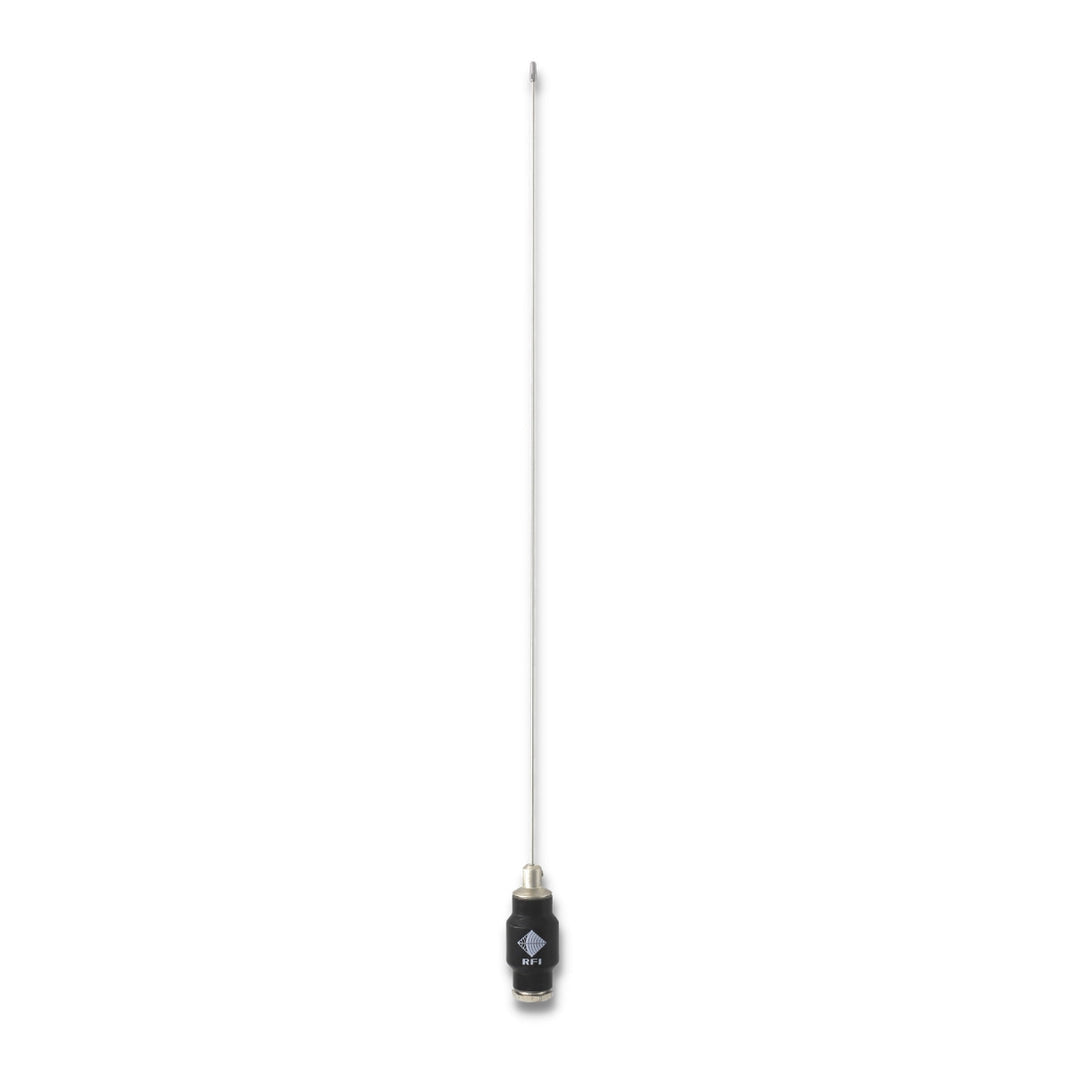

RFI CD50-65-70 UHF Ground Independent Mopole 380 - 440 MHz - Threaded Stud - No Cable 395mm Stainless Steel Flexible Whip

When the CD50-65-70 gets mounted on a vehicle gutter or similar position these UHF MopolesTM provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.
The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.
CD50 antennas have an elegant and durable tapered stainless steel whip section.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

• Versatile - Ground plane independence allows alternative mounting locations

• Convenient - Patented design allows termination or retermination in seconds
• Stainless steel whip or flexible nylon whips cater to individual needs
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.

Documentation

CD50/CD51 Technical Data Sheet

CD50/CD51 Installation Guide

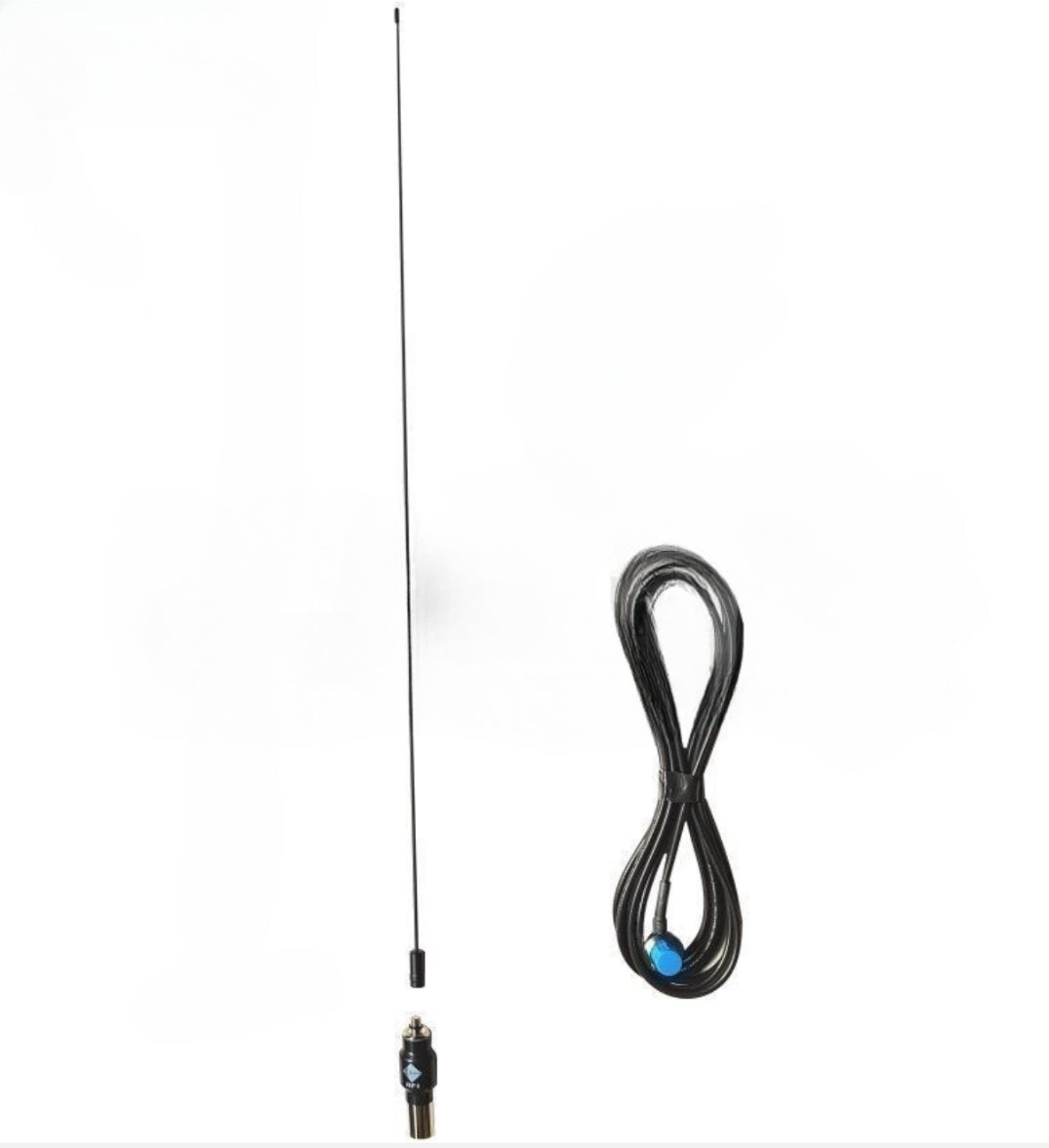

RFI CD50-65-73 UHF Grd Ind. Mopole 380-440MHz-S/Steel with 5m 8058 RG58C/U - Whip Length 395mm

When the CD50-65-73 gets mounted on a vehicle gutter or similar position these UHF MopolesTM provide optimum performance with a largely omnidirectional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD50 antennas have an elegant and durable tapered stainless steel whip section.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

Features:

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted• Convenient - Patented design allows termination or re-termination in seconds
• Stainless steel whip or flexible nylon whips cater to individual needs
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.(2) Available preterminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.

Specifications:

Documentation

CD50/CD51 Technical Data Sheet

CD50/CD51 Installation Guide

RFI CD50-68-73 UHF Ground Independent Mopole Antenna (450-520MHz) - Threaded Stud -S/Steel with 5m 8058 RG58C/U

When the CD50-68-73 gets mounted on a vehicle gutter or similar position this UHF MopolesTM provide optimum performance with a largely omnidirectional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD50 antennas have an elegant and durable tapered stainless steel whip section.

The CD50-68-70 mounts via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

Features:

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted
• Convenient - Patented design allows termination or retermination in seconds
• Stainless steel whip or flexible nylon whips cater to individual needs
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

Specifications

Notes

(1) Mopole antennas such as the CD50/CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
(2) Available pre-terminated with 5m RG58 cable. Use -73 or -53 suffix to replace -70 or -50 suffix.

Documentation

CD50/CD51 Technical Data Sheet
CD50/CD51 Installation Guide

RFI CD5000-B UHF CB Mobile 477mHZ Broomstick Antenna Black - 907mm

This antenna is extremely robust in design with the patented PCB designed radiating element housed in a black or white (CD5000 W) fibreglass radome fitted to an integral heavy duty electro-polished stainless steel spring.
With a 13mm stud mount and ground plane independent design this antenna may be installed onto a number of mounting brackets such as mirror bull bar gutter or fender mounts and are ideal for installations in commercial vehicles four wheel drives and trucks. They can even be used as a base station antenna due to their ground plane independent design.

Features CD5000-B:
• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications
• Available with GPS sub-assembly on request
• Available in white - CD5000-W
• Patented PCB based collinear design offering the ultimate in pattern and gain stability.

Specifications:

Documentation

CD5000 Technical Data Sheet

Related Products

Also available in white - CD5000-W

MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm

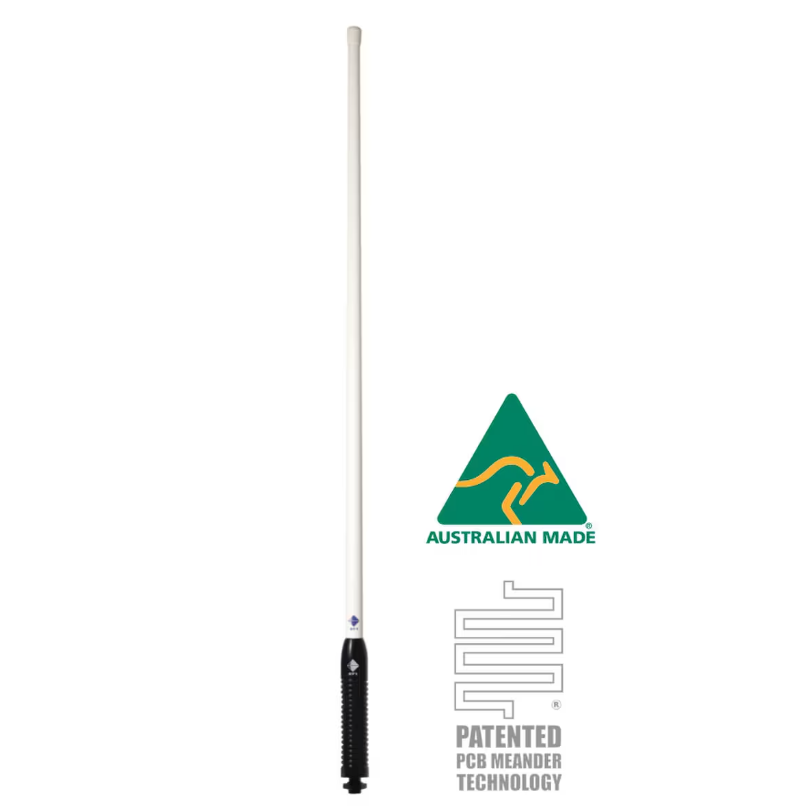

RFI CD5000-W UHF CB Mobile 477mHZ Broomstick Antenna White Radome/Black Spring - 907mm

This antenna is extremely robust in design with the patented PCB designed radiating element housed in a white fibreglass radome fitted to an integral heavy duty black spring.
With a 13mm stud mount and ground plane independent design this antenna may be installed onto a number of mounting brackets such as mirror bull bar gutter or fender mounts and are ideal for installations in commercial vehicles four wheel drives and trucks. They can even be used as a base station antenna due to their ground plane independent design.

Features CD5000-W:

• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications-
• Available with GPS sub-assembly on request
• Available in black - CD5000-B
• Patented PCB based collinear design offering the ultimate in pattern and gain stability

Specifications:

Documentation

CD5000 Technical Data Sheet

Related Products

Also available in black - CD5000-B

RFI CD51-65-53 UHF Ground Independent Mopole 380 - 440 MHz - MBC BASE 5Mtr Cable no connector

When the CD51-65-53 gets mounted on a vehicle gutter or similar position these UHF MopolesTM provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted
• Convenient - Patented design allows termination or retermination in seconds
• Flexible nylon whip
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
(2) Available preterminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.

Specifications:

Documentation

CD50/CD51 Technical Data Sheet

CD50/CD51 Installation Guide

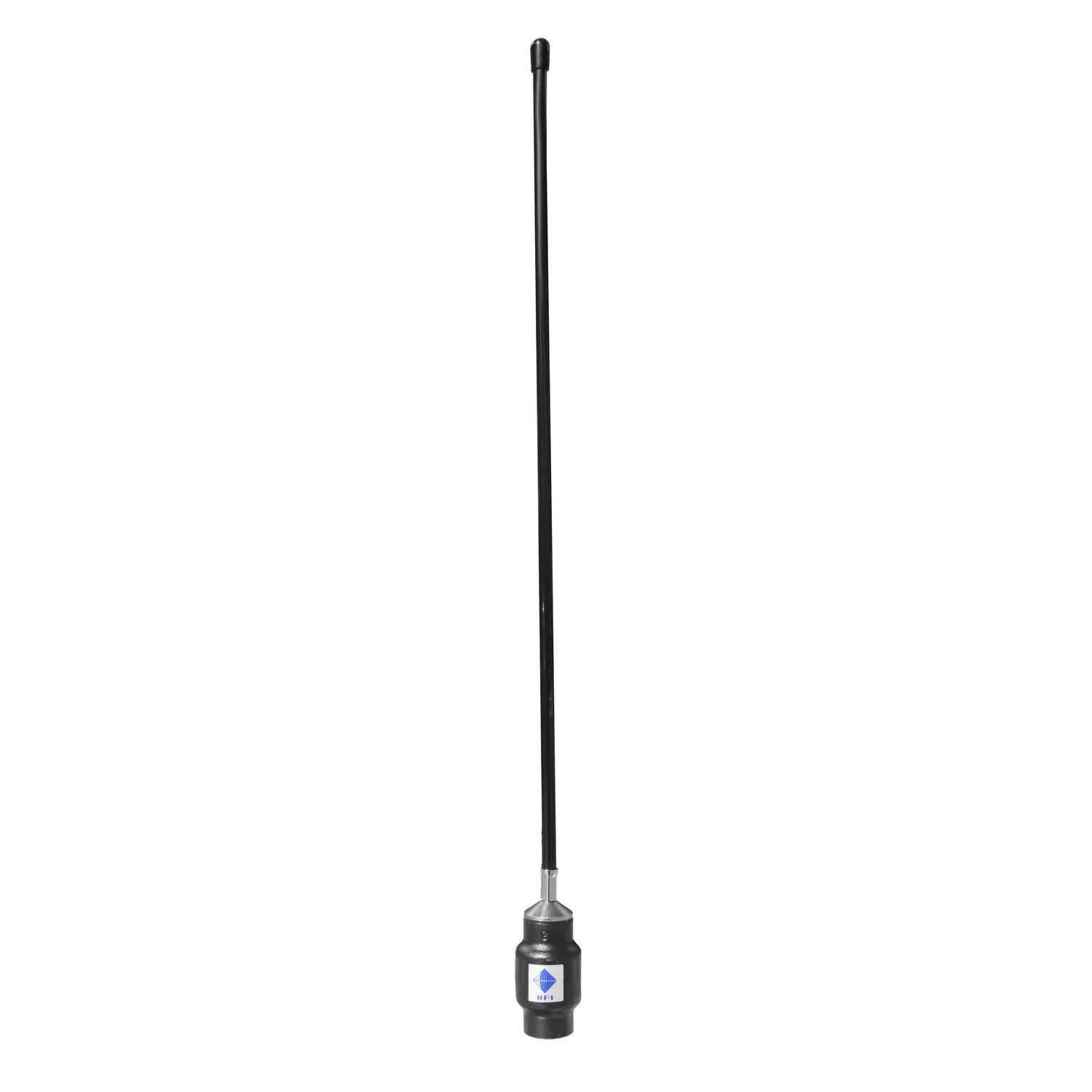

RFI CD51-65-70 UHF Ground Independent Mopole 380 - 440 MHz - Threaded Stud Mount - No Cable 360mm Copper/Nylon Flexible Whip

When the CD51-65-70 gets mounted on a vehicle gutter or similar position these UHF MopolesTM provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

• Versatile - Ground plane independence allows alternative mounting locations

• Performance - High performance and largely omni-directional pattern when not centre roof mounted

• Convenient - Patented design allows termination or retermination in seconds

• Flexible nylon whip (black)

• Durable - Base coil is virtually indestructible

• Unique transformer design

• Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.

(2) Available preterminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.

Specifications:

Documentation

CD50/CD51 Technical Data Sheet

CD50/CD51 Installation Guide

RFI CD51-65-70 UHF Ground Independent Mopole 380 - 440 MHz - Threaded Stud Mount - 5Mtr Cable No connector 360mm Copper/Nylon Flexible Whip

When the CD51-65-70 gets mounted on a vehicle gutter or similar position these UHF MopolesTM provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF MopolesTM incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted
• Convenient - Patented design allows termination or retermination in seconds
• Flexible nylon whip (black)
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
(2) Available preterminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.

Specifications:

Documentation

CD50/CD51 Technical Data Sheet

CD50/CD51 Installation Guide

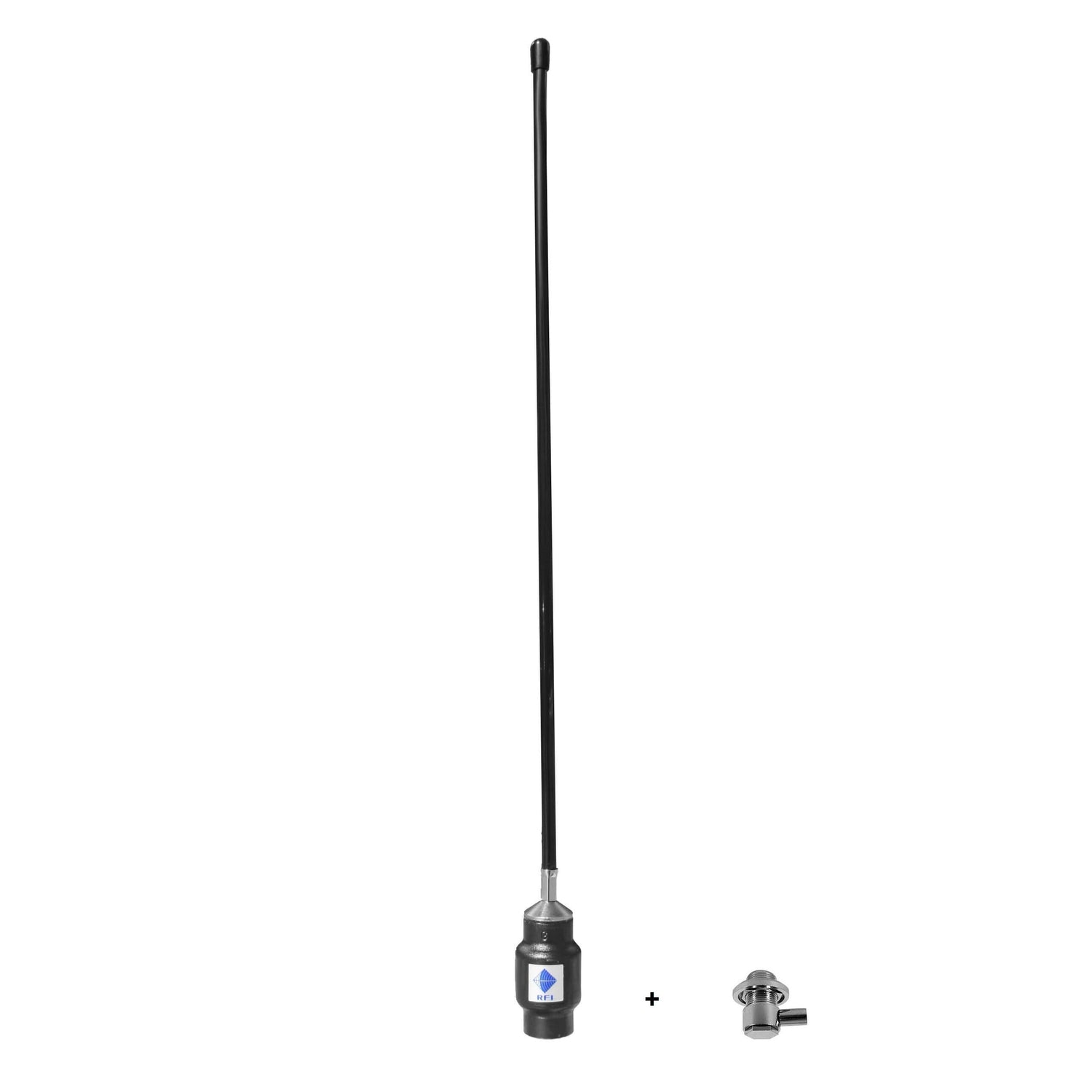

RFI CD51-68-50 UHF Ground Independent Mopole Antenna (450-520MHz) - MBC Base

The CD50/CD51 Series UHF ground independent Mopole antennas are versatile and popular antennas providing excellent performance in virtually any mounting position.

When the CD50/CD51 gets mounted on a vehicle gutter or similar position these UHF Mopoles provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF Mopoles incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

- CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications.
- CD50 antennas have an elegant and durable tapered stainless steel whip section.

There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

• Versatile - Ground plane independence allows alternative mounting locations
• Performance - High performance and largely omni-directional pattern when not centre roof mounted
• Convenient - Patented design allows termination or retermination in seconds
• Stainless steel whip or flexible nylon whips cater to individual needs
• Durable - Base coil is virtually indestructible
• Unique transformer design
• Australian Patents #596830 and #656793

(Note 1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
(Note 2) Available pre-terminated with 5m RG58. Use -73 or -53 suffix to replace -70 or -50 suffix.

Specifications: CD51-68-50

Documentation

CD51-68-50 Technical Data Sheet

RFI CD51-68-53 UHF 4dB Mopole Antenna (450-520 MHz); MBC Base 5m No Connector

2-4 Day Lead Time

When the CD50/CD51 gets mounted on a vehicle gutter or similar position these UHF Mopoles provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof. The end fed design of the UHF Mopoles incorporates a truly unique transformer in the base section. In this patented feed assembly the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course. - CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications. - CD50 antennas have an elegant and durable tapered stainless steel whip section. There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering. The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

Feature:
- Ground plane independence allows alternative mounting locations
- High performance and largely omni-directional pattern when not centre roof mounted
- Patented design allows termination or re-termination in seconds
- Stainless steel whip or flexible nylon whips cater to individual needs
- Base coil is virtually indestructible
- Unique transformer design
- Australian Patents #596830 and #656793

(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas. (2) Available pre-terminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.

Documentation

CD50/CD51 Technical Data Sheet

CD50/CD51 Installation Guide

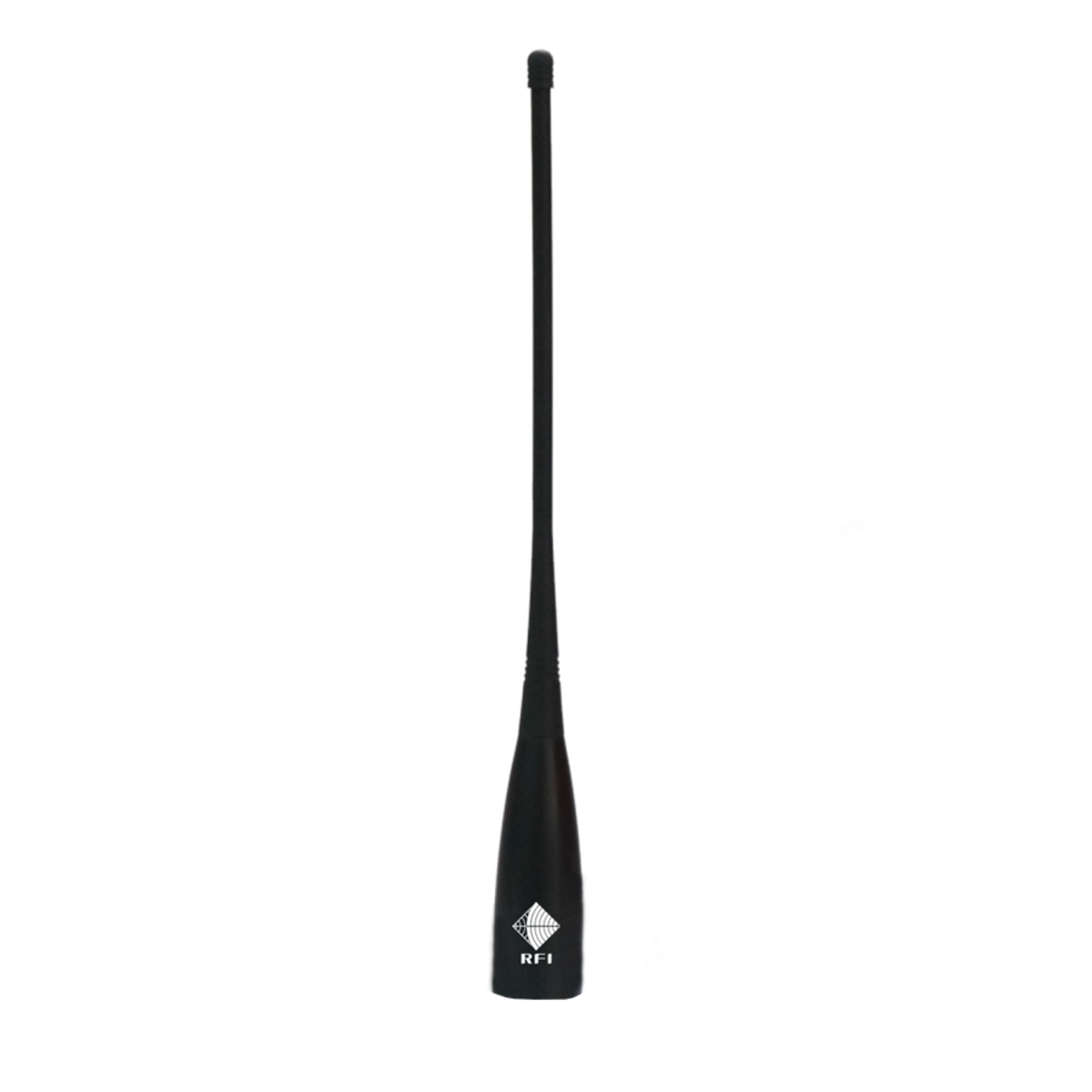

RFI CD61-4552-00 UHF 4dB Broadband Antenna (450-520 MHz); Whip Only

The integrated matching circuit is housed in a rugged impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts facilitates existing installation upgrades on public safety vehicles.

Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- Base is virtually indestructible

Specifications:

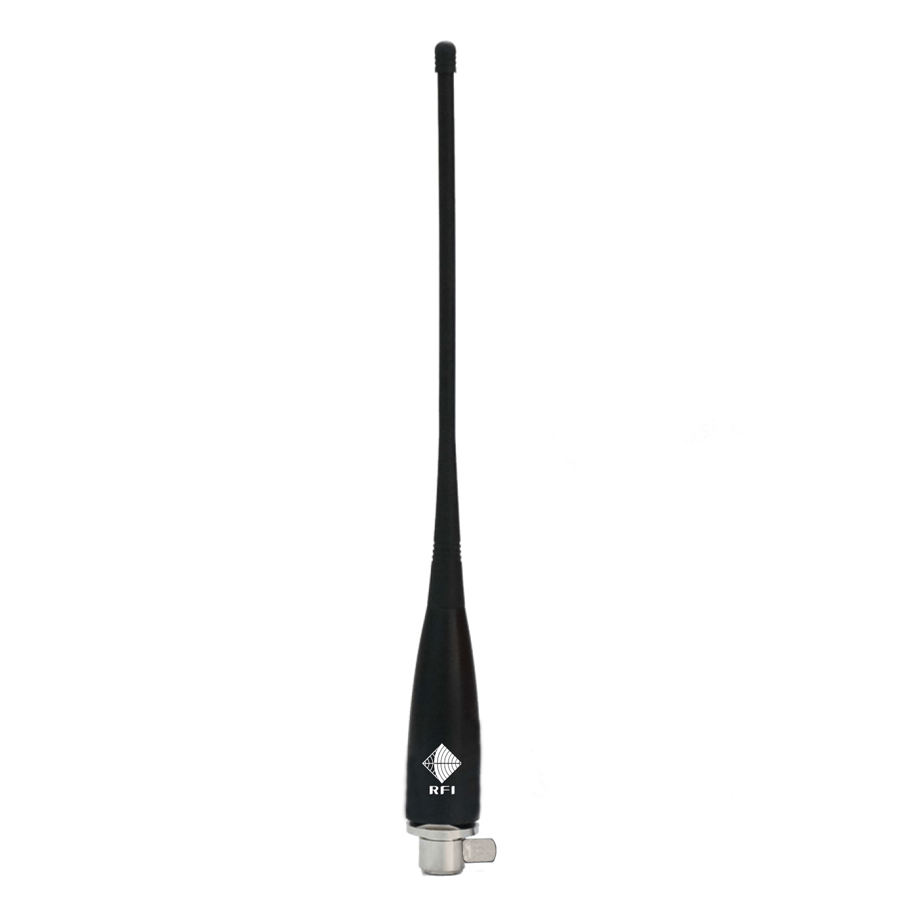

RFI CD61-4552-50 Broadband UHF Ground Independent Mopole 450-520 MHz - MBC Base no Cable

The CD61 Series broadband antenna supports multi band radio technology providing full interoperability among emergency services and commercial radios regardless of UHF segment used. They provide outstanding coverage of UHF frequencies in a ready-to-install no tune design.

The integrated matching circuit is housed in a rugged impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts facilitates existing installation upgrades on public safety vehicles.

CD61-4552-50 Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- Base is virtually indestructible

DESIGNED & MANUFACTURED IN AUSTRALIA.

Documentation

CD61-4552-50 Technical Data Sheet

RFI CD61-4552-53 UHF 4dB Broadband Antenna (450-520 MHz); MBC Base 5m No Connector

The CD61 Series broadband antenna supports multi band radio technology providing full interoperability among emergency services and commercial radios regardless of UHF segment used. They provide outstanding coverage of UHF frequencies in a ready-to-install no tune design.

The integrated matching circuit is housed in a rugged impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts facilitates existing installation upgrades on public safety vehicles.

Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- Base is virtually indestructible

Specifications:

Documentation

CD61-4552-53 Technical Data Sheet

RFI CD63-71-50 UHF CB (477 MHz) Mopole Antenna - MBC Base 800mm Long

The CD63 Series Mopole™ antennas offer complete versatility in mounting options. Unlike conventional roof mount antennas the CD63 Series antennas have true ground independence which allows mounting in a variety of positions including vehicle mirror gutter or roof bar mounts.

CD63-71-50 features:
This extraordinary performance is made possible by the use of an exclusive (and patented) high impedance matching circuit in the base coil. This allows the end feeding of the collinear whip section a 5/8 over 1/2 wave radiator wound from a single piece of high resilience 17-7PH stainless steel.

• Excellent performance - Exhibits 6.0dB gain over a ¼ wave whip mounted in the centre of a metal roof
• Flexible - Stainless steel whip returns to original shape after bending
• Rugged - The base coil is housed in a high impact thermoplastic moulding and is practically indestructible
• Stylish - Attractive black finish complements vehicle styling
• MBC base - no cable

(1) Mopole antennas such as the CD63 have been shown to exhibit a 6dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2dB over a ¼ wave (equivalent to 1.5-2dBq). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas

Specifications:

Documentation

CD63-71-50 Technical Data Sheet

CD63-71-50 Installation Guide

Related Products

CD63 is also available in these configurations…

WHIP-63-71 CD63 Antenna Whip Only

CD63-71-50 CD63 Antenna with MBC Base

CD63-71-55 CD63 Antenna with MBC base and 5Mtr cable terminated with FME connection + FME to UHF adaptor

RFI CD63-71-55 477MHz UHF CB Mopole Antenna; MBC Base with 5mtrs FME(F) connection & FME to UHF(M) Adaptor included 800mm Long

The CD63 Series Mopole™ antennas offer complete versatility in mounting options. Unlike conventional roof mount antennas the CD63 Series antennas have true ground independence which allows mounting in a variety of positions including vehicle mirror gutter or roof bar mounts.

CD63-71-55 features:

This extraordinary performance is made possible by the use of an exclusive (and patented) high impedance matching circuit in the base coil. This allows the end feeding of the collinear whip section a 5/8 over 1/2 wave radiator wound from a single piece of high resilience 17-7PH stainless steel.

• Excellent performance - Exhibits 6.0dB gain over a ¼ wave whip mounted in the centre of a metal roof
• Flexible - Stainless steel whip returns to original shape after bending
• Rugged - The base coil is housed in a high impact thermoplastic moulding and is practically indestructible
• Stylish - Attractive black finish complements vehicle styling
• MBC base with 5Mtrs cable terminated with FME connection
• FME to UHF adaptor included (A-76)

(1) Mopole antennas such as the CD63 have been shown to exhibit a 6dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2dB over a ¼ wave (equivalent to 1.5-2dBq). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas

Specifications:

Documentation

CD63-71-55 Technical Data Sheet

CD63-71-55 Installation Guide

Related Products

CD63 is also available in these configurations…

WHIP-63-71 CD63 Antenna Whip Only

CD63-71-50 CD63 Antenna with MBC Base

CD63-71-55 CD63 Antenna with MBC base and 5Mtr cable terminated with FME connection + FME to UHF adaptor

RFI CD8194-B 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 647mm

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Specifications:

View the CD8100 Series Technical Data Sheet

View 8100 Series Specifications Matrix

Related Products

Also available as CDQ8195-B (removable whip)

Also available SMA to FME Adapter

Mounting Bracket Options
