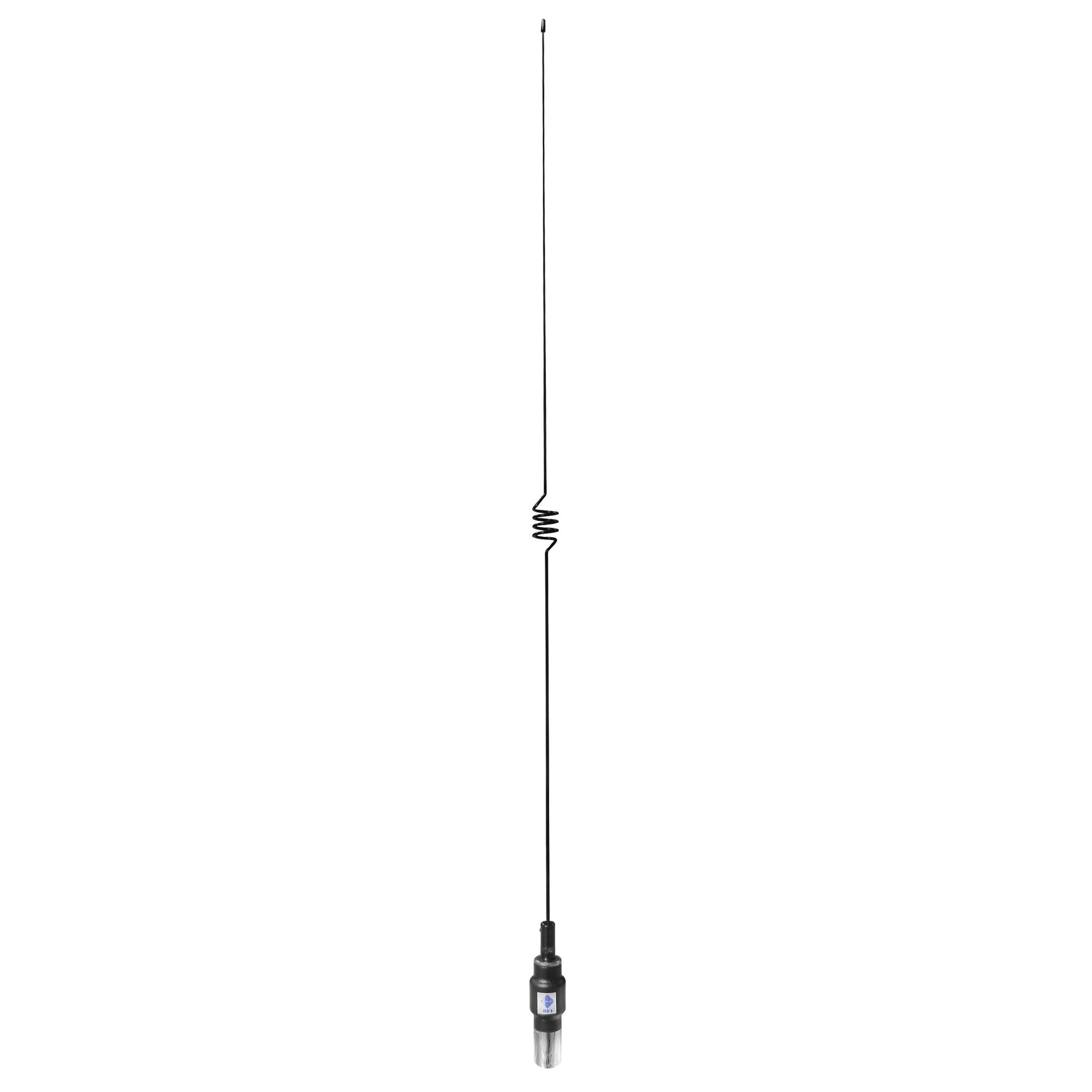

RFI UHF CB (477 MHz) Mopole Antenna - MBC Mount

The CD63 Series Mopole™ antennas offer complete versatility in mounting options. Unlike conventional roof mount antennas the CD63 Series antennas have true ground independence which allows mounting in a variety of positions including vehicle mirror gutter or roof bar mounts.


This extraordinary performance is made possible by the use of an exclusive (and patented) high impedance matching circuit in the base coil. This allows the end feeding of the collinear whip section a 5/8 over 1/2 wave radiator wound from a single piece of high resilience 17-7PH stainless steel.

• Available in two mounting options removable MBC style (CD63-71-5x) or threaded stud and nut (CD63-71-7x)
• Excellent performance - Exhibits 6.0dB gain over a ¼ wave whip mounted in the centre of a metal roof
• Flexible - Stainless steel whip returns to original shape after bending
• Rugged - The base coil is housed in a high impact thermoplastic moulding and is practically indestructible
• Stylish - Attractive black finish complements vehicle styling
• MBC base includes 5m RG58C/U cable (no connector)

(1) Mopole antennas such as the CD63 have been shown to exhibit a 6dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2dB over a ¼ wave (equivalent to 1.5-2dBq). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas

Band 477MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBq 6
Tuning Supplied pre-tuned
Power W 20
Cable and Connector None supplied
Whip Material 17-7PH Stainless steel
Suggested Installation Bracket / Bullbar
Whip Length mm 800 (whip and coil only)
Packaging Clear hanging bag
VSWR <1.5:1
Mounting MBC Base (Included)
