RFI DAS6940LC-SOC150-N Low Profile Omni-Directional Ceiling Antenna

~~$161.95~~ $155.97

RFi FBBM-B Folding Bull Bar Bracket - Black Chrome Stainless Steel

~~$222.95~~ $215.97

RFi FBBM-P Folding Bull Bar Bracket - Polished Chrome Stainless Steel

~~$222.95~~ $215.97

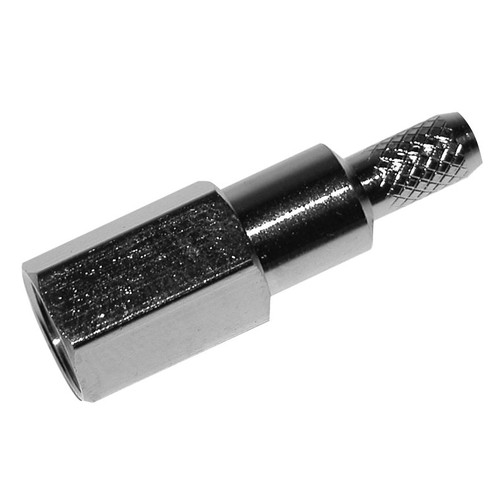

RFI FME-120 Pulse FME(M) Connector; RG58 - Crimp

~~$47.95~~ $41.97

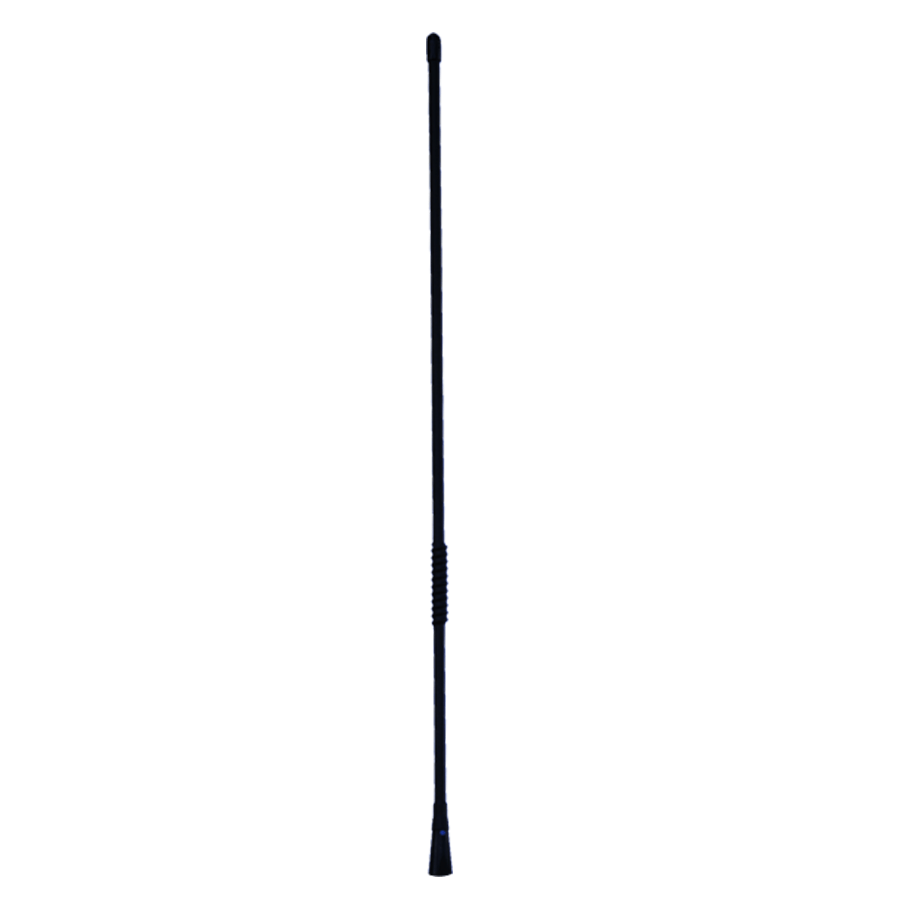

RFI FW15-HD Heavy Duty Centre Loaded Collinear Fibreglass Whip - 470 - 490 MHz 580mm Long

~~$88.95~~ $82.97

RFI GPS/GLONASS GPS3-5M-FME-BKT - Dual Mount Antenna; 5m FME(F) + Bracket

~~$131.95~~ $125.97

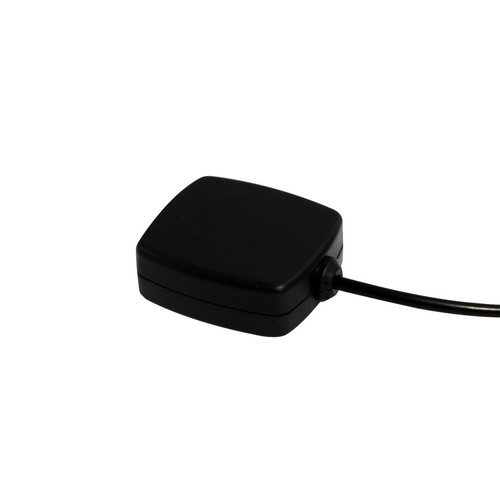

RFI GPS3-5M-QMA GPS/Glonass Dual Mount Antenna; 5m QMA(M)

~~$178.95~~ $172.97

RFI HS72 Eave/Wall (Hockey Stick) Mount "J" Pole 1.8M for Antenna Mounting

~~$155.95~~ $148.97

RFI LPDA7038-11-0.5NF 5G LTE 11dBi LPDA DIRECTIONAL ANTENNA

~~$348.95~~ $341.97

RFI LPDA7038-11-10SMA 5G LTE 11dBi LPDA DIRECTIONAL ANTENNA 10M CABLE-SMA

~~$366.95~~ $360.97

RFI LPDA7040-11-0.3NF LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); 0.3m N(F)

~~$232.95~~ $225.97

RFI LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); 0.3m N(F)

The LPDA7040-11-0.3NF is a high performance wide band log periodic antenna designed to operate in the LTE bands from 698 to 4000 MHz. This wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit.

Features :
- Broad operating frequency range
- Compact design
- IP65
- Urban and rural areas - Poor data signal reception (indoor or outdoor)
- Slow data transmission connection
- Unstable connection
- Increase system transmission reliability
- LTE fringe areas (close to an LTE area but just out of reach)
- Network operator flexibility - as the antennas is wideband a new antenna is not needed per network operator
- Works on most networks.

Also available with a 10Mtr RG58 cable terminated with SMA male connector - click here

Specifications:

Cable And Connector	0.3 m RG141 cable terminated with N type female connector
Connector	N(F)
Frequency Range	1710 - 2170 2300 - 2700 3300 - 3800 698 - 960
Power w	50
Nominal Gain Dbi	9.5 / 11.0 / 11.5
Dimensions	440 x 205 x 60mm
Polarisation	Linear
VSWR	<2.0:1
Mounting area	Up to 52mm diameter pole
Tuned bandwidth	Full
Passive IM 3rd Order (2x20W) dBc	-153
Horizontal Beamwidth	90 / 75 / 54
Front Back ratio dB	15
Frequency MHz	698-960 / 1710-2700 / 3300-4000
Brand	RFI
Weight [kg]	1

Documentation

View LPDA7040-11-0.3NF data sheet

What’s in the box

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 52mm. (Mounting pole not included)

1 x LPDA with 0.3 metres cable terminated with N Type female connector
1 x Antenna L bracket
2 x Mounting plates
2 x M6 U-bolts (including: 4 x M6 Nuts 4 x Flat washers & 4 x Spring washers)

Related Products

Also available with a 10Mtr RG58 cable terminated with SMA male connector - click here

@19/30

RFI LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna includes 10m Cable

~~$302.95~~ $295.97

LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); includes 10m cable RG58 / SMA male.

The RFI LPDA7040-11-10SMA is a high performance wide band log periodic antenna designed to operate in the LTE bands from 698 to 4000 MHz. This wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit.

LPDA7040-11-10SMA:

Broad operating frequency range
Compact design
IP65
Increase system transmission reliability
LTE fringe areas (close to an LTE area but just out of reach)
Network operator flexibility - as the antennas is wideband a new antenna is not needed per network operator
Works on most networks
10mtr RG58 cable with SMA (m) connection included

Specifications:

Cable And Connector	0.3 m RG141 cable terminated with N type female connector
Connector	N(F)
Frequency Range	1710 - 2170 2300 - 2700 3300 - 3800 698 - 960
Power w	50
Nominal Gain Dbi	9.5 / 11.0 / 11.5
Dimensions	440 x 205 x 60mm
Polarisation	Linear
VSWR	<2.0:1
Mounting area	Up to 52mm diameter pole
Tuned bandwidth	Full
Passive IM 3rd Order (2x20W) dBc	-153
Horizontal Beamwidth	90 / 75 / 54
Front Back ratio dB	15
Frequency MHz	698-960 / 1710-2700 / 3300-4000
Brand	RFI
Weight [kg]	1

Documentation

View LPDA7040-11-0.3NF data sheet

What’s in the box

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 52mm. (Mounting pole not included)

1 x LPDA with 0.3 metres cable terminated with N Type female connector
1 x Antenna L bracket
2 x Mounting plates
2 x M6 U-bolts (including: 4 x M6 Nuts 4 x Flat washers & 4 x Spring washers)

1 x 10Mtrs RG58 Cable with SMA male connector

@25/30

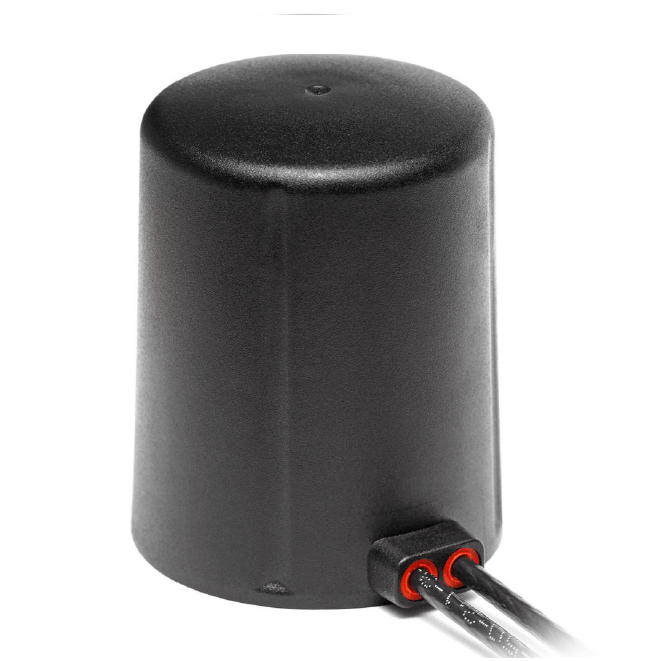

RFI LTE-MAGM-3M-SMA Cellular MIMO Low Profile Magnetic Antenna

~~$230.95~~ $224.97

RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700Mhz

~~$195.95~~ $188.97

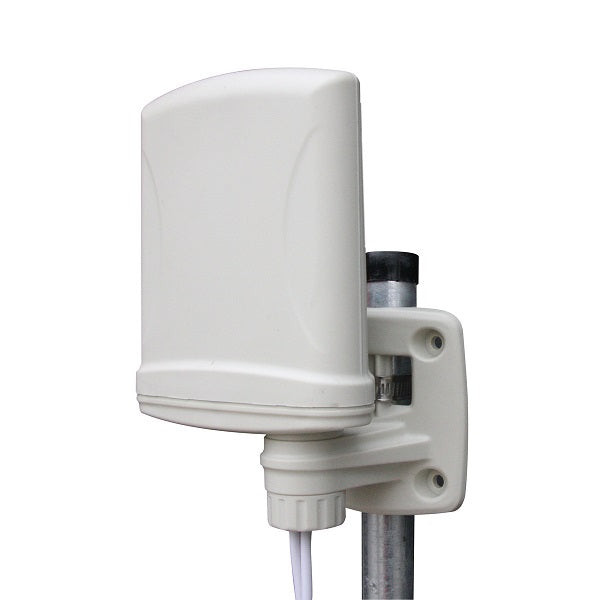

RFI LTE-XPOL-001 LTE MIMO Omni-Directional Antenna 790MHz-2700MHz

~~$314.95~~ $307.97

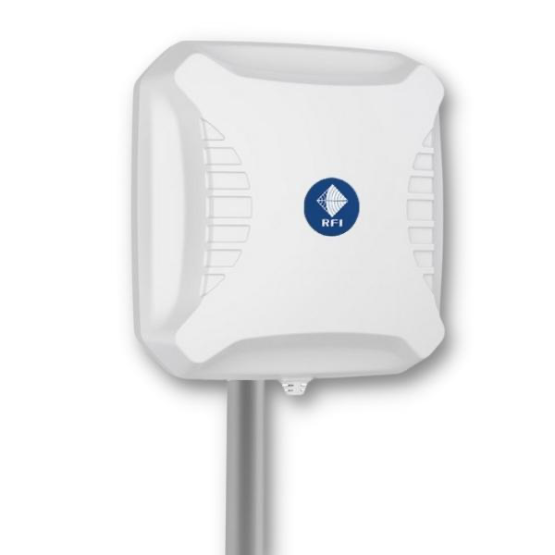

RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)

~~$578.95~~ $571.97

RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)

The LTE-XPOL-002-5G is the third generation of this very popular Cross Polarised (LTE-XPOL-002-V2) cellular band 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled further adding to the performance of the antenna.

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands which were not previously covered by our V2 and is suitable for 2G 3G 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz 1700 – 2170MHz 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss LMR195 cable terminated with SMA male connectors.

Features :
- 2-3dB higher gain over all the bands compared to “V2”
- New 3400MHz-3800MHz 5G band with 11dBi gain
- Consistent broadband performance
- X-Polarised 2x2 MIMO antenna
- Wall or pole mountable
- Lightweight & rugged
- Weatherproof & waterproof (IP65)
- High pattern consistency across bands for 4G/5G carrier aggregation

LTE-XPOL-002-5G

Specifications:

Connector	SMA(M)
Frequency Range	1710 - 2170 2300 - 2700 3300 - 3800 698 - 960
Nominal Gain Dbi	9 dBi @ 698-960MHz 10 dBi @ 1710-2700MHz 11 dBi @ 3400-3800MHz
Dimensions	H 260 W 260
VSWR	< 1.5:1 (over 95% of the band)
Termination	comes we dual 10m low loss cable (LMR195) terminated with SMA male connectors
Construction	Cream ABS
Tuned bandwidth	Full. No tuning required
Brand	RFI

Documentation

LTE-XPOL-002-5G Specifications

LTE-XPOL-002-5G Installation Guide

Scope of Supply:

1 x LTE-XPOL-002-5G Antenna with DUAL(2) low loss 10mtr LMR195 cables terminated with SMA male connectors

1 x Pole bracket with backing plate

1 x M6 x 60mm "U" bolt

4 x M6 x 12mm bolts

6x M6 washers

2x M6 nuts

Packaging	Heavy Duty Hang-Sell Poly Bag
Height mm	86mm - not including the threaded stud
Mounting	15mm threaded stud - 28mm long

Packaging	Heavy Duty Hang-Sell Poly Bag
Height mm	86mm - not including the threaded stud
Mounting	15mm threaded stud - 28mm long

Band	470 - 490MHz
Tunable Bandwidth	Full. No tuning required
Nominal Gain dBi	4.5
Tuning	Supplied pre-tuned
Power W	50
Whip Material	Heavy Duty Fibreglass Rod Covered with UV Stable Heatshrink.
Suggested Installation	Roof or Elevated Feed
Whip Length mm	595
Packaging	Clear Bag
VSWR	<2.0:1
Mounting	MB10 or MB12 base (not included) / CD90 or 900 series choke

Brand	RFI
Frequency Range [MHz]	1567 - 1583
Connector	QMA(M)
Antenna Type	Hemispherical
Antenna Application	Vehicle Antenna
Antenna Configuration	SISO

Frequency:	698-960 MHz / 1710-2170 MHz / 2500-2700 MHz
Band	MIMO LTE
Tunable Bandwidth	Full. No tuning required
Nominal Gain dBi	-0.1dBi / 3.1dBi / 3.5dBi (peak)
Power W	25
Packaging	Clear Bag
VSWR	<3.0:1
Cable Type / Length	2 x 3m RG174
Termination	2 x SMA male connectors
Mounting	Magnetic
Operating Temperature °C	-40 to +85
Ingress Protection Rating	IK69K

Brand	Pulse
Connector	FME(M)
Cable Type	RG58
Centre Conductor	Crimp
Cable Type Connectors	RG58
Component Type	Connector

Band	GPS/GLONASS
Frequency Range	1567 - 1583
VSWR	<1.2:1
Termination	Contract RFI to advise
Length [mm]	41
Width [mm]	34
Mounting	Supplied with antenna mounting bracket
Brand	RFI
Height [mm]	14

Cable And Connector	0.5 metres of HDF 195 cable terminated with N Type female connector.
Frequency Range	1710 - 2170 2300 - 2700 3400 - 3800 698 - 960
Frequency	698-960 / 1710-2700 / 3400-3800 MHz
Wind Load (Thrust) @ 160km/h N	160
Nominal impedance	50
Power w	10
Nominal Gain Dbi	10.8 / 11 / 2.3
Dimensions	1112 x 200 x 47mm
Polarisation	Vertical
VSWR	<1.5:1
Tuned bandwidth	Full
Horizontal Beamwidth	55
Front Back ratio dB	20 dB
Brand	RFI
Weight [kg]	1.85

Cable And Connector	10 meters cable terminated with male SMA connector
Frequency Range	1710 - 2170 2300 - 2700 3400 - 3800 698 - 960
Frequency	698-960 / 1710-2700 / 3400-3800 MHz
Wind Load (Thrust) @ 160km/h N	160
Nominal impedance	50
Power w	10
Nominal Gain Dbi	10.8 / 11 / 2.3
Dimensions	1112 x 200 x 47mm
Polarisation	Vertical
VSWR	<1.5:1
Tuned bandwidth	Full
Horizontal Beamwidth	55
Front Back ratio dB	20 dB
Brand	RFI
Weight [kg]	1.85

Cable And Connector	2 x RG58 Terminated with 2 x SMA(M)
Frequency Range	1710 - 2170 2300 - 2700 825 - 960
Power w	5
Nominal Gain Dbi	2.4 / 5 / 6
VSWR	< 2.5:1
Mounting area	Window (suction) wall or pole mount
Tuned bandwidth	Full.
Frequency MHz	790-960 / 1710-2170 / 2500-2700
Brand	RFI
