RFI Pulse PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI Pulse Power Dividers / Combiners are used in a variety of RF power dividing and combining applications. Typically used in DAS (Distributed Antenna Systems) for distributing power throughout feeder cable networks.
PSP6927-5102-N Features:
- Low PIM performance
- 150dBc -Broadband performance covering full 698-2700MHz
- Suitable for use with analogue or digital RF communications.
Specifications
| Splits | 2 |
| PIM 3rd Order 2x43dBm | <150dBc |
| Finish | Black - Painted |
| Connector Types All Termiantion Ports | N (F) |
| Power Rating Watts | 300W |
| Operational Temperature Range | -25° C to +75° C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.5 |
| Component Type | Splitter/Combiner |
Documentation
RFI Pulse 2 Way Splitter / Combiner 698-2700MHz N type connection
These 2-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs or combine multiple inputs to a single output with isolation between the ports.
These products feature broad operating frequency bandwidth and multi-carrier PIM rating and are widely used in Distributed Antenna Systems (DAS) receiver distribution networks and low-power RF signal dividing and combining designs.
Specifications:
| Splits | 2 |
| Port To Port Isolation | 20dB typ. |
| Finish | Black - Painted |
| Connector Types All Termiantion Ports | N (F) |
| Insertion Loss dB | <3.3dB |
| Operational Temperature Range | -25° C to +65° C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.25 |
| Component Type | Splitter/Combiner |
Documentation
View to PSP6827-5302-N Specifications
RFI Pulse-240 Cable Assembly Type-N Plug (Male) to SMA Plug (Male) 20m
(Replacement for RFI Pulse 9207N-20)
20m Cable Assembly
Pulse-240 Flexible Low Loss Communications Coax
Type-N Straight Male to Type-N Straight Male
PRODUCT DETAILS
| Brand | Pulse |
| Connector | N(M) SMA(M) |
| Component Type | Cable Assembly |
| Cable Length (M) | 20 |
Related Products
RFI DAS6938-SDP150-N antenna
RFI TLA4100 antenna
RFI RFI-5M-SMA 5Mtr RG58 Cable Extension - SMA Male to SMA Female
This RFI-5M-SMA; 5Mtr extension cable is the simplest way to extend the length of your SMA terminated antenna cable to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
Cable: RFI RG58 9006 Cellfoil 50 Ohm Coax Cable; Low Loss
Termination: SMA-104 one end SMA-186 other end

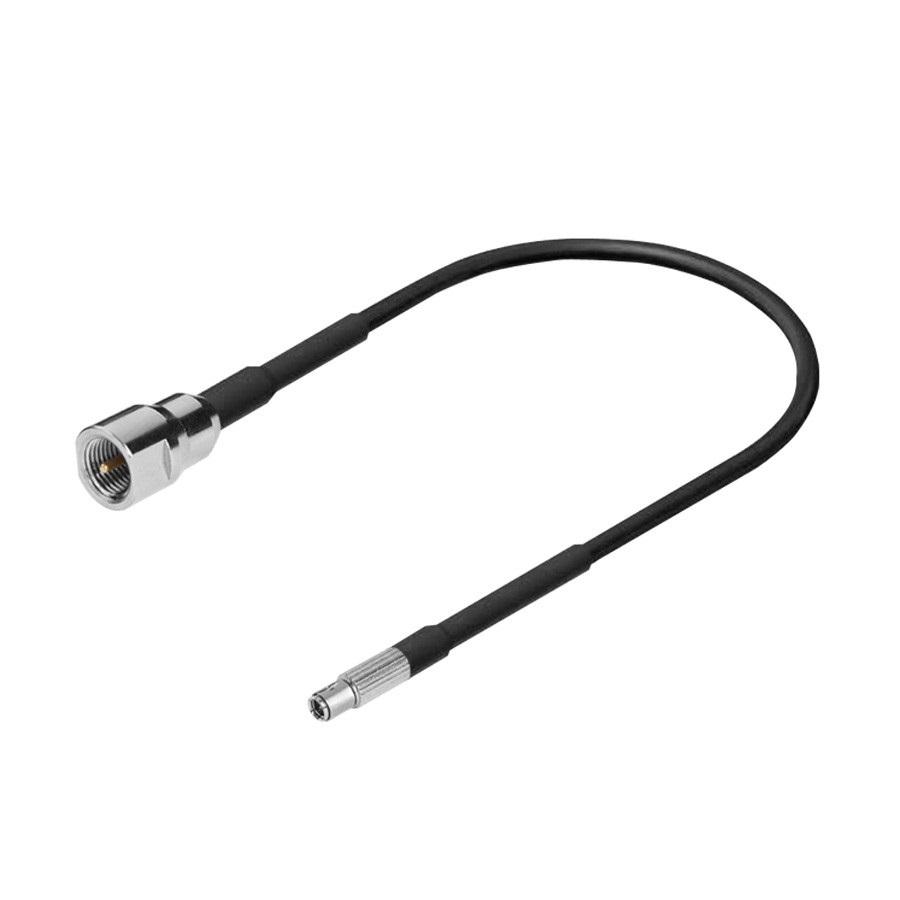

RFI RFPLFMEM-TS9 Wireless Broadband Patch Lead TS9 to FME/M
To further enhance the performance of a broadband modem these patch leads allow connection of modems to RFI antennas. Available in CRC9 or TS9 connections for the device and either FME or SMA for antenna connections.
RFPLFMEM-TS9
This patch lead is 250mm long RG174 terminated with FME male & TS9 connectors. The TS9 connector suits most Telstra USB modems.

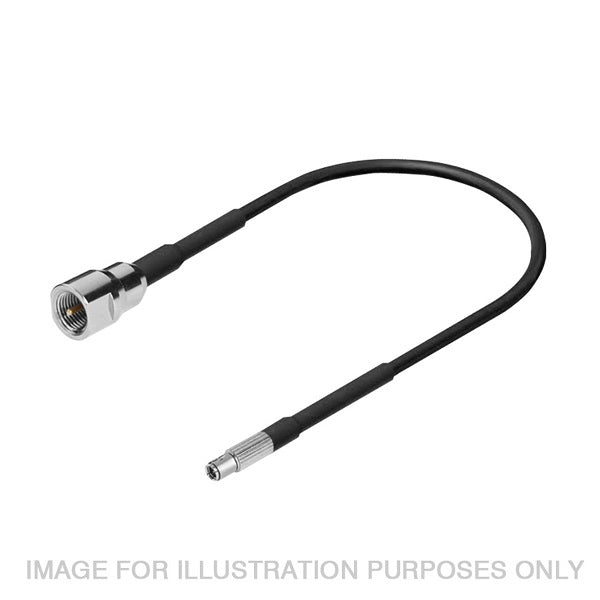

RFI RFPLSMAF-TS9 TS9 TO SMA(FEMALE) Patch Lead - RFPLSMAF-TS9
To further enhance the performance of a broadband modem these patch leads allow connection of modems to RFI antennas.
RFPLSMAF-TS9
Features: This patch lead is 250mm long RG174 terminated with SMA female & TS9 connectors. The TS9 connector suits most Telstra USB modems.
RFI SW125 UHF 1/4 Wave Whip-only (470-490 MHz); Black - Blue Dot
The SW120 series is a range of low profile flexible ¼ wave whips which provide excellent omnidirectional performance when mounted high on a vehicle. They make an ideal roof mount antenna when coupled with either an MB10/MB12 or on to a CD90/900 Series elevated feed choke for other mounting locations. They are available either pre-tuned to specific bands (380MHz to 520MHz) or in the case of the SW120 field tuneable from 400-520MHz. By the nature of their location these types of antennas are generally exposed to extreme conditions. The SW120 Series are constructed from twisted stainless steel wire surrounded by an injected UV stabilised TPU radome which results in a flexible yet robust antenna.
Features :
• Omnidirectional unity gain performance
• Robust UV stable construction
• Supplied pre-tuned to specific bands and colour coded for easy identification
• SW120 is field tuneable from 400-520MHz
• Mounts to a standard 5/16” – 26 TPI base (MB10 or MB12)
Specifications :
| Brand | RFI |
| Frequency MHz | 806 - 870 |
| Tuned Bandwidth | Full. No tuning required |
| VSWR | <2.0:1 |
| Power [W] | 100 |
| Frequency Range [MHz] | 470 - 490 |
| Band | 470 - 490MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | Not included order separately |
| Whip Length mm | 135 |
| Whip Material | Flexible stranded stainless steel whip covered by black TPU radome |
| Packaging | Clear Bag |
| Nominal Gain dBq | Unity |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |
SW125 Technical Specifications

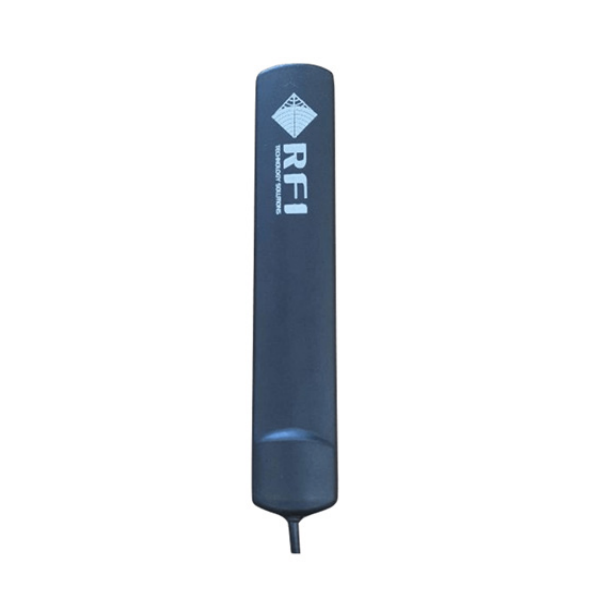

RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR 4G LTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.
Key Features: •
- Wideband frequency range; 617 to 5925MHz
- Adhesive mount
- Ground Plane Independent
- Compact size: 116 x 22 x 6.7 mm
Specifications:
| Cable And Connector | 3m LL100 FME female |
| Tuning | Supplied pre-tuned |
| Band | 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME Female |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR 4G LTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibilities. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs
Key Features: •
- Wideband frequency range; 617 to 5925 MHz
- Adhesive mount
- Ground Plane Independent
- Compact size: 116 x 22 x 6.7 mm
Specification:
| Cable And Connector | 3m LL100 FME female |
| Tuning | Supplied pre-tuned |
| Band | 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME Female |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
Documentation

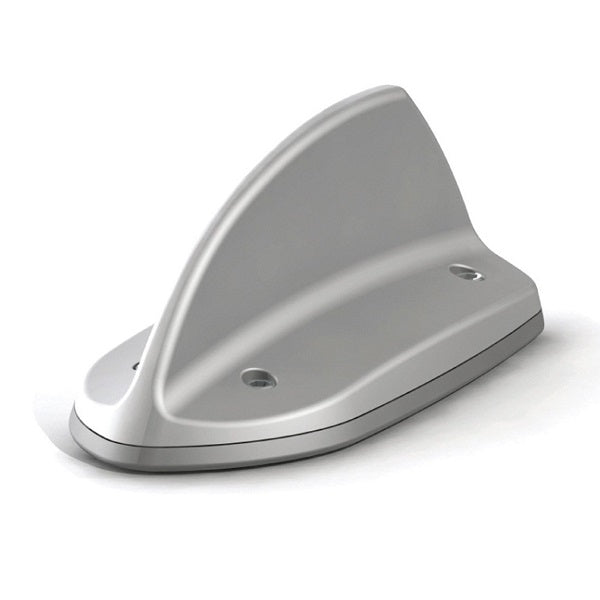

RFI TLA4100 Multiband Transit Antenna 698-2700 MHz and 5.8 GHz
The TLA4100/4200 Antenna is designed specifically for rail light rail and bus applications and other similarly demanding transit or stationary applications.
With a VSWR less than 2:1 covering 800-5800 MHz (off a ground plane) and 2.5:1 (full band on a ground plane) the TLA4100/4200 operates in all cellular bands globally plus the 2.4 & 5.8 GHz ISM bands. In addition the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications.
Designed utilising a high impact UV stabilised low Flame Smoke and Toxicity (FST) radome the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water.
Designed to meet the following European Traction Industry Standards:
• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane*
* Nominated gain achieved using a 1m2 ground plane
Features TLA4100:
• Wide band coverage from 698MHz to 890MHz
• All welded construction for reliability
• Excellent front-to-back ratio
• Alodined conductive plating for performance reliability
• Designed to minimize the generation of PIM
Specifications TLA4100:
| Band | 698-960MHz / 1710-2700MHz / 2400-2700MHz & 5700-5800MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 @ 698 - 960MHz / 6 @ 1710 - 2700MHz / 3 @ 2400-2700MHz / 7 @ 5700-5800MHz |
| Power W | 50 |
| VSWR | <2:1 |
| Height mm | 90 including gasket |
| Termination | Antenna Port: Fixed N-female |
Antenna Connection: TLA4100
This antenna has an N female connector integrated into the underside of the antenna body.
****There is no cable supplied with this antenna.
N Female Connector (pictured)
Also available is a 10.0Mtr cable extension N Plug to SMA Plug - 9207N-10
Related Products
10Mtr Cable - N Plug to SMA Plug - 9207N-10
RFI TLM-1S Fender Mount Bracket - Heavy Duty 'L' Shape - 75mm long
Heavy duty fender mount bracket. 'L' shape with cable slot.
TLM-1S Features:
This heavy duty 1.6mm stainless steel 'L' shape fender mount bracket includes 6mm cable slot for easy antenna installation plus 3 x self drilling screws. Bracket is 75mm long with 16mm hole.
Documentation
RFI Mobile Antenna Mounting Accessories - click here
RFI Installation Sheet - click here
RFI TLM-3 "L" Shape Wall Bracket
This 1.5mm stainless steel 'L' shape wall bracket.
Features:
- Stainless Steel "L" bracket
- Bracket is 50mm long with 16mm hole
- Includes 2 x self drilling screws
Documentation
RFI Mobile Antenna Mounting Accessories - click here
RFI WHIP-63-71 UHF CB (477 MHz) Mopole Antenna - Whip Only
Specifications: WHIP-63-71
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBq | 6 |
| Tuning | Supplied pre-tuned |
| Power W | 20 |
| Cable and Connector | None supplied |
| Whip Material | 17-7PH Stainless steel |
| Suggested Installation | Bracket / Bullbar |
| Whip Length mm | 800 (whip and coil only) |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Mounting | Whip Only - No base included |
CD63 is also available in these configurations…
WHIP-63-71 CD63 Antenna Whip Only
CD63-71-50 CD63 Antenna with MBC Base
Documentation
CD63-71-50 Technical Data Sheet
Related Products
CD63 is also available in these configurations…
WHIP-63-71 CD63 Antenna Whip Only
CD63-71-50 CD63 Antenna with MBC Base
RFI XG884 - X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz
The XG884 utilises a slot radiator in the coupling box with a patch element housed in the mounting foot. The patch element is x-shaped to allow the coupling of multiple bands very effectively. The whip element is fully moulded with dual phasing coils the result being an antenna that provides abundant gain in all bands.
Featuring a new-look mounting foot and coupling box XG884 is supplied complete with a 5Mtr pre-terminated lead of low loss fully shielded coaxial cable.
Features:
• True multi band performance at 3G-850 GSM-900/GSM-1800 and 3G-2100
• Fully shielded low loss FME pre-terminated 5Mtr cable with A-87 (FME-MPL) adapter supplied
• Available with additional adapters on request
• XG884 supplied with 3dB gain whip & Unity gain stubby whip
Specifications:
| Band | 824-960MHz / 1710-2170MHz |
| Tunable Bandwidth | Entire specified band <2.5:1MHz |
| Nominal Gain dBi | 0 or 3 depending on whip used |
| Tuning | Supplied pre-tuned |
| Power W | 50 |
| Cable and Connector | Pre-terminated lead with 5m flexible foam dielectric low loss fully shielded cable pre-terminated with FME nipple connector for transceiver connector and SMA male to suit coupling box. A-87 FME-MPL adaptor supplied. |
| Whip Material | One piece black chrome plated stainless steel with plastic over moulding |
| Whip Length mm | 155 (0dB) / 352 (3dB) |
| VSWR | <2.5:1 |
Documentation
View the XG884 Technical Data Sheet

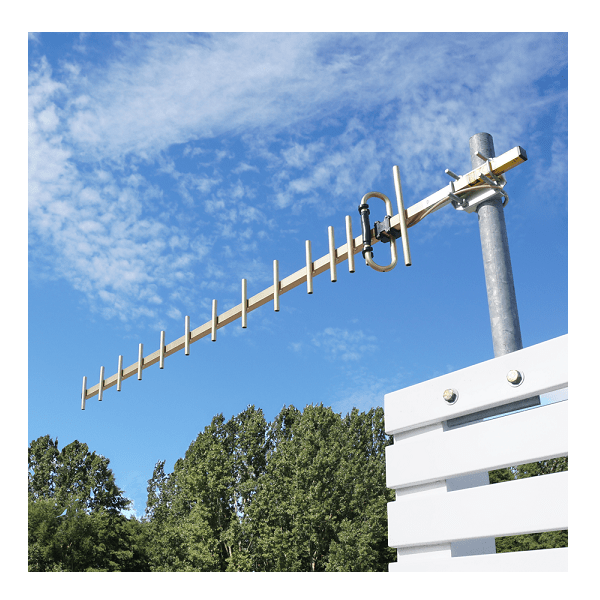

RFI YW15-6989 15dBi Yagi Antenna 698-890MHz
The YW15-6989 is a high gain yagi antenna which provides excellent point to point communications in RF control short or long haul link point to multi-point and other applications calling for highly directional antennas.
This model particularly suits cellular 700MHz 4G and 800MHz 3G applications.
This high gain antenna provides a solution where operation within the 700/800MHz frequency bands. The broad bandwidth also provides network design consistency and benefits to users operating in multiple frequency band segments.
The dipole element design delivers excellent performance across the entire bandwidth with consistently low VSWR and less pattern distortion than dual dipole designs. The passive elements are mounted to the square boom section and welded on both sides to minimise the potential for corrosion or the generation of passive intermodulation (PIM).
The antenna rests at ground potential to provide excellent lightning protection and reduced precipitation static noise.
Applications include RF control short or long haul links control station combining and telemetry installations requiring a highly directional antenna in point-to-point and point-to-multipoint networks.
Features:
•Wide band coverage from 698MHz to 890MHz
• All welded construction for reliability
• Excellent front-to-back ratio
• Alodined conductive plating for performance reliability
• Designed to minimize the generation of PIM
Specifications:
| Nominal Gain dBi | 13.0 (15.1) |
| Frequency MHz | 698 - 890 |
| Tunable Bandwidth | Full |
| VSWR | <1.8:1 |
| Nominal Impedance Ω | 50 |
| Vertical Beamwidth | 35 |
| Horizontal Beamwidth | 38 |
| Front/Back Ratio dB | 20 |
| Power W | 100 |
| External Construction | All welded aluminium with alodined finish |
| Length mm | 1552 |
| Width mm | 215 |
| Weight (kg) | 1.0 |
| Termination | 500mm of RG142 fitted with N type Female Connector |
| Lateral (Thrust) @ 160km/h N | 108 |
| Wind Gust Rating km/h | 184 |
| Torque @ 160km/h Nm | 73 |
@33/31

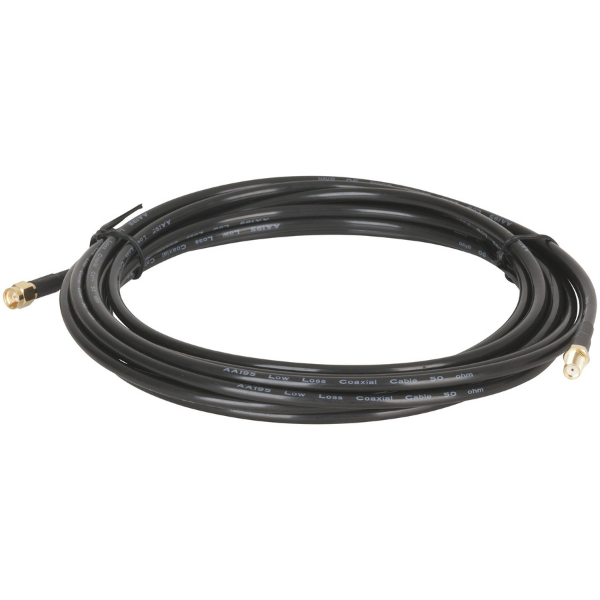

RFI RFI-3M-SMA 5Mtr RG58 Cable Extension - SMA Male to SMA Female
This RFI-5M-SMA; 5Mtr extension cable is the simplest way to extend the length of your SMA terminated antenna cable to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
Features:
Cable: RFI RG58 9006 Cellfoil 50 Ohm Coax Cable; Low Loss
Termination: SMA-104 one end SMA-186 other end
Description
Ring Battery Video Doorbell Pro
-
Radar-powered precision. That’s Pro.
Ring Pro-tier Doorbells help protect your property with 3D Motion Detection - allowing you to pinpoint movements for unmatched security coverage. -
See more in less light.
With Low-Light Sight now the illumination from a streetlight or landscaping is all Battery Video Doorbell Pro needs to keep you seeing in clear colour in near-dark. -
Powered by Ring Vision.
Ring’s state-of-the-art hardware powerful software and backend processing work together to give you the ultimate image quality.
Key Features
Ring Battery Video Doorbell Pro
Ring Pro-tier Doorbells help protect your property with 3D Motion Detection - allowing you to pinpoint movements for unmatched security coverage.
- 1536p HD+ Head-to-Toe Video
- Radar 3D Motion Detection with Bird’s Eye View
- Two-Way Talk with Audio+
- Low-Light Sight with Colour Night Vision
- Works With Alexa
@24/30
Description
Ring Floodlight Cam Wired Plus - Black
-
Outdoor security reinvented
See more outdoors with ultra-bright LED floodlights and a wide angle view. Customise the motion zones to monitor specific areas. And enjoy added security with a built-in siren. If something happens within steps of your property you’ll be the first to know. -
See your garden from anywhere
Get real-time notifications when motion is detected around your driveway garage or in the backyard. Use the Ring App to see what’s happening turn on the lights and control the brightness speak to visitors and even sound the siren when you need to. -
Real-Time Notifications
Receive real-time notifications on your phone and tablet to stay in-the-know when anything happens at home. -
Live View
Check in on home at anytime from anywhere and get real-time video and audio with the Live View button. -
What’s in view? It’s up to you.
Create your own motion zones to fine-tune which areas you want to focus on. You’ll only receive alerts you care about most and your privacy is always protected.
Key Features
Ring Floodlight Cam Wired Plus - Black
Customise the motion zones to monitor specific areas. And enjoy added security with a built-in siren.
- Two-Way Talk
- 105dB Siren
- Motion-Activated Notifications
- 1080p HD Video
- 2000 Lumens floodlights
@21/30
