@11/24
Description::
High-Performance Bracket Mount Antenna for 4G and 5G Networks Offering Reliable Connectivity
The Panorama 4G-5G Bracket Mount Antenna is designed for reliable and high-performance 4G and 5G connectivity in a variety of outdoor environments. Featuring a bracket mount for versatile installations this antenna ensures excellent signal strength making it suitable for fixed or mobile deployments. With support for multiple frequency bands it offers broad network compatibility for both 4G LTE and 5G NR networks. The robust construction ensures durability even in harsh weather conditions providing long-lasting performance.
Key Features
- Multi-Band Support: Covers 4G LTE and 5G NR frequencies for a wide range of network compatibility.
- Bracket Mount Design: Provides flexible and secure installation options for various applications.
- Durable and Weather-Resistant: Built to withstand outdoor conditions with a robust weatherproof enclosure.
- High Performance: Ensures strong stable signal reception for reliable connectivity.
- Compact and Efficient: Optimised for both space-saving and high-efficiency performance in outdoor environments.
Specification:
| Specification | Details |
|---|---|
| Model | B4BE-6-60 |
| Frequency Range | 698–960 MHz 1710–2700 MHz 3300–3800 MHz 5150–5925 MHz |
| Gain | 6 dBi |
| Connector | 4x SMA connectors |
| Impedance | 50 Ohms |
| Polarization | Linear Vertical |
| V.S.W.R | 2.0:1 maximum |
| Mounting Type | Bracket Mount |
| Ingress Protection | IP65 |
| Temperature Range | -40°C to +70°C |
| Dimensions | 350 x 110 x 60 mm |
| Weight | 1.5 kg |
| Color | Black |
@8/20
Description::

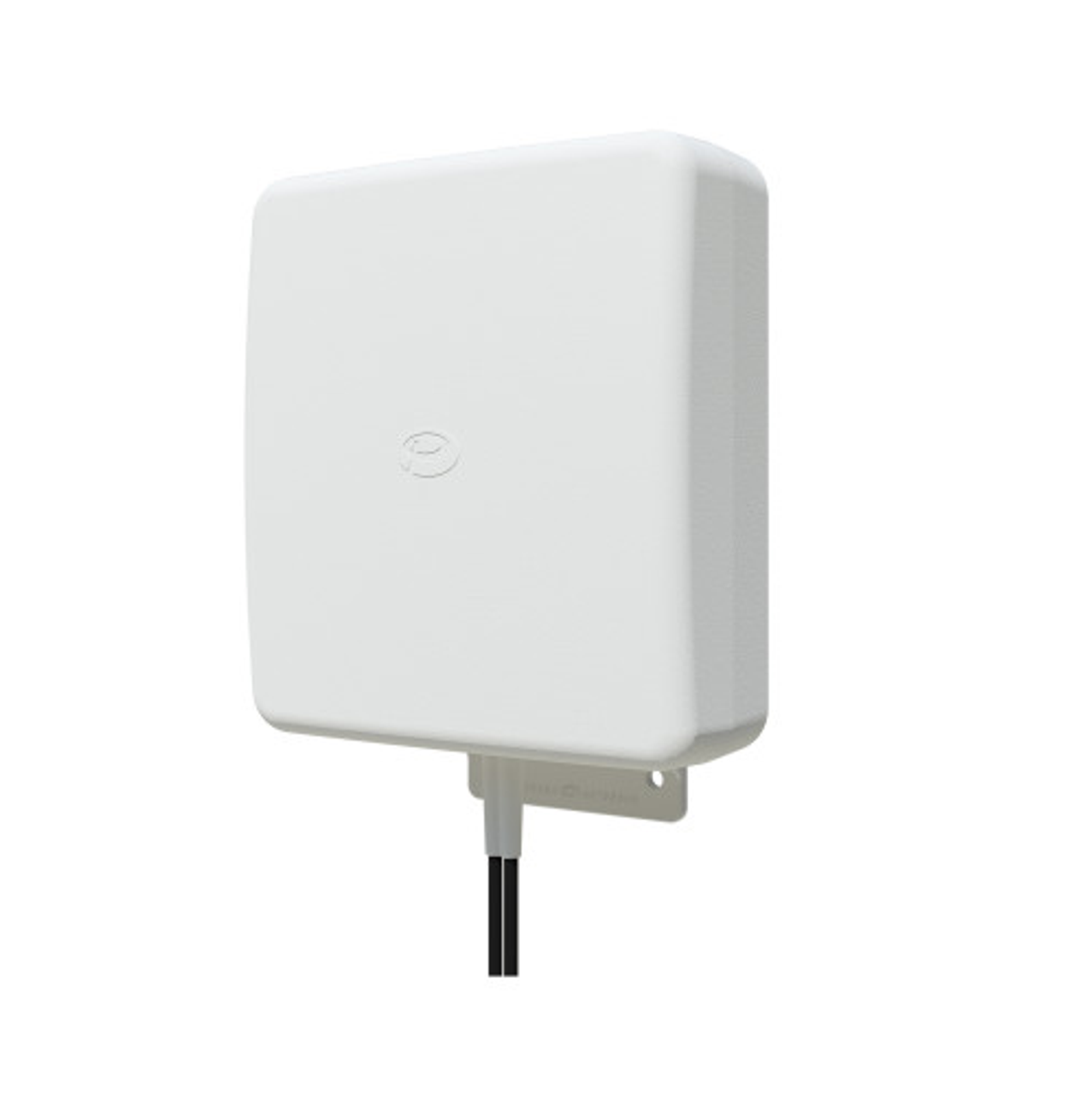

Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz
FEATURES
- 2x2 MIMO Wideband Cellular LTE Antenna
- Medium dB Gain
- Can be Wall or Mast mounted
- A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.
- UV Stable IP65 Rated Housing
- Ideal Product for fringe network areas
- Integrates your wireless services into a single antenna
Panorama 4G-5G Desk / Wall / Mast Mount MIMO Omni 700 to 3800Mhz provides an innovative and Future Proof solution for 3G/4G and 3.4-3.8GHz 5G networks.
Incorporating two separately fed ultra-wideband elements in a single housing it provides a client-side 2x2 MiMo antenna system for the networks of today and tomorrow. With between 2-5dBi gain in the range 698-3800MHz the WMMG gives a great performance whilst maintaining a wide beam pattern which is ideal for metro and urban areas.
The rugged weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.
The antenna is supplied with an integral “twinned” CS29 coaxial cable. WMMG-7-38-5SP version has a 5m length fitted with sma plug connectors for a simple ‘plug & play' installation. WMMG-7-38-03NJ version has a 30cm length fitted with N socket connectors which enables the use of lower loss cable types for longer runs.
The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers improving satisfaction and retention.
Specification:
| Specification Category | Details | |
|---|---|---|
| Part No. | WMMG-7-38-5SP | WMMG-7-38-03NJ |
| Frequency Range | 698-960 / 1710-2700 / 3400-3800 MHz | 698-960 / 1710-2700 / 3400-3800 MHz |
| Operational Bands | 3G/4G/5G | 3G/4G/5G |
| VSWR (excluding cable) | < 2:1 | < 2:1 |
| Peak Gain (excluding cable loss) | 698-960 MHz: 2dBi 1710-2700 MHz: 5dBi 3400-3800MHz: 4dBi | 698-960 MHz: 2dBi 1710-2700 MHz: 5dBi 3400-3800MHz: 4dBi |
| Correlation Co-efficient (all bands) | < 0.2 | < 0.2 |
| Typical Element Isolation | > 20dB | > 20dB |
| Max Input Power | 20 W | 20 W |
| Impedance | 50Ω | 50Ω |
| Mechanical Data | ||
| Dimensions | Height: 155mm (6.1”) Width: 155mm (6.1”) | Height: 155mm (6.1”) Width: 155mm (6.1”) |
| Operating Temp. | -30° / +80°C (-22° / 176°F) | -30° / +80°C (-22° / 176°F) |
| Material | ASA | ASA |
| Colour | White | White |
| Weight (including cable) | 950g | 430g |
| Ingress Protection | IP65 | IP65 |
| Mounting Data | ||
| Fixing | Wall mount / Mast mount / Desk mount | Wall mount / Mast mount / Desk mount |
| Mounting Bracket Material | Stainless steel / Aluminium | Stainless steel / Aluminium |
| Pole Diameter | 20-50mm / (0.78 - 1.96”) | 20-50mm / (0.78 - 1.96”) |
| Cable Data | ||
| Type | 2 x CS29 (4G/5G) | 2 x CS29 (4G/5G) |
| Diameter | 5mm (0.2”) | 5mm (0.2”) |
| Length | 5m (16’) | 0.3m (1’) |
| Termination | 2x SMA (M) | 2x N JACK (F) |
@14/29
Description::
Compact High-performance Antenna Ideal for Delivering Fast and Reliable Connectivity in Both Urban and Remote Environments

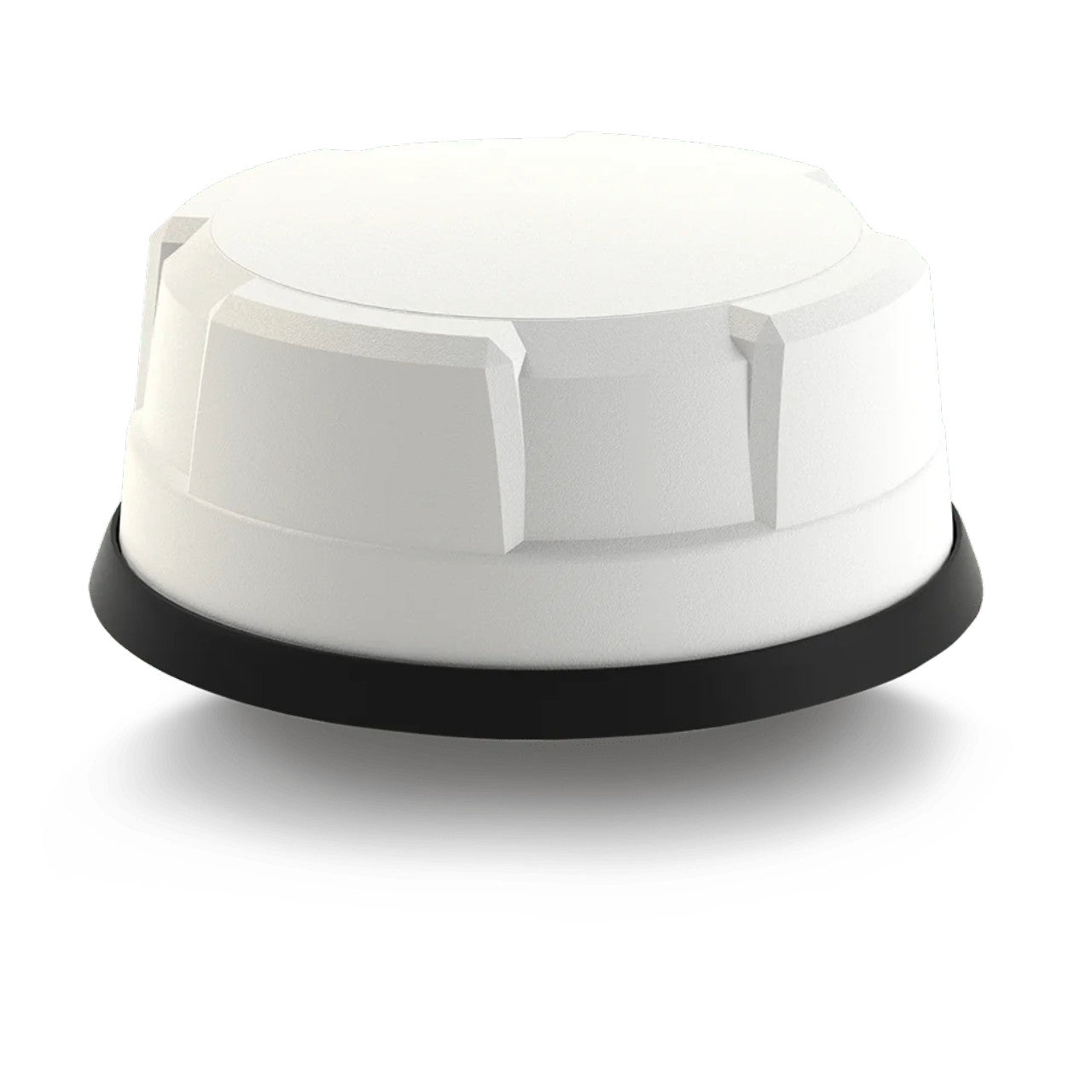

The Megalodon® 8x 4G/5G Low Profile Antenna is designed to deliver industry-leading performance with a robust low-profile design. Offering 2x 4x4 MiMo 4G/5G antenna systems this antenna covers a wide frequency range from 617-960 MHz and 1427-6000 MHz ensuring global cellular compatibility and future-proof functionality. Ideal for 4G Cat 18/20 and 5G modems the antenna is built to meet the needs of modern high-speed wireless networks.
Key features
- 8x 4G/5G Elements: Supports enhanced signal reception and transmission for faster data speeds.
- Dual Band WiFi 6e/7 Support: Provides up to 8x8 MiMo for superior WiFi performance.
- GPS/GNSS L1/L5 Bands: Enables precise location tracking with up to two GPS/GNSS bands.
- Robust Protection: Meets IK10 and IP69K standards for durability and weather resistance.
- Low Profile Design: Compact and sleek for minimal visual impact while ensuring maximum performance.
Specification:
| |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
@48/50
Description::
The Panorama BAT series features a range of internal discreet/covert 'all-in-one' antennas with 2×2 MiMo 4G/5G (including Band 71) optional GPS/GNSS and dual-band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz including WiFi 6e.
This BATM-7-60 model supports 2x2 MiMO4G/5G covering 617-960/1427-6000MHz providing isolation and low correlation coefficient values for effective MiMo functionality. Its does not include WiFi or GPS.
Designed for mounting on or under a vehicle dashboard the antenna can also be installed on any non-conductive surface. The BAT series comes with low-loss cables that are flame retardant and comply with UN ECE 118 and EN45545-2 standards.
FEATURES
- MiMo LTE product with distinctive BAT design
- 4G/5G LTE MiMo covering 617-6000MHz
- Covert/Discrete internal antenna
- Up to 5-in-1 solution when you add WiFi or GPS options
| BATM-7-60 | Black |
Cellular 2 x 2 MIMO |
GPS No |
Wi-Fi No |
| SMA (m) |
@12/25
@8/19
@8/20
Description::
Compact portable and High-Performance MIMO Antenna Offering Reliable 4G 5G and Wi-Fi Connectivity
The Panorama 4G-5G Multi-Band MIMO Antenna is a high-performance antenna designed to provide reliable 4G 5G and Wi-Fi connectivity in both office and portable environments. Featuring MIMO technology it enhances data throughput and signal stability for optimal performance. The antenna also includes a TS9 connector offering easy integration with a wide range of devices including routers and mobile hotspots. Its compact desk-mountable design makes it ideal for dynamic workspaces while its robust construction ensures long-lasting use.
Key Features
- Multi-Band Support: Covers 4G 5G and Wi-Fi frequencies for versatile connectivity.
- MIMO Technology: Enhances throughput and connection reliability for faster data transfer.
- TS9 Connector: Easily connects to devices such as routers and mobile hotspots with a TS9 connector for simple setup.
- Portable Design: Compact and lightweight with a desk-mountable setup perfect for office or mobile use.
- Durability: Built to withstand continuous use providing long-term reliable performance.
Specification:
| Specification | Details |
|---|---|
| Model | DMM-6-60 |
| Frequency Range | 698–960 MHz 1710–2700 MHz 3300–3800 MHz 5150–5925 MHz |
| Gain | 4G/5G: 2.5 dBi Wi-Fi: 2.5 dBi |
| Connector | TS9 Connector |
| Impedance | 50 Ohms |
| Polarization | Linear Vertical |
| V.S.W.R | 2.0:1 maximum |
| Mounting Type | Desk Mount |
| Ingress Protection | IP65 |
| Temperature Range | -40°C to +85°C |
| Dimensions | 190 x 75 x 25 mm |
| Weight | 0.2 kg |
| Color | White |
@9/21
@41/74
Description::
The Panorama 4G/5G MIMO Omni Antenna 617 to 6000MHz is a broadband antenna that covers 617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
The Omnidirectional radiation pattern allows easy placement of the antenna in an elevated position without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications.
Panorama 4G/5G MIMO Omni Antenna 617 to 6000MHz
FEATURES:
- Available with SMA Male or N Male connections
- 2x2 MIMO 4G/5G antenna solution
- Wall rail or mast mount
- Optional GPS/GNSS - 26dB LNA
- Integrated coaxial cables
Specification:
| Specification Category | Details |
|---|---|
| Frequency Range | 617-960 / 1427-2690 / 3300-6000 MHz |
| Operational Bands | 3G/4G/5G |
| VSWR (excluding cable) | < 1.5:1 |
| Peak Gain (excluding cable loss) | 2.5dBi @ 698-960 MHz 5dBi @ 1427-2690 MHz 5dBi @ 3300-6000 MHz |
| Correlation Coefficient (all bands) | < 0.2 |
| Typical Element Isolation | > 20dB |
| Max Input Power | 20 W |
| Impedance | 50Ω |
| Mechanical Data | |
| Dimensions | Diameter: 280mm (11”) Height: 490mm (19.3”) |
| Operating Temp. | -30° / +70°C (-22° / 158°F) |
| Material | UV Stabilised ASA |
| Colour | White |
| Weight (including cable) | 3.5kg |
| Ingress Protection | IP67 |
| Mounting Data | |
| Fixing | Pole mount (75-105mm / 2.95-4.13”) |
| Mounting Bracket Material | Stainless steel |
| Pole Diameter | 75-105mm / 2.95-4.13” |
| Cable Data | |
| Type | 2 x CS29 (4G/5G) |
| Diameter | 7mm (0.28”) |
| Length | 5m (16.4’) |
| Termination | 2x SMA (M) |
@26/48
Description::
Compact Low-Profile MIMO Antenna for 2G 3G and 4G Connectivity
The Panorama Low Profile 2G-4G MIMO Antenna is a versatile low-profile MIMO antenna designed to provide exceptional performance across 2G 3G and 4G cellular networks. With its compact design it offers reliable signal reception and transmission in space-constrained installations making it ideal for use in industrial automotive and IoT applications. This antenna features multi-band support ensuring seamless connectivity and consistent performance even in remote or challenging environments.
Key Features
- Broadband Support: Operates across 2G 3G and 4G frequencies ensuring broad network compatibility.
- MIMO Technology: Maximizes throughput and signal quality by supporting multiple input and output streams.
- Compact Low-Profile Design: Perfect for installations where space is limited offering minimal visual impact while maintaining performance.
- Weather-Resistant: Suitable for outdoor and harsh environments designed to withstand various weather conditions.
- Easy Installation: Flexible mounting options and low-profile design make it easy to install in a variety of setups.
- High Efficiency: Ensures stable connections and high-speed data transfer with minimal interference.
Enhance your network performance with the Panorama Low Profile 2G-4G MIMO Antenna low-profile MIMO antenna providing reliable high-speed cellular connectivity in space-constrained and demanding environments.
Specification:
| Technical Specifications | |
|---|---|
| Frequency Range | 698 MHz – 960 MHz 1710 MHz – 2700 MHz |
| Gain | 2 dBi (Average) |
| Polarization | Vertical |
| MIMO Configuration | 2x2 MIMO |
| Impedance | 50 Ω |
| Connector Type | 2 x SMA Male |
| Dimensions | 155 mm x 41 mm x 20 mm |
| Weight | 160 g |
| Mounting Type | Magnetic Mount |
| Operating Temperature | -40°C to +85°C |
| Ingress Protection | IP65 |
| VSWR | ≤ 2.0:1 |
| Max Input Power | 20 W |
| Applications | IoT Automotive Industrial and Commercial M2M Devices |
@8/19
Description::
The LPBEM-6-60 is a high-performance SiSo LTE antenna covering 617-960/1710-6000MHz.
FEATURES:
- Low profile wideband antenna
- Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
- Magnetic mount solution
- Allows for SiSo LTE connectivity in a small antenna profile and footprint
- Suitable for use across multiple applications and industries
Supplied with a convenient length of flexible RG174 cable the LPBEM is easy to install and compatible with a large range of modems PRODUCT VARIANT
| Part Number | Colour | Function | Cable | Connector |
| LPBEM-6-60-2SP | Black | 1x SiSo: 617-960/1710-6000MHz | 2 (6’6”) RG174 | SMA (m) |
@9/21
@13/28

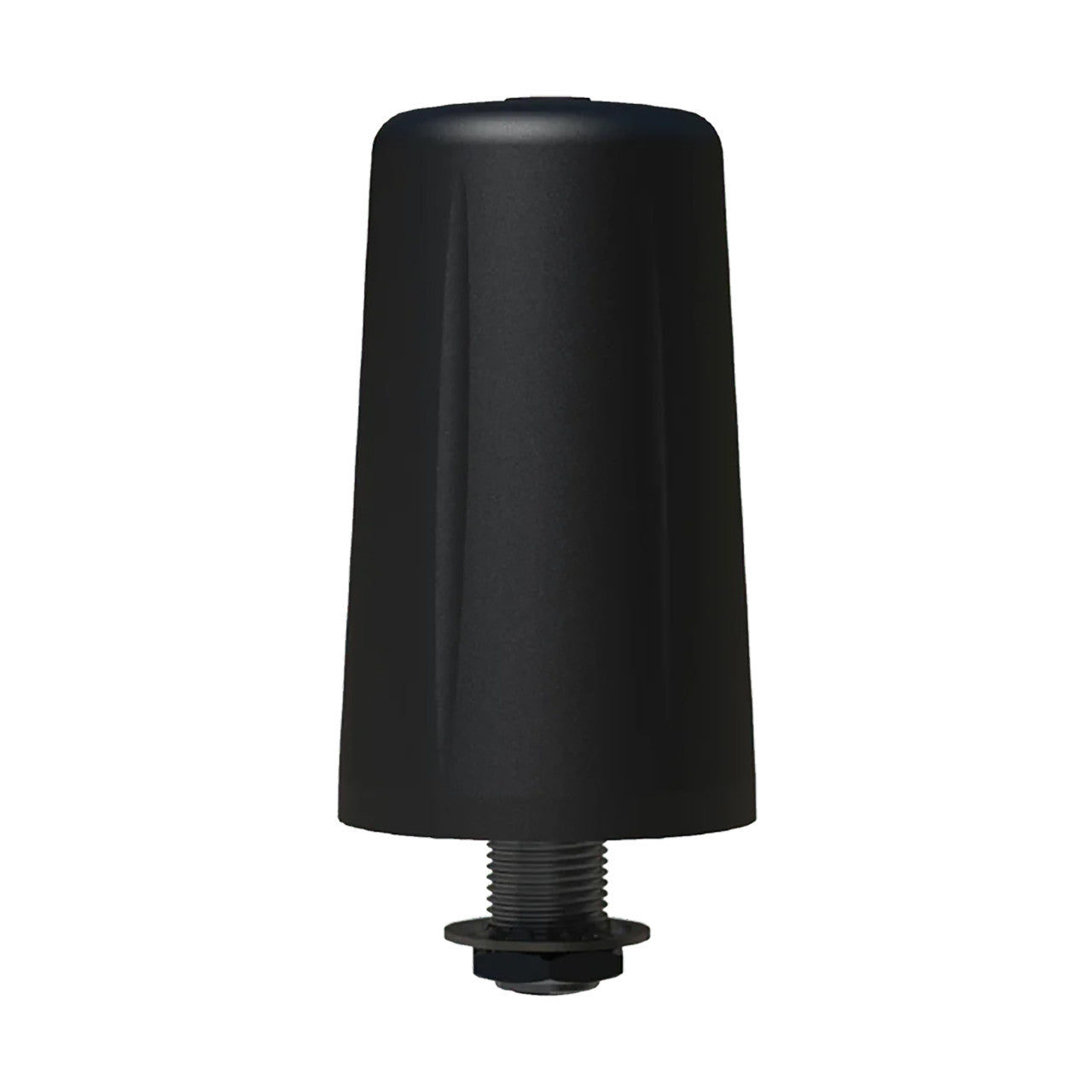

Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 1m SMA Male
Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 1m SMA Male
Description::
The Panorama LPB-6-60 3G-5G Low Profile Cost Effective Antenna is a high performance omnidirectional antenna that is ideal for use in a variety of outdoor applications. The antenna features a low profile design that makes it discreet and easy to install and it is also weatherproof and resistant to corrosion. The antenna is available with a SMA male connector and a 1m cable.
Key Features:
- Low profile wideband antenna
- Cost effective solution
- Robust product with integrated cable of various lengths
- Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
- Medium dB gain antenna
- IP66 rated for outdoor use
Benefits:
- Allows for SiSo LTE connectivity in a small antenna profile and footprint
- Suitable for use across multiple applications and industries
- High Performance antenna
Applications:
- Utility sector
- Smart metering
- Vending machine & Kiosk
Specification:
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 30 |
| Frequency Range | Gain | 617 – 960MHz | 3dBi; 1710 – 2700MHz | 4dBi; 3400 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 82 (mm) | 3.23 (in) |
| Diameter | 48 (mm) | 1.89 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 2 (m) | 6.56 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | CS29 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Wall |
| Mounting Methods | Mast; Panel; Wall |
| APPROVALS DATA | |
| IP Rating | IP66 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready |
@4/13
Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 3m SMA Male
Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 3m SMA Male
Description::
The LPB-6-60 antenna is a cost-effective Omnidirectional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
FEATURES:
- Low profile wideband antenna
- Covers all 3G/4G/5G LTE cellular bands from 600-6000MHz
- IP66 for outdoor use
- Allows for SiSo LTE connectivity in a small antenna profile and footprint
- Suitable for use across multiple applications and industries
The Panorama LPB-6-60 3G-5G Low Profile Antenna is easy to install and compatible with a broad range of cellular modems and routers PRODUCT VARIANT
| Part Number | Colour | Function | Cable | Connector |
| LPB-6-60-2SP | Black & Natural | 1x SiSo: 617-960/1710-6000MHz | 2 (6’6”) CS29 (double shielded RG58) | SMA (m) |
@7/17
Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 5m SMA Male
Panorama LPB-6-60 Low Profile 4G-5G Antenna 617 to 6000 MHz 5m SMA Male
Description::
The LPB-6-60 Low Profile Antenna offers an efficient and reliable solution for 2G 3G 4G and 5G coverage making it ideal for both industrial and domestic applications. With a frequency range of 617-960/1710-6000 MHz this antenna ensures robust connectivity across multiple bands supporting a wide range of cellular devices. Its compact design allows for easy integration into various environments without compromising performance.
Designed with durability in mind the LPB-6-60 features a robust yet subtle build making it suitable for both internal and external installations. The antenna comes equipped with an integrated low-loss CS29 coaxial cable ensuring minimal signal degradation and maintaining optimal performance. This makes it an excellent choice for machine-to-machine (M2M) wireless connectivity and other critical communication applications.
The antenna’s omnidirectional pattern and vertical polarisation offer consistent signal reception while its IP66-rated construction provides protection against harsh environmental conditions. For optimal performance the LPB-6-60 requires a conductive ground plane of at least 300 mm in diameter or can be mounted using a compatible bracket. Its versatile design and reliable performance make it an indispensable component for modern communication systems.
Installation is straightforward with a panel mount fixing method and a compact design that doesn’t take up much space. The LPB-6-60 is available with a variety of connector options providing flexibility for different installation scenarios. Whether for enhancing mobile network coverage or supporting complex wireless networks this antenna delivers dependable performance every time.
Key Features:
- Low-profile wideband antenna
- Durable construction
- Integrated low loss cable
- Various cable length options
- Supports 2G 3G 4G and 5G LTE cellular bands
- Medium-gain antenna performance
- IP66 rated
Versatile Coverage for Multiple Networks
The LPB-6-60 Low Profile Antenna is an ideal solution for those seeking dependable coverage across 2G 3G 4G and 5G networks. This antenna operates efficiently within a wide frequency range of 617-960 MHz and 1710-6000 MHz ensuring consistent and uninterrupted communication in various environments. Whether installed indoors or outdoors it provides reliable omnidirectional coverage making it a versatile option for diverse applications.
Discreet and Durable Design
With its compact and low-profile design the LPB-6-60 seamlessly blends into both industrial and domestic settings. Despite its subtle appearance the antenna is constructed with high-quality materials including ASA aluminium and zinc-plated steel ensuring long-lasting performance. The IP66 rating further enhances its durability offering protection against harsh weather conditions and making it suitable for outdoor use.
Easy Installation and Connectivity
The LPB-6-60 is designed for hassle-free installation featuring a simple panel mount setup that requires minimal effort. It is equipped with an integrated 5 mm double-shielded CS29 coaxial cable available in 2m or 5m lengths ensuring low signal loss and optimal performance. The antenna is compatible with various connectors providing flexibility in connecting to different devices.
Superior Signal Performance
Engineered for efficiency the LPB-6-60 antenna delivers excellent signal performance across all supported frequencies. With peak realised gains of up to 9dBi in higher frequency bands and a nominal radiated efficiency of over 70% this antenna ensures strong and stable signals for your devices. Its vertical polarisation and omnidirectional pattern further contribute to its exceptional coverage.
Ideal for M2M Applications
The LPB-6-60 is particularly well-suited for Machine to Machine (M2M) wireless connectivity applications offering reliable communication between devices in both industrial and residential environments. Its broad frequency range and high efficiency make it a preferred choice for maintaining stable connections in M2M networks ensuring seamless data transmission.
Ground Plane Requirement for Optimal Performance
To achieve the best performance the LPB-6-60 requires a conductive ground plane with a diameter of at least 300 mm. This enhances the antenna's signal strength and coverage making it a reliable choice for various deployment scenarios. Alternatively the antenna can be bracket-mounted using the optional B4BE-6-60 bracket for installations where a ground plane is not feasible.
Tailored for Various Environments
Whether you need reliable connectivity in an industrial setting or a discreet solution for a residential area the LPB-6-60 Low Profile Antenna is designed to meet your needs. Its combination of wide frequency support easy installation and durable construction makes it a versatile and practical choice for a range of applications ensuring continuous and efficient communication.
Specification:
| Category | Specification | Details |
|---|---|---|
| Product Name | Model | LPB-6-60-5SP LPB-6-60-2SP |
| Frequency | Range | 617-960 MHz / 1710-6000 MHz |
| Operational Band | Supported Bands | 2G/3G/4G/5G |
| Gain (Isotropic) | 617-960 MHz | 3dBi |
| Gain (Isotropic) | 1710-2700 MHz | 4dBi |
| Gain (Isotropic) | 3400-3800 MHz | 8dBi |
| Gain (Isotropic) | 4.9-6 GHz | 9dBi |
| VSWR | Ratio | <2.5:1 |
| Efficiency | Nominal Radiated Efficiency | > 70% |
| Polarisation | Type | Vertical |
| Radiation Pattern | Pattern | Omni-directional |
| Impedance | Value | 50Ω |
| Power Handling | Max Input Power | 30W |
| Dimensions | Height | 82 mm |
| Dimensions | Diameter | 48 mm |
| Operating Temperature | Temperature Range | -40°C to +85°C |
| Material | Construction | ASA aluminium zinc-plated steel |
| Colour | Finish | Black & natural |
| Ingress Protection | Rating | IP66 |
| Mounting | Method | Panel mount |
| Mounting | Hole Diameter | 12 mm |
| General Information | |
|---|---|
| Manufacturer: | Panorama Antennas |
| Manufacturer Part Number: | LPB-6-60-5SP |
| Barcode: | 5055416035097 |
| Packaging Details | |
| Weight: | 0.34 KGS |
| Width: | 5.00 (cm) |
| Height: | 9.00 (cm) |
| Depth: | 5.00 (cm) |
@7/17
Description::
High-Performance Multi-Band Antenna for 4G/5G and Wi-Fi Applications
The Panorama LPMDM4-6-60-24-5 is a robust low-profile antenna designed to provide reliable connectivity for 4G/5G and Wi-Fi applications. Featuring 4x4 MIMO for cellular networks and 2x2 MIMO for Wi-Fi this antenna ensures optimal performance for data-intensive operations. Its durable construction and versatile mounting options make it suitable for various environments including vehicles industrial settings and outdoor installations.
Key Features
- 4x4 MIMO for 4G/5G: Supports frequencies from 617 to 960 MHz and 1710 to 6000 MHz ensuring broad compatibility with cellular networks.
- 2x2 MIMO for Wi-Fi: Covers 2.4 GHz and 5 GHz bands providing reliable wireless connectivity.
- High Gain Performance: Delivers peak gains up to 9 dBi enhancing signal strength and data throughput.
- Durable Construction: Rated IP69K and IK10 offering resistance to water dust and mechanical impacts.
- Versatile Mounting: Ground plane independent design allows for installation on various surfaces including non-metallic ones.
- Compact Design: Low-profile form factor minimizes visual impact and is ideal for space-constrained applications.
Ideal for applications requiring robust and reliable wireless connectivity such as fleet management public safety and industrial automation.
Specification:
| Electrical Specifications | |
|---|---|
| Cellular Frequency Range | 617–960 MHz / 1710–6000 MHz |
| Wi-Fi Frequency Range | 2.4 GHz / 5 GHz |
| Peak Gain | Up to 9 dBi |
| Impedance | 50 Ohms |
| VSWR | <2.0:1 |
| Max Input Power | 10 W |
| Polarization | Vertical |
| Mechanical Specifications | |
| Dimensions | 180 mm (D) x 80 mm (H) |
| Weight | Not specified |
| Connector Types | 4x SMA Male (Cellular) 2x SMA Female (Wi-Fi) |
| Cable Length | 0.3 m (RG174) |
| Mounting | Through-hole bolt mount |
| Housing Material | UV-stable plastic |
| Color | White |
| Environmental Specifications | |
| Operating Temperature | -40°C to +80°C |
| Ingress Protection | IP69K |
| Impact Resistance | IK10 |
| Flame Retardancy | Compliant with UN ECE118.01 |
@39/69
Panorama Multi-band 4G-5G MIMO Gain Antenna with GPS/GNSS 5m SMA Male
Panorama Multi-band 4G-5G MIMO Gain Antenna with GPS/GNSS 5m SMA Male
Description::
The WMM8GG-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks.
FEATURES:
- 3-in-1 antenna with directional 2x2 MIMO LTE and GPS
- High 6-9dBi peak gain directional fixed-site antenna
- 5m SMA(m) cable
- UV stable IP65 rated housing
- Integrate your wireless services into a single antenna
- Can be wall or mast-mounted
@29/53
