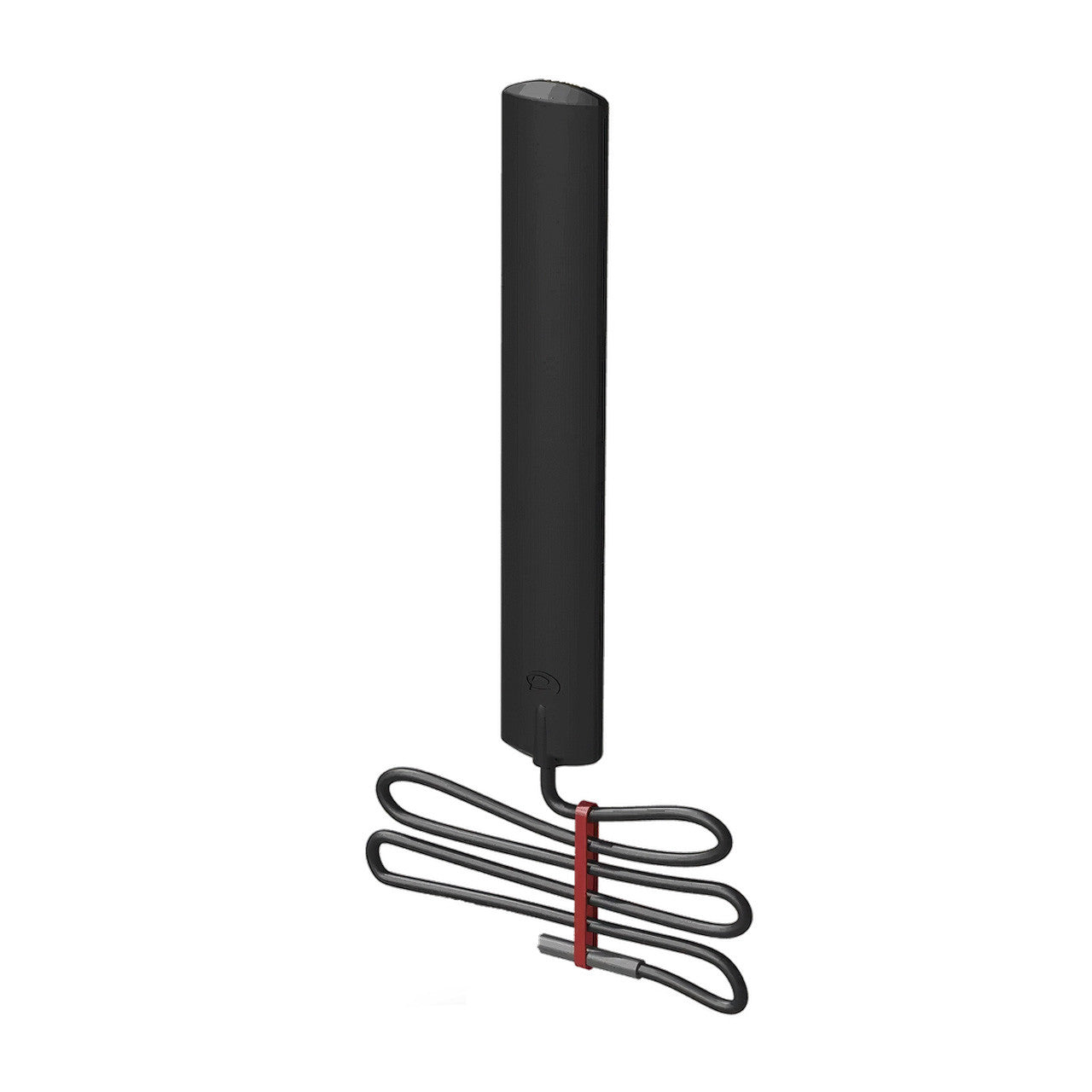

2G/3G/4G Easy-Fit Antenna. The Panorama EF-BC3G-26 antenna is designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
Key Features:
- Compact design for easy installation
- Can be mounted on any non-conductive surface
- Suitable for use in a vehicle or static device
- Covers all 2G/3G/4G LTE bands
- Omni-directional and can be installed with or without a ground plane
- Slimline design
Benefits:
- A plug-an-play solution with no additional tuning
- Versatile product for multiple applications
- Improved your cellular connectivity
Applications:
- In-vehicle connectivity
- Smart metering
- Vending machines
- M2M applications
Specification:
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 2170MHz | 3dBi; 2400 – 2700MHz | 6dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 131 (mm) | 5.16 (in) |
| Width | 21.7 (mm) | 0.85 (in) |
| Diameter | 2.5 (mm) | 0.10 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | RG174 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m); FAKRA D; TS9 (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Glass Mount |
| Mounting Methods | Glass Mount |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; FirstNet |
@8/18
Description::

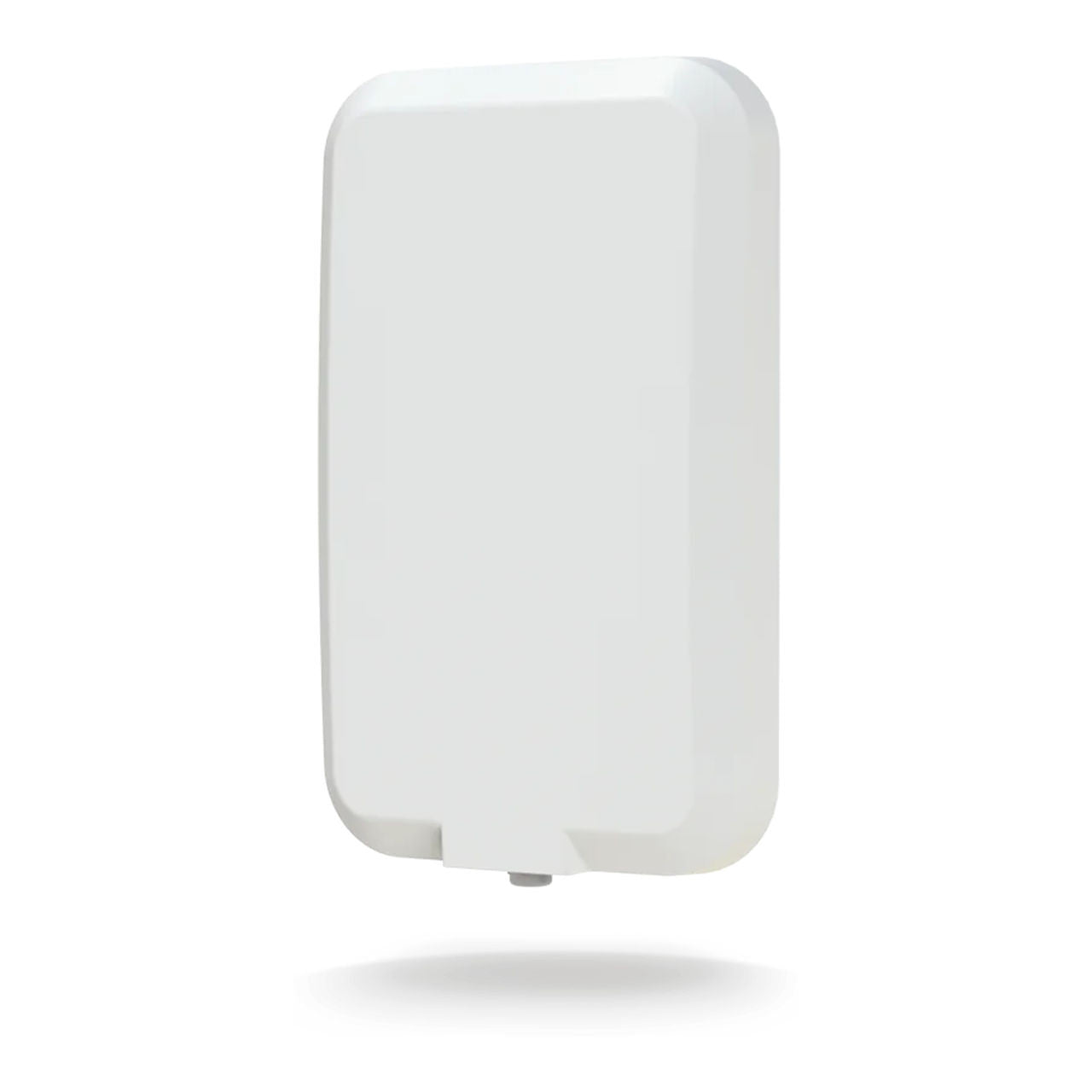

Panorama's WMM2G-6-60 MIMO antenna incorporates two wideband element assemblies in a single housing and is designed to support fixed-site client devices. This antenna offers a 6 dBi peak gain for the lower 617 to 960 MHz band and a 9 dBi peak gain for 1710 to 6000 MHz upper band. The weather-resistant housing is designed for wall or mast mounting with the supplied hardware.
The WMM2G-6-60-05NJ version has 50cm length cable tails fitted with N-Type Female connectors which is ideal for installations that require a short flexible tail to connect to larger feeder cables.
The WMM2G-6-60 is a value-added product for network operators and service providers by improving the link resilience to the router achieving increased data rates for the subscriber and resulting in customer satisfaction and retention.
FEATURES:
- 2x2 MIMO Wideband Cellular LTE Antenna
- Can be all or mast mounted
- IP66 rated
- Ideal product for fringe network areas
- Integrates your wireless services into a single antenna
- Failover and Enterprise Solutions
- 50cm length cable tails fitted with N-Type Female connectors
| SKU | Colour | Cellular | GPS |
|---|---|---|---|
| WMM2G-6-60-05NJ | White | 2 x 2 MIMO | No |
@48/50
Description::

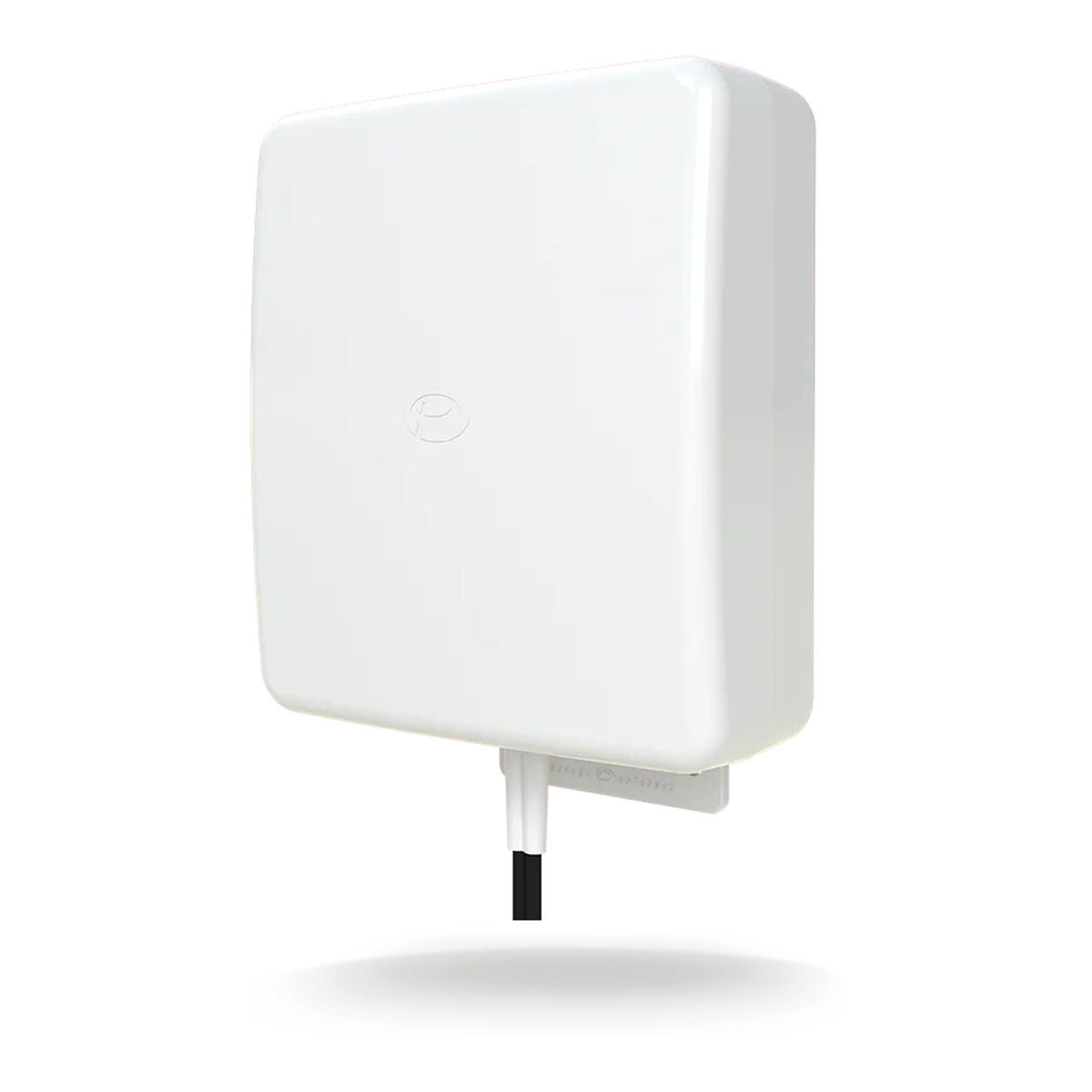

The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks.
FEATURES:
- 2x2 MiMo wideband cellular LTE antenna
- High 9dBi peak gain directional product
- Covers wideband 700-3800MHz for 2G/3G/4G/5G LTE
- 6-9dBi peak gain directional fixed-site antenna
- Ideal product for fringe network areas
The rugged weatherproof housing is designed for wall or mast mounting. The antenna has a gain of 6-9dbi and 5m Twin cable with SMA male connector.
PRODUCT VARIANT
| Part Number | Technology | Cable | Connector |
| WMM8G-7-38-5SP | 2x2 Cellular/LTE (698-960/1710-3800MHz) | 5m (16') Twin CS29 | 2x SMA Plug (m) |
@21/40
Description::

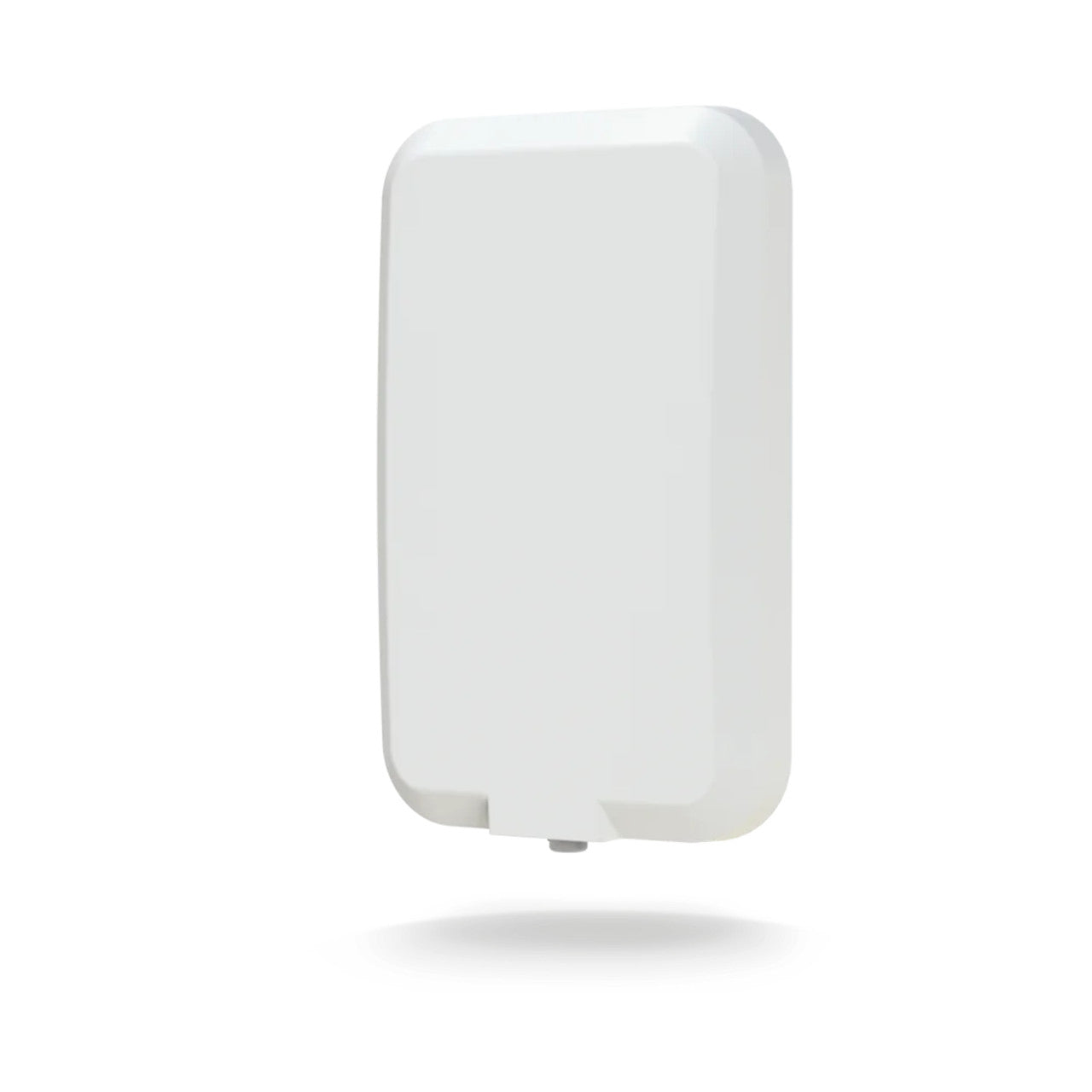

The WMM4G-6-60-05NJ is a high-gain directional 4×4 MiMo antenna designed to boost 4G and 5G signals. It features four separately fed wideband element assemblies within a single housing providing client-side MiMo support with a peak gain of 6dBi at 617-960MHz and 9dBi at 1710-6000MHz.
Housed in weather-resistant casing it is suitable for wall mounting with wall and mast mount brackets included. The antenna comes with low-loss double-shielded cables for cellular/LTE reducing exposed connector joints and simplifying cable management for easy installation.
| SKU | Colour | Cellular |
|---|---|---|
| WMM4G-6-60-05NJ | White | 4 x 4 MIMO |
| 0.5m | ||
| N (f) |
@59/60
Description::
Advanced 4x4 MIMO Directional Antenna Designed for Superior 4G/5G Connectivity and Long-range High-speed Performance in Challenging Environments
The Panorama Wall mount MIMO 4G/5G Directional Antenna is a high-performance antenna designed for optimal connectivity in modern 4G and 5G wireless networks. Offering a 60° beamwidth this advanced directional antenna supports 4x4 MIMO (Multiple Input Multiple Output) technology to enhance signal strength and ensure faster more reliable data transfer. Whether you're deploying in a rural area remote location or urban environment the Panorama antenna is engineered to provide high throughput and exceptional coverage over long distances.
Key Features
- 4x4 MIMO Support: Delivers maximum throughput by utilizing multiple antennas for simultaneous signal reception and transmission.
- Wideband 4G/5G Coverage: Operates across a broad frequency range providing seamless support for 4G LTE and 5G NR networks.
- Directional Design: With a 60° beamwidth it focuses signal transmission for long-range high-performance connections.
- High Efficiency: Ensures strong stable connections even in challenging environments reducing network congestion and signal loss.
- Weather-Resistant Construction: Built to withstand harsh conditions the antenna is weatherproof and suitable for outdoor deployments.
- Compact and Lightweight: Despite its robust performance the antenna's compact design makes it easy to install and deploy.
Upgrade your network with the Panorama Wall Mount MIMO 4G/5G Directional Antenna and experience enhanced coverage improved data speeds and a reliable long-distance connection for critical wireless applications.
Specification:
| Technical Specifications | |
|---|---|
| Frequency Range | 690 MHz - 6000 MHz |
| Gain | 6 dBi (Average) |
| Polarization | Vertical / Horizontal |
| Beamwidth | 60° |
| MIMO Support | 4x4 MIMO |
| Impedance | 50 Ω |
| Connector Type | 4 x N Female |
| Dimensions | 598 x 430 x 60 mm |
| Weight | 2.4 kg |
| Mounting Type | Pole mount (Bracket Included) |
| Operating Temperature | -40°C to +70°C |
| Ingress Protection | IP65 |
| VSWR | ≤ 2.0:1 |
| Max Input Power | 50 W |
| Front-to-Back Ratio | ≥ 20 dB |
| Axial Ratio | ≤ 3 dB |
| Applications | 4G 5G and IoT Networks |
@62/62
Overview:This 2-in-1 protection combo from PanzerGlass® features not ONE but TWO scratch shock and drop-resistant screen protectors to keep BOTH your main AND cover screens safe from dance floor mishaps selfies gone wrong and your everyday fumbling dropping and screen scratching. The cover screen protector is made of 60% recycled glass the main screen protector of self-healing TPU foil and both have smudge-free coatings that reduce traces of fingerprints grease. When you keep your beloved phone safe you can one day pass it on to another phone lover who will adore it just as much as you do. This is one way of working toward a more sustainable future! Another is to use more sustainable packaging and thats why we continue to deliver all our products in recyclable FSC-certified boxes. The screen protector is Classic Fit meaning it protects the active part of your screen from scratches and cracks.Features &
Specifications:
@6/16
Overview:This 2-in-1 protection combo from PanzerGlass® features not ONE but TWO scratch shock and drop-resistant screen protectors to keep BOTH your main AND cover screens safe from dance floor mishaps selfies gone wrong and your everyday fumbling dropping and screen scratching. The cover screen protector is made of 60% recycled glass the main screen protector of self-healing TPU foil and both have smudge-free coatings that reduce traces of fingerprints grease. When you keep your beloved phone safe you can one day pass it on to another phone lover who will adore it just as much as you do. This is one way of working toward a more sustainable future! Another is to use more sustainable packaging and thats why we continue to deliver all our products in recyclable FSC-certified boxes. The screen protector is Classic Fit meaning it protects the active part of your screen from scratches and cracks.Features &
Specifications:
@6/16
Overview:Spray Twice A Day is a cleaning solution for all types of tech-screens such as cell phones and tablets. Successfully killing 99.999% of bacteria SPRAY Twice A Day is based on water and contains only active ingredients commonly used in human hygiene and cosmetic products. It is free from perfumes ammonia toxics alcohol and parabens. As no alcohol is included there is no risk that the olephobic layer of the phones screen will be worn down.
Features:
@4/14
Overview:Spray Twice A Day is a cleaning solution for all types of tech-screens such as cell phones and tablets. Successfully killing 99.999% of bacteria SPRAY Twice A Day is based on water and contains only active ingredients commonly used in human hygiene and cosmetic products. It is free from perfumes ammonia toxics alcohol and parabens. As no alcohol is included there is no risk that the olephobic layer of the phones screen will be worn down.
Features:
@4/14
Overview:The ultimate screen protection for Samsung Galaxy Tab S7 FE and Samsung Galaxy Tab S7 FE 5G case friendly. PanzerGlass screen protector is made of flat tempered glass and covers the entire front surface of the device. The glass features full silicone adhesive which is carefully optimised to match the screen and device perfectly whilst saving perfect touch sensitivity and still delivering the superior PanzerGlass strength.
Features:
@6/28
Description:-in.The PanzerGlass screen protector for iPhone with anti blue light glass has the same key features as the original PanzerGlass screen protector thus protecting your screen against scratches and shocks. As an additional feature this glass features a blue light blocking layer ensuring that your eyes are protected from the particular blue light emitted from our screens which can be hard on the eyes. This anti blue light layer helps to soften the strong light from your phone which is especially important in the darker hours before bed as the blue light can trick brain into thinking its daytime and disrupt your sleeping pattern. PanzerGlass anti blue light glass is case friendly and will appear slightly darker than the original PanzerGlass.-in.Features
Description:- Anti blue light glass - Protects the entire screen - Crystal clear - 100% touch - Resistant to scratches - Gentle on the eyes - Shock-absorbing - Easy to install - Original PanzerGlass
@6/34
Overview:The PanzerGlass screen protector in black with antibactrial coating has the same features as the original PanzerGlass and will protect your screen from scratches and bumps. This glass is coated with an active antimicrobial substance to make it resistant to bacterial and fungal spores. The antimicrobial ingredient kills bacteria and fungal spores on the glass and keeps you as the user protected. The coating is non-toxic. It is food safe and approved for use in the EU (BPR) and the United States (EPA). Proven to kill up to 99.99 % of most common surface bacteria
Features:
@5/28
Overview:The PanzerGlass screen protector with anti-blue light glass has the same key features as the original PanzerGlass screen protector thus protecting your screen against scratches and shocks. As an additional feature this glass features a blue light blocking layer ensuring that your eyes are protected from the particular blue light emitted from our screens which can be hard on the eyes. This anti blue light layer helps to soften the strong light from your phone whichis especially important in the darker hours before bed as the blue light can trick brain into thinking its daytime and disrupt your sleeping pattern. PanzerGlass anti blue light glass is case friendly and will appear slightly darker than the original PanzerGlass. Proven to kill up to 99.99 % of most common surface bacteria
Features:
@6/16
Overview:
The PanzerGlass screen protector in black with antibacterial coating has the same features as the original PanzerGlass and will protect your screen from scratches and bumps. This glass is coated with an active antimicrobial substance to make it resistant to bacterial and fungal spores. The antimicrobial ingredient kills bacteria and fungal spores on the glass and keeps you as the user protected. The coating is non-toxic. It is food safe and approved for use in the EU (BPR) and the United States (EPA). Proven to kill up to 99.99 % of most common surface bacteria|
Features:
Antibacterial glass Protects the entire screen Crystal clear 100% touch Resistant to scratches and bacteria Shock absorbing Easy to install Original PanzerGlass New sustainable FSC labelled packaging|
Overview:The PanzerGlass screen protector in black with antibacterial coating has the same features as the original PanzerGlass and will protect your screen from scratches and bumps. This glass is coated with an active antimicrobial substance to make it resistant to bacterial and fungal spores. The antimicrobial ingredient kills bacteria and fungal spores on the glass and keeps you as the user protected. The coating is non-toxic. It is food safe and approved for use in the EU (BPR) and the United States (EPA). Proven to kill up to 99.99 % of most common surface bacteria
Features:
@5/28
Overview:PanzerGlass screen protector for iPhone in black with Privacy features the same core benefits as the original glass while also protecting the content of the display. A confidentiality filter renders the content of the display almost invisible to everyone except the user of the device. At the same time it reduces blue light exposure and features an anti-glare coating that reduces light reflections reaching your eyes without affecting the visibility of the display. Thisglass is coated with an active antimicrobial substance to make it resistant to bacterial and fungal spores. The antimicrobial ingredient kills bacteria and fungal spores on the glass and keeps you as the user protected. The coating is non-toxic. It is food safe and approved for use in the EU (BPR) and the United States (EPA).
Features:
@5/26
Overview:PanzerGlass screen protector in black features the worlds first and only Dual Privacy screen protector with a smooth built-in camera cover to meet all your privacy needs in one high-performance product. A confidentiality filter renders the content of the display almost invisible to everyone except the user of the device. This glass is coated with an active antimicrobial substance to make it resistant to bacterial and fungal spores. The antimicrobial ingredient kills bacteria and fungal spores on the glass and keeps you as the user protected. The coating is non-toxic. It is food safe and approved for use in the EU (BPR) and the United States (EPA). Proven to kill up to 99.99 % of most common surface bacteria.
Features:
@7/17
Overview:The Edge-to-Edge screen protector covers the entire front surface of your phone while leaving room for a case.
Features:
@6/16
