Description::A dual-band 5G commercial-grade 4x4 MIMO antenna with a unique design offers a high 14 dBi gain across the 3400 to 3800 MHz range covering the n78 (3500 MHz) and a subset of the n79 (4500 MHz) bands. Originally configured for NTT DoCoMo it can be easily modified to suit any other network's requirements. The slim patch array design ensures an unobtrusive form factor with excellent isolation null fill and discrimination characteristics and it is mounted using a simple pole mount bracket with an integrated 30° mechanical tilt mechanism.

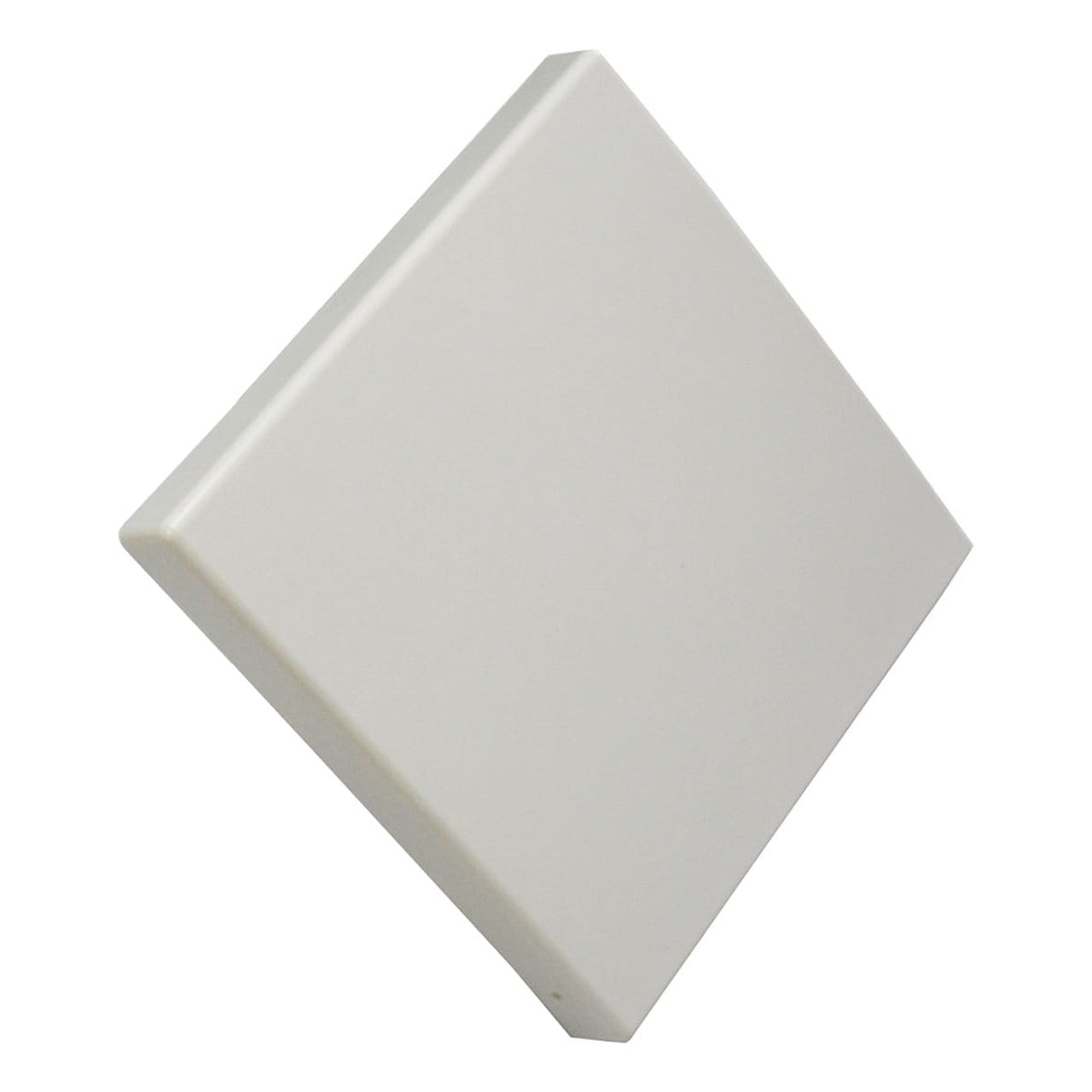

Powertec Multiband 5G 4×4 MIMO Panel Antenna A 4x4 MIMO antenna designed for commercial use in dual-band 5G networks boasts a high 14 dBi gain across two mid-bands of 5G. Specifically catering to the 3400 to 3800 MHz range it covers the heavily utilized section of the n78 (3500 MHz) band and a subset of the n79 (4500 MHz) band. This particular antenna configuration was tailored to meet the specifications of NTT DoCoMo but is adaptable to suit the requirements of any other network. The slim and unobtrusive form factor of the antenna is attributed to its patch array design which also ensures exceptional isolation null fill and discrimination characteristics. The mounting is facilitated by a straightforward pole mount bracket featuring an integrated 30° mechanical tilt mechanism.
| Physical Characteristics | |||
|---|---|---|---|
| Construction Material | ABS Plastic Aluminium | RF Connections | 4
|
| Radome Colour | Other - Grey | Environmental Rating | No Data |
| Dimensions | 250 x 250 x 30 mm (L x W x D) | Operating Temperature | -40 °C to 70 °C |
| Weight | 3.5000 kg | Mounting | Pole 50 to 110 mm Φ |
| Cellular MIMO-1 to MIMO-4 Element | |||
|---|---|---|---|
| Electrical Specifications | Mechanical Specifications | ||
| Input Impedance | 50 Ω | Input Connector | N |
| Polarisation | 4x4 MIMO | Input Connector Gender | Female |
| Max. Input Power | 50 W | Cable Series | - |
| PIM 3rd Order | - | Cable Length | - |
| Range: 3400 to 3800 MHz | |||
|---|---|---|---|
| Peak Gain | 14.00 dBi | Azimuth Beamwidth | 34° |
| VSWR | < 2.0:1 | Elevation Beamwidth | 34° |
| Radiation Efficiency | No Data | Electrical Tilt | 0° |
| Front-to-Back Ratio | > 23 dB | Inter-Port Isolation | > 25 dB |
| Cross-Polar Discrimination | - | Cross-Polar Isolation | > 15 dB |
| Range: 4500 to 4700 MHz | |||
|---|---|---|---|
| Peak Gain | 13.00 dBi | Azimuth Beamwidth | 29° |
| VSWR | < 2.0:1 | Elevation Beamwidth | 29° |
| Radiation Efficiency | No Data | Electrical Tilt | 0° |
| Front-to-Back Ratio | > 23 dB | Inter-Port Isolation | > 25 dB |
| Cross-Polar Discrimination | - | Cross-Polar Isolation | > 15 dB |
@30/55

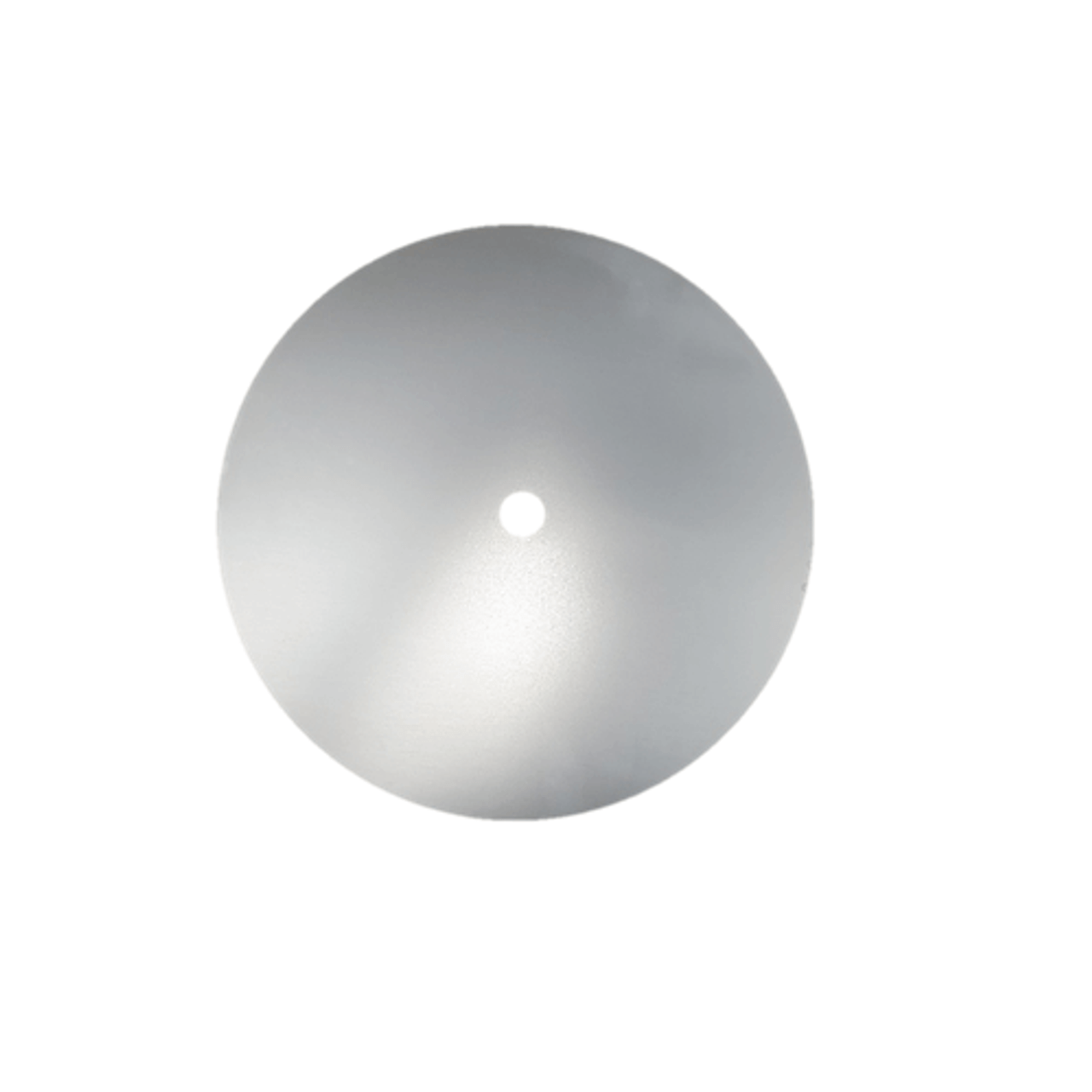

Description::The Blackhawk Reflector Plate is suitable for all Blackhawk ceiling antennas with the central screw clamp ceiling system.
FEATURES:
- Increases gain
- Improves front to back ratio
- Results in a larger signal footprint
- Assists with isolation on donor and service antenna for cellular repeater applications
- Compatible for all Blackhawk ceiling antennas
Mounted above the ceiling the reflector enhances the gain and front to back ratio of the antenna. This will result in better signal dispersion and coverage for in-building cellular coverage systems with high ceilings.
@8/19
Description::

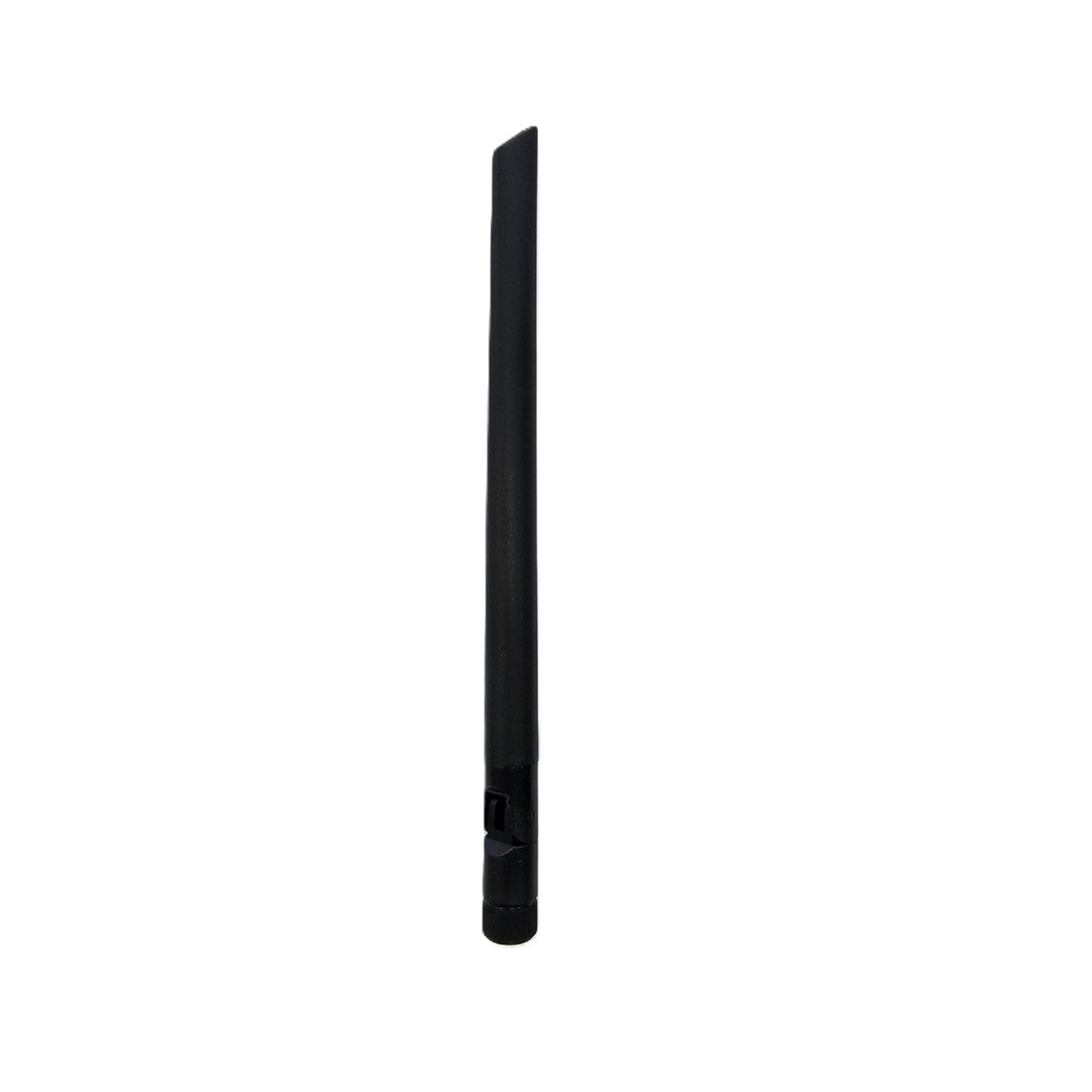

Boost Your Connectivity with the Powertec Wideband 4G-5G Hinged Antenna – Reliable Performance Across 700 to 3800 MHz
Enhance your cellular connectivity with the Powertec Wideband 4G-5G Hinged Antenna. Designed to cover a broad frequency range of 700 to 3800 MHz this versatile antenna is perfect for supporting 4G LTE and 5G networks. Whether you're in a rural area or an urban setting this antenna ensures reliable performance across all major frequency bands.
Key Features
- Wide Frequency Range: Covers 700 to 3800 MHz providing excellent signal reception for both 4G LTE and 5G networks.
- SMA Male Connector: Compatible with a wide range of devices ensuring a secure and stable connection.
- Hinged Design: Adjustable hinge allows for optimal positioning enhancing signal strength and improving overall performance.
- Durable Construction: Built to withstand various environmental conditions making it ideal for both indoor and outdoor use.
- Easy Installation: Simple to set up with its plug-and-play design making it a convenient solution for boosting cellular signals.
Specification:
| Antenna Specifications | |
|---|---|
| PN | ANT-BH-00043 |
| Main Electrical Specifications | |
| Frequency Range (MHz) | 698/960-1710/2700-3300/3800MHz |
| VSWR | Minimum value ≤ 3.0 |
| Gain (dBi) | 3.0 |
| Impedance (Ω) | 50 Ω |
| Polarization | Vertical Polarization |
| Main Structure Specifications | |
| Length | 199.4MM |
| Connector Type | SMA male |
| Color | Black |
@2/10
Product Overview:
- 38W Two Ports Car Charger
- USB Power Delivery 20W
- QC3.0 18W
Power Delivery plus QC 3.0 car charger provides full-speed charging to your mobile devices at once, twin USB ports including USB-C and USB-A, pump out a combined 38W.
Product Feature:
Twin USB ports including USB-C and USB-A, pump out a combined 38W — provide full-speed charging to your mobile devices at once.
• USB-C Power Delivery (PD) charging up to 20W including 12V1.67A, 9V2.22A, and 5V3A.
• USB-A QC3.0 charging up to 18W including 12V1.5A, 9V2.A and 5V3A. Compatible with DC 12-24V power input.
• Universal for any of your charging cables such as USB-C PD charging cables and USB-A mobile charging cables.
• Built-in chipset protects against short-circuiting and over-heating/current/charging.
Specs:
| Colour | Black |
| Dimension | 25mm x 25mm x 57mm |
| Materials | ABS Housing |
| Upstream | DC Jack for Car |
| Downstream | USB-C PD USB-A QC2.0 |
| Input | DC 12-24V |
| Output | USB-C PD: 5V/3A, 9V/2.22A, 12V/1.67A (Not support PD PPS) USB-A QC2.0: 5V/3A, 9V/2A, 12V/1.5A |
| Cable Length of Attached Cable | N/A |
| Packaging Content |
1 x Powertrain Duo |

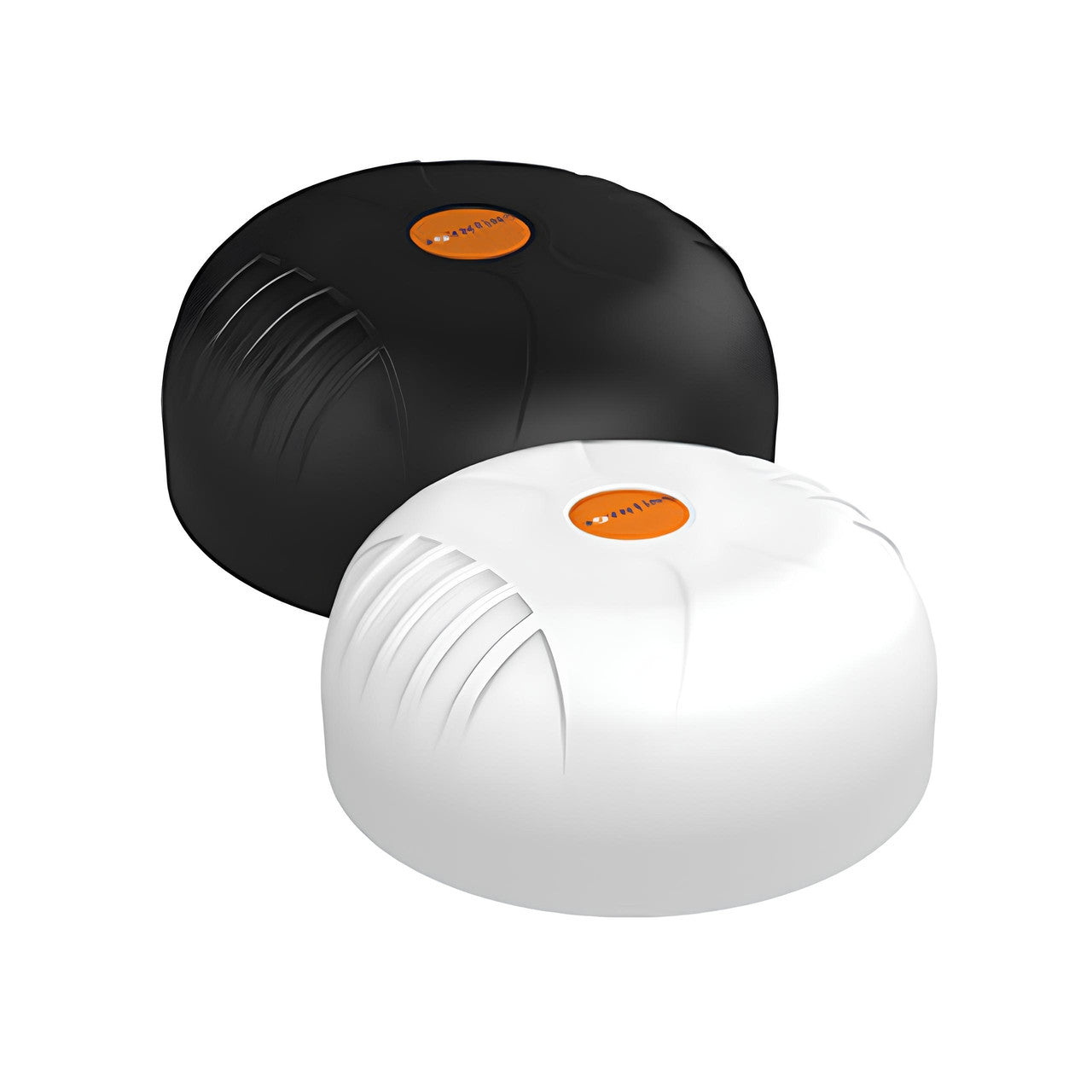

Poynting DASH-1 Omni-Directional Ultra Low Profile Smart Meter 4G antenna 698 to 2700 MHz
Poynting DASH-1 Omni-Directional Ultra Low Profile Smart Meter 4G antenna 698 to 2700 MHz
Description::
The DASH-1 bi-directional antenna is designed for low profile requirements such as Smart Meters. The DASH-1 antenna is designed with installation simplicity in mind while covering the LTE frequency bands from 698 – 2700MHz with a modest 3.8 dBi gain.
Supports the following IoT technologies:
- Zigbee
- Wi-Fi
- Z-Wave
- Wi-Fi HaLow
- LoRaWAN
- LTE-M/NB-IoT
- Sigfox
- Bluetooth
Features:
- Omni-directional antenna
- Wideband frequency ranges from 690-2700 MHz
- Stylish but robust design
- Robust vandal-resistant and waterproof (IO67) antenna
- Ultra-versatile mounting options for easy installation
- Right Angle SMA Male 1m
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | IoT M2M & Smart Meter Antennas |
| Technology | Cellular (LTE/2G/3G/4G) |
| Frequency Band | 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz |
| Frequency Range | 698 – 2700 MHz |
| Gain | 4dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n51 n53 n65 n66 n67 n74 n75 n76 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B74 B85 B103 B106 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Mounting Type | Spigot Mount |
| Connectors | SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP67 |
| Enclosure Name | DASH |
| Enclosure Size | Small |
| LTE Ports | 1 |
@7/17

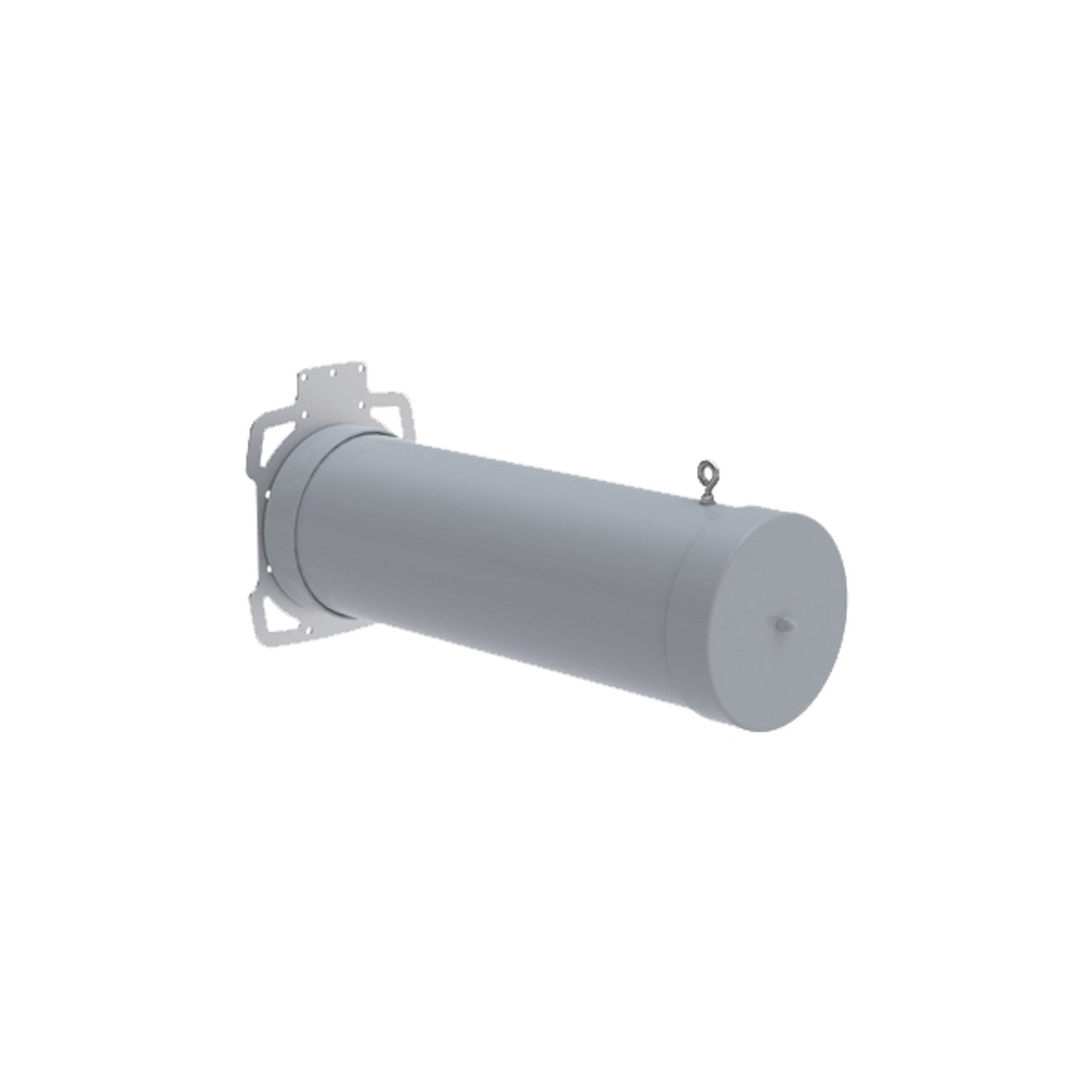

Poynting HELI-6 Directional Circular-Polarised Tunnel 4G/LoRa antenna; 698 to 960 MHz
Poynting HELI-6 Directional Circular-Polarised Tunnel 4G/LoRa antenna; 698 to 960 MHz
Description::
The HELI-6 is a high gain LTE directional mine and tunnel antenna. Poynting has fifteen years of experience in designing and manufacturing antennas for underground mining communication and data networks. The hardy construction of the antenna makes it ideal for a mining environment but it is also suitable for oil/gas chemical environments and even fiery mines. In tests the data rate and range achieved with this antenna were substantially greater than linear polarized panel antennas of the same gain. The HELI-6 operates from 698–960MHz.
- Cable sold separately. N-type (f)
- Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
- Covers traditional ISM bands for 868/915 MHz LoRa and other technologies
- Uni-directional – radiates in one direction in a tunnel
- Ruggedized & water ingress protected (IP 65)
- Ideal for Mining & Tunnel M2M and IoT deployments
We are taking expressions of interest for this antenna. Please call our office on 07 5577 0500 if you have an application that this antenna would be suitable for and we will be in touch.
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Mining & Tunnelling Antennas |
| Technology | Cellular (LTE/2G/3G/4G) LoRa |
| Frequency Range | 698 – 960 MHz |
| Frequency Band | 698-803MHz 791-894MHz 868-915MHz 880-960MHz |
| 5G Bands | n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 n106 |
| LTE/4G Bands | B5 B8 B12 B13 B14 B17 B18 B19 B20 B26 B27 B28 B29 B44 B67 B68 B85 B103 B106 |
| Gain | 13.5dBic |
| Directionality | Uni-Directional |
| Mounting Type | Pole Mount Ceiling Mount |
| Connectors | N-Type |
| MIMO | SISO |
| Polarisation | Circular Polarised |
| Environmental | IP65 |
| Enclosure Name | MinePoynt |
| Enclosure Size | Medium |
| LTE Ports | 1 |
@63/63
@41/74
Description::

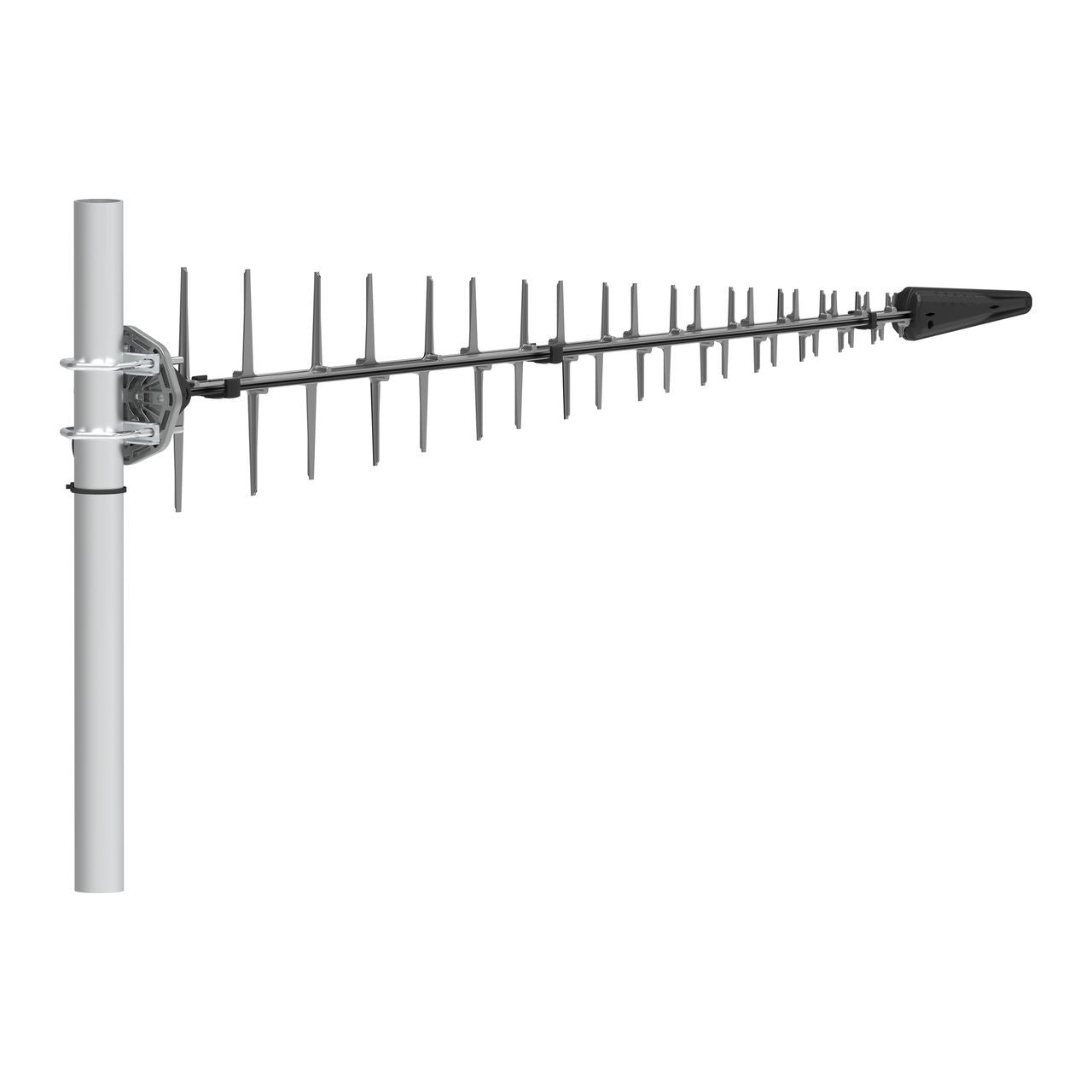

The LPDA-500 is Poynting’s new and improved log-periodic dipole array (LPDA) antenna. The LPDA-500 is a high-gain ultra-wideband uni-directional antenna that operates from 617 to 7200 MHz. The ultra-wideband coverage includes current 5G and future cellular bands as well as Wi-Fi and Wi-Fi 6E bands. The LPDA-500 has consistent high-gain performance across the entire band of operation making the antenna suitable for the deployment of various wireless communication systems. Poyntings previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures with the new LPDA-500 being no different. The LPDA-500 comes standard with a new and improved mounting bracket which can be rotated at 45° intervals. This will allow for ease of installation and the customer will be able to mount multiple LPDA-500 antennas and orientate them in a MIMO configuration i.e. vertical and horizontal or ±45°. Poynting Antennas are well known for designing future-proof antennas and the new LPDA-500 is no different.
LPDA-500 Key Features:
- Futureproof ultra-wideband antenna from 617 - 7200 MHz
- Exceptional high-gain performance over the entire frequency range
- Compatible with 2G 3G 4G and future 5G technologies
- Improves mobile network subscribers's user experience
- Ruggedized design for weather and vandal protection (IP65)
- Deployable in any extreme weather conditions
Video: The Poynting LPDA-500: An ultra-wideband #5G LPDA Antenna
Specification:
| Industry (Application) | Farming & Agricultural Antennas Urban & Rural Cellular Antennas |
|---|---|
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) Wi-Fi |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz 3800-4200MHz 5000-6000MHz 6000-7200MHz |
| Frequency Range | 617 – 7200 MHz |
| Gain | 11dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n46 n47 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n77 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n102 n104 n106 n256 |
| Directionality | Uni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Mounting Type | Pole Mount Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) Wi-Fi 6 (802.11ax) Wi-Fi 6E (802.11ax) |
| Connectors | N-Type (f) |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | Poynter |
| Enclosure Size | Large |
| Price Pricing Scale | Medium |
| LTE Ports | 1 |
| LPDA-500 | |
|---|---|
| Category | Details |
| Electrical Specifications | |
| Frequency Bands | 617 – 960 MHz 1427 – 1517 MHz 1710 – 2700 MHz 3400 – 4200 MHz 5000 – 6000 MHz 6000 – 7200 MHz |
| Gain (Max) | 10.5 dBi @ 617 – 960 MHz 10 dBi @ 1427 – 1517 MHz 11 dBi @ 1710 – 2700 MHz 11.5 dBi @ 3400 – 4200 MHz 10 dBi @ 5000 – 6000 MHz 9 dBi @ 6000 – 7200 MHz |
| VSWR | <2:1 |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Linear Vertical |
| DC Short | Yes |
| Product Box Contents | |
| Antenna | A-LPDA-0500-V1-01 |
| Mounting Bracket | Econo bracket U-bolt and fasteners suitable for pole mounting |
| Ordering Information | |
| Commercial Name | LPDA-500 |
| Order Product Code | A-LPDA-0500-V1-01 |
| EAN Number | 6009710925447 |
| Mechanical Specifications | |
| Product Dimensions | 1385 mm x 250 mm x 145 mm |
| Packaged Dimensions | 1430 mm x 280 mm x 160 mm |
| Weight | 1.52 kg |
| Packaged Weight | 3.34 kg |
| Frame Material | Passivated ADC12 |
| Frame Colour | Aluminium grey |
| Mounting Type | Pole Mount |
| Environmental Specifications Certification & Approvals | |
| Wind Survival | ≤160 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP 65 |
| Salt Spray | MIL-STD 810G/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB |
| Impact Resistance | IK 08 |
| Product Safety & Environmental | Complies with CE and RoHS standards |
@33/60
Description::

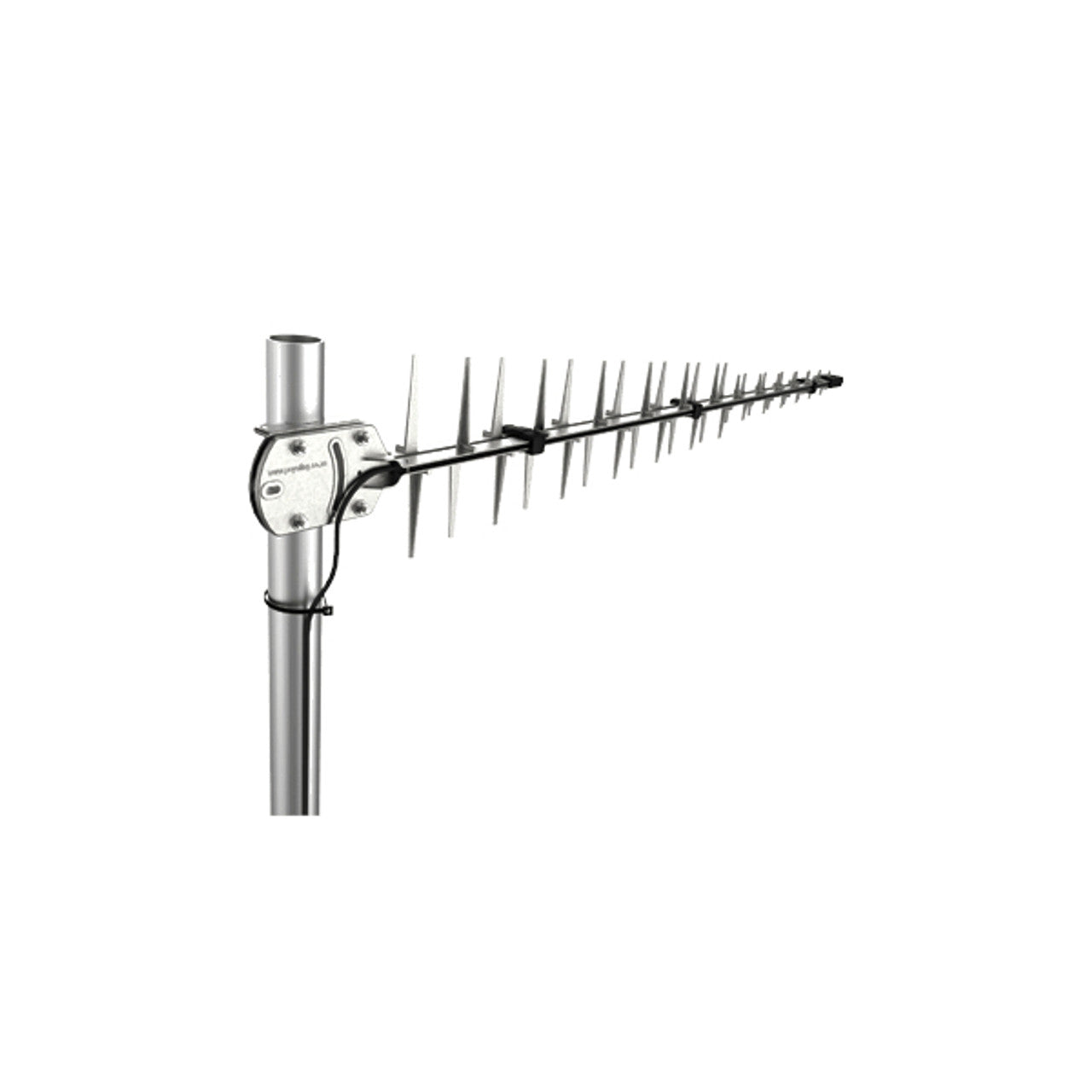

The Poynting LPDA-92 Antenna is a durable and high performance directional 4G antenna capable of operating on most global 4G frequencies from 700 to 3800 MHz. The antenna provides a modest 11 dBi gain across standard 4G frequencies between the range of 700 and 2700 MHz making it suitable for use in hilly terrain or locations obstructed by vegetation.
The LPDA-92 antenna can also operate on 5G Mid-Band frequencies although only at a low gain (2.3 dBi).
Features:
- Futureproof wideband LTE and Wi-Fi antenna covering 690 – 3800MHz
- Compatible with 3G 4G and 5G technologies
- 5G Ready; includes 3.2 GHz to 3.8 GHz CBRS Band
- Water and dust resistant
- Easy alignment with the main beam around 50° wide
- Used in extreme weather environments
- Comes with a bracket U-bolts and fasteners suitable for pole mounting
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Farming & Agricultural Antennas Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 698-3800 MHz |
| Gain | 11dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Uni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B74 B85 B103 B106 |
| Mounting Type | Pole Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | N-Type SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | LPDA |
| Enclosure Size | Large |
| LTE Ports | 1 |
| LPDA-92 | |
|---|---|
| Category | Details |
| Electrical Specifications | |
| Frequency Bands | 698 – 960 MHz 1427 – 1517 MHz 1710 – 2700 MHz 3400 – 3800 MHz |
| Gain (Max) | 10.8 dBi @ 698 – 960 MHz 10 dBi @ 1427 – 1517 MHz 11 dBi @ 1710 – 2700 MHz 2.3 dBi @ 3400 – 3800 MHz |
| VSWR | <1.5:1 across 95% of the bands |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Directional Linear |
| Coax Cable Loss | 0.385 dB/m @ 900 MHz 0.507 dB/m @ 1500 MHz 0.565 dB/m @ 1800 MHz 0.666 dB/m @ 2400 MHz 0.788 dB/m @ 3000 MHz |
| DC Short | Yes |
| Product Box Contents | |
| Antenna | A-LPDA-0092 |
| Mounting Bracket | Econo brackets U-bolts and fasteners suitable for pole mounting |
| Mechanical Specifications | |
| Plastics Material | Nylon 6 |
| Plastics Colour | Black |
| Frame Material | Passivated ADC12 |
| Frame Colour | Aluminium grey |
| Mounting Type | Pole Mount |
| Environmental Specifications Certification & Approvals | |
| Wind Survival | ≤160 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP 65 |
| Salt Spray | MIL-STD 810G/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB |
| Impact Resistance | IK 08 |
| Product Safety & Environmental | Complies with CE and RoHS standards |
@19/38
Description::
The Poynting LPDA-92 Antenna is a durable and high performance directional 4G antenna capable of operating on most global 4G frequencies from 700 to 3800 MHz. The antenna provides a modest 11 dBi gain across standard 4G frequencies between the range of 700 and 2700 MHz making it suitable for use in hilly terrain or locations obstructed by vegetation.
The LPDA-92 antenna can also operate on 5G Mid-Band frequencies although only at a low gain (2.3 dBi).
Features:
- Short 300mm cable terminating with N Female
- Futureproof wideband LTE and Wi-Fi antenna covering 690 – 3800MHz
- Compatible with 3G 4G and 5G technologies
- 5G Ready; includes 3.2 GHz to 3.8 GHz CBRS Band
- Water and dust resistant
- Easy alignment with the main beam around 50° wide
- Used in extreme weather environments
- Comes with a bracket U-bolts and fasteners suitable for pole mounting
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Farming & Agricultural Antennas Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 698-3800 MHz |
| Gain | 11dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Uni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B74 B85 B103 B106 |
| Mounting Type | Pole Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | N-Type Female |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | LPDA |
| Enclosure Size | Large |
| LTE Ports | 1 |
| LPDA-92 | |
|---|---|
| Category | Details |
| Electrical Specifications | |
| Frequency Bands | 698 – 960 MHz 1427 – 1517 MHz 1710 – 2700 MHz 3400 – 3800 MHz |
| Gain (Max) | 10.8 dBi @ 698 – 960 MHz 10 dBi @ 1427 – 1517 MHz 11 dBi @ 1710 – 2700 MHz 2.3 dBi @ 3400 – 3800 MHz |
| VSWR | <1.5:1 across 95% of the bands |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Directional Linear |
| Coax Cable Loss | 0.385 dB/m @ 900 MHz 0.507 dB/m @ 1500 MHz 0.565 dB/m @ 1800 MHz 0.666 dB/m @ 2400 MHz 0.788 dB/m @ 3000 MHz |
| DC Short | Yes |
| Product Box Contents | |
| Antenna | A-LPDA-0092 |
| Mounting Bracket | Econo brackets U-bolts and fasteners suitable for pole mounting |
| Mechanical Specifications | |
| Plastics Material | Nylon 6 |
| Plastics Colour | Black |
| Frame Material | Passivated ADC12 |
| Frame Colour | Aluminium grey |
| Mounting Type | Pole Mount |
| Environmental Specifications Certification & Approvals | |
| Wind Survival | ≤160 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP 65 |
| Salt Spray | MIL-STD 810G/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB |
| Impact Resistance | IK 08 |
| Product Safety & Environmental | Complies with CE and RoHS standards |
@19/37
Poynting MIMO-4-V1 7-in-1 Transportation & Automotive Antenna 617 to 7200 Mhz
Poynting MIMO-4-V1 7-in-1 Transportation & Automotive Antenna 617 to 7200 Mhz
Description::
High-Performance Multi-Frequency Antenna for Transportation and Marine Use
The Poynting MIMO-4-17 is a robust 7-in-1 antenna providing extensive frequency coverage from 617 MHz to 7200 MHz. It integrates four MIMO antennas for LTE/5G two dual-band MIMO Wi-Fi antennas and GPS/GLONASS. Designed for commercial and industrial vehicles marine applications and IoT systems it offers future-proof connectivity across multiple radio technologies including LTE 5G and Wi-Fi. Its IP69K-rated weather-resistant build ensures reliable performance in harsh environments.
Key Features
- 7-in-1 Antenna: Combines LTE/5G MIMO Wi-Fi MIMO and GPS/GLONASS.
- Wide Frequency Range: Covers 617 MHz to 7200 MHz for diverse cellular and Wi-Fi use.
- Durable Build: IP69K weatherproof rating for outdoor and marine environments.
- Multiple Mounting Options: Flexible installation for various vehicles and infrastructure.
- Future-Proof: Supports LTE 5G and Wi-Fi technologies across broad frequency bands.
The Poynting MIMO-4-17 antenna is perfect for demanding commercial and industrial applications ensuring high-speed reliable connectivity in challenging environments.
Specification:
| Technical Specifications | |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas Marine & Coastal Antennas Transportation & Mobility Antennas |
| Technology | Cellular (LTE/2G/3G/4G/5G) GPS/GLONASS Wi-Fi |
| Cellular Frequency Range | 617 – 7200 MHz |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz 3800-4200MHz 5000-6000MHz 6000-7200MHz |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n46 n47 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n77 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) Wi-Fi 4 (802.11n) Wi-Fi 5 (802.11ac) Wi-Fi 6 (802.11ax) Wi-Fi 6E (802.11ax) |
| Gain | 6dBi (LTE) 6.5dBi (Wi-Fi) 21dBi (GPS) |
| Directionality | Omni-Directional |
| Mounting Type | Pole Mount Magnetic Mount Spigot Mount Surface/Desk Mount Wall Mount |
| Connectors | SMA |
| MIMO | 4×4 |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Enclosure Name | Armadillo |
| Enclosure Size | Medium |
| LTE Ports | 4 |
| Wi-Fi Ports | 2 |
| GNSS/GPS Ports | 1 |
@40/71
Description::

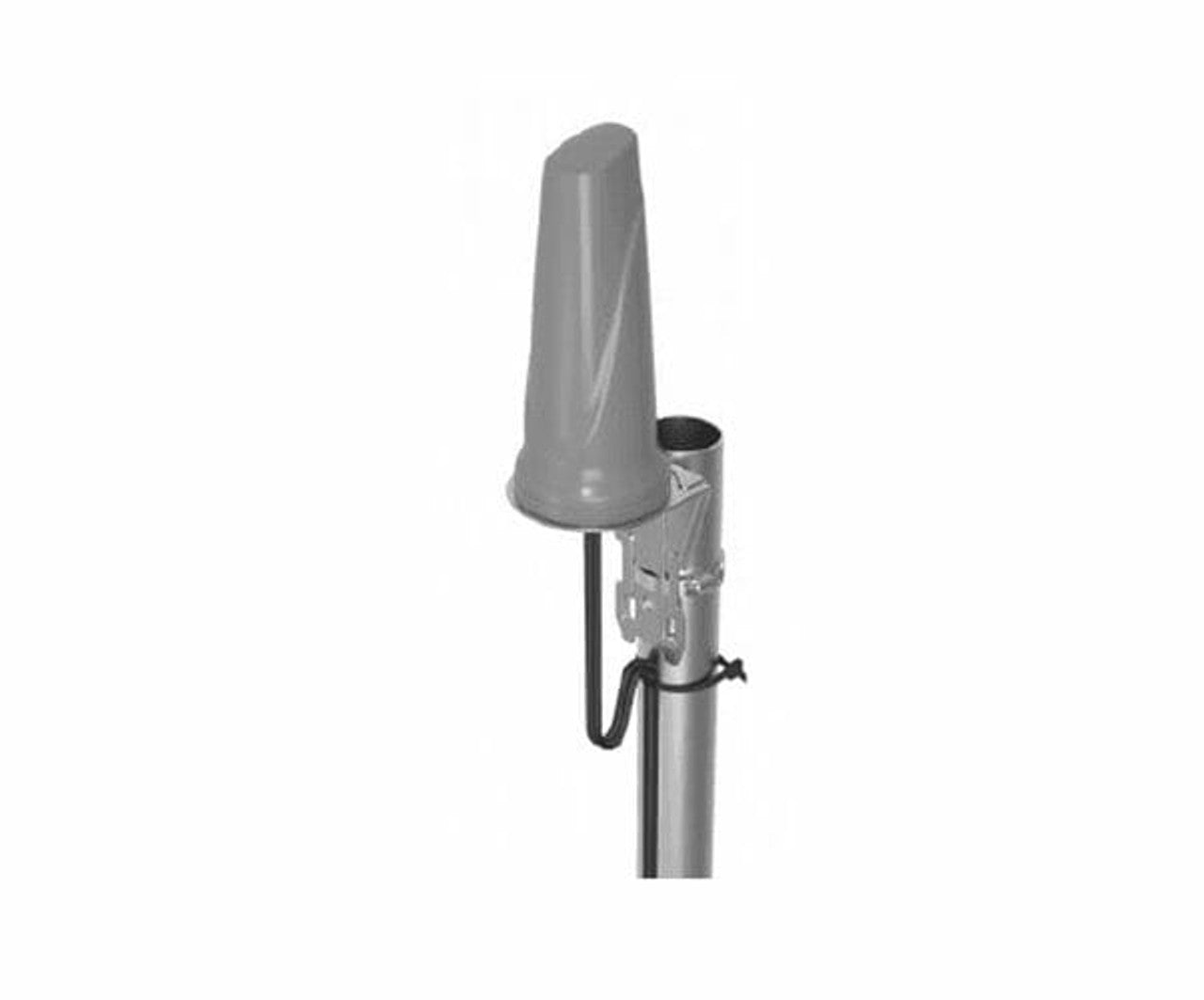

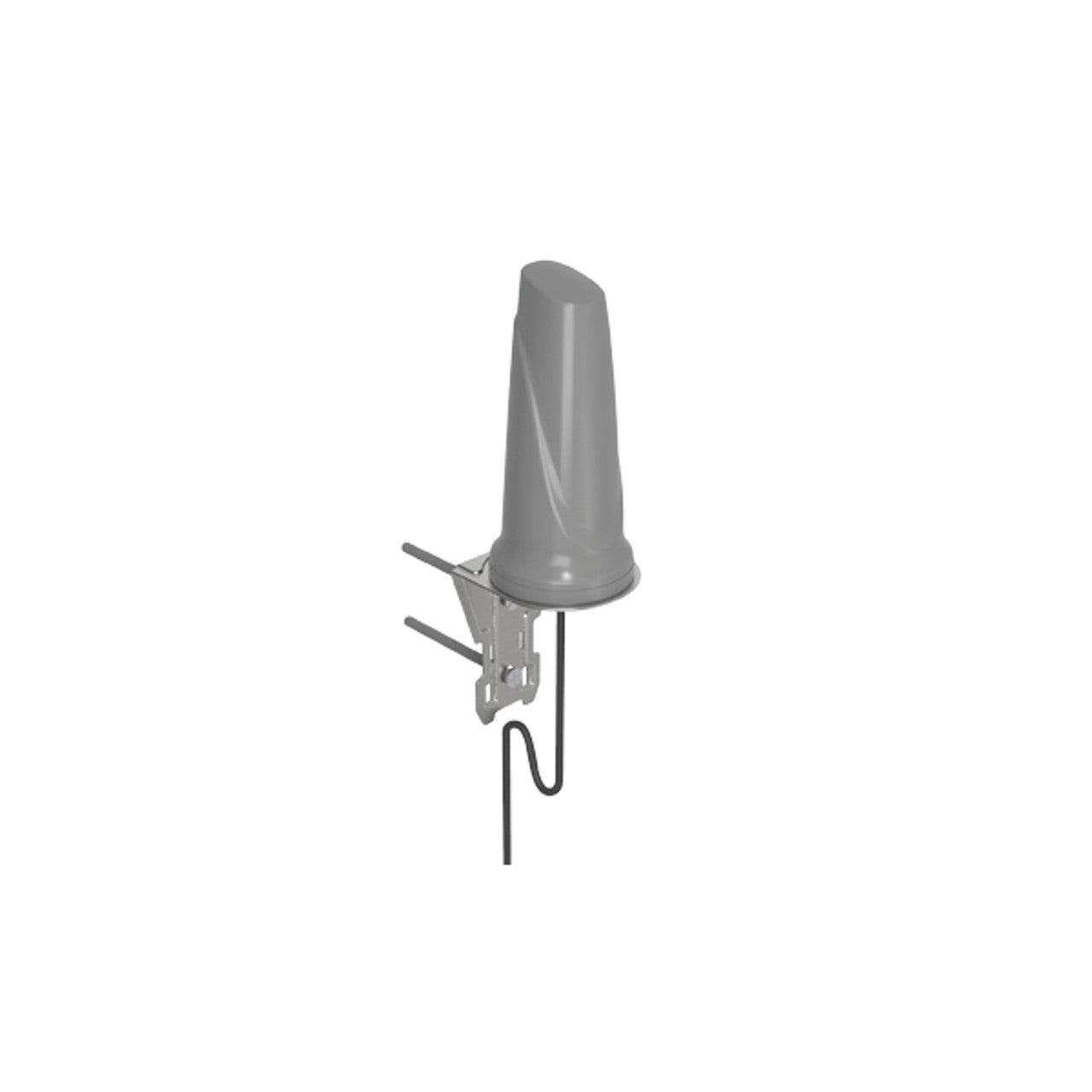

The Poynting OMNI-0155 Rhyno Omni-Directional Antenna 703-803Mhz 1.5dBi is a customer-specific antenna that was designed with the new “Rhyno” antenna enclosures. The antenna was specifically designed to cover LTE Band 28 from 703 to 803 MHz using an omnidirectional radiation pattern making it suitable for indoor and outdoor applications. Ideal for fixed installations with smart meter technologies where the antenna will be mounted on either the top or side of the smart meter housings. The new “Rhyno” enclosures ensure that the antenna is ready for easy installation and the antenna is weather resistant with an IP68 rating to ensure that the antenna is protected in the most adverse weather conditions.
Features:
- Omni-directional antenna
- Easy installation pole- or wall mountable
- Stylish and robust design
- Water and dustproof enclosure (IP 68)
Application Areas:
- Smart Utilities: Smart Power Metering Gas & Water Metering
- Smart Buildings: Climate control access control security irrigation
- Smart Environmental & Water Systems
- Warehouses & Logistics systems
- Industrial factory automation and M2M systems
- Farming & Agricultural M2M IoT
Specification:
| Specification | Description |
|---|---|
| Ports | 1 |
| SISO / MIMO | SISO |
| Frequency Bands | 703 – 803 MHz |
| Polarisation | Linear Vertical |
| Peak Gain | 1.5 dBi |
| Coax Cable Type | RG 58 |
| Coax Cable Length | 1m |
| Connector Type | SMA (M) |
@10/23

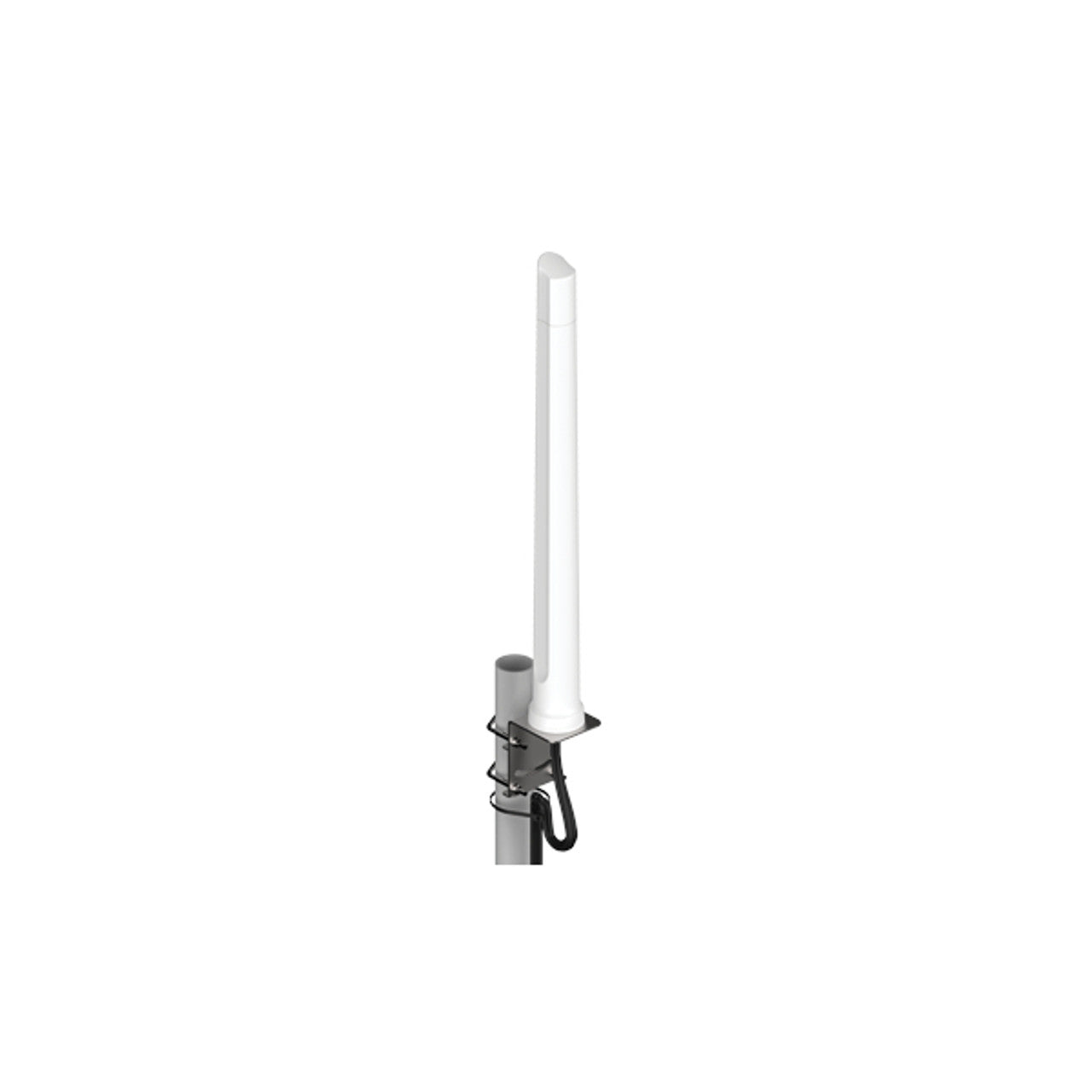

Poynting OMNI-214 Omni-Directional 4x4 MIMO 4G-5G antenna 617 to 3800 MHz
Poynting OMNI-214 Omni-Directional 4x4 MIMO 4G-5G antenna 617 to 3800 MHz
Description::
Introducing the OMNI-214 an ultra-wideband omni-directional 4x4 MIMO 5G/LTE antenna covering 617-3800 MHz with a 4dBi gain. Ideal for various industries it features robust IP65 protection ensuring reliable future-proof connectivity in diverse environmental conditions.
The OMNI-214 is a versatile antenna offering exceptional signal reception almost everywhere. Its 4x4 MIMO capability coupled with a balanced gain across frequencies makes it a top choice for urban commercial and agricultural settings. The antenna's design ensures optimal signal distribution making it effective for diverse global use.
Features:
- Ultra-Wideband Coverage: Supports a frequency range from 617 to 3800 MHz covering all contemporary LTE/5G bands.
- 4x4 MIMO Capability: Enhances performance and signal reliability ideal for high-demand network conditions.
- Robust Design: Comes with an IP65-rated enclosure ensuring dust and weather resistance for durability in various environments.
- Omni-Directional Performance: Provides superior pattern control and balanced gain across the entire frequency spectrum.
- Future-Proof Technology: Includes coverage for LTE Band 71 and CBRS bands from 3400 to 3800 MHz ensuring longevity in rapidly evolving cellular networks.
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas Farming & Agricultural Antennas Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 617 – 3800 MHz |
| Gain | 4dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Mounting Type | Pole Mount Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | SMA |
| MIMO | 4×4 |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | Adder |
| Enclosure Size | Large |
| LTE Ports | 4 |
@34/61

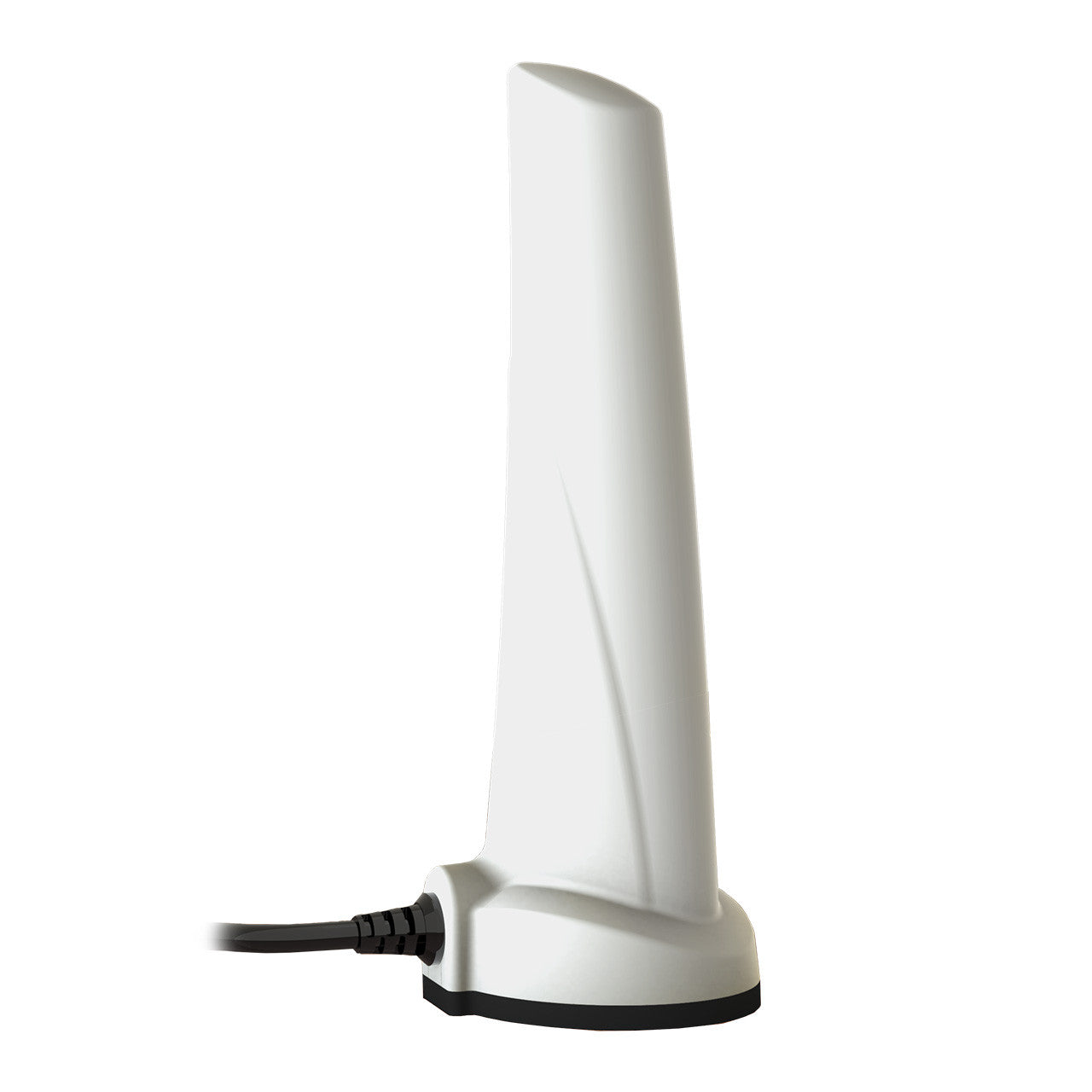

Poynting OMNI-280 Omni-Directional Wideband 4G-5G antenna 617 to 3800 MHz
Poynting OMNI-280 Omni-Directional Wideband 4G-5G antenna 617 to 3800 MHz
Description::
The OMNI-280-02 antenna increases signal reliability ensures higher data throughput for users and provides a stable high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).
The Poynting Omni-280 Omni-Directional Wideband LTE/5G ready Antenna; 698-3800 MHz 4 dBi provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic wall- or pole-mountable single polarized full LTE band antenna that incorporates an ultra wide band element in a single housing. This antenna is a cost effective solution for enhancing signal reception and throughput.
Features:
- Medium gain omni-directional antenna
- Wideband - covers wide frequency band.
- Magnetic wall or pole mountable
- Lightweight
- Increase system transmission reliability
Applications:
- M2M applications where machines and measurement devices need to be connected for real time monitoring and information transfer
- Utilities for power and water metering
- Security industry where cameras and other security equipment needs to be monitored
- Retail point of sale equipment
- Areas with poor data signal reception (Indoor and Outdoor)
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | IoT M2M & Smart Meter Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 617 – 3800 MHz |
| Gain | 4dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Mounting Type | Pole Mount Magnetic Mount Surface/Desk Mount Wall Mount |
| Connectors | SMA RA-SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | Blade |
| Enclosure Size | Small |
| LTE Ports | 1 |
@7/17
Description::

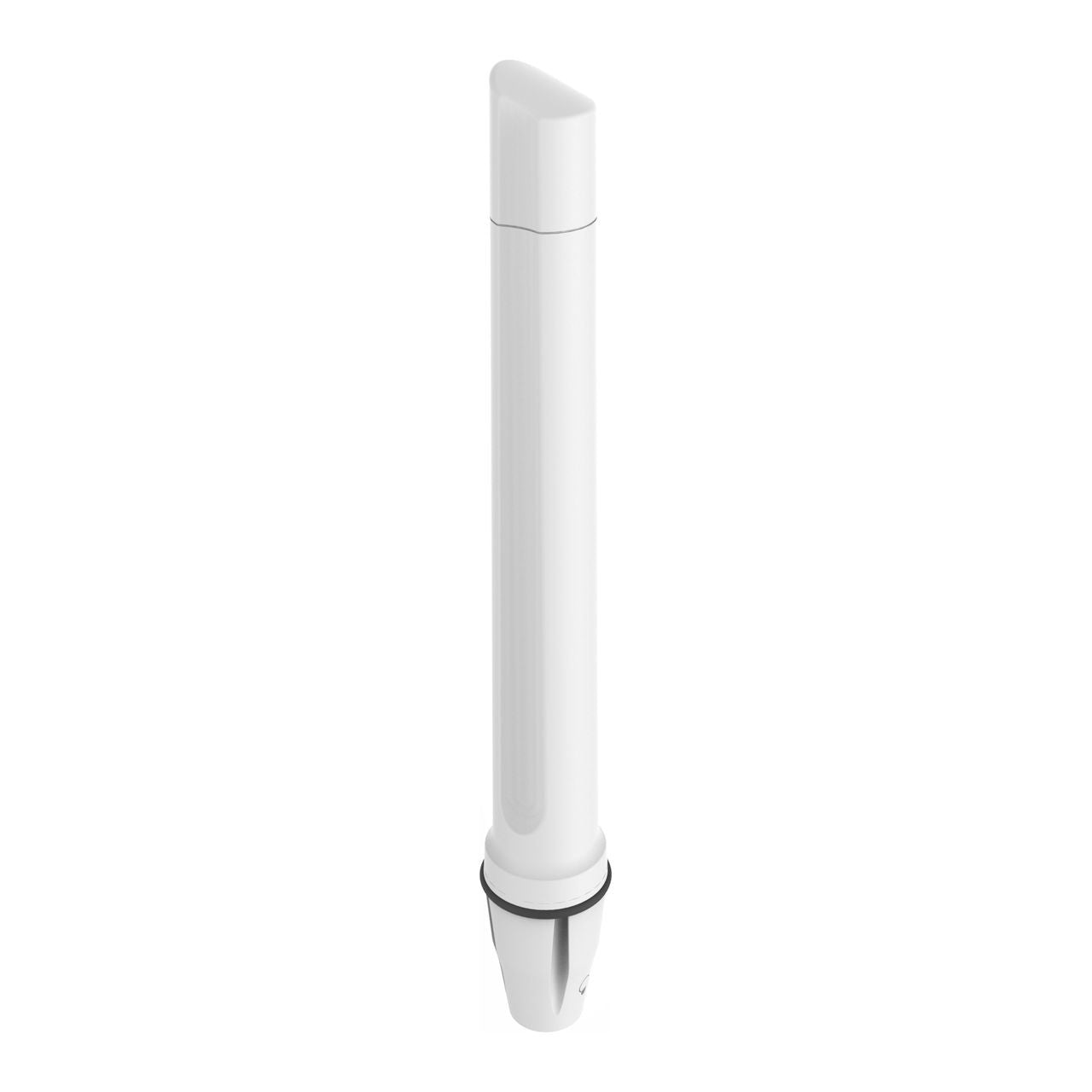

Introducing the OMNI-291 a high-performance omni-directional marine antenna optimized for 450 - 2700 MHz. Boasting a 7dBi gain IP68 rating and resistance to harsh marine conditions it's ideal for marine and coastal applications ensuring robust and reliable LTE connectivity in even the most challenging environments.
Features:
- Wide Frequency Band: Covers 450 - 2700 MHz including LTE & CDMA 450 MHz bands essential for marine applications.
- High Gain: Offers a 7dBi gain ensuring strong signal reception.
- Omni-Directional Performance: Provides superior pattern control across the entire frequency range.
- Robust Design: IP68 rated it is all-weather proof ideal for harsh marine conditions.
- UV and Saltwater Protection: Built to withstand tempestuous weather particularly in marine environments.
- Easy Installation: Includes a standard 1-inch marine adapter bracket for hassle-free mounting.
- Versatile Mounting Options: Supports pole marine and wall mounting.
The OMNI-291 guarantees consistent signal reception making it highly effective along coastlines worldwide. It achieves this through a unique antenna configuration using multiple dipoles and a patented feed network ensuring future-proof performance with coverage of the increasingly popular 450 MHz LTE frequency.
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Marine & Coastal Antennas |
| Technology | CDMA450/LTE-M 450 Cellular (LTE/2G/3G/4G) |
| Frequency Band | 450-470MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz |
| Frequency Range | 450 – 2700 MHz |
| Gain | 7dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n31 n34 n38 n39 n40 n41 n51 n53 n65 n66 n67 n72 n74 n75 n76 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B31 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B72 B73 B74 B85 B103 B106 |
| Mounting Type | Pole Mount Marine Mount Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | N-Type |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP68 Marine Grade Salt Spray Protected |
| Enclosure Name | Seahorse |
| Enclosure Size | Small |
| LTE Ports | 1 |
@28/52

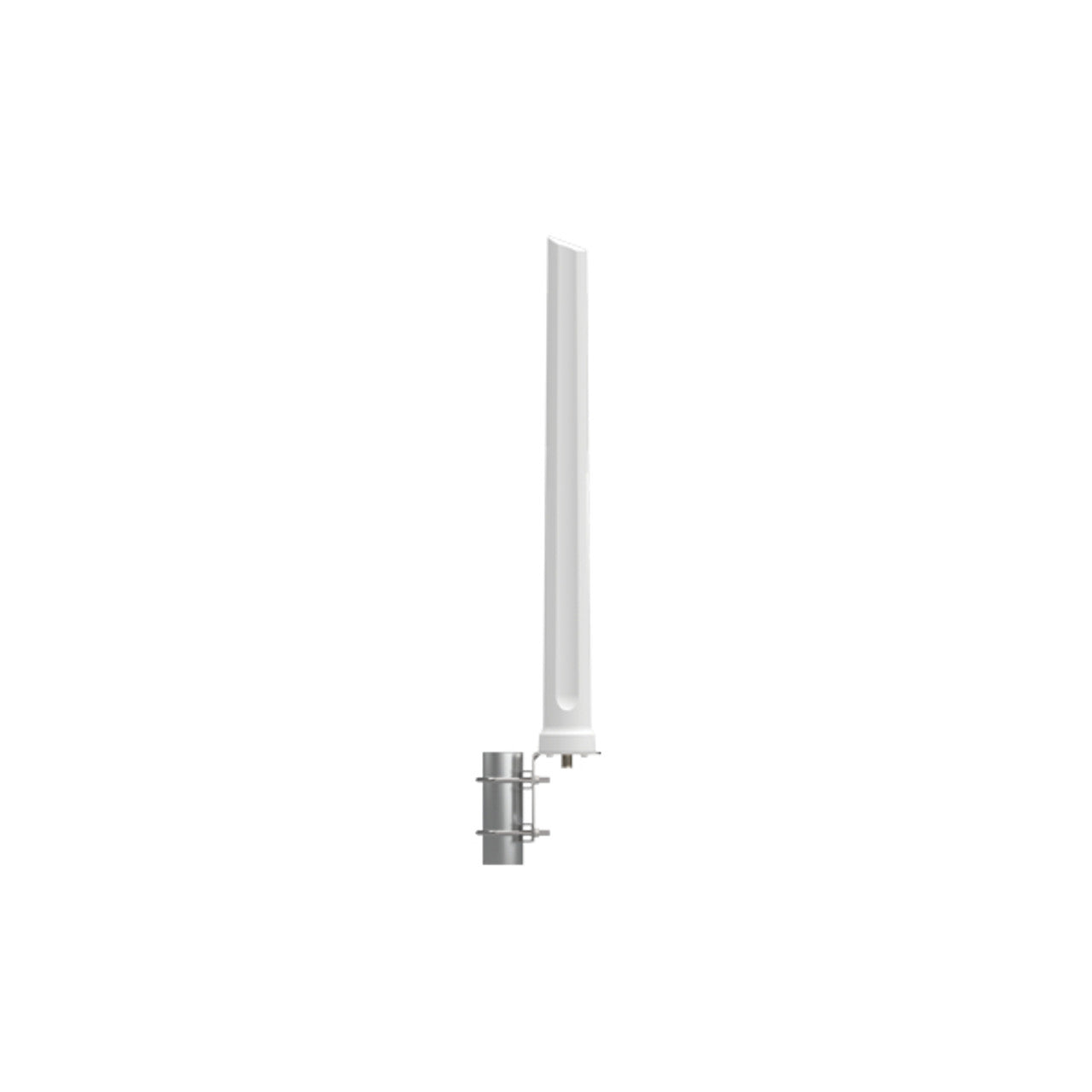

Poynting OMNI-293 Omni-Directional Wideband 4G-5G antenna 617 to 3800 MHz
Poynting OMNI-293 Omni-Directional Wideband 4G-5G antenna 617 to 3800 MHz
Description::
Introducing the OMNI-293 an Omni-Directional Wideband 5G/LTE Antenna spanning 617-3800 MHz with a 9dBi gain. It includes band 71 and 3.5 GHz 5G bands ensuring future-proof performance. With an IP65 rated enclosure it's built to withstand urban rural and industrial environments. Designed to support both current 4G/LTE and future 5G connectivity. It is an ideal solution for urban and rural cellular networks as well as commercial and industrial applications.
The OMNI-293's design ensures superior pattern control across its entire frequency range attributing to its effectiveness as a high-performance antenna. The implementation of multiple dipoles and a patented feed network by Poynting Antennas enhances its capability to provide consistent coverage.
Features:
- High Gain Omni-Directional Antenna: Offers a peak gain of 9dBi ensuring strong and consistent signal strength.
- Wideband Coverage: Operates across 617 - 3800 MHz including band 71 (617 to 698 MHz) and the 3.5 GHz 5G bands.
- Future Proof Design: Its wideband operation makes the antenna suitable for upcoming technological advancements.
- Versatile Applications: Perfectly built for both urban and rural environments catering to a wide range of connectivity needs.
- Robust Build: Comes with a dust and water-resistant enclosure boasting an IP65 rating for durability in various conditions.
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas Farming & Agricultural Antennas IoT M2M & Smart Meter Antennas Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 617 – 3800 MHz |
| Gain | 9dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Mounting Type | Pole Mount Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | N-Type |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | Adder |
| Enclosure Size | Large |
| LTE Ports | 1 |
@27/49
Poynting OMNI-297 Omni-Directional Wideband Rhyno 4G-5G antenna 617 to 3800 MHz
Poynting OMNI-297 Omni-Directional Wideband Rhyno 4G-5G antenna 617 to 3800 MHz
Description::
The OMNI-297 wideband cellular antenna operates from 617 to 3800 MHz covering all the contemporary 5G and LTE frequency bands with an additional 2db gain. Constant gain across the entire frequency range improves the LTE performance features such as multi carrier aggregation (CA). The ideal operation for the antenna will be for fixed installations of any cellular bands. It is also ideal for machine to machine (M2M) and internet of things (IoT) applications that communicate through the GSM networks (GPRS/EDGE/3G/HSPA/LTE).
Features:
- Suitable for all 5G networks up to 3800 MHz
- Medium gain omni-directional antenna
- Wall or pole mountable for easy installation
- Vandal and dust ingress protected
- Aesthetically pleasing
Application Areas:
- Machine to machine (M2M) and Internet of things (IoT)
- Poor data signal reception (Indoor or Outdoor)
- Improves slow data transmission connection
- Increases system transmission reliability
- High-end industrial grade router applications
- Improves reception for mobile offices
Specification:
| Specification | Description |
|---|---|
| Industry (Application) | Commercial & Industrial Antennas IoT M2M & Smart Meter Antennas Mining & Tunnelling Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 617-698MHz 698-803MHz 791-894MHz 868-915MHz 880-960MHz 1427-1517MHz 1700-1900MHz 1900-2200MHz 2300-2400MHz 2400-2500MHz 2500-2700MHz 3400-3800MHz |
| Frequency Range | 617 – 3800 MHz |
| Gain | 2dBi |
| 5G Bands | n1 n2 n3 n5 n7 n8 n12 n13 n14 n18 n20 n25 n26 n28 n29 n30 n34 n38 n39 n40 n41 n48 n51 n53 n65 n66 n67 n71 n74 n75 n76 n78 n80 n81 n82 n83 n84 n85 n86 n89 n90 n95 n97 n98 n100 n101 n106 n256 |
| Directionality | Omni-Directional |
| LTE/4G Bands | B1 B2 B3 B4 B5 B7 B8 B9 B10 B12 B13 B14 B17 B18 B19 B20 B25 B26 B27 B28 B29 B30 B33 B34 B35 B36 B37 B38 B39 B40 B41 B44 B53 B65 B66 B67 B68 B69 B71 B74 B85 B103 B106 |
| Mounting Type | Pole Mount Wall Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Enclosure Name | POYNTING Rhyno™ |
| Enclosure Size | Small |
| LTE Ports | 1 |
@11/24
