Description::

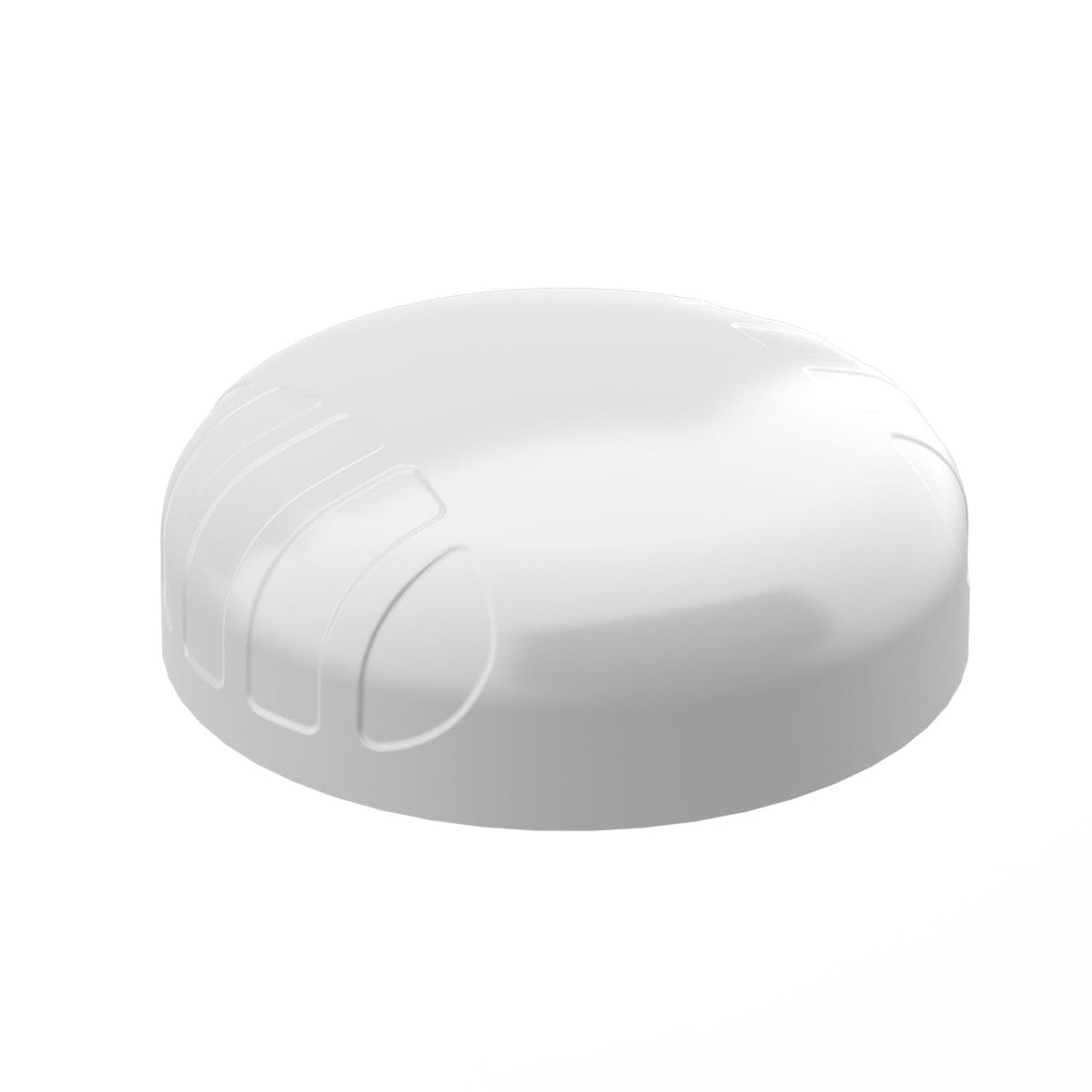

The Poynting PUCK-5-V2 4G-5G 5-in-1 Transportation Antenna 2x2 MIMO 2x2 WiFi GPS 617 to 7200 MHz White is a compact low-profile 5-in-1 antenna designed for use in various environments including urban rural marine and vehicle settings. This high-performance antenna covers a wide frequency range from 617 to 6000 MHz making it suitable for 5G 4G 3G and 2G networks. Additionally it includes 2x2 MIMO Wi-Fi and GPS/GLONASS capabilities offering excellent connectivity for IoT/M2M smart meters transportation and other demanding applications.

Features:

• Comprehensive Frequency Support
• 2X2 MIMO Technology
• Dual-Band Wi-Fi
• GPS/GLONASS Support
• Robust and Durable
• Versatile Mounting Options

Multi-Frequency and Multi-Technology Connectivity

The PUCK-5 is equipped with five distinct antennas within a single housing providing 2x2 MIMO 5G cellular dual-band Wi-Fi and GPS/GLONASS capabilities. It offers ultra-wideband coverage supporting future cellular technologies up to 6 GHz and covers all contemporary LTE/4G and 5G bands including CBRS bands. The dual-band Wi-Fi antennas support concurrent 2.4 GHz 5 GHz and 6 GHz bands enhancing data throughput and connection reliability.

Robust Design and Easy Installation

Engineered for durability the PUCK-5 antenna features a robust design with an IP69K rating ensuring resistance to water dust and vandalism. Its flame-resistant and UV-stable radome available in black and white adds an extra layer of protection. Installation is straightforward with multiple mounting options including spigot magnetic adhesive wall and pole mounts making it versatile for various deployment scenarios in harsh environments.

High Gain and Efficient Radiation Patterns

The PUCK-5 delivers impressive gain across its frequency ranges: up to 6.5 dBi for cellular 6 dBi for Wi-Fi and 20±3 dBi for GPS. Its omni-directional radiation patterns provide an excellent balance of coverage and performance particularly at higher frequencies where consistent signal strength is crucial for 5G and LTE applications. This design ensures optimal throughput and connectivity stability making it an ideal choice for mission-critical applications in transportation marine and IoT environments.

Versatile Use Cases

This antenna is well-suited for a wide range of applications including smart utilities (e.g. water gas and power metering) industrial automation digital signage transportation (buses and public safety vehicles) and agricultural machinery. The antenna’s compact size and low-profile design make it particularly effective in space-constrained environments such as small boats yachts and mining vehicles where reliable connectivity is essential.

Built for Extreme Conditions

Designed to withstand extreme conditions the PUCK-5 operates efficiently across a wide temperature range from -40°C to +80°C and can endure wind speeds of up to 220 km/h. Its IP69K rating ensures complete protection against high-pressure water and dust making it suitable for outdoor and harsh industrial environments. Additionally the antenna’s compliance with MIL-STD 810G/ASTM B117 standards ensures resistance to salt spray further enhancing its longevity in marine and coastal applications.

Future-Proof with Regulatory Compliance

The PUCK-5 is built to meet stringent industry standards including RoHS compliance and ISO 9001:2015 certification ensuring high quality and environmental responsibility. Its future-proof design supports the latest 5G Wi-Fi 6e and Wi-Fi 7 technologies making it a reliable choice for evolving connectivity needs in various sectors. With its comprehensive frequency coverage and versatile mounting options the PUCK-5 stands out as a superior solution for high-performance multi-frequency communication.

Specification:

@21/40

Description::

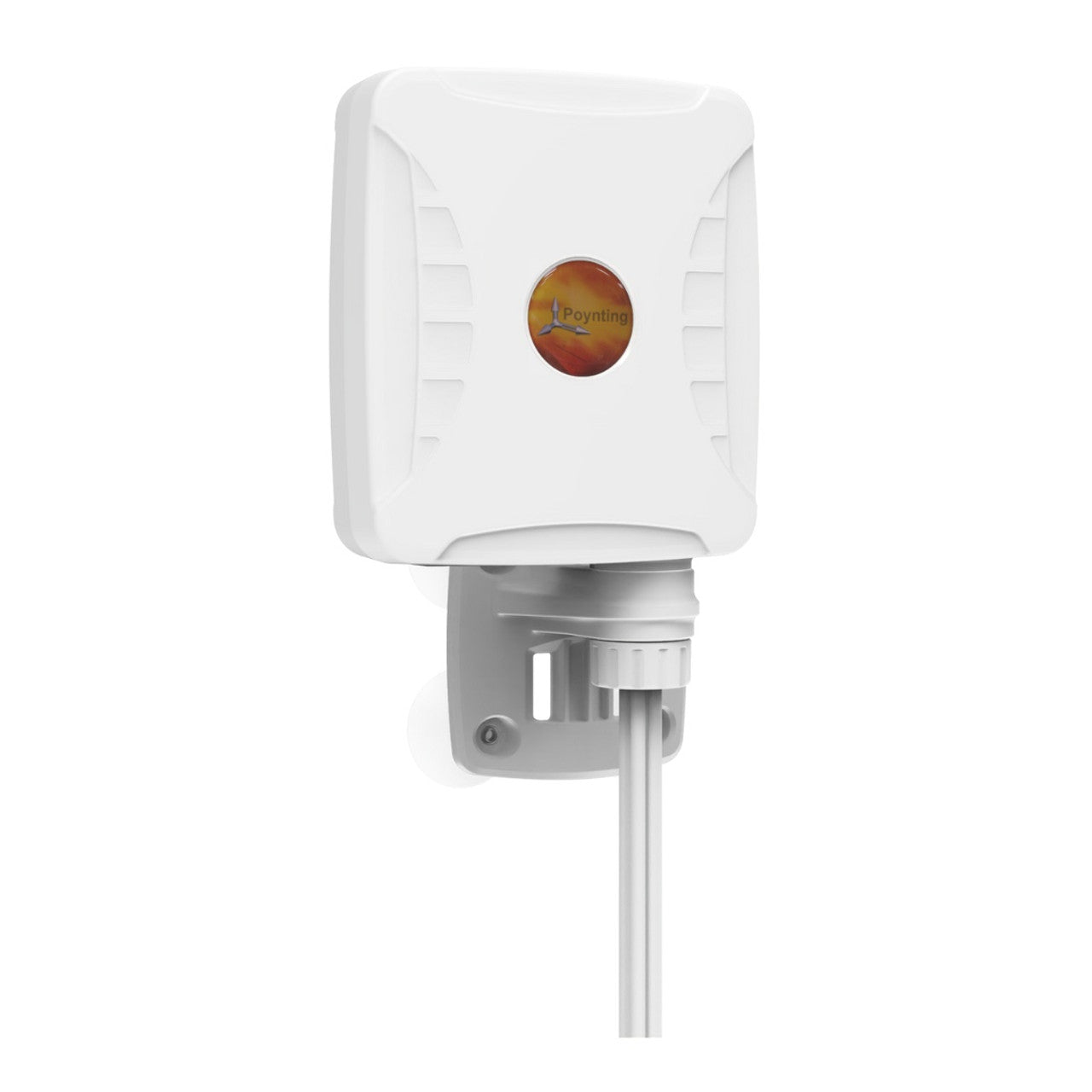

The Poynting XPOL-1-5G antenna (A-XPOL-0001-V2-21) is a high-performance omnidirectional antenna designed for optimal connectivity across 4G and 5G networks. It operates within the frequency range of 617 to 3800 MHz making it suitable for a wide variety of applications from urban households to commercial and industrial environments. The antenna’s backward compatibility with 2G 3G and LTE ensures seamless communication across generations of network technologies.

Key Features:

• 617 – 3800 MHz Frequency Range
• Peak gains up to 3.5 dBi
• 2×2 MIMO Technology
• Cross-polarised antenna with omnidirectional radiation patterns
• Backwards compatible with 2G 3G 4G LTE and 5G networks

Frequency Range and Coverage

The XPOL-1-5G covers four main frequency bands: 617-960 MHz 1427-1517 MHz 1710-2700 MHz and 3400-3800 MHz. Its 3.5 dBi peak gain allows for strong consistent performance particularly in urban environments. This wide frequency range ensures excellent signal reception and is ideal for users requiring reliable wireless internet in areas with fluctuating signal strength.

MIMO Technology for Improved Data Speeds

With support for 2×2 MIMO technology the XPOL-1-5G can significantly enhance data transfer speeds by utilising multiple-input multiple-output (MIMO) techniques. This improves both upload and download speeds making it perfect for high-demand applications like streaming gaming and fixed wireless access. An alternative 4×4 MIMO version (A-XPOL-0001-V2-41) is also available for even higher performance requirements.

Durable and Weatherproof Design

Designed to withstand harsh environmental conditions the XPOL-1-5G has an IP65 rating for water and dust resistance making it suitable for both indoor and outdoor installations. It operates efficiently in temperatures ranging from -40 °C to +80 °C and can endure wind speeds up to 250 km/h ensuring reliable performance even in extreme weather conditions.

Flexible Mounting Options

Installation of the XPOL-1-5G is versatile with options for wall pole or window mounting. The antenna comes with all necessary mounting brackets and hardware including pole clamps and window suckers. This flexibility allows users to position the antenna for optimal signal reception making it ideal for various deployment scenarios.

Applications Across Industries

The XPOL-1-5G excels in multiple use cases including consumer LTE/5G internet connectivity industrial telemetry systems and municipal communication networks. Whether deployed in urban residential areas or remote industrial sites this antenna enhances connectivity and ensures stable high-speed internet access.

Regulatory Compliance and Safety

This antenna is compliant with RoHS 2011/65/EU and meets ISO 9001:2015 standards ensuring it adheres to strict quality and environmental guidelines. It also features impact resistance (IK 10 rating) and flammability resistance (UL 94-HB) making it a durable and safe choice for demanding installations.

Specification:

@17/34

Description::

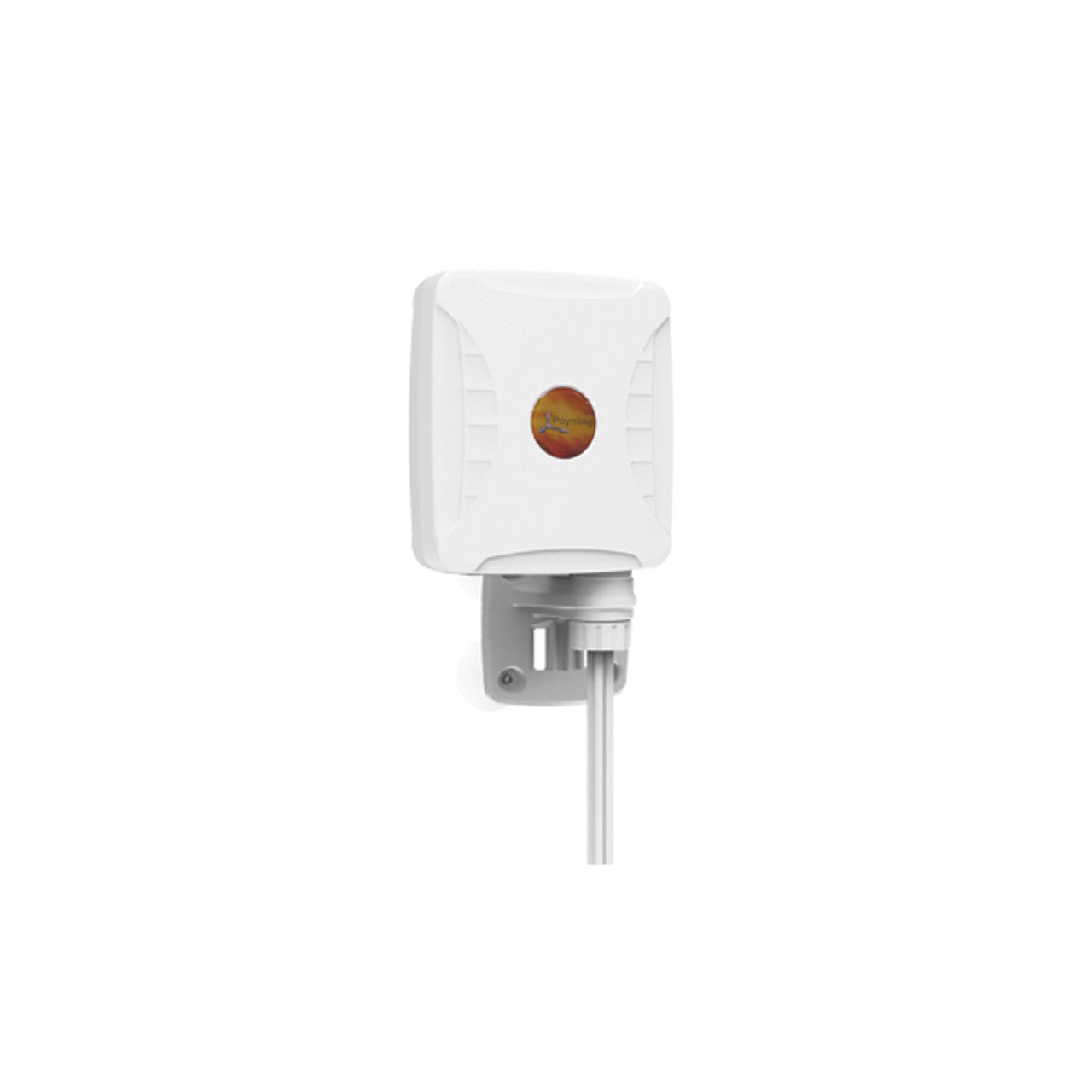

The XPOL-1-5G represents Poynting’s advanced generation of the Cross Polarised (XPOL) antenna. It is a versatile 2x2 MIMO antenna with a 4x4 MIMO variant available catering to a wide range of cellular bands including 2G 3G 4G and 5G. This antenna has been redesigned from its predecessor to include the newer 3400 - 3800 MHz bands and the lower 617 MHz band ensuring comprehensive coverage.

Key Features

• Exceptional Performance Across 4G/5G Bands: Delivers high-quality connectivity over the main 4G/5G frequency bands.
• High Gain for its Size: Provides a peak gain of 4 dBi remarkable for its compact form.
• Wideband MIMO Capability: Supports both 2x2 and 4x4 MIMO for 4G/5G enhancing signal strength and reliability.
• Backwards Compatible: Functions seamlessly with 2G 3G 4G/LTE and 5G networks.
• Robust and Resilient Design: Encased in a weather dust and vandal-resistant enclosure with an IP65 rating ideal for harsh environments.

Specification:

@23/44

Description::

Specification:

@29/54

Description::

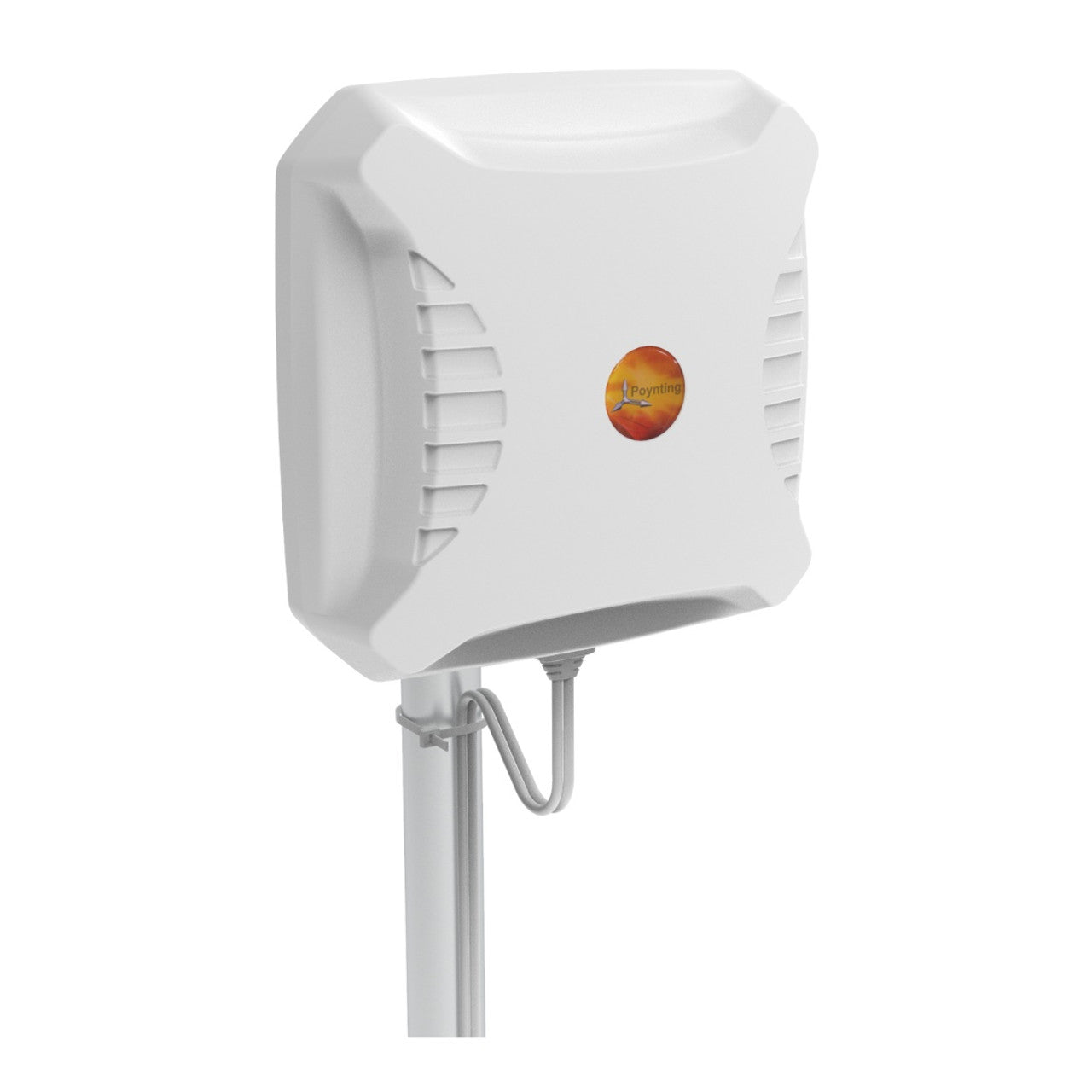

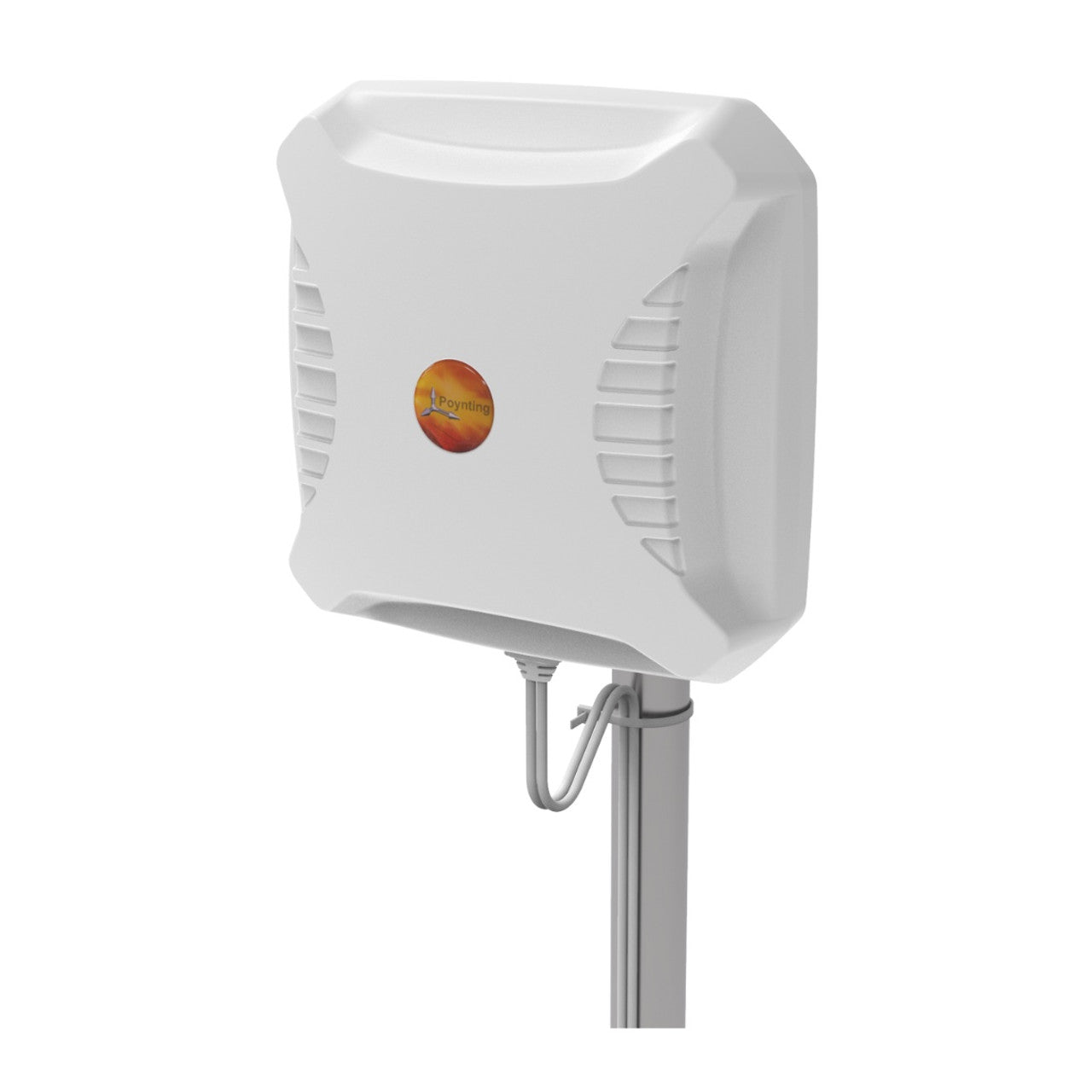

The Poynting XPOL-2-5G Ultra-Wideband 2x2 MIMO 4G-5G antenna supports an extensive frequency range from 617 to 4200 MHz. This wideband coverage ensures reliable performance across multiple generations of wireless technology including 4G 5G and even legacy 2G/3G networks.

Key Features:

• 617–960 MHz 1710–2700 MHz and 3400–4200 MHz Frequency Bands
• ±45° Cross-Polarisation
• 2x2 MIMO Technology
• Advanced metamaterial technology
• IP65 rated
• UV stable ASA radome
• Wall and pole mountable

High-Gain Performance

With a maximum gain of 11 dBi in the 3400 to 4200 MHz range the XPOL-2-5G antenna delivers superior signal strength and clarity. This exceptional gain is complemented by improved performance in lower bands offering up to 9 dBi gain at 617 to 960 MHz and 8.5 dBi at 1710 to 2700 MHz.

Cutting-Edge Technology

Featuring the latest in metamaterial technology the XPOL-2-5G uses Artificial Magnetic Conductors (AMC) and a novel radiator design. These advancements result in higher bandwidth and better gain making it an excellent choice for demanding applications.

Weatherproof Design

Engineered to withstand the elements this antenna boasts an IP65 rating for weather and dust resistance. Its durable construction allows it to operate efficiently in temperatures ranging from -40 °C to +80 °C making it suitable for both urban and rural environments.

Versatile Mounting Options

The XPOL-2-5G comes with a versatile mounting bracket enabling wall or pole installation. Its lightweight and rugged design ensure stability and ease of installation while the optional bracket provides additional support for high-wind areas.

Wide Range of Applications

Ideal for various scenarios this antenna enhances connectivity in applications such as Fixed Wireless Access (FWA) LTE/5G deployments agricultural data distribution and industrial communication systems. Its high pattern consistency supports reliable carrier aggregation.

Regulatory Compliance

Meeting stringent standards the XPOL-2-5G antenna is compliant with RoHS 2011/65/EU and ISO 9001:2015. It is designed to comply with CE regulations ensuring it adheres to high safety and environmental standards.

Specification:

@25/47

Description::

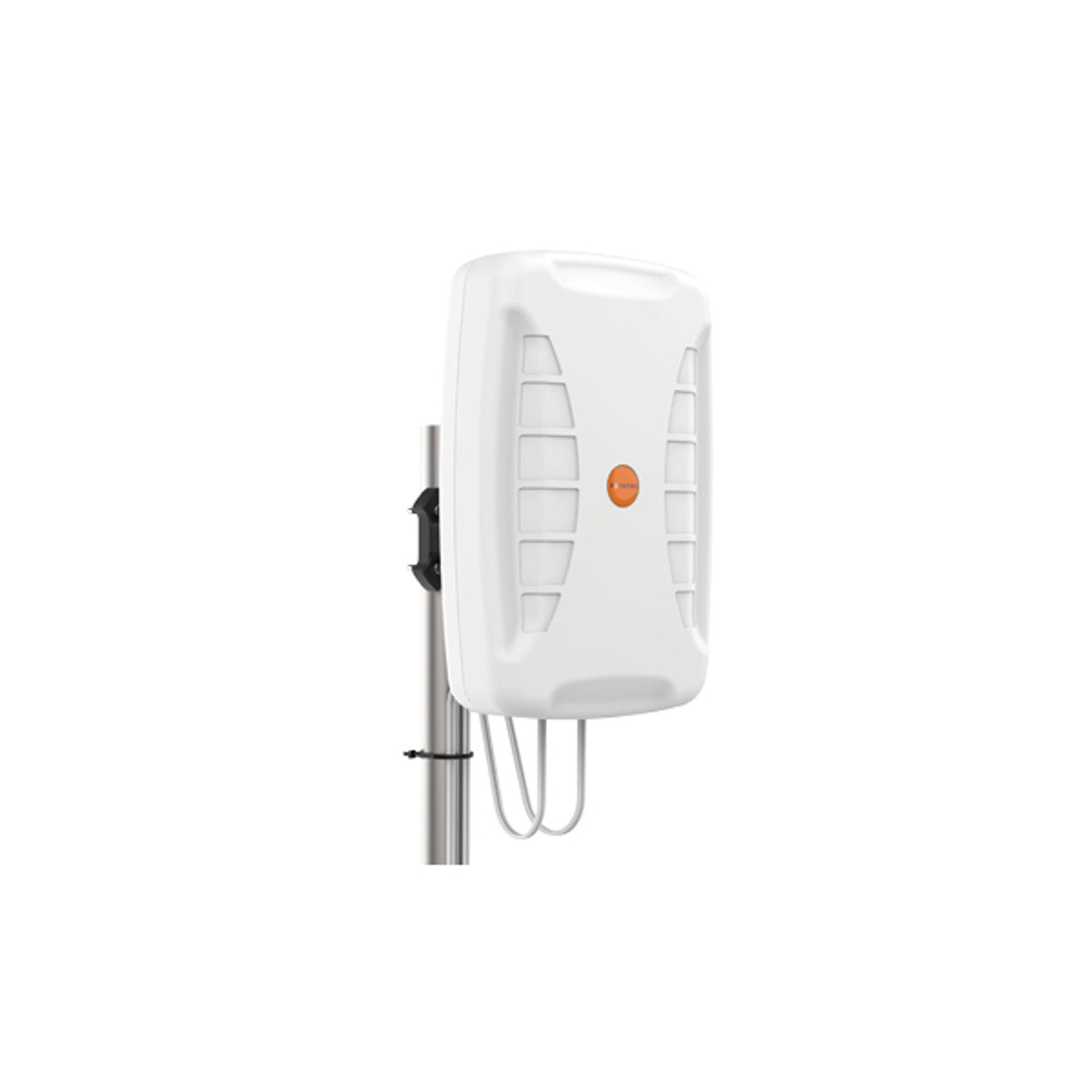

Discover the XPOL-24 a high-performance X-Polarised Uni-Directional 4x4 MIMO 5G/LTE Antenna featuring advanced metamaterial technology for exceptional wideband coverage across 617 - 4200 MHz with an 11dBi gain. Ideal for diverse applications in urban rural commercial and industrial settings its robust IP65-rated design ensures durability against environmental challenges making it a superior choice for current and future 5G/LTE networks.

Please call our office on 07 55770500 to be notified when the product becomes available.

Features:

Specification:

@46/48

Milanese 316L Stainless Steel Magnetic Loop

Introducing our Premium Silver Milanese Samsung Gear S3 Band!
Made from a lightweight, high quality stainless steel featuring an adjustable magnetic closure.

• Stainless Steel featuring 22mm width that is perfectly compatible with your Samsung Gear S3 Classic/Frontier
• Adjustable Magnetic Closure to ensure a comfortable fit every time.
• Nothing extra required in order to attach this band to your Samsung Gear S3

Sizing Guide:

• 125-222mm length

Alternative similar Product:

Special Look for coming Winter!!

Strap Studio Watch Band Designed for Samsung Gear S3 and Gear Sport

• Specifically designed Samsung Galaxy Tab S3 9.7 tablet, only fit Samsung Galaxy Tab S3 9.7 tablet.
• Real "hard" laptop style keyboard, giving you better typing experience than silicone keyboard as other cases.
• Stylish Black metallic finish keyboard that is pleasing to the eye.
• High-quality PU leather cover and soft, with microfiber interior,microfiber-lined interior provide full protection for your tablet.
• Detachable Bluetooth Keyboard let you adjust your viewing angle or work away from the tablet.
• Durable PU leather construction with secure magnetic closure, Charging time 4 - 4.5 hours; Estimated uninterrupted working time 90 hours
• This versatile and protective case a removable keyboard that lets you switch between work and play with ease anywhere you use your Tab.
• All the cut out for full functionality of your tablet, including camera, charging port, loudspeaker, earphone jack and s Pen slot.
• LED indicator for Bluetooth connectivity, Capital Lock, Battery Level and Charging status.

SPECS
Colour

• Black

Compatible Model

• SM-T820 / T825

General Feature
Interface

• Bluetooth

Keys Quantity

• 64

Packaging Contents

• Book Cover Keyboard, User Manual, USB Charging cable

Dimensions (WxHxD)

• 237.4 * 7.1 * 169 mm

Type

• Book cover keyboard

Description::

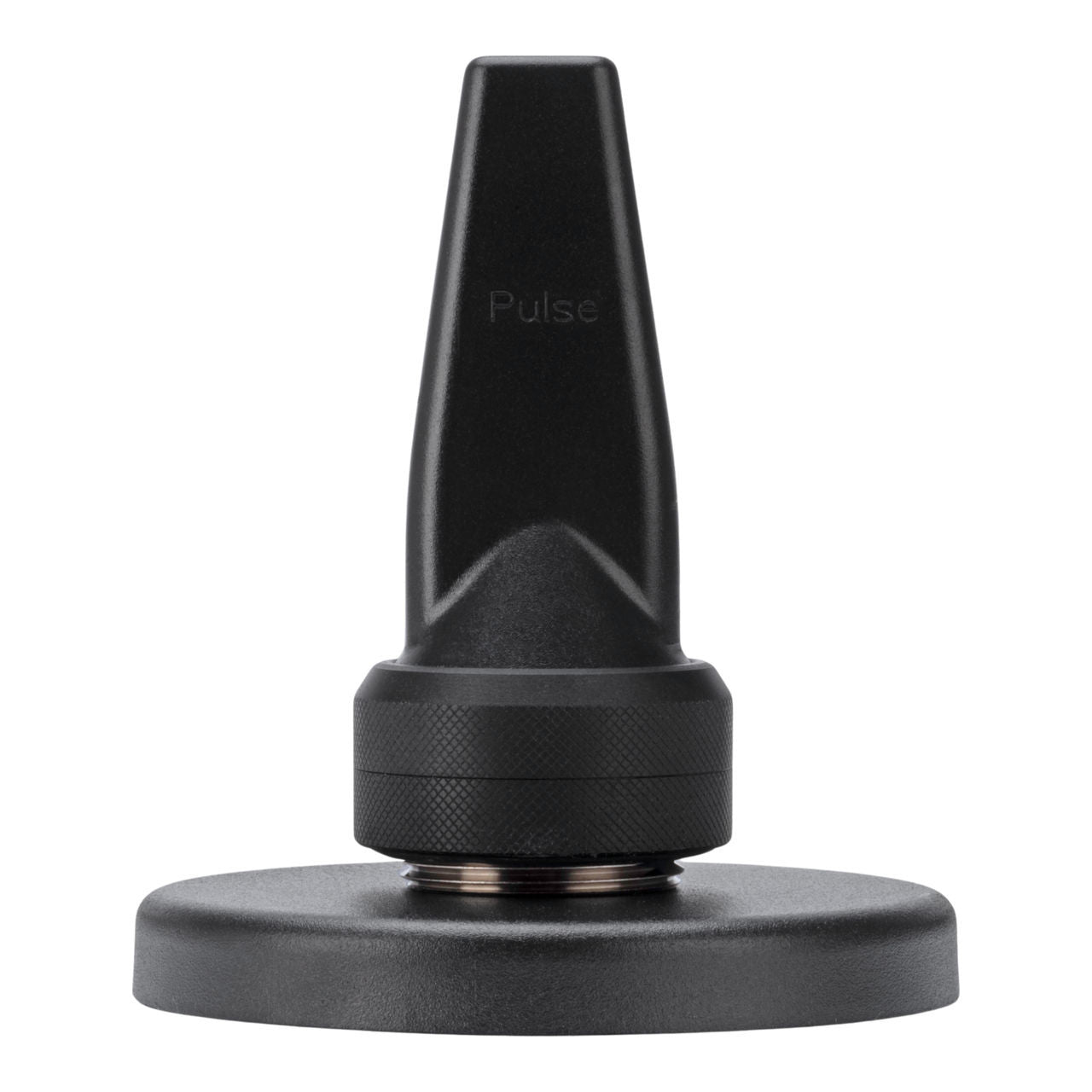

The Pulse Larsen 4G Magnetic Antenna 698 to 2700 MHz SMA Male offers a sleek compact design ideal for a range of applications. With a robust build and a stylish black radome made of PC + ABS plastic this antenna is perfect for mounting on vehicles or enclosures where space is limited but performance is crucial.

Key Features:

• 5G Ready*
• 4.5dB gain for 698-960 MHz
• 5.6dB gain for 1710-2400 MHz
• 4dB gain for 2500-2700 MHz

* 5G via Dynamic Spectrum Sharing (DSS) on compatible repeaters including the CEL-FI R41.

Note: Antenna base needs to be placed on a metal ground plane.

Specification:

@14/29

Description::

The Pulse Larsen 4G Ultrathin White DAS Antenna 698 to 2700 MHz N Female is a cutting-edge ultrathin antenna designed for in-building Distributed Antenna Systems (DAS). Featuring a sleek white radome this antenna is ideal for applications where aesthetic considerations are paramount. Its compact design allows for discreet installation seamlessly blending into modern environments.

Key Features:

• Ultra-Thin Design
• White Radome
• 608 MHz to 2700 MHz Broad Frequency Coverage
• High PIM Rating
• Available with N Female Mini-DIN and 4.3-10 DIN female connectors.
• RoHS Compliant
• High Efficiency

High Performance Across Multiple Bands

With a frequency range spanning from 608 to 2700 MHz the DASUTWC500NF delivers exceptional performance across cellular and Wi-Fi bands. The antenna boasts impressive average peak gains of up to 7 dBi and maintains high efficiency levels ensuring reliable signal reception and transmission across various frequencies.

Exceptional PIM Ratings for Optimal Signal Quality

Engineered to meet stringent performance requirements this antenna excels with a Passive Intermodulation (PIM) rating of ≤155 dBc at 2 × 20W. This ensures minimal interference and maintains the integrity of the signal crucial for high-performance DAS systems in complex installations.

Versatile Connectivity Options

The DASUTWC500NF is available with multiple connector options including N Female Mini-DIN and 4.3-10 DIN female connectors. This versatility allows for flexible integration with existing systems and facilitates a range of installation scenarios.

RoHS Compliant and Future-Proof Design

Designed with environmental considerations in mind the DASUTWC500NF is RoHS compliant ensuring it meets international standards for hazardous substances. The patent-pending design reflects Pulse Electronics’ commitment to innovation and future-proofing their product offerings.

Robust Electrical Specifications

The antenna is engineered to handle a maximum power input of 40W and comes equipped with a 500 mm low-loss cable that is plenum rated. Its VSWR is maintained at 2:1 across the operational frequency bands guaranteeing efficient signal transmission and minimal signal loss.

Specification:

@27/51

Description

QUBINO Flush RGBW Dimmer

Quick Overview

Preparing a house party? or a romantic dinner? Do you want to colour your home in shades appropriate for the occasion? With the QUBINO Z-Wave RGBW Dimmer you can pick between 16 million shades of colour all in the palm of your hand. Using your smartphone you can set your RGB/RGBW Lights to the colours you want.

QUBINO modules are “install-and-forget” products. QUBINO is made to last so we only select and use top-quality electronic components. These modules are also the most tested Z-Wave microcontrollers on the market.

Compatible with all Z-Wave Plus certified Controllers.

Product Details

• The QUBINO Z-Wave RGBW Dimmer occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box.
• Supports both RGB and RGBW Loads.
• Works with Both 12V DC and 24V DC Power Supplies.
• Supports Auto Inclusion for quick setup.
• Customizable ramp rate – regulate the speed at which the dimmer adjusts its brightness.
• Unlimited controlling capability through the gateway.
• Z-Wave Plus certification.
• 14 additional parameters for expert users.

Product Support

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please note: If you are installing the entire Z-Wave™ system for the first time please refer to the installation guide of your Z-Wave gateway before installing this device.

• 60 LEDs per metre 8mm wide = 4.8w p/m -> on 12V = 0 4A on 24V = 0 2A -> on 12V you can add about 8m on 24V 16m per channel
• 120 LEDs per metre 8mm wide = 9.6w p/m -> on 12V = 0 8A on 24V = 0 4A -> on 12V you can add about 4m on 24V 8m per channel
• 240 LEDs per metre 10mm/12mm wide = 19.2w p/m -> on 12V = 1 6A on 24V = 0 8A -> on 12V you can add about 2m on 24V 4m per channel
• 60 LEDs per metre 10mm/12mm wide = 14.4w p/m -> on 12V = 1 2A on 24V = 0 6A -> on 12V you can add about 2 5m on 24V 5m per channel
  120 LEDs per metre 10mm/12mm wide = 24w p/m -> on 12V = 2A on 24V = 1A  -> on 12V you can add about 1 5m on 24V 3m per channel

Manuals:

QUBINO Z-Wave Dimmer RGBW Manual

Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)

Videos / YouTube:

QUBINO RGBW Dimmer

Technical Specifications

@10/29

Description

Quick Overview

The QUBINO Temperature Sensor (by GOAP) is capable of measuring temperatures between -50°C ~ 125°C with 0.5°C accuracy.

• 1m long cable
• Connects directly to any GOAP module
• Integrates with; VeraEdge VeraPlus Zipato NETIC

Note: This product is currently not supported by Fibaro gateways.

Product Support

Videos / YouTube:

Technical Specifications

@6/23

Description

Quick Overview

The QUBINO Dimmer (by GOAP) is the first MOSFET-switching light Z-Wave dimmer module that also supports control of low-voltage halogen lamps with an electronic transformer dimmable compact fluorescent lights and dimmable LED bulbs. It also measures the power consumption of electrical devices and supports the connection of a digital temperature sensor.

QUBINO modules are “install-and-forget” products. Our products are made to last so we only select and use top-quality electronic components. These modules are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ) an independent testing body tests safety parameters including temperature rise construction insulation resistance power consumption and overload following the EN 60669-2-1 standard.

Product Details

All QUBINO modules are manufactured in Europe by GOAP.

• The QUBINO Z-Wave Dimmer module occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box.
• The QUBINO Z-Wave Dimmer can measure the power consumption of the connected electrical device and itself has an extremely low power consumption of just 0.7 W.
• The QUBINO Z-Wave Dimmer can operate across a wide temperature range from a chilly -10˚C to a scorching 40˚C (14˚–104˚F). It supports the connection of a digital temperature sensor which is also useful for creating complex scenarios. Every module also acts as a repeater in order to improve the range and stability of the Z-Wave network.
• Unlimited controlling capability through gateway
• Setting mono-stable (push button) or bi-stable switch type
• Z-Wave Plus compliant
• 23 additional parameters for expert users

Product Support

Please note: If you are installing the entire Z-Wave™ system for the first time please refer to the installation guide of your Z-Wave gateway before installing this device.

The QUBINO Flush Dimmer uses a unique MOSFET ‘trailing edge’ dimmer to enable it to work with a huge range of bulb types:

Halogen and Incandescent (230V) – up to 140W
Dimmable LEDs (230V) – up to 30W
Dimmable CFL and Fluorescent (230V) – up to 30W
Low Voltage Halogen (24V)
Low Voltage LED (24V)

The QUBINO Dimmer can be used in the 230V mains lighting system where it uses a ‘Trailing Edge’ style dimmer to control the lights. It can also be used in a 24V low-voltage system where it uses PWM style control of the bulbs.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please note:
These devices require a 3-wire system (including neutral) please check your installation before purchasing. If you have 2-wire system (without neutral) we recommend you use a FIBARO Z-Wave Dimmer 2

PLEASE NOTE FOR THE INSTALLATIONS IN THE AREAS WHERE ELECTRICITY SUPPLIERS USING OFF-PEAK RIPPLE CONTROL SIGNALS:

Electricity suppliers in particular areas of Australia such as NSW QLD and some others places are injecting an off-peak ripple control signal using Zellweger equipment or similar onto their distribution networks in order to remotely control devices such as off-peak hot water systems and street lighting although other areas within Australia also use this technology. Not all properties are affected by ripple control so just because you might live in one of these areas does not mean that you will have these problems.

Ripple injection control systems work by superimposing coded control signal commonly 750Hz or 1050Hz on the 50 Hz mains supply.

Some electrical appliances such as fans dimmers toasters and LED lighting can be sensitive to this ripple control signal. The results could be audible buzzing noises from fans or flickering lights whenever the ripple control signals are present.

Electricity suppliers are advising users to install appropriate ripple signal filters in such areas.

The ripple signal filter is a tuned passive inline filter which completely eliminates the superimposed ripple injection control signal from the normal mains supply to produce a noise free filtered mains supply which can then be connected to the electrical appliances or light control systems. The ripple signal filter is specifically tuned to eliminate the ripple control signal frequency of 750Hz or 1050Hz.

However we can’t guarantee the ripple signal filter always will help you if you experiencing such issues. Please contact your local energy provider to get more information and proposed solutions for your electrical installation.

If you are getting similar problems with your dimmers and fans and it’s not Ripple Control Signal and you are hearing the tones at random times of the day your electrical supply may be affected by harmonics; a power fluctuation that is not part of the normal electricity supply or ripple control signal output.
Harmonics are caused by an interference created by other equipment on the network such as inverter type air conditioners and switch mode power supplies for computers.

The offending appliances may be in your home or other premises on the local power grid. If you are being affected by network harmonics it may be of benefit to transfer the electricity supply to your premises to a different phase in the street. This is something you will need to discuss with your electrical company.

We are strongly recommending for the areas we have mentioned above to run test with only few dimmers before committing for high volumes. If results are not fully OK you may use relays only instead of dimmers.

Please note that our warranty for the faulty devices is not covering above mentioned conditions with your local electric grids.

Please see affected with Ripple Signalling areas here:

QUEENSLAND

• Only Southern Queensland (Energex) has Ripple Signalling.
• The Frequency is 1050Hz.
• The rest of Queensland (Ergon) does not have Ripple Signalling.

NSW

• Energy Australia Full Supply Area
• Energy Australia Sydney &Hunter Supply Area

Manuals:

⇒ QUBINO Z-Wave Dimmer InWall Installation Manual

⇒ QUBINO Dimmer Two-Way Bell Press Switch Wiring Diagram (191KB)

⇒ QUBINO Dimmer Two-Way Toggle Switch Wiring Diagram (191KB)

⇒ Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)

Videos / YouTube:

⇒ The smallest Z-Wave module

⇒ QUBINO Dimmer dimming a 24V DC LED Strip Lights

Technical Specifications

@9/28

Description

Quick Overview

The absolute best selling QUBINO Z-Wave Dimmer 0-10V (by GOAP) is unique. This Z-Wave product was developed to cater for the needs of Smart Home users looking for a Z-Wave solution that controls devices such as lights fans and similar products with 0-10V signal. The QUBINO Flush Dimmer 0-10V is ideal for remotely dimming LED lights with low voltage ballast.

QUBINO modules are “install-and-forget” products. QUBINO are made to last so we only select and use top-quality electronic components. These modules are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ) an independent testing body tests safety parameters including temperature rise construction insulation resistance power consumption and overload in accordance with the EN 60669-2-1 standard.
QUBINO Ltd.  is a European company with 26-years experience in the automation field. With their expertise and passion for innovation in automation they have developed a unique ready to sell certified and reliable portfolio of 14 Z-Wave wireless Smart Home products under difirent  brands and OEM around the world.

Product Details

All QUBINO modules are manufactured in Italy.

• The QUBINO Z-Wave Dimmer 0-10V occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box
• Standard 0-10V output
• Multi-function input in connection with: push button / switch / potentiometer / input 0-10V (any sensor with 0-10V output)
• Perfect for dimming lights with balast 0-10V
• Controlling fan speed (for motors or frequency inverters with 0-10V speed control input)
• Controlling heating / cooling valves (with 0-10V input)
• Unlimited controlling capability through gateway
• Z-Wave Plus compliant
• 23 additional parameters for expert users

Product Support

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please note: If you are installing the entire Z-Wave™ system for the first time please refer to the installation guide of your Z-Wave gateway before installing this device.

The GOAP Flush Dimmer uses a unique MOSFET ‘trailing edge’ dimmer to enable it to work with a huge range of bulb types:

Halogen and Incandescent (230V)
Dimmable LEDs (230V)
Dimmable CFL and Fluorescent (230V)
Low Voltage Halogen (24V)
Low Voltage LED (24V)

The QUBINO Z-Wave Dimmer can be used in the 230V mains lighting system where it uses a ‘Trailing Edge’ style dimmer to control the lights. It can also be used in a 24V low-voltage system where it it uses PWM style control of the bulbs.

Please note:These devices require a 3-wire system (including neutral) please check your installation before purchasing. If you have 2-wire system (without neutural) we recommend you use a FIBARO Z-Wave Dimmer 2.

Manuals:

⇒ QUBINO Z-Wave Dimmer 0-10V Installation Manual

⇒ Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)

Videos / YouTube:

⇒The smallest Z-Wave module

⇒GOAP Flush Dimmer 0-10V

Technical Specifications

@9/28

Description

QUBINO Z-Wave Flush 2 Relay DC

Quick Overview

QUBINO Z-Wave Flush 2 Relay DC is a Z-Wave module for switching on/off one or two electrical devices (e.g. light fan etc …). The module can be controlled either through Z-wave network or through the wall switch manually.

This module is designed to be mounted behind a traditional wall switch. The module measures power consumption of load and supports connection of digital temperature sensor. It is designed to act as a repeater in order to improve the range and stability of the Z-Wave network.

Supported switches

Module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Product Details

Product Support

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Strengthens Z-Wave Connectivity

The smart relay module has been designed to work as a Z-Wave repeater thereby providing you the flexibility to extend the range of your Z-Wave network.

The QUBINO double switch is Z-Wave Plus Certified. Z-Wave Plus (5th Generation Z-Wave) offers a lot of new features including increased range extended battery life and Over The Air upgrading (OTA). Take a look at our “What is Z-Wave Plus” guide for more information.

Note!

Do not connect the module to loads exceeding recommended values. Connect the module only in accordance to the  manual and diagrams below. Use only quilified electrician!

Manuals:

⇒ QUBINO Z-Wave Double Switch Installation Manual

⇒ Z-Wave Fan Control Solution(250KB)

⇒ Guide to Configuring Z-Wave Devices with Vera UI7 (Size: 435 kB)

Videos / YouTube:

⇒ The smallest Z-Wave module

Technical Specifications

@10/29

Description

Quick Overview

The QUBINO Z-Wave Tubular Motor Controller (by GOAP) is the world’s smallest Z-Wave module able to control the motors of blinds rollers shades and Venetian blinds.

Product Details

The QUBINO Z-Wave Tubular Motor Controller is a Z-Wave Plus (500 series) controller for blind roller and shade motors. It is designed to fit into an existing switch and enables you to wirelessly control blind motors using a Z-Wave enabled (921.42 MHz in AUS/NZ) controller and reports the motors actual power (Watts) and total power consumption (kWh). This device also supports precise positioning for motors equipped with mechanical or electronic switches.

The QUBINO Z-Wave Tubular Motor Controller allows the connection of a temperature sensor which can report the local temperature to your Z-Wave gateway allowing it to better meet your heating/cooling needs.

 This product integrates with all Australian certified (921.42 MHz) Z-Wave Controllers including;

• Fibaro Home Center 3/Lite

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

@9/28

Digital Temperature sensor has 1m cable with connector to connect directly to Qubino modules.

Digital temperature sensor range is between -50 and 125°C.

Supported switches and dimmers

Quibino brand

Product Details

Description

The QUBINO On/Off Thermostat 2  (made by Goap Europe) is your wireless heating and hot water controller that also measures power consumption. This amazingly tiny module is ideal for wireless control of electric or water-based underfloor heating systems electric water heaters hot water pumps and electric radiators.

The QUBINO Z-Wave ON/OFF Thermostat 2 can be used to directly control electric or water-based underfloor heating systems electric water heaters hot water pumps electric radiators and similar. You can control it either remotely through the Z-Wave network or wall switches.

The QUBINO Z-Wave ON/OFF Thermostat 2 also measures power consumption and supports the connection of a digital temperature sensor.

This product integrates with Australian-certified (921.42 MHz) Z-Wave Controllers including Fibaro Home Center 2/Lite Fibaro Home Center 3/Lite and YUBII controllers

Please check the compatibility with major Z-Wave controllers in this Matrix provided by the manufacturer.

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices a Z-Wave gateway is available in the Manuals section.

Manuals:

⇒ QUBINO Z-Wave ON/OFF Thermostat 2 Technical Specification

⇒ QUBINO Z-Wave ON/OFF Thermostat Extended User Manual

Videos / YouTube:

⇒ QUBINO Z-Wave ON/OFF Thermostat 2 VIDEO

@9/28
