WIRELESS Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) WiFi Range 2 Bedroom Houses 4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas WiFi Capacity Medium Dual-Band Allocate devices to different bands for optimal performance Working Modes Router Mode Access Point Mode Range Extender Mode
HARDWARE Processor Single-Core CPU Ethernet Ports 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports Buttons WPS Button Reset Button Power 5 V ⎓ 0.6 A
SECURITY WiFi Encryption WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
PHYSICAL Dimensions (W×D×H) (115 x 106.7 x 24.3 mm)
WiFi Reception Sensitivity 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm
@15/14
WIRELESS Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) WiFi Range 3 Bedroom Houses 4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity Medium Dual-Band Allocate devices to different bands for optimal performance
MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Working Modes Router Mode Access Point Mode Range Extender Mode
HARDWARE Processor Single-Core CPU Ethernet Ports 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports Buttons WPS Button Reset Button Power 5 V ⎓ 0.6 A
PHYSICAL Dimensions (W×D×H) (115 x 106.7 x 24.3 mm)
WiFi Reception Sensitivity 5GHz: 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm;
@20/19
@0/52
@0/56
Warranty Period: 3-Year
@0/81
Warranty Period: 3-Year
@0/40

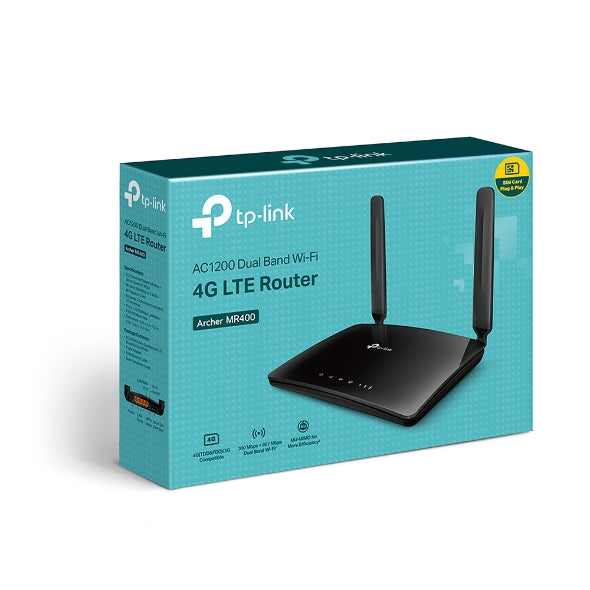

B5 and B28 added fully compatible with tier one carriers such as Telstra (B28) Optus (B28) Vodafone AU (B5) and NZ (B28). Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps Powerful integrated antennas provide stable wireless connections and better coverage Requires no configuration just insert a SIM card and turn it on to enjoy a fast wireless connection Creates simultaneous dual band Wi-Fi networks with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band Offers options and flexibility with the LAN/WAN port allowing you to choose your connection type
HARDWARE FEATURES Interface 3 10/100Mbps LAN Ports 1 10/100Mbps LAN/WAN Port 1 Micro SIM Card Slot Button WPS/Reset Button Wireless On/Off Button Power On/Off Button External Power Supply 12V/1.5A Dimensions ( W x D x H ) 7.95 x 5.71 x 1.34 in. (202 x 145 x 34 mm) Antenna V2: 2 Internal 4G LTE Antennas V3/V1: 2 Detachable 4G LTE Antennas Compatibility NBN - Fibre to the Premises (FTTP) - Wireless Router Mode. NBN - Fibre to the Home (FTTH) - Wireless Router Mode.
WIRELESS FEATURES Wireless Standards IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 300Mbps at 2.4GHz 867Mbps at 5GHz Reception Sensitivity 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm
2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm Transmit Power CE: <20dBm(2.4GHz) <23dBm(5GHz) Wireless Functions Enable/Disable Wireless Radio WMM Wireless Statistics Wireless Security 64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK encryptions Network Type 4G: FDD-LTE B1/B3/B5/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B28/B38/B39/B40/B41 (2600/1900/2300/2500MHz)
@42/33
Warranty Period: 3-Year
@44/34
Warranty Period: 3-Year
@0/40
HARDWARE FEATURES Interface 1 × 10/100/1000 Mbps LAN/WAN Port 3 × 10/100/1000 Mbps LAN Ports 1 × Micro SIM Card Slot Button WPS Button Reset Button WiFi On/Off Button Power On/Off Button External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 1.5A Dimensions ( W x D x H ) 9.0×6.3×1.5 in ( 229×160×37 mm) Antenna 2 × Detachable 4G LTE Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5 GHz IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 GHz and 5 GHz Signal Rate 300 Mbps at 2.4 GHz 867 Mbps at 5 GHz Reception Sensitivity 5 GHz: 11a 54M: -74 dBm 11ac HT20: -66 dBm 11ac HT40: -63 dBm 11ac HT80 : -59 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm Transmit Power < 20 dBm (2.4 GHz) < 23 dBm (5 GHz) Wireless Functions Enable/Disable Wireless Radio Wireless Schedule WMM Wireless Statistics Wireless Security 64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK encryptions Network Type 4G
@0/43
Warranty Period: 3-Year
@0/59
Warranty Period: 3-Year
@0/65
@0/69
Warranty Period: 3-Year
@14/14
@10/10
@12/12
Interface USB 3.0 LED Status Dimensions 2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm) Antenna 2 External High Gain Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n 2.4 GHz IEEE 802.11a/n/ac 5 GHz Signal Rate 5 GHz: 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) Reception Sensitivity 5 GHz: 11ac VHT80: -62dBm 11ac VHT40: -64dBm 11ac VHT20: -68dBm 11n HT40: -71dBm 11n HT20: -73dBm 11a 54Mbps: -77dBm 2.4 GHz: 11n HT40: -70dBm 11n HT20: -71dBm 11g 54Mbps: -73dBm 11b 11Mbps: -87dBm Transmit Power 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) 2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) Wireless Modes Infrastructure mode Wireless Security WEP WPA/WPA2 WPA-PSK/WPA2-PSK OTHERS Certification FCC CE RoHS Package Contents AC1300 High Gain Wireless Dual Band USB Adapter Quick Installation Guide Resource CD System Requirements Windows 10/8.1/8/7 (32/64 bit) Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
@14/14
Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band) 802.11ac Dual Band – 3 times faster than the 802.11n standard perfect for high-intensity network usage Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists Multiple-Size Brackets – Low profile and full height brackets are both provided suitable for all PCs 2×2 MIMO – Users can easily access a high-speed wireless connection Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
@13/13
