CEL-FI GO MOBILE OPTUS + RFI CD8197-B (7.5DBI) BLACK DONOR ANTENNA 1140MM + T5-4M-SMA INTERNAL SERVER ANTENNA (G31-OM-CD7-B)
The Cel-Fi GO Optus Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.

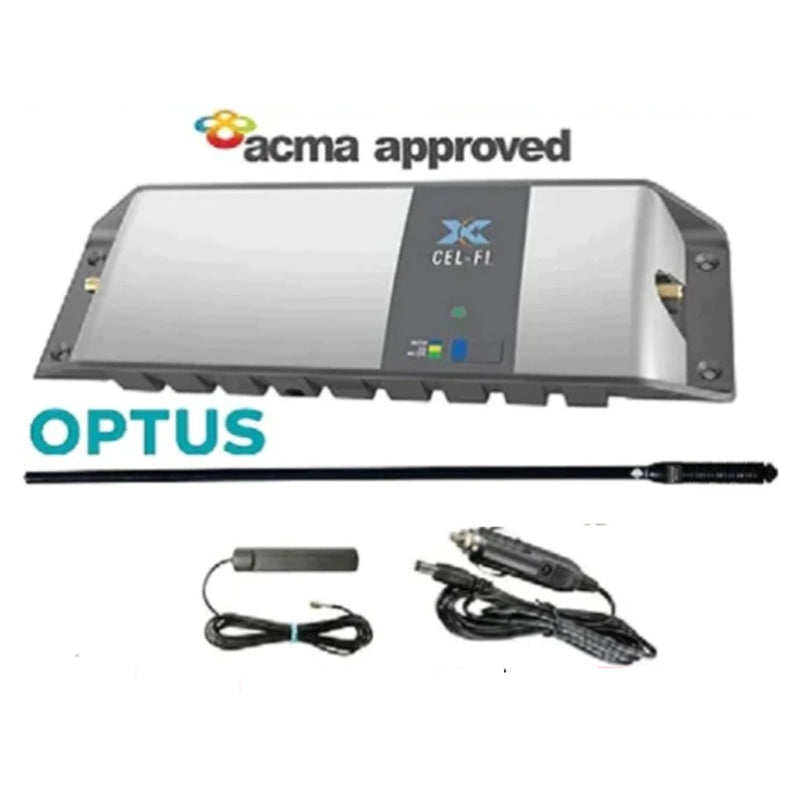

What's included in the bundle...
OPTUS-G31-OM-CD7-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable - SMA male - 1140mm long
CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain, while unconditionally protecting the operator's network.
FEATURES:
- 3G / 4G / 4GX Voice and Data
- Multi-User Mobile Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
3-BAND CEL-FI GO MOBILE
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.
Get setup in 5 easy steps
SPECIFICATIONS
| Available Frequency Bands (MHz) | Optus Band 3/8/28 |
| Frequency Range | 1800Mhz, 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
What's in the Box
OPTUS-G31-3/5/28MK-CD7-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD8197-B Black Donor Antenna with 5M cable - SMA connection
