| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 5/06/2007 |
| Dimensions | 165(L) x 155(W) x 50(H) |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP55 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Horizontal Beamwidth | 90 / 80 / 70 |
| Brand | RFI |
| Weight [kg] | 0.33 |
Sort by:

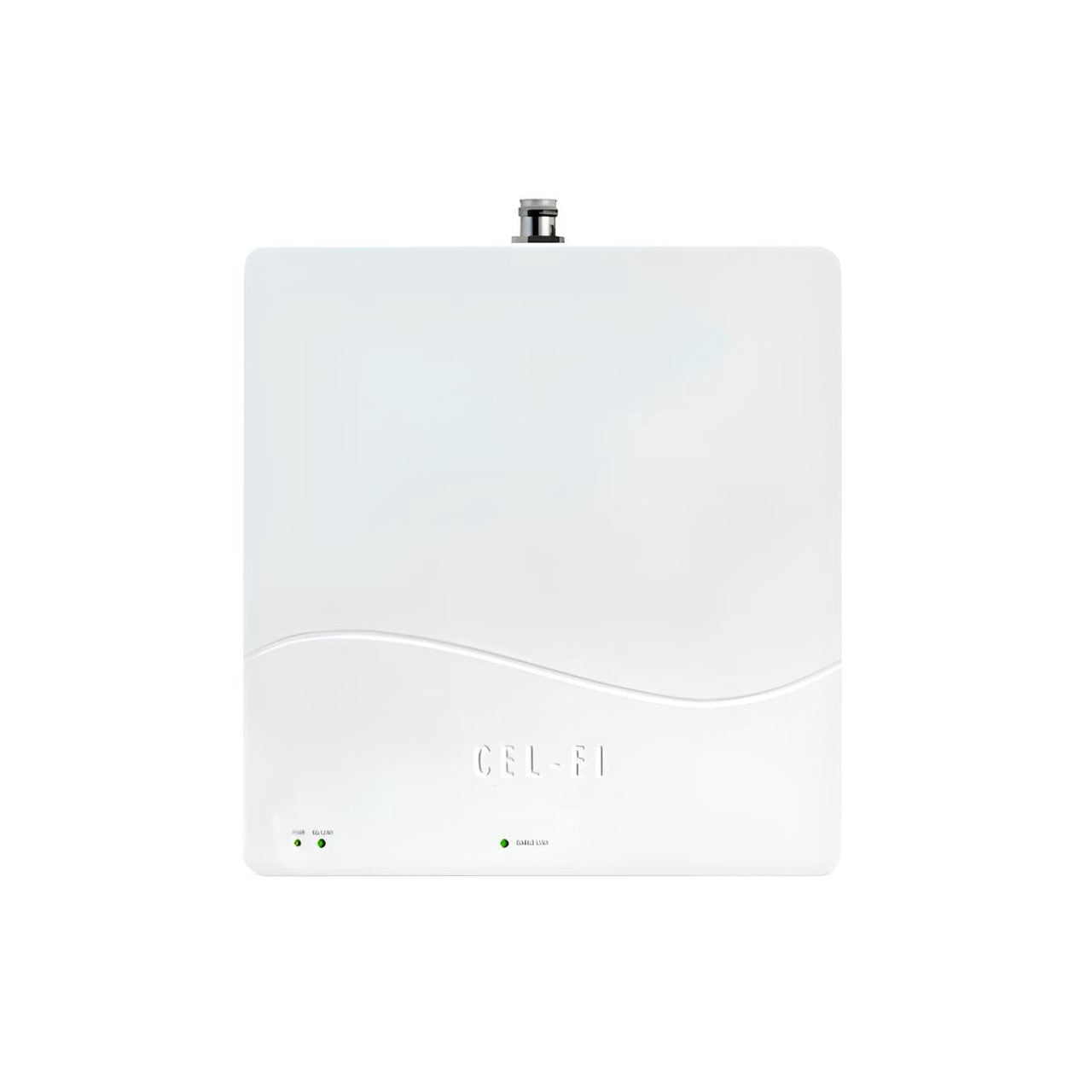

Nextivity CEL-FI QUATRA 4000e Australia FGSG Coverage Unit Bands 1/3/5/7/8/26/28/40
Nextivity CEL-FI QUATRA 4000e Australia FGSG Coverage Unit Bands 1/3/5/7/8/26/28/40
Description::Advanced indoor cellular coverage amplification module for enterprise buildingsThis product is a coverage unit that disburses the mobile signal for the Q4000e network unit. It is connected to the Network Unit via an ethernet cable. This coverage unit requires a Q4000e Network Unit to function. Enhances and redistributes donor signal throughout indoor spaces as part of a digital active DAS hybrid system. Boosts indoor cellular coverage and network performance within medium-large sized buildings. Designed for enterprise-grade environments it delivers high-gain multi-band cellular improvement utilises category cabling for RF and PoE distribution and supports scalable deployment when paired with a compatible network unit. This unit operates only as part of the QUATRA architecture and requires carrier design and installation approval.Key FeaturesHigh-performance multi-band operation: Supports Bands 1 3 5 7 8 26 28 and 40 boosting indoor 4G and 5G services across multiple network technologies.Industry-leading system gain: Digital relay architecture delivers up to 100 dB system gain significantly strengthening building coverage while maintaining clean signal quality.PoE-powered RF distribution: Uses category cabling for both RF transport and Power-over-Ethernet delivery enabling efficient installation without coaxial infrastructure.Flexible site configuration: Supports operator-specific donor antenna feeds or small-cell signal sources for adaptable integration in complex building layouts.Cloud-based remote management: Fully monitored configured and updated via the Nextivity WAVE Portal for centralised performance control.Carrier-approved operation: Telstra Optus and Vodafone Approved – supports all three network operators simultaneously.Multi-operator capability: Supports up to four independent operators with relay channel bandwidths of 5 10 15 or 20 MHz and a maximum of eight relay bands.Enterprise-grade signal integrity: Includes echo-cancellation performance of at least 30 dB and a maximum 7 dB noise figure for optimal signal delivery.Mandatory network-unit pairing: Requires connection to a compatible Network Unit for power and signal distribution and cannot operate standalone.Designed for high-density buildings this module delivers reliable multicarrier connectivity broad frequency compatibility and powerful digital amplification to enhance internal mobile voice and data performance.IMPORTANT: This is a restricted product and as a result an approval process for each installation including mobile operator approvals and designs must be obtained. Our design and projects team are here to assist to guide you through this process. Read more
Specification:Indoor cellular coverage amplification unit with multi-band support high-gain digital boosting PoE RF distribution and remote management for enhanced 4G and 5G building performance.
@422/210
Description::Boosts Mobile Signal Across Vehicles in Remote or Urban LocationsThis approved signal repeater enhances mobile coverage for vehicles including cars trucks caravans and boats. Supporting Telstra Optus and Vodafone it boosts 3G 4G and 5G DSS signals using advanced IntelliBoost technology. Designed for easy plug-and-play installation it’s an ideal solution for improving connectivity on the move. It requires a 12V auxiliary power outlet for operation.Key FeaturesTelstra Optus and Vodafone approved: Fully certified for use on Australia’s major carrier networks.Multi-band support: Compatible with 3G 4G and 5G DSS networks.Wide frequency range: Supports 700L 850 900 1800 2100 2600 plus Band 20 and 26.IntelliBoost chip: Nextivity's 4th generation chip provides precise channelised signal boosting.Carrier switchable: Easily toggle between Telstra Optus or Vodafone as needed.Vehicle-ready installation: Ideal for cars vans 4WDs trucks caravans boats and more.Plug-and-play setup: Quick installation with minimal technical setup required.12V power only: Can only be powered through a 12V auxiliary outlet.Kit IncludesNextivity CEL-FI ROAM R41 Smart Mobile RepeaterPowertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000 MHz N FemaleBlackhawk 4G Marine Cellular Antenna 698 to 2700 MHz N Female (no mount)PTL-240 Coaxial Cable N Male to SMA Male 10mPTL-240 Coaxial Cable N Male to SMA Male 6mMarine Mount – Nylon 2-Way Adjustable Knock-Down Mount 1"-14 UNS threadNextivity CEL-FI GO Stationary 240v Power Supply AUGME AT4715BA 4G-5G Spring-Mount Bull Bar Antenna 690 to 3800 MHz 1200 mmEnhance mobile reception on the road with powerful carrier-approved signal boosting.This product enables the ROAM R41 to be run from 24V vehicles. Read more
Specification:Boost your caravan's signal with the Nextivity CEL-FI ROAM R41 4WD Pack. Includes GME AT4705BA and Omni antenna for reliable connectivity on the go.
@142/87
Description::Now approved by Telstra Optus and VodafoneFEATURES:Ideal for boosting mobile signal in a car van 4WD truck motorhome caravan or boat.Support for 3G 4G and 5G DSSSuitable replacement for GO G31 MobileCarrier switchable between Telstra Optus or VodafoneSupports 700L/850/900/1800/2100/2600 + Band 20 & 26The latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signalsEase of installation with plug-and-play operationKit Includes:Nextivity Cel-Fi ROAM R41 Smart Mobile RepeaterBlackhawk 4G Trucker Edge Compact Antenna 68cm 698 to 2200Mhz SMA MalePowertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000hz N FemaleBlackhawk 4G Marine Cellular Antenna 698 to 2700Mhz N Female (No mount)PTL-240 Coaxial Cable N Male to N Male 10mPTL-240 Coaxial Cable N Male to N Male 6mMarine Mount - Nylon 2-Way Adjustable knock-Down Mount 1"-14 UNS ThreadNextivity Cel-Fi GO Stationary 240v Power Supply AU*Note: This device can ONLY be connected with a 12V auxiliary power outlet.This product enables the ROAM R41 to be run from 24V vehicles. Read more
Specification:Stay connected on the road with Nextivity CEL-FI ROAM R41 4WD to Caravan Pack. Boost signal in your caravan or truck with Trucker Compact + Omni.
@134/81
Description::Now approved by Telstra Optus and VodafoneFEATURES:Ideal for boosting mobile signal in a car van 4WD truck motorhome caravan or boat.Support for 3G 4G and 5G DSSSuitable replacement for GO G31 MobileCarrier switchable between Telstra Optus or VodafoneSupports 700L/850/900/1800/2100/2600 + Band 20 & 26The latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signalsEase of installation with plug-and-play operationKit Includes:Nextivity Cel-Fi ROAM R41 Smart Mobile RepeaterBlackhawk 4G Trucker Mini Antenna 40cm 698 to 2700Mhz N FemalePowertec 4G-5G Indoor Wall Mount Panel Antenna 698 to 4000hz N FemalePTL-240 Coaxial Cable N Male to N Male 10mPTL-240 Coaxial Cable N Male to N Male 6mMarine Mount - Nylon 2-Way Adjustable knock-Down Mount 1"-14 UNS ThreadNextivity Cel-Fi GO Stationary 240v Power Supply AU *Note: This device can ONLY be connected with a 12V auxiliary power outlet.This product enables the ROAM R41 to be run from 24V vehicles. Read more
Specification:Boost mobile signal on the go with Nextivity CEL-FI ROAM R41 4WD to Caravan Pack. Includes Trucker Mini & Omni antennas for reliable coverage in remote areas.
@131/79
Description::Now approved by Telstra Optus and VodafoneFEATURES:Ideal for boosting mobile signal in a car van 4WD truck motorhome caravan or boat.Support for 3G 4G and 5G DSSSuitable replacement for GO G31 MobileCarrier switchable between Telstra Optus or VodafoneSupports 700L/850/900/1800/2100/2600 + Band 20 & 26The latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signalsEase of installation with plug-and-play operation*Note: This device can ONLY be connected with a 12V auxiliary power outlet.This product enables the ROAM R41 to be run from 24V vehicles. Read more
Specification:Boost your caravan's mobile signal with the Nextivity CEL-FI ROAM R41 Omni Pack. Includes ceiling dome for comprehensive coverage on the go.
@118/71
Description::Now approved by Telstra Optus and VodafoneFEATURES:Ideal for boosting mobile signal in a car van 4WD truck motorhome caravan or boat.Support for 3G 4G and 5G DSSSuitable replacement for GO G31 MobileCarrier switchable between Telstra Optus or VodafoneSupports 700L/850/900/1800/2100/2600 + Band 20 & 26The latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signalsEase of installation with plug-and-play operation*Note: This device can ONLY be connected with a 12V auxiliary power outlet.This product enables the ROAM R41 to be run from 24V vehicles. Read more
Specification:Enhance your caravan's mobile signal with the Nextivity CEL-FI ROAM R41 Omni Pack. Includes wall mount for seamless installation. Boosts signal strength reliably on the go.
@118/71
Description::Now approved by Telstra Optus and VodafoneFEATURES:Ideal for boosting mobile signal in a car van 4WD truck motorhome caravan or boat.Support for 3G 4G and 5G DSSSuitable replacement for GO G31 MobileCarrier switchable between Telstra Optus or VodafoneSupports 700L/850/900/1800/2100/2600 + Band 20 & 26The latest 4th generation Nextivity proprietary IntelliBoost chip delivers channelised coverage for specific mobile network operator signalsEase of installation with plug-and-play operation*Note: This device can ONLY be connected with a 12V auxiliary power outlet.This product enables the ROAM R41 to be run from 24V vehicles. Read more
Specification:Enhance your caravan connectivity with the Nextivity CEL-FI ROAM R41 Caravan Wideband LPDA Pack featuring a ceiling dome for superior signal strength and coverage.
@102/61

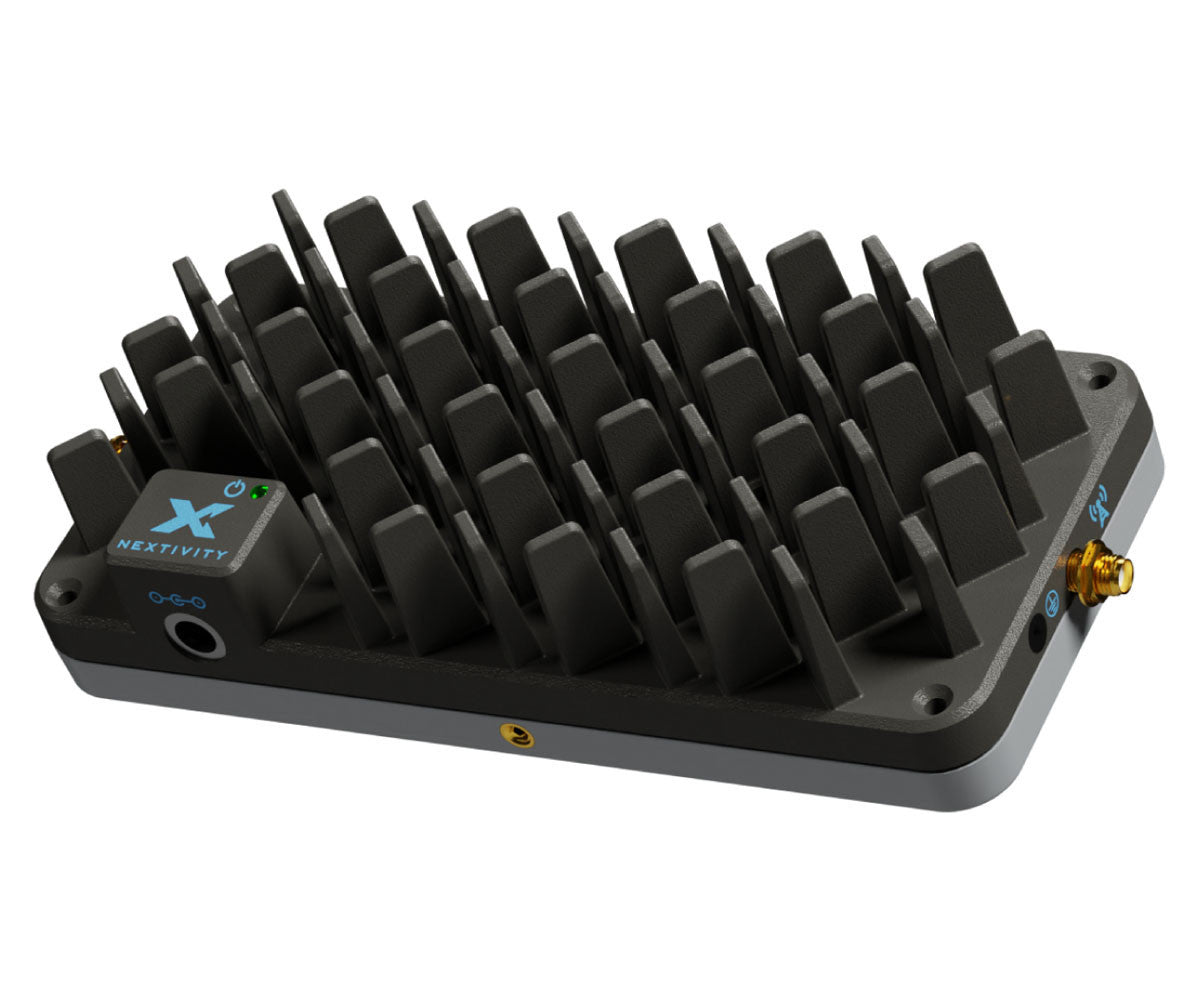

Nextivity CEL-FI ROAM R41-VB Smart Mobile B28 Repeater inc. Adhesive Antenna
Nextivity CEL-FI ROAM R41-VB Smart Mobile B28 Repeater inc. Adhesive Antenna
Description::Powerful mobile signal booster delivering stable connectivity in remote travelThis mobile cellular coverage solution is designed to significantly improve voice and data performance inside vehicles vessels and fixed locations delivering reliable 4G and 5G connectivity in areas with weak or inconsistent network coverage.Key FeaturesIncreased Downlink Power: Higher output power delivers a larger coverage area and stronger indoor signal levels making the system suitable for fixed home site office and remote building applications not just mobile environments.Multi-Network Signal Enhancement: Supports 4G and 5G services improving calling messaging and data performance across changing coverage conditions.Advanced IntelliBoost Technology: Utilises a fourth-generation proprietary chipset to intelligently amplify selected operator signals while maintaining network stability and consistent performance.Wide Multi-Band Support: Operates across Bands 1 3 5 7 8 20 26 and 28 ensuring compatibility with major carrier frequencies used in regional and metropolitan networks.High System Gain Performance: Delivers up to 100 dB system gain with enterprise-grade echo cancellation to provide strong stable coverage without oscillation or signal dropouts.Plug And Play Installation: Preconfigured design allows fast installation without manual tuning enabling improved coverage within minutes of setup.Carrier Switching Capability: Supports flexible network selection through a mobile application allowing operation across authorised mobile operators as coverage conditions change.Vehicle And Fixed Power Integration: Designed for auxiliary power operation making it suitable for vehicles caravans RVs marine use and fixed installations with compatible power sources.This solution delivers dependable connectivity for travellers professionals and remote users who require consistent mobile or fixed-location cellular coverage. Read more
Specification:High power cellular booster improves 4G and 5G signal strength for vehicles and homes delivering wider coverage and reliable connectivity in remote areas.
@83/58
Description::Rugged precision-fit Hard Shell Case Designed for Maximum Protection and PortabilityNextivity Packaging - J11 Hard Shell Case for Compass 5GProtect your Compass 5G device with this rugged hard shell case designed for durability and impact resistance. The J11 model ensures your equipment stays secure during transport and use with precision cuts for all necessary ports and features. Ideal for professionals on the go it combines sleek design with practical protection to enhance the performance of your Nextivity devices.Key FeaturesDurable Protection: Built to safeguard your Compass 5G from impacts drops and scratches.Precision Fit: Designed with custom cutouts to allow easy access to all ports and buttons.Compact & Lightweight: Provides strong protection without adding excessive bulk.Enhanced Mobility: Perfect for professionals needing to transport their device securely.Rugged Exterior: Hard shell design ensures the device stays safe during travel or storage. Read more
Specification:Protect your device with a durable lightweight hard shell case that offers superior impact resistance and precision fit for ultimate security and portability.
@29/43
Description::Nextivity’s ceiling mount accessory is the perfect solution to securely mount a QUATRA coverage unit (CU) on an indoor ceiling grid in plenum space whenever needed. This mounting bracket is designed for ease of use and is adjustable for standard ceiling tile sizes. It provides concealed ceiling mounting solutions for CUs in various indoor environments including offices schools hotels and retail spaces. The versatile accessory optimally supports both installing a single omnidirectional antenna for Active DAS in wide open areas and a multi-antenna Active DAS hybrid to provide coverage in multiple smaller wall-isolated areas using a single CU.Features and benefits include:Standardise on a single bracket to be available whenever needed at a site with wide compatibility with CEL-FI QUATRA 4000(i/c/e) and QUATRA EVO class of coverage unitsImproved coverage unit installation concealment to allow strategic install location selection of CU as feasible and optimal for the site coverage.Compact form factor for aesthetically pleasing deploymentsEasy installation with bracket adjusted for ceiling grid tile size of the siteAvailability of mechanical features to flexibly allow positive reinforcement as local building regulations require. Read more
Specification:Easily mount your Nextivity QUATRA CU coverage unit on indoor ceiling grids with the Nextivity QUATRA CU Ceiling Mount in white. Aesthetic adjustable and versatile solution for various indoor environments.
@15/22
Cel-Fi GO Mobile Telstra + RFI CDQ8197-B (7.5dBi) Black Donor Antenna 1210mm + T5-4M-SMA Internal Server Antenna (G31-TM-CDQ7-B)
The Cel-Fi GO Telstra Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.
What's included in the bundle...
G31-TM-CDQ7-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ8197-B Black Donor Antenna with 5M cable SMA male 1210mm long
CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.
FEATURES:
- 3G / 4G / 4GX Voice and Data
- Multi-User Mobile Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- 12-24VDC
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
TELSTRA MOBILE SIGNAL AVAILABILITY
Check out the Telstra mobile signal coverage map
3-BAND CEL-FI GO MOBILE
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.
Ge t setup in 5 easy steps
SUPPORTED NETWORKS
Telstra Network
IMPORTANT NOTE
Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.
SPECIFICATIONS
| Available Frequency Bands (MHz) | Telstra Band 3/8/28 |
| Frequency Range | 1800Mhz 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Warranty: 2 Years
Also available in these antenna configurations
Cel-Fi GO Mobile Telstra - No Antenna
Cel-Fi GO Mobile Telstra + T5-4M-SMA Internal Antenna
Cel-Fi GO Mobile Telstra + CD8194-B (5.5dBi) Antenna 65cm
Cel-Fi GO Mobile Telstra + CDR7194-B (5.5dBi) Antenna 70cm
Cel-Fi GO Mobile Telstra + CDQ7194-B (5.5dBi) Antenna 73cm
Cel-Fi GO Mobile Telstra + CD8195-B (5.5dBi) Antenna 89cm
Cel-Fi GO Mobile Telstra + CDR8195-B (6.5dBi) Antenna 93cm
Cel-Fi GO Mobile Telstra + CDQ8195-B (6.5dBi) Antenna 97cm
Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm
Cel-Fi GO Mobile Telstra + CDQ8197-B (6.5dBi) Antenna 121cm
Documentation
Cel-Fi GO Mobile Quick Start Guide
Cel-Fi GO Trouble Shooting Support
View the CDQ 7100 Series Technical Data Sheet
Wave App
Nextivity Wave App - iPhone Android and PC
What's in the Box
G31-TM-CDQ7-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ8197-B Black Donor Antenna with 5M cable SMA male 970mm long
Cel-Fi GO G41-JE-DL-2SO Stationary - Telstra | Optus | Vodafone - 11dBi LPDA7040-11 | Dual (2x) 6dBi DAS 6938-SOC150 Omni Ceiling Mount Antenna Bundle
Each Cel-Fi GO - G41 Stationary Telstra | Optus | Vodafone bundle consists of...
G41-JE-003 Telstra | Optus | Vodafone Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack
1x LPDA7040-11-0.3NF - 11dBi Log Periodic Antenna GSM 698-4000Mhz.
2x DAS6938-SOC150-N D AS 6dBi LTE Omni Directional Ceiling Antenna 698-3800MHz N type connector
1x PSP6927-5102-N Pulse 2-Way Splitter
1x 9207N-10 Cable SMA-M to N-Male 10M (9006)
1x 9207D-10 Cable N-Male to N-Male 10M (9006)
1x 9207D-5 Cable N-Male to N-Male 10M (9006)
1x 9207N-1 Cable SMA-M to N-Male 10M (9006)
Features of the latest Smart Signal Repeater from Nextivity...
- Switch between operators via the Wave app
- 5G ready. ( G41 has 5G capabilities but currently not enabled or approved by Networks)
- Supports all frequency bands for Telstra Optus and Vodafone-TPG with exception of B28u(700MHz) for Vodafone-TPG
- Up to 3 000 m2 coverage area
- Support for Dynamic Spectrum Sharing (DSS)
This product can work on any of the Australian networks (Telstra Optus Vodafone/TPG) but like all other Cel-Fi products it will only amplify one operator’s service at a time. You have the option to switch it between the operators via the Wave app if you wish to change from one network to the other.
Designed to solve indoor mobile voice and data coverage issues the Cel-Fi GO G41 is the latest and most powerful Smart Signal Repeater to the Nextivity range. Now approved by Telstra.
Note: This device is only for fixed installation in a building and is not suitable for vehicle installation/useage.
INDUSTRY LEADING SIGNAL GAIN
Boasting up to 100dB gain the GO G41 features a higher output power than the G31 and G32 at +20dBm per channel.
3G/4G WITH CARRIER SWITCHING Now operating across all Australian 3G/4G frequency bands the GO G41 is 5G ready carrier safe and can be deployed anywhere within the network to amplify service.
Like the all other Cel-Fi Go products the Cel-Fi GO G41 amplifies the service of one operator at time. To quickly change or switch between operators simply download the Cel-Fi WAVE app .
FLEXIBLE SYSTEM DESIGN
The Cel-Fi GO G41 features a flexible system design making it suitable for a deployment in a wide variety of applications including:
- Government buildings
- Agricultural settings
- Parking garages
- IoT and M2M (machine to machine)
- Small manufacturing operations
- Business in single / multi-level commercial properties
- Remote or rural locations
- Large homes
COVERAGE UP TO 3 000 M 2
When paired with either RFI Omni Dome Antenna(s) for ceiling mounting or RFI Wideband Panel Antenna(s) for wall mounting the Cel-Fi GO G41 is the perfect in-building remote and IoT solution covering up to 3 000 square meters.
2 OMNI ANTENNAS
Warranty: 2 Years
Documentation
Cel-Fi Go - G41 Carrier Switching Instructions
Wave App
Nextivity Wave App - iPhone Android and PC
What's in the Box
G41-JE-DL-2SO
G41-JE-003 Telstra | Optus | Vodafone Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack
1x LPDA7040-11-0.3NF - 11dBi Log Periodic Antenna GSM 698-4000Mhz.
2x DAS6938-SOC150-N DAS 6dBi LTE Omni Directional Ceiling Antenna 698-3800MHz N type connector
1x PSP6927-5102-N Pulse 2-Way Splitter
1x 9207N-10 Cable SMA-M to N-Male 10M (9006)
1x 9207D-10 Cable N-Male to N-Male 10M (9006)
1x 9207D-5 Cable N-Male to N-Male 10M (9006)
1x 9207N-1 Cable SMA-M to N-Male 10M (9006)
Related Products
Also available as a Single internal antenna bundle - click here
Cel-Fi GO Stationary Optus - 11dBi LPDA7030 Directional Antenna | 6dBI DAS6938 Panel Mount Donor Antenna Bundle (KIT-G31-3/8/28S-LPDA-DAS)
Each Cel-Fi GO - Stationary Optus LPDA/DAS bundle consists of...
G31-3/8/28S Optus 3/8/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack
RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector
DAS6938-SDP150-N D AS LTE Directional Panel Antenna 698-3800MHz -150dBc N type connector IP55
9207N-10 Cable Extension 10Mts - SMA Male to N Female
The Cel-Fi GO Stationary Smart Signal Repeater the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties government buildings agricultural settings small manufacturing operations rural areas businesses and large homes.
Cel-Fi Go Features:
- 3G / 4G / 4GX Voice and Data for the Telstra Network
- Up to 1 500 m2 of Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated.
- Network Safe
- Configure for Mobile or Stationary use via Wave app
3-Band Cel-Fi GO Mobile
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.
SUPPORTED NETWORKS
Optus Network
SPECIFICATIONS - Cel-Fi Go Stationary
| Available Frequency Bands (MHz) | Band 3/8/28 |
| Frequency Range | 1800Mhz 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | GO unit + AC adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50 Ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Specifications - LPDA7030-11-10SMA
| Nominal Gain dBd | 11dBi / 9dBd |
| Frequency MHz | 700 - 1000 / 1500 - 3000 |
| Tunable Bandwidth | Full band. |
| VSWR | <2.0:1 |
| Polarisation | Linear |
| Vertical Beamwidth | 50 (± 5) |
| Horizontal Beamwidth | 55 (± 5) |
| Front/Back Ratio dB | 20 dB (± 3 bB) |
| Power W | 10 |
| Dimensions mm | 1100 x 180 x 60 |
| Length mm | 1100 |
| Weight (kg) | 1.85 |
| Termination | 10 meters cable terminated with male SMA connector |
Specifications - DAS6938-SDP150-N
Ge t setup in 5 easy steps
Warranty: 2 Years
Documentation
Cel-Fi GO Stationary Quick Start Guide
Cel-Fi GO Trouble Shooting Support
LPDA7030-11-10SMA Technical Data Sheet
View LPDA7030-11-10SMA Installation Instructions
Wave App
Nextivity Wave App - iPhone Android and PC
What's in the Box
KIT-G31-3/8/28S-LPDA-DAS
1x CEL-FI-GO Optus 3/8/28S Stationary unit
1x 240VDC Power Pack
1x RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna - 10Mtr cable
1x DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz -150dBc N type connector IP55
1x 9207N-10 Cable Extension 10Mts - SMA Male to N Female
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
Cel-Fi GO G31-3/8/28MK-CDQ-MAR Optus Marine Pack incl. 97cm RFI CDQ7195-W 6.5dBi White Antenna
Cel-Fi GO G31-3/8/28MK-CDQ-MAR Optus Marine Pack incl. 97cm RFI CDQ7195-W 6.5dBi White Antenna
Cel-Fi GO Optus Marine Pack incl. 97cm RFI CDQ7195-W 6.5dBi White Donor Antenna and RFI MAM-CDQ Knock-Down Mount + T7-4M-SMA Internal Server Antenna (OPTUS-G31-3/8/28MK-CDQ-MAR)
The Cel-Fi GO Optus Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.
What's included in the pack...
OPTUS-G31-3/8/28MK-CDQ-MAR
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ-7195-W White Whip 97cm
1 x MAM-101 Marine Knock Down Mount incl. MM-CDQ CD Series Adaptor C/W 5m white RG58 cable terminated with a FME female connector.
1x A-88 FME male to SMA male adaptor.
CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.
FEATURES:
- 3G / 4G / 4GX Voice and Data
- Multi-User Mobile Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- 12-24VDC
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
3-BAND CEL-FI GO MOBILE
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.
SUPPORTED NETWORKS
Optus Network
IMPORTANT NOTE
Cel-Fi GO will boost a single band at a time (either 3G 900mhz or 4G 700mhz or 4G 1800mhz). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.
Out to Sea Coverage
Mobile coverage can typically extend 20 to 70 km out to sea from mobile base stations located near the coast. However there are many factors such as the weather tides sea conditions and your antenna installation (type and height above sea level) that can significantly influence coverage data speed and performance. As a result you must not rely on the Optus Mobile Network as a primary method of communication at sea.
To assist with your mobile services at sea you should use a directly connected external antenna – one that is omni-directional or a specialist marine antenna capable of 'tracking' to the best serving base station. The antenna should be mounted as high as possible on your vessel using marine-grade cabling and connections.
In order for a service at sea to work effectively line of sight to the terrestrial base station is required. This is influenced by the height of the serving base station land based obstructions and the general topography of the land which can block signals. Coverage will not be reliable over the horizon from a mobile base station even though it may be usable at times.
SPECIFICATIONS
| Available Frequency Bands (MHz) | Optus Band 3/8/28 |
| Frequency Range | 1800Mhz 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Warranty: 2 Years
Documentation
Cel-Fi GO Mobile Quick Start Guide
Cel-Fi GO Trouble Shooting Support
View the CDQ 7100 Series Technical Data Sheet
Wave App
Nextivity Wave App - iPhone Android and PC
What's in the Box
OPTUS-G31-3/8/28MK-CDQ-MAR
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ-7195-W White Whip 97cm
1 x MAM-101 Marine Knock Down Mount incl. MM-CDQ CD Series Adaptor C/W 5m white RG58 cable terminated with a FME female connector.
1x A-88 FME male to SMA male adaptor
Cel-Fi ROAM R41 Mobile Bundle -Telstra/Optus + Blackhawk Trucker Edge Compact 680mm (4-6dBi) Black Donor Antenna + Internal Server Antenna
Introducing the latest addition in the Nextivity product lineup CEL-FI ROAM R41 a plug-and-play cellular coverage solution with a quick and easy setup designed to keep everyone connected anywhere they are.
CEL-FI ROAM R41 is created to solve any mobile voice and data coverage disruptions ensuring that reliable 3G 4G and 5G connectivity is delivered while on the move.
What to know more about the Cel-Fi ROAM R41 - check out the video
ROAM R41 VIDEO
CEL-FI ROAM R41 Works Best with Blackhawk Antennas...
The CEL-FI ROAM R41 covers most Frequency bands for the Australian market from 698MHz up to 2700MHz.
The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G 4G and 5G connectivity inside vehicles and boats.
With the latest Nextivity propriety IntelliBoost chip ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling texting and streaming on the move.
The system features plug-and-play operation for quick and easy setup improving connectivity in any car truck RV or boat within minutes.
Multi Carrier Switching...
CEL-FI ROAM R41 supports carrier switching through the Nextivity WAVE App for iOS and Android devices.
What's included in the bundle...
1x CEL-FI ROAM R41 mobile unit
1x CEL-FI ROAM R41 12VDC CLA power lead
1x Internal Server Antenna with 4M cable SMA male
1x Blackhawk Trucker Edge Compact Black Donor Antenna with 5M cable SMA(M) 680mm long
Documentation
ROAM R41 LED Guide & Error Codes

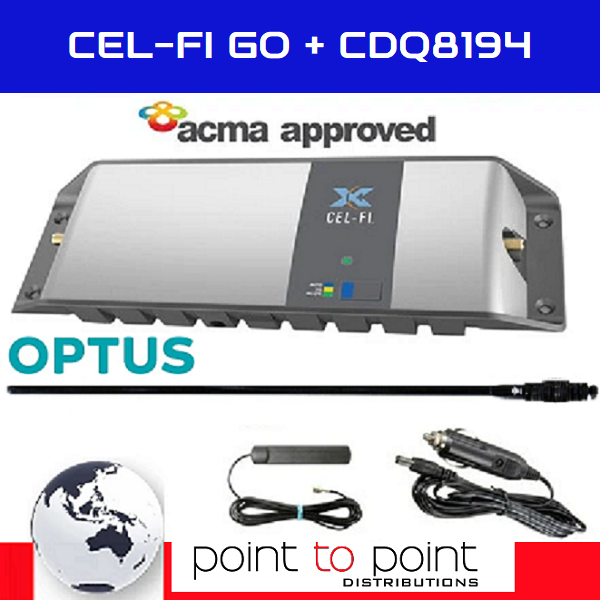

Cel-Fi GO Mobile Optus + RFI CDQ8194-B-SMA (5.5dBi) Black Donor Antenna 735mm + T7-4M-SMA Internal Server Antenna (G31-OM-CDQ4-B)
The Cel-Fi GO Optus Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.
What's included in the bundle...
OPTUS-G31-OM-CDQ4-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ8194-B Black Donor Antenna with 5M cable SMA male 735mm long
CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.
FEATURES:
- 3G / 4G / 4GX Voice and Data
- Multi-User Mobile Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- 12-24VDC
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
3-BAND CEL-FI GO MOBILE
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.
Ge t setup in 5 easy steps
SUPPORTED NETWORKS
Optus Network
IMPORTANT NOTE
Cel-Fi GO will boost a single band at a time (either 3G 900mhz or 4G 700mhz or 4G 1800mhz). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.
SPECIFICATIONS
| Available Frequency Bands (MHz) | Optus Band 3/8/28 |
| Frequency Range | 1800Mhz 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
Warranty: 2 Years
Documentation
Cel-Fi GO Mobile Quick Start Guide
Cel-Fi GO Trouble Shooting Support
View the CDQ 7100 Series Technical Data Sheet
Wave App
Nextivity Wave App - iPhone Android and PC
What's in the Box
OPTUS-G31-OM-CDQ4-B
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CDQ8194-B Black Donor Antenna with 5M cable SMA male
Cel-Fi ROAM R41 5G Repeater Bundle for Caravan | Motorhome | Marine with your choice RFI T5 Paddle Antenna or 6dBi Internal Panel Antenna
Now in Stock - Available for immediate delivery
CEL-FI ROAM R41
Introducing the latest addition in the Nextivity product lineup CEL-FI ROAM R41 a plug-and-play cellular coverage solution with a quick and easy setup designed to keep everyone connected anywhere they are.
CEL-FI ROAM R41 is created to solve any mobile voice and data coverage disruptions ensuring that reliable 3G 4G and 5G connectivity is delivered while on the move.
What to know more about Cel-Fi ROAM R41 - check out the video
ROAM R41 VIDEO
CEL-FI ROAM R41 Works Best with RFI antennas...
The CEL-FI ROAM R41 covers most Frequency bands for the Australian market from 698MHz up to 2700MHz. The RFI 8100 series CDQ8195 is one of the few antennas available that support this whole frequency range.
The CEL-FI ROAM R41 is the next-generation mobile cellular coverage solution that delivers reliable 3G 4G and 5G connectivity inside vehicles and boats.
With the latest Nextivity propriety IntelliBoost chip ROAM R41 offers enterprise-grade performance to solve poor coverage and enable dependable calling texting and streaming on the move.
The system features plug-and-play operation for quick and easy setup improving connectivity in any car truck RV or boat within minutes.
Multi Carrier Switching...
CEL-FI ROAM R41 supports carrier switching through the Nextivity WAVE App for iOS and Android devices.
What's included in the bundle...
R41-MARINE-T5
1x CEL-FI ROAM R41 mobile unit
1x CEL-FI ROAM R41 12VDC CLA power lead
1x MAM-CDQ Fold-Down Antenna Mount with 5Mtr cable
1x RFI CDQ-8195-W-WHIP White Antenna Whip 4G/5G 698-960Mhz 1710-2170Mhz 2300-2700Mhz 3400-3800Mhz
1x RFI T5 Paddle Antenna with 4M cable SMA male covering 4G/5G
OR
R41-MARINE-PAN
1x CEL-FI ROAM R41 mobile unit
1x CEL-FI ROAM R41 12VDC CLA power lead
1x MAM-CDQ Fold-Down Antenna Mount with 5Mtr cable
1x RFI CDQ-8195-W-WHIP White Antenna Whip 4G/5G
1x 6dBi Panel Antenna DAS6938-SDP150-N Panel
1x 9207N-10 Extension cable 10Mtr -SMA Male to N Female
Documentation
ROAM R41 LED Guide & Error Codes
CDQ8100 Series Technical Data Sheet
DAS6938-SDP150-N Product Data Sheet
Wave App
Nextivity Wave App - iPhone Android and PC
Cel-Fi GO Mobile Optus + RFI T7-4M-SMA Internal Server Antenna (G31-3/8/28MK)
The Cel-Fi GO Optus Mobile Smart Signal Repeater the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks vehicles RVs and boats.
What's included in the bundle...
OPTUS-G31-3/8/28MK
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain while unconditionally protecting the operator's network.
FEATURES:
- 3G / 4G / 4GX Voice and Data
- Multi-User Mobile Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- Network Safe
- Configuration for Mobile or Stationary version via Wave app
*Requires external Donor antenna - available separately
3-Band Cel-Fi GO Mobile
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating combined with an industrial design for harsh conditions enables the device to support weather conditions that include water dust and dirt.
Ge t setup in 5 easy steps
SUPPORTED NETWORKS
Optus Network
IMPORTANT NOTE
Cel-Fi GO will boost a single band at a time (either 3G 900mhz or 4G 700mhz or 4G 1800mhz ). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.
SPECIFICATIONS
| Available Frequency Bands (MHz) | Optus Band 3/8/28 |
| Frequency Range | 1800Mhz 900Mhz and 700Mhz |
| RF Gain | 100dB |
| RF Connectors | SMA |
| Power Supply | + 12V CLA adapter |
| Ambient Temp. Range | 0° to 65°C |
| Environment | IP54 |
| Weight (inc. frame) | 600gm |
| Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
| Output Impedance | 50ohms |
| Current Consumption | 15W |
| DC Supply | 9.6 to 28.8 VDC via external supply |
| Case | One piece extruded Aluminium |
| Frequency - Layered Navigation | Multiband |
What's in the Box
OPTUS-G31-3/8/28MK
1x CEL-FI-GO Optus 3/8/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
Also available in these antenna configurations
Cel-Fi GO Mobile Optus + CD7195-B (6.5dBi) Antenna 89cm
Cel-Fi GO Mobile Optus + CDR7195-B (6.5dBi) Antenna 93cm
Cel-Fi GO Mobile Optus + CDQ7195-B (6.5dBi) Antenna 97cm
Documentation
Cel-Fi GO Mobile Quick Start Guide
Cel-Fi GO Trouble Shooting Support
Wave App
Nextivity Wave App - iPhone Android and PC
